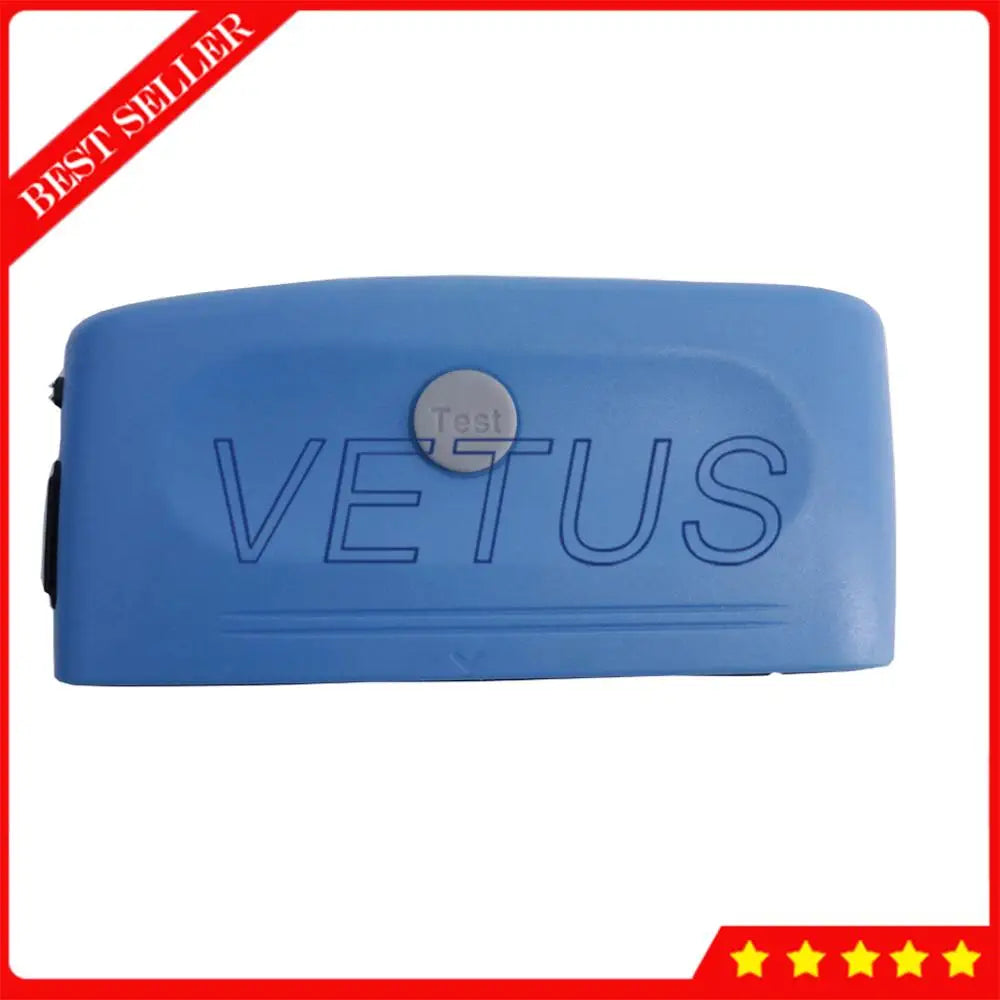

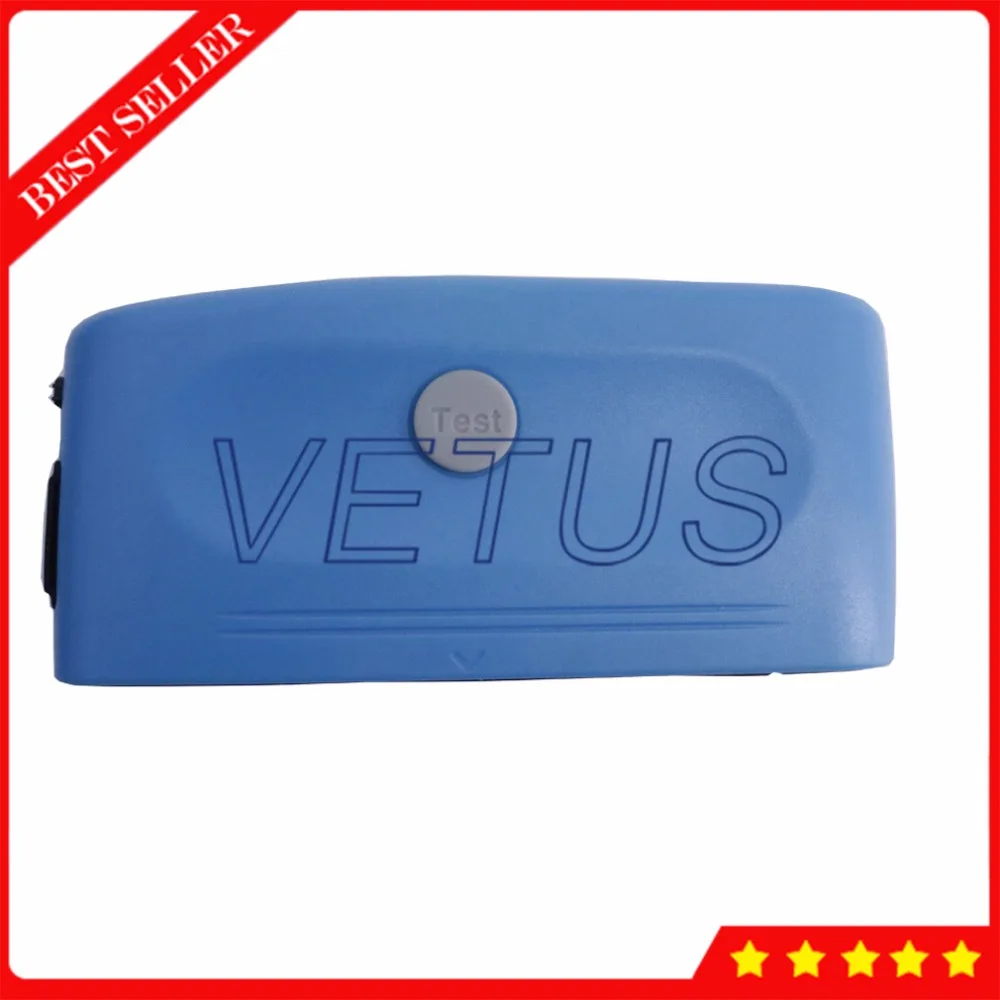

WG68 20 60 85 Three Angle Precision Gloss Meter with Painting Marble Metal Surface Vancometer Tester Measuring Instruments

WG68 20 60 85 Three Angle Precision Gloss Meter with Painting Marble Metal Surface Vancometer Tester Measuring Instruments

Regular price $1,098.50 USD
Regular price $1,352.00 USD Sale price $1,098.50 USD
Sale Sold out
Shipping calculated at checkout.

WG68 20 60 85 Three Angle Precision Gloss Meter with Painting Marble Metal Surface Vancometer Tester Measuring Instruments

 HTB1cXGKNpXXXXXjapXXq6xXFXXXG

Shipping policy : Battery and liquid can not be included during the shipping


Introduction:
WG68 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used coatings, printing ink, paint, paint, wood, marble,   granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and nonmetallic materials to the surface of the mirror gloss measurement, more stable performance, more durable, more comfortable;



Gloss Meter WG68 Function Description:
(1) One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incidenct angle of mirror gloss meter is 20 °, 60 °, 85 ° respectively;
(2) Optional angle mode: choose measuring angle or angle combination according to user needs.
(3) Manually entering standard samples gloss data;

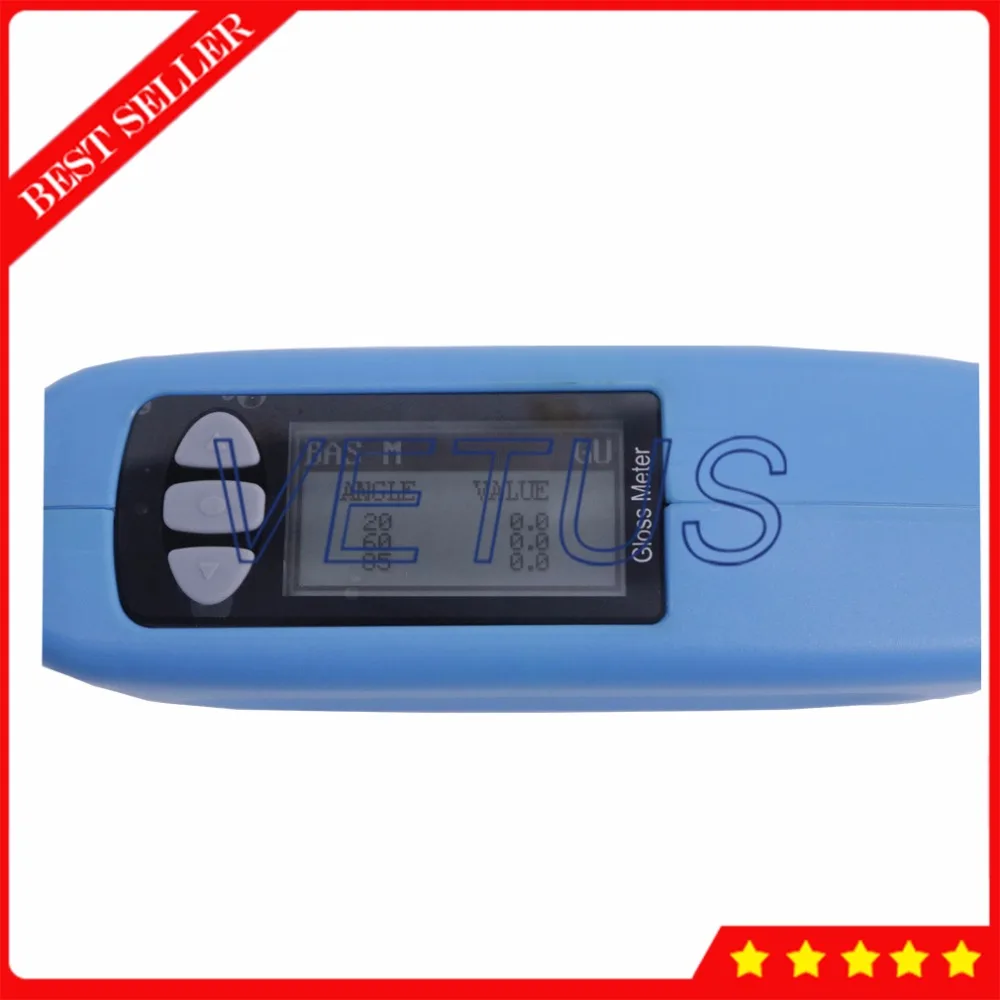

(4) Humanized design, good man-machine communication interface;
(5)Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with 500 testing data;
(6) Data browsing and viewing function;
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;
(8) USB communication interface to communicate with PC;
(9) PC software can be extended more functions.


HTB1WdDhNpXXXXb9XXXXq6xXFXXX9

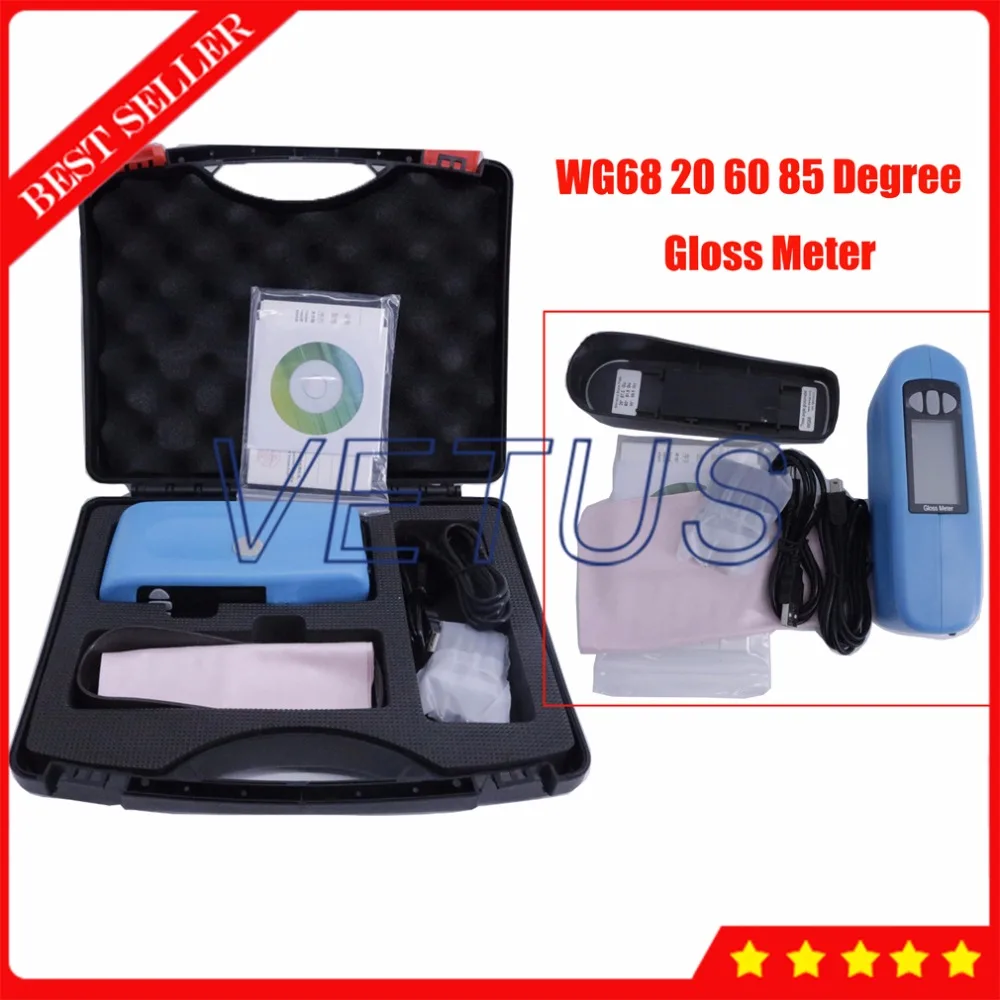

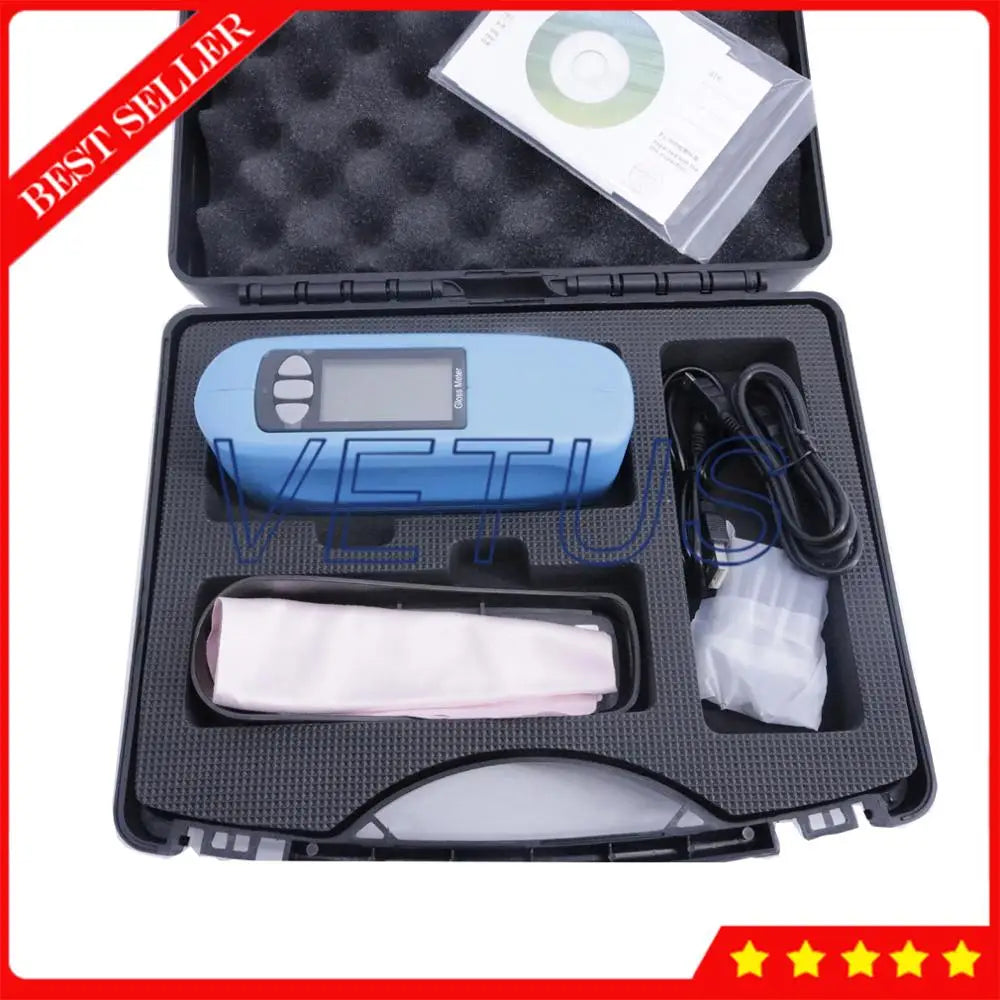

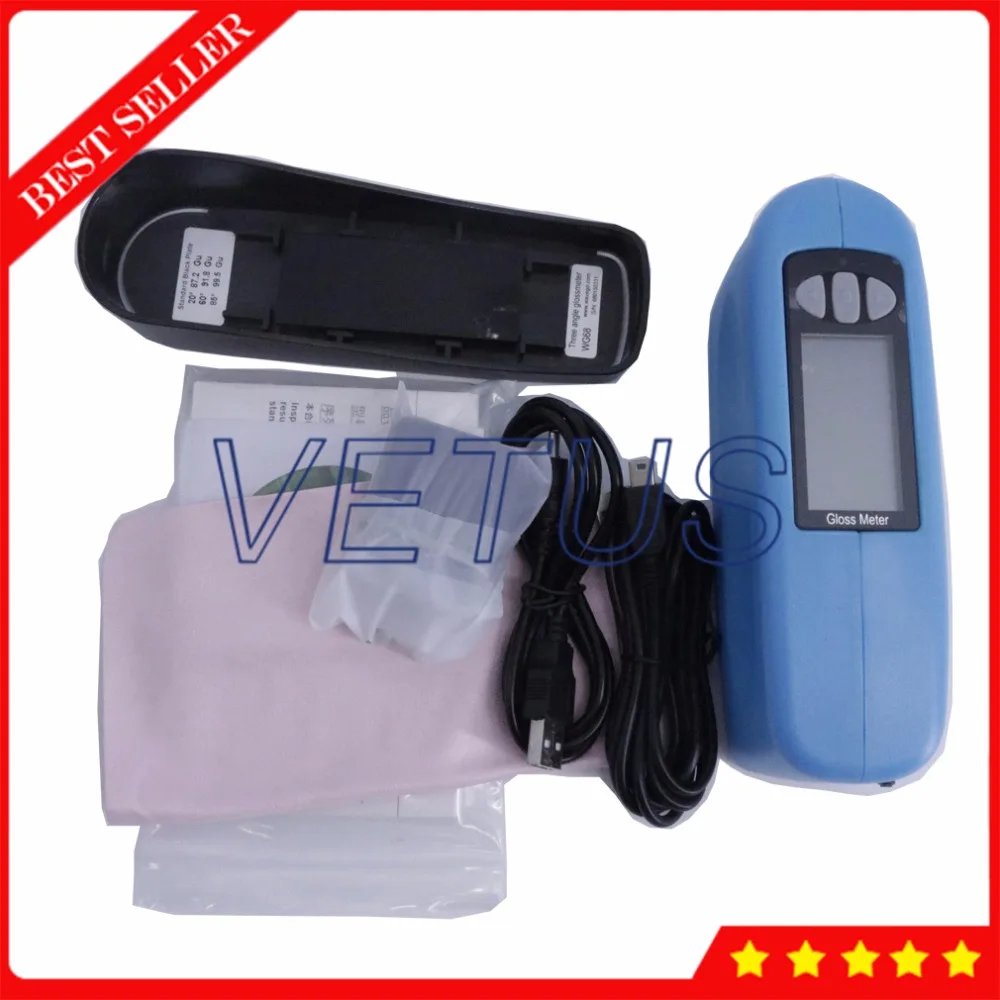

 Attachment Description

 (1) Power adapter: standard + 5V, 2A external power supply;

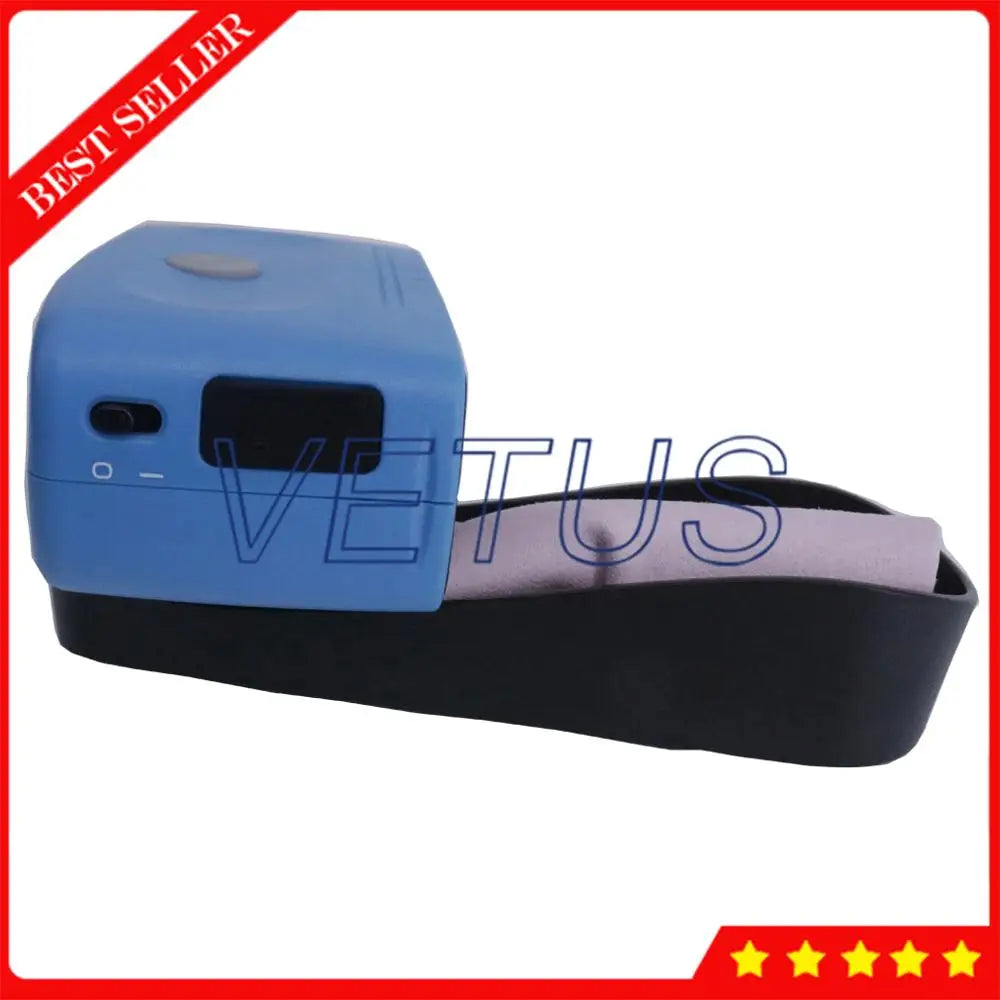

(2) Standard board: provide calibration criterion.

(3) USB cable: connect instrument to PC.

Specification

Unit

Triangle Gloss Meter

Measuring Angle

degree

20° 60° 85°

Measuring Range

GU

20°:0-2000

60°:0-1000

85°:0-160

Measuring Spot

mm

20°: 10x10

60°:9x15

85°:5x18

Measuring Spot

GU

0-1000:0.1  1000-2000:1

Repeatability

GU

0-100:0.2 >100:0.2%

Indication Error

GU

±1.5

Zero Error

GU

0.2

Working Temperature Range

Degree centigrade

10 - 40C

Storage Temperature Range

Degree centigrade

-10 - 70C

Humidity Range



Relative humidity less than 85%,without condensation

Power Adapter



Section 2 5 alkaline batteries/power adapter

Dimension

mm

159*49*72

Weight

g

500



HTB1puy_NpXXXXXQXFXXq6xXFXXXW



HTB1GDi6NpXXXXa1XFXXq6xXFXXXR

19245610

HTB1WkGHNpXXXXbZapXXq6xXFXXXE
