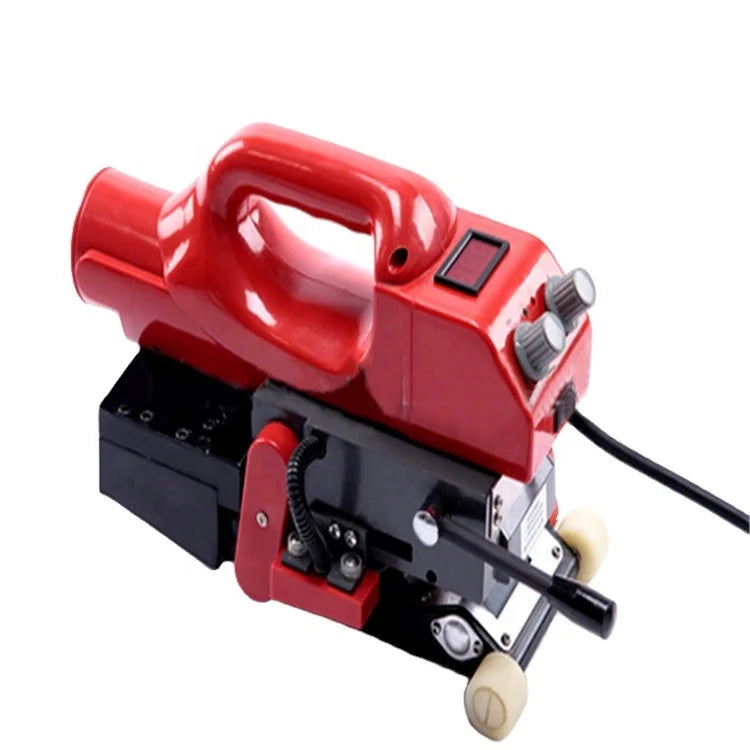

Welding Equipment for Automated Welder HDPE Geomembrane Used in Malawi

Welding Equipment for Automated Welder HDPE Geomembrane Used in Malawi



1.Basic parameter:



Voltage:	220V
Frequency:	50/60Hz
Power:	800W
Welding speed:	0.5˜5m/min
Heating temperature:	0-450°C
Thickness of material:	0.2mm˜1.5mm
Overlap width:	10cm
Welding width:	12.5mm×2, interior cavity 12mm
Seam strength:	≥85% base material (tensile resistant  in shear direction)
Weight:	5kgs
Insulation class:	class II







2.Accessories:

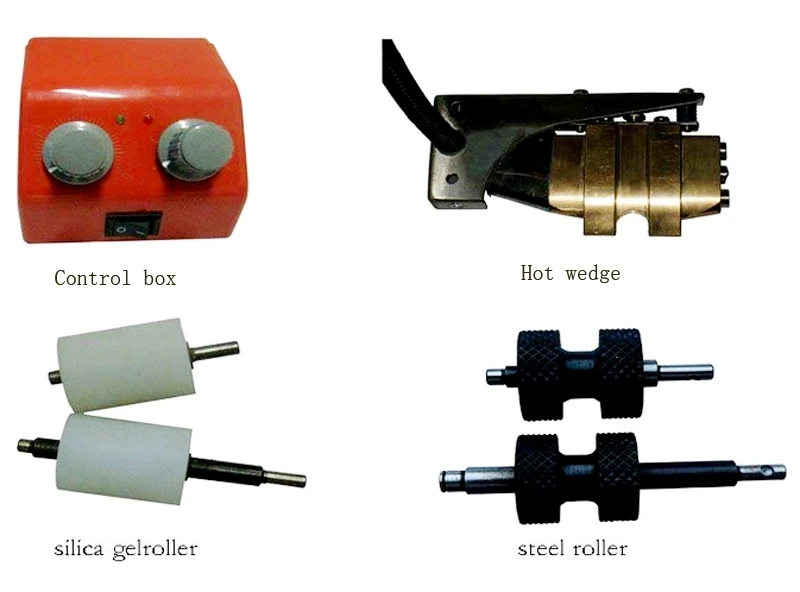

Including control box,hot wedge,silica gel roller,steel roller.



3.Packing:







4..Operation:



5.Application:



Application covers refuse landfill anti-seepage project, sewage disposal anti-seepage project,



lake anti-seepage project, water conservancy anti-seepage project, tunnel anti-seepage project,



minerals place anti-seepage project, cultivation pond anti-seepage project, roofing waterproofing



 project etc.







Readiness of working:



• Fit appropriate nozzle as required
• Connect tool to the line/mains
• Adjust air temperature
• Switch on main switch and heat up the tool for approximately 5 minutes.



Changeable nozzles:



• Do not touch the hot nozzle and make sure to place it on a heat resistant surface because of the fire hazard..
• Put the nozzle on the heater tube and secure the nozzle by the screw on the cap.
• Use nozzles only.



Maintenance:



• Clean polluted air filter with a small brush or replace it
• Clean welding nozzle with a steel brush.
• Check mains cable and plug for electrical and mechanical damage.



Service and repairs:



• The motor switches off automatically when the brush reach their minimum length. Have the tool checked by your service center. The life of the brushes is about 800 hours.
• Repairs should be carried out by authorized service centers only. They guarantee a specialized and reliable service.
• Sorry for not special notice in advance if there would be changes on parameters.

Warning



• Unplug the tools before opening it.
• Incorrect use of hot-air blowers can cause fire and explosion hazardous especially near combustible materials and explosive gases
• Do not touch heater tube and nozzle when they are hot. They may cause burns. Do not point hot air flow in the direction of people or animals.

Caution:

• The voltage rating stated on the tool must correspond to line/mains voltage.
• For personal protecting on the building site, we strongly recommend the tool be connected to a GFCI(Ground Fault Circuit Interrupter)or a RCCB (Residual Current Circuit Breaker)
• The tool much be operated with supervision. Heat can reach combustible materials which are out of sight.
