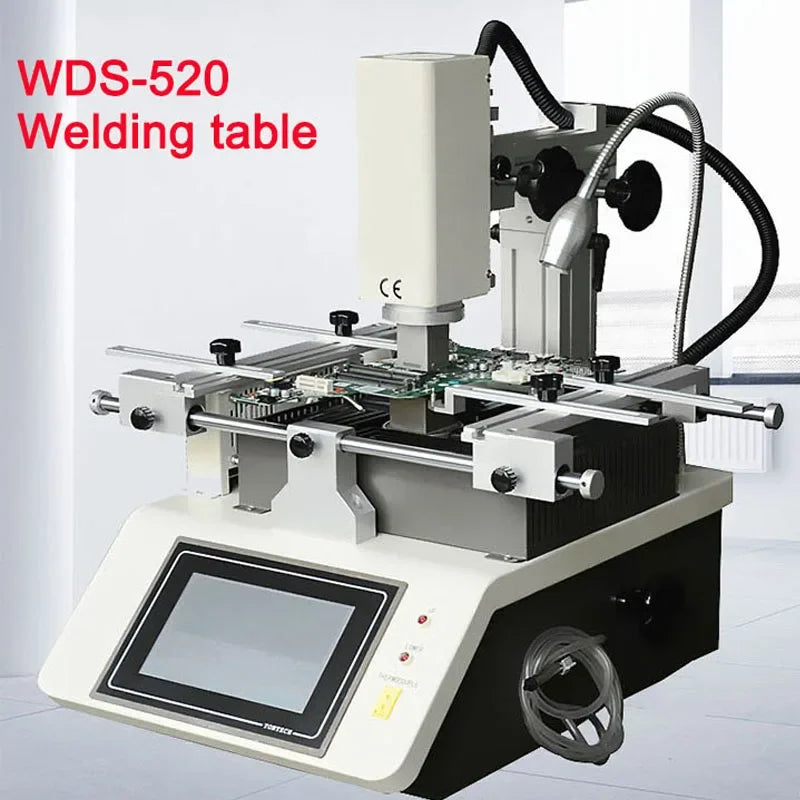

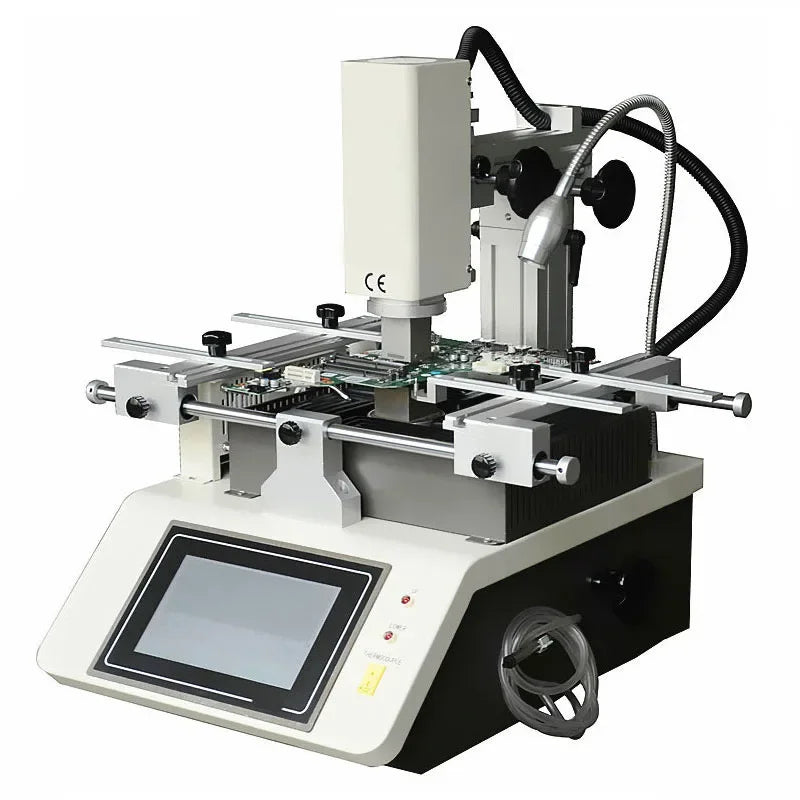

WDS-520 BGA Rework Station SMT Hot Air Infrared Soldering Repair Tools 3 Temperature Area Touch Screen IC Chip Welding Equipment

WDS-520 BGA Rework Station SMT Hot Air Infrared Soldering Repair Tools 3 Temperature Area Touch Screen IC Chip Welding Equipment

Item Description

Name: Welding table

Model number: WDS-520

Voltage: 220V/110V   50/60HZ

Packing weight: 55KG

Package size: 60*62*73CM

Power: 3800W

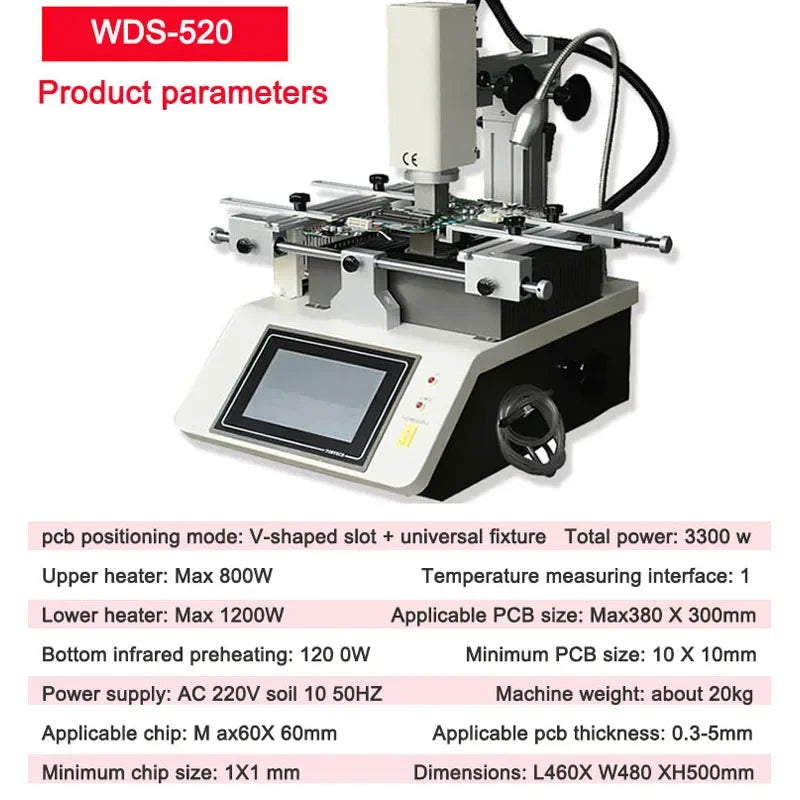

Technical parameters of WDS-520 repair table:

Power supply :AC220v/110±10%,50/60hz

Heater power:

Upper hot air heating, maximum 800W

Lower hot air heating, maximum 1200W

Bottom infrared preheat, Max 1200w

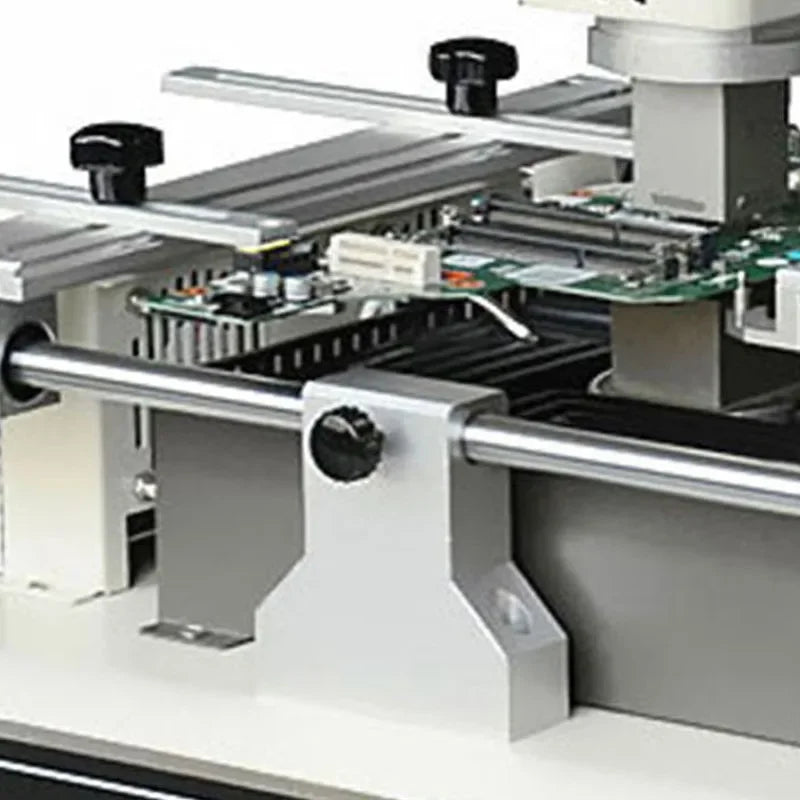

pcb positioning mode: V-shaped slot + universal fixture

Temperature control mode: high precision K thermocouple closed-loop control, up and down independent temperature measurement, temperature accuracy up to plus or minus 2 degrees;

Electrical material selection: highly sensitive touch screen + temperature control module +microcontrollers

Applicable PCB size :Max380×300mm Min 10× 10mm

Applicable chip size :Max60×60mm Min 1× 1mm

Applicable pcb thickness :0.3-5mm

Temperature measuring interface :1

Dimensions :L460×W480×H500mm

Machine weight: about 20kg

About this item

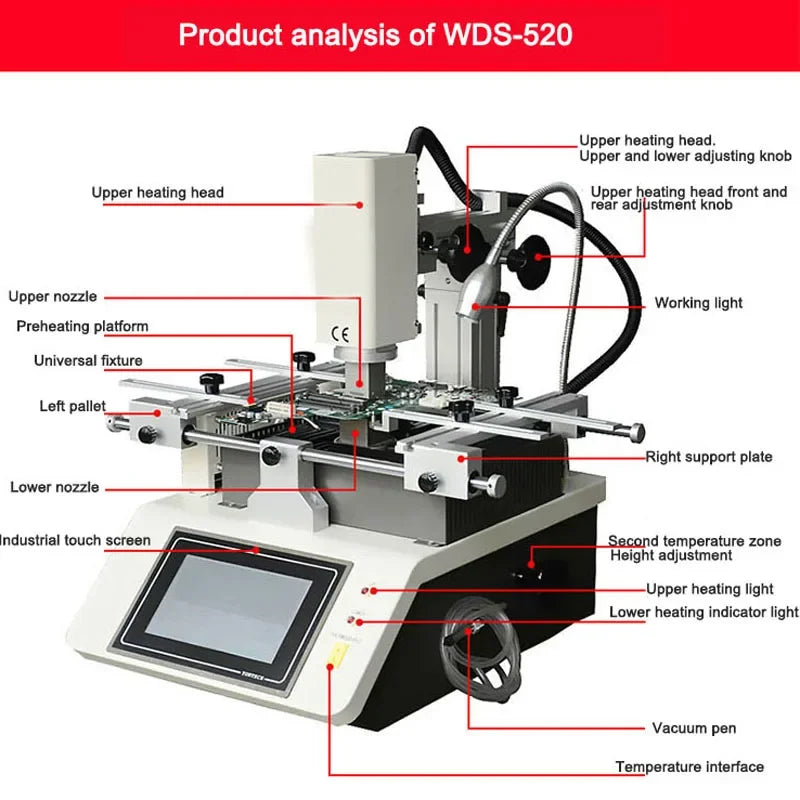

Features of WDS-520 repair Platform:

Ø The machine adopts HD industrial touch screen. When working, the temperature will reflect the data to the touch screen in the form of curve display, with curve analysis, curve modification and other functions;

Ø It can store hundreds of groups of user temperature curve data. With laser positioning light, can quickly locate the chip repair position, with high positioning accuracy and quick operation;

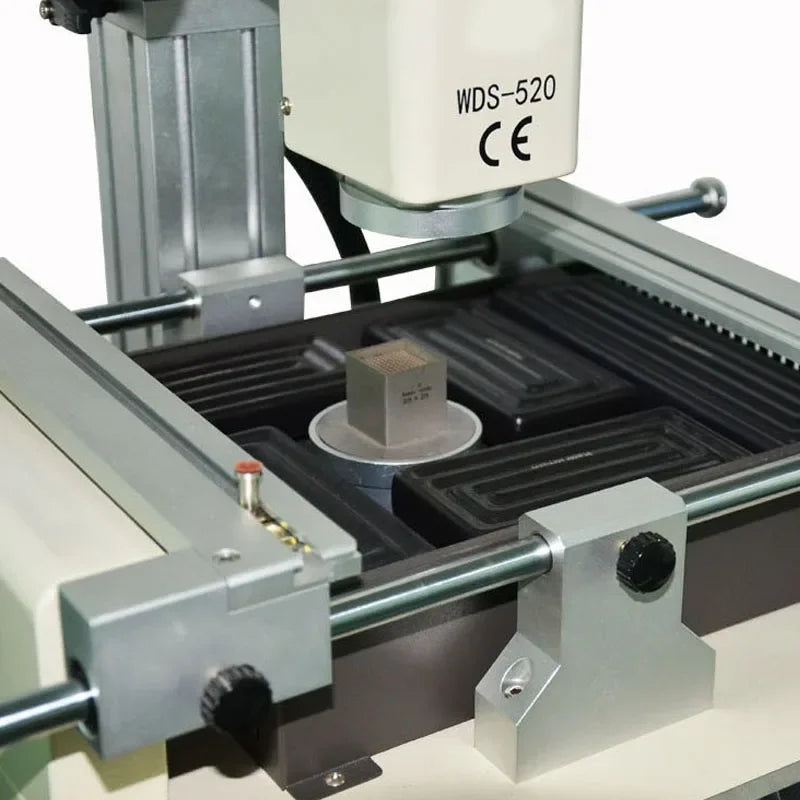

Ø Three temperature area independent heating control, upper and lower temperature area hot air heating, the bottom temperature area infrared heating, temperature accurate control of ±2 degrees, the upper temperature area can move up and down. Up to nine temperature controls can be set simultaneously in the upper and lower heating zones. The output power of IR preheating zone can be adjusted according to actual requirements.

Ø The heating nozzle can be rotated 360°, which makes it easier to meet different chip positions. The machine adopts high precision K-type thermocouple closed-loop control, external temperature measuring interface to achieve precise temperature detection;

Ø Built-in vacuum pen, lighting, cross-flow fan, laser lamp and other auxiliary functions; The machine has advance alarm function, intelligent air volume adjustment software, relative to the traditional adjustment knob control more stable and convenient;

Ø The machine has passed CE certification, abnormal accident automatic power off protection device. When the temperature is out of control, the circuit can automatically power off, with double overtemperature protection function;
