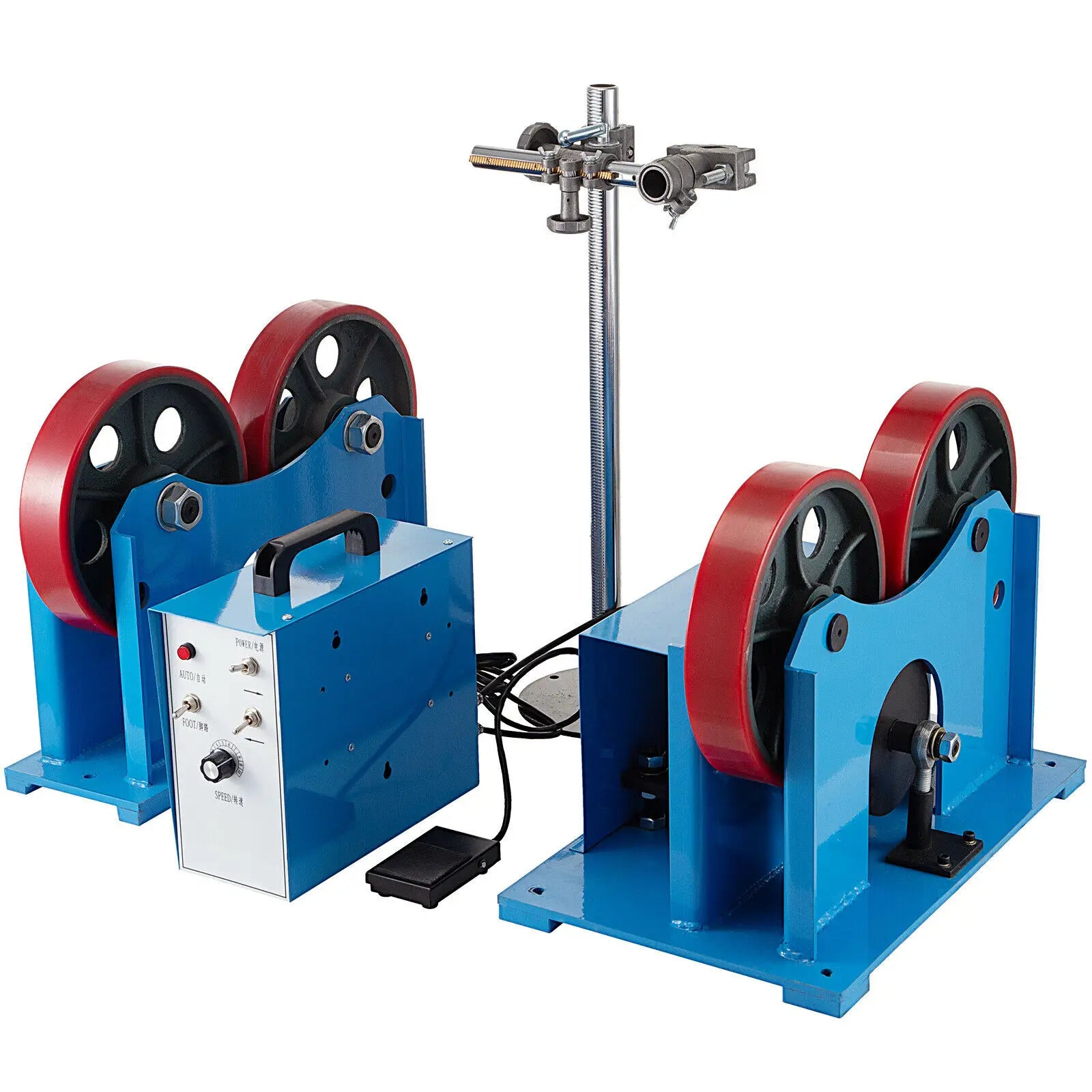

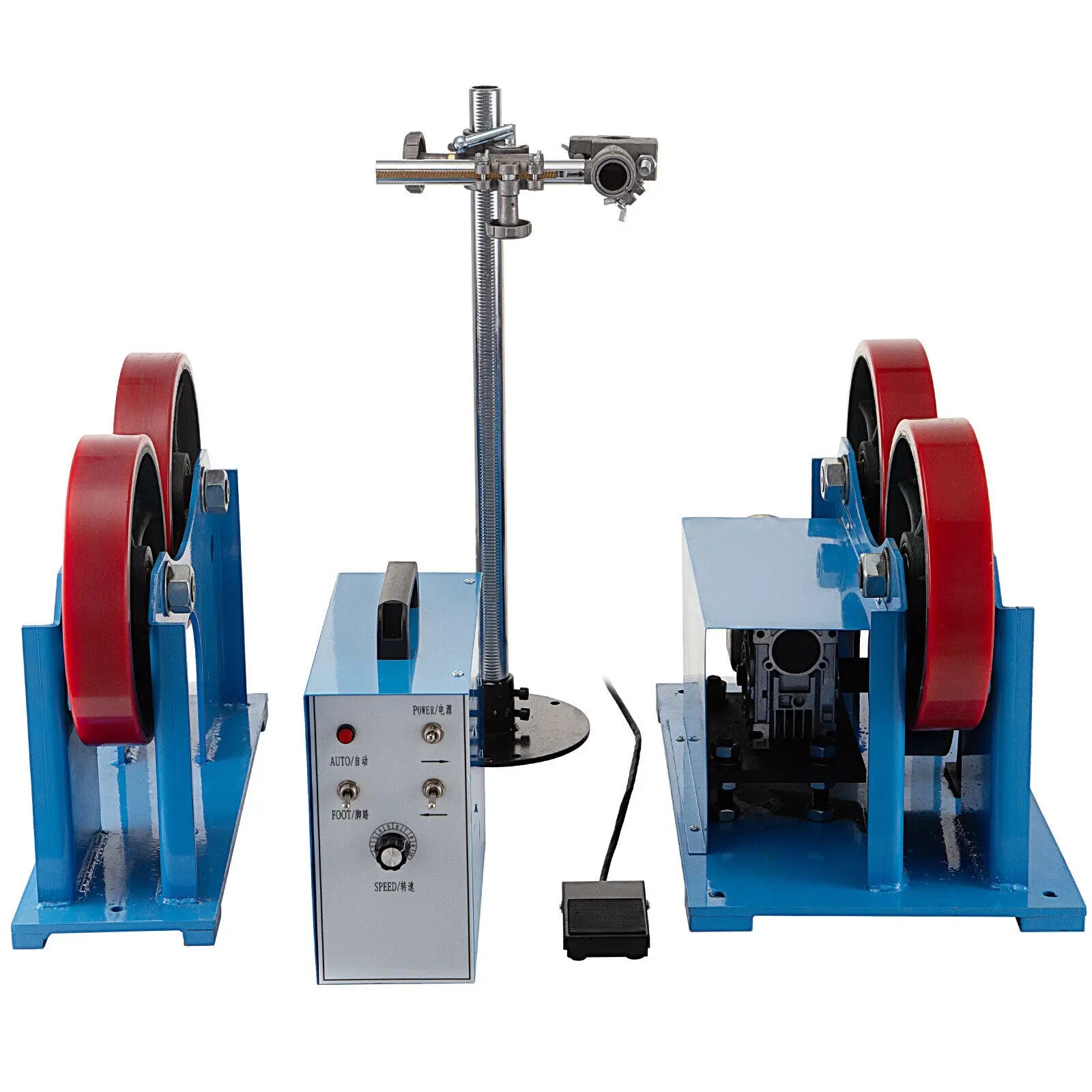

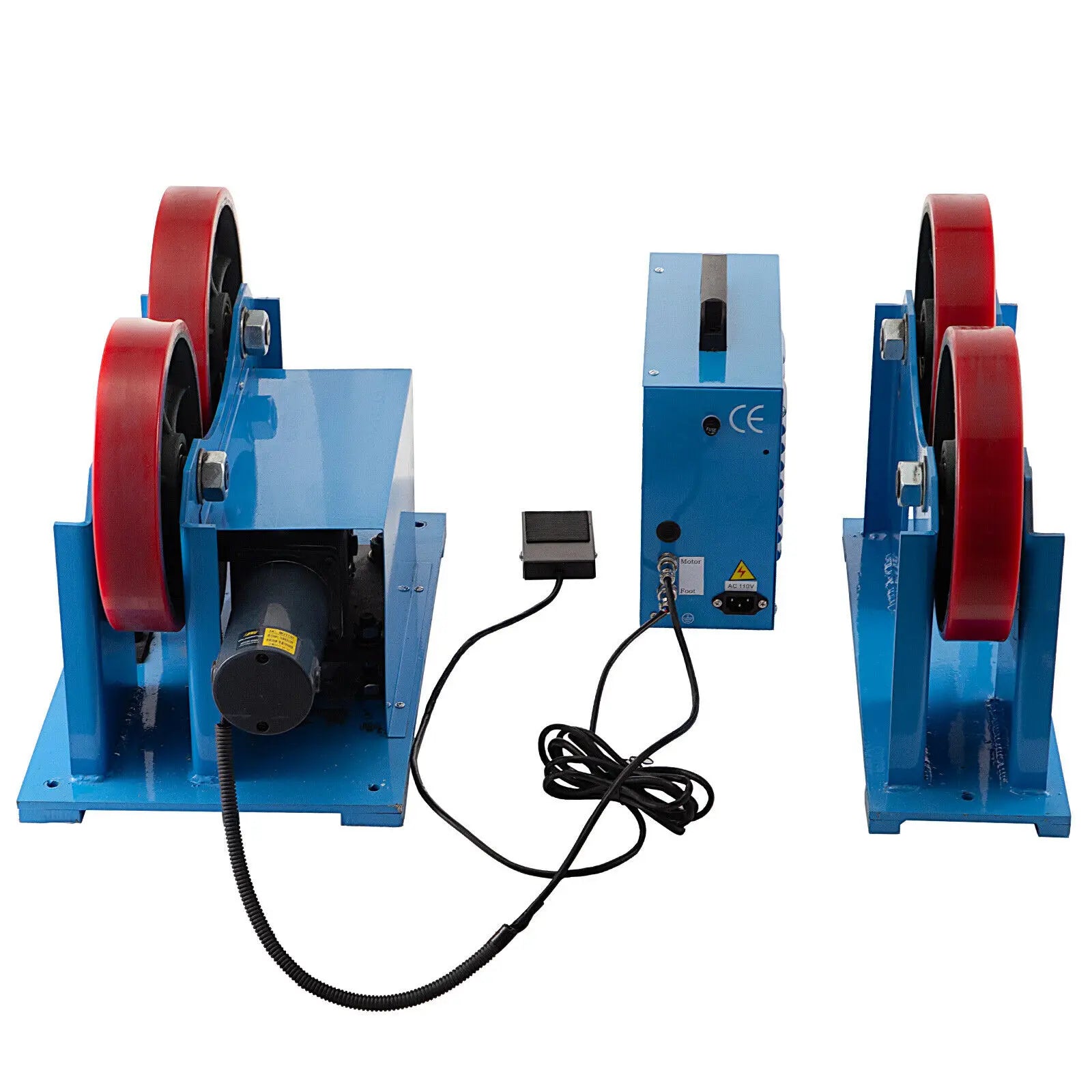

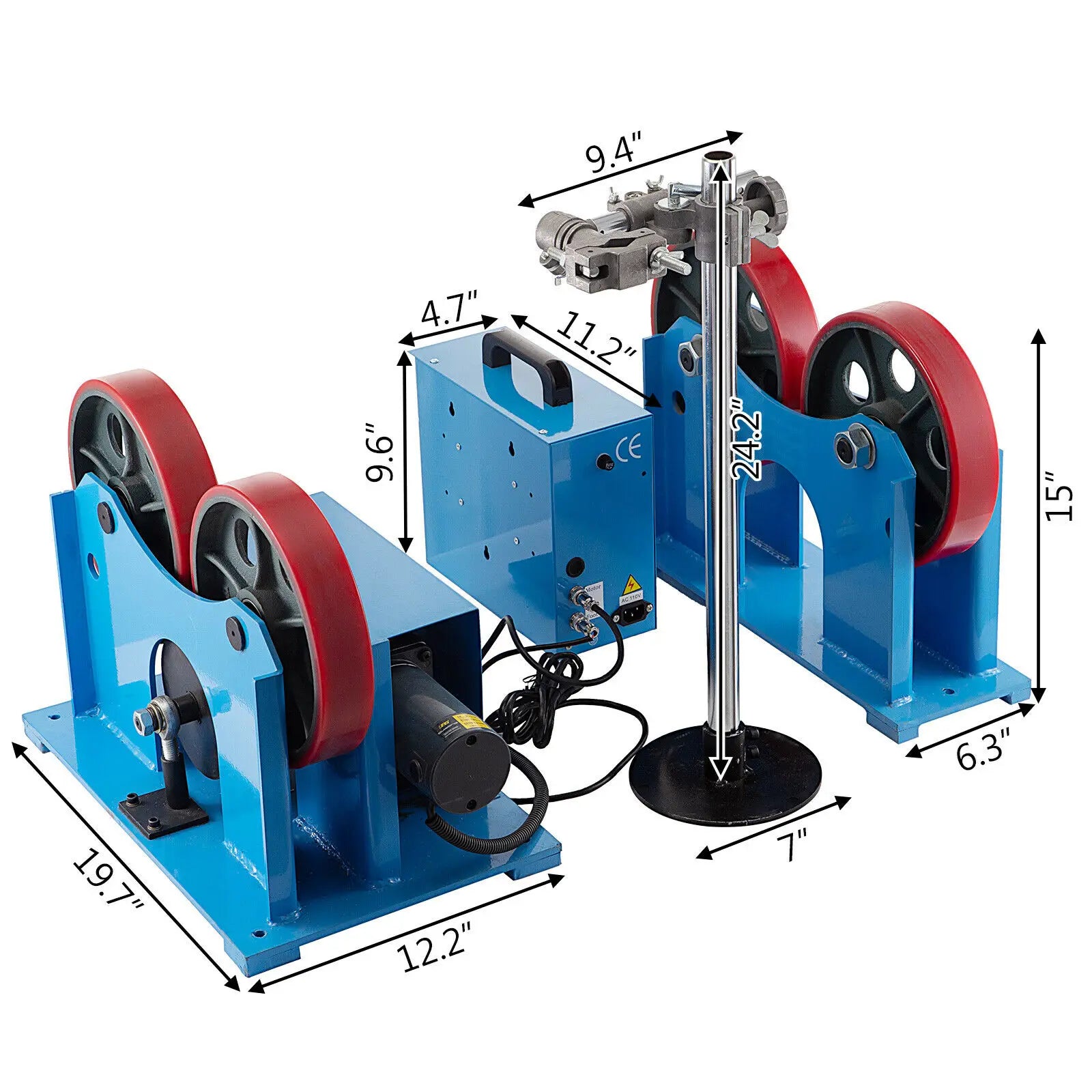

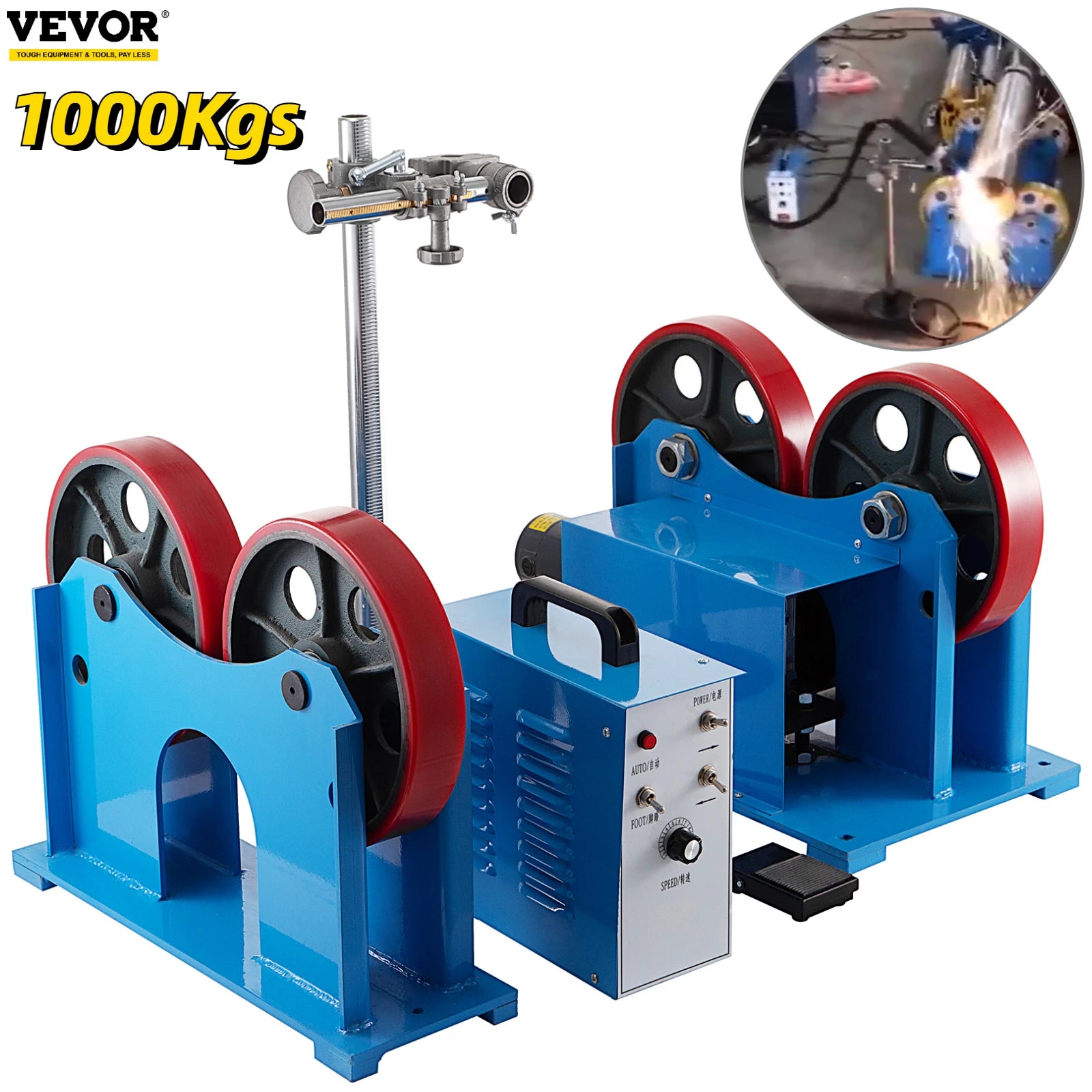

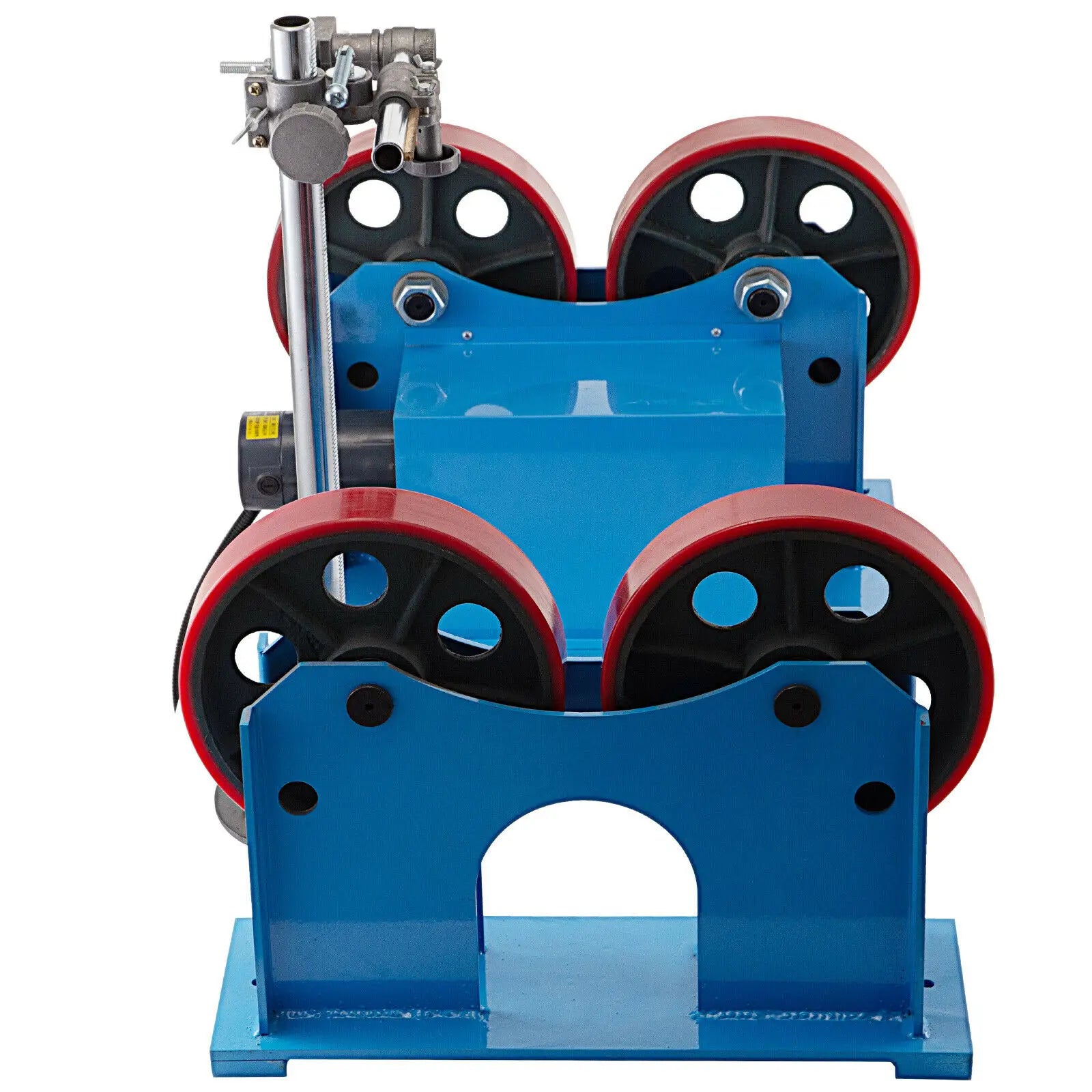

VEVOR Welding Turning Roll Weld Positioner 1T Welding Support 50x200mm Load Capacity Welder Rotator F Welding Equipment Support

2200LBS Welding Roller Rack

We can offer you a professional welding assistant equipment that is powerful and suitable for the pipes you are welding from 20-700mm in diameter. The robust motor can offer you a large driving force, a stable and reliable running, and we promise the operation is quite easy.

Powerful Motor
Adjustable Roller
Smooth Running
Box Operation/Foot Switch

Specifications

Working Voltage: AC 220V 50Hz
Load Capacity: 1000KG/2200LB
Speed Range: 0-2000 r/min
Diameter Range: 20～700 mm
Roller Type: 50mm × 200mm
Net Weight (Active/Driven): 65KG
Operation Method Control: box operation / pedal switch

Package Content

• 1 x Connected Welding Roller Rack

• 1 x Foot Switch

• 1 x Control Box

• 1 x Welding Torch Rack

Package Content

1 x Connected Welding Roller Rack
1 x Foot Switch
1 x Control Box
1 x Welding Torch Rack

Features & Details

【POWERFUL PERFORMANCE】- The motor power is 600w, and load capacity is 1Ton (2200lbs). Applicable diameter range of pipes is from 20 mm to 700 mm (0.79 - 27.56 inches).
【STURDY CONSTRUCTION】- The pipe welding machine has rugged construction for high load capacity. The material of wheels is PU that promises a long lifespan.
【SMOOTH RUNNING】- The robust motor offers you a large driving force, a stable and reliable operation. There is no shock during startup.
【EASY TO USE】- There are a control box and a pedal pump for speed control. And they can save you a lot of time and energy because you can control the machine with several easy steps.
【WIDELY USED】- The pipe welding turning roller can be matched to a welding operation machine and submerged arc welding machine, etc. The machine mainly applied to pipeline welding including inside and outside the pipe.
