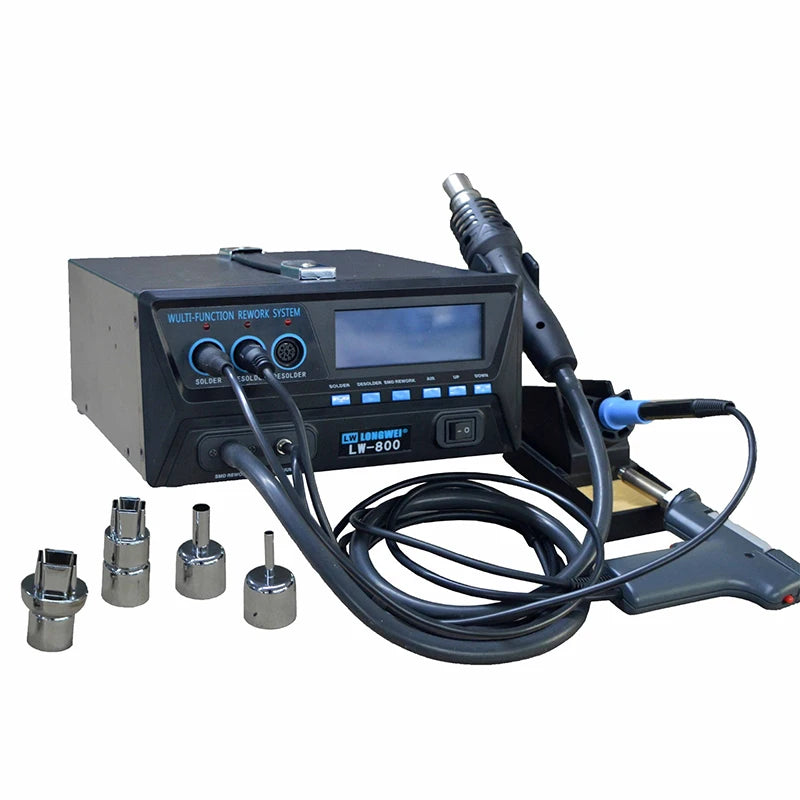

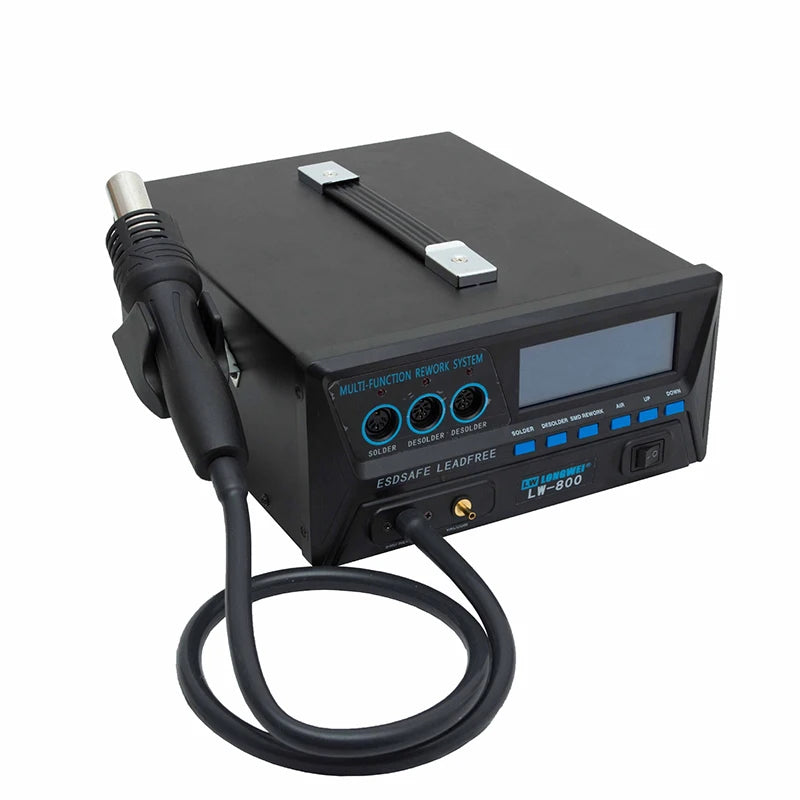

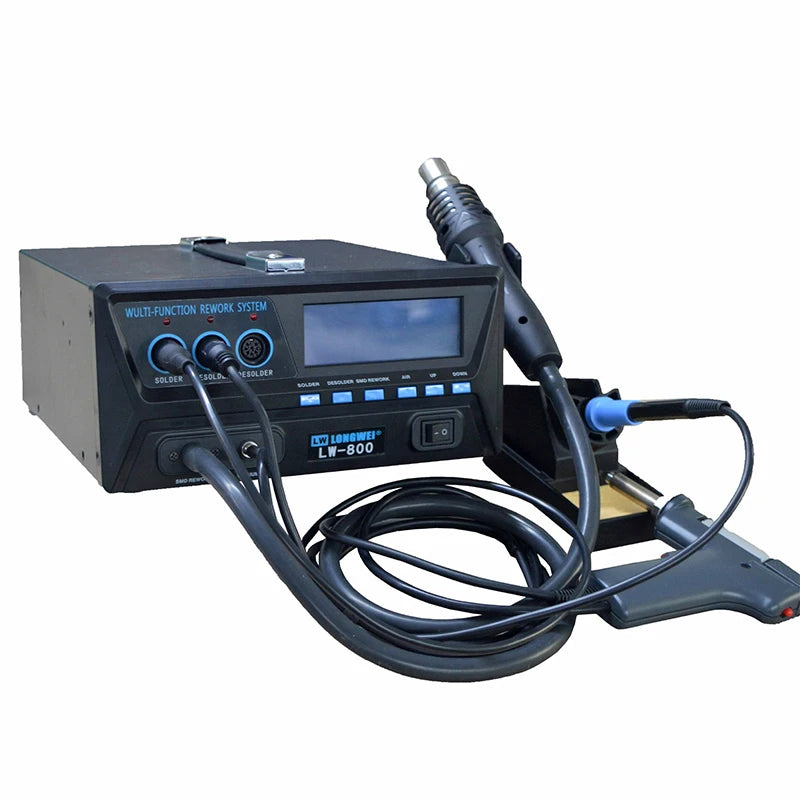

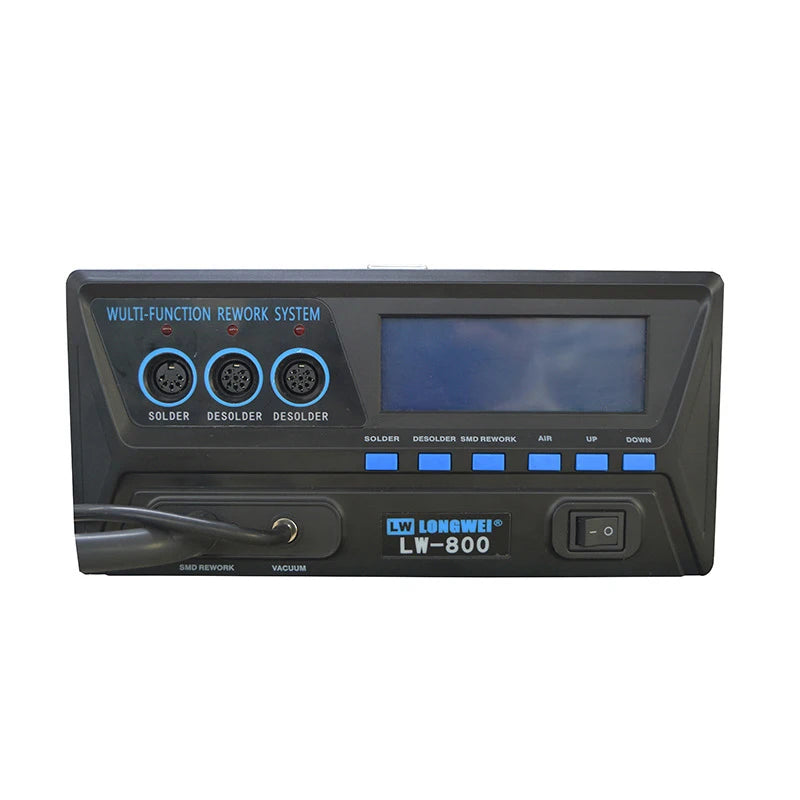

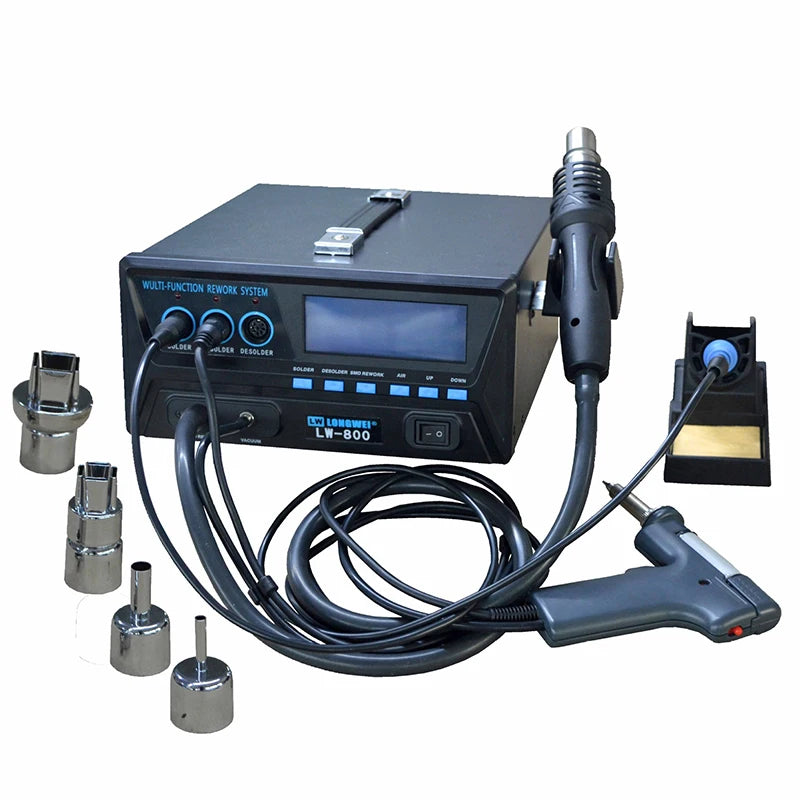

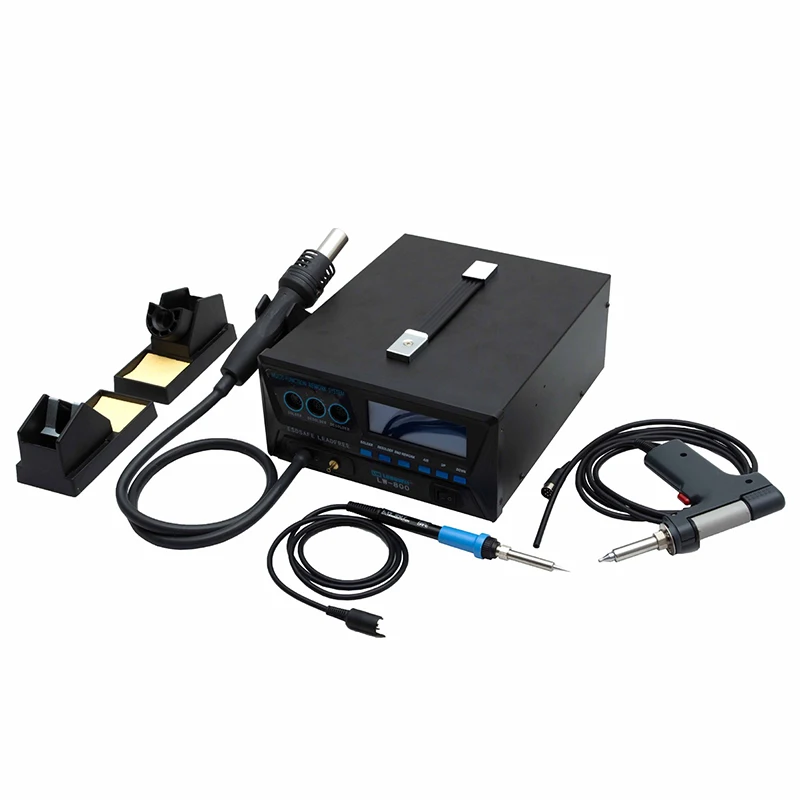

USB 3 in 1 powerful other welding table equipment smd Hot Air Gun SMD hot air solder bga rework Soldering station

USB 3 in 1 powerful other welding table equipment smd Hot Air Gun SMD hot air solder bga rework Soldering station

$629.15 USD
$786.43 USD $629.15 USD
Sale Sold out
Shipping calculated at checkout.

USB 3 in 1 powerful other welding table equipment smd Hot Air Gun SMD hot air solder bga rework Soldering station

Scope of application
1 Industrial production for electronic product assembly 2 Scientific research department for product development 3 Electricians of various enterprises and institutions conduct soldering operations 4 Teaching practice 5 Maintenance industry for electronic product overhaul 6 monad tech hobbyists for electronics assembly
Features: 1 Adopt high-precision MCU control, synchronously detect 3 tool channels, can be used independently, operate synchronously, and do not interfere with each other. 2 Using high-definition LCD with backlight large LCD screen, visual process control, easy for users to operate. 3. The software automatically calibrates the temperature, which is more accurate and more comprehensive. 4 with fault display alarm function. 5 The product has functions such as hibernation, buzzer sound, temperature lock, and factory reset. Welding station: 1 The soldering station is made of silver alloy thermal conductive material, heat conduction method, extremely high temperature return speed, it only takes 10 seconds to start the machine from room temperature to 350 °C. 2 The soldering iron head and the heating core are designed separately, which saves the cost of use. 3 The sensor is in front, with high temperature control accuracy and good temperature stability. 4 Welded handles are lightweight and comfortable to use. Soldering station: 1 The heating core of the soldering station adopts 36VAC low-voltage power supply and the main power supply is isolated by transformer, which is safe and reliable. 2 Built-in vacuum pump, strong suction. Hot air desoldering station: 1 Intelligent cooling system, which can automatically delay air supply when shutting down, greatly extending the service life of the heating core and handle. 2 The use of spiral heating core, the service life is longer. 3 The handle parts of the hot air gun are redesigned, the air volume blown out is more uniform, and it is not easy to be damaged, which is convenient for maintenance and storage and transportation.
Specification
Machine power
800W（Max）
Noise
<52Db(A)
Working temperature
0℃~40℃
Type：(3 in 1 )

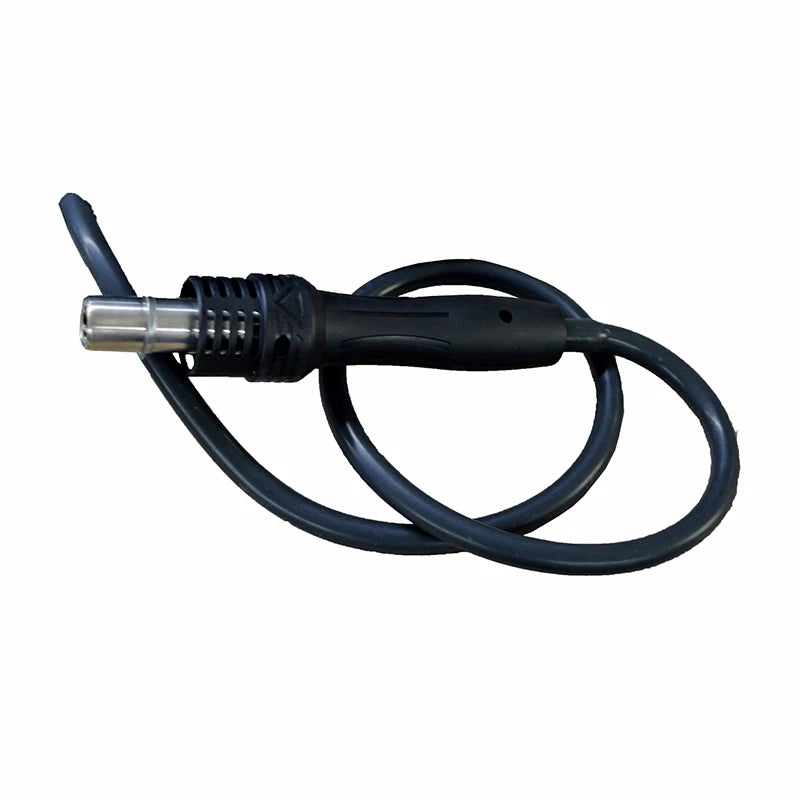

Hot Air Gun
Soldering Iron
Suction tin
Watt
550w
90w
90w
Temperature range
100℃~500℃
100℃~500℃
300℃~500℃
School tem range
±50℃
±50℃
±50℃
Temperature stability
±5℃
±2℃
±2℃
Heater voltage
--
24VAC
--
Tip over the ground impedance
--
<2Ω
--
Tip of reactance
--
<2mV
--
Suction nozzle ground impedance
--
--
<2Ω
Suction nozzle reactance
--
--
<2mV
Vacuum pressure
--
--
600mmHg
Tin suction pump
--
--
diaphragm
Max air flow
23L/min
--
--
Air gear
020~99gear
--
--
Air supply type
Diaphragm chamber air pump
--
--
Dormancy
--
1-99min can be set
1-99min
Packing size&N.W.
48.5×39.3×26（cm）/11KG
Packing list
1machine+1hot air gun+1soldering iron+1suction tin+4round nozzles+user manual+power line
Product Description
FAQ
Q1: What's the MOQ? Re: The MOQ of machinery is 1 set. Q2: What's delivery time? Re: The general delivery time is 3~5 days after order confirmed, it depends on the order quantity. Q3: Can you send the video to show how the machine works? Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video. Q4: What's your payment terms? Re: 100% before shipment. Q5: What's the payment method? Re: We accept T/T and L/C payment.
