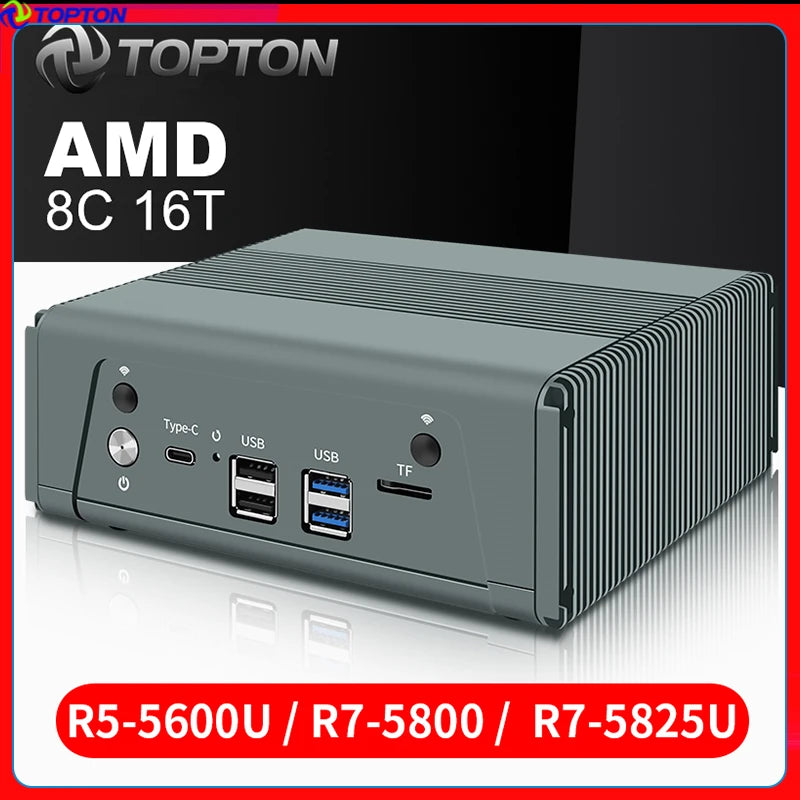

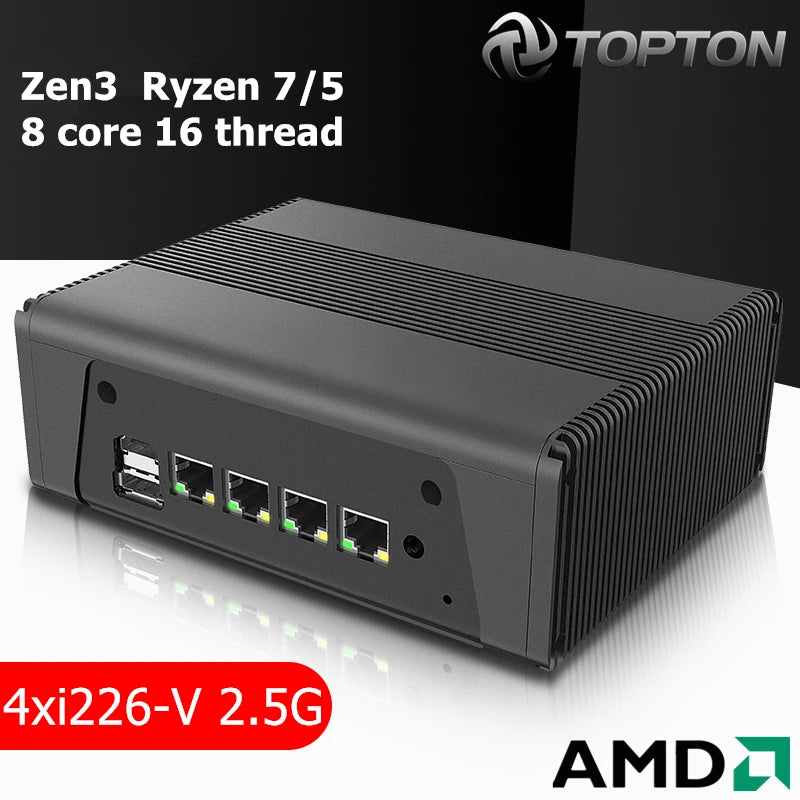

Topton AMD Mini PC Ryzen 7 5825U 5800U 4x Intel i226-V 2.5G Soft Router NAS Server Firewall Appliance 3*NVMe 2*SATA 3x4K UHD

Topton AMD Mini PC Ryzen 7 5825U 5800U 4x Intel i226-V 2.5G Soft Router NAS Server Firewall Appliance 3*NVMe 2*SATA 3x4K UHD

$399.13 USD
$491.23 USD $399.13 USD
Sale Sold out
Shipping calculated at checkout.

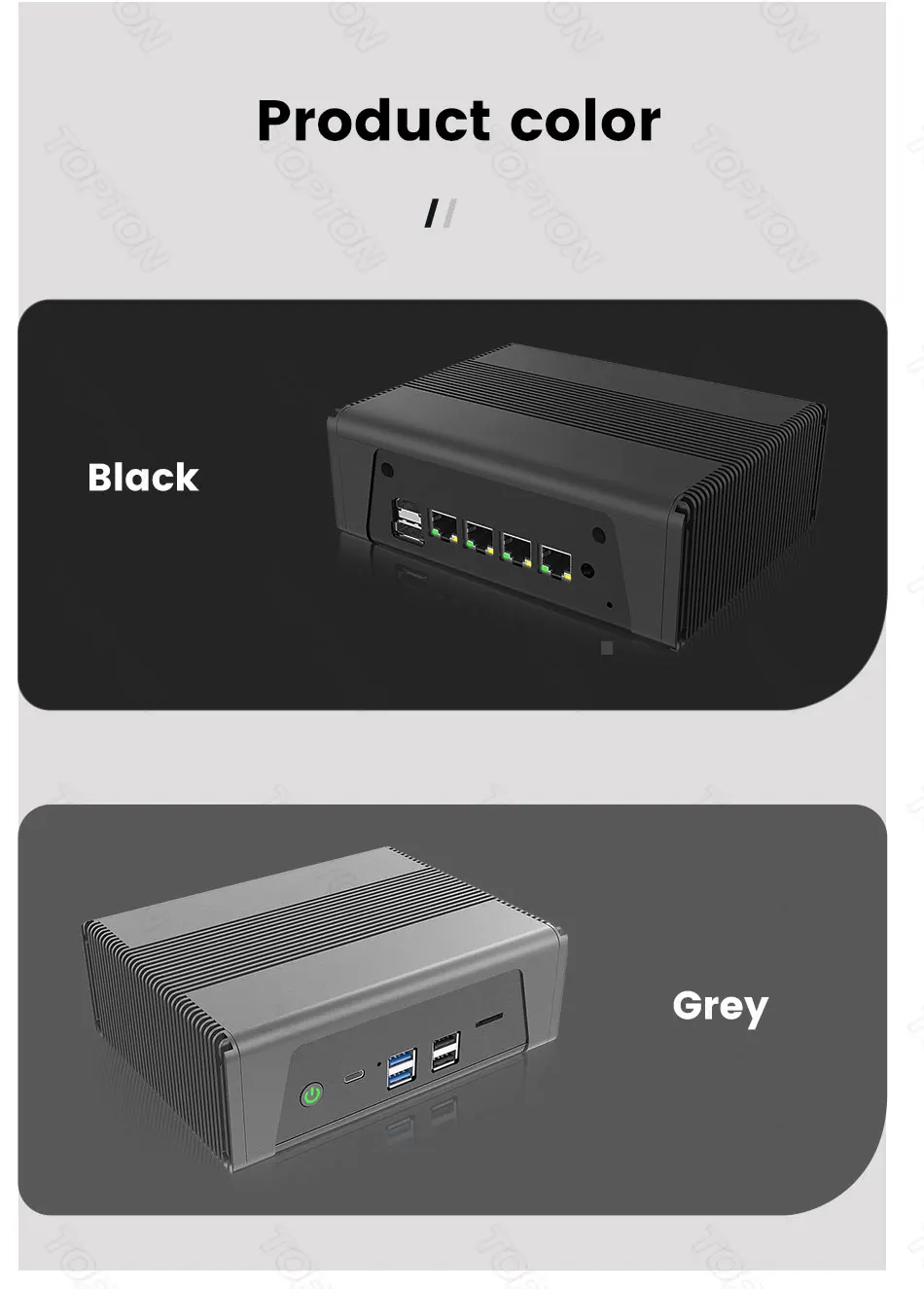

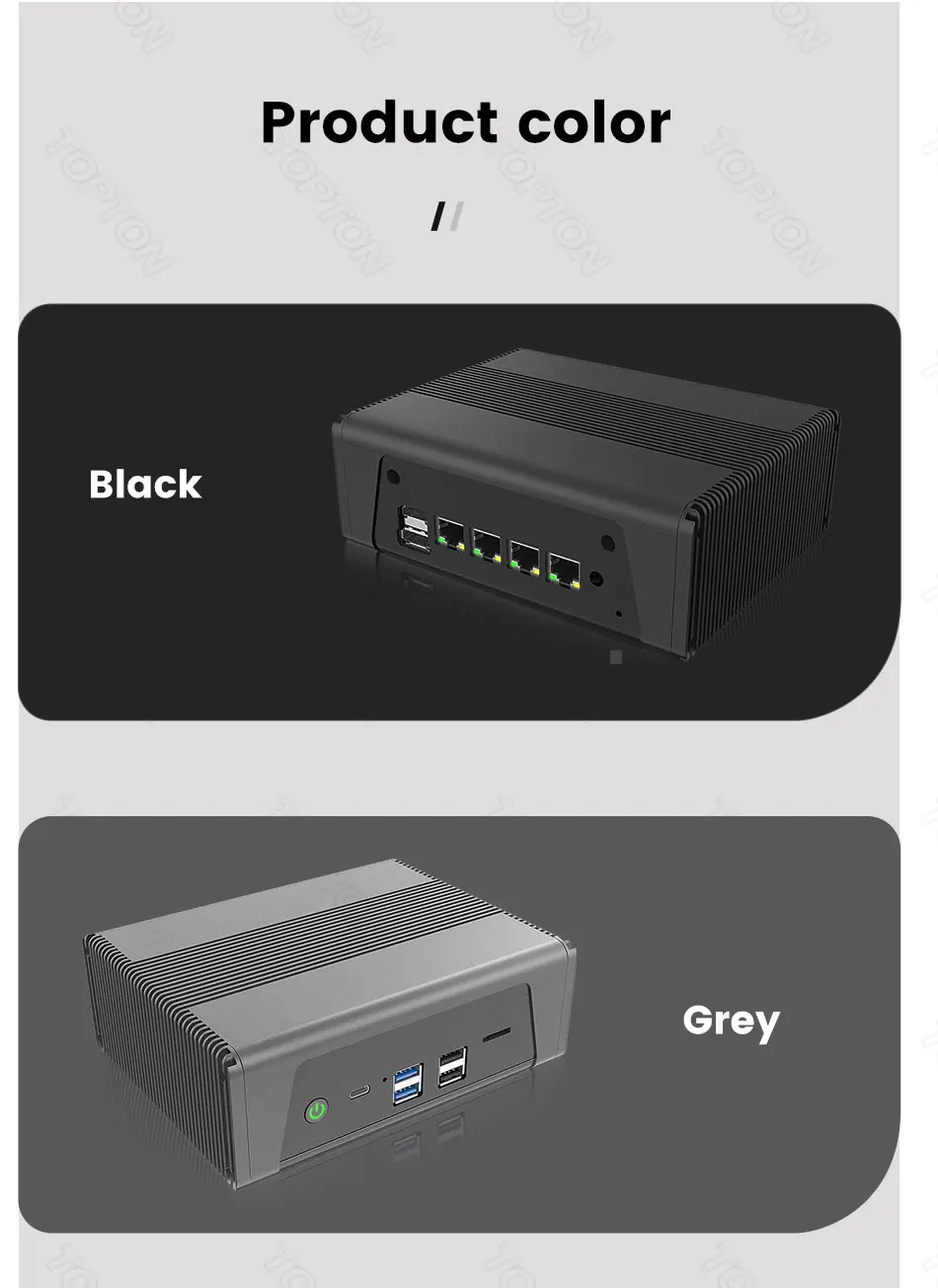

color
Bundle

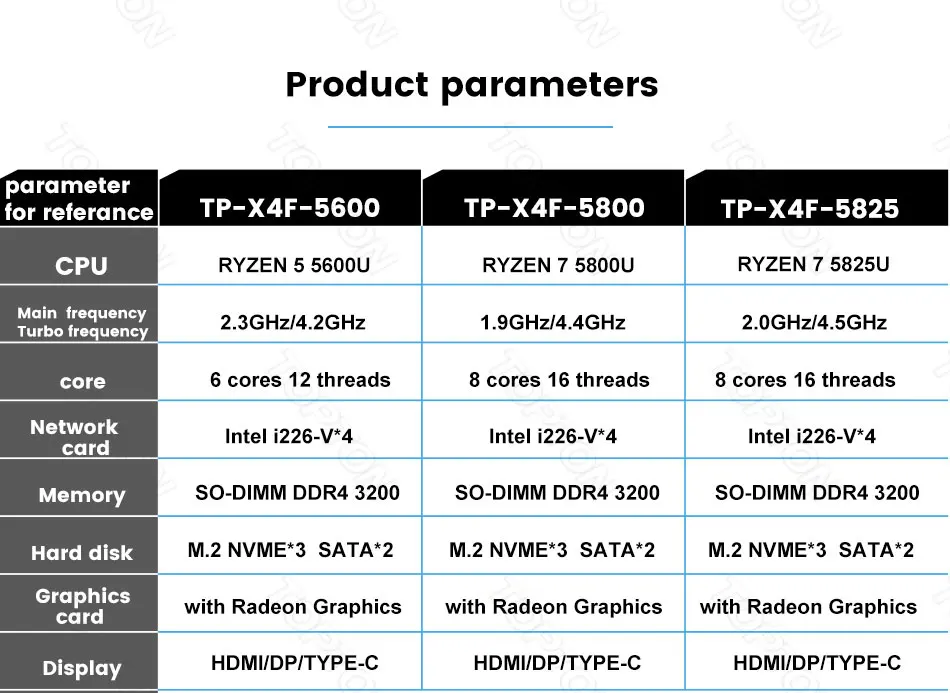

Processor parameter for referance only

Processors

Cores & Threads

L3 Cache

Base Frequency

Max Turbo Frequency

TDP

Graphics

Ryzen 5 5500U

6 cores, 12 threads

8M

2.10 GHz

4.00 GHz

15W

AMD Radeon Graphics 7 Core 1800MHz

Ryzen 5 5600U

6 cores, 12 threads

16M

2.30 GHz

4.20 GHz

15W

AMD Radeon Graphics 7 Core 1800MHz

Ryzen 7 5800U

8 cores, 16 threads

16M

1.90 GHz

4.40 GHz

15W

AMD Radeon Graphics 8 Core 2000MHz

Ryzen 7 5825U

8 cores, 16 threads

16M

2.00 GHz

4.50 GHz

15W

AMD Radeon Graphics 8 Core 2000MHz

Product Highlight

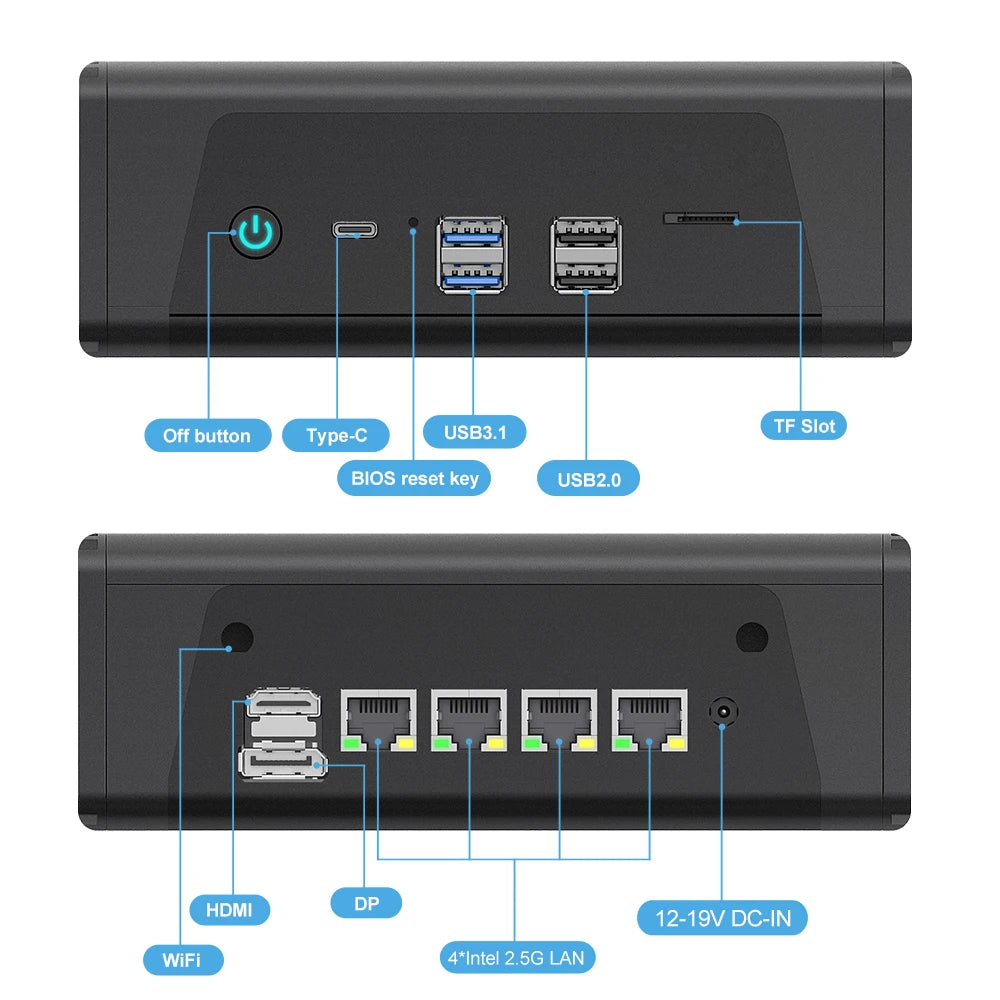

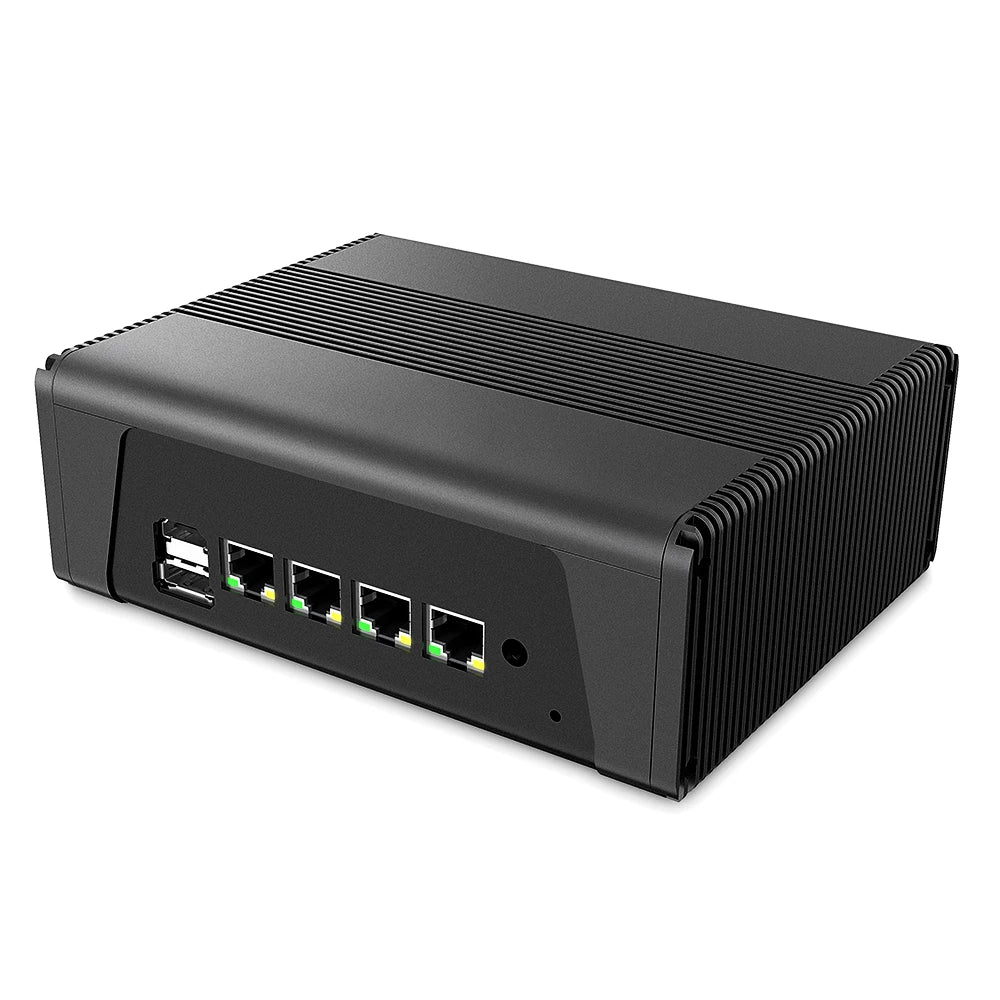

-4xIntel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.

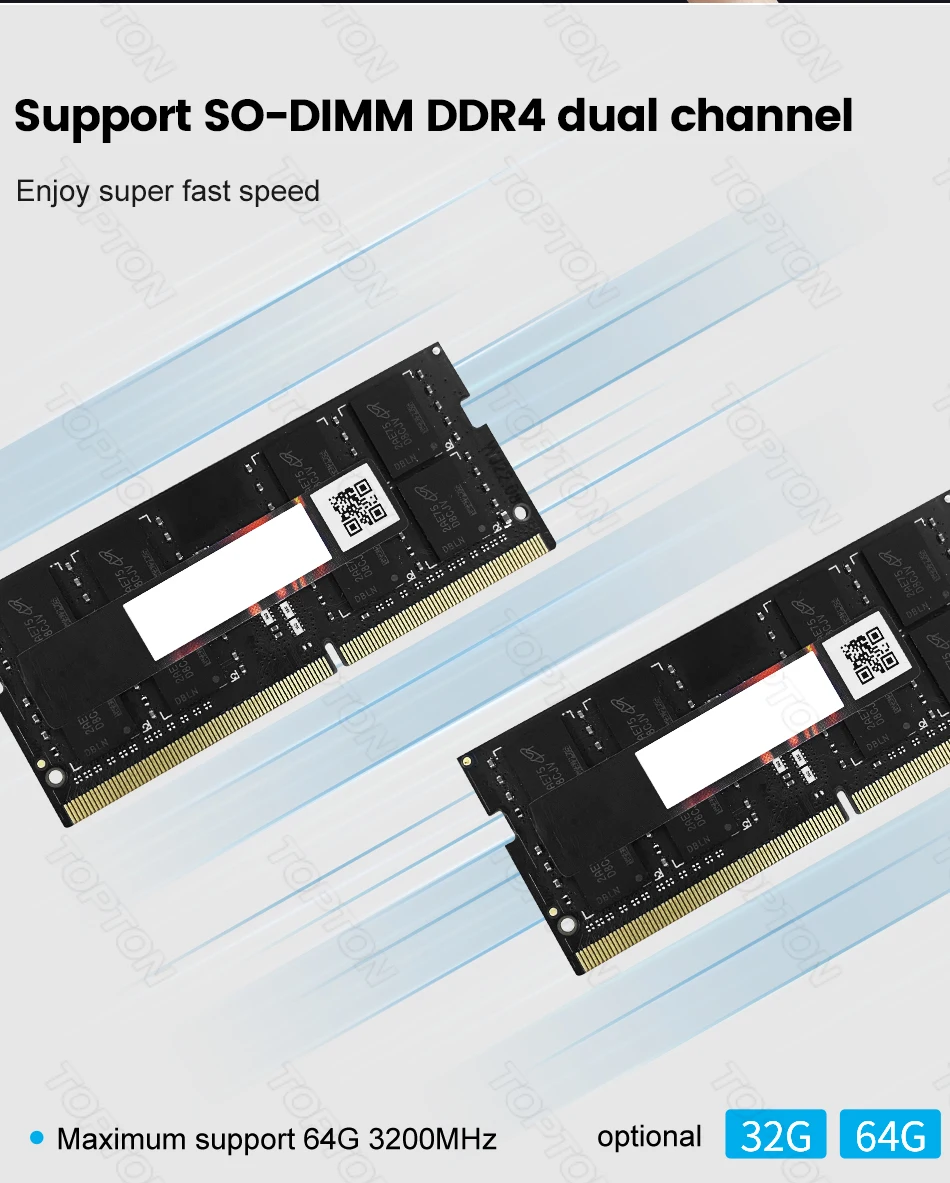

-2xDDR4 SODIMM non-ecc ram slot, support 3200MHz.

-Support four storage: 2xM.2 NVMe/PCIe3.0x4 2280 SSD+1x2.5''SATA3.0 SSD/HDD(internal hange)+1x2.5''SATA3.0 SSD/HDD(external from knock-out hole).

-1xM.2 KEY-E 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x4 2280 SSD with PCB adapter board.

-Full-featured Type-C support data, display, reverse charging.

-TF card slot support storage and system disk boot.

-Support three display: 1xHDMI2.0, 1xDP1.4, 1xType-C, 3x4K@60Hz UHD video display.

-Support wide voltage 12-19V input.

-Support TPM2.0, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

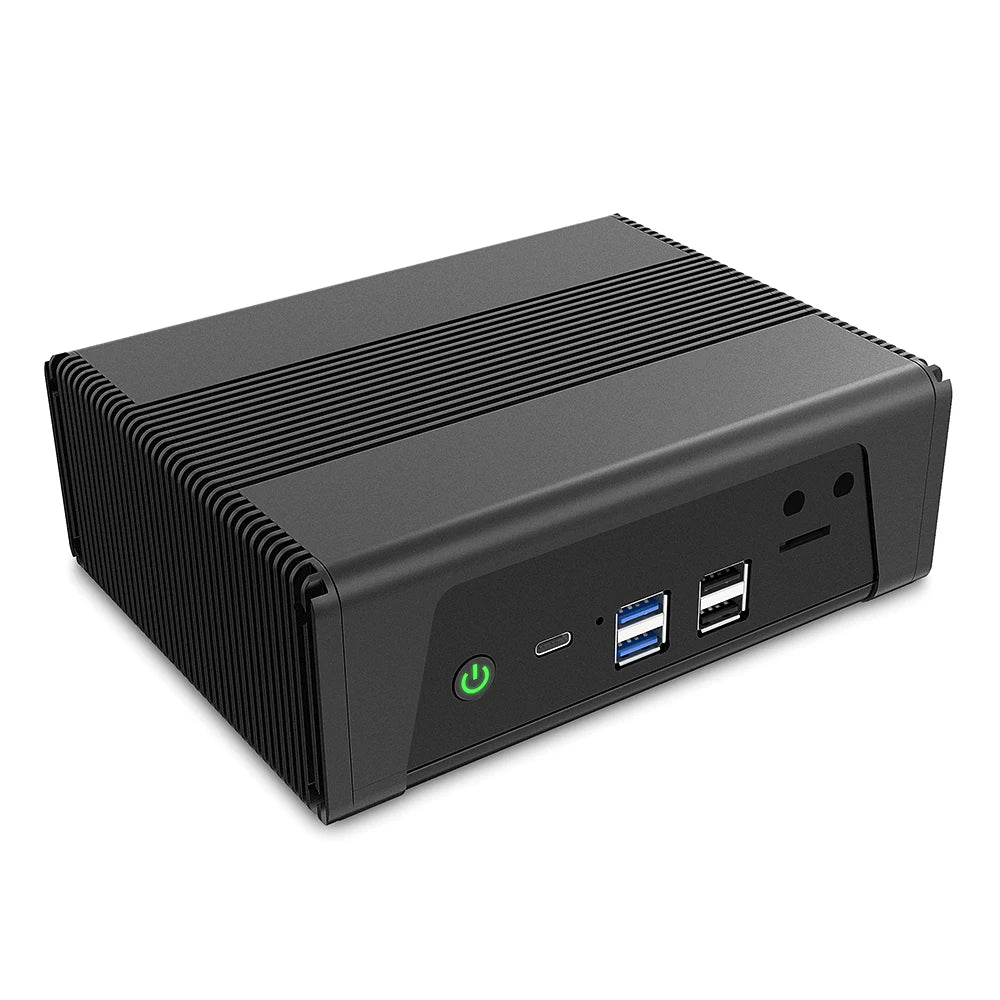

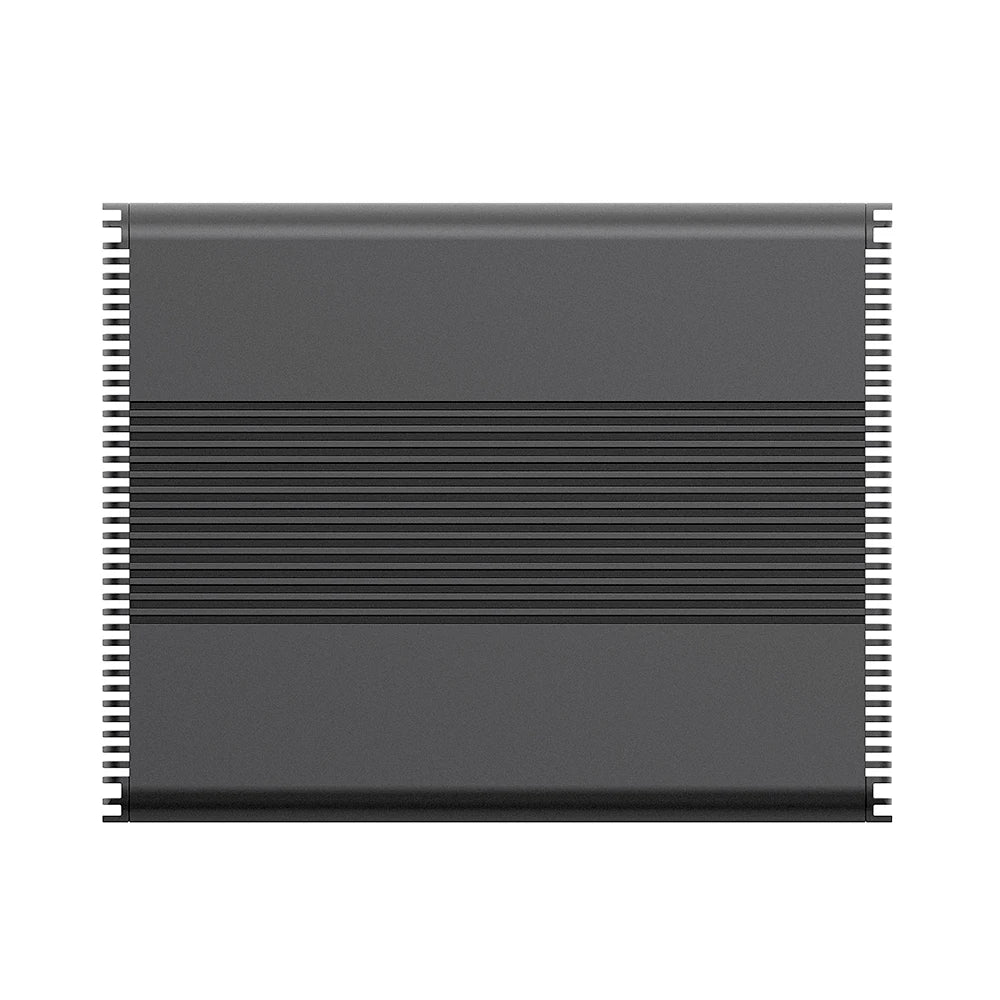

-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.

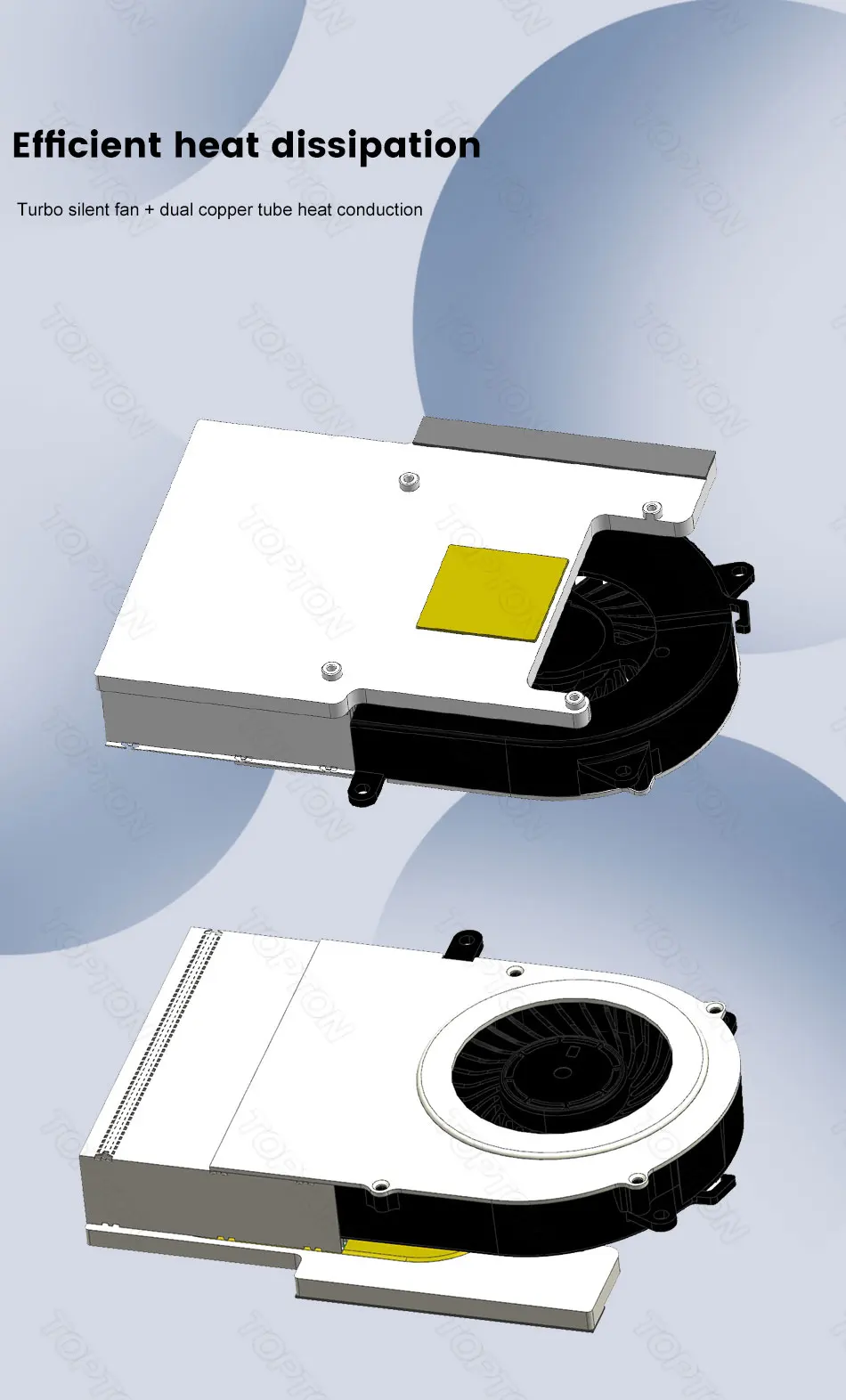

-Turbo silent fan with dual copper tube, durability for industrial grade field, work as long as 7x24 hours.


Package List

1xMini PC

1xPower Adapter

1xPower Cord

1xM.2 2232 to 2280 PCB adapter board

1xSATA Cable
1xScrews Bag

1xinternal 8010 Fan (store gift, dual fan reduce temperature greatly)


All bundles on sale DO NOT include WiFi(antennas), AC WiFi(antennas) cost US $10, AX WiFi6(antennas) cost US $30. If you need, pay at this link.

DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Micron etc ORIGINAL brand ram and storage.



500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.

Upgrading link:https://www.aliexpress.com/item/1005002424390838.html

(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5'' HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for...)
