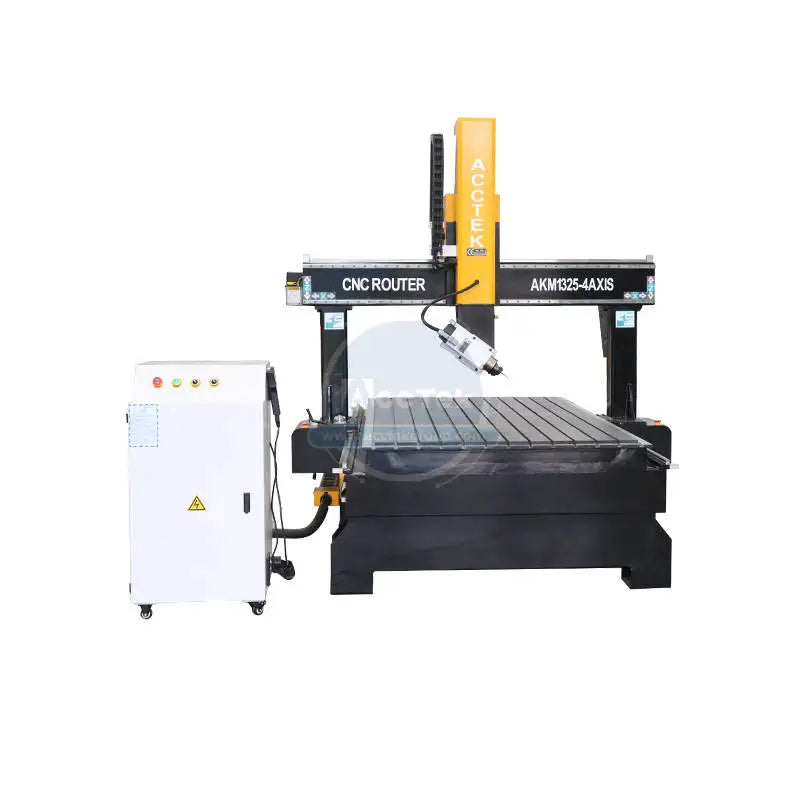

SYNTEC and DSP controll 4 Axis ATC 1325 2135 cnc router/Automatice tools changer CNC milling machine for stereoscopic furnature

SYNTEC and DSP controll 4 Axis ATC 1325 2135 cnc router/Automatice tools changer CNC milling machine for stereoscopic furnature

$36,400.00 USD
$44,800.00 USD $36,400.00 USD
Sale Sold out
Shipping calculated at checkout.
color



the machine will be delivery by sea or train, truck, the above price is FOB price, not including  any shipping cost, customs clearance, duty vat, pls note.

SYNTEC and DSP controll 4 Axis ATC 1325 2135 cnc router/Automatice tools changer CNC milling machine for stereoscopic furnature z axis 450mm 700mm 1000mm

If you are interested in this machine,please just feel free to contact me :

Deedy Song

Mob/whatsapp:+86 18765333729

Skype/wechat: songyuandi825

Email:export35(AT)acctekcnc.com

JINAN ACCTEK MACHINERY CO.,LTD

Hi dear friend,welcome.Thank you very much for your kind inquiry.This is Tess from AccTek China.

Acctek
4 axis cnc router is specially for large 3d sculpture. The spindle can
be rotated 180 degrees, so that the cnc router can handle flat engraving

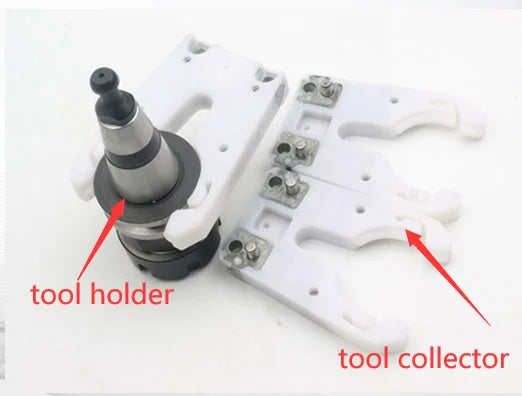

and three-dimensional processing. With 8 pieces auto tool changers,
fast response, high working efficiency.


Let's see what can this 4axis wood working machine do:)


Wood furniture industry. Doors, cabinets, tables, chairs, wave plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

  • Advertising
    industry. Signage, logo, badges, display board, meeting sign board,
    billboard advertising filed, sign making, acrylic engraving and cutting,
    crystal,word making, blaster molding, and other advertising materials
    derivatives making.

  • Die
    industry. Sculpture of copper, aluminum, iron and other metal molds, as
    well as artificial marble, sand , plastic sheeting, PVC pipe, and other
    non-metallic mold.

  • Artwork and decoration. Wood crafts, gift box, jewelry box.

  • Others. Relief sculpture and 3D engraving and cylindrical object.

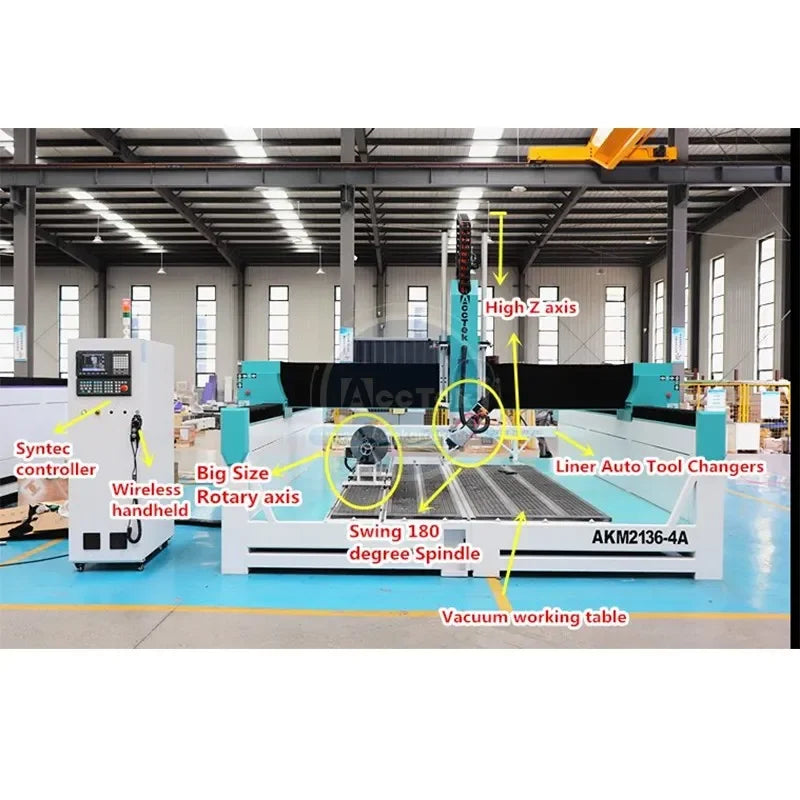

4Axis Wood Working Machine Features


Acctek
4 axis cnc router is specially for large 3d sculpture. With 8 pieces
auto tool changers, fast response, high working efficiency.

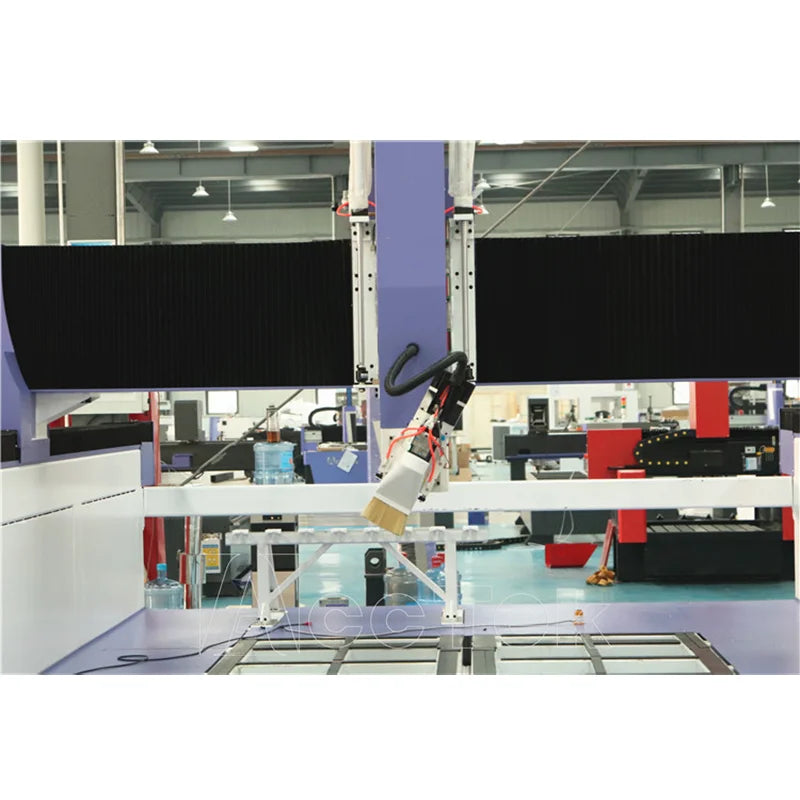

The spindle can be rotated 180 degrees, so that the cnc router can handle flat engraving and three-dimensional processing.

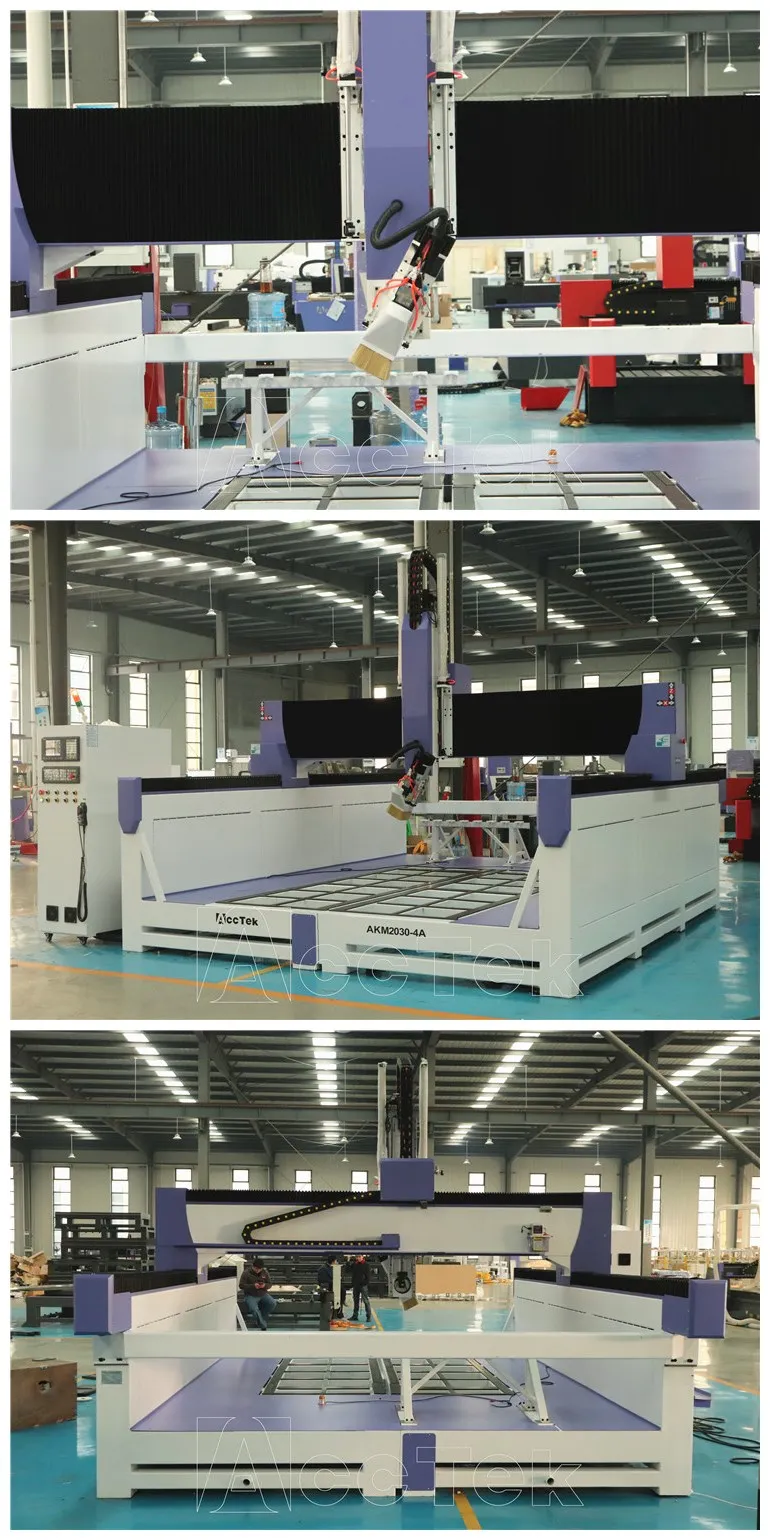

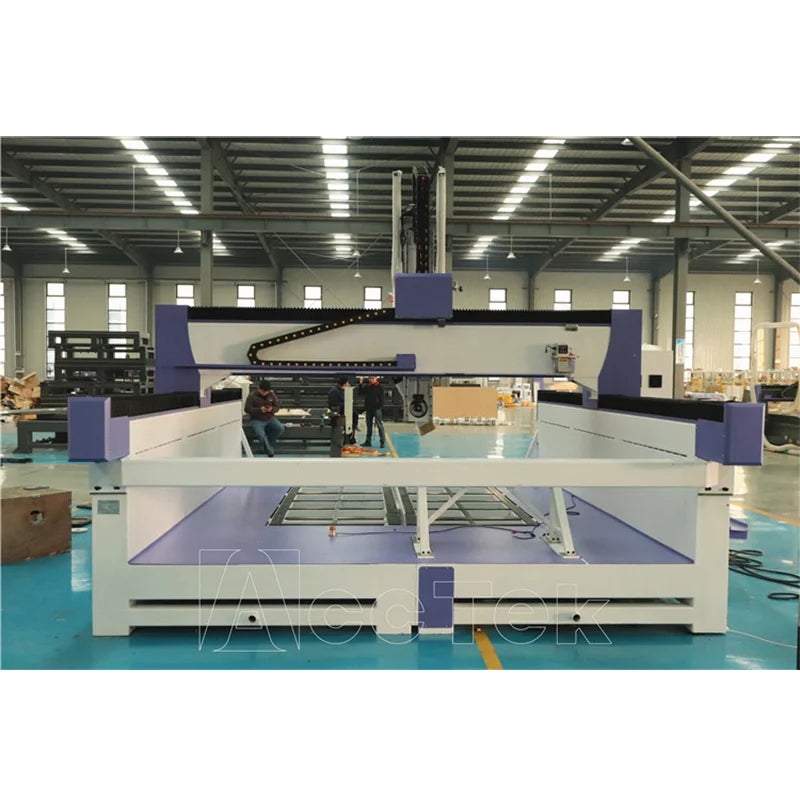

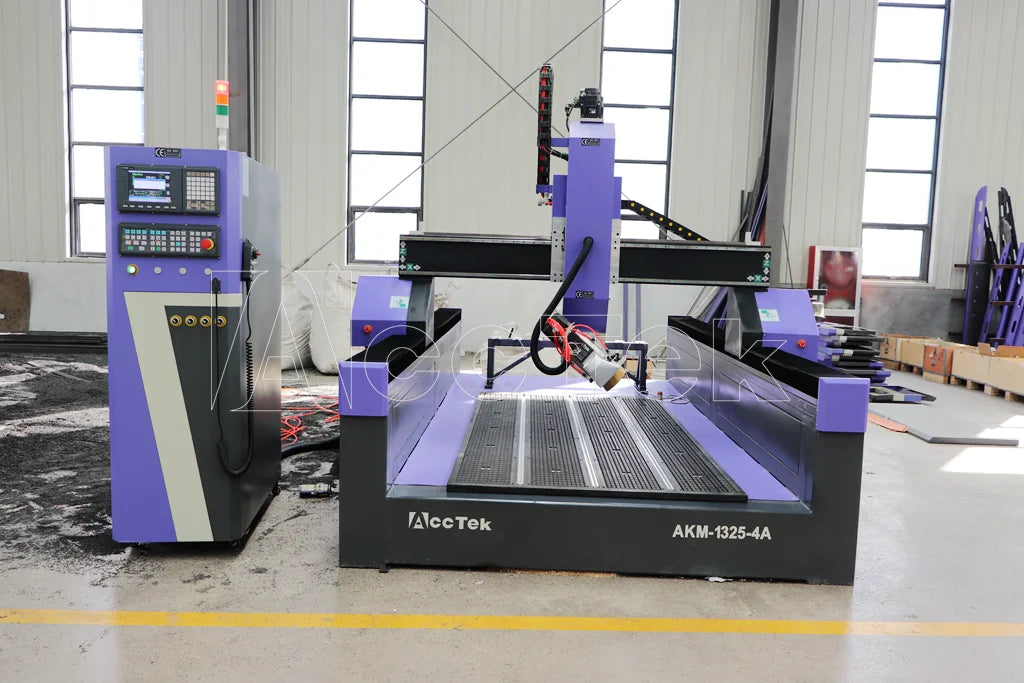

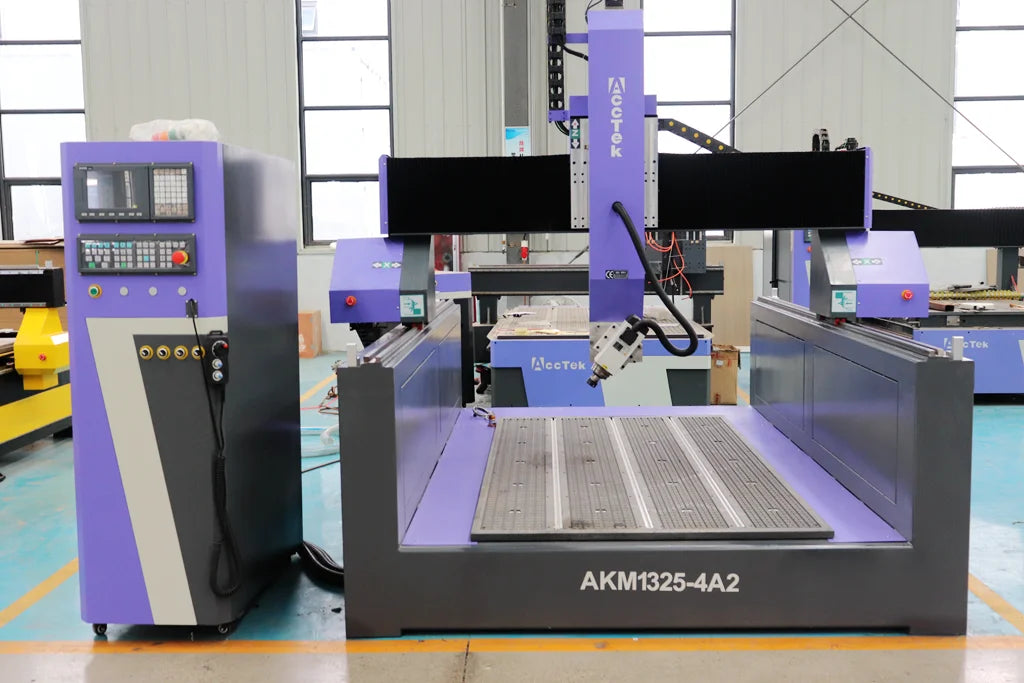

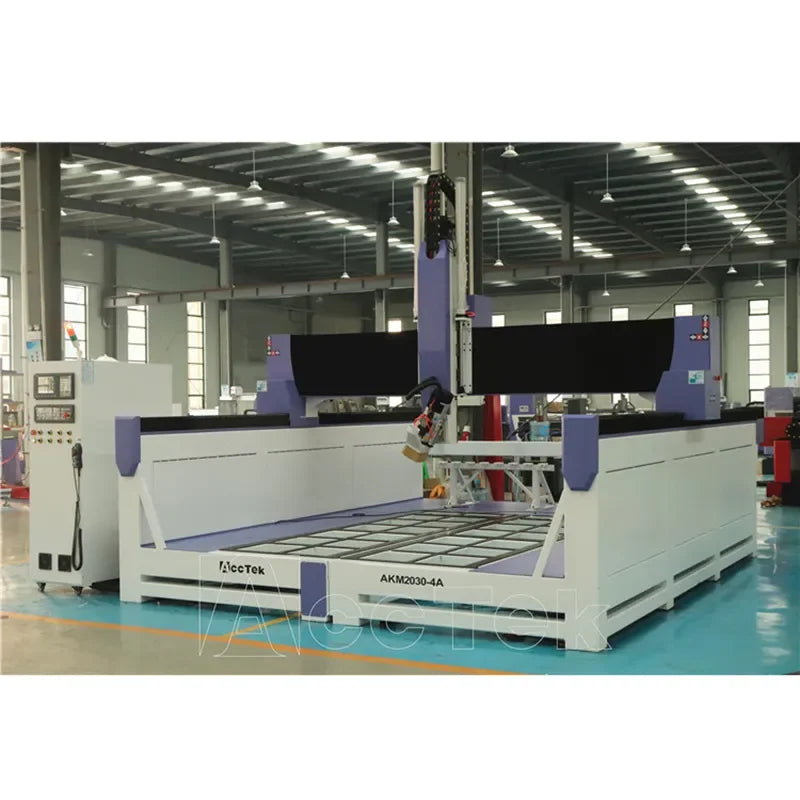

4Axis Wood Working Machine Overall Display



No

Description

Parameter

1

Working area

1300x2500x500mm/2000*3000*500mm/2100*3600*500mm

2

Spindle type

air cooling spindle

3

Spindle power

6.6/4.5/9.0 KW

4

Power supply

220±10, 50HZ(AC380v)

5

Worktable

vacuum and T-slot working table

6

Spindle rotating speed

0-18000rpm

7

Locating precision

<0.01mm

8

Min shaping character

Character:3x3mm,letter:2x2mm

9

Operating temperature

5°C-40°C

10

Working humidity

30%-75%(without condensed water)

11

Working precision

±0.03mm

12

System environment

WINDOWS XP/ WINDOWS 7,8.10

13

Control configuration

syntec system with USB port

14

Data transfer interface

USB

15

System resolution

±0.001mm

16

Spindle cooling way

air cooling by air pump

17

Graphic format supported

G code;*.u00,*mmg,*plt,*.nc

18

Compatible software

Artcam,UCANCAM,Type3 and other CAD or CAM softwares

19

Cutting thickness

0-40mm also(depends on different material)

20

Z tool censor

yes

21

Whole machine dimension

3170x2070x1800mm

22

Net weight

950KG

23

Gross weight

1100KG

24

packing

Plywood case(veneer wood case for export)


4Axis Wood Working Machine Detail Show


  • 9KW Air Cooling Spindle

HQD, a well-known Chinese brand, has obtained CE certification.

9.0KW ATC air cooling spindle to ensure the machine can be vigorous cutting.

Smooth body, not easy to rust; powerful and longer lifetime.

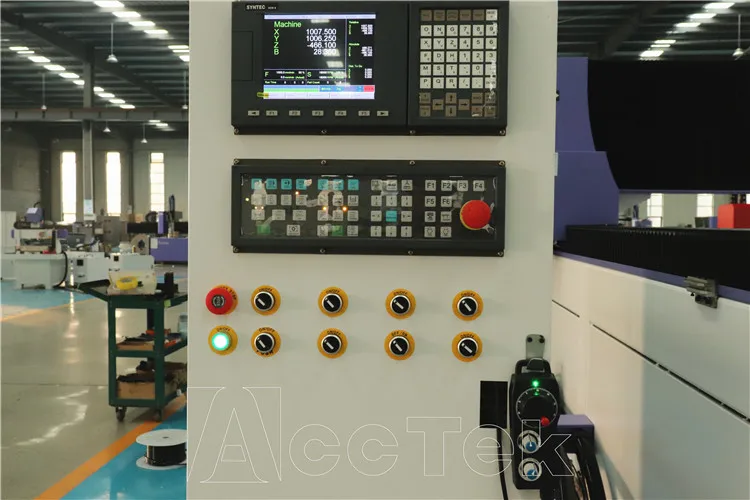

  • Syntec Controller

The
system stability is very good, powerful functions, the operating
software is simple and easy to learn, the man-machine operation is
friendly.

Professionally
applied to high-end cnc router machines, the anti-interference ability
and control accuracy of the control system are superior to other types.

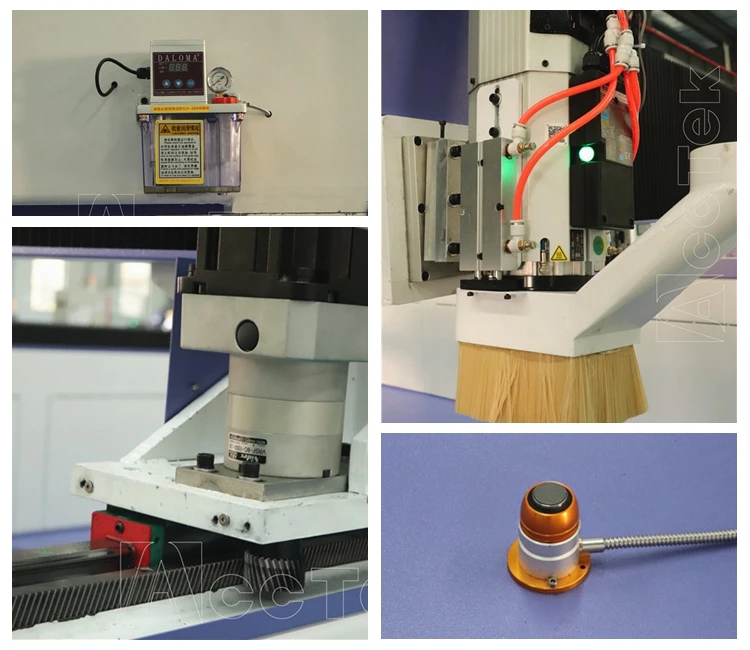

Control Box

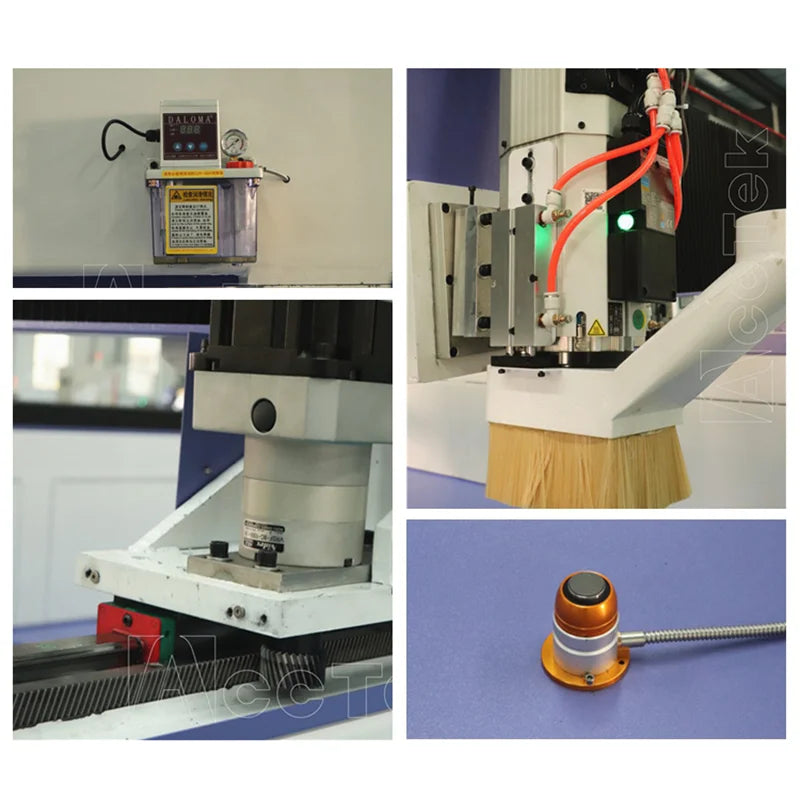

  • Auto oil lubrication

  • 9.0kw HQD air cooling spindle

  • HIWIN Guide Rails

Rail works with slider, drive the machine move, with good bearing capacity.

  • Tool sensor

Packing

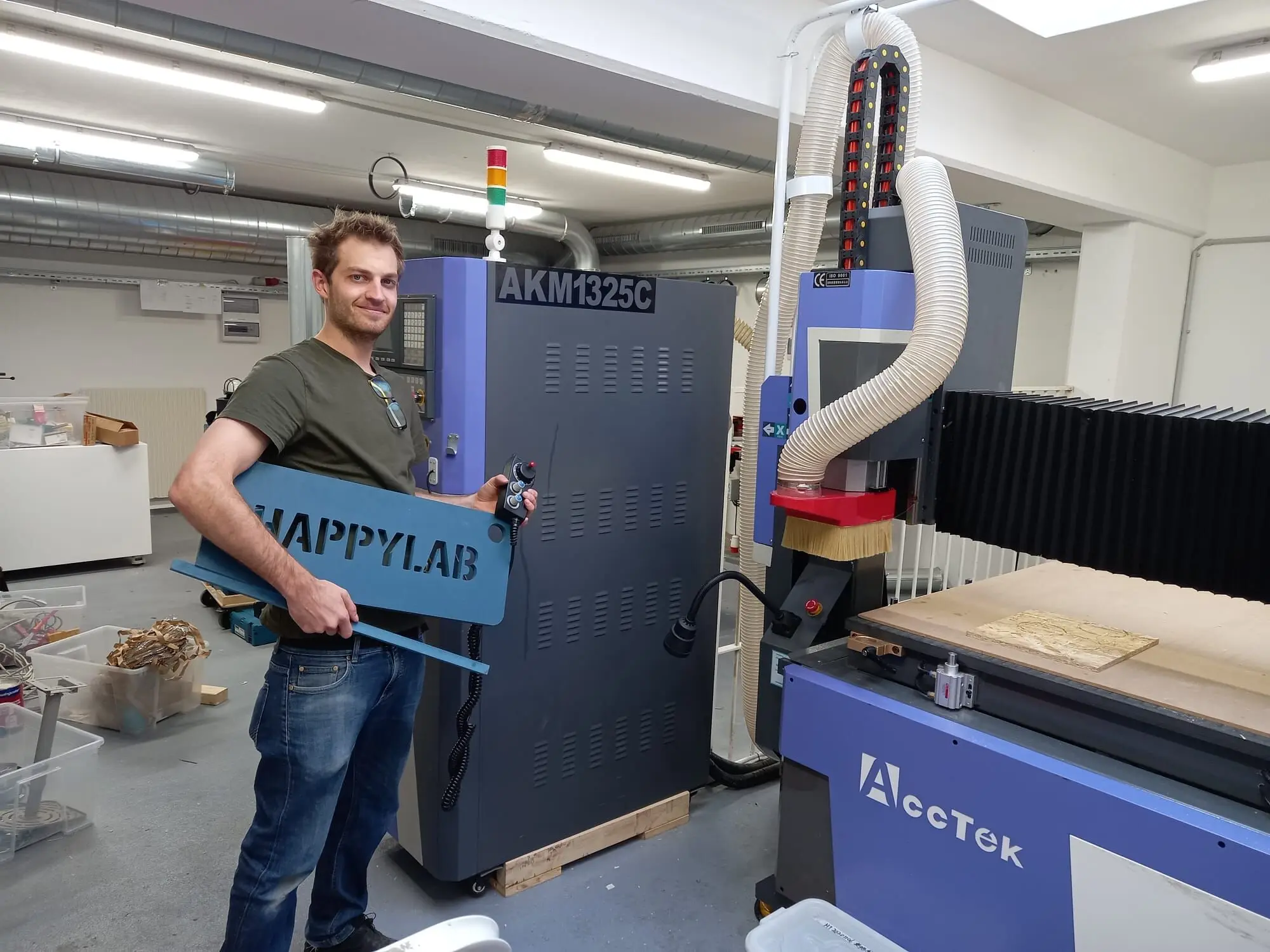

Love from customers all over the world




Our Promise


1.Engineers available to service machinery overseas. Machine has been adjusted before delivery , operation data was included.
2.
3 years quality guaranty, the machine with main parts(excluding the
consumables)shall be changed free of charge when problems happened
during the warranty period.
3.Lifetime maintenance free of charge.
Free training course at our plant. 24 hours on line service each day, free technical support.
4.Consumable parts at an agency price when you need replacement.


About Price

Payment terms:

A. T/T: 30% T/T deposite,70% beforeshippment.This is the most convinent payment terms for international trade.

B. Paypal: only for parts of machine.

C. Western Union/ Moneygram.

D. Trade Assurance on Alibaba. For more details, pls click the below photo.




Deedy Song

Mob/whatsapp:+86 18765333729

Skype/wechat: songyuandi825

Email:export35(AT)acctekcnc.com

JINAN ACCTEK MACHINERY CO.,LTD
