Product Overview

1.Suitable for butt welding of thermoplastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter indicates clearer readings.
9.Separate two-channel timer records time in soaking and cooling phases.

Product Features

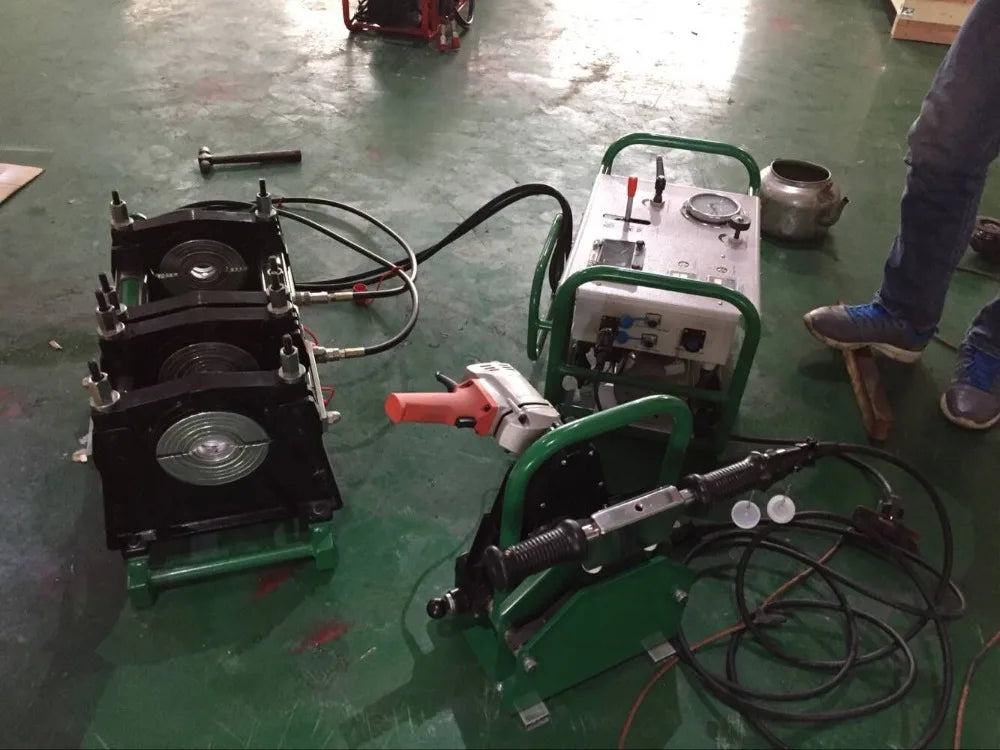

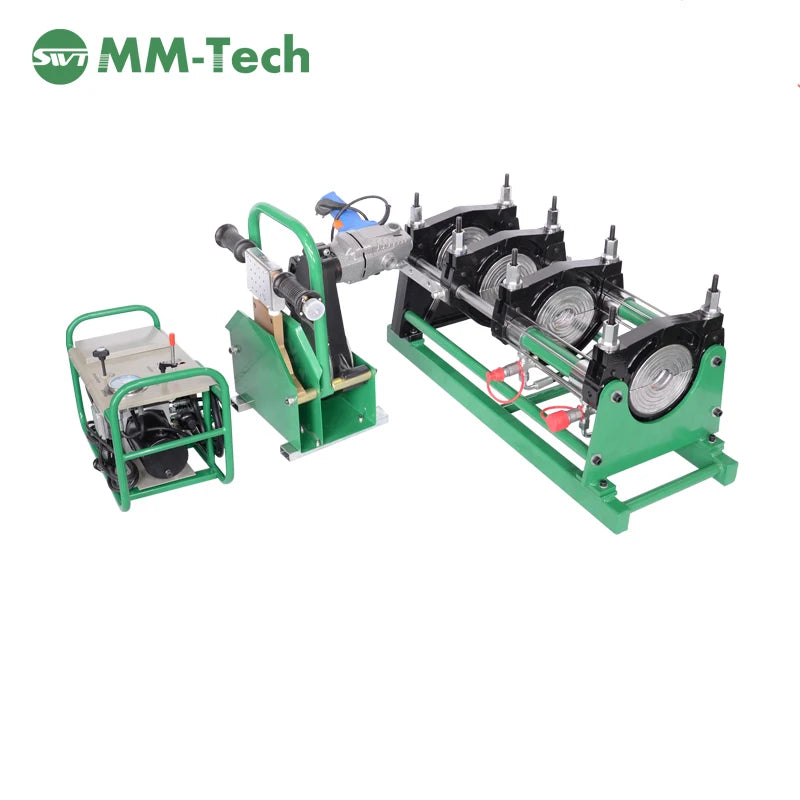

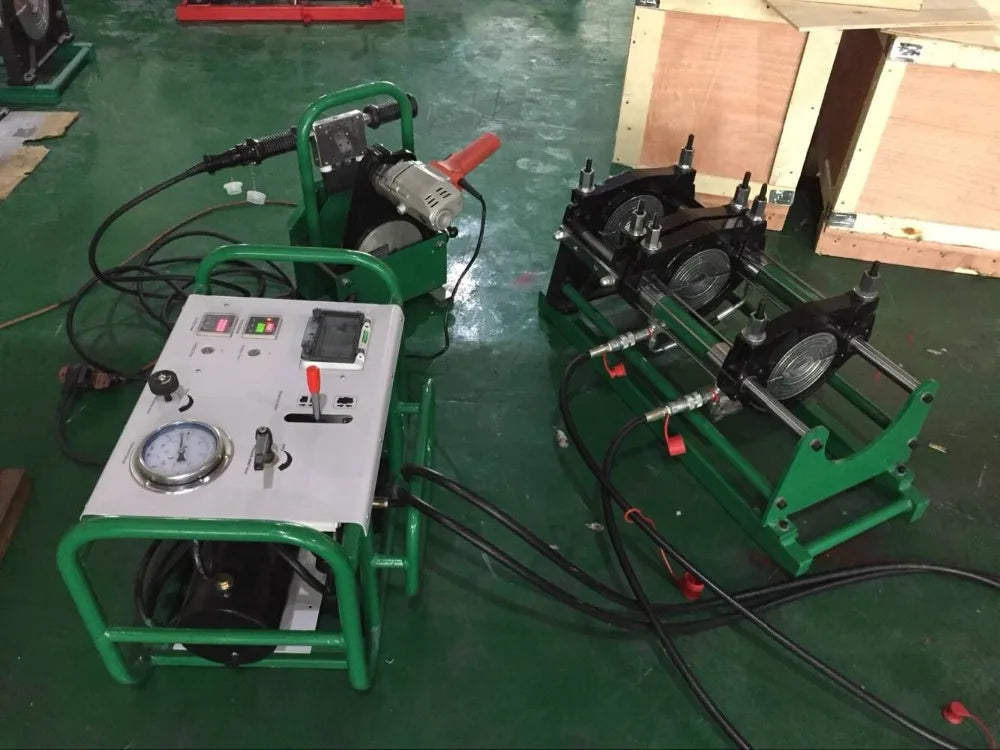

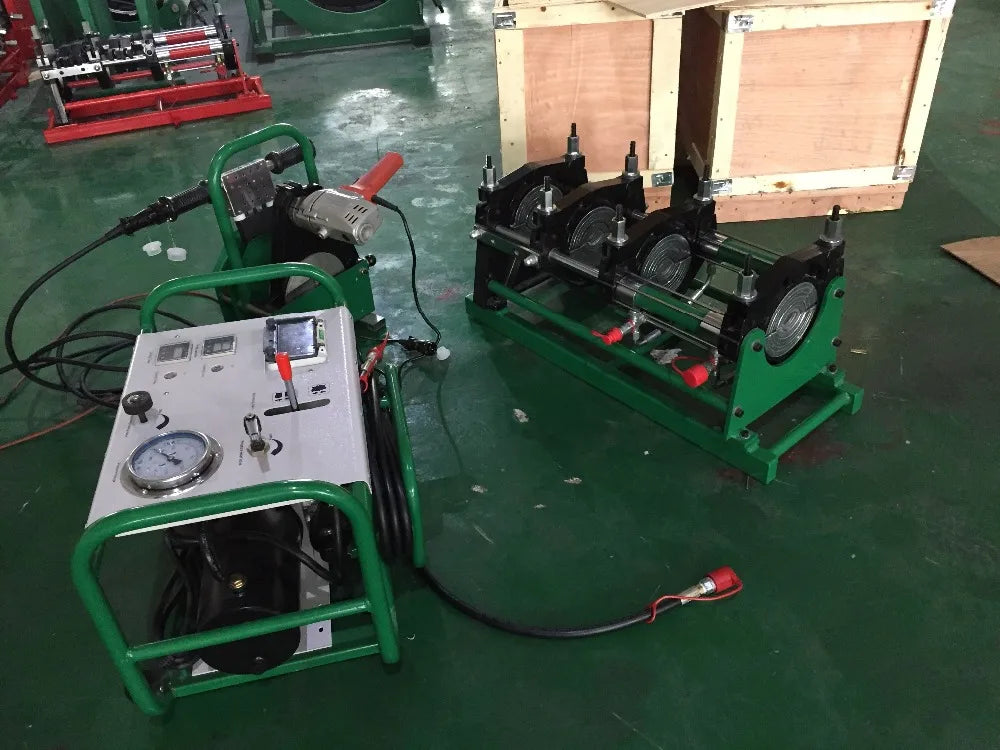

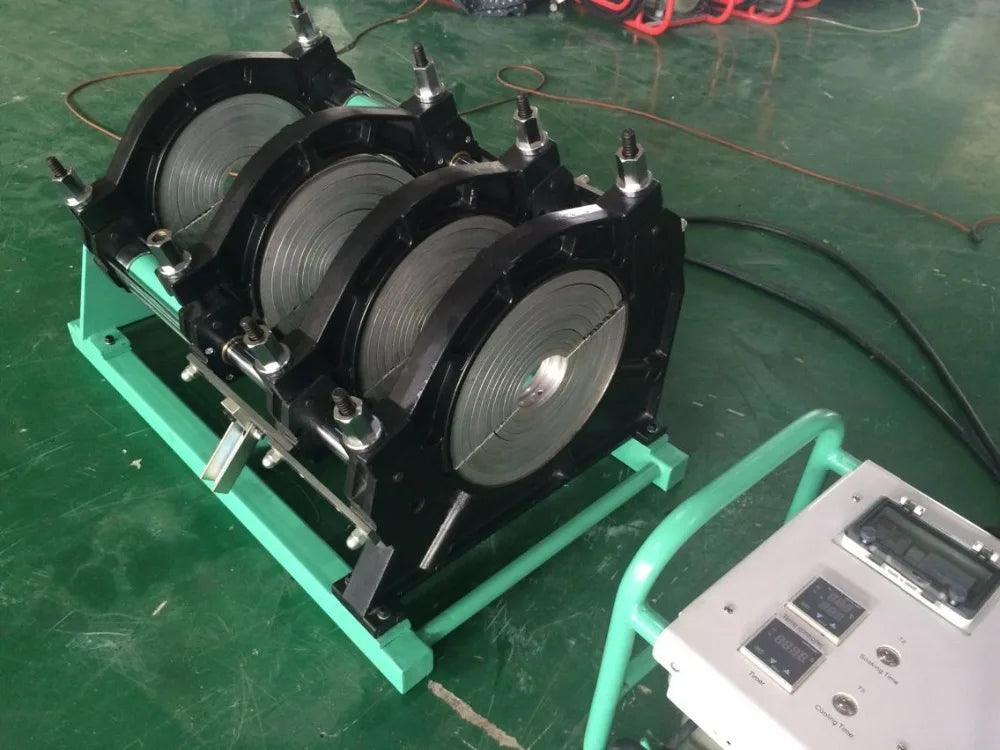

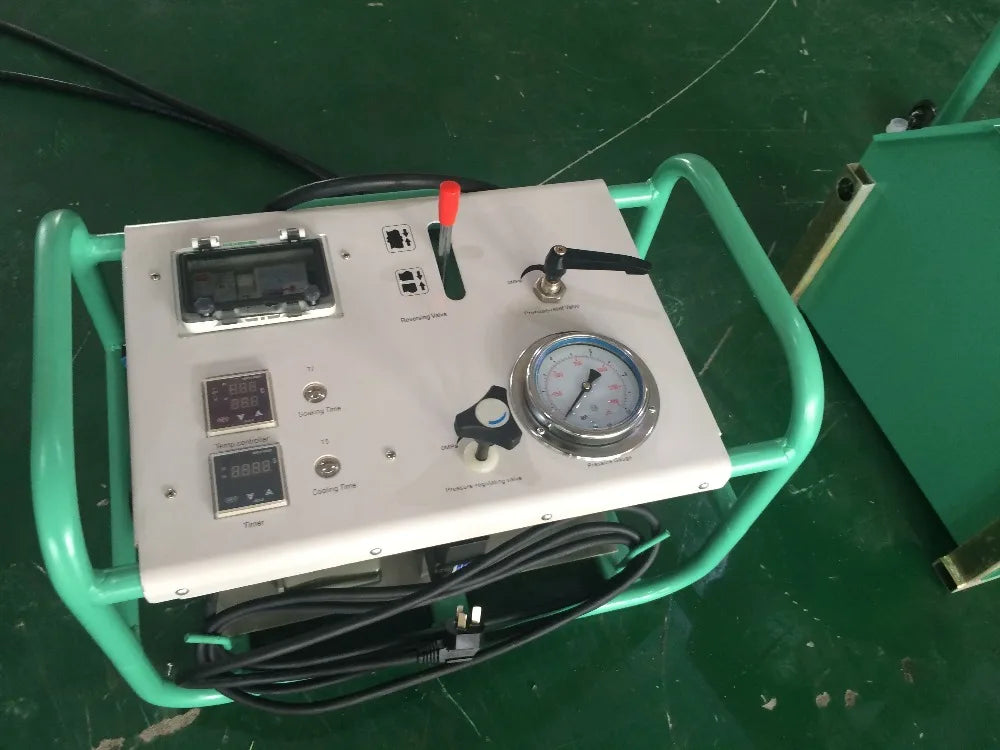

 Images of high density polyethylene Pipe Jointing Machine:

Technical Parameters For Butt Fusion Welding equipment of PE Pipes:

Welding ranges:90mm -200mm

Application: PE,PP and PVDF

Working voltage:220V ±10%,50Hz

Total power:3.85 KW,including:

planning tool:1.1KW, heating plate:2.0KW, hydraulic unit motor:0.75KW;

PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.

Environment temperature: -10° - 45°

Electronic count-down timer for heating and cooling time.

Whole machine consists of basic frame, heating plate, planning tool, hydraulic  unit

and  support (for planning tool & heating plate)

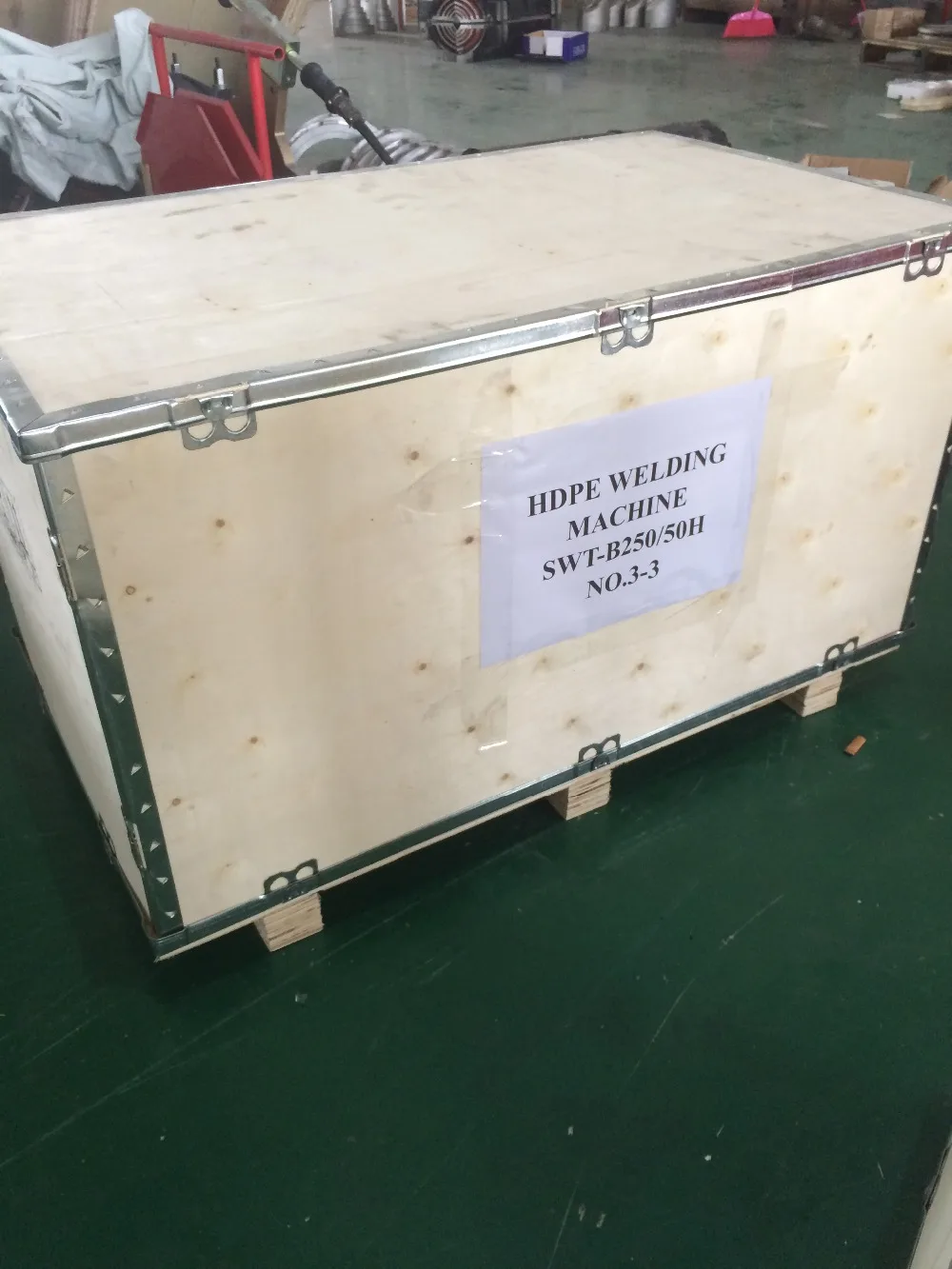

Packaging of Butt-fusion jointing of polyethylene (PE) pipes:

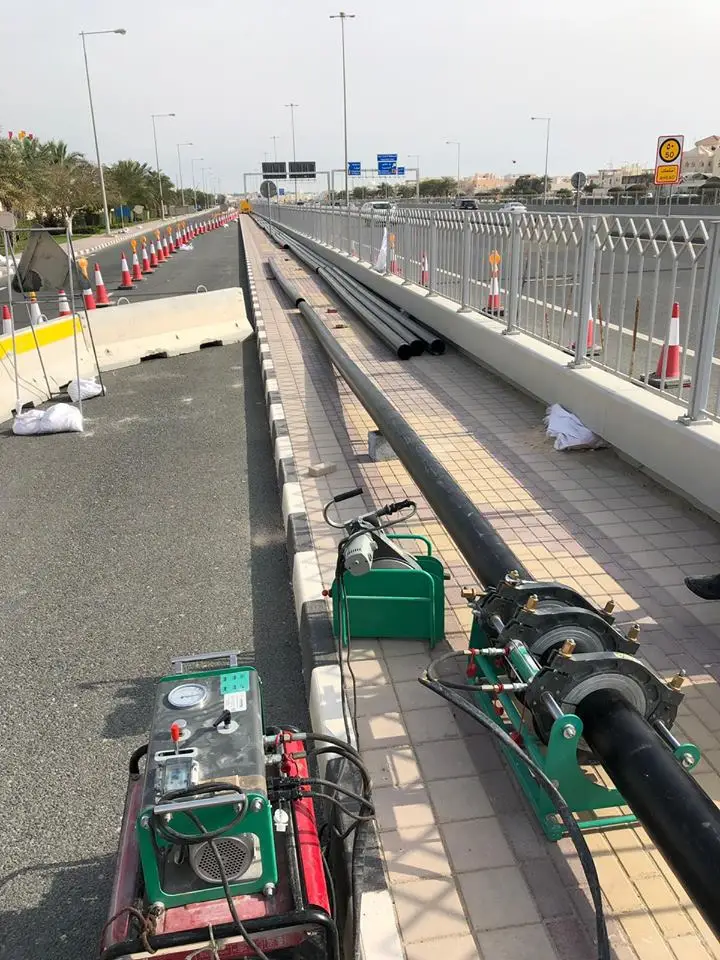

Application of welding of polyethylene piping by thermofusion :

hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.

automatic butt welding machine can be operated in any complex work condition.

thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
