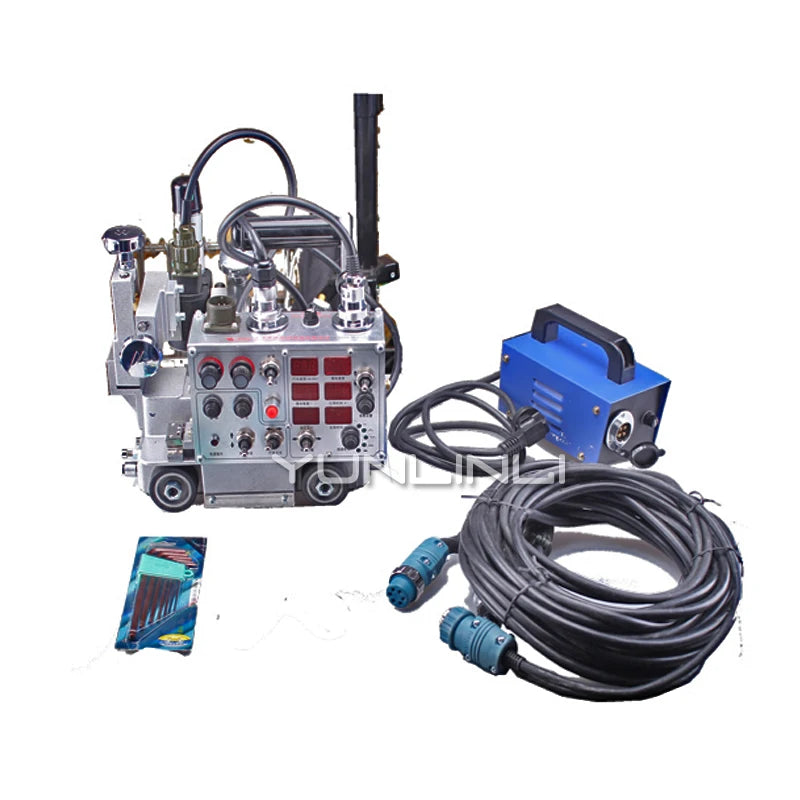

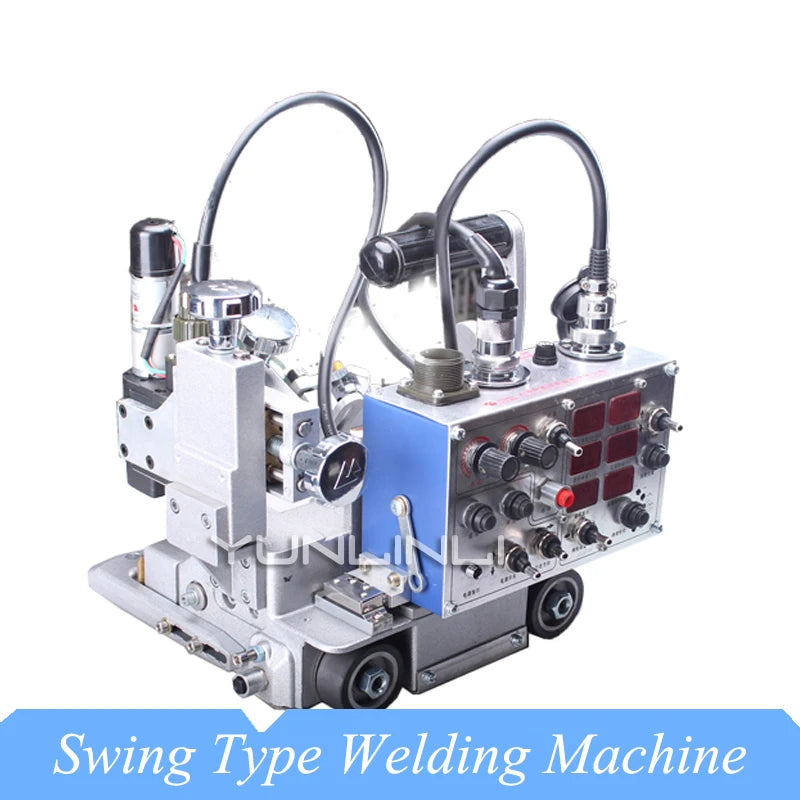

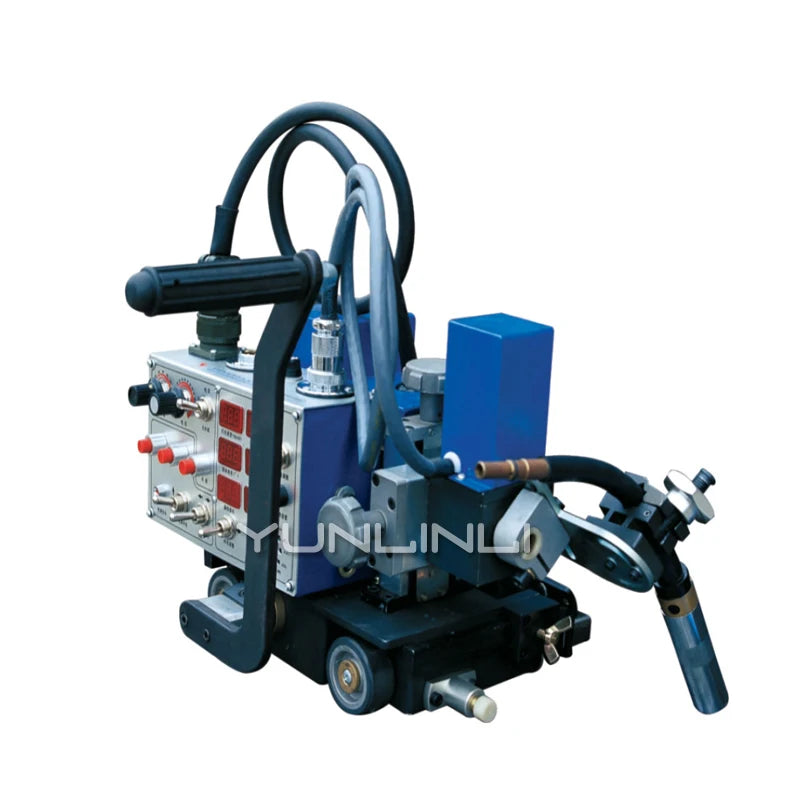

Swing Automatic Welding Trolley 220V Rubber Wheel Four-wheel Drive Fillet Welding Machine Equipment HK-5W

Swing Automatic Welding Trolley 220V Rubber Wheel Four-wheel Drive Fillet Welding Machine Equipment HK-5W

$1,678.92 USD
$2,098.65 USD $1,678.92 USD
Sale Sold out
Shipping calculated at checkout.




The main technical parameters

1. Dimensions: 430 × 280 × 290 mm

2. Machine weight: 12Kg (including swinger)

3. Input voltage: AC220V 50HZ

4. Swing motor: DC24V

5. Drive mode: rubber wheel four-wheel drive

6. Welding speed: 150 ~ 1900mm / min

  7. Welding gun adjustment range
          Up and down: 40mm

          Front and rear: 40mm

          Working angle: ±45°

          Carry out angle: 10°

8. Swing parameters
         Left and right stay time: 0 ~ 2.5S

         Offset distance setting: 0 ~ ± 8 °

         Swing speed: 0 ~ 100

         Swing angle: ±15°

 Welding parameters/Wire diameter!

 Φ1.2mm

 Φ1.4mm

 Φ1.6mm

   Current (A)

flat welding

 120-300

 150-380

 180-430

  Flat fillet welding

 120-280

 150-320

 180-380

 Horizontal welding

 120-280

 150-300

 180-330

 Voltage (U)

1) U=14+0.051

2) U=0.041+16±1.50 when 300A or less

3) U=0.041+20±2.0 when 300A or more

 Distance between nozzle and workpiece (H)

1) When 200A or less H=10～15mm

2) When 200~350A, H=15~20mm

3) When 350~500A H=20~25mm

 Wire extension length (L)

    Generally take about 10 times the diameter of the wire, that is, L=10d
