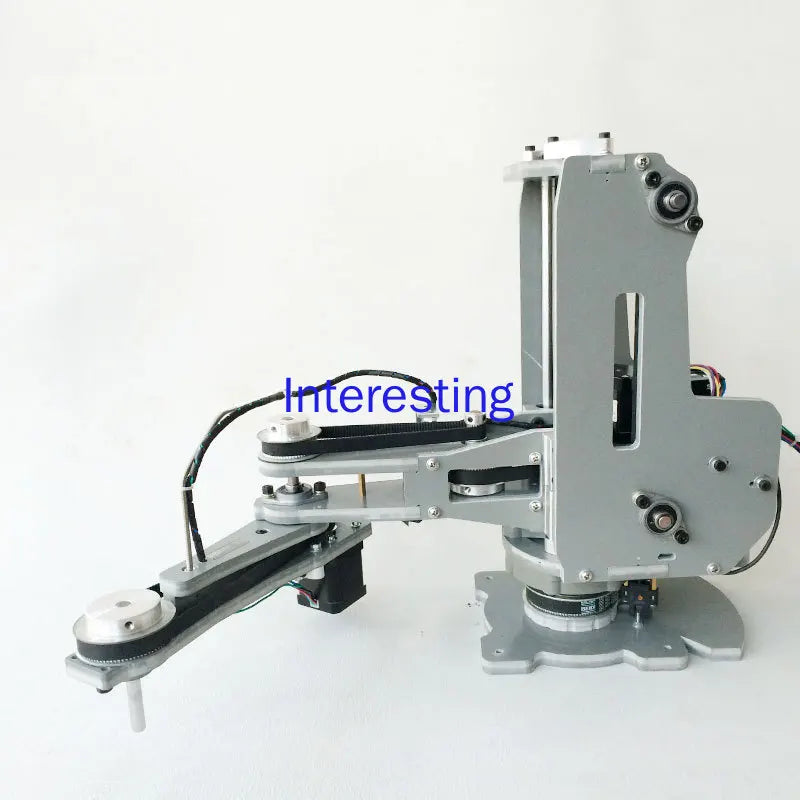

Stepping Four-axis Scara Manipulator Manipulator Teaching Robot Lightweight Handling Industrial Robot

Stepping Four-axis Scara Manipulator Manipulator Teaching Robot Lightweight Handling Industrial Robot

$1,193.30 USD
$1,468.67 USD $1,193.30 USD
Sale Sold out
Shipping calculated at checkout.
modname=ckeditor

Manipulator parameters：



project

parameter

remarks

power

42Stepper motor

All four axes are used42Stepper motor

model：42BYGH47-401A Two hybrid stepping motor Maximum driving current：1.5A    driving voltage ：24V Number of leads：4   Step angle：1.8degree surface temperature ：80℃MAX(At rated current) Maximum static moment： 0.55N.M   Phase resistance：1.6Ω

Weight bearing

End load of manipulator2kg

Weight with actuator

Rotation range



Boom rotation360°+

Jib rotation0°~290°

Wrist rotation360°+





Arm length

Big arm：200mm

Forearm：150mm

ZShaft lifting 0~150mm

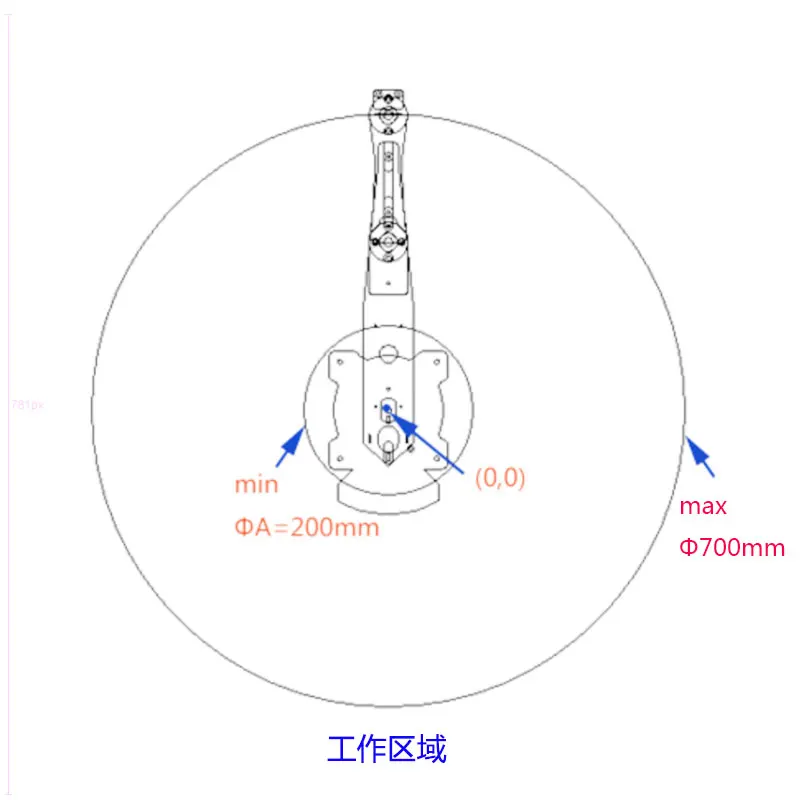

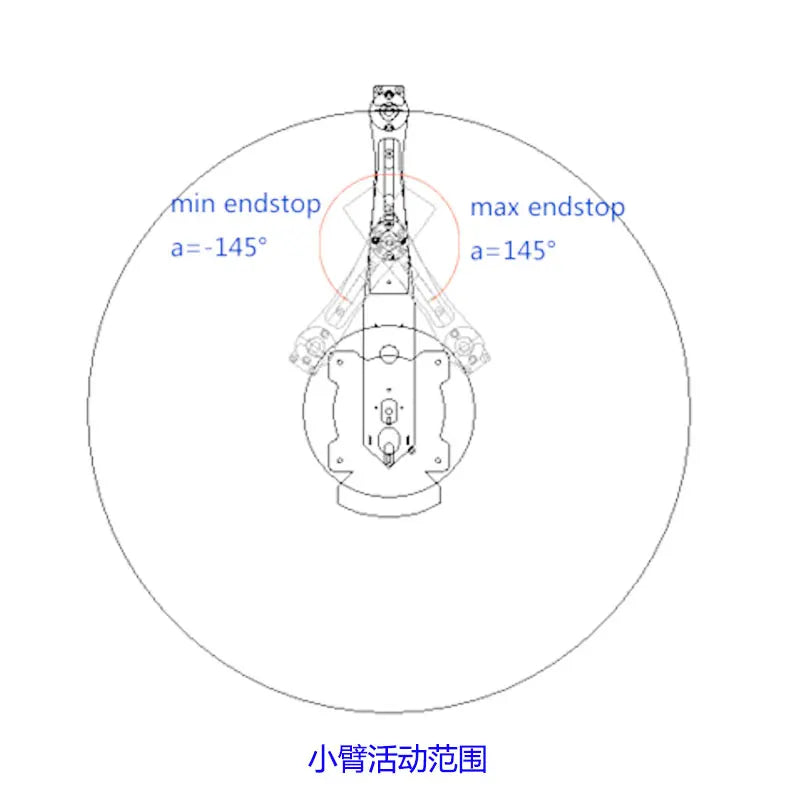

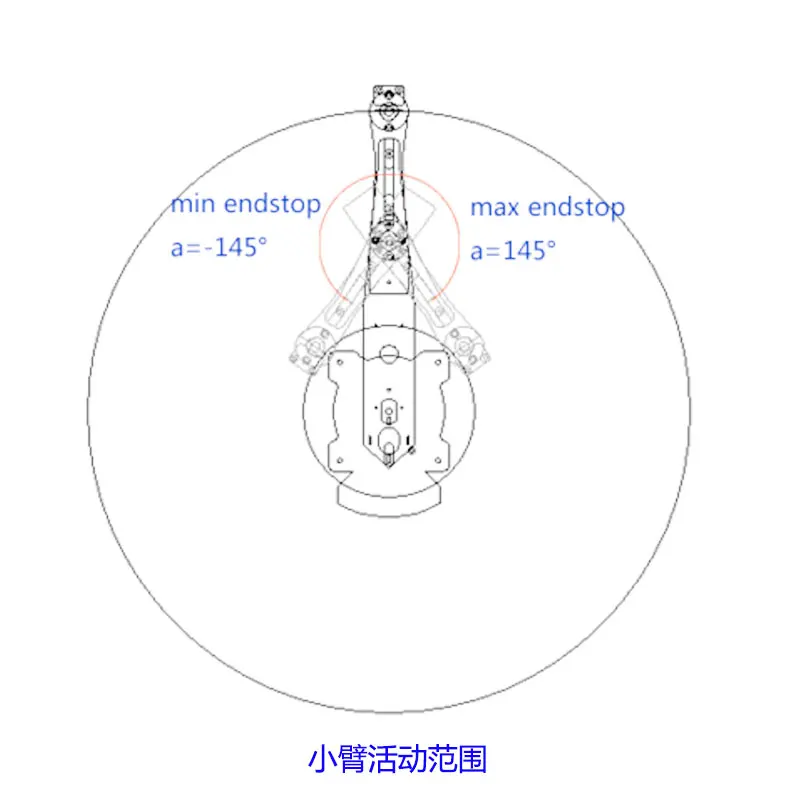

Work area

 See the figure below



texture of material

The main plates arePVCengineering plastic



weight

Dead weight of manipulator body7.5kg

Packing weight9kg

External dimension

long500mm*wide180mm*high350mm

Mechanical arm reservation70cmOutgoing line。

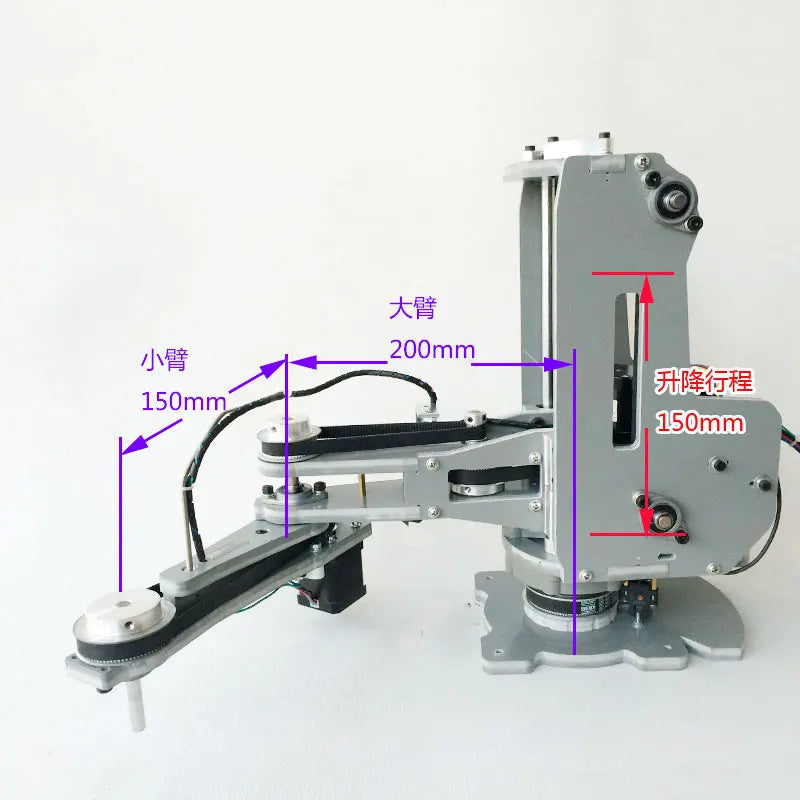

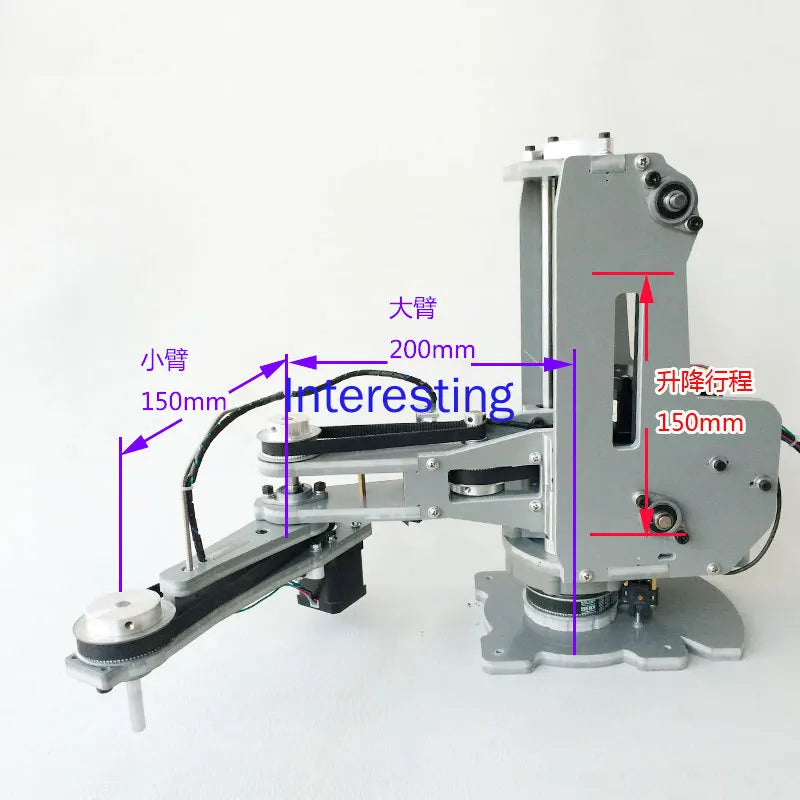

Mechanical arm size：

\\



\\



\\



\\



\\

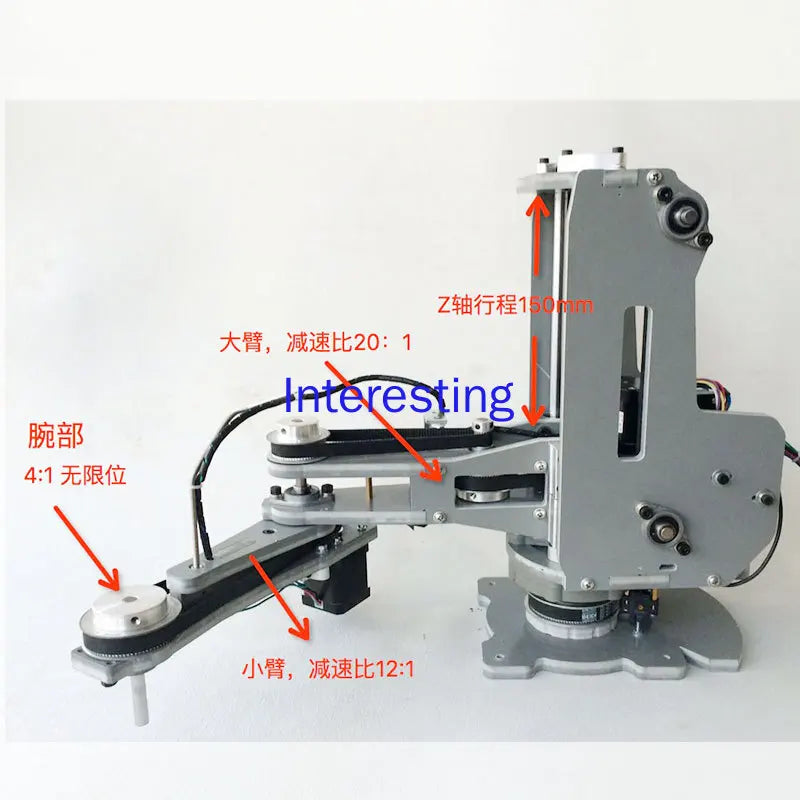

Mechanical arm detail picture： -----------------------------------------------------------------

\\

\\

\\



\\

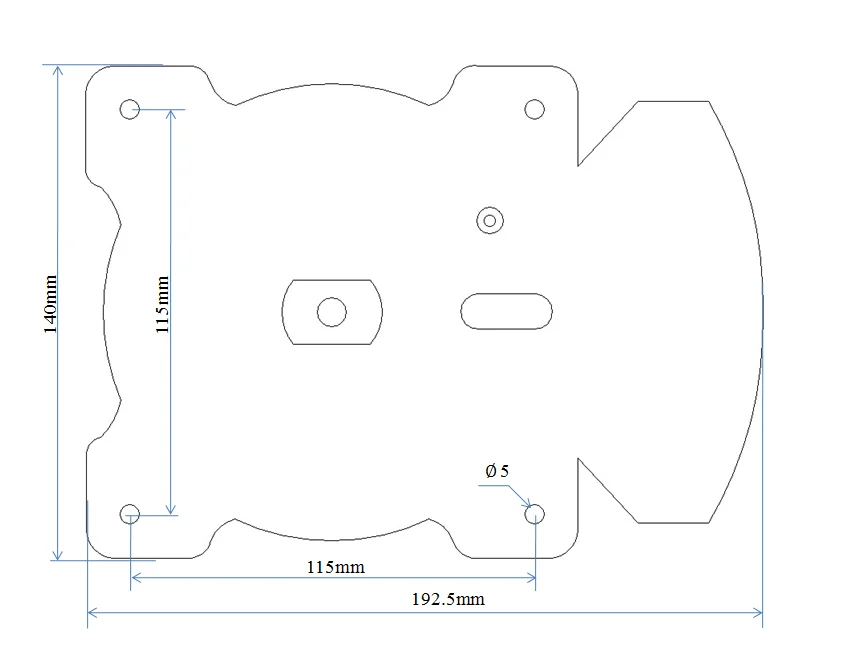

Base size：
