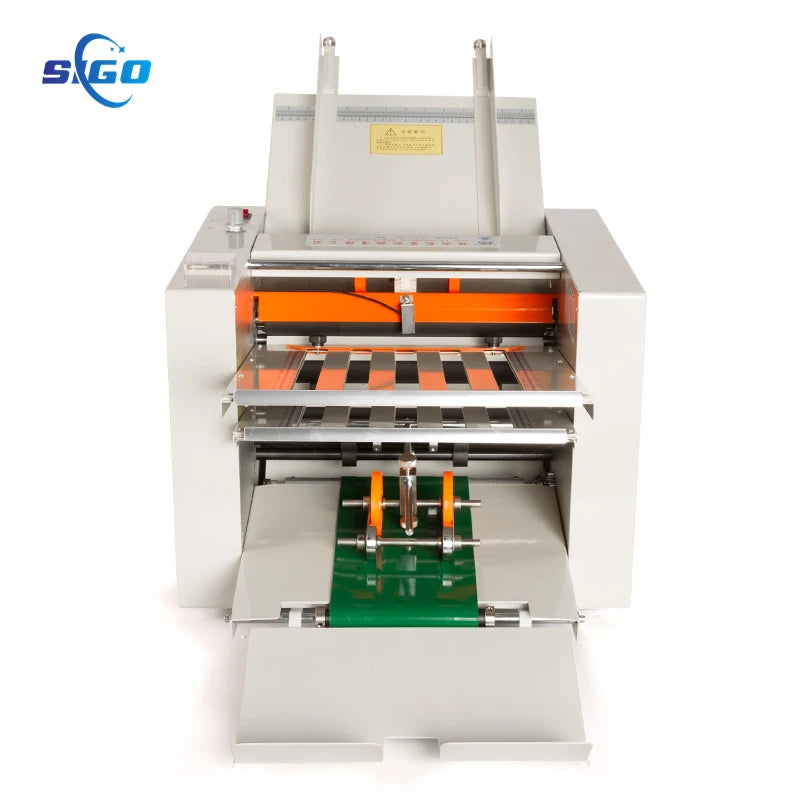

SG-ZE8B/4 A3 Size Folding Machine Easy To Use

SG-ZE8B/4 A3 Size Folding Machine Easy To Use

$1,159.39 USD
$1,449.24 USD $1,159.39 USD
Sale Sold out
Shipping calculated at checkout.
Product Description

SG-ZE8B/4 Paper Folding Machine

Folding machines exclusively used for folding paper are commonly referred to as paper folders. These machines are typically used for creating letter folds (C Folds) and accordion folds (Z Folds). Other commonly used folds include a half fold, fold-out, double parallel fold, gate (brochure) fold, and right angle fold.
The fold type in a buckle folder is set by adjusting folding plates. Most paper folders allow for a wide range of fold types.
Right angle folds require the paper to rotate 90 degrees also known as an 8-page or a right angle. More folds can be accomplished by the use of a 16-page and 32-page unit. Most paper folders push paper into the machine by use of a friction wheel; this grabs paper using friction. Friction-feed paper folders do not work well with glossy paper as the friction wheel slips on the paper's surface. Pneumatic paper folders are preferable for folding glossy paper.
Model

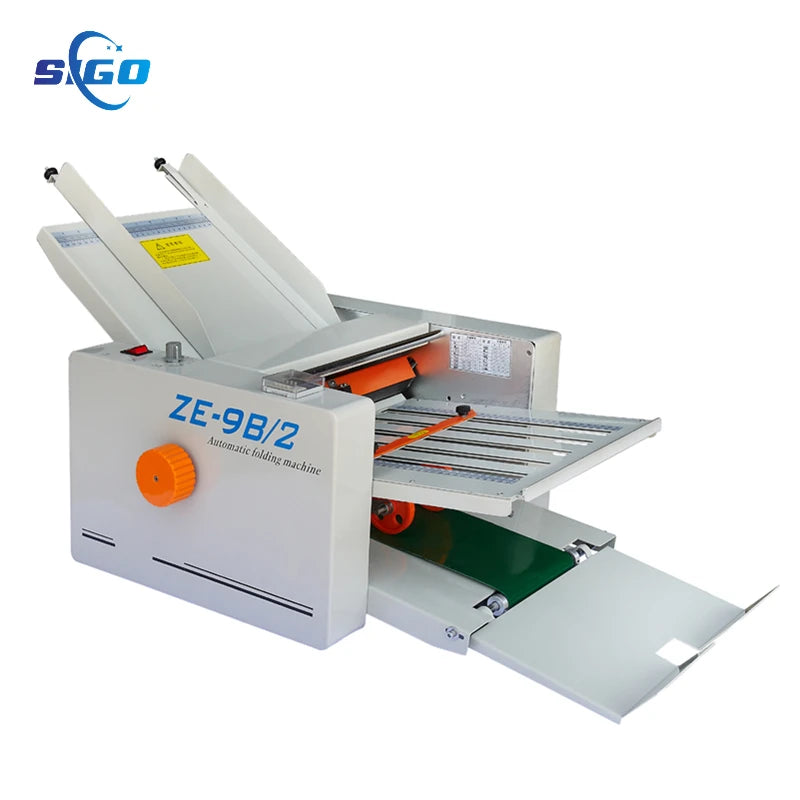

ZE-9B/2

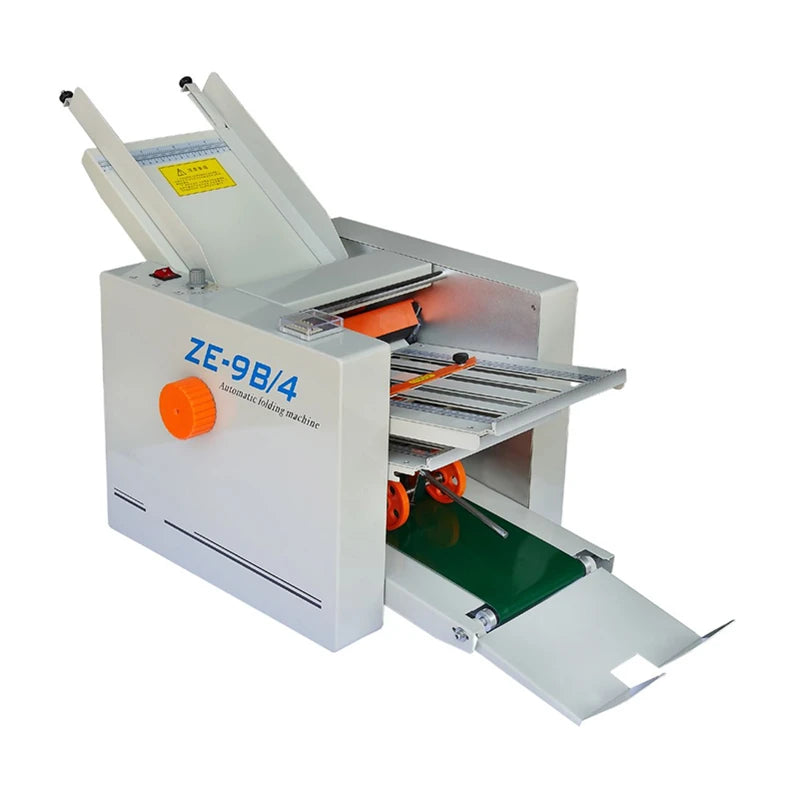

ZE-9B/4
ZE-8B/2

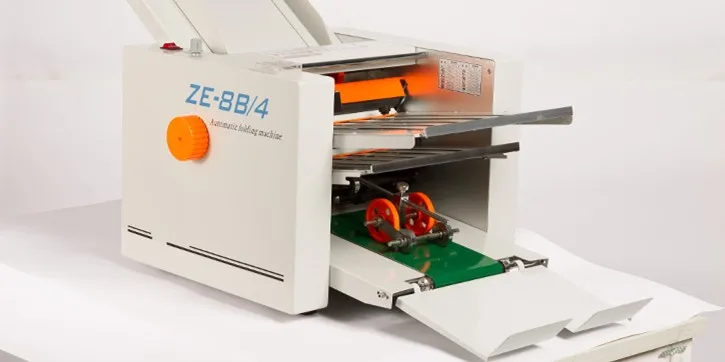

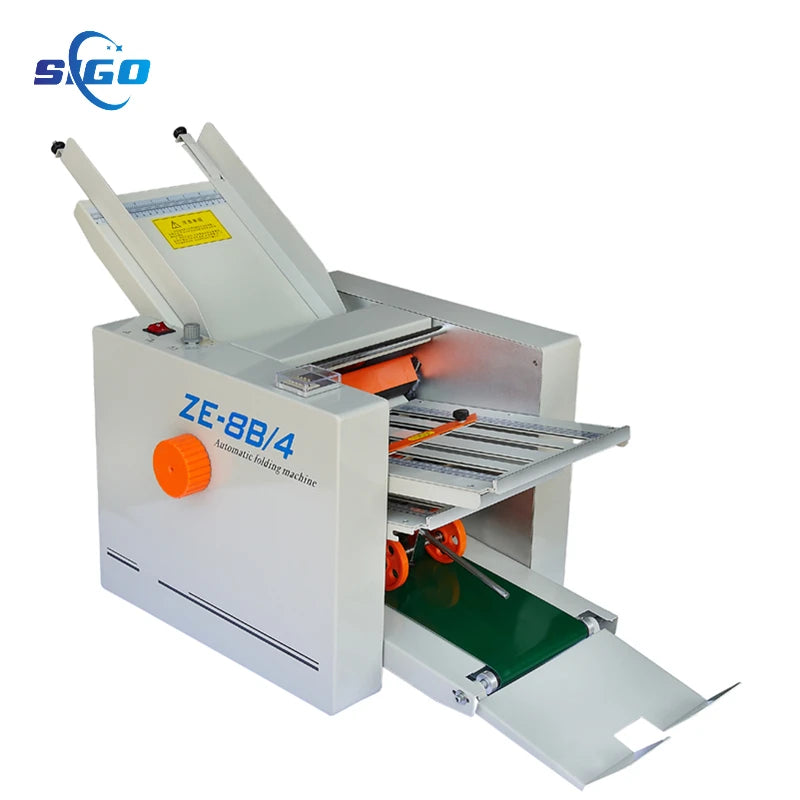

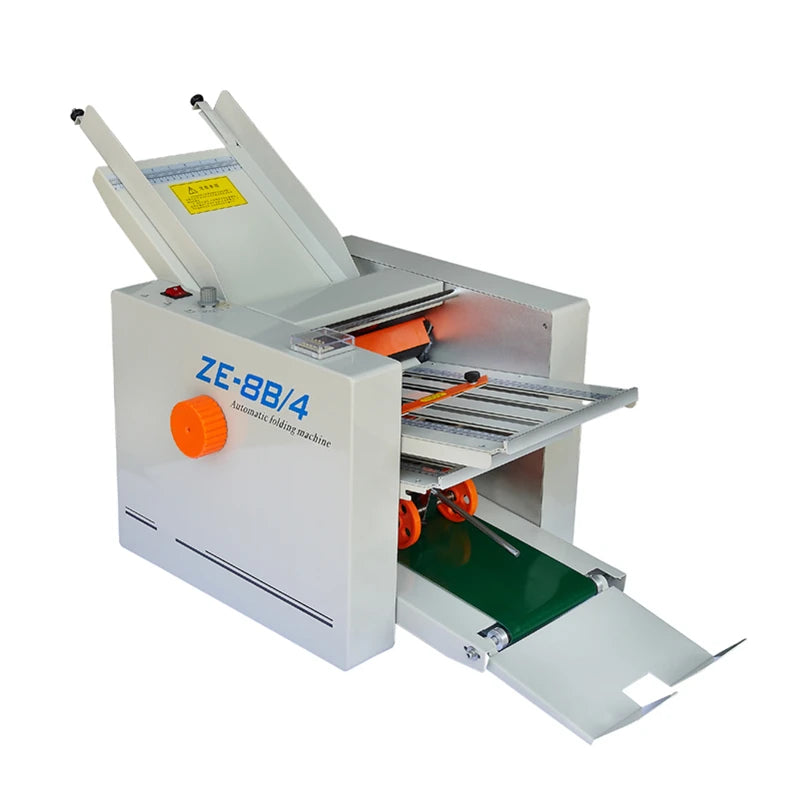

ZE-8B/4
Size
A4
A4
A3
A3
Max. Folding size
210*420mm
210*600mm
310*700mm
310*700mm
Min. Folding size
50*70mm(Folded paper not less than 26mm)
Max. Folding thickness
125gsm paper
Min. Folding thickness
20 gsm paper(Lower speed if the paper less than 40gsm)
Max. Folding Speed
80m/min
80m/min
80m/min
80m/min
Tray paper qty
2 pcs
4 pcs
2 pcs
4 pcs
Machine Size
101*42*52cm
101*43*59cm
107*52*52cm
107*52*59cm
CTN Size
54*53*65cm
56*53*73cm
62*52*62cm
64*57*85cm

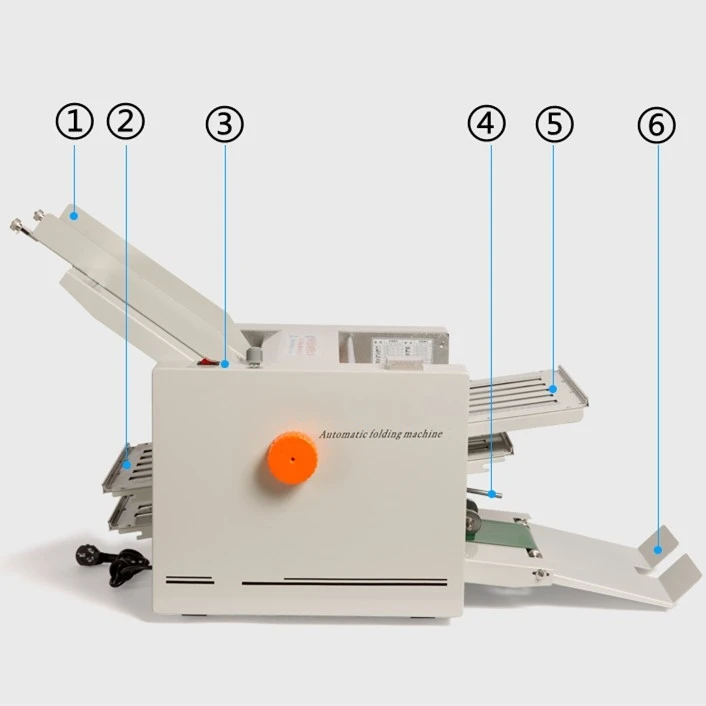

The Instruction of
Strcture for ZE Folder


① Upper paper tray
② Down paper tray
③ Switch
④ The handle of control
⑤ Entry paper system
⑥ Exit paper system
Working video
Detailed Images

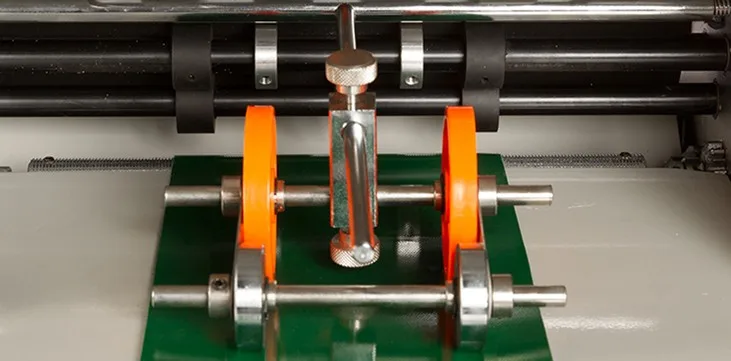

1. High quality conveying roller
The machine uses wear-resistant conveyor wheel, long life, wear resistance, rapid delivery, longer service life.

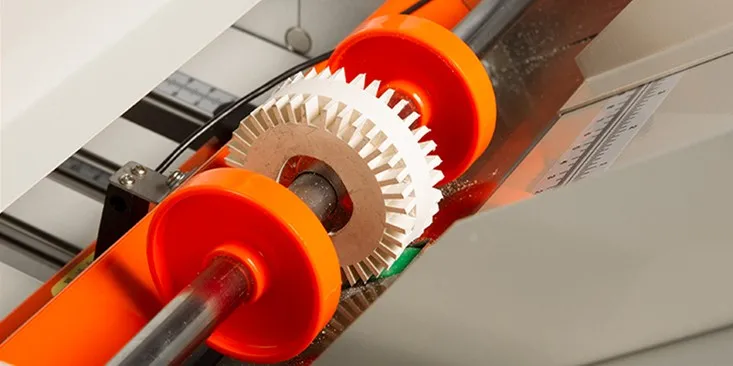

2. Choose a different pickup pad
Three soft pulleys with gears to ensure smooth feeding, can choose a different pickup pad for different paper.

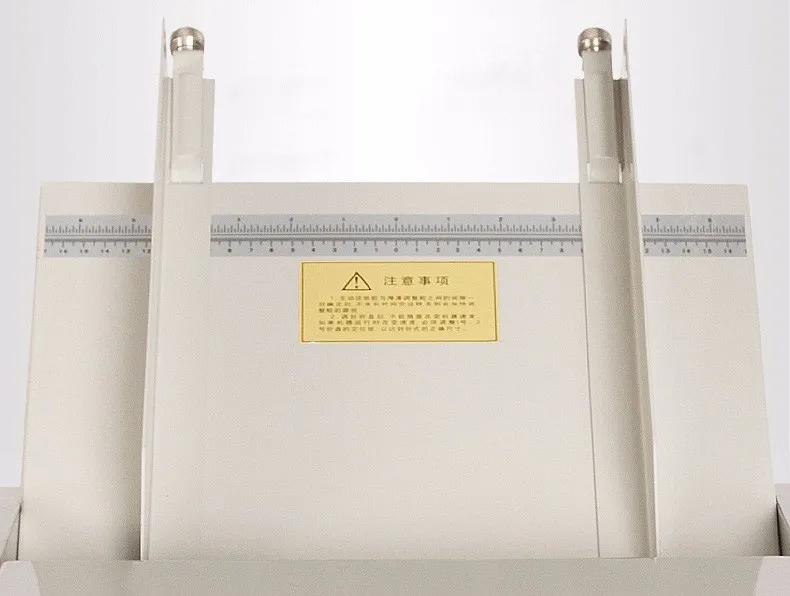

3. Stabilize the device tray
The machine adopts a durable and durable device tray, stable performance, smooth transportation

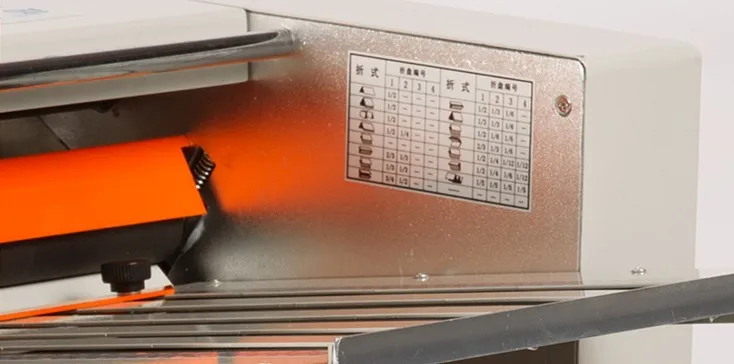

4. Folding paper show
Accompanied by a paper-related schematic diagram, simple operation, intuitive paper adjustment mode
5. Simple structure design
Simple and generous shape, the machine plate thickening and reduce working noise

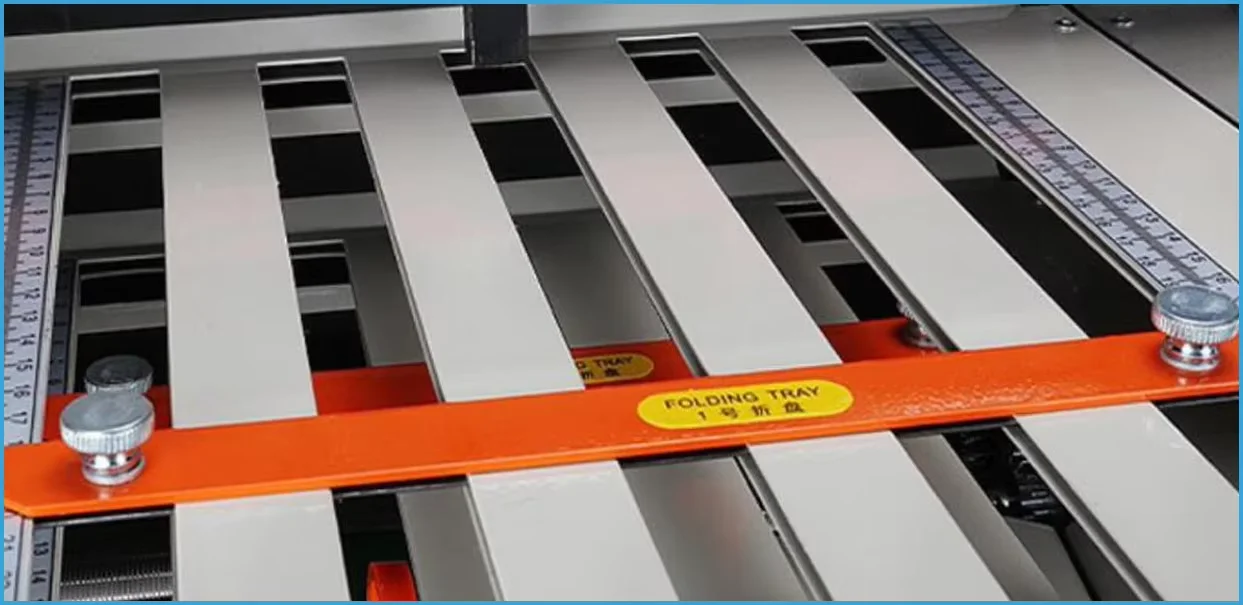

6. Folding paper tray
On the paper folding tray,there is scales for different folding types.Easy to Adjust.

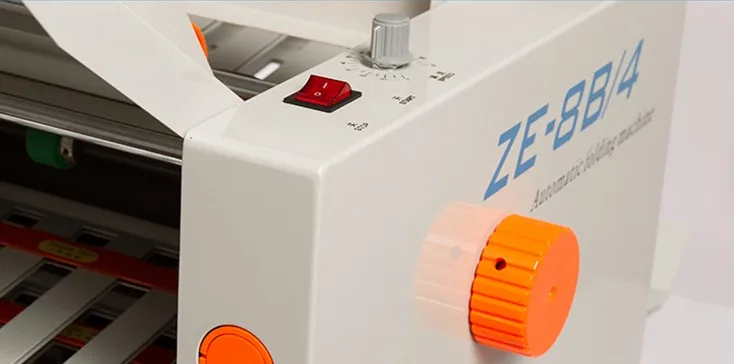

7. Adjustable button
The machine is equipped with adjustable speed button and safety switch, the device safe and reliable operation.

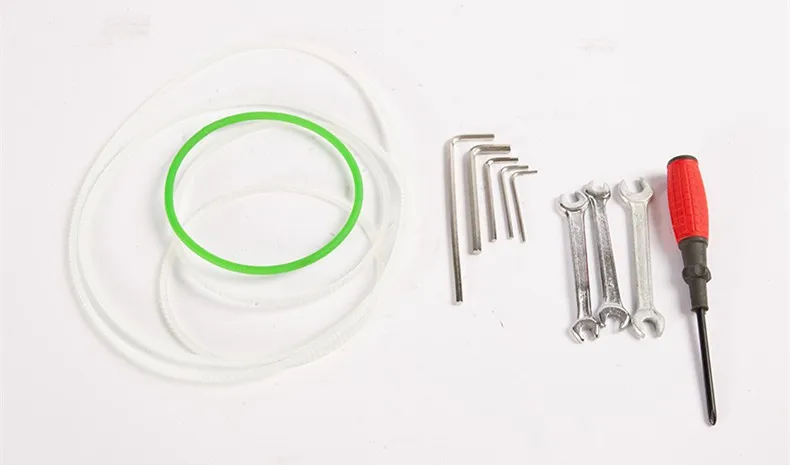

8. Spare parts with machine
We will provide free assemb toold and quick wear part rubber band.

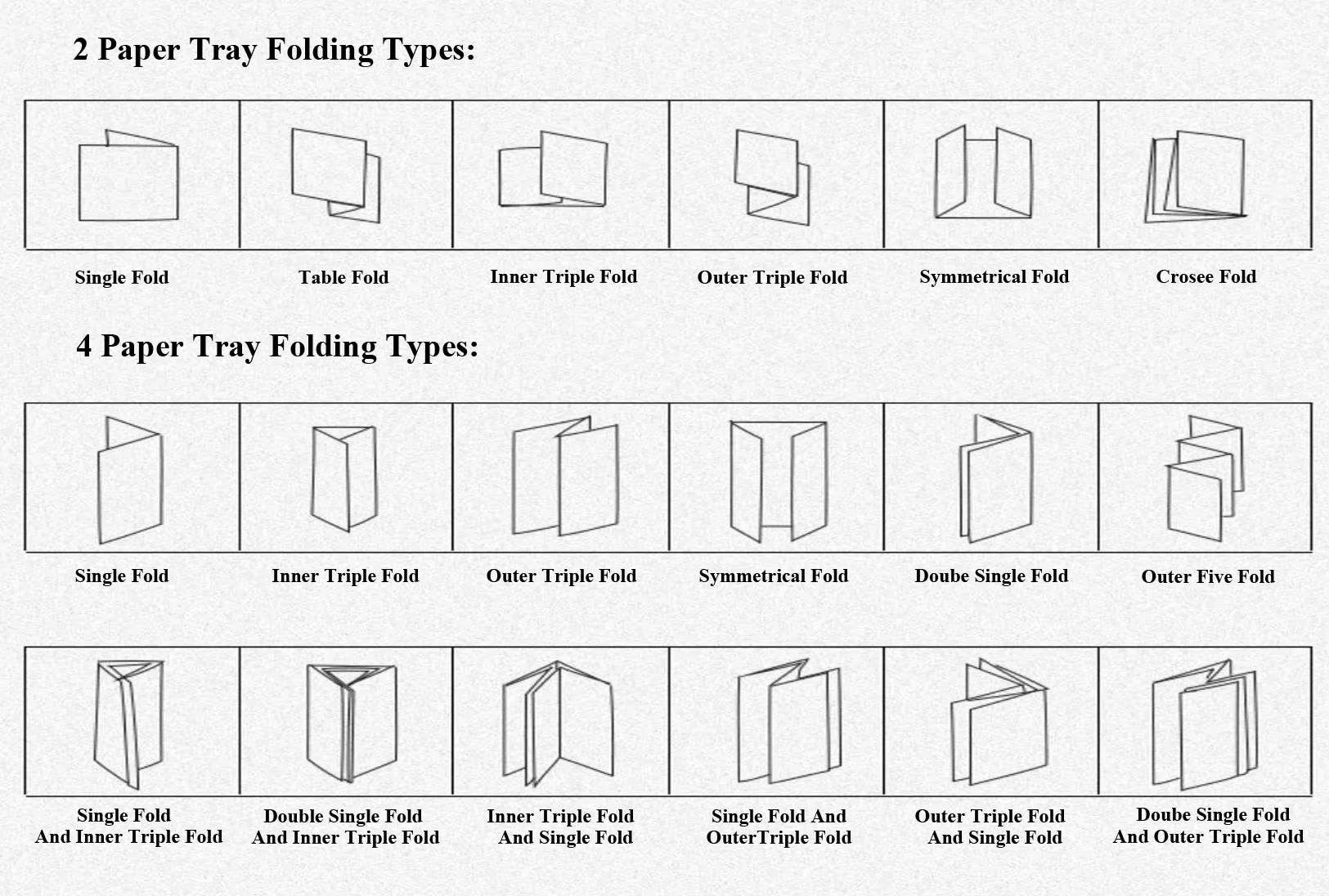

Folding types
Packing & Delivery
Packaging
Size
64*57*85cm
Weight
58Kgs



Packaging Details
The normal package is non-fumigation casewooden box(Size: L*W*H).
If you need shipping mark on out of carton, pls tell us before order. Otherwise we will paste "SIGO OFFICE SUPPLIES" on carton.
Certifications
Our Service

1.One year warranty on whole machine/parts.


2.Professional service before and after sale.


3.Supply training video and user's manual in English.


4.Long-term support for the software and machine maintenance.


5.Free lifetime technology support on all orders.

FAQ

1.Are you a factory or trading company ?

Yes, we are factory. Our factory located in Fuyang, Hangzhou.
1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!

2.How does your factory do regarding quality control?

Quality is priority. Our factory always attach great importance to quality controlling from the verybeginning to the very end. Our
factory has gained CQC, ISO, SGS,FSC authentication

3.Can you give us discount if we make big order?

As a factory, we will provide offer with MOQ. If the quantity less than MOQ, we will add inland freight. If the quantity more than
MOQ, we can negotiable the price.

4.How can i get some samples ?

We are honored to offer you sample to test it, around 4-5days arrived your hand after receive payment.

5.How to pay money?

We accept T/T, WESTERNUNION, WIRE TRANSFER, PAYPAL, 30% in advance,70% before shipment.

6.Can I make a OEM order?

We can supply different sizes.our products can be customized with LOGO, PACKAGE, COLOR, etc.
