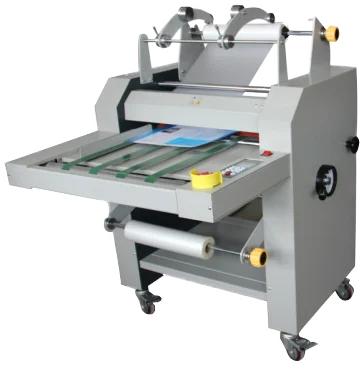

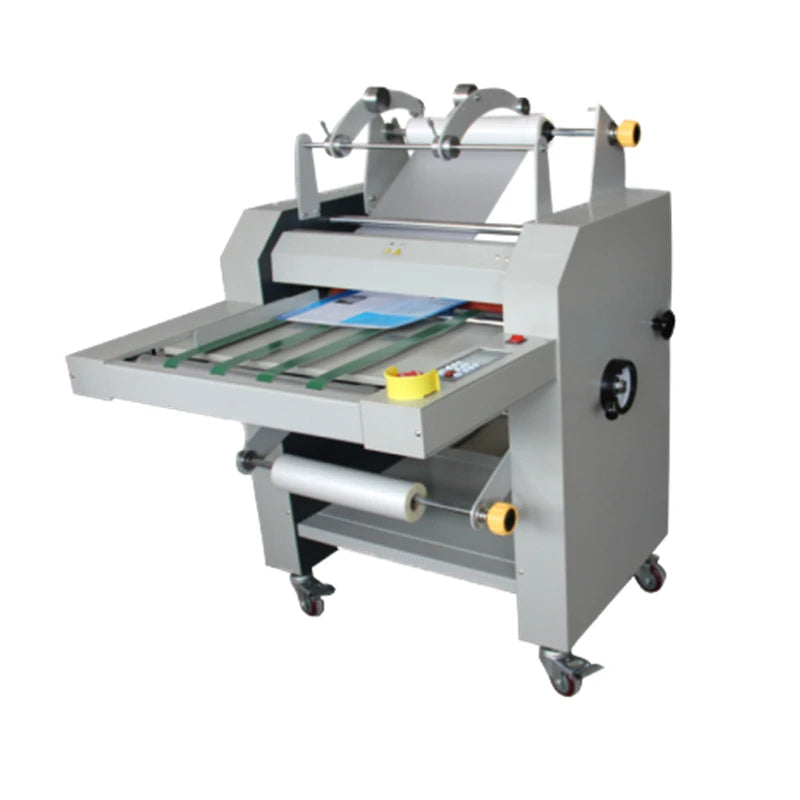

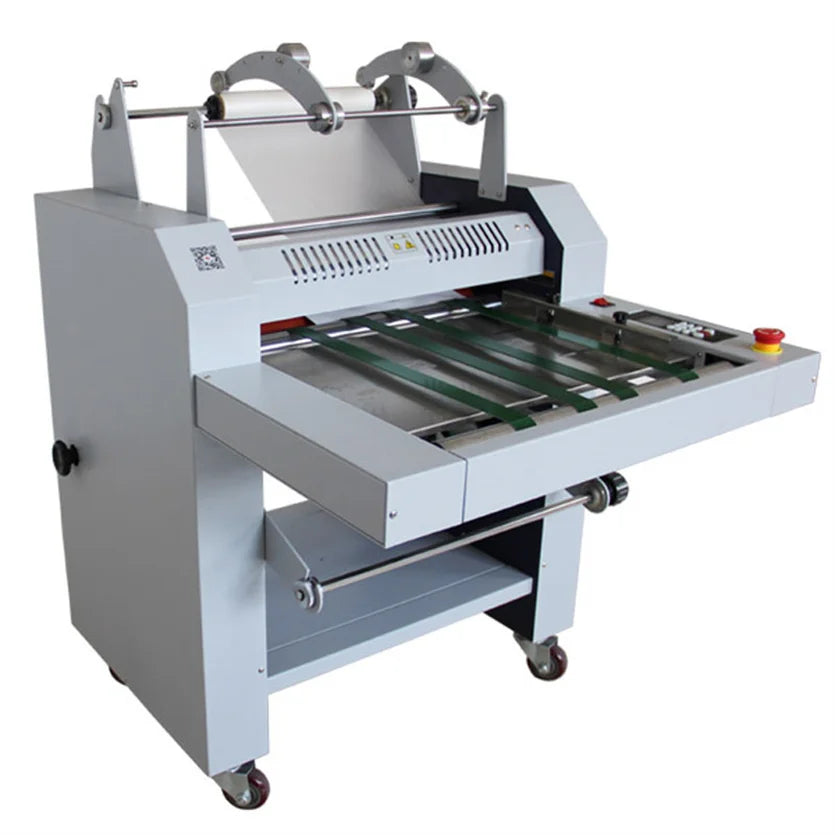

SG-720 Industrial Book Cover Laminating Machine

SG-720 Industrial Book Cover Laminating Machine

$3,688.97 USD
$4,611.21 USD $3,688.97 USD
Sale Sold out
Shipping calculated at checkout.
Product Description

SG-720 Industrial book cover laminating machine

Hot roller heating technology
Hot and cold laminating for different equipment
Digital display system
Adjustable moter speed according to different material
Adjustable tenperature control for various film thinckness and different material
Reverse button removing jammed films
Tension control on film mandrel
Metallic construction for duravility

Semi automatic laminating machine
Model
SG-490
SG-720
Max. lamination width
490mm
720mm
Laminate Thickness
60-800gsm

Max. lamination temperture
150℃

Max. Laminate speed
10m/min
Warming up time
10mins
Suggested laminate bopp film
25-250mic
Operating panel
LCD screen
Auto feed paper with belt
Yes
Single Laminate
Yes
Double Laminate
Yes
Cold&Hot Laminate
Yes
Cut film knife
Yes
Perforating knife
Yes
Auto rewinding paper
Yes
Reverse
Yes
Dia. of core
1",1.5",3"
The quantity of roller
4pcs
Speed control
9 gear
Power
2.2KW
2.5KW
Voltage
AC110V(60HZ)    AC210V~230V(50HZ)
Carton Size
102*89*111cm
112*102*111cm
G.W.
130KG
180KG
N.W.
110KG
158KG

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Detailed Images
1. Conveyor belt
8.Power switch
2. Bottom film
9. Adjust upper film adapter
3.Emergency stop
10.Upper film
4.Adjust bottom film adapter
11. Cut knife
5. Operating panel
12. Perforating knife
6. Handle
13. Safty cover
7. Rull fim handle
14. Limting block
15.Heating upper steel roller
16. Temperature sensor
17. Anti curling bar limiting
18. Anti curling bar
19. Pull film roller

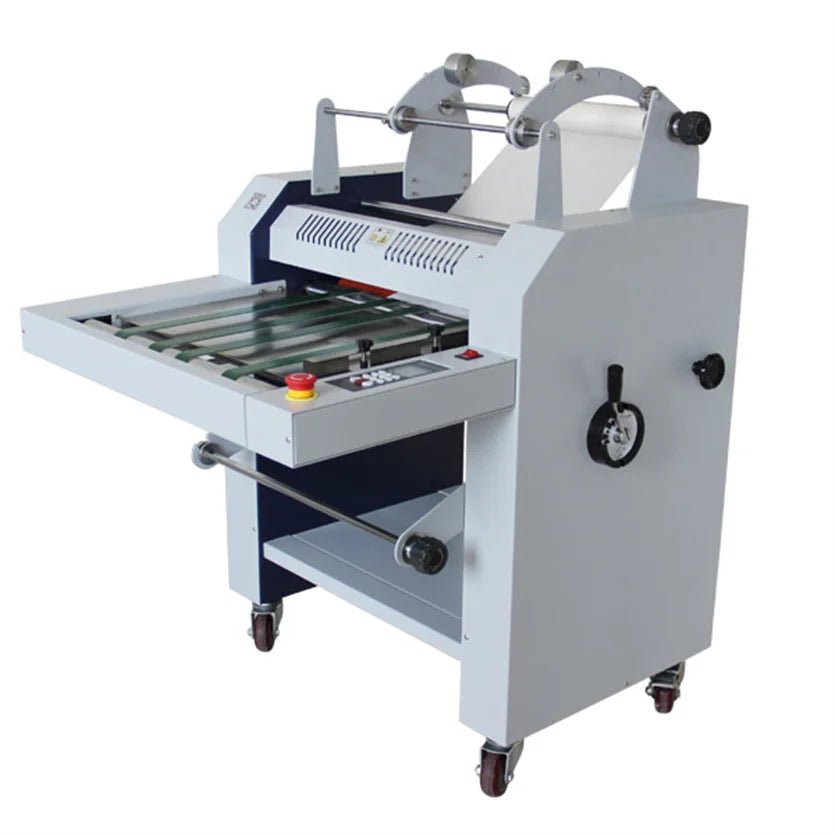

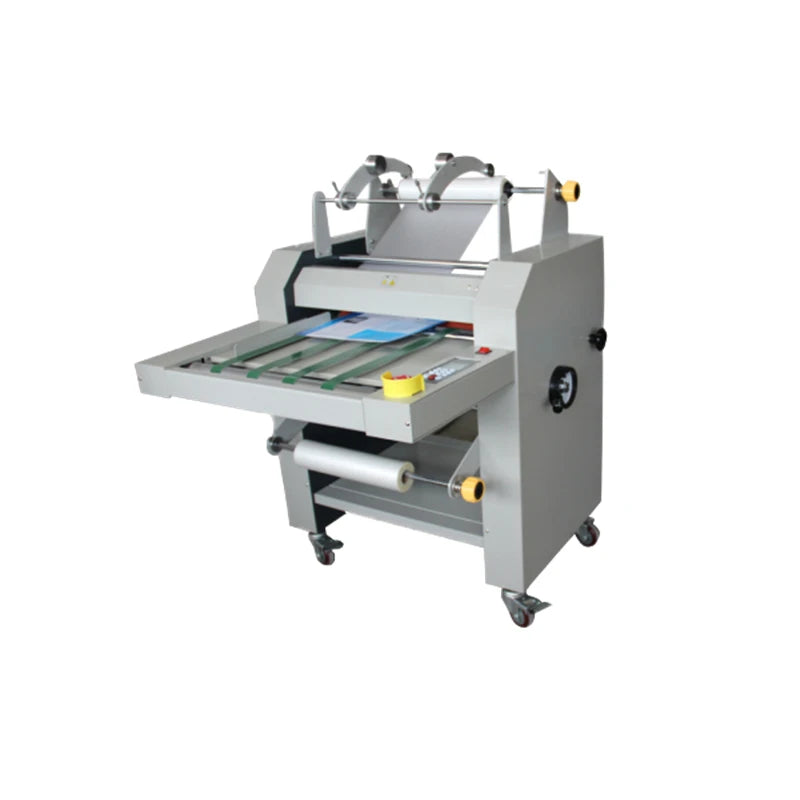

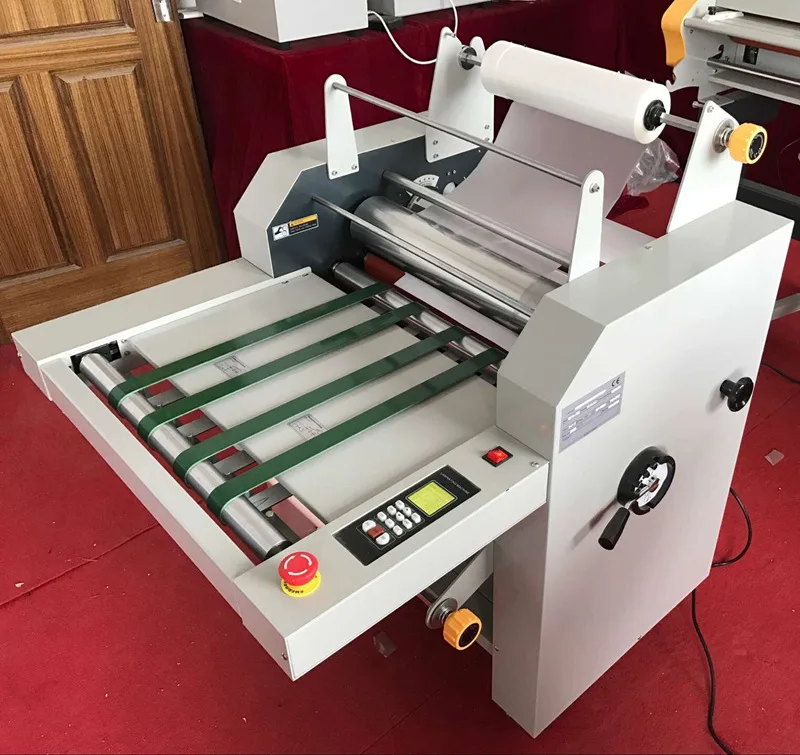

SG-490 laminator on front side

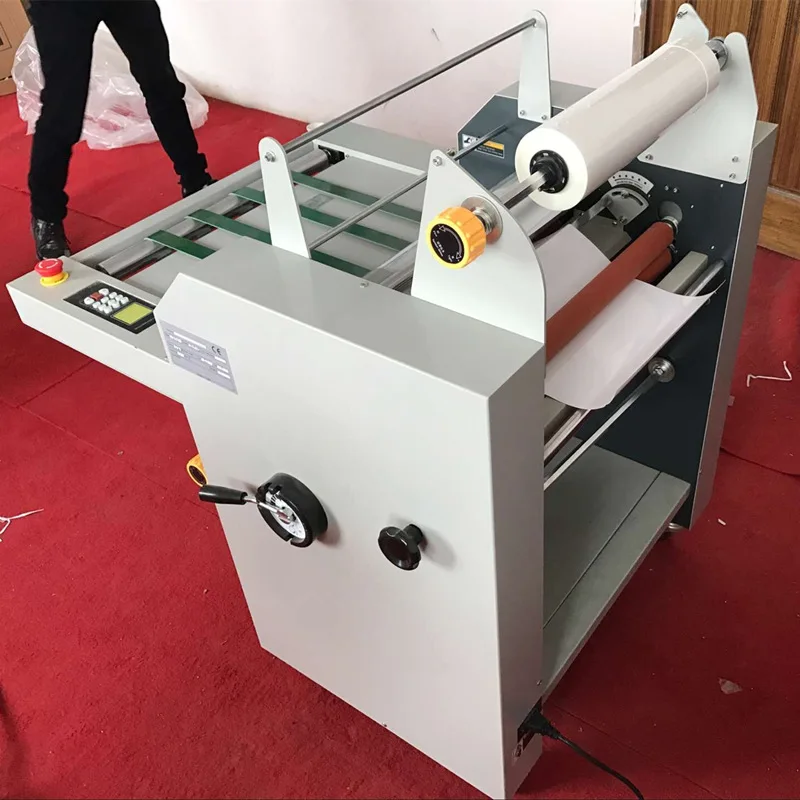

SG-490 hot laminator on view of right side

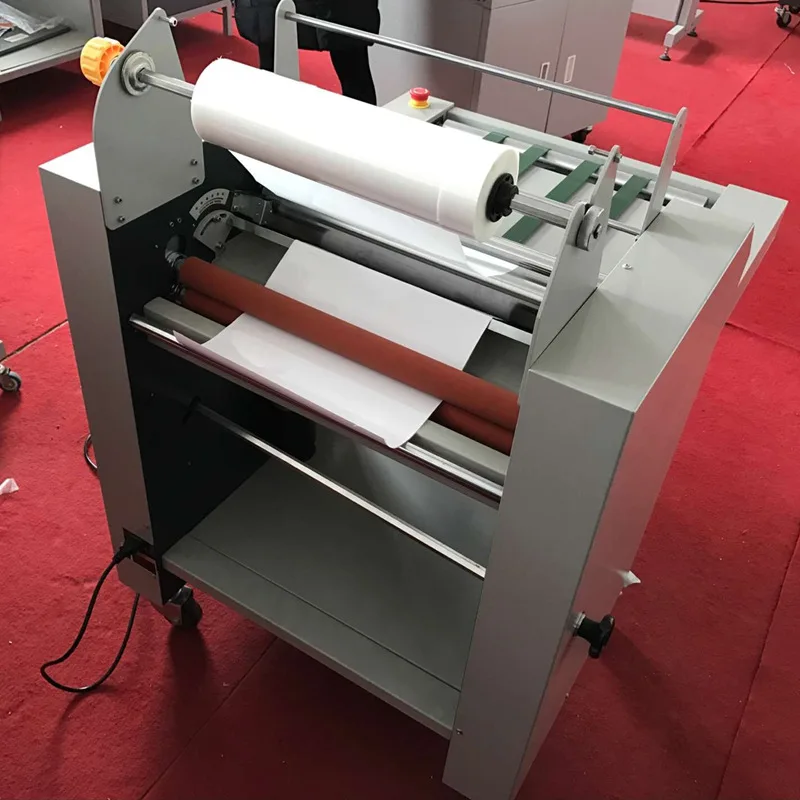

SG-490 A2 A3 A4 laminating machine on view of back side

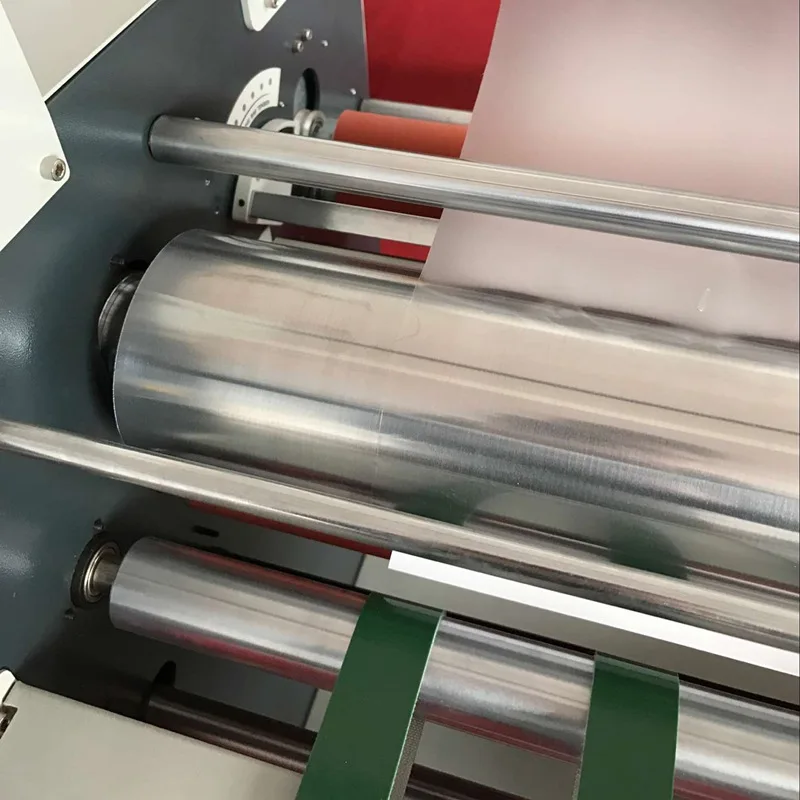

Heating big steel roller for laminator
Packing & Delivery
Packaging
Size
102(L) * 89 (W) * 111 (D)
Weight
130Kgs



Packaging Details
The normal package is non-fumigation casewooden box(Size: L*W*H).
If you need shipping mark on out of carton, pls tell us before order. Otherwise we will paste "SIGO OFFICE SUPPLIES" on carton.
Certifications
Our Service

1.One year warranty on whole machine/parts.


2.Professional service before and after sale.


3.Supply training video and user's manual in English.


4.Long-term support for the software and machine maintenance.


5.Free lifetime technology support on all orders.

Related Products

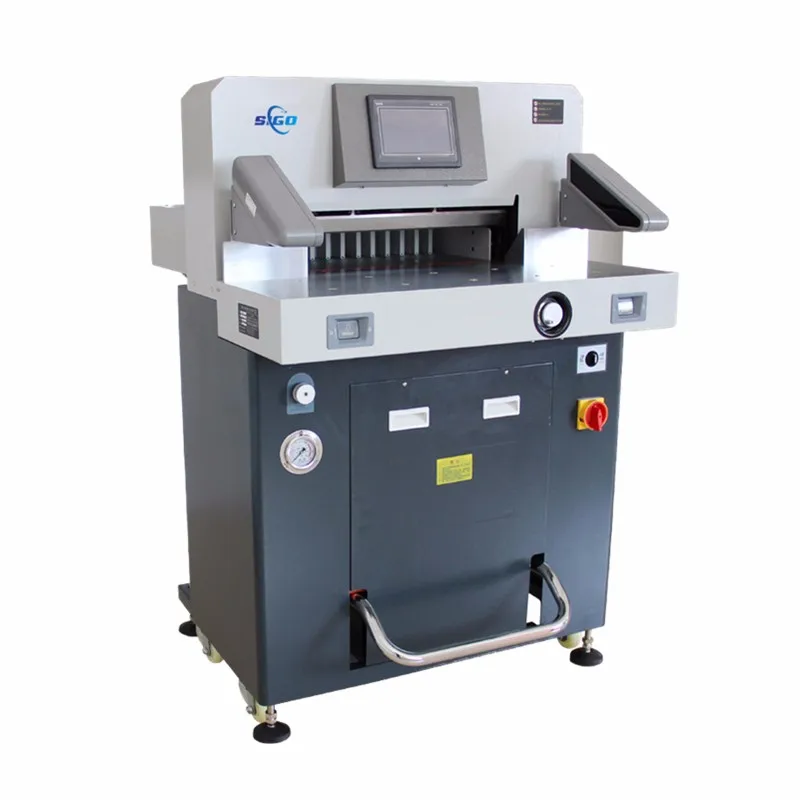

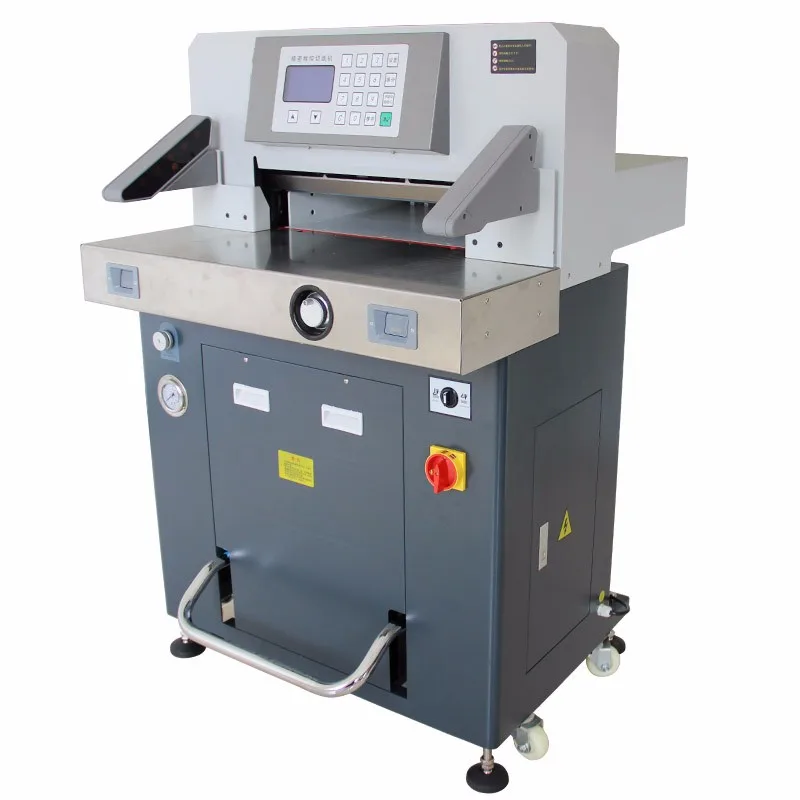

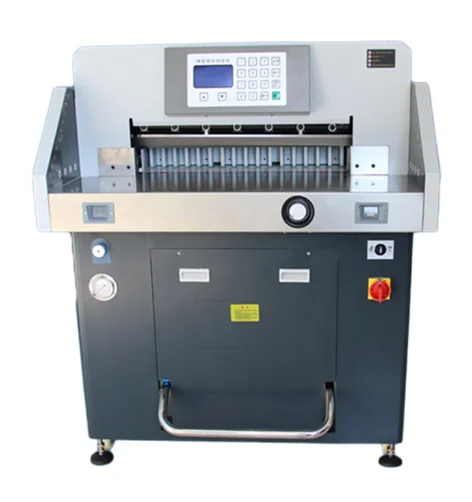

Paper cutter
