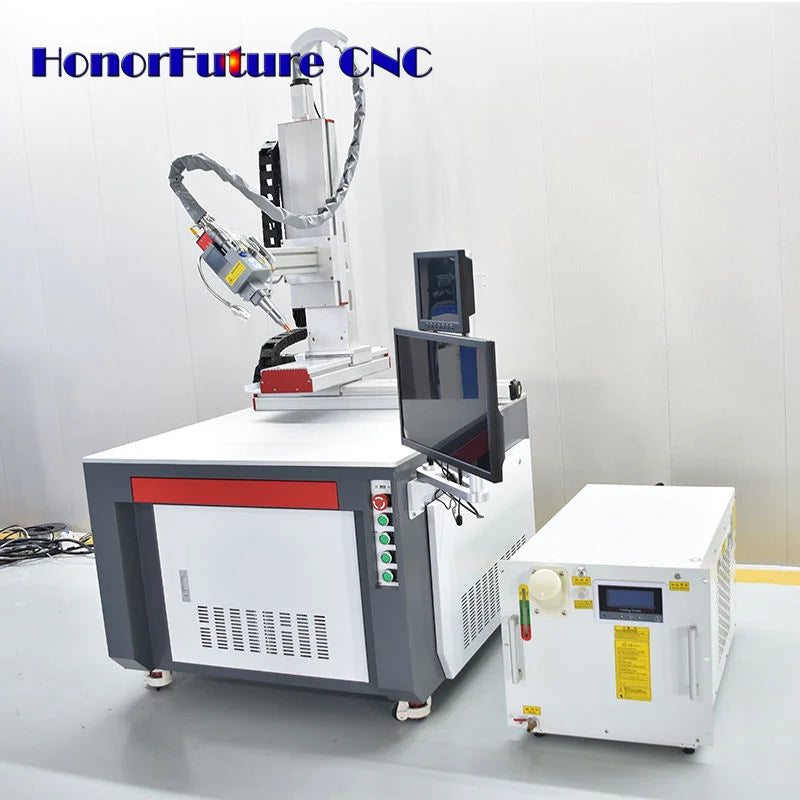

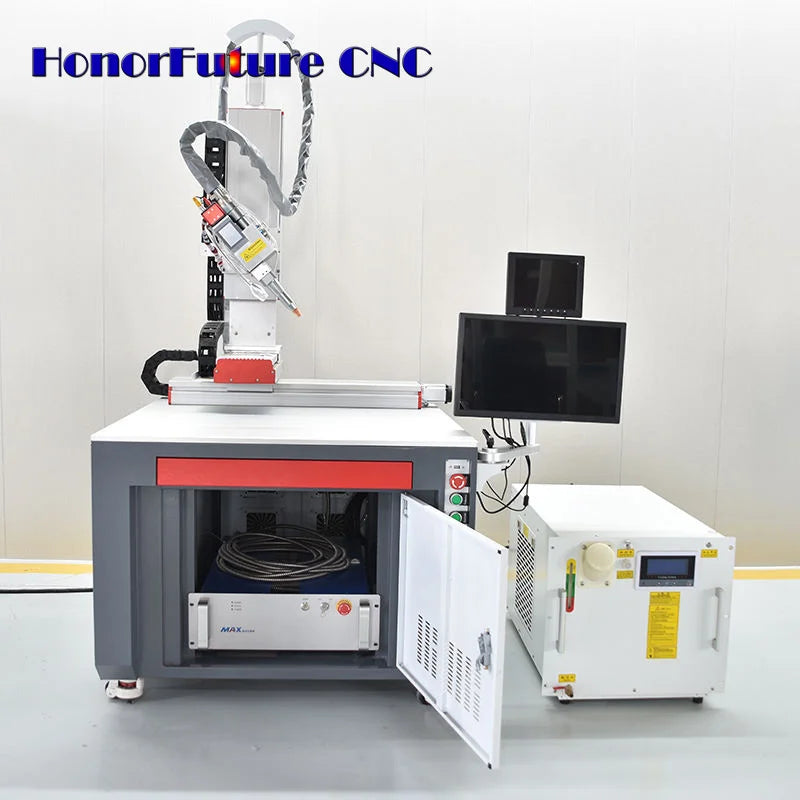

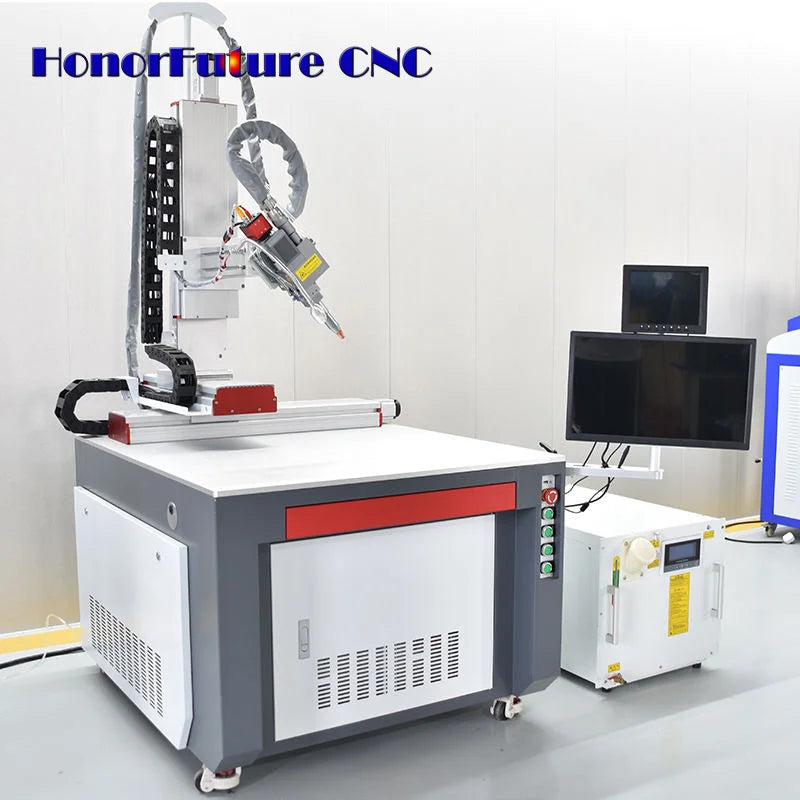

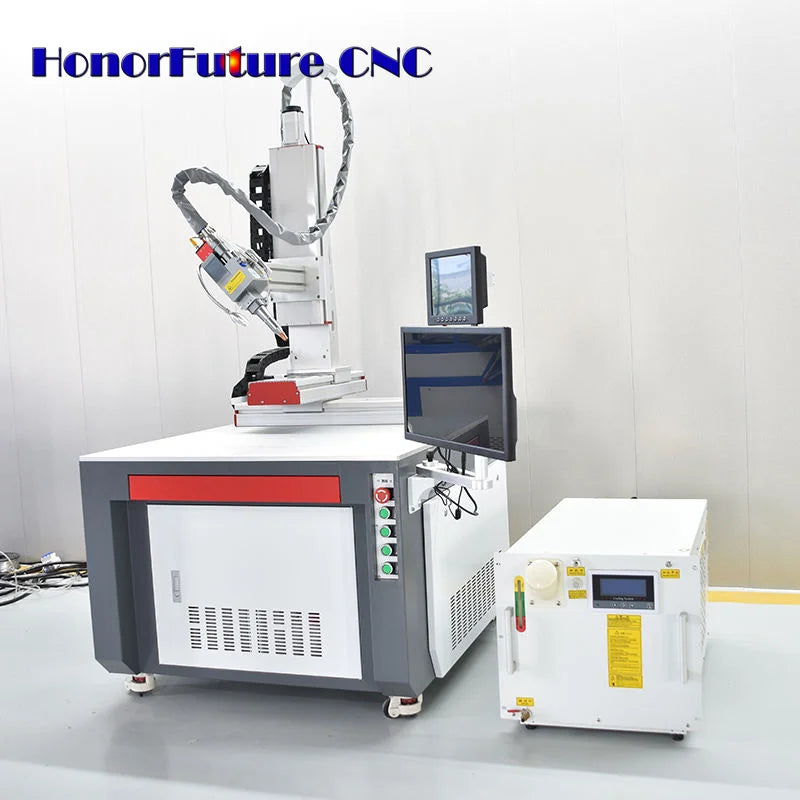

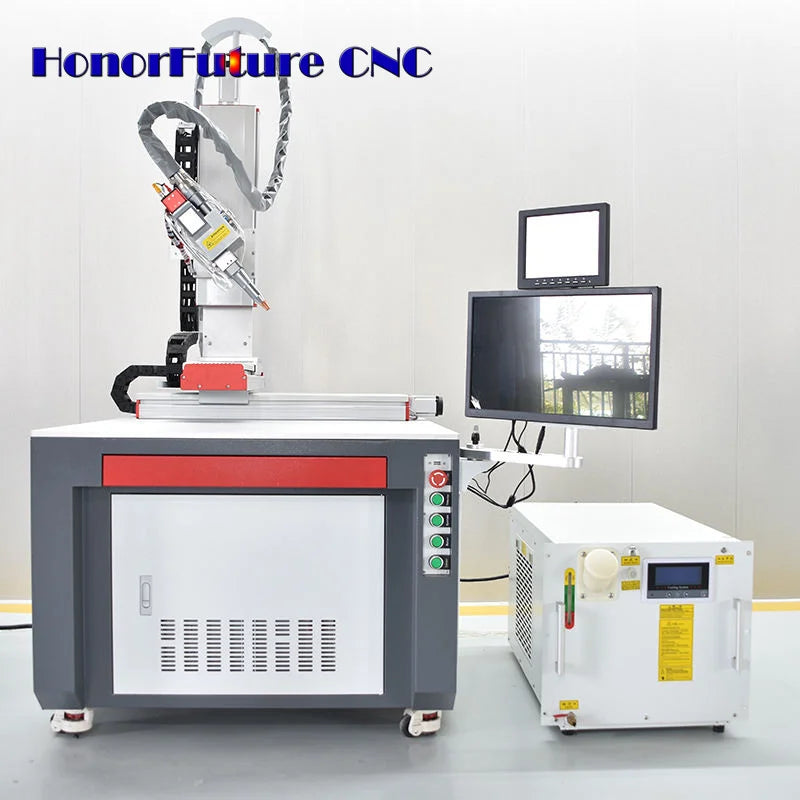

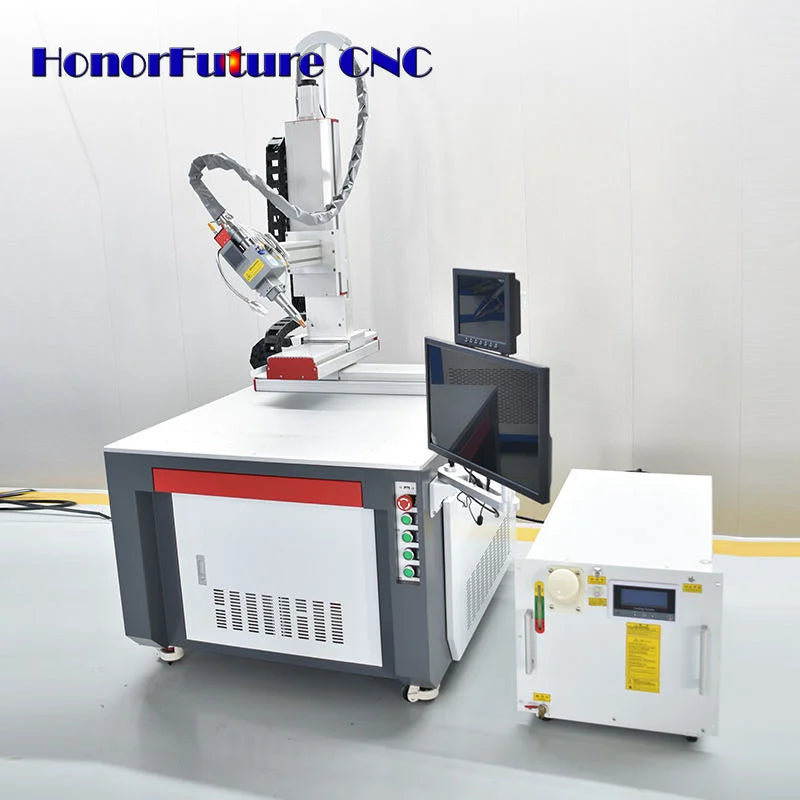

Professional Laser Welding Equipment Platform Welder For Aluminum 2000 Watt Fiber Laser Welding Machine

Professional Laser Welding Equipment Platform Welder For Aluminum 2000 Watt Fiber Laser Welding Machine

$4,057.92 USD
$5,072.40 USD $4,057.92 USD
Sale Sold out
Shipping calculated at checkout.
color


Contact Now!
More discount, feel free to contact :
Jinan HonorFuture Machiney Co.,Ltd:

Email: sales01@honorfuturecnc.com

Whatsapp:+86 17861404934


Professional Laser Welding Equipment Platform Welder For Aluminum 2000 Watt Fiber Laser Welding Machine


Product Description

Hote sales 4 axis 5 axis 6 axis platform automatic cnc fiber laser welding machine price

Optical fiber laser welding machine equipment, with a world-class product quality. The welding process is precise, high cost performance, used for docking, spot welding,edging, lap, lap, joint, T-type docking, affinity welding, deep weld, narrow weld, high welding rate. Customizable ability, can be customized according to customer needs.

Specification
Model
HFW1000
HFW2000
HFW3000
Maximum laser power
1000W
2000W
3000W
Wavelength
1070nm±10nm
1070nm±10nm
1070nm±10nm
Pulse width
Continuous light output
Continuous light output
Continuous light output
Number of fiber optic outputs
1 channel
1 channel
1 channel
Welding depth
Maximum 3mm/stainless steel
Maximum 4.5mm/stainless steel
Maximum 6mm/stainless steel
Welding depth
Maximum 1.5mm/Aluminum alloy
Maximum 3mm/Aluminum alloy
Maximum 4.5mm/Aluminum alloy
Overall power
<4.8KW
<10KW
<10KW
Aiming and positioning
Red light indication（CCD Optional）
Red light indication（CCD Optional）
Red light indication（CCD Optional）
Power input
AC220V±10%/3P+PE
AC380V±10%/3P+PE
AC380V±10%/3P+PE
Cooling method
Water-cooling
Water-cooling
Water-cooling
Fiber optic model
QBH
QBH
QBH
Fiber length
10m
10m
10m
Specification
