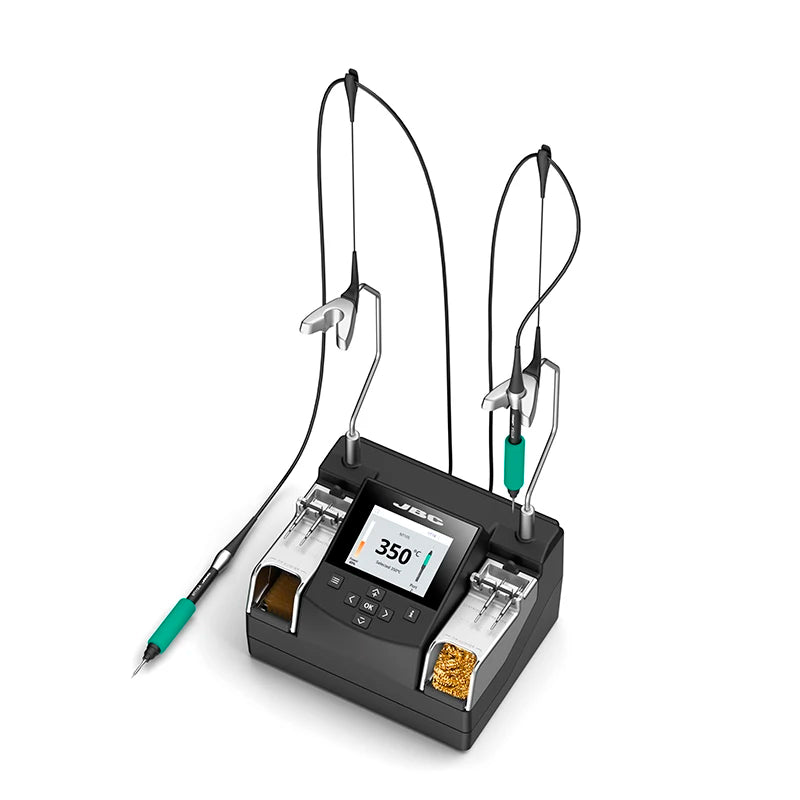

Original JBC NANE-2C Soldering Station Nano Duplex Rework Welding Equipment Use C115 Soldering Iron Tips Mobile Phone BGA IC SMD

Original JBC NANE-2C Soldering Station Nano Duplex Rework Welding Equipment Use C115 Soldering Iron Tips Mobile Phone BGA IC SMD

$1,953.60 USD
$2,442.00 USD $1,953.60 USD
Sale Sold out
Shipping calculated at checkout.
color
Voltage

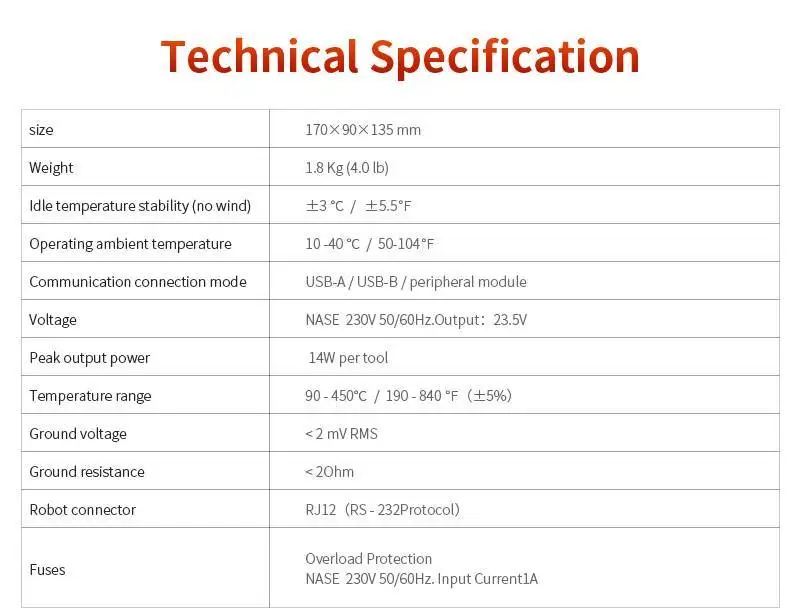

SPECIFICATIONS
Output peak power
14W per tool
Temperature range
90 - 450 °C / 190 - 840 ºF
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20-2021
Equipotential bonding
Connection to EPA
Tip-to-ground resistance
< 2 ohms
Tip-to-ground voltage
< 2 mV RMS

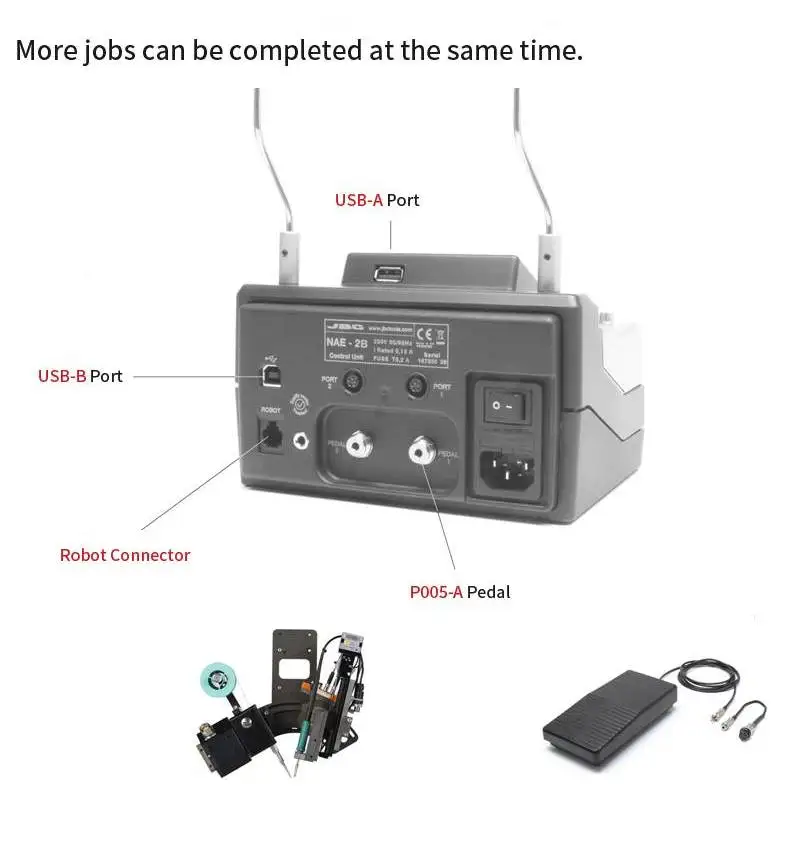

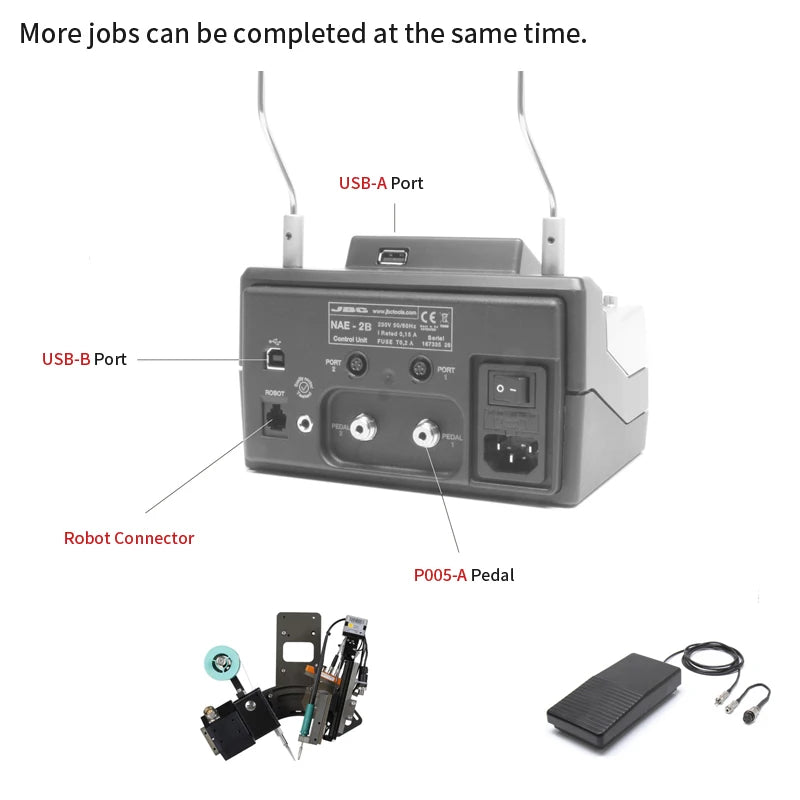

USB-A
Firmware update
Graphics and profiles
USB-B
PC communications
FAE / Robot connector
Remote control or FAE Fume Extractor connection
Pedal connectors
1 for each tool
WEIGHT AND DIMENSIONS
Control Unit
140 x 170 x 125 mm / 2.45 kg.
5.51 x 6.69 x 4.92 in / 5.40 lb.
Package
280 x 280 x 164 mm / 2.94 kg.
11.02 x 11.02 x 6.46 in / 6.49 lb.

 Feature

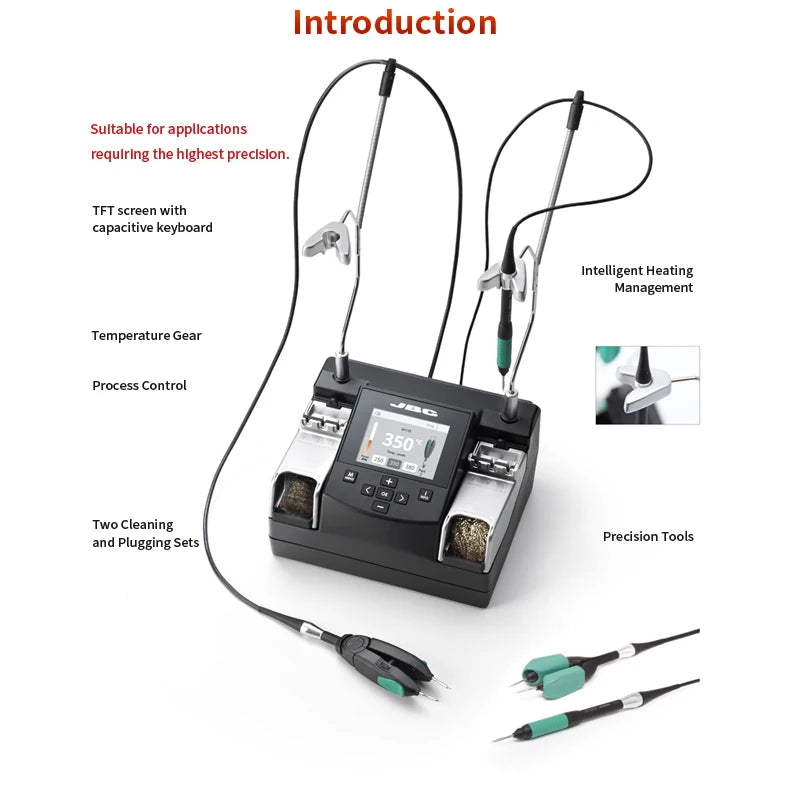

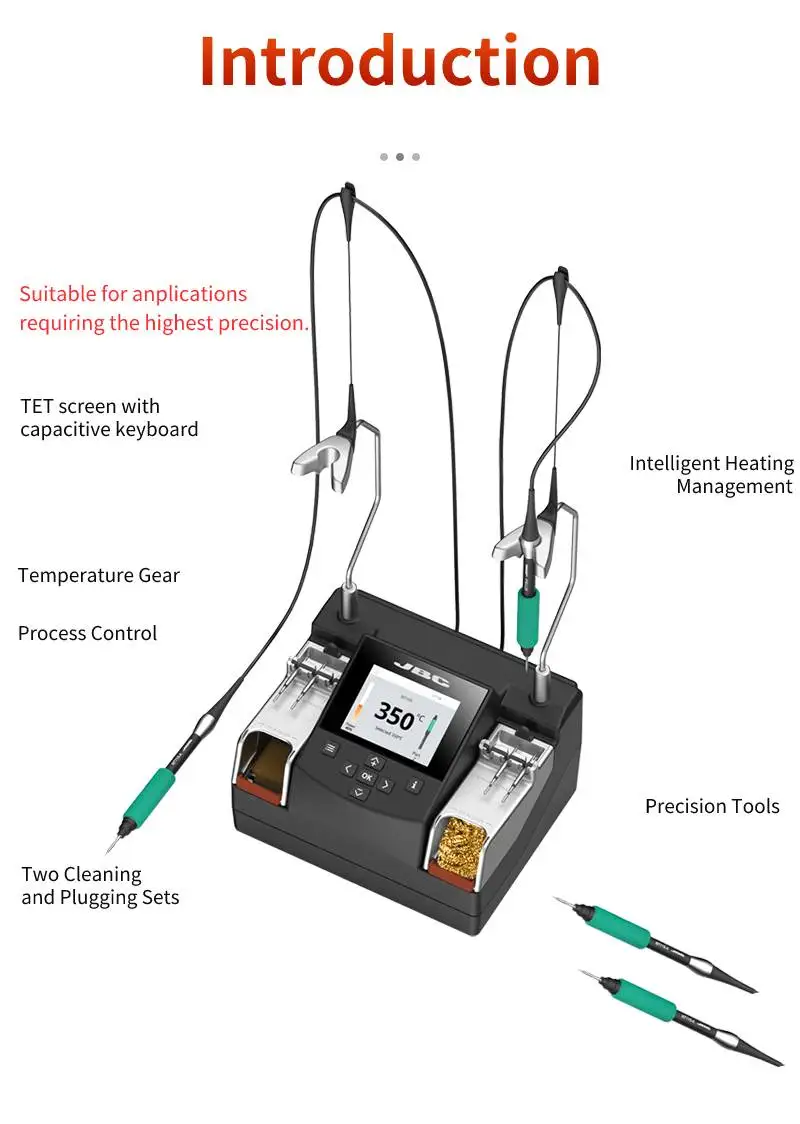

Designed for highest precision applications offering maximum control working under microscope. It provides all the advantages of the JBC Most Efficient Soldering System.

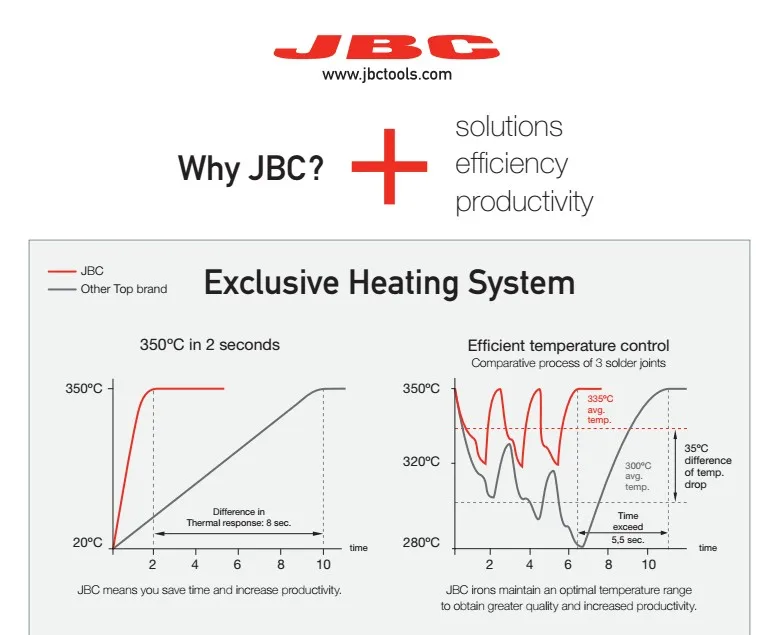

  • Improving the soldering quality thanks to JBC Intelligent Heat Management and, additionally, Sleep & Hibernation Modes that extend tip life till 5 times longer

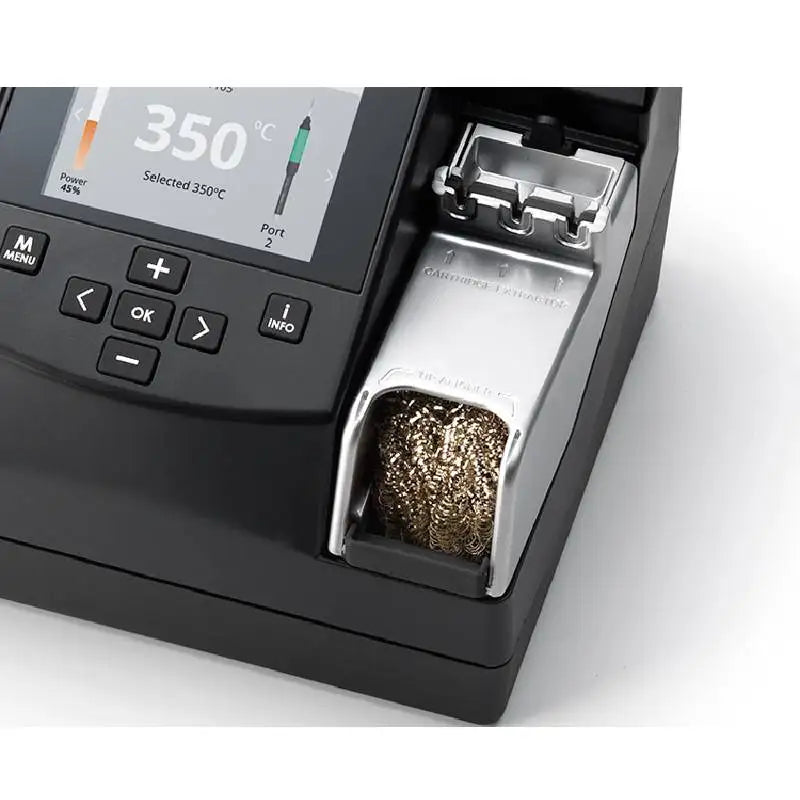

  • Complete Tip Cleaning System with an integrated wiper and brush

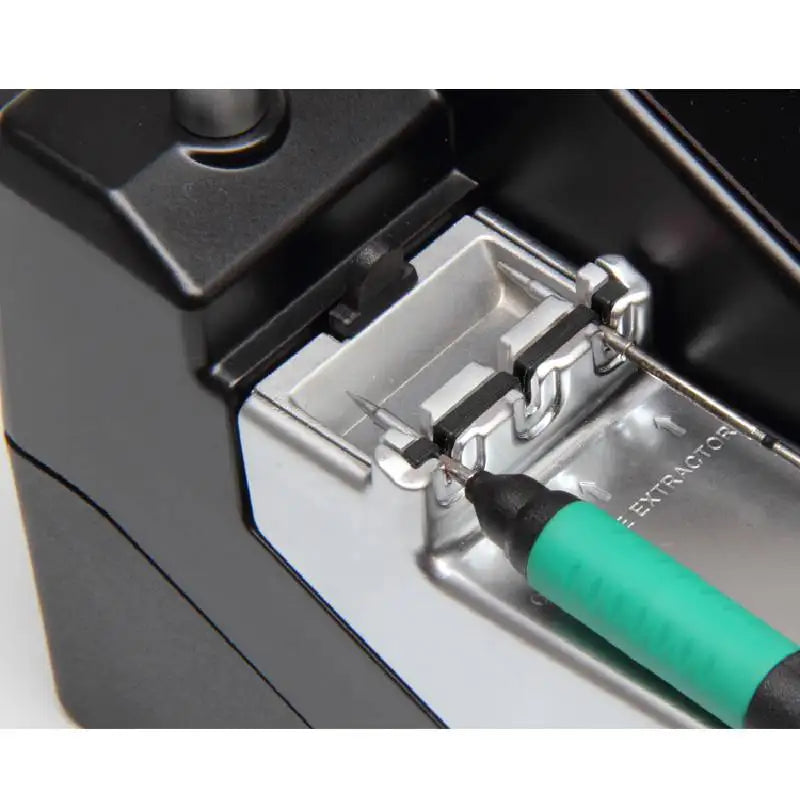

  • Cartridge Holder and JBC Exclusive Cartridge Exchanger, which increases efficiency

  • Connection to JBC Fume Extractor via connector RJ12

  • Connectivity: datas download, remote control for traceability and software updates

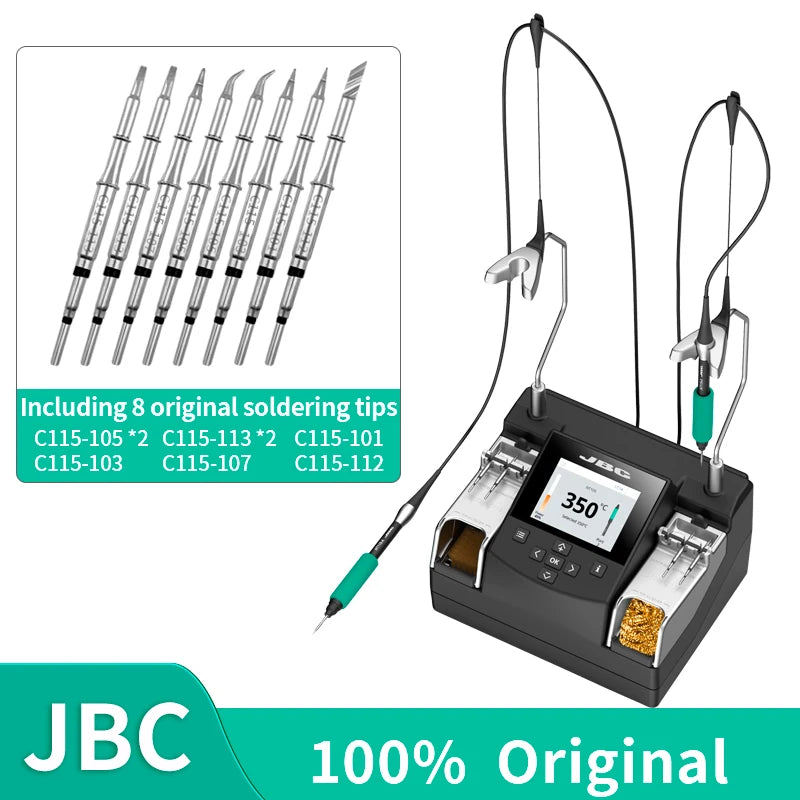

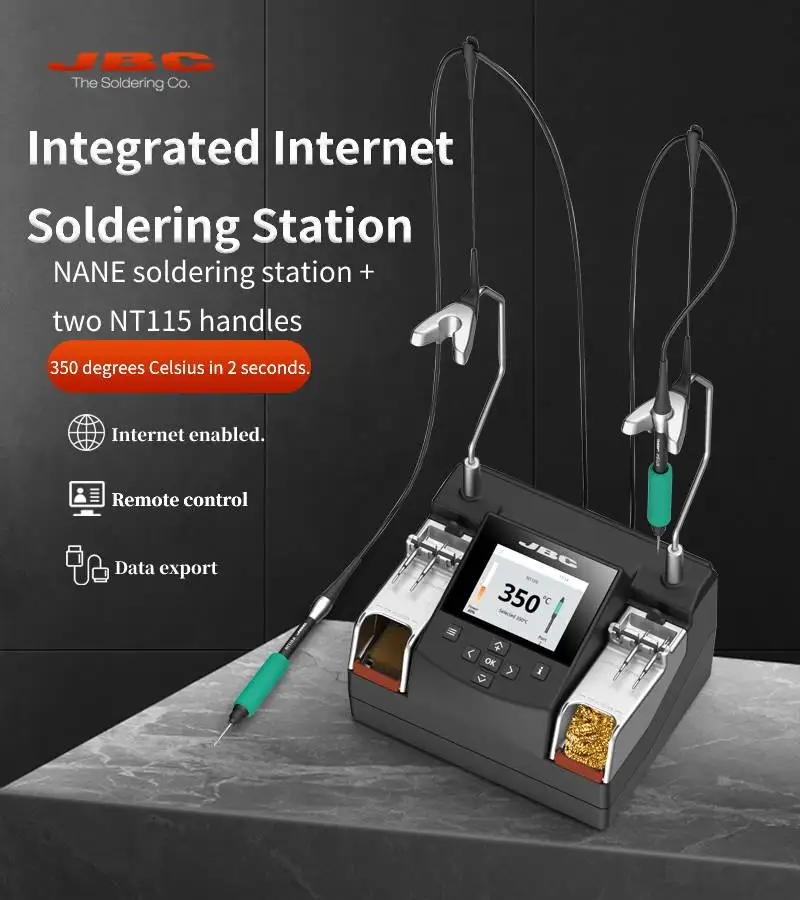

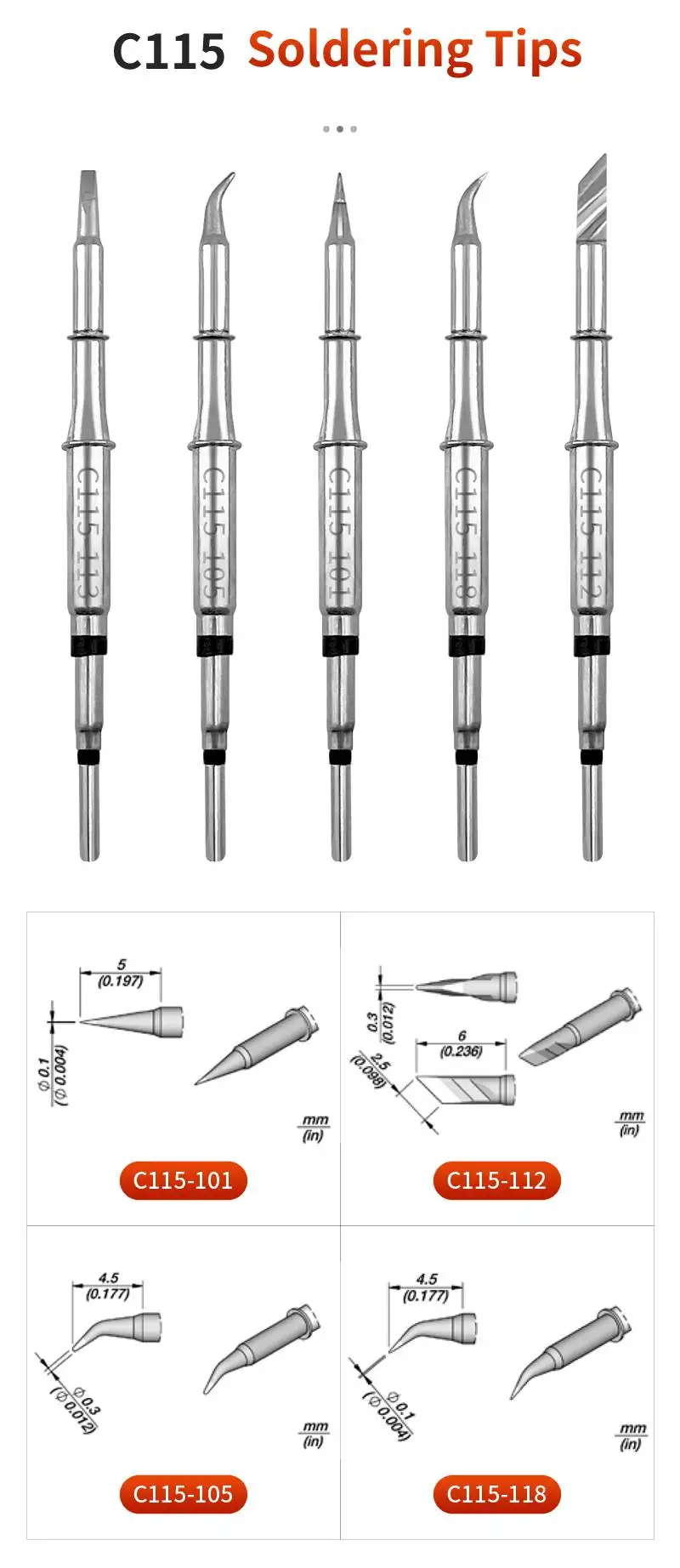

  • Two NT115 Nano Handle, which work with our C115 Cartridge Range



Model


JBC NANE



Product Certification


This product complies with EU certification, and all chemical elements can meet environmental protection requirements, with SGS environmental certification report.
