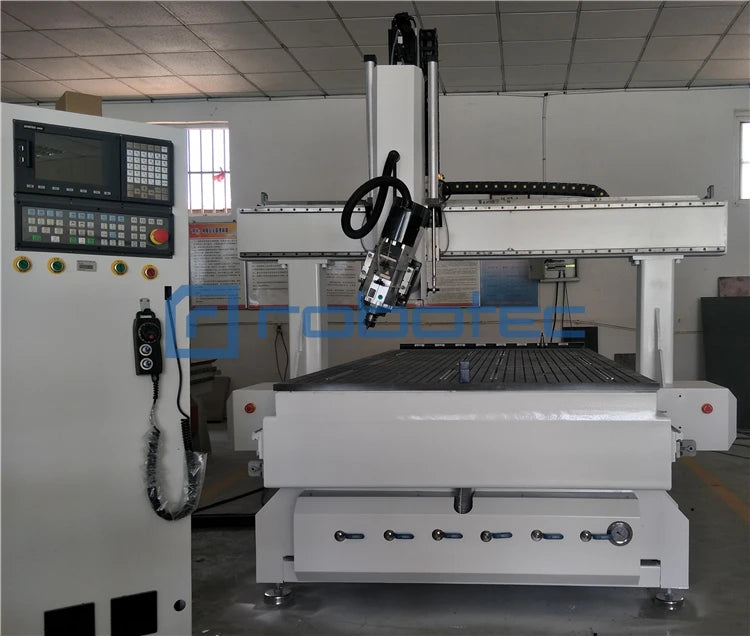

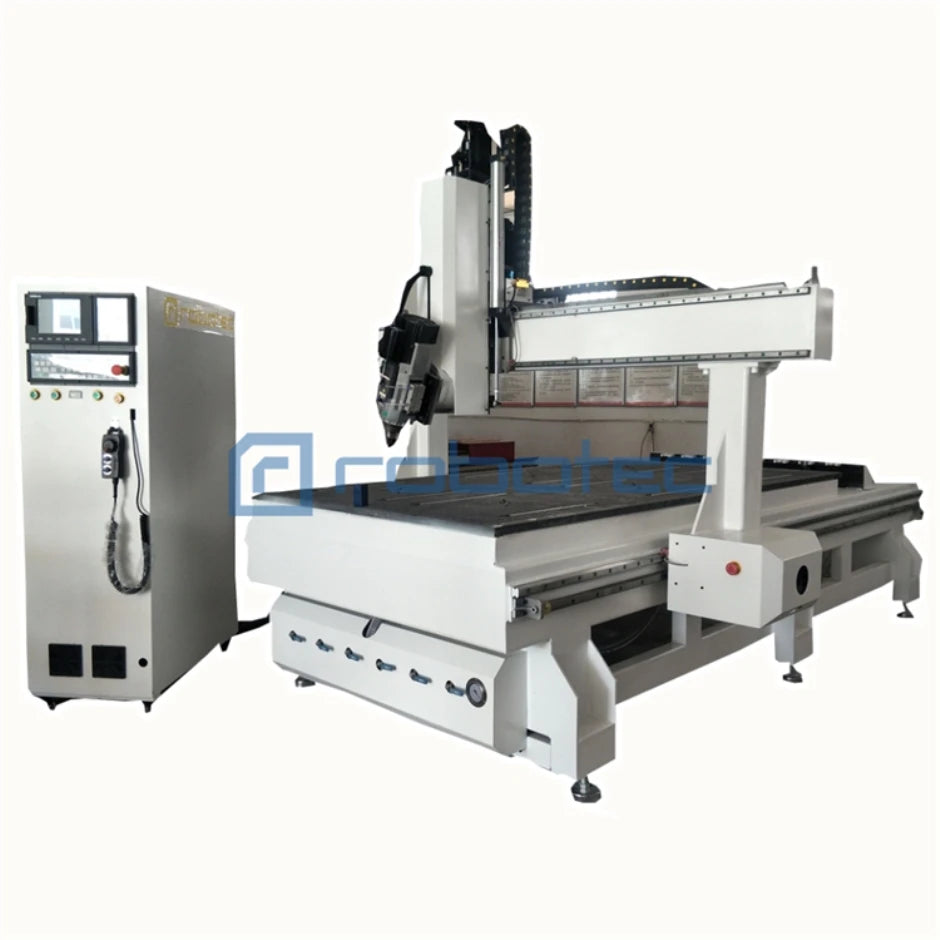

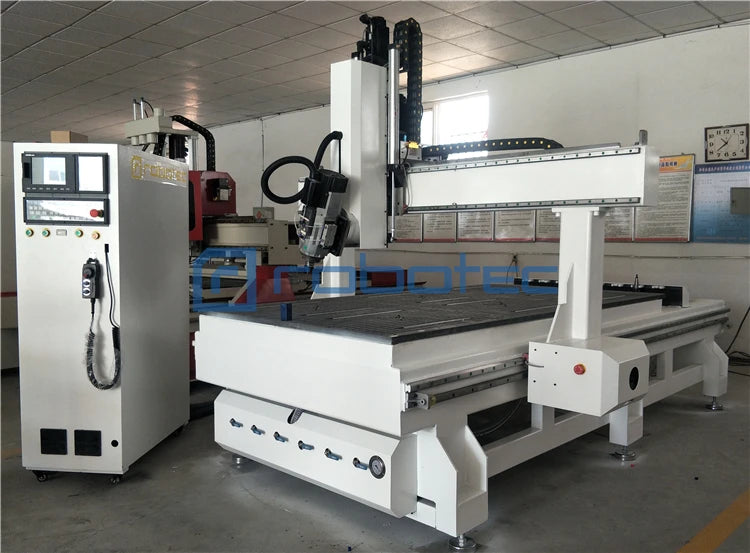

Multi Functional Auto Tool Changer Swing Head 4 Axis CNC Router With Servo Motor 3d Wood Carving Machine CNC Moulding Machine





4 Axis ATC CNC ROUTER MACHINE Tecnonical parameters



#Heavy duty machine body

#1300*2500*500mm XYZ working size

# A axis swing head 180 degree

#9.0KW ATC tool changer spindle

#MIGE/Yaskawa/Leadshine servo motor and driver

#MACH3/DSP/Syntec control system with USB interface

#Vacuum table with vacuum pump

#Dust collector system with spindle hood and 3.0kw double back dust collector

#Auto height tool sensor

Model	RT-1325AH
X,Y Working Area	1300*2500mm
Z Working Area	500mm
A axis	Swing head ±90 degree
Resolution	0.01mm
Lathe Structure	Seamless welded steel structure, better than cast iron one
X,Y Structure	Rack and pinion, gear drive,
	Taiwan Hiwin H30 square guide rails
Z Structure	Taiwan TBI ball screw,
	Taiwan Hiwin 30 square guide rails
Max. Idling Speed	60m/min
Spindle	9.0 KW air-cooling ATC HQD spindle(HSD optional)
Spindle Speed	0-24000r/min, variable speed
Working Voltage	AC380V/50Hz
Motor and driver	NIGE/Yaskawa/Leadshine servo motor driver
Working Mode	Servo
Command	G code (HPGL,U00, mmg, plt)
Operating System	SYNTEC/Mach3/NK300 control system
Diameter of Cutter	φ3.175-φ20
Cooling Mode	Air-cooling
Dust-collect Function	Yes
Work Holding	By suction or clamp

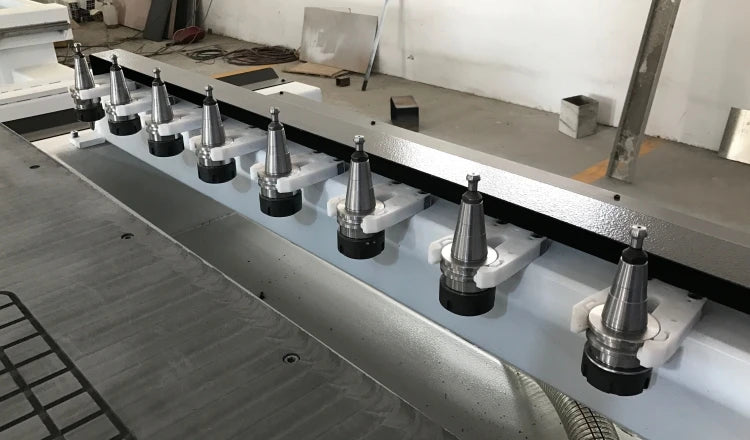

Tool Magazine	Linear-style auto-tool changer system with 8 pieces of tools
Net Weight	1900KG

>>Applicable Material: Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.









1. Service before order: our salesman will try to know more about your demands ,  including the max working size, main processing materials and the thickness , so we will offer you suit machine.

2.Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.

3.Service before shipping : the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4.Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of training : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.

6.Service of warranty : we guarantee the machine for  Two Years, some machine parts ( quality problems ) can be free charge to replace it within warranty.
