ANTNX Wontech DHD360 6 Inch Down The Hole DTH Hammer for Geothermal Water Well Drilling ANTNX.COM

ANTNX Wontech DHD360 6 Inch Down The Hole DTH Hammer for Geothermal Water Well Drilling ANTNX.COM

$3,811.57 USD
$4,764.47 USD $3,811.57 USD
Sale Sold out
Shipping calculated at checkout.
Products Description
鈽�Compatible with the bits of COP/DHD/SD/QL/MISSION series
鈽�Simple piston structure increases it's lifetime
鈽�Adopt valveless air distribution,simple structure makes it easy for dis-assembly
鈽�with faster drilling speed and less power consumption.
鈽�when required to increase deslagging,holes can be added on reverse valve.
鈽�Adopt fine alloy steel and apply hardening treatment on the spare parts,which prolongs DTH hammer lifetime and lifts reliability.

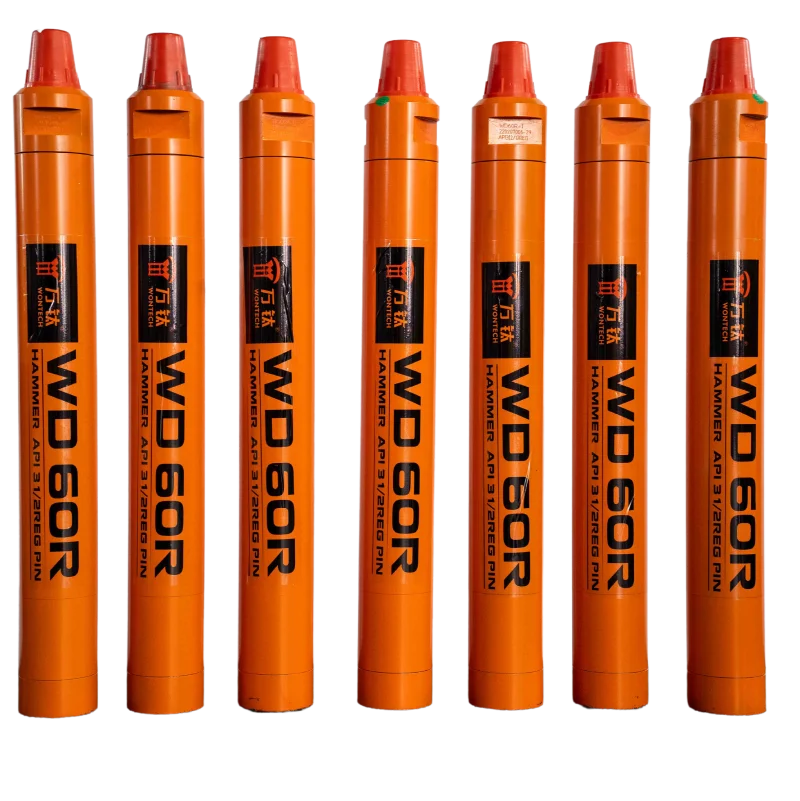

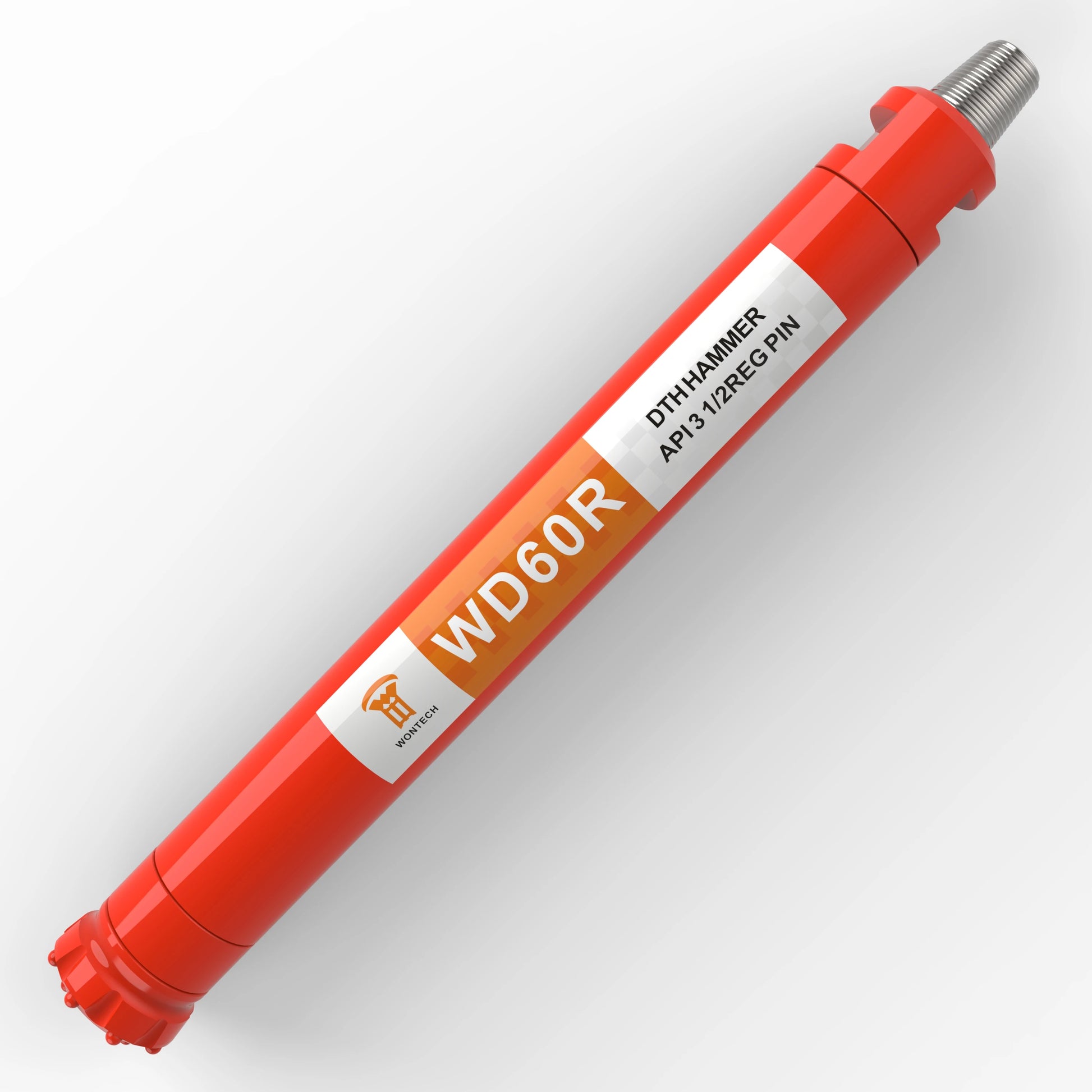

WD60R DTH Hammer
Specifications
Metric
Imperial
Hammer Length without Bit
1152.5 mm
45.37in
Weight without Bit
103.56 kg
228.31lb
Outside Diameter of the Hammer
Φ146mm
5.75in
Top Sub Thread
API3 1/2REG PIN

Working Air Pressure Range
10-25bar/145-363psi

Recommended Rotary Speed
25-50r/min

Impact Rate at 17 Bar
25HZ
WSD6R DTH Hammer
Specifications
Metric
Imperial
Hammer Length without Bit
1182mm
46.54in
Weight without Bit
101.6 kg
224lb
Outside Diameter of the Hammer
Φ146mm
5.75in
Top Sub Thread
API3 1/2”REG PIN

Working Air Pressure Range
10-25bar/145-363psi

Recommended Rotary Speed
25-50r/min

Impact Rate at 17 Bar
25Hz
WQL60R DTH Hammer
Specifications
Metric
Imperial
Hammer Length without Bit
1057 mm
41.61in
Weight without Bit
95 kg
209.4lb
Outside Diameter of the Hammer
Φ146mm
5.75in
Top Sub Thread
API3 1/2”REG PIN

Working Air Pressure Range
10-25bar/145-363psi

Recommended Rotary Speed
25-50r/min

Impact Rate at 17 Bar
25Hz
Our Advantages
Application Cases
Company Profile
1.Technology-Based New Material Private Enterprise with Five Overseas Branches.
2.Nearly 40000 Square Meter of Plant,More Than 800 Employees.
3.Two Brand“TOOLSTAR”“WONTECH”.Specialize in Providing Cutting Equipment and Consumables for Stone, Drilling Tools for Foundation Piling,Water Well Drilling Tools
Why Choose Us
Packaging
FAQ
Q: What kind ofrock drilling tools can you provide?
A:We have an abundant product portfolio,covering down-the-hole(DTH)hammers and bits.top hammer tools casing systems,and related accessories.
Q:How about your delivery?
A:We have a quick delivery. There are five overseas warehouses in globe wide, which enable Wontech to deliver the goods in a short time.
Q:Do you provide tailored services?
A:of DTH Hammer,Wontech is working on promoting its own brand and also accepts the advice or suggestions from customers and improve the products. of DTH bits, special requirements on face design, button shapes color logo,and packaging are acceptable.
Q:Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q:Can l have a visit to vour factory before the order?
A:Sure,welcome to visit us.We are in Ningxiang.Changsha city,Hunan province.China
