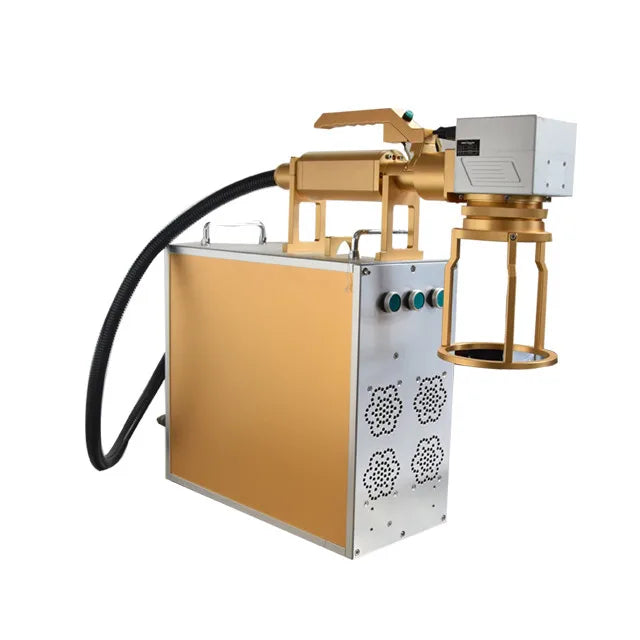

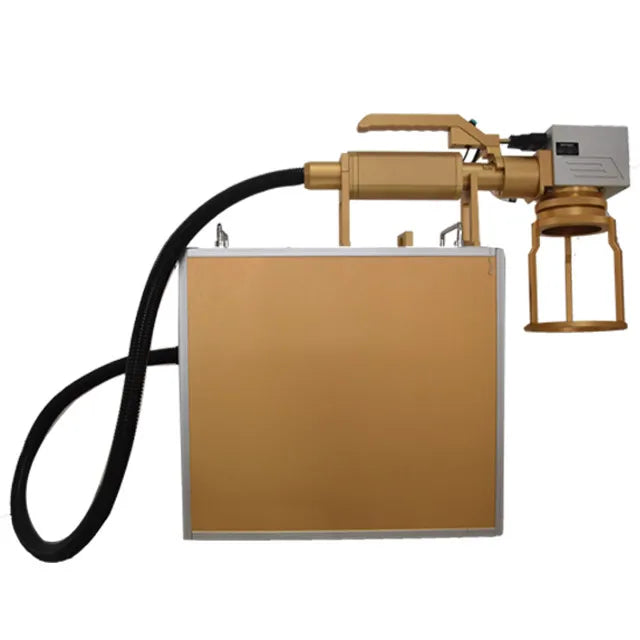

ANTNX VOIERN Split Desk Portable Type 20w 30w 50w Fiber CO2 Laser Marking Machine ANTNX.COM

ANTNX VOIERN Split Desk Portable Type 20w 30w 50w Fiber CO2 Laser Marking Machine ANTNX.COM

$5,064.53 USD
$6,330.66 USD $5,064.53 USD
Sale Sold out
Shipping calculated at checkout.
Power (W)
Products Description

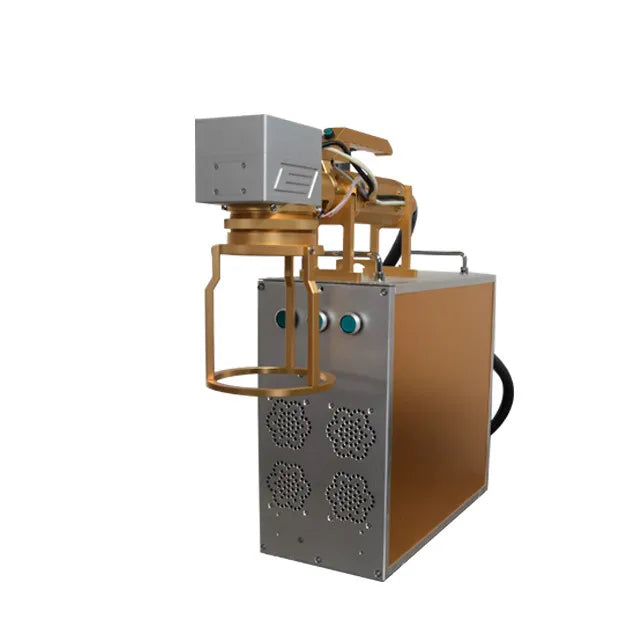

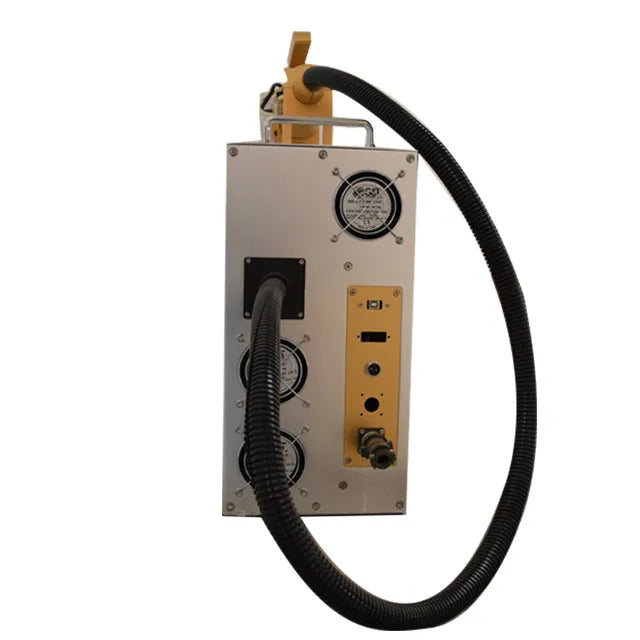

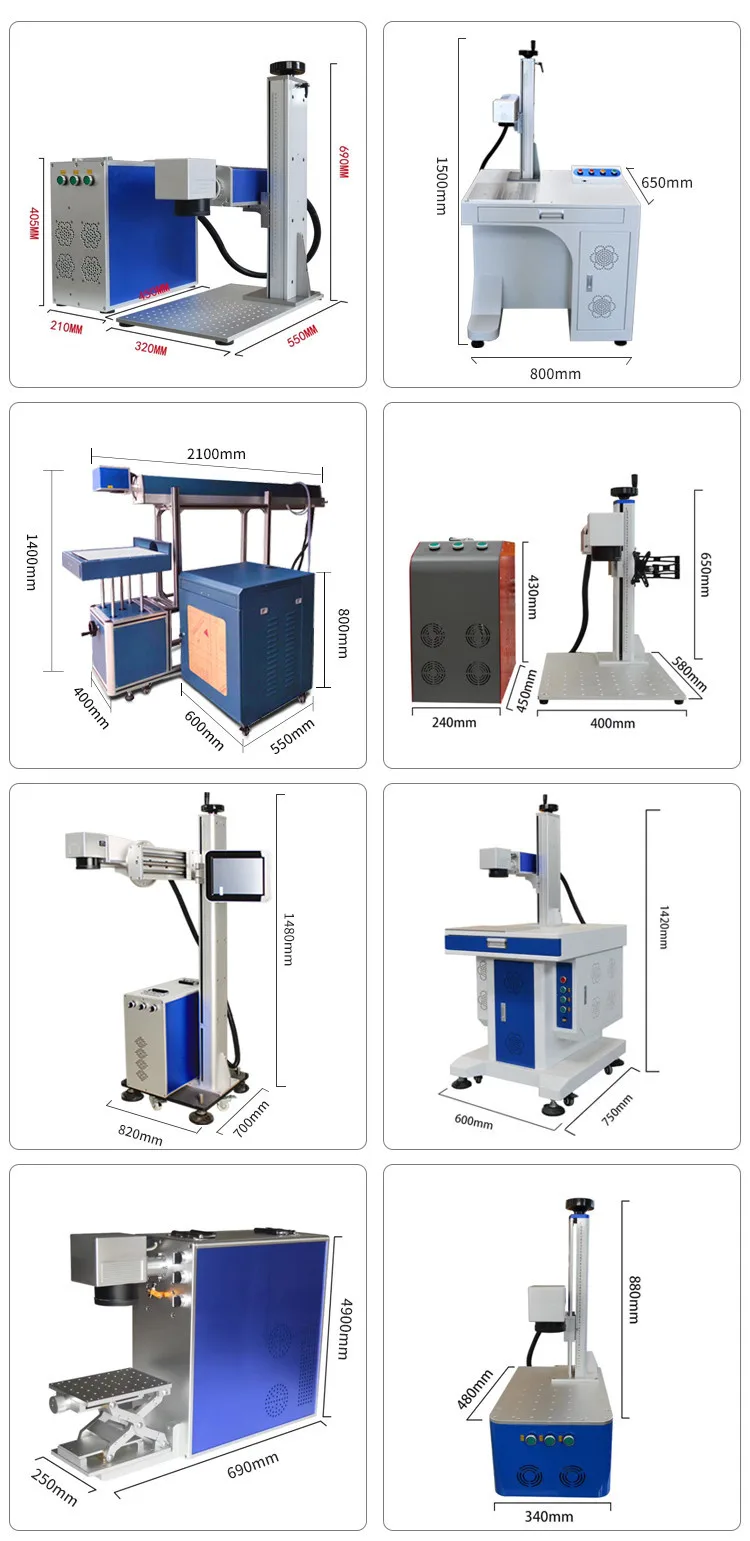

Cabinet/Portable Type Fiber Laser Marking Machine with JPT/MAX/RAYCUS Source.

1. Model: Fiber Laser Marking Machine
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as
PVC,PC, black acrylic.
3. Applicable industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.
Power
20W/30W/50W

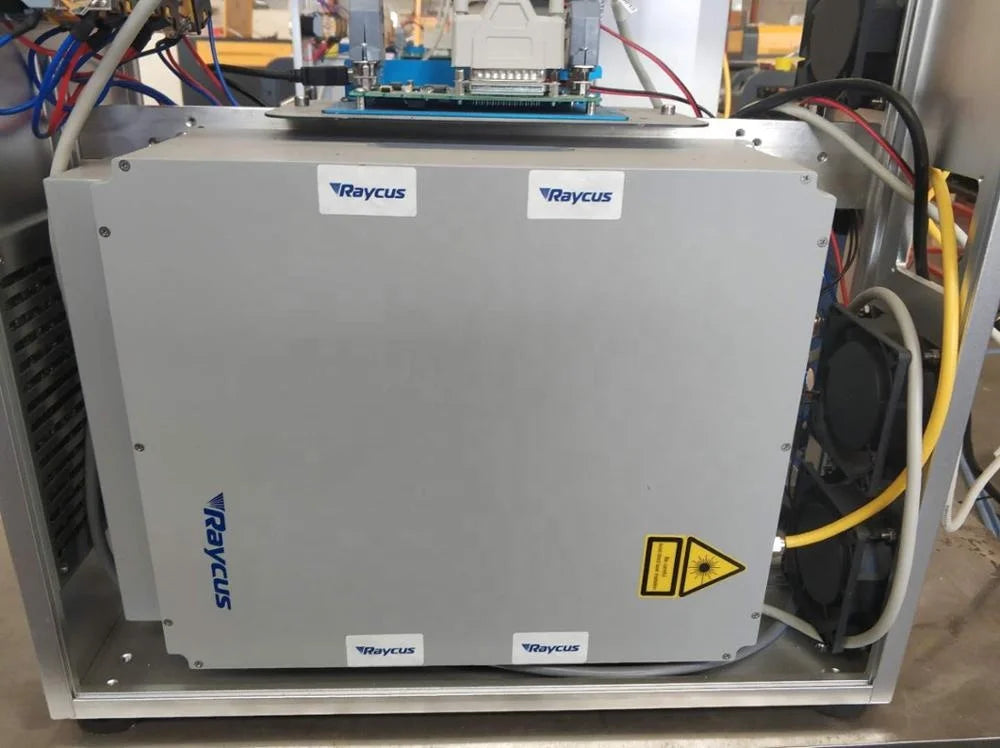

Optional laser source
Raycus/MAX/JPT
Laser wavelength
1064nm
Laser type
Fiber laser
Laser beam quality
M2:1.5
Repeat Frequency
20KHz-80KHz
Repeat Positioning Accuracy
0.005mm
Min linear width
0.01mm
Marking Depth
0.01-0.5mm
Standard Marking Area
100*100mm--300*300mm
Rated Power
less 500W
Operating Voltage
220V/50Hz/15A
Graphic formate
JPG,PNG,TIP,BMP PCX TGA TIF PLT CDR
Working temperature
5-35°C
Cooling
Air Cooling
Standard Accessories
Package & Delivery
Our service
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage
