ANTNX VOIERN Split Desk Portable Model 20w 30w 50w Fiber CO2 Laser Marking Machine ANTNX.COM

ANTNX VOIERN Split Desk Portable Model 20w 30w 50w Fiber CO2 Laser Marking Machine ANTNX.COM

$11,169.74 USD
$13,962.18 USD $11,169.74 USD
Sale Sold out
Shipping calculated at checkout.
Power (W)
Product Description

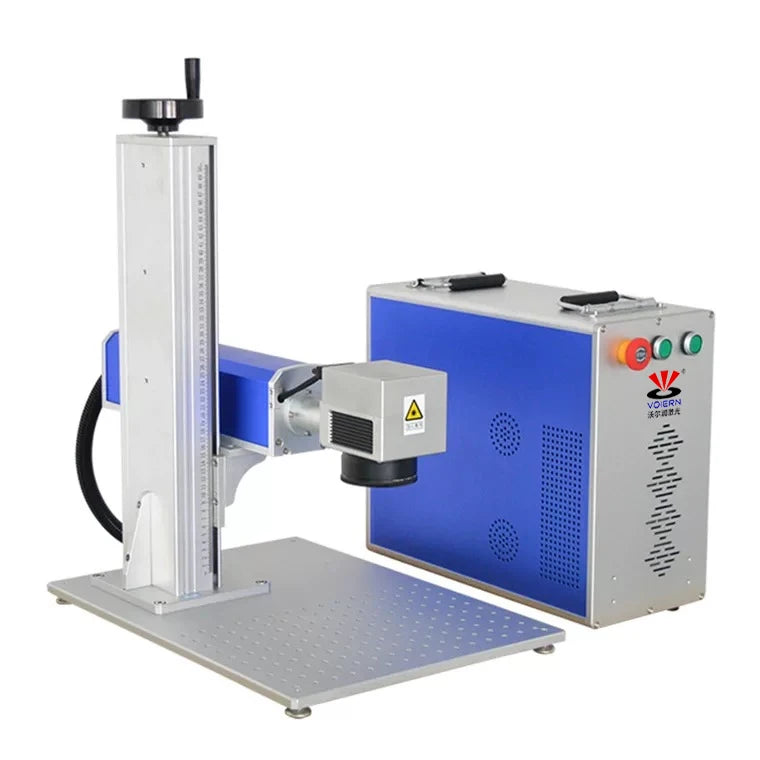

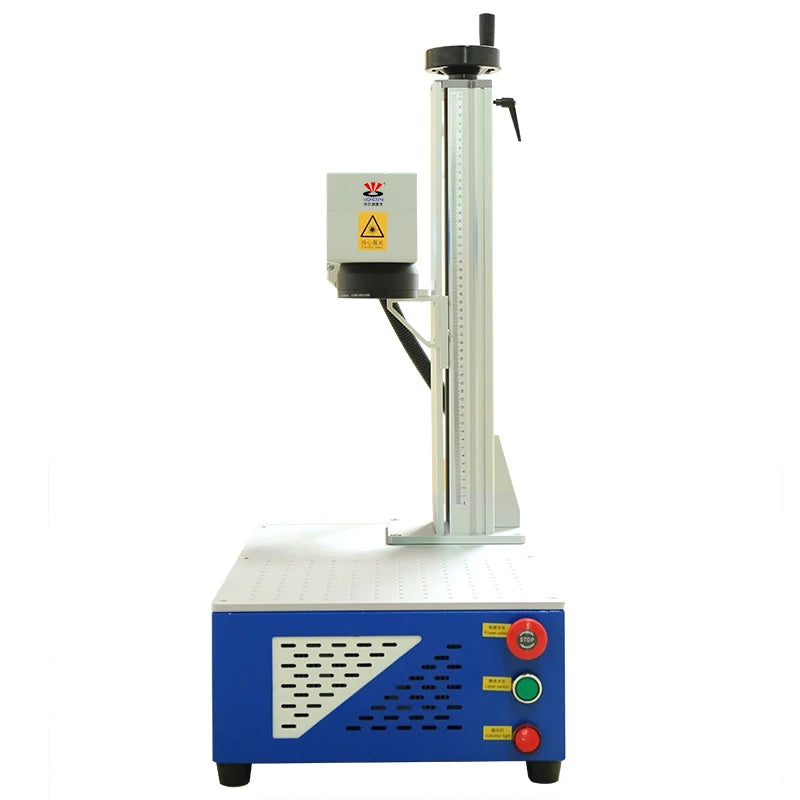

Portable Type Fiber Laser Marking Machine with JPT/MAX/RAYCUS Source

1. Model: Fiber Laser Marking Machine
2. Applicable materials:
Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as
PVC,PC, black acrylic.
3. Applicable industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.

Parameter
NO.
ITEM
DATE
1
Laser power
20W 30W 50W 100W
2
Laser wavelength
1064nm
3
Beam quality
M2<2
4
Control software
Ezcad (provided)
5
Marking depth
≤0.3mm
6
Cutting depth
≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut)
7
Marking speed
≤7000mm/s
8
Minimum line width
0.01mm
9
Minimum character
0.5mm
10
Marking Size
110 * 110mm ( 75mm 200mm 300mm optional )
11
Electric power
<500W
12
Working voltage
110/220V ± 10%, 50/60HZ
13
Cooling way
Air cooling
14
Ambient operating temperature
15 ° C - 35 ° C
15
Graphic file format
PLT, DXF, AI, BMP, JPG
16
Machine weight
39
17
Machine size
56L * 55W * 72H (cm)
18
Packing
Plywood box

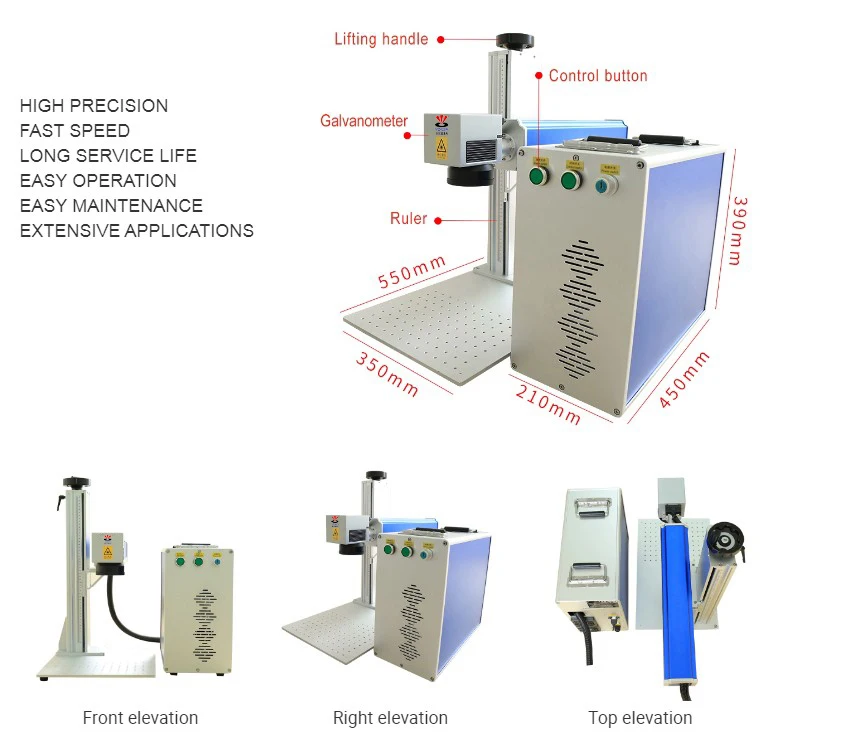

Machine detail



Sino-Galvonameters
High speed scanning, galvanometer with SINO technology,
fast marking speed,high precision.
Optical double red light
Configure with double light easy to find the right focus length,but needs to add some cost

IMPORTED LENS
75MM*75MM , 100*100MM, 150*150MM , 200*200MM , 300*300MM
Above working area optical
Same power for example 20W if working area smaller,the marking depth by one time is bigger
JCZ Main board
Meanwell power supply
configured with high precision

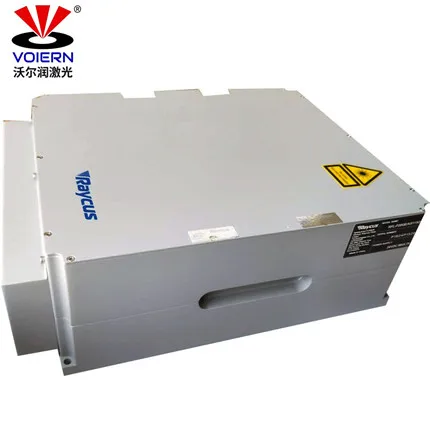

Laser device/Source

We always suggest customers choose to configure with JPT laser device,it's quiet while running and power stronger.



MAX laser device brand can be chosen



Raycus brand can be chosen,but quality not stable now
Ruler

High precision ruler
accurate view of fixed size
more precise and detailed.

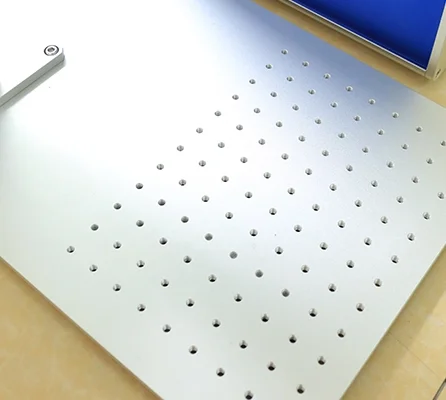

Working table
Aluminum working table. Flat and smooth, compact
structure, flexible processing direction adjustable control.
Lifting handle
High quality and stable
Adjust the up and down for different height material marking
Control button
Humanized control system, easy to operate, safe and convenient, dust proof design



Standard Accessories


Optical

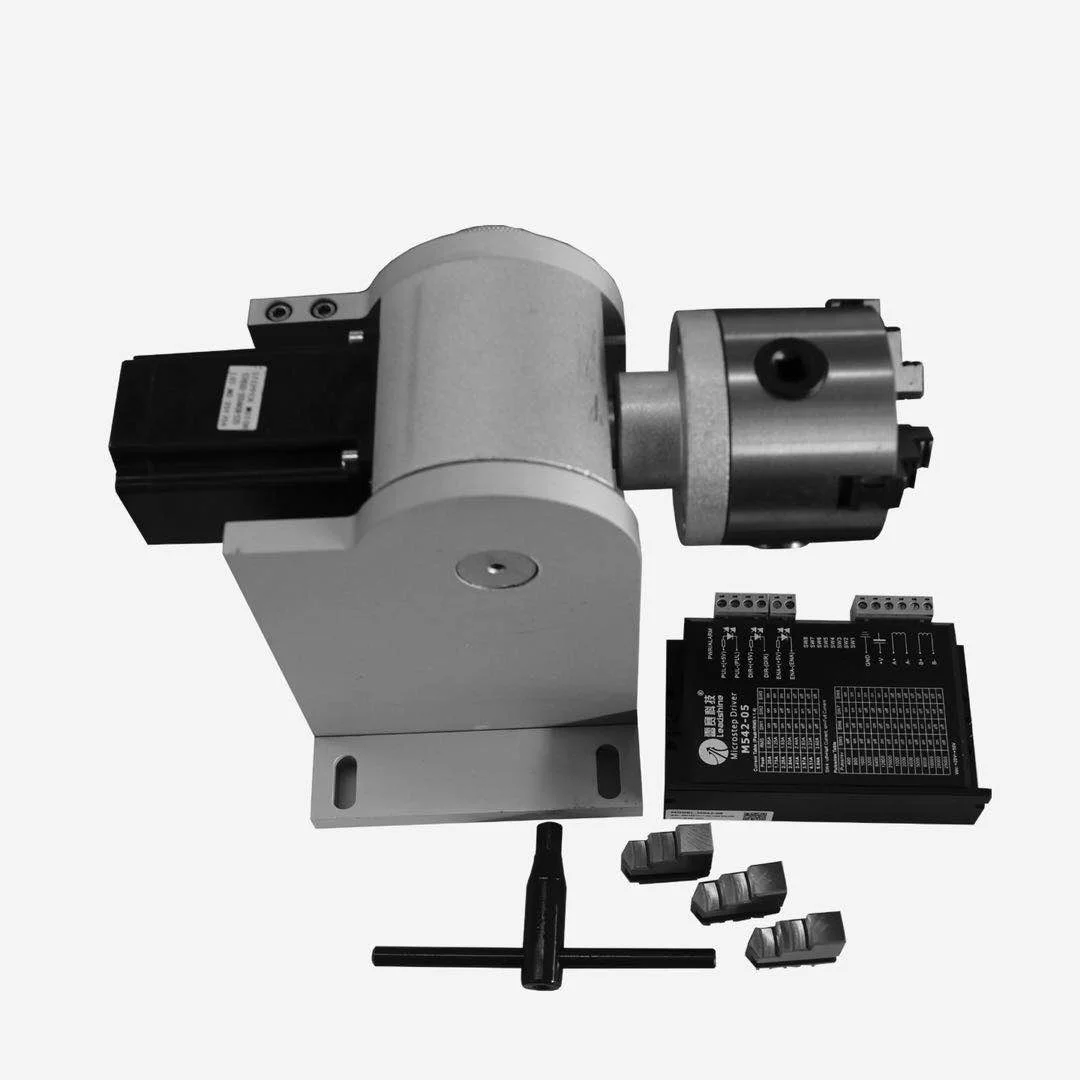

Complex rotary for irregular shape,but can only hold 60mm,need to buy



Ring rotary for ring ,need to buy
Ezcad- software



FACTORY CORNER



FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.





Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
