ANTNX Solar Power Inverter On Off Grid Hybrid Parallel Inverter Dual Pure Sine Wave Output 3.5KW 5.5KW For Home Appliance ANTNX.COM

ANTNX Solar Power Inverter On Off Grid Hybrid Parallel Inverter Dual Pure Sine Wave Output 3.5KW 5.5KW For Home Appliance ANTNX.COM

$1,303.56 USD
$1,629.45 USD $1,303.56 USD
Sale Sold out
Shipping calculated at checkout.
color

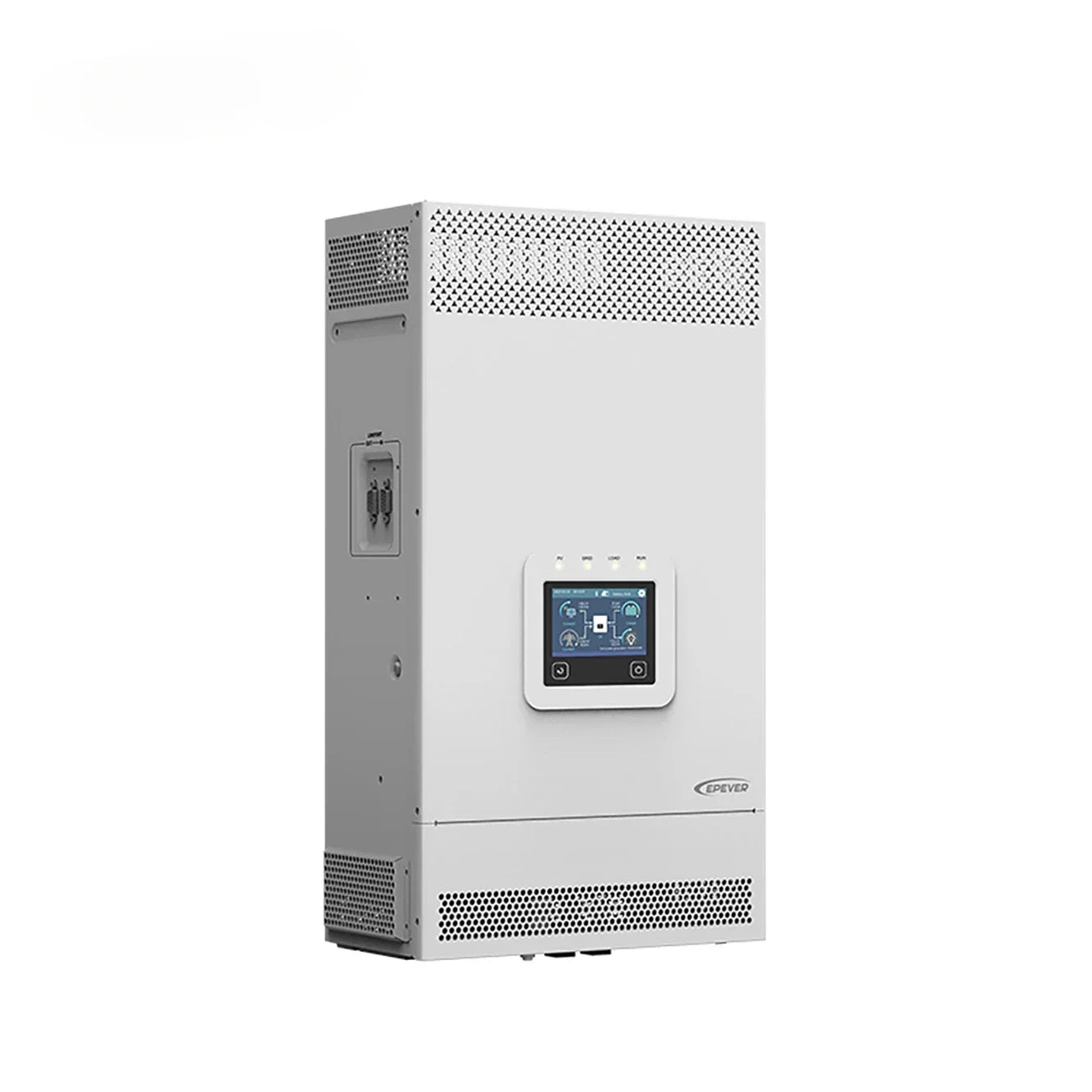

EPEVER UC Series 3500W 5500W
High Frequency Hybrid On Off Grid Solar Inverter With MPPT

Technical Specifications

Model
UC3522-1250P20/C
UC3542-0650P20/C
UC5542-1050P20/C
Utility Input



Utility Input Voltage
176VAC ~ 264VAC(Default), 90VAC ~ 285VAC(Configurable)


Utility Input Frequency
45Hz ~ 65Hz


Max. Utility Charging Current
110A
60A
100A
Switch Response Time
Inverter to Utility:10ms



Utility to Inverter:20ms


Utility Output



Rated Output Voltage
220/230VAC


Utility Output Frequency
50Hz/60Hz


Max. Output Power
3500W

5500W
Power Factor
＞0.99


Inverter Output



Inverter Rated Power(@30℃)
3500W

5500W
3-Second Transient Surge Output Power
7000W

8500W
Inverter Output Voltage
220/230VAC


Inverter Frequency
50/60Hz


Output Voltage Waveform
Pure Sine Wave


Load Power Factor
0.2–1(VA ≤ Rated output power)


THDv (@linear load)
≤3%


Max. Load Efficiency
92%


Max. Inverter Efficiency
94%


Max. Main Load
3500W

5500W

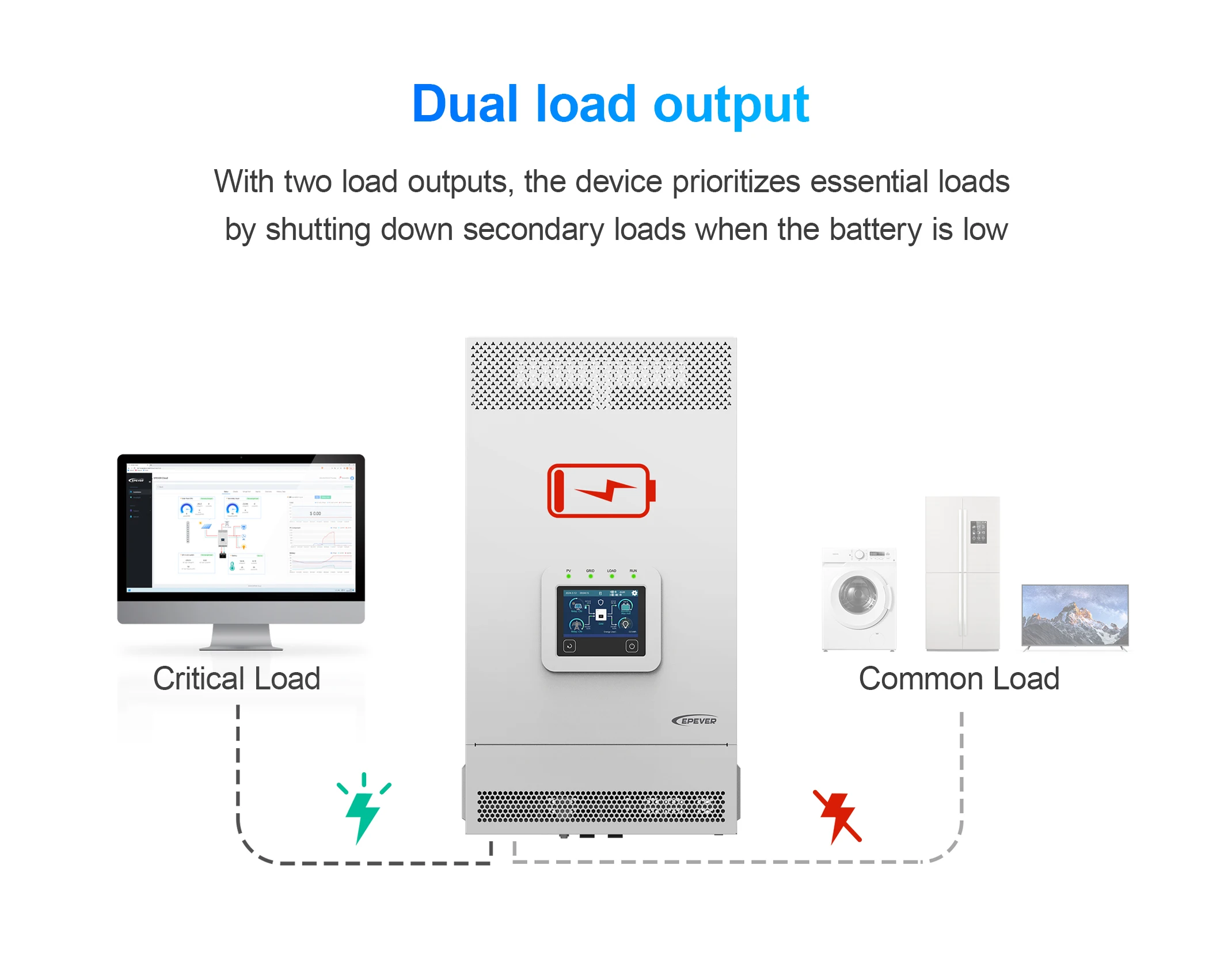

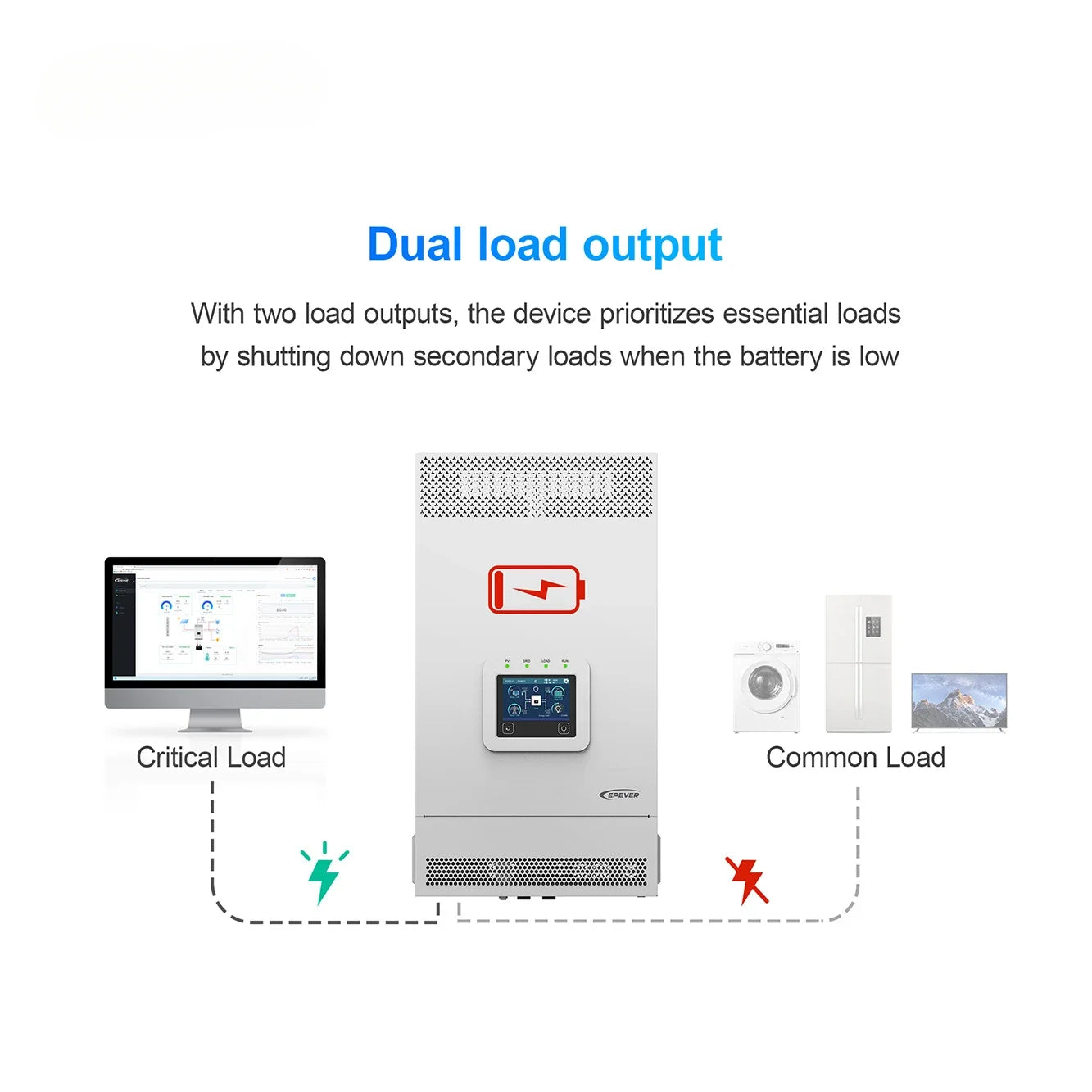

Max. Second Load
3500W

5500W
Main Output Cut-Off Voltage
24.4V(Default)
48.8V(Default)

Second Output Cut-Off Voltage
22.2V(Default)
44.4V(Default)

Dual Output Return Voltage
25.2V(Default)
50.4V(Default)

PV Input



PV Max. Open-Circuit Voltage
500V


MPPT Voltage Range
85~450V


Number of MPPTs
1

2
Number of Strings per MPPT
1

1+1
Max. Input Current
16A

16A+16A
PV Max. Short Circuit Current
18A

18A+18A
PV Max. Input Power
4200W

6600W
PV Max. Charging Current
120A
60A
100A
MPPT Max. Efficiency
≥99.5%


Battery



Battery Rated Voltage
24VDC
48VDC

Battery Work Voltage Range
20.4VDC~32VDC
40.8VDC~64VDC

Max. Charging Current
120A
60A
100A
General Data



No-load Losses
<1.5A
<0.8A
<1.1 A
Standby Current
<1.1 A
<0.6A
<0.8A

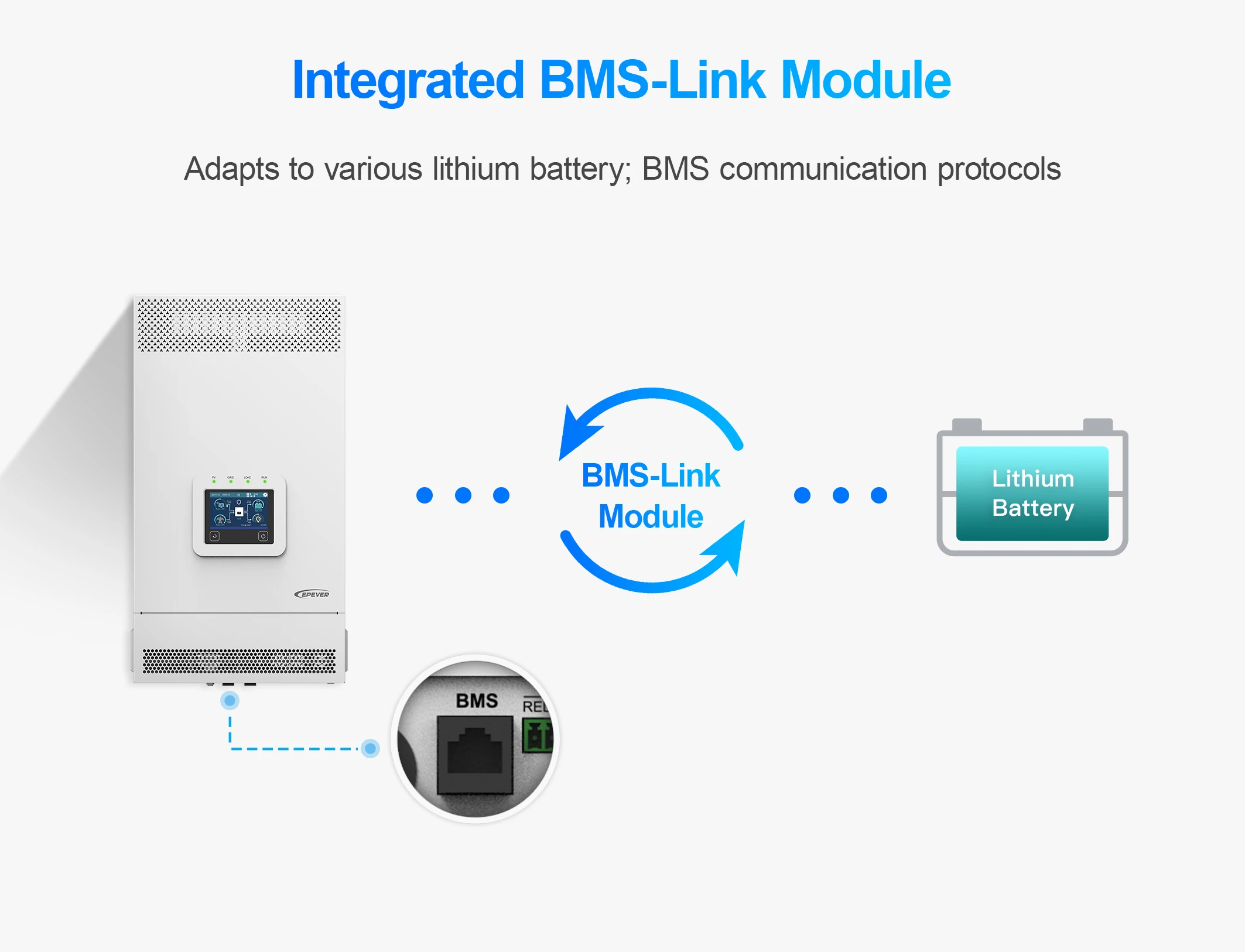

Communication with BMS
RS485


Communication with Portal
RS485 (4G/WiFi/Bluetooth)

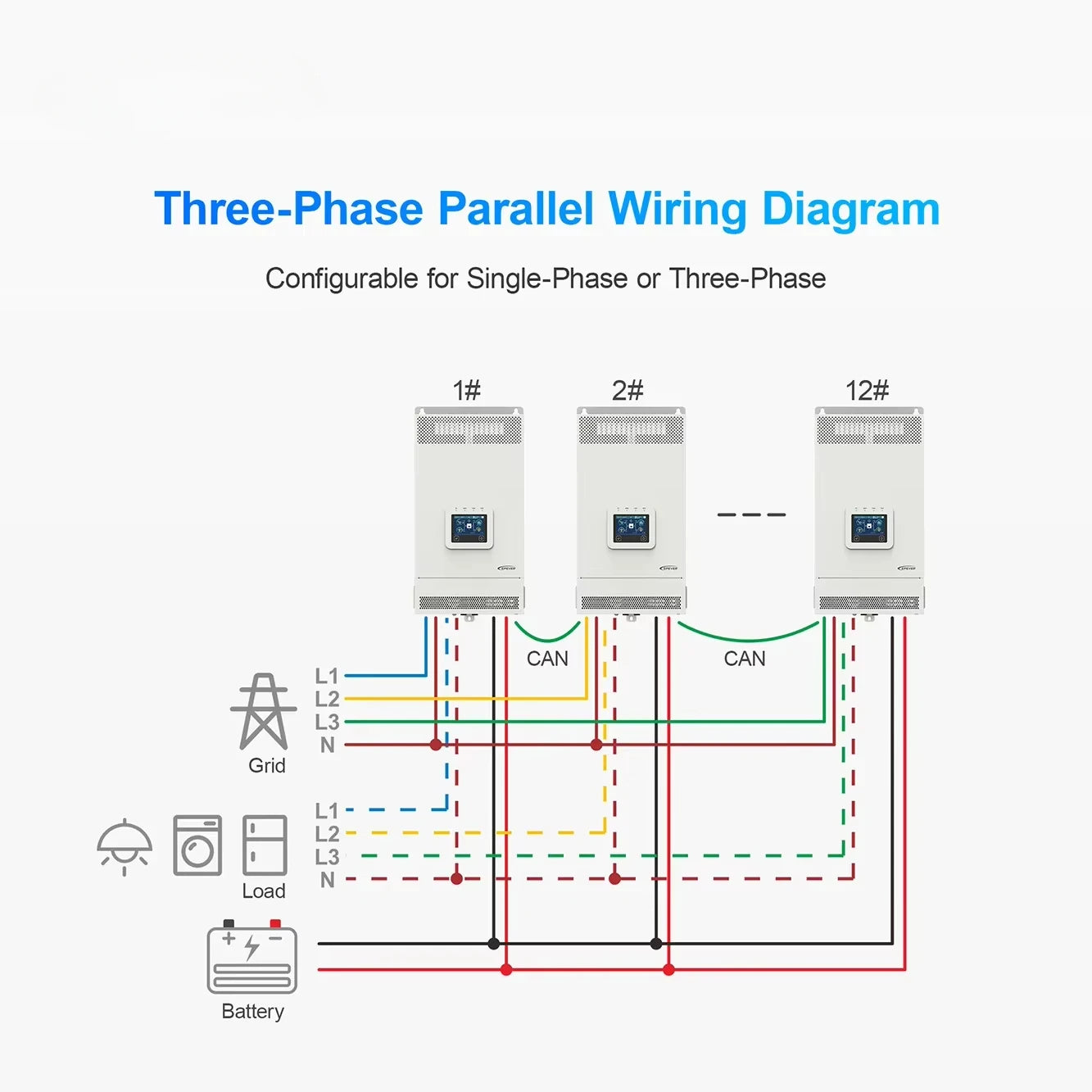

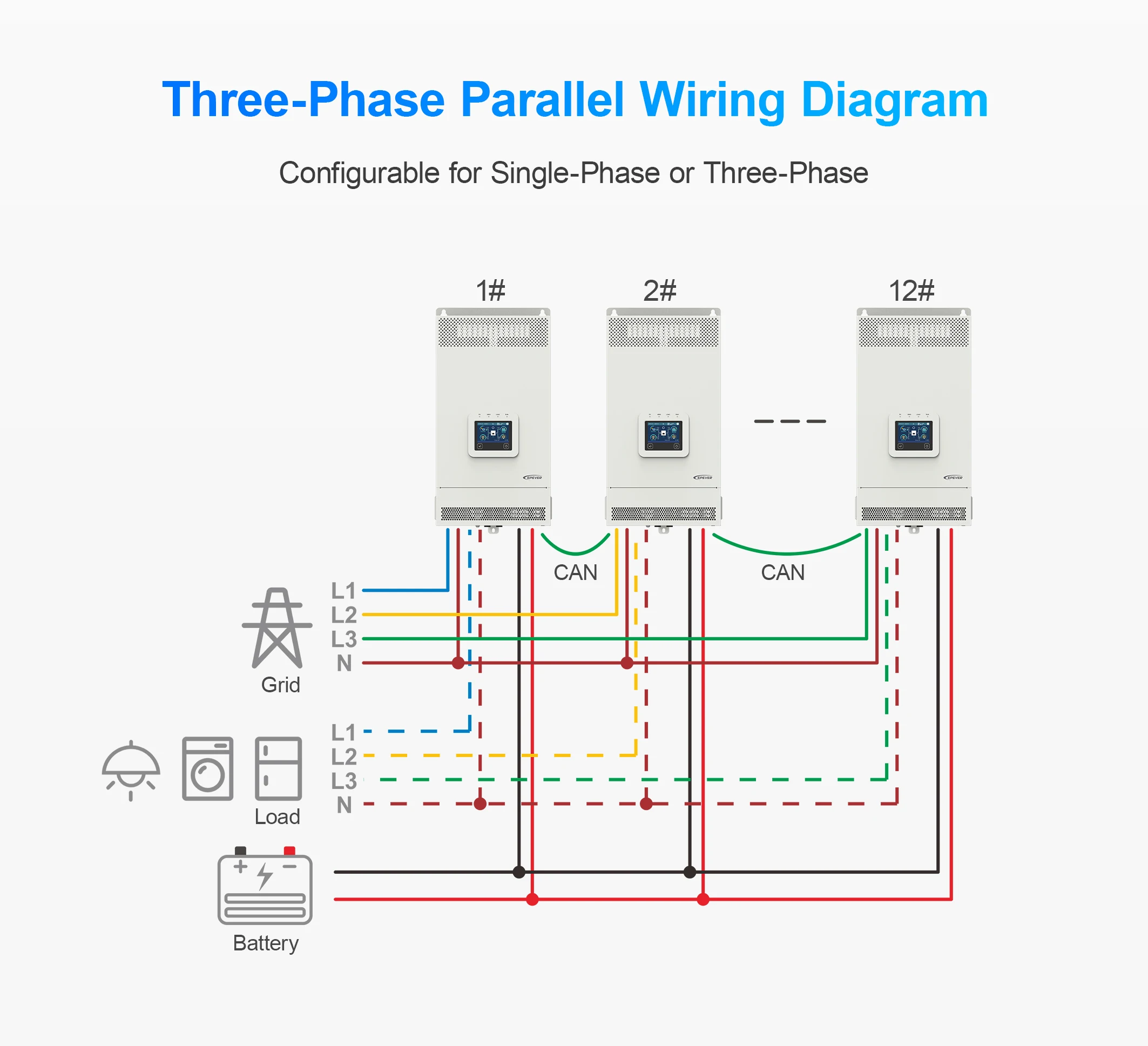

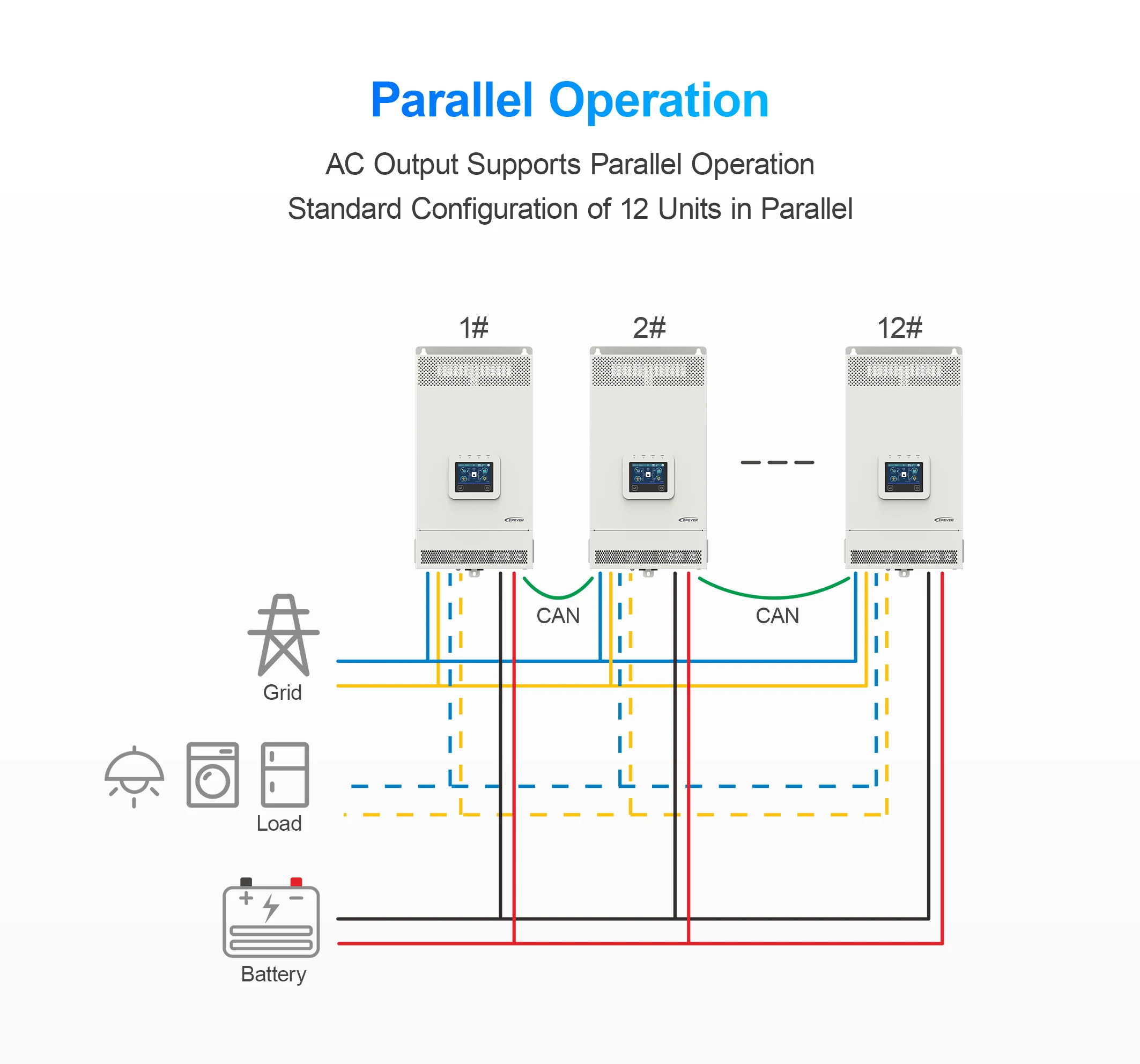

Parallel Function
Yes, Standard 12 units, Up to 16 units


Work Temperature Range
-20℃~+50℃ (>30℃ Derating)


Storage Temperature Range
-25℃~+60℃


Enclosure
IP20 (With anti-dust kit)


Relative Humidity
< 95%(N.C.)


Altitude
4000m (>2000m Derating)


Certifications and Standards
IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368


Dimension (Length×Width×Height)
590×300×163mm
534×300×163mm
590×300×163mm
Mounting Size (Length×Width)
568mm x 245mm
512mm x 245mm
568mm x 245mm
Mounting Hole Size
Φ9mm/Φ10mm


Net Weight
13.8Kg
12.7Kg
15.5Kg

Product Description

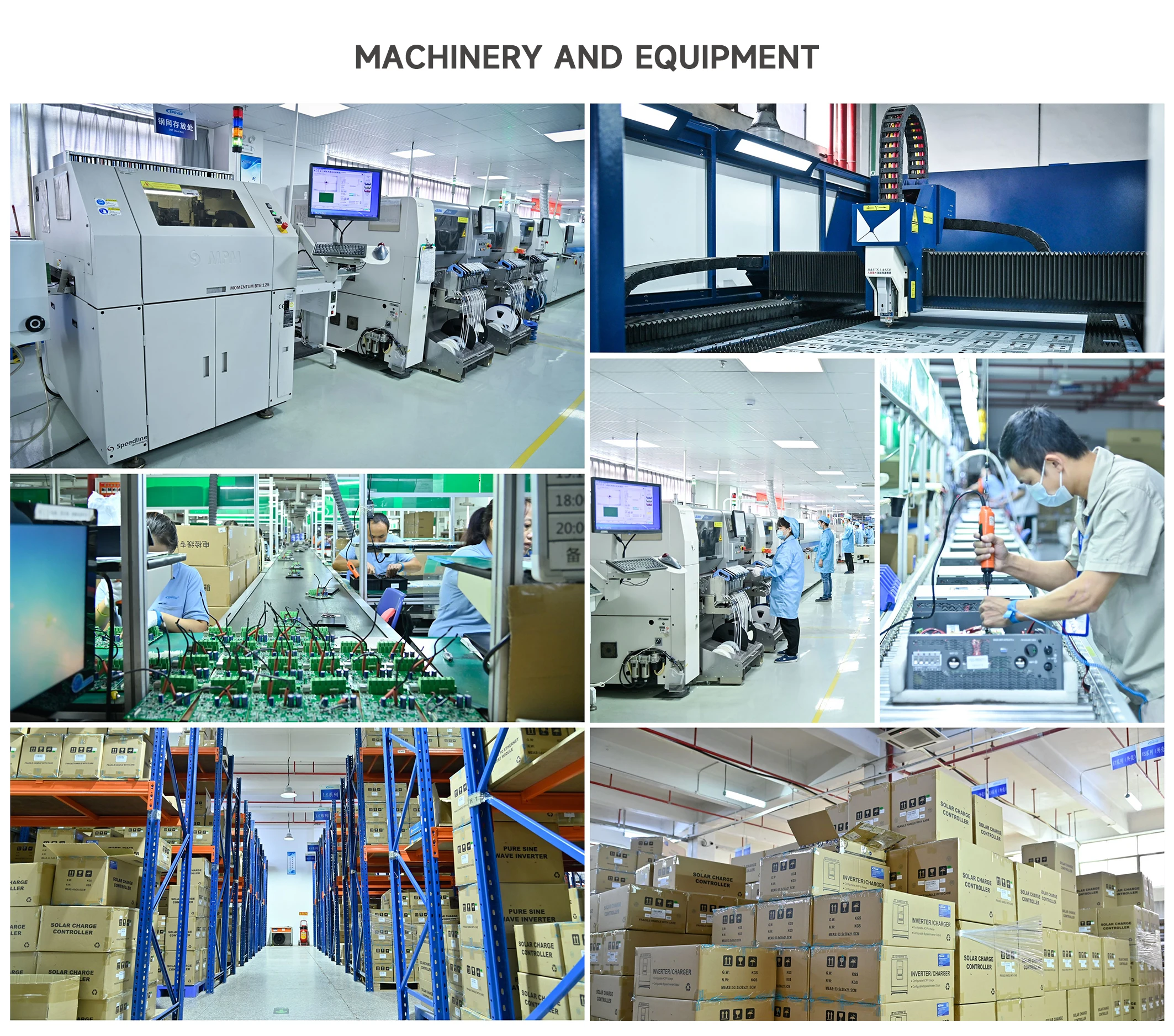

Company Profile

Certifications

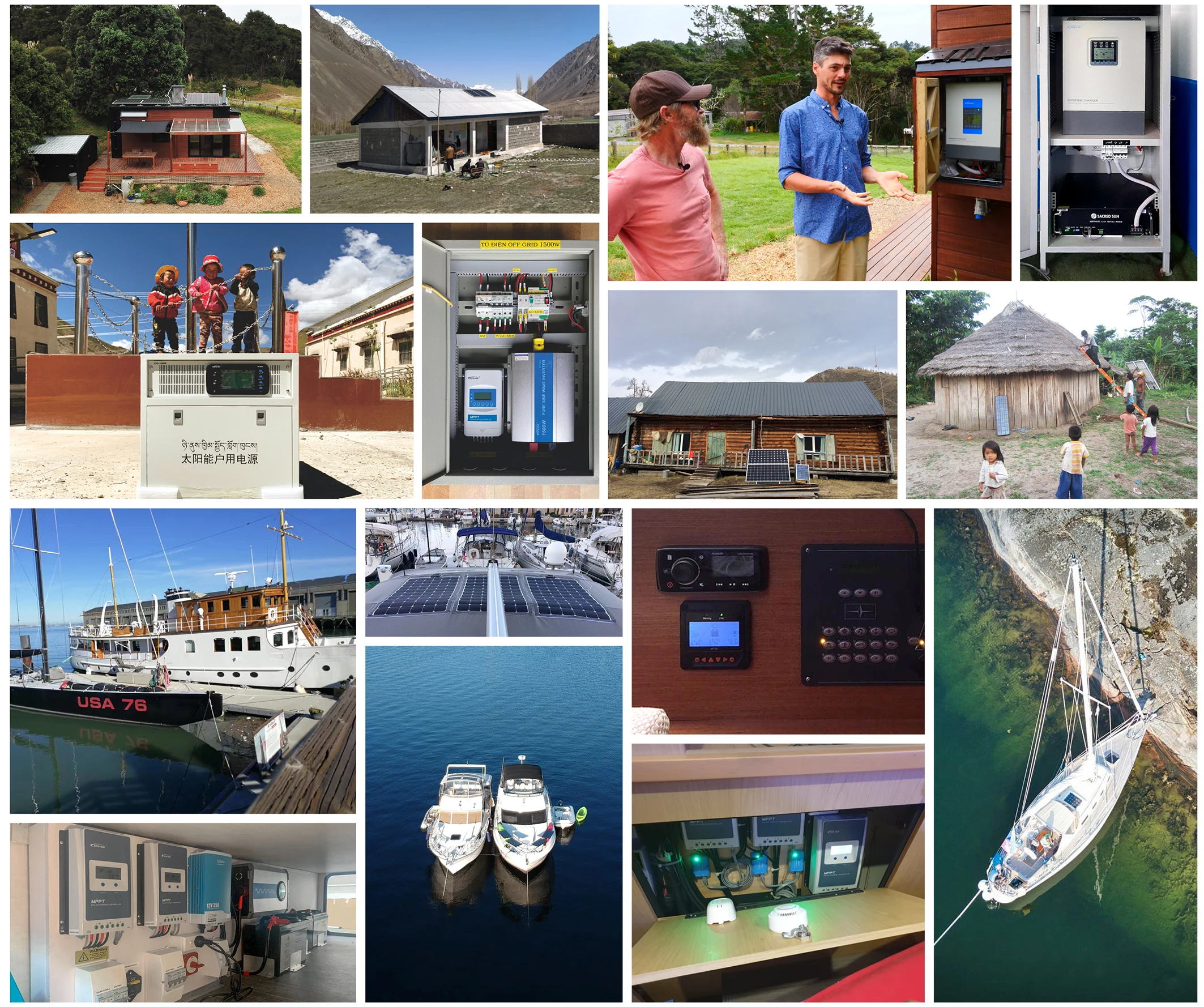

Project Case
