ANTNX Solar Inverter Li-ion Battery Epever 5.5KW 220V Multifunctional Hybrid Energy Solar System with Lifepo4 Ground Mounting Unit ANTNX.COM

ANTNX Solar Inverter Li-ion Battery Epever 5.5KW 220V Multifunctional Hybrid Energy Solar System with Lifepo4 Ground Mounting Unit ANTNX.COM

$3,933.62 USD
$4,917.03 USD $3,933.62 USD
Sale Sold out
Shipping calculated at checkout.
color
Output Voltage

Features

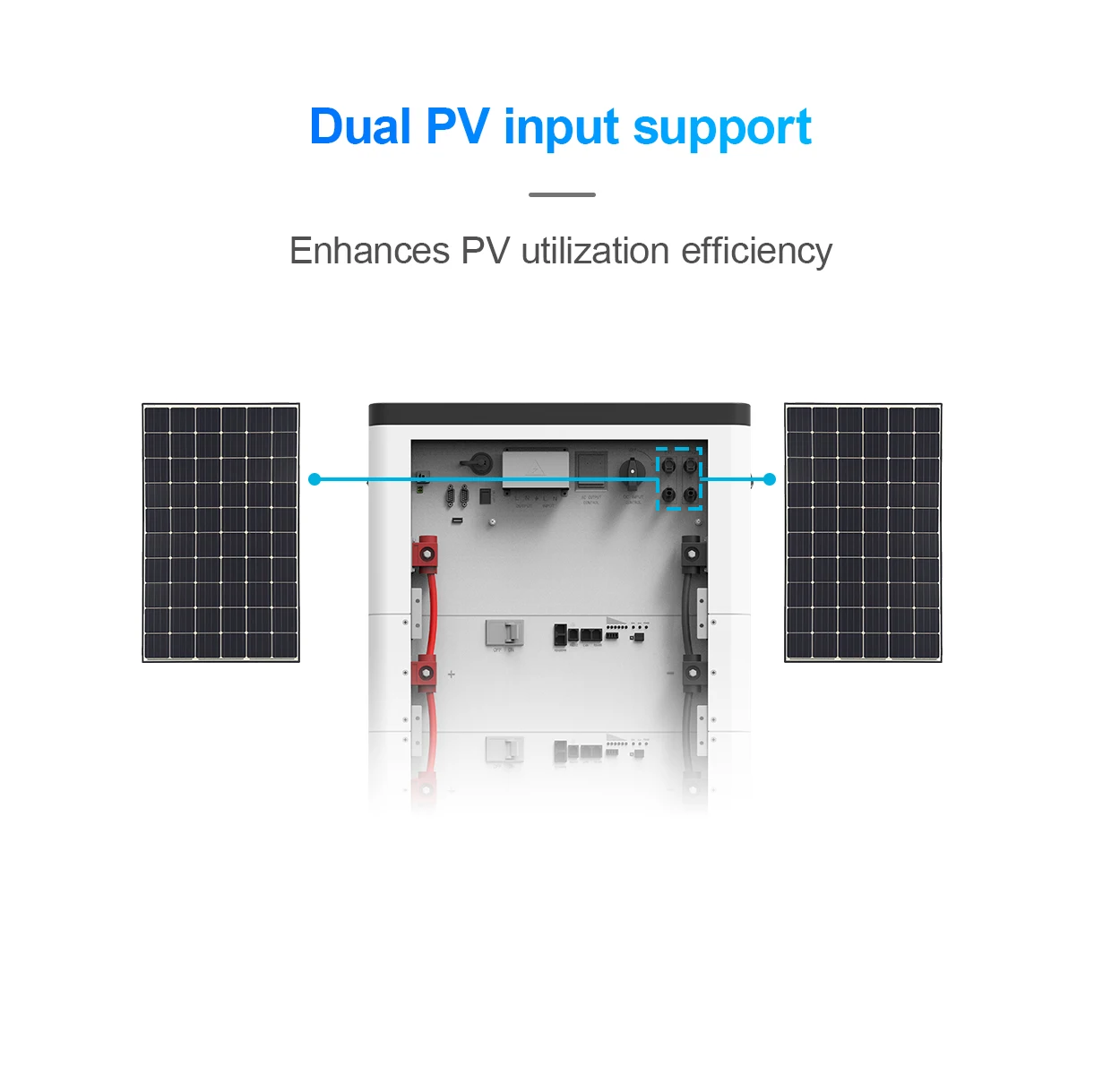

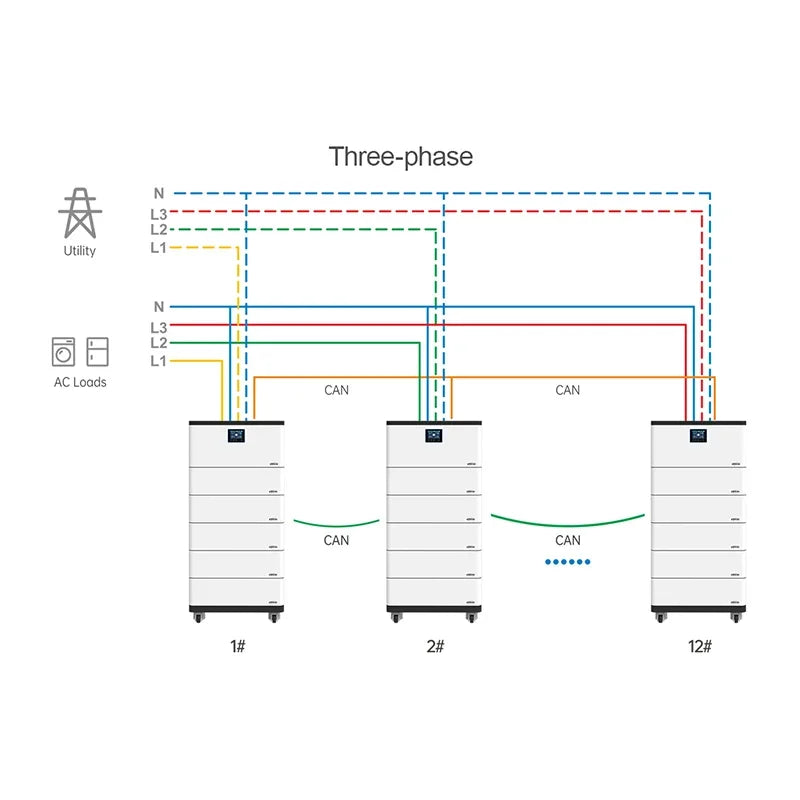

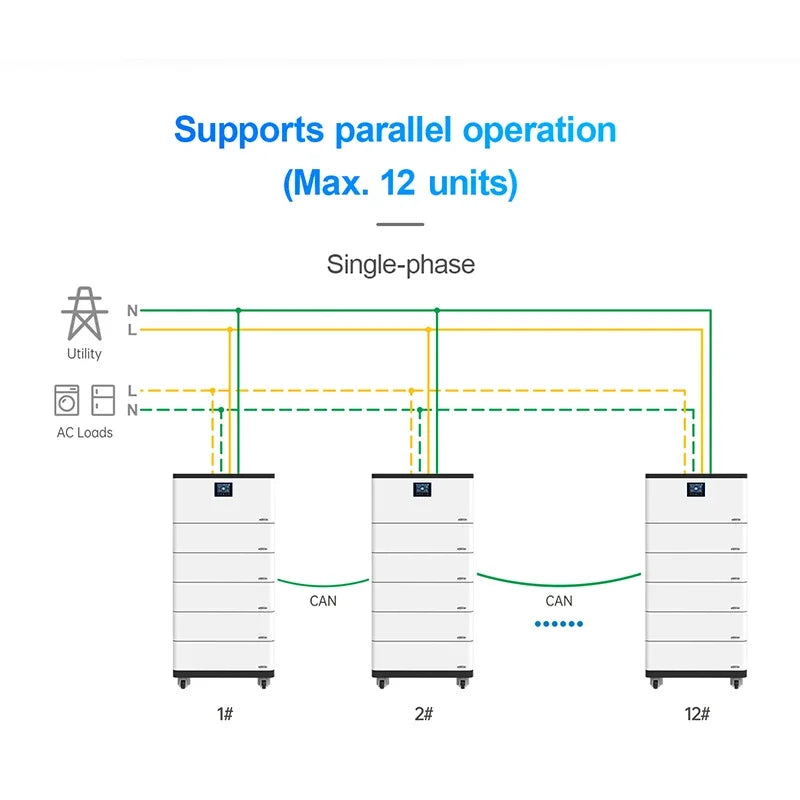

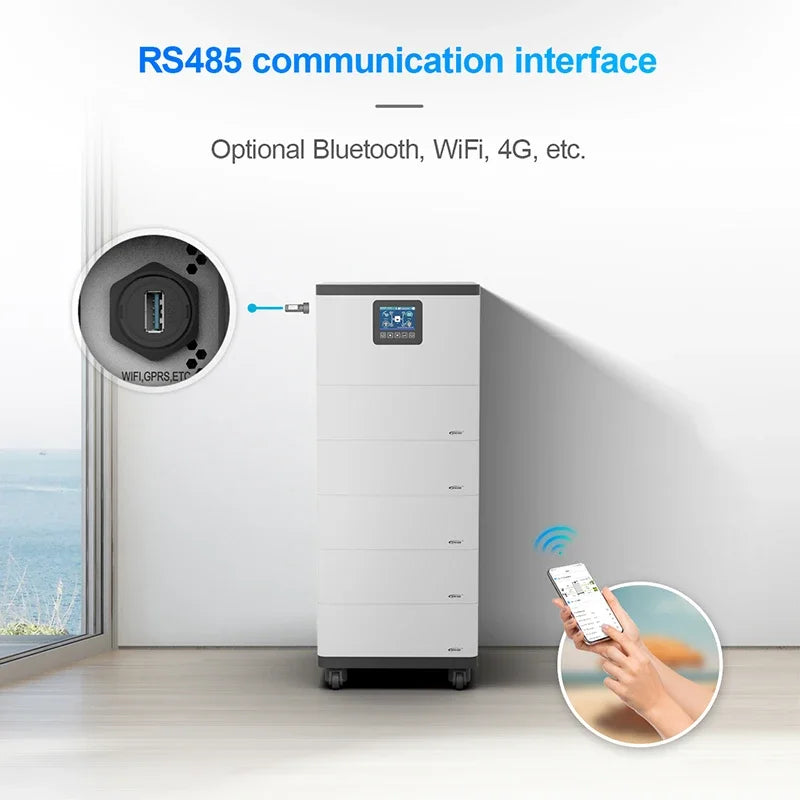

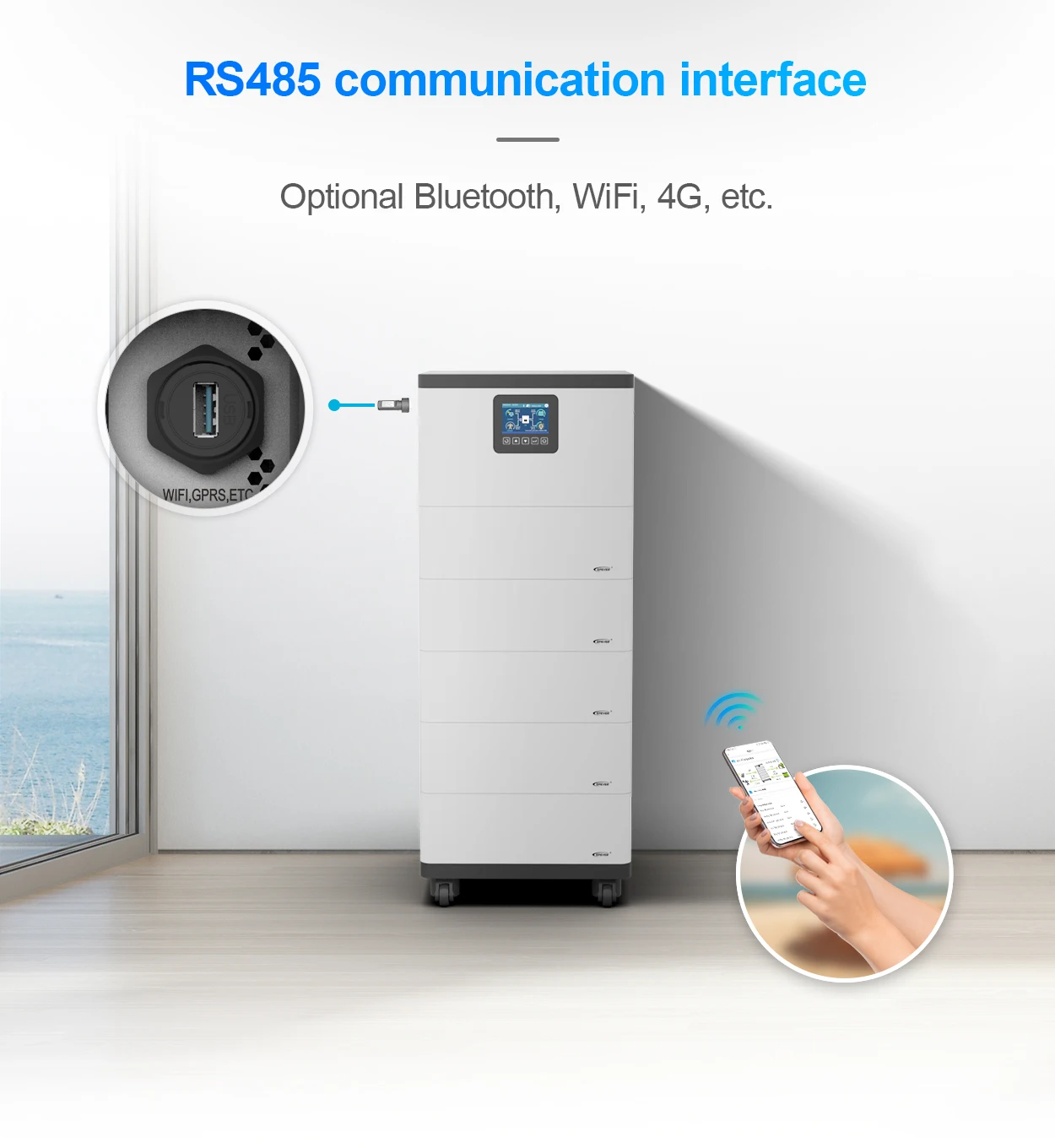

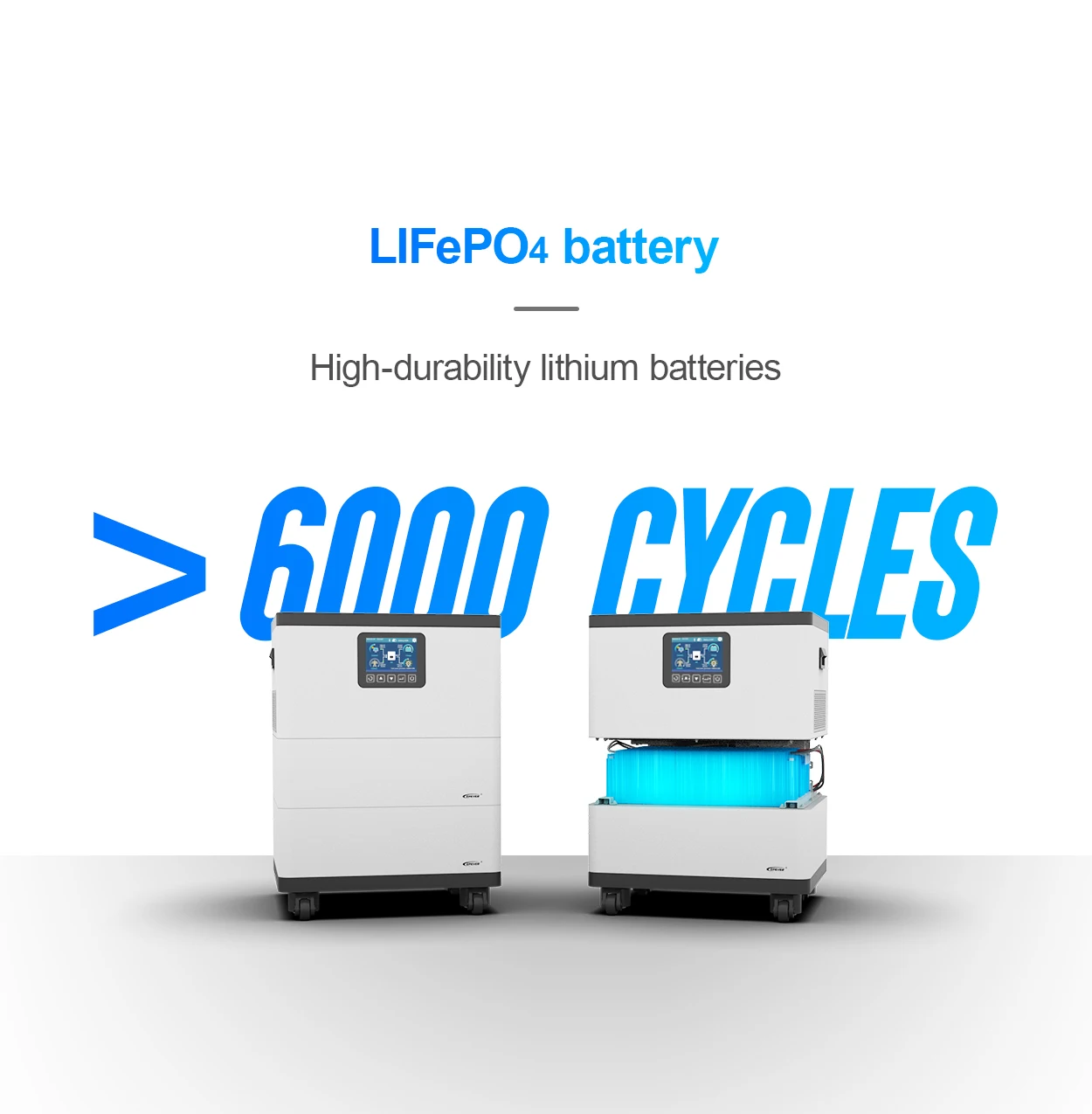

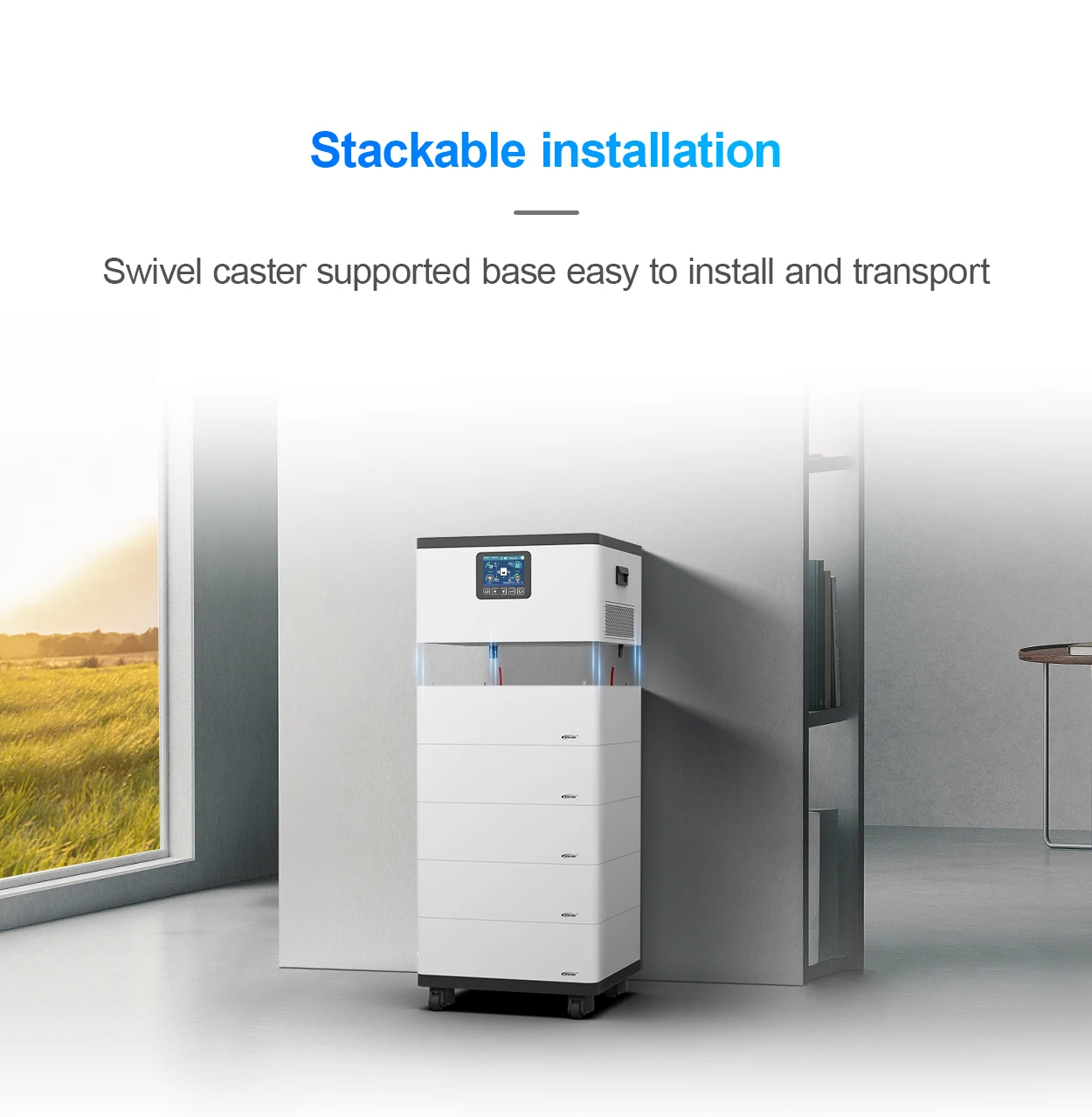

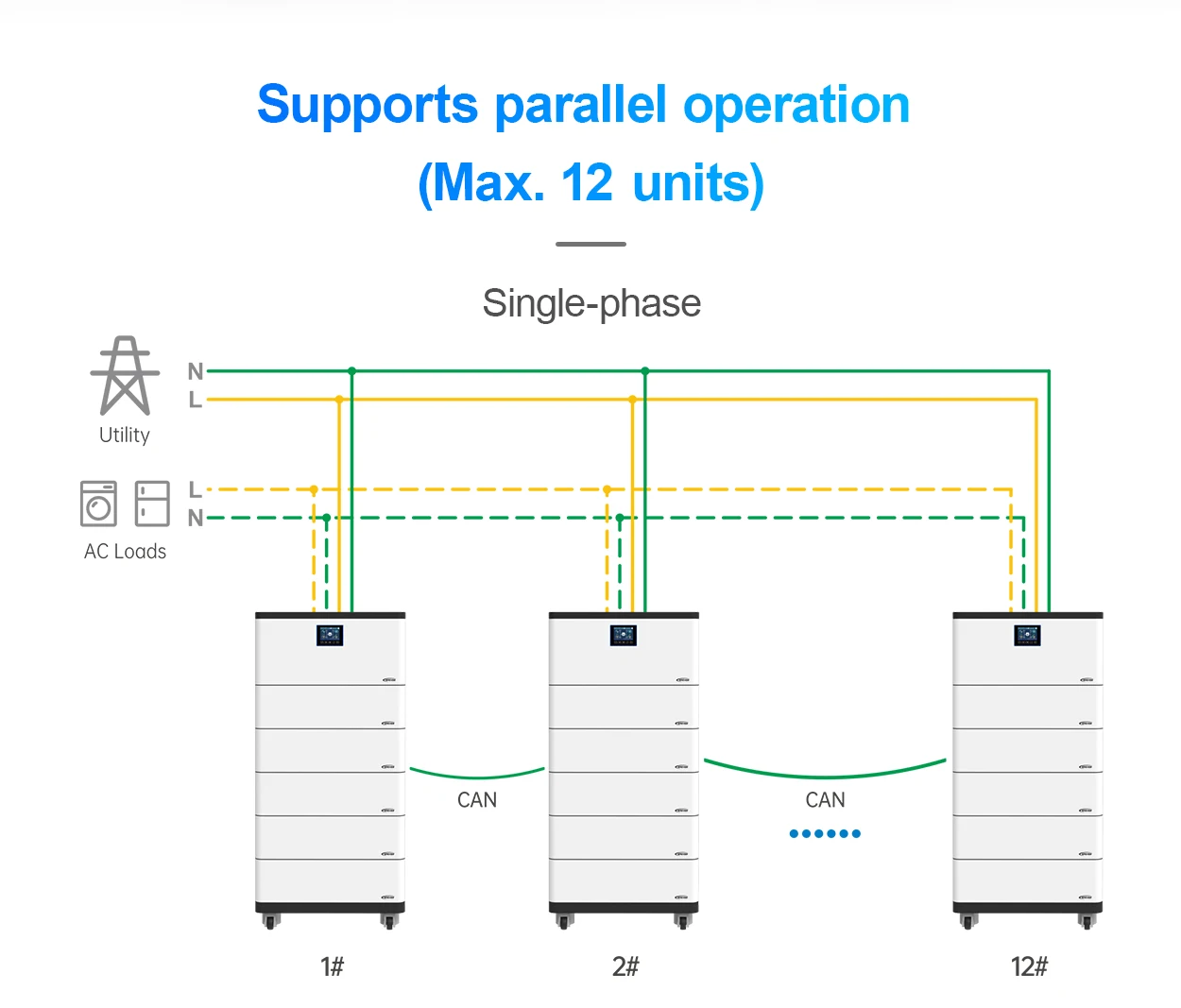

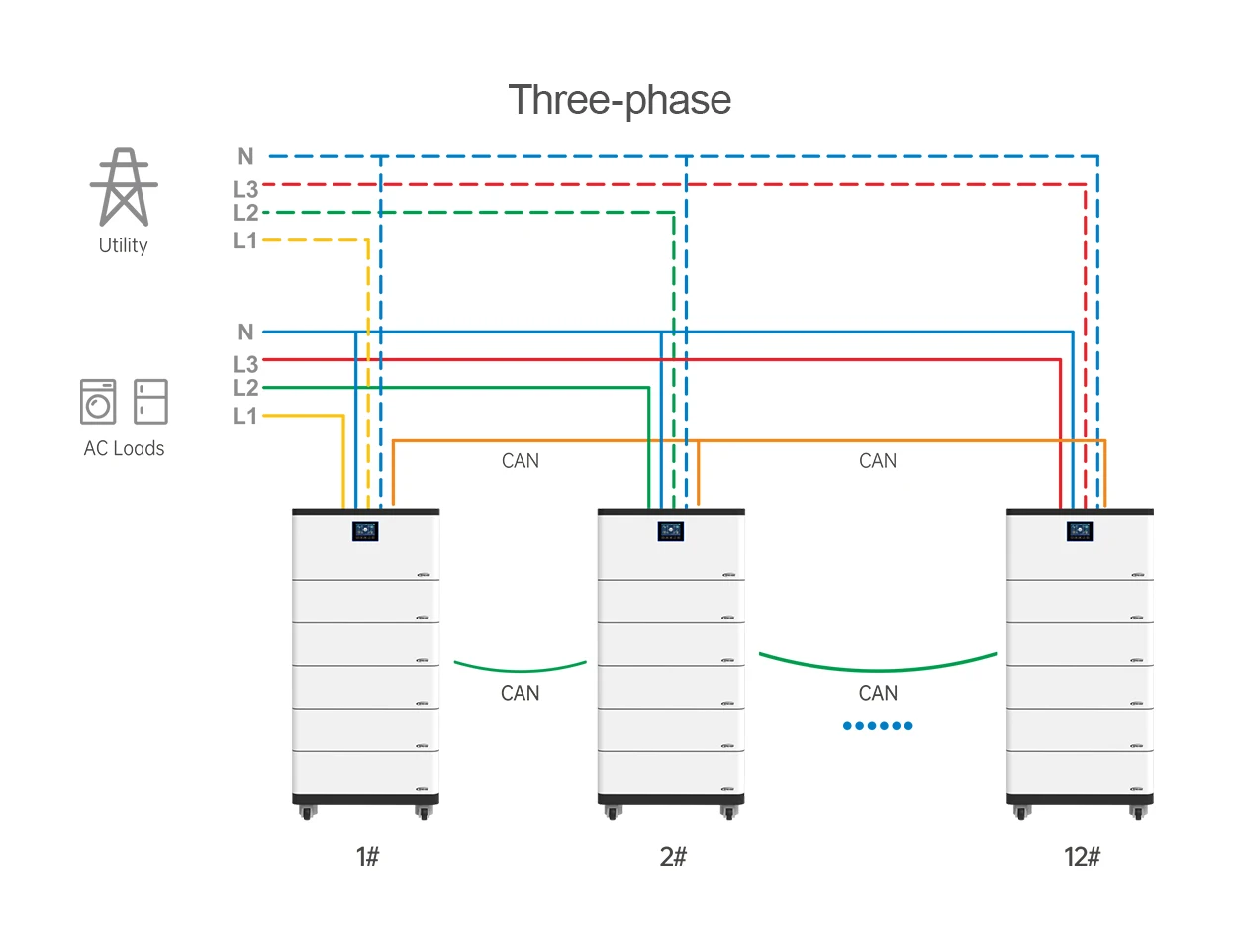

*Stackable installation with swivel wheel design for easy mobility *High-durability lithium batteries (over 6000 cycles) *Pure sine wave output *Main unit supports single-phase and three-phase parallel operation (up to 12 units) *Dual PV input support enhances PV utilization efficiency *RS485 communication interface, optional Bluetooth, WiFi, 4G,etc. *Remote monitoring via App *Historical data recording function, storage capacity of 25000 records *Comprehensive electronic protection *Operating temperature range: -20℃ to 50℃

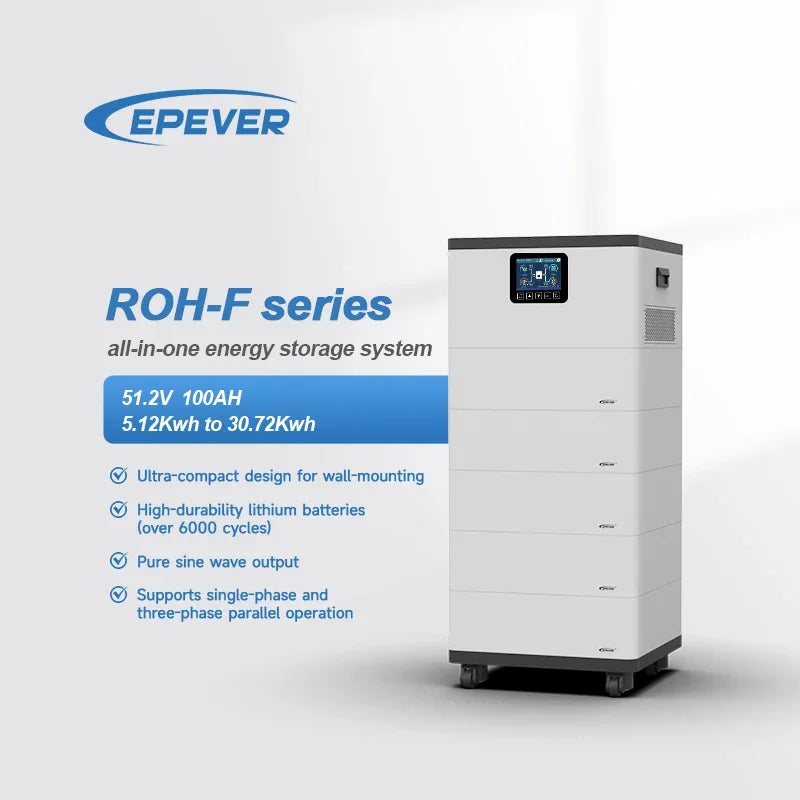

Technical Specifications EPEVER ROH-F Series All-in-one Energy Storage System
Model
ROH5542F- 05X1P20
ROH5542F- 10X2P20
ROH5542F- 15X3P20
ROH5542F- 20X4P20
ROH5542F- 25X5P20
ROH5542F- 30X6P20
Utility input






Utility Voltage
176VAC~264VAC (Default), 90VAC~280VAC (Configurable)





Utility Frequency
45Hz~65Hz





Maximum Utility Charging Current
100A





Switch Response Time
Inverter to Utility: 10ms Utility to Inverter: 20ms





Inverter output






Inverter Rated Power (@35℃)
5500W





3-second Transient Surge Output Power
8500W





Inverter Output Voltage
220/230VAC





Inverter Frequency
50/60Hz





Output Voltage Waveform
Pure sine wave





Load Power Factor
0.2~1(VA ≤ Rated output power)





Output Voltage Harmonic
≤3% (48V resistive load)





Distortion Rate






Maximum Load Efficiency
92%





Maximum Inverter Efficiency
94%





Solar controller






PV Maximum Open-circuit Voltage
500V





MPPT Voltage Range
85~400VDC





Number of MPPTs
2





PV Maximum Input Current
15A+15A





PV Maximum Input Power
6000W





PV Maximum Charging Current
100A





MPPT Maximum efficiency
≥99.5%





Battery






Battery Type
LiFePO4 lithium battery





Battery Module
5.12KWH,51.2V/100AH





Number of Modules
1
2
3
4
5
6
Battery Rated Voltage
51.2VDC

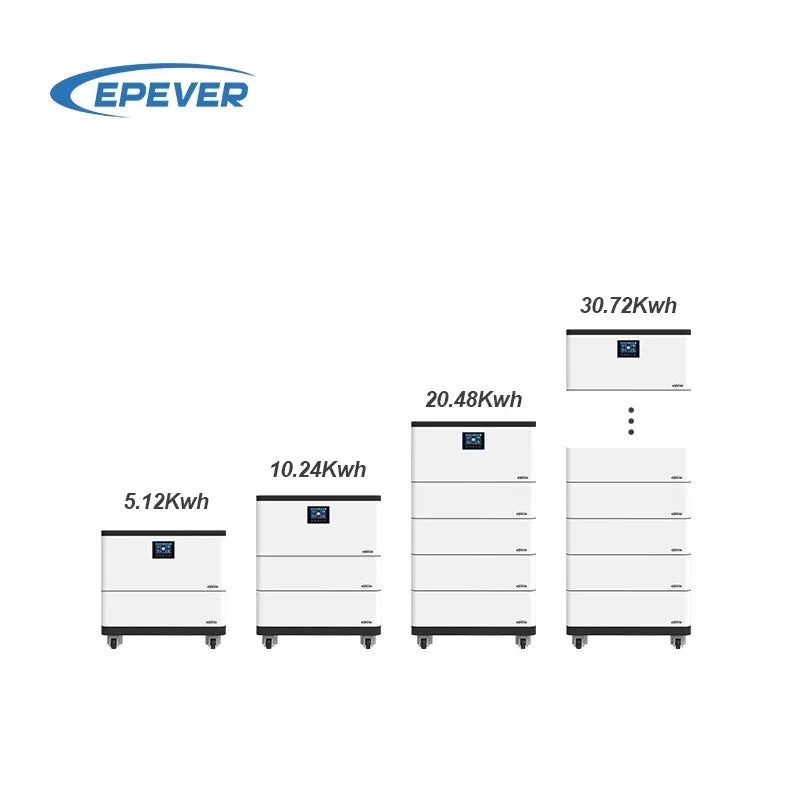

Energy Capacity
5.12KWH
10.24KWH
15.36KWH
20.48KWH
25.6KWH
30.72KWH
Battery Work Voltage Range
Dischargung Mode:0℃~+50℃,Charging Mode:-20℃~+50℃





Others






No-load Losses
<1.0 A





Standby Current
<0.15A





Installation
Flat stack





Environmental parameters






Work Temperature Range
-20℃~+50℃





Storage Temperature Range
-25℃~+60℃





Enclosure
IP20





Relative Humidity
< 95%(N.C.)





Altitude
4000m (>2000m Derating)





Mechanical parameters






Dimension (L x W x H)mm
530x500x 467
530x 500x 629
530x 500x 791
530x 500x 953
530x 500x 1115
530x500x 1277
N.W of inverter
24.5kg





N.W of complete package
82.0Kg
129.8Kg
177.6Kg
225.4Kg
273.2Kg
321.0Kg

Product Description
Company Profile
Since 2007, EPEVER has been at the forefront of the solar industry, providing innovative tools for efficient and reliable energy harvesting from the sun. Based in Beijing, we leverage a rich pool of talent to pioneer technologies that make solar power accessible everywhere. Our Products:
Solar Charge Controllers (MPPT and PWM), Inverters and Inverter Chargers, Lithium Batteries and Energy Storage Global Reach and Local Expertise: EPEVER's journey began as a modest enterprise and has since grown to a global stature, with over 120 partners worldwide. Our commitment extends beyond borders, aiming to ensure that every individual and community can utilize solar energy to its fullest potential. Quality and Innovation: Our products are backed by international standards and certifications (ISO9001, ISO14001, ISO45001), with compliance to CGC-SOLAR, CE, ROHS, FCC, ETL, and UL. In 2019, we expanded our capabilities with a cutting-edge manufacturing facility in Huizhou, enhancing our production to meet the growing demand for high-quality solar solutions.
Certifications
Project Case
