ANTNX Six-axis Industrial Welding Robot BRTIRWD1506A Industrial Robot Dustproof and Waterproof, High Precision, Flexible Operation ANTNX.COM

ANTNX Six-axis Industrial Welding Robot BRTIRWD1506A Industrial Robot Dustproof and Waterproof, High Precision, Flexible Operation ANTNX.COM

$10,420.56 USD
$13,025.70 USD $10,420.56 USD
Sale Sold out
Shipping calculated at checkout.
Product Overview



Product details

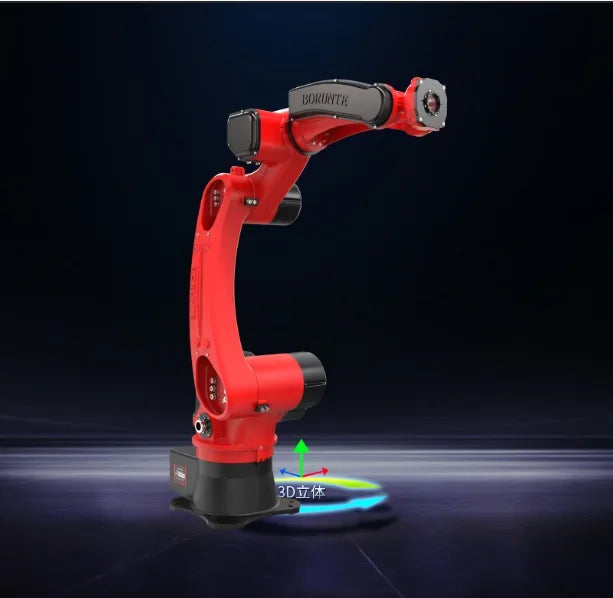

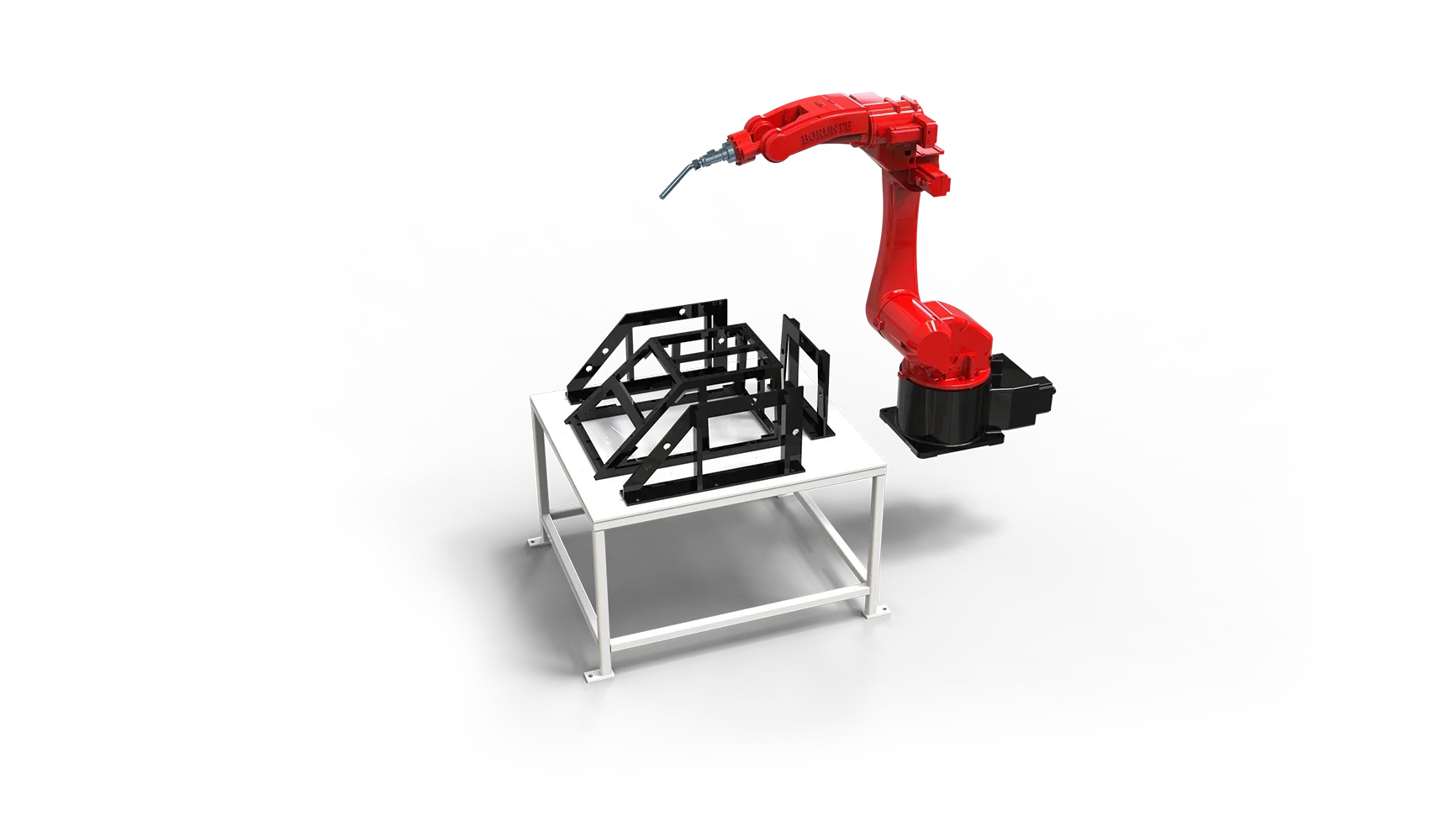

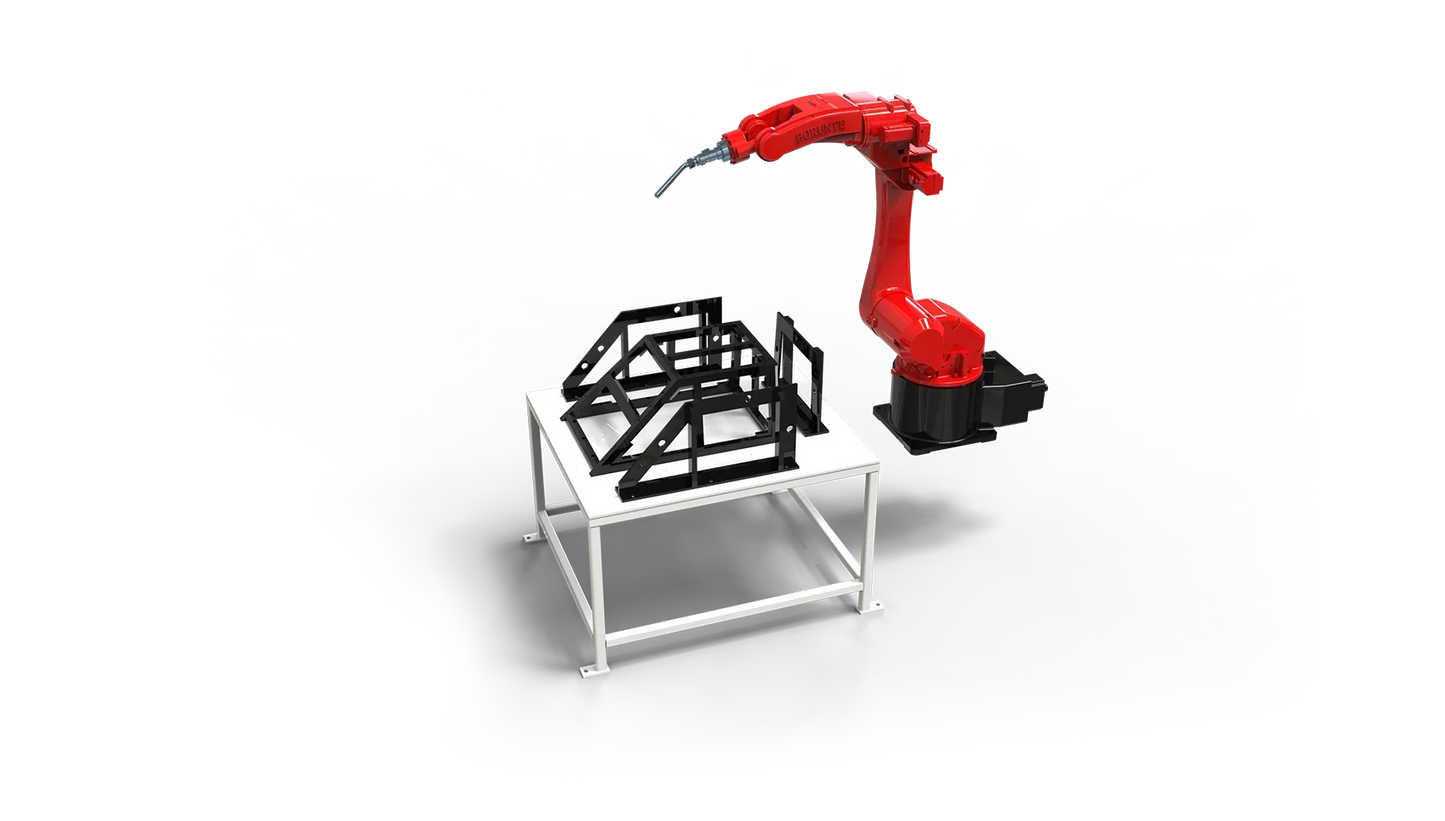

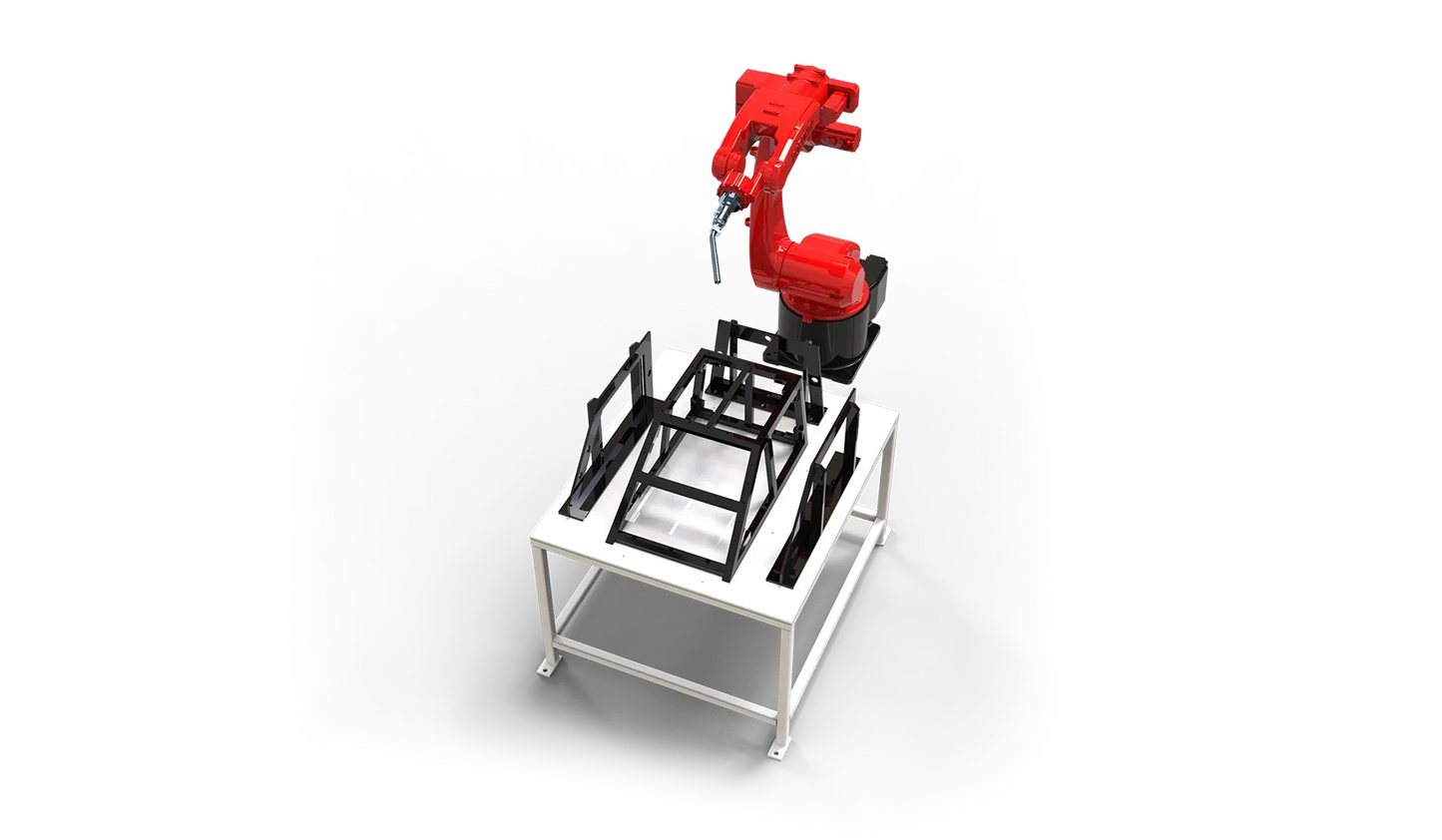

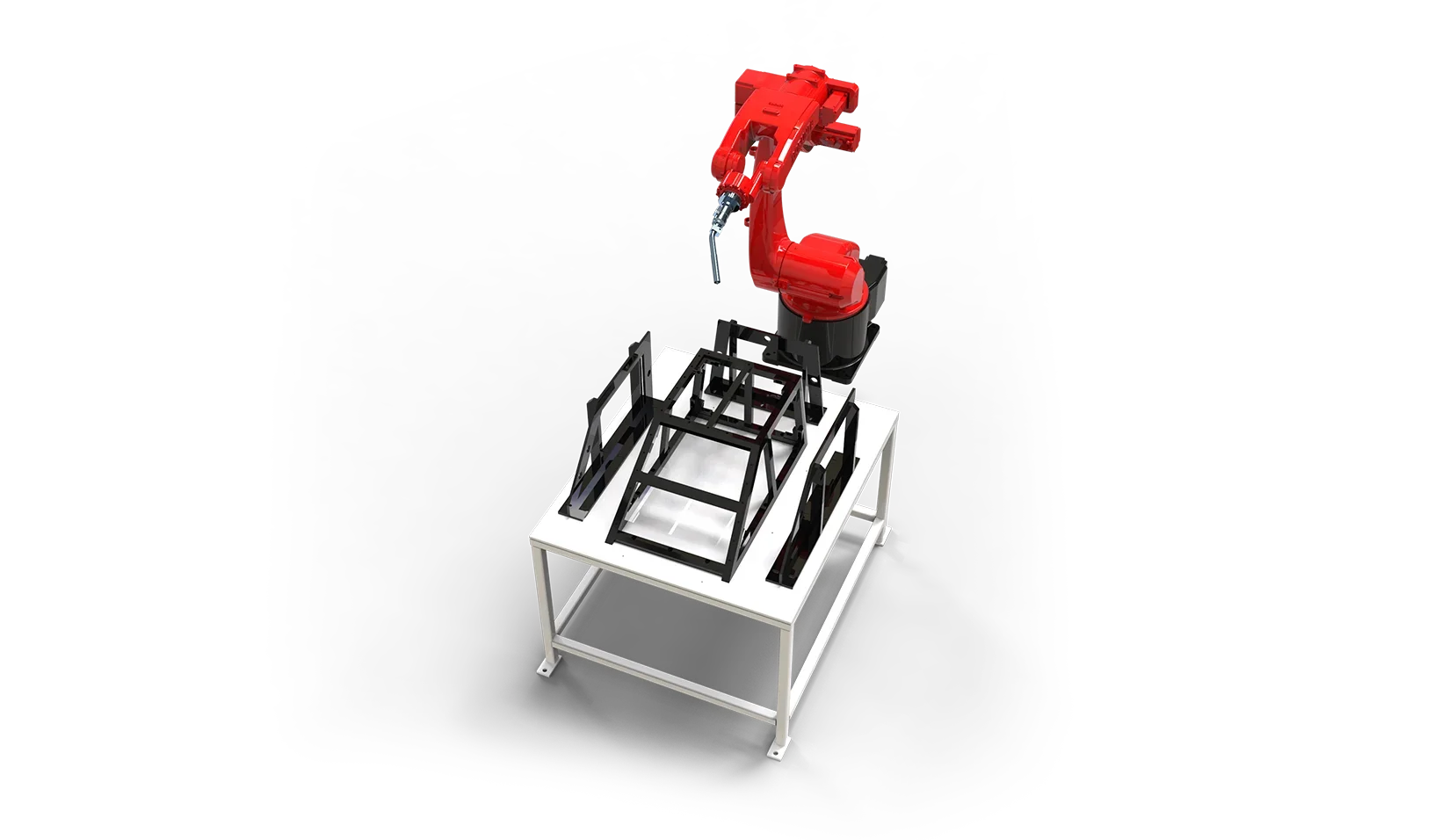

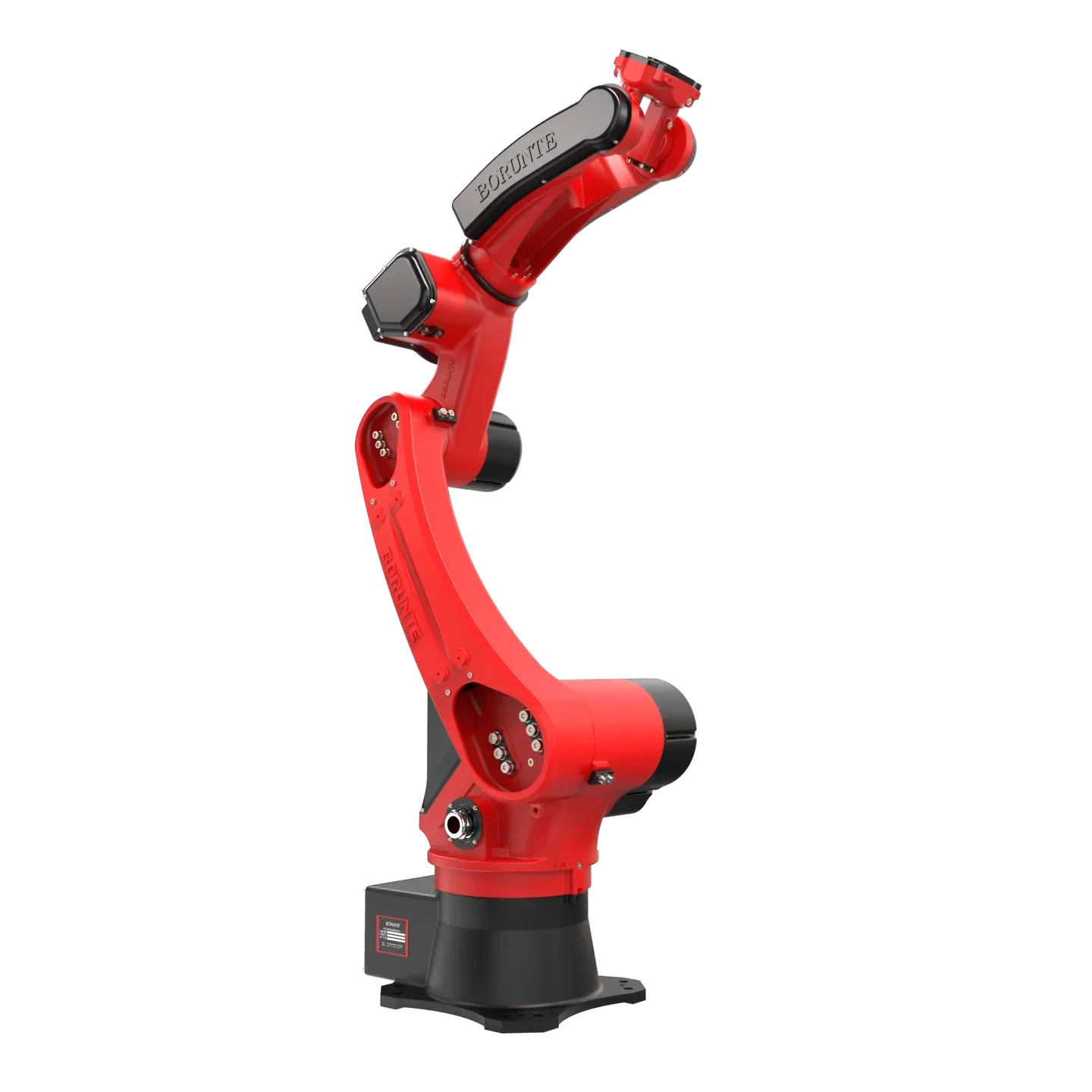

BRTIRWD1506A type robot is a six-axis robot developed by BORUNTE for the development of the welding application industry. Therobot has compact structure, small volume and light weight. The maximum load is 6kg, the maximum arm length is 1600mm. The wristapplies hollow structure with more convenient trace and flexible action. The protection grade reaches IP54. Dust-proof andwater-proof. The repeat positioning accuracy is ±0.05mm.
FEATURES AT A GLANCE

MainSpecification

Arm Length(mm):1600
Repeatability(mm):±0.05
Loading Ability(kg):6
Power Source(kVA):3.91
Weight(kg):about 166
Item

Range
Max.Speed




ARM

J1

±165°

163°/s
Bucket capacity

J2

-100°/+70

149°/s
Operating weight

J3

±80°

223°/S


Wrist
J4
±150°
169°/s

J5
±110°
270°/s

J6
±360°
398°/s

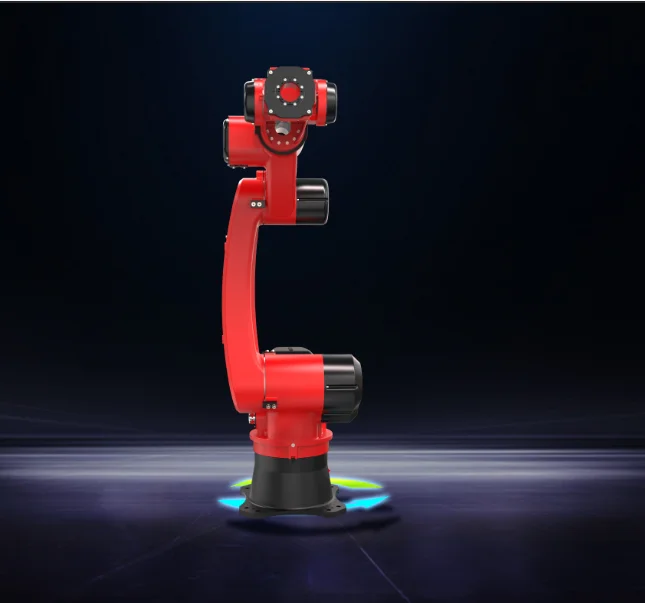

Right elevation                                         Left elevation                                                 Front elevation
Basic size/scope of the activity


PRODUCT CONFIGURATION

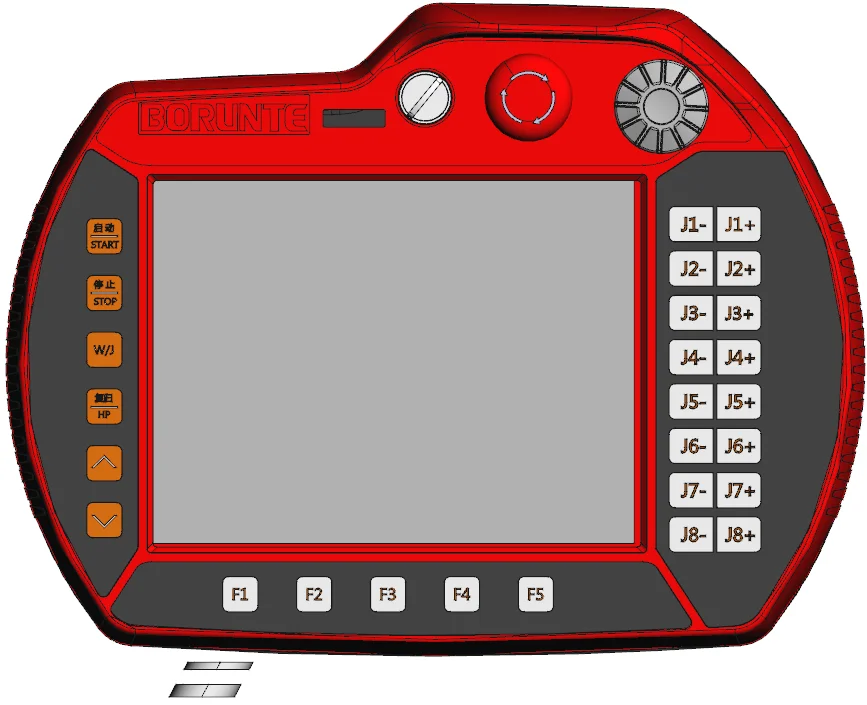

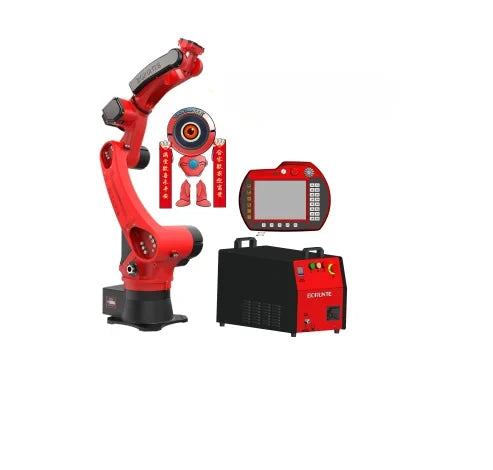

ELECTRICAL BOX                                         CONTROL PAD                                              SIX-AXIS ROBOT

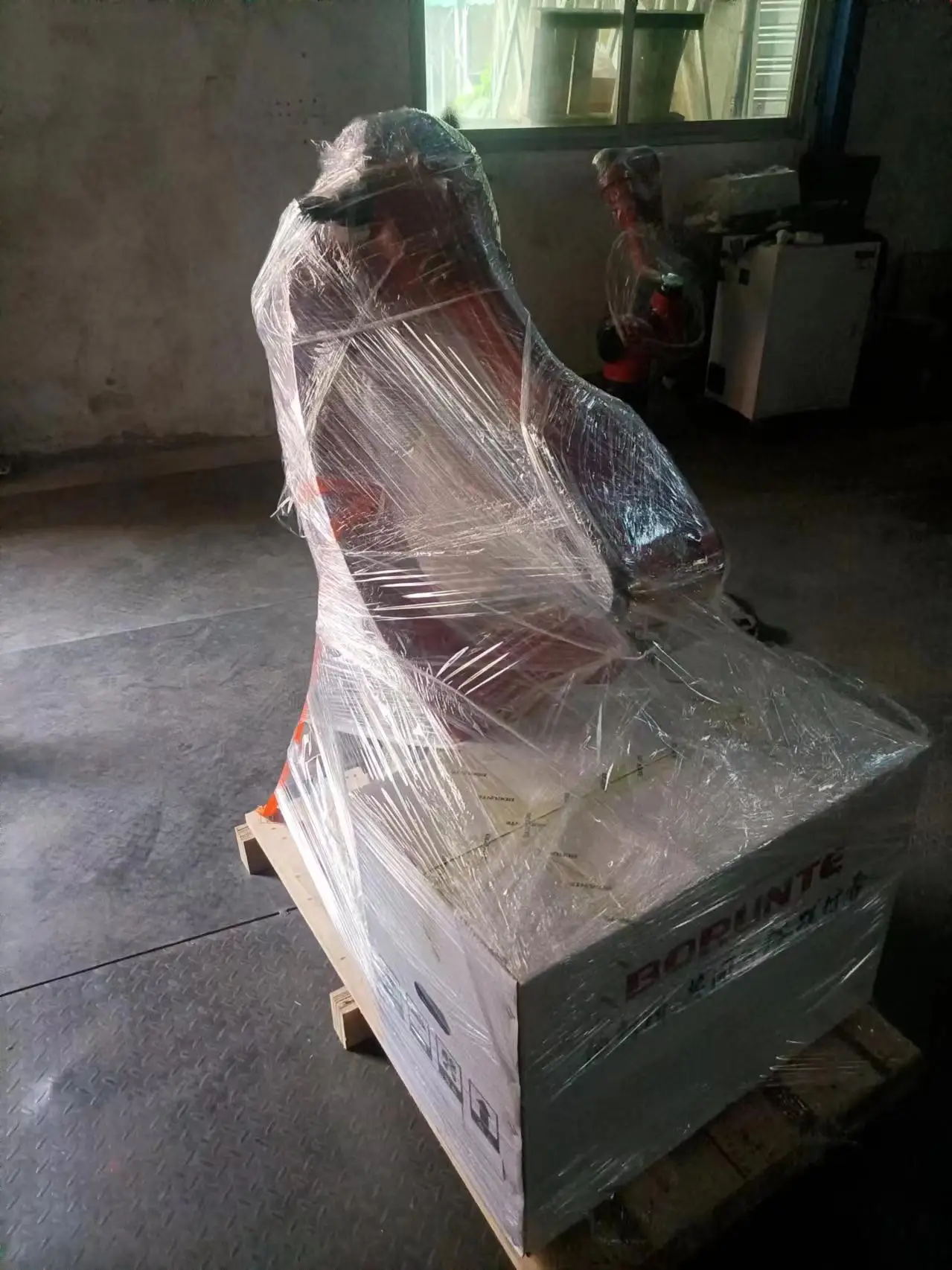

Product packaging

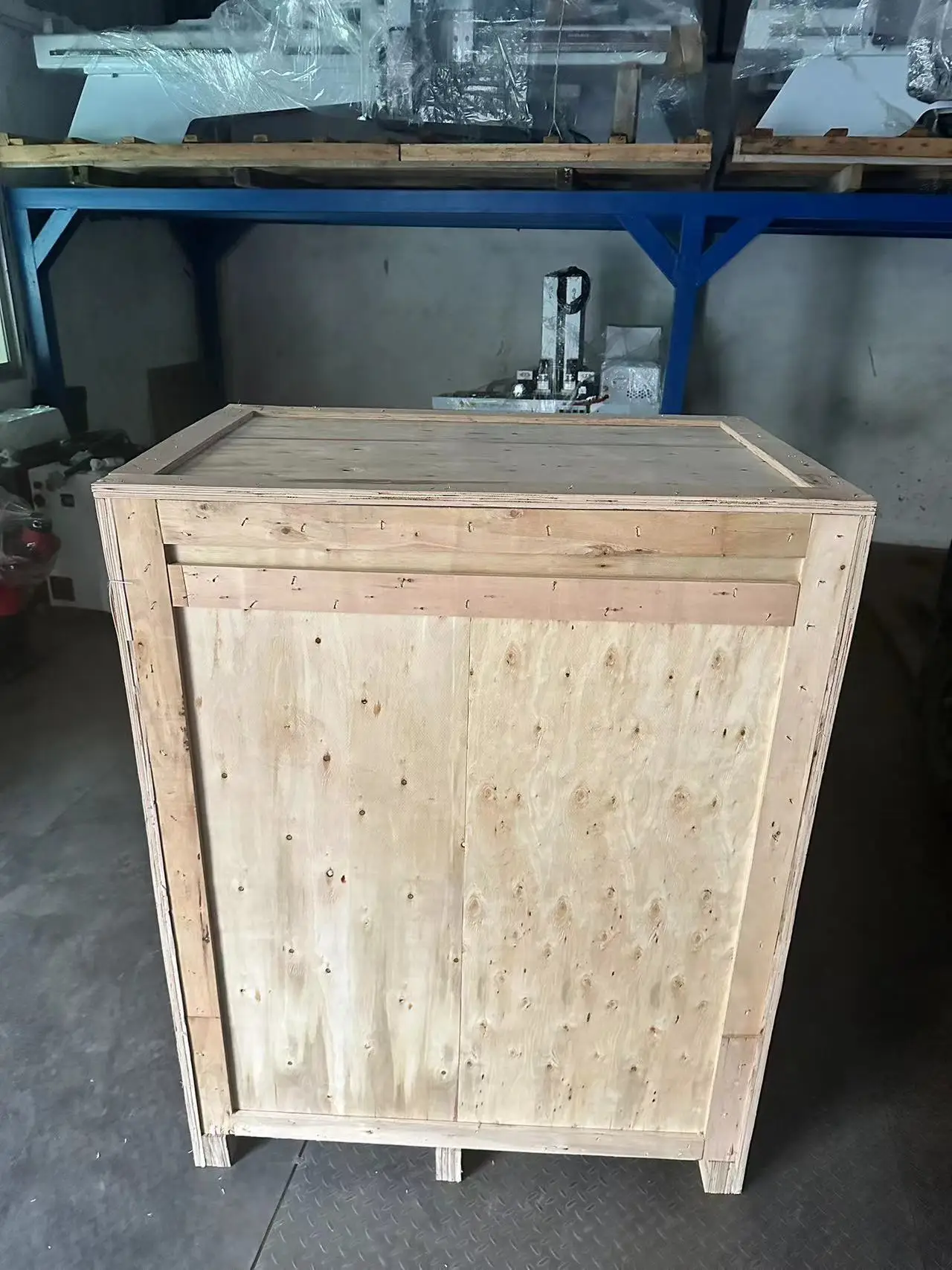

FINE PACKING

The internal fine packaging is sealed with wooden cases in line with export regulations, so as to ensure the quality of goods in transit is complete
