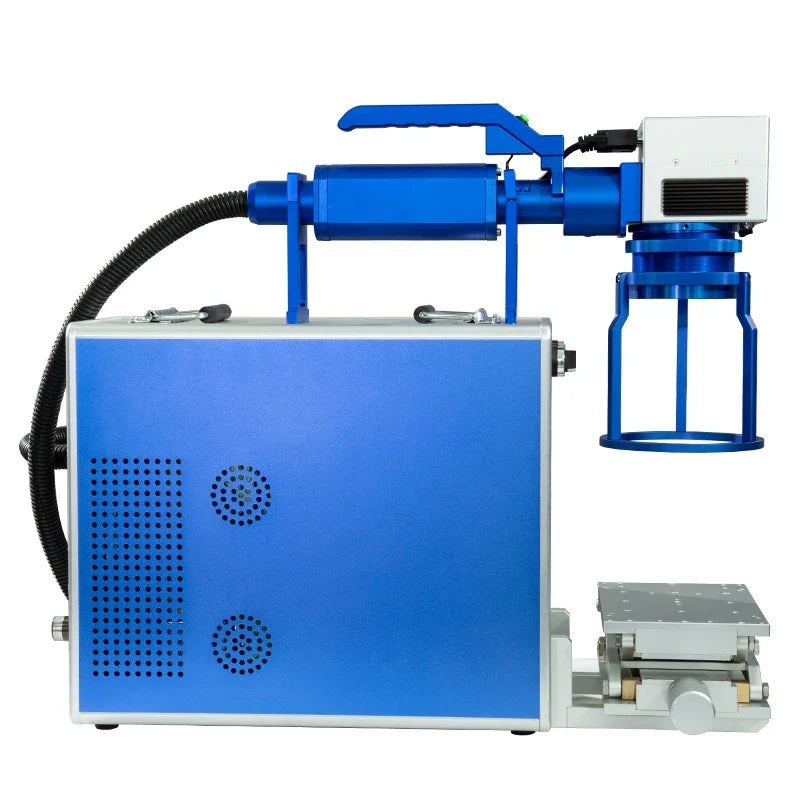

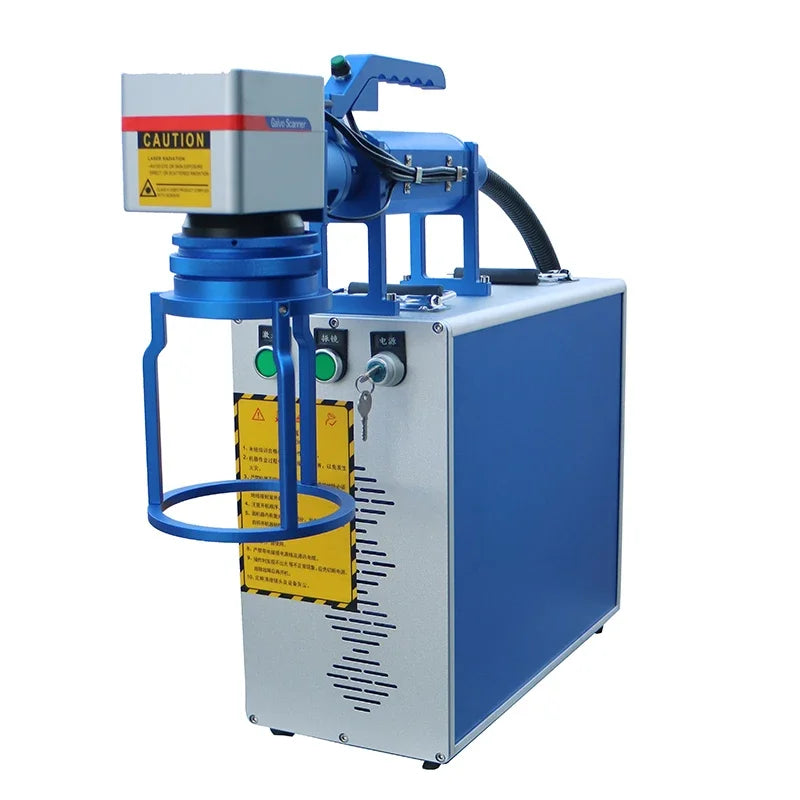

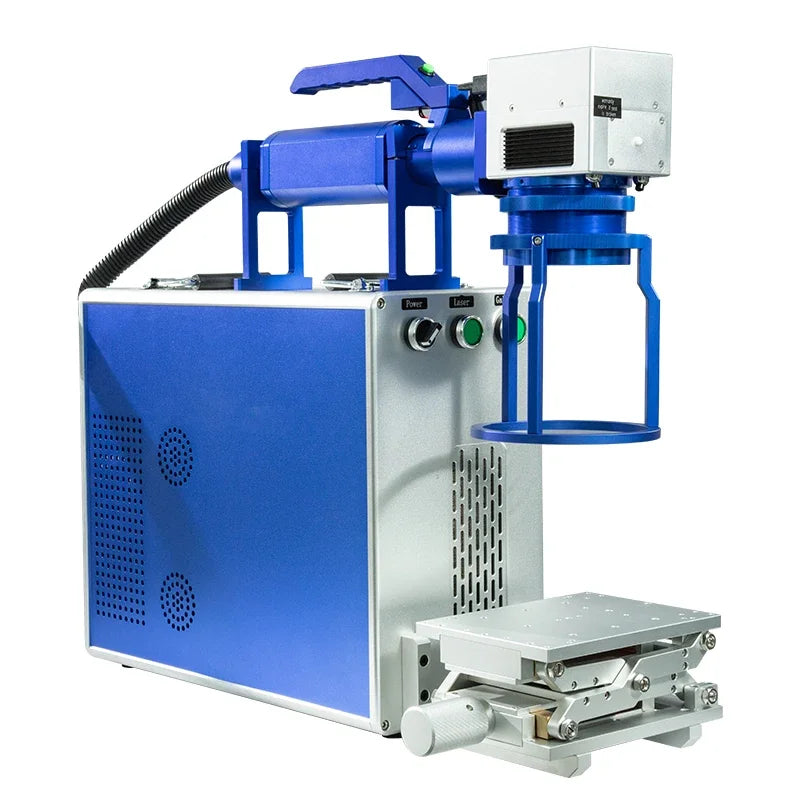

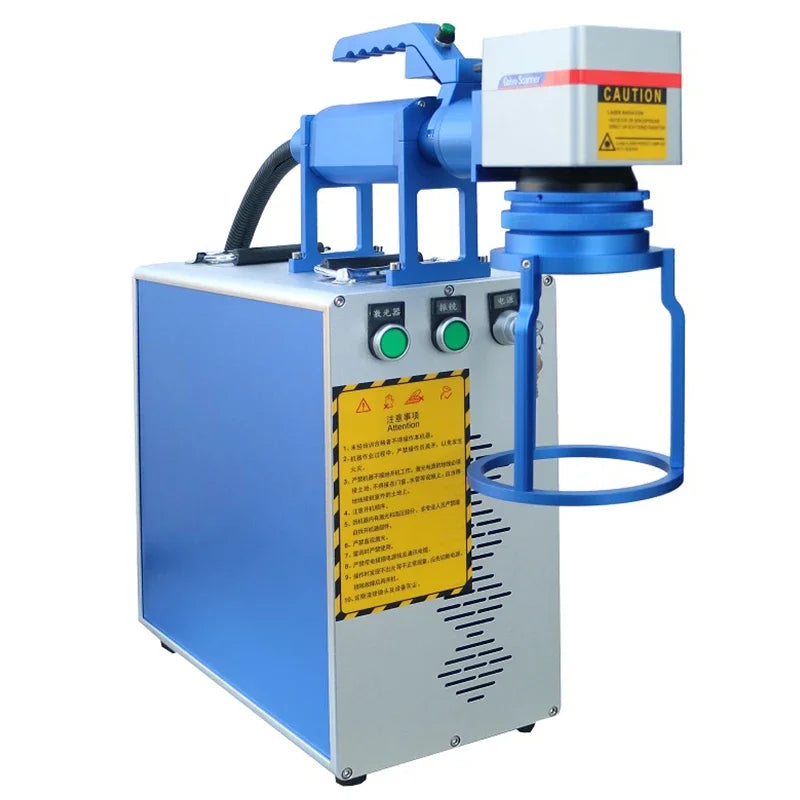

ANTNX SIDALI 20w 30w 50w Portable Metal Laser Stainless Steel Engraving Handheld Laser Marking Machine ANTNX.COM

ANTNX SIDALI 20w 30w 50w Portable Metal Laser Stainless Steel Engraving Handheld Laser Marking Machine ANTNX.COM

$4,338.20 USD
$5,422.76 USD $4,338.20 USD
Sale Sold out
Shipping calculated at checkout.
Power (W)


PRODUCT PARAMETERS

The fibre laser marker offers excellent marking performance and a compact structure with different designs and powers to suit your different marking requirements. The high quality generator contributes to a stable laser output and the digital oscillator scanning head allows for high precision and high speed marking.
Specifications

Model
SDL-S
Laser Source Options
Raycus,Max&JPT
Fiber Power Options
20W, 30W,50W
Laser Wavelength
1064nm
Marking Range
110mm x 110mm,150*150mm,175*175mm
Marking Speed
7000-12000mm/s
Marking Depth
Depend on materials
Repeated Accuracy
0.001mm
Image Formats
Supports AI, JPG, PLT, BMP, DXF, JPG, TIF, PNG, etc
Power Supply
220V/110V, 50HZ/60HZ
Packing Dimensions
560*460*720mm
Gross Weight
45kgs
FEATURES OF EQUIPMENT

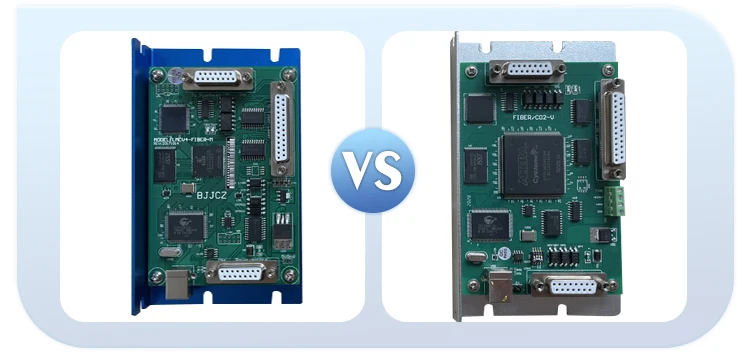

BJJCZ ORIGINAL CONTROL CARD
                              BJJCZ control card                                      cheap control card

OUR OTHER
REAL BRASS WIRE FAKE BRASS WIRE
              higher performance and safety                        cheaper quality, not safty

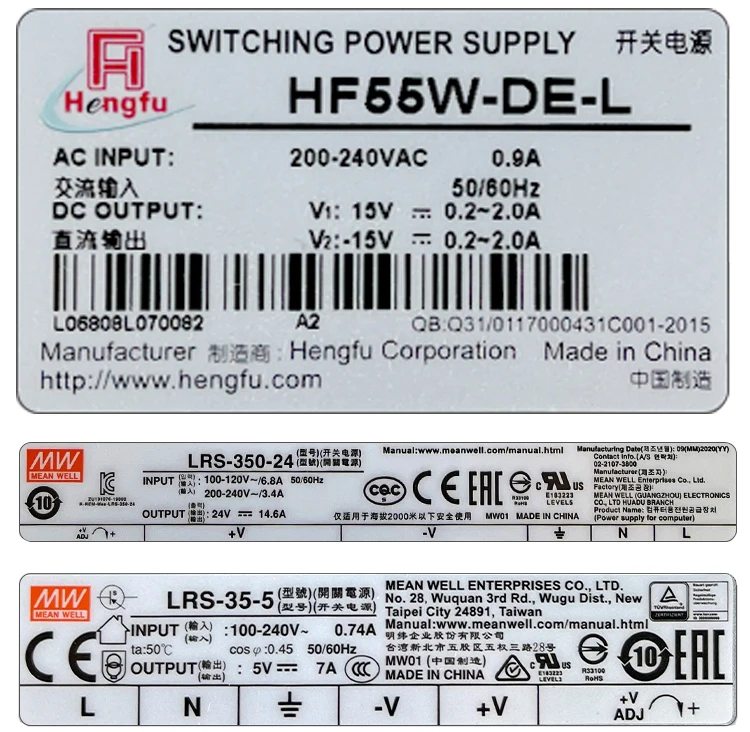

POWER PARAMETERS

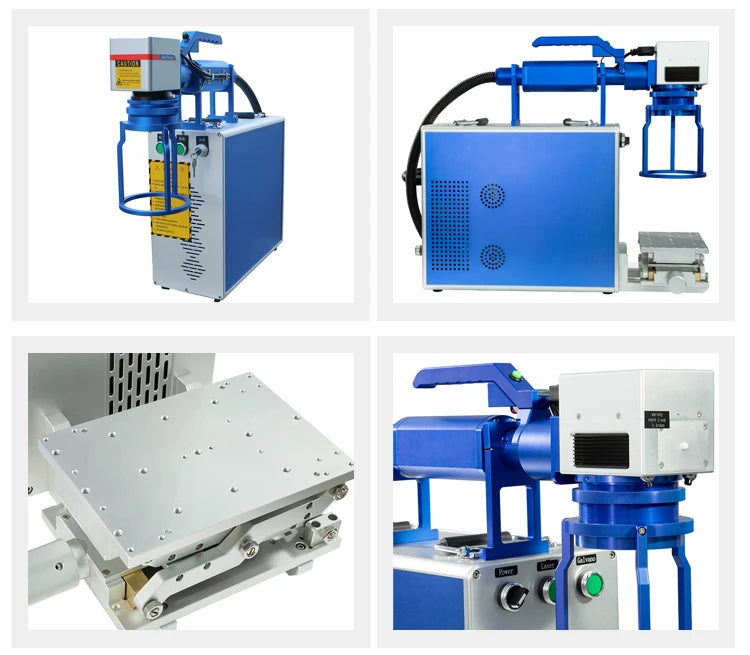

FEATURES OF EQUIPMENT

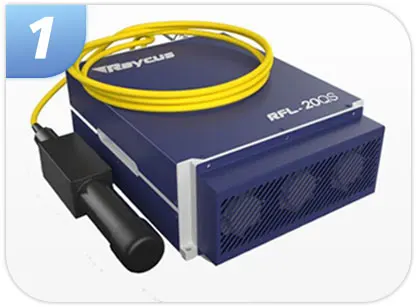

LASER SOURCE
Raycus,Max&UPT laser source, 100,000 hours long lifetime, 20W,30W,50W,70W,100W for option.

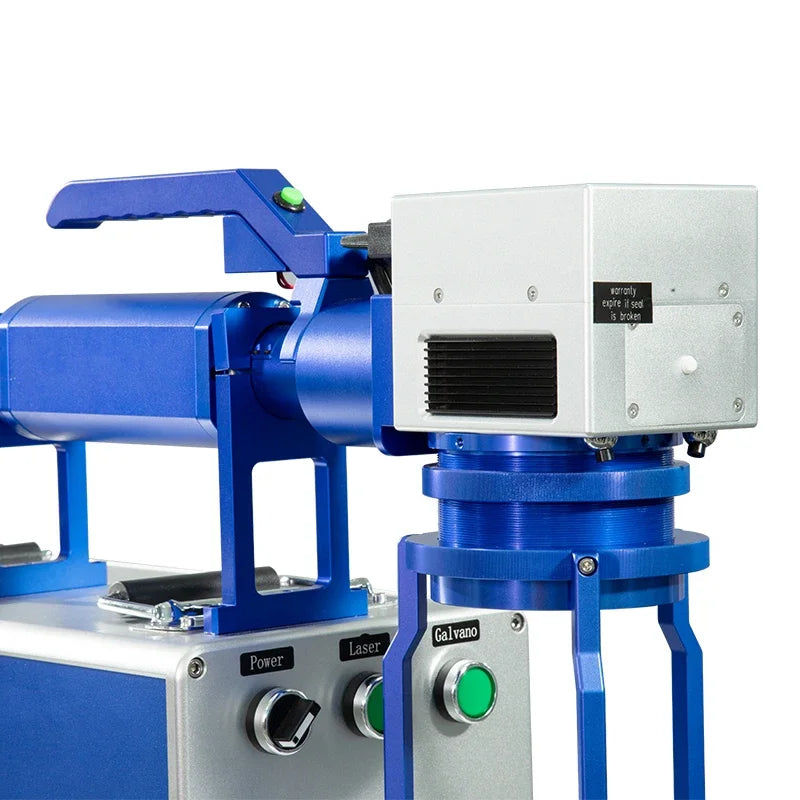

SINOGALVANOMETER SCANNING HEAD
High speed laser scanner system, marking speed up to12000mm/s.

FIELD LENS
70*70mm, 110*110mm, 150*1 50mm,175*175mm,200*200 mm,300*300mm for option.
JCZ CONTROL CARD
Original JCZ control card,the best control card brand in China.

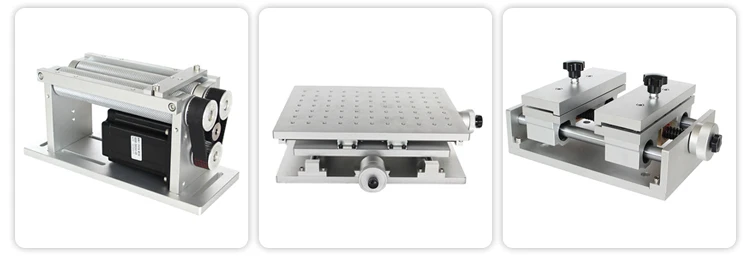

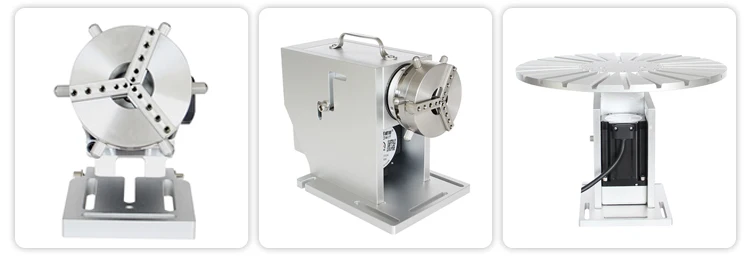

OPTIONAL DEVICES

     JEWELRY ROTARY                  RING MARKING ROTARY             PEN MARKING ROTARY

      ROLLER ROTARY                     X-Y 2D PLATFORM                      PLATE FIXTURE

ACCESSORIES WITH MACHINE

            USB DATA LINE                     POSITIONING BAR                      FOOT SWITCH

           AVIATION PLUG                      ALLEN WRENCH                STAINLESS STEEL RULER

                  U DISK                                 LASER GOGGLES                   TESTING PAPER


PRODUCT APPLICATION

Metal: Stainless Steel, Carbon Steel, Alumina, Aluminum Alloy, Aluminum, Platinum, Tungsten, Titanium
,Carbide Nickel,Brass,Copper, Iron, Gold, Silver, Cemented Carbide and other 95% metal materials can be marked on the surfaceldeep carving.
Plastic/Nonmetal: Nylon, light button,ABS plastic, PE plastic, PVC plastic products need actual testing due to different ingredients. Peel-off coating: Stripping of aluminum coating and anode layer; Surface peeling paint,Ceramic Scribing.
SAMPLE DISPLAY



FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer in China since 2008.

Q: How long is your delivery time?
A: Usually it is 3-5 days after reveing you payment.If your order quantity is big,it will take 5-10 days.The delivery time depends on the order quantity.

Q: What is your terms of payment ?
A: Payment less than 5000USD, 100% T/T in advance. Payment more than 10000USD, 30% T/T in advance ,70% balance before shipment.

Q:Whether you could make our brand on your products?
A:Yes. We can print your Logo on both the products and the packages

Q:How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict debugging on products before shipment and intact product packaging ensured.
