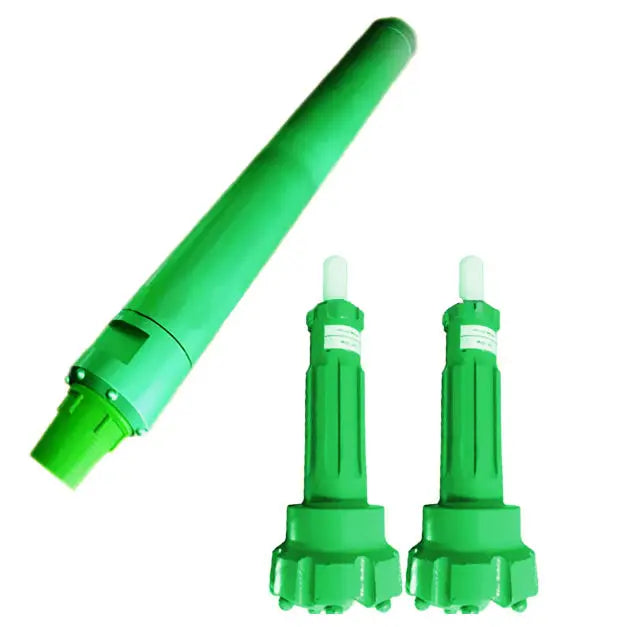

ANTNX SD4, DHD340, QL80 Water Well Borehole DTH Hammer and Drill Bits ANTNX.COM

ANTNX SD4, DHD340, QL80 Water Well Borehole DTH Hammer and Drill Bits ANTNX.COM

$2,286.95 USD
$2,858.68 USD $2,286.95 USD
Sale Sold out
Shipping calculated at checkout.
Products Description
Specification
Dth rock drill bits are in different sizes ranging from 3" to 12".
Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions

dth rock drill bits have four kinds of button type
Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasive ground types.
Ballistic button : fast penetration,suited to soft rock, suitable for non abrasive ground.

Applications of DTH Bit
• Underground mining
• Tunneling
• Quarry benching operations

Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Product Code and Brief Description
Flushing Holes
Diameter (mm)
Weight (kg)
Gauge Buttons ( No.x mm)
Front Buttons ( No. x mm)
DTH Hammer
DTH65PQ
1
68 - 72
1.5
4 x12
3 x 12
DTH65
DTH75PQ
3
75 - 77
2.4
5 x 12
3 x 12
DTH70
DTH76PQ
2
76 - 78
2.5
5 x 12
3 x 12
DTH76
DTH76-78
2
78 - 82
2.6
5 x 12
3 x 12
DTH76
DTH80PQ
3
82 - 84
3
5 x 12
6 x 12
DTH80, DTH80X
DTH90A
3
90 - 95
3.6
6 x 14
4 x 12
DTH80, DTH80X
DTH80XD-90
3
90 - 95
3.4
6 x 12
4 x 12
DTH80XD
DTH80-II-80
3
80 - 82
3
5 x 12
4 x 12
DTH80-II
DTH90B
3
90 - 95
3.8
6 x 14
4 x 12
DTH90, DTH90-I
DTH90T1
2
90 - 95
3.6
6 x 14
1x12,3x12 (Spherical)
DTH90, DTH90-I
DTH90T2
2
90 - 95
3.8
6 x 14 (Spherical)
4 x 12 (Spherical)
DTH90, DTH90-I
DTH90T3J
3
90 - 95
3.6
6 x 14 (Ballistic)
4 x 12 (Ballistic)
DTH90, DTH90-I

3 Inch
3.5 Inch
4 Inch
5 Inch
6 Inch
8 Inch
Drilling diamter(mm)
Φ82-85
Φ90-93
Φ105-130
Φ130-152
Φ152-305
Hammer length(mm)
867
908
1052
1387
1450
External diamerer(mm)
Φ71
Φ81
Φ92
Φ114
Φ136
Weight(kg)
19
21.8
38
69
126
Working pressure(Mpa)
0.8-2.1
0.8-2.1
0.8-2.1
0.8-2.1
0.8-2.1
Air consumption(m3/min)
3-12
4.3-14.2
3.5-18
5.7-18
8.5-25
Torque(N.M)
150
205
304
590
822
Lmpact frequenc(Time/Min)
≥800
950-1500
≥800
810-1470
820-1475
Connection thread
inside 48.8x4.2
outside API 2-3/8"
inside API 2-3/8"
outside API 3-1/2"
outside API3-1/2
Connection thread
Φ47-6
Φ53-8
Φ64-8
Φ84-8
Φ99.5-8
Company Profile
Factory
Why choose us
Certifications
Exhibition
Packing and delivery
FAQ



1. Q锛欰re you manufacturery or trade company? A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit銆丏rill Pipe Casing System銆乀ricone Bit銆乀op Hammer Drill Rod銆� Drill Bit銆乀apper Button Bit and Rod銆� Integral Drill Rod etc. 2.Q: Do you offer warranty on your products? A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date. 3銆丵: How is your quality control? A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out. 4.Q: How long is your delivery time? A: 1-5days for the products in stock锛� regular order delivery in 2-3weeks. 5.Q: After Services: A:(1) Our sales team will response for your question within 24 hours (Holidays included). (2) Technical Support will be available in any time. (3)Free replacement will provide once the failure confirmed caused by our product quality. 6.Q:Methods of Payment: A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods. 7Q: Do you offer OEM service? A:Yes, we can offer OEM service if you have regular requirement. 8Q: Where did you export ? A:Till 2023 we have exported to 60+ countries.
