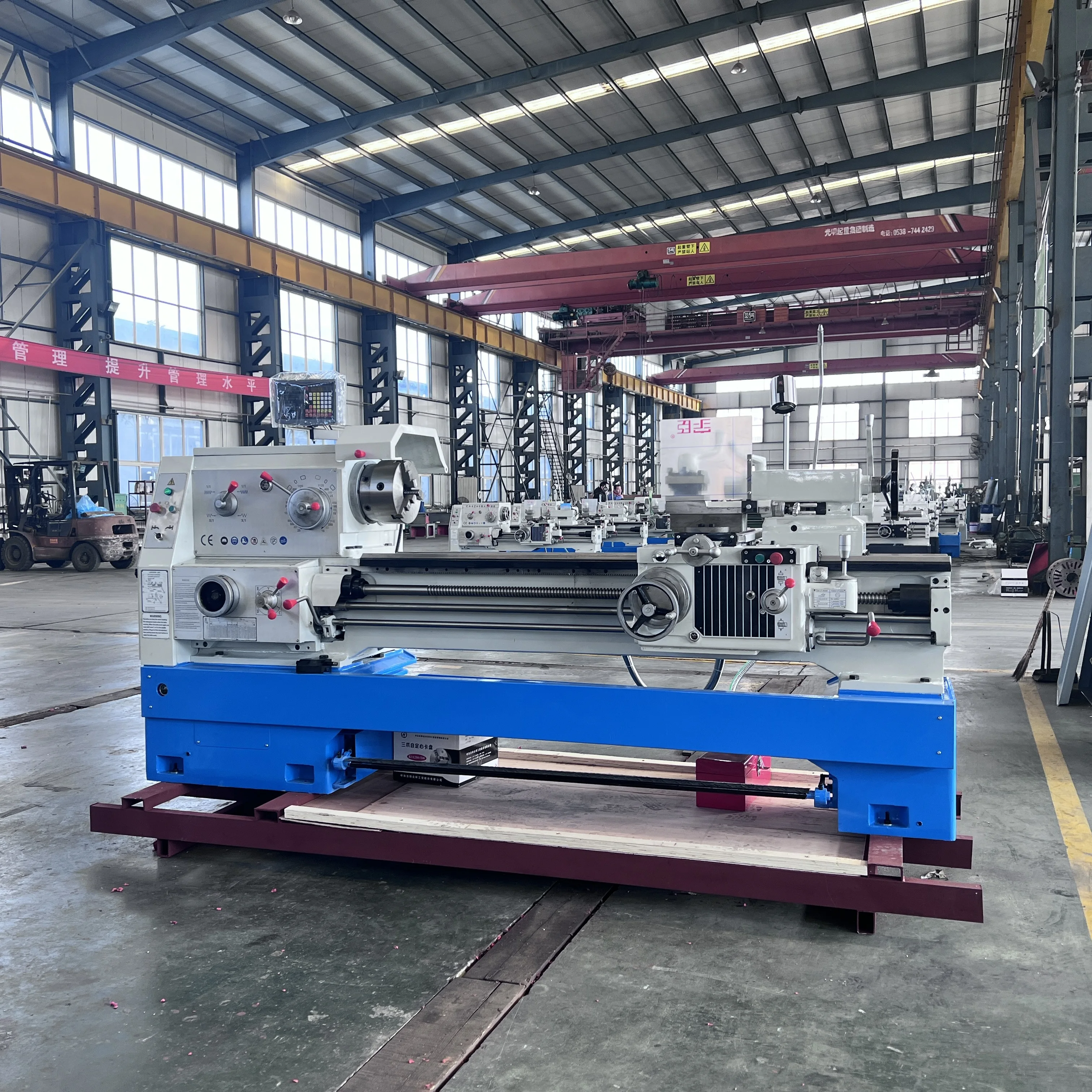

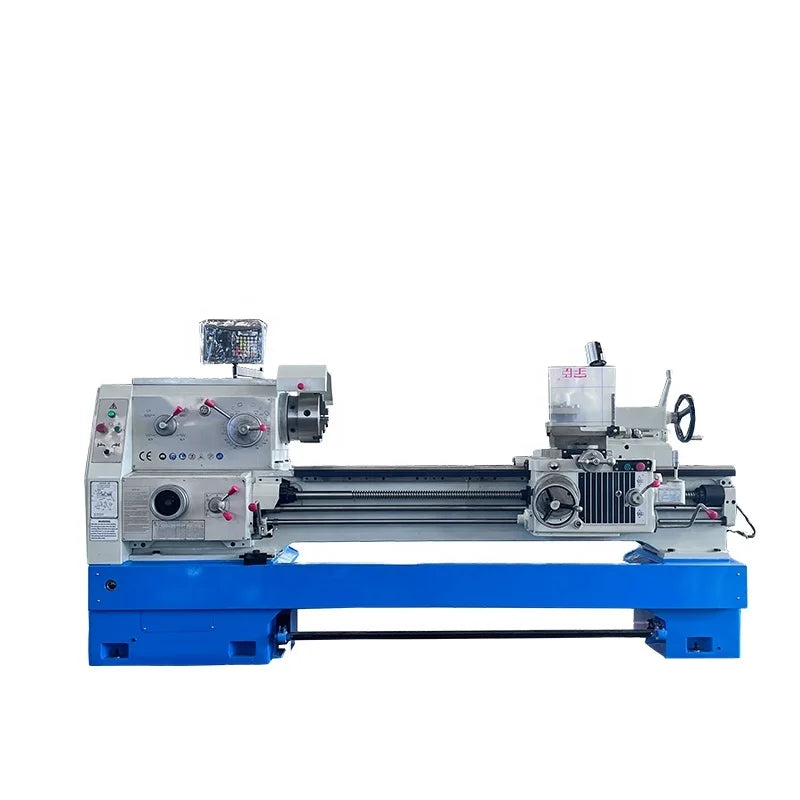

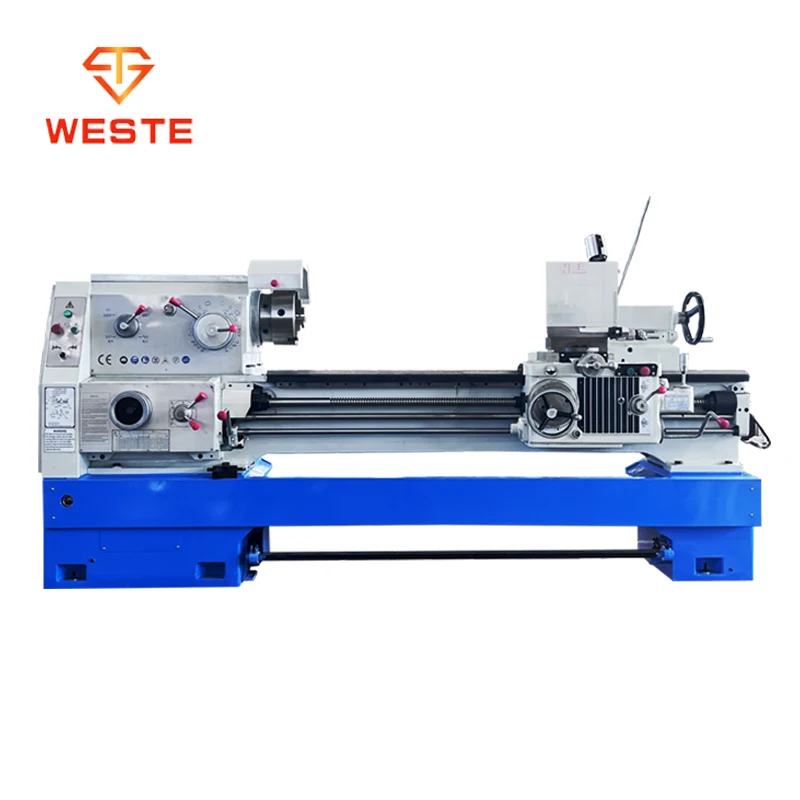

ANTNX Mini Metal Lathe C6140/C6150 High Precision Good Rigidity Heavy Duty Industrial Household Use New Condition Motor ANTNX.COM

ANTNX Mini Metal Lathe C6140/C6150 High Precision Good Rigidity Heavy Duty Industrial Household Use New Condition Motor ANTNX.COM

$17,300.76 USD
$21,625.95 USD $17,300.76 USD
Sale Sold out
Shipping calculated at checkout.
Product descriptions from the supplier
Features:
This series lathe machine is suitable for internal and external turning, tapering, and other rotating faces, metric,module-and inch threads, as well as drilling and pull oil slot. Width of bed is bigger than normal lathe machine, with high hardness on guideway, the guideway is throughhigh-fre-quency quenching,wear-resisting. This machine is easy to operate, with rapid device for carriage, design with single hand wheel to operate. The strength and rigidity of machine is higher than normal lathe machine, high efficiency, suitable for heavy duty machining.
specifications

unit
CA6150
Max.swing over bed

mm
500
Max. Swing over carriage

mm
300
effective gap length

mm
210
Max. length of work piece

mm
750
Width of bed

mm
400
Spindle
Spindle speeds
rpm
16-1400锛�12steps锛�

Hole through spindle
mm
52mm

Spindle taper
-
No.6(MT6)

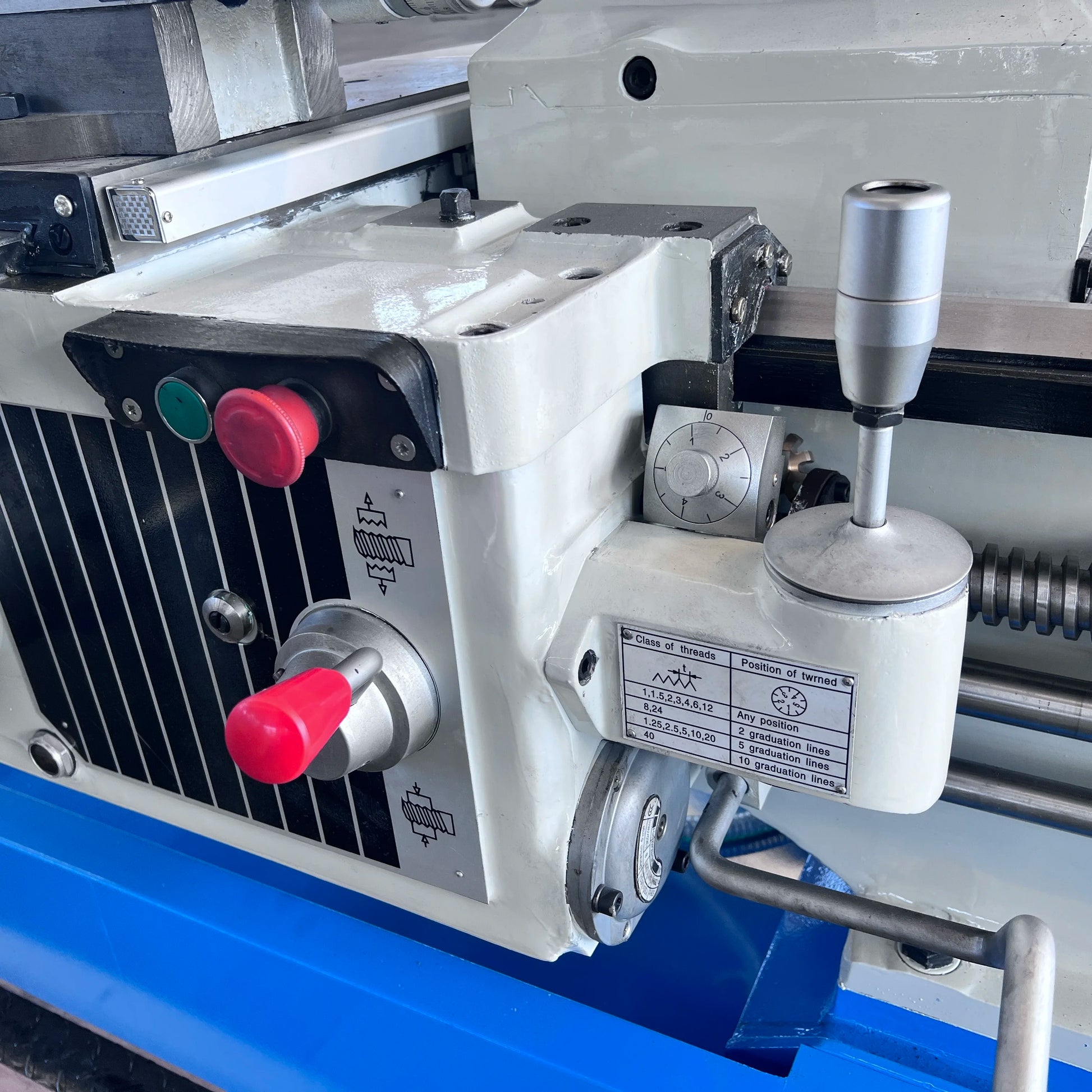

Feed
Number of feed
mm
(64 kinds)(for each)

Range of metric threads锛坘inds锛�
mm
锛�0.25-48mm锛�39kinds

Range of inch threads锛坘inds锛�
-
锛�1-24Teeth per inch锛�21kinds

Range of module threads锛坘inds锛�
mm
0.25-48

Range of diametral pitc threads锛坘inds锛�
-
1-96dp锛�37kinds锛�

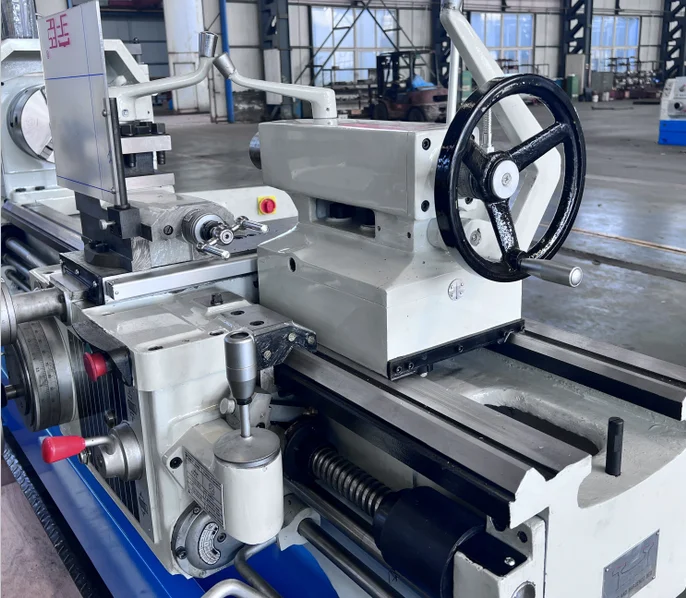

Tailstock
Max. tail stock spindle travel
mm
 150 mm

Tail stock spindle diameter
mm
75mm

Taper of tail stock spindle center hole
-
NO.4(MT5)
Main motor
Main motor
-
3/4KW
Packing dimensions (L*W*Hmm)
Overall dimensions for750mm
mm
2440×1140×1750 mm
Weight
Weight for 750mm
KG
2100



Shandong Weste CNC Machine Tool Co.,Ltd
High speed, High precision. High rigidity, High efficiency.

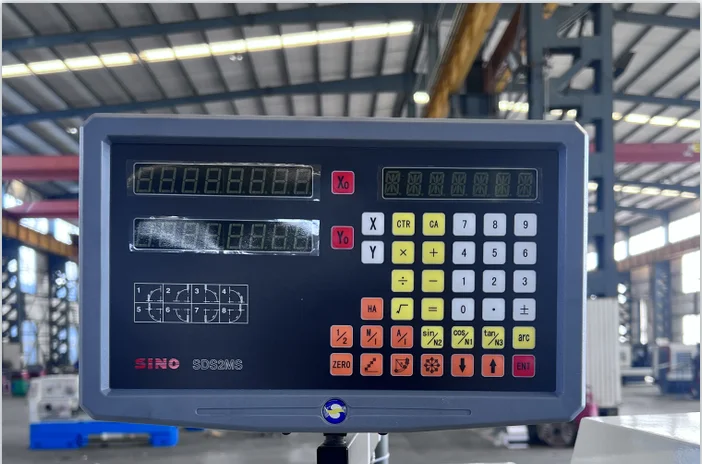

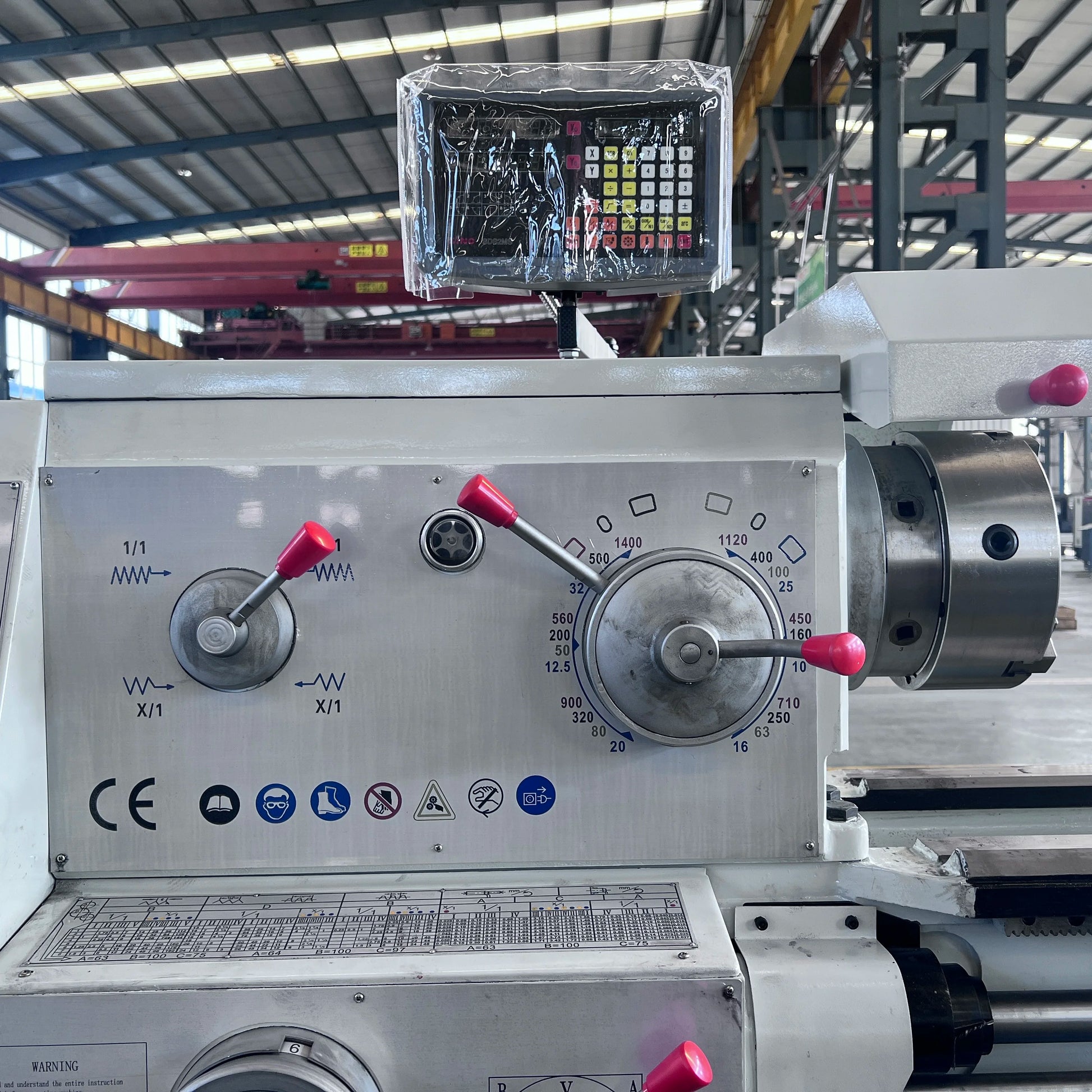

2-axis digital display
Optional digital display

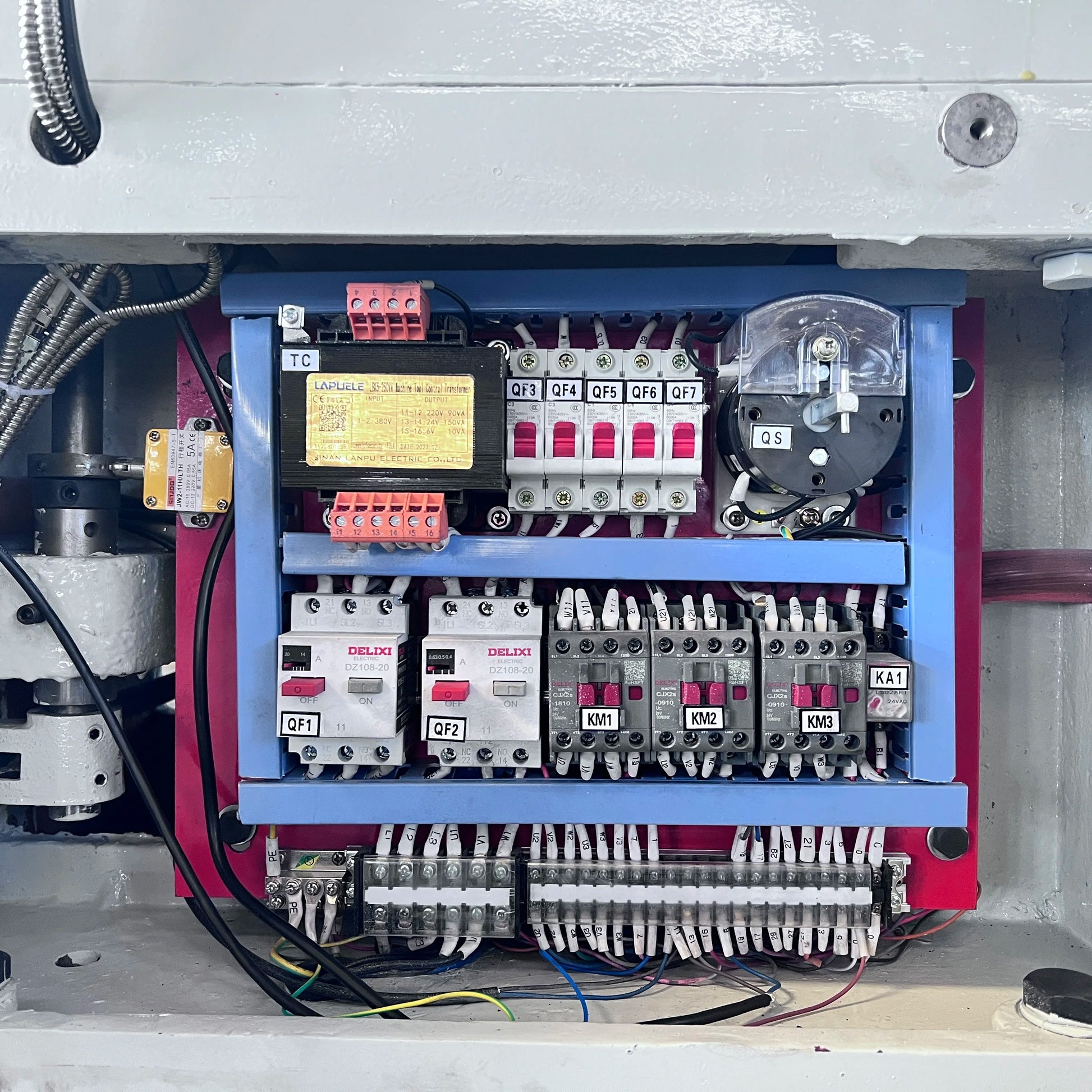

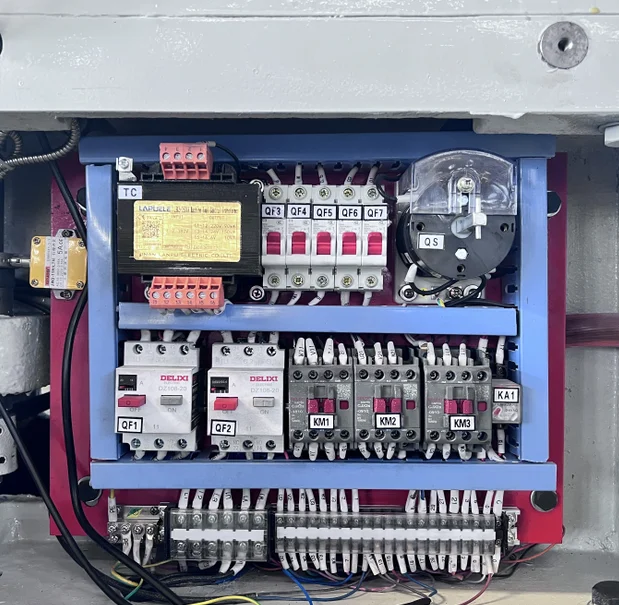

Electrical box

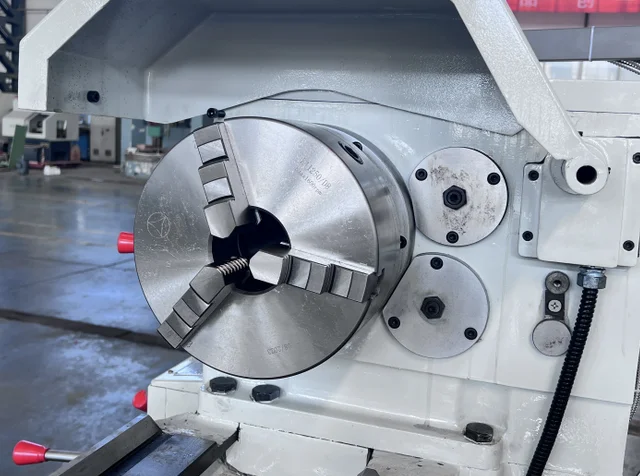

Precision chuck
Standard with three jaw chuck, manual fast The clamping product rotates simultaneously with the spindle Carry out processing

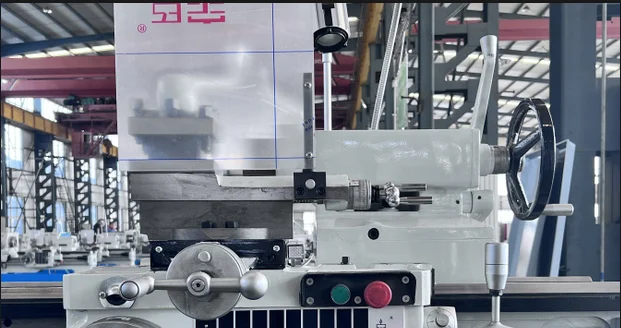

Hand tool rest

Can be freely rotated to achieve a variety of props Free switch, complete the processing



Machine tool bed
The bed is made of high-strength castings, Can ensure the accuracy of the machine long, durable.

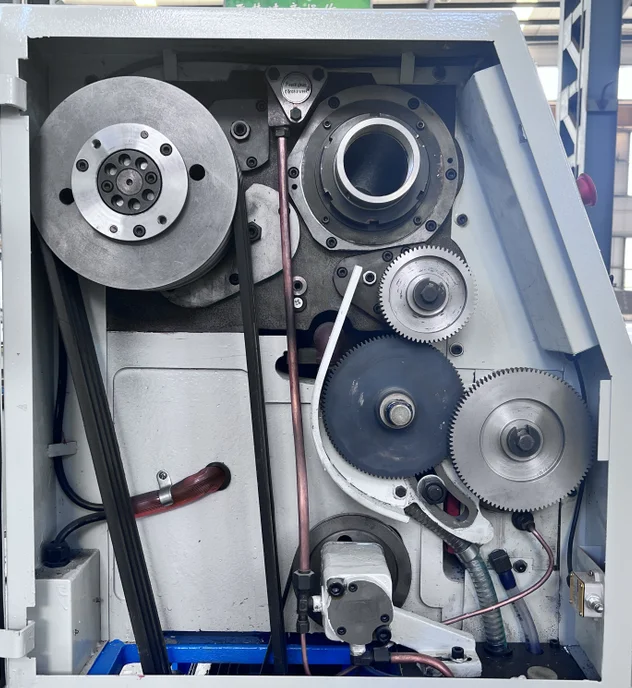

gearbox
The whole set adopts Harbin BEARING, and the main shaft adopts Harbin bearing High precision double ball bearing support to ensure
high-speed spindle rotation The precision and stability are good, creating conditions for CNC lathe manufacturing

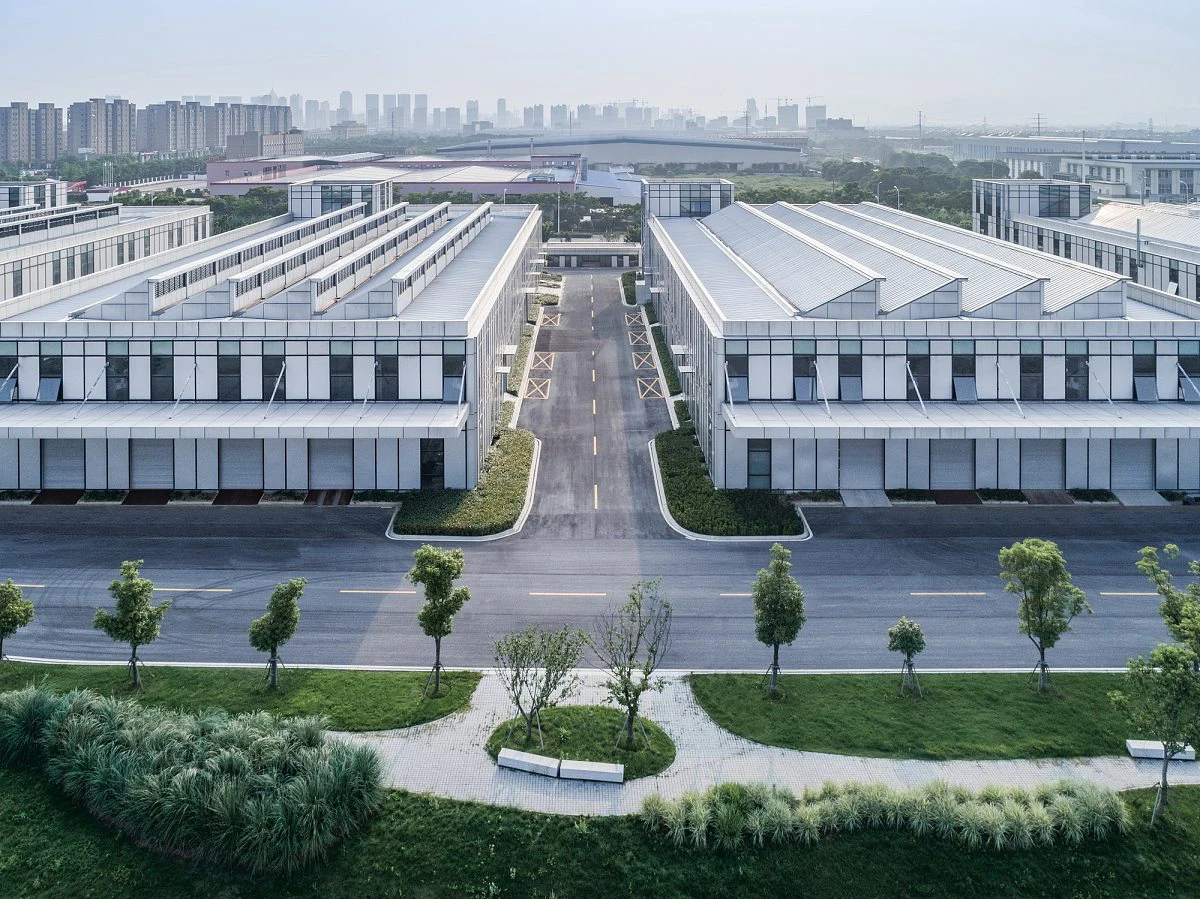

Shandong Weste CNC Machine Tool Co., Ltd. is a CNC machine tool manufacturing company that integrates design, manufacturing, sales, and service, covering an area of more than 5000 square meters. The company has been developing for 20 years, and its main products include vertical machining centers, horizontal machining centers, gantry machining centers, five axis machining centers, CNC inclined bed lathes, CNC milling machines, ordinary milling machines, drilling machine series, and other CNC equipment. the company has a stable supply chain to provide guarantees for the supply of raw materials. The precise quality inspection equipment and modern management mode have laid a solid foundation for producing high-quality products. All factory equipment will go through strict quality control processes such as quality inspection, copying, and re inspection, ensuring that each equipment is of high quality. At the same time, each machine tool has complete quality control records, a comprehensive after-sales service system, and experienced engineers to ensure fast after-sales service. The company has a group of experienced mechanical engineering designers and skilled assembly technicians, adhering to the principles of technological innovation, management innovation, and talent innovation to provide customers with excellent quality services. We warmly welcome domestic and foreign friends to discuss business, enhance understanding, and work together to create brilliance!
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
