ANTNX Manufacturer Solar Power System 220V Power Bank Home 2.5Kw Solar Energy System ANTNX.COM

ANTNX Manufacturer Solar Power System 220V Power Bank Home 2.5Kw Solar Energy System ANTNX.COM

$2,171.47 USD
$2,714.34 USD $2,171.47 USD
Sale Sold out
Shipping calculated at checkout.

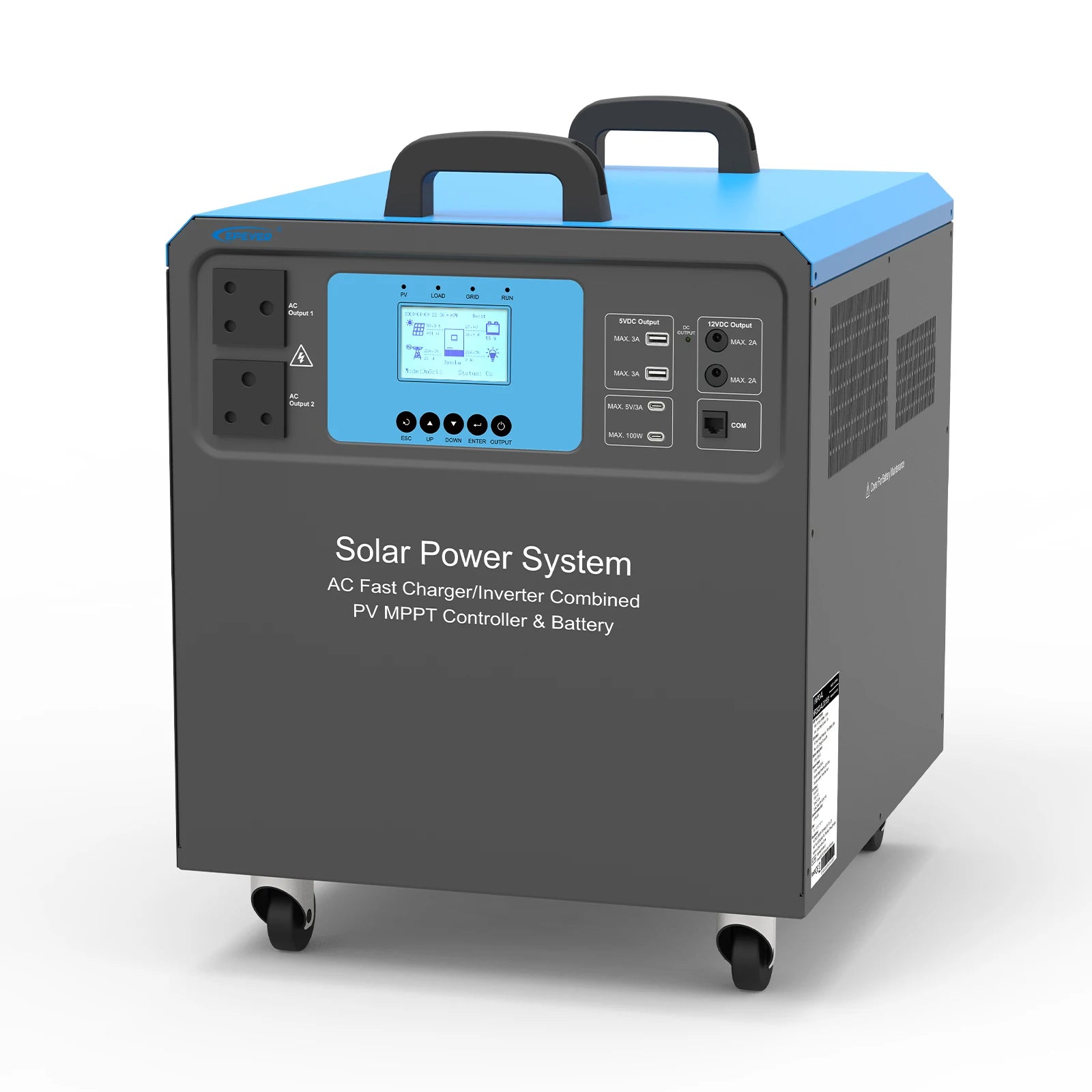

Solar Power System ER-2.5KW


Main Features

* Full intelligent digital energy storage equipment; * Work continuously at full power for a long time; * Built-in long-life and deep-cycle sealed valve-controlled GEL battery; * Advanced SPWM technology and pure sine wave output; *Active PFC is adopted for AC charging, power factor is close to 1,and settable constant voltage current limiting output control; * Adopt the bidirectional isolation topology; * Advanced MPPT technology, with efficiency no less than 99.5%; * Bypass automatic switching function,the equipment has full automatic control and management function; * Lightning protection circuit for the Utility input terminal; * AC output electromagnetic compatibility; * Overload relay at the Utility input terminal to disconnect the inverter/charger when the fault occurs; * Circuit breaker at the PV input terminal to ensure the PV array safe running; * Circuit breaker at the Battery output terminal to ensure the battery safe running; * Remote temperature compensation feature for batteries; * Optional 4G, WiFi module to remote control the inverter/charger by the RS485 com. port; * Three-stage charging method;

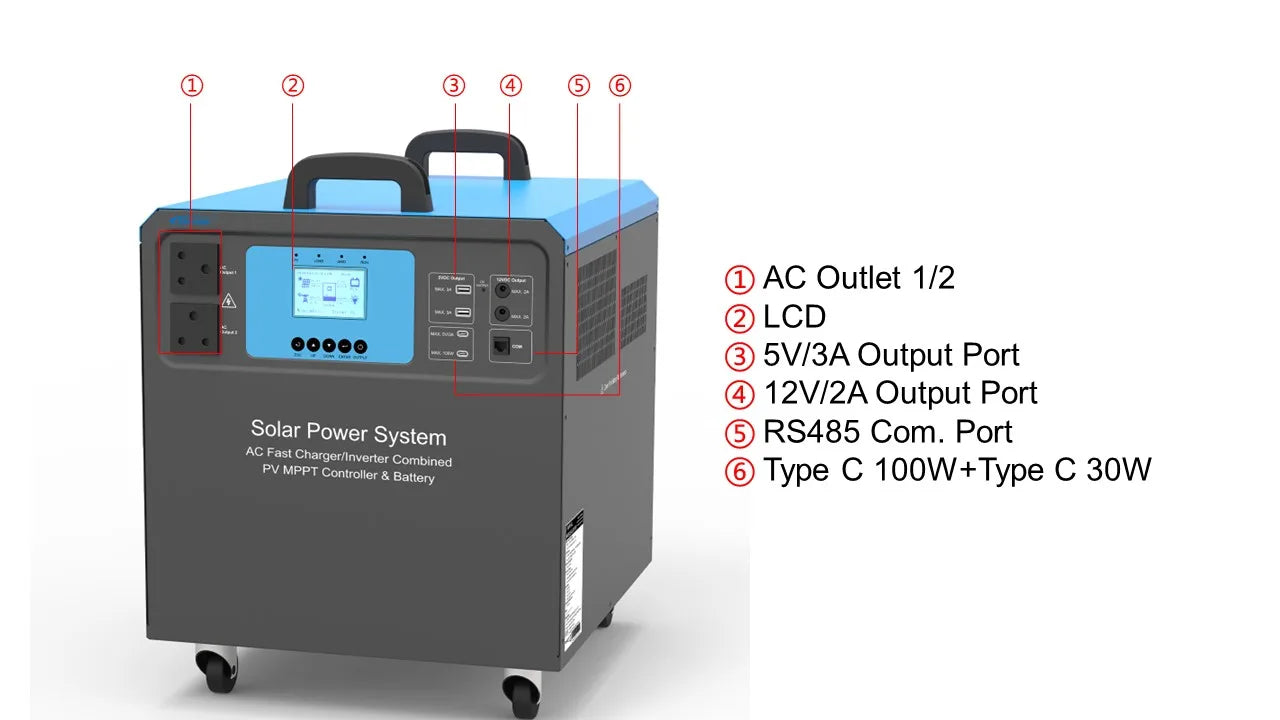

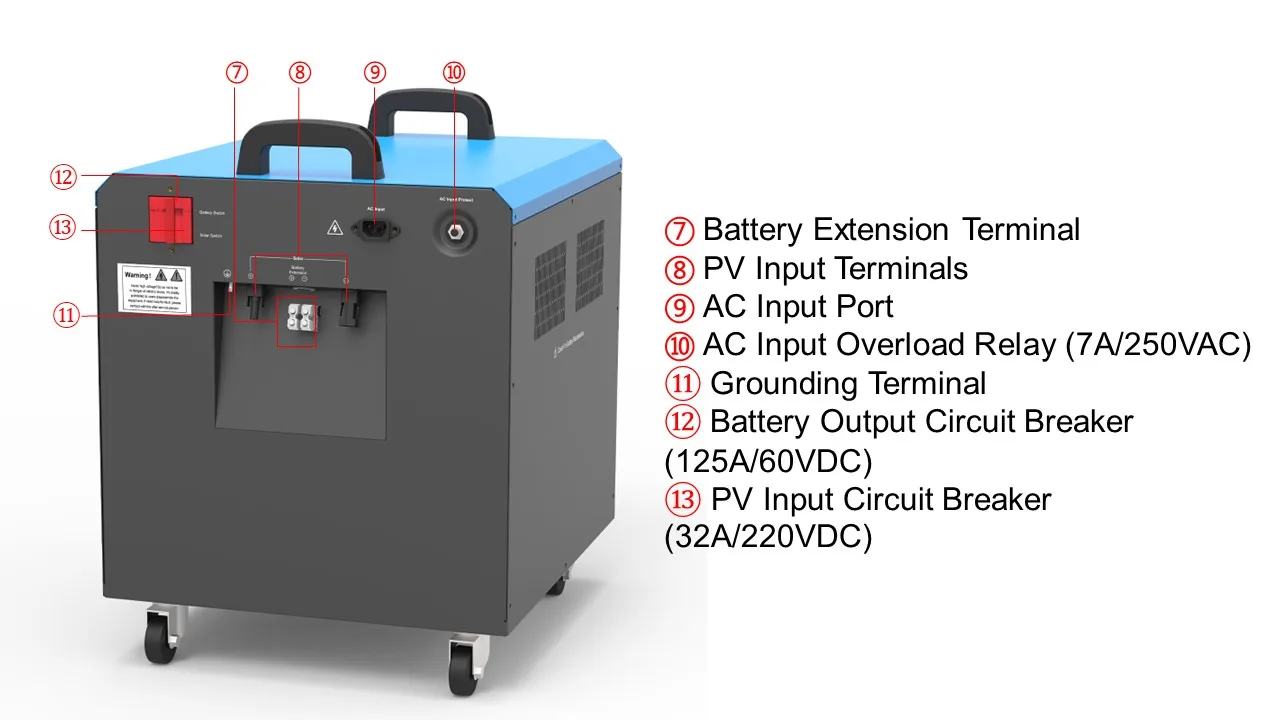

Details Images

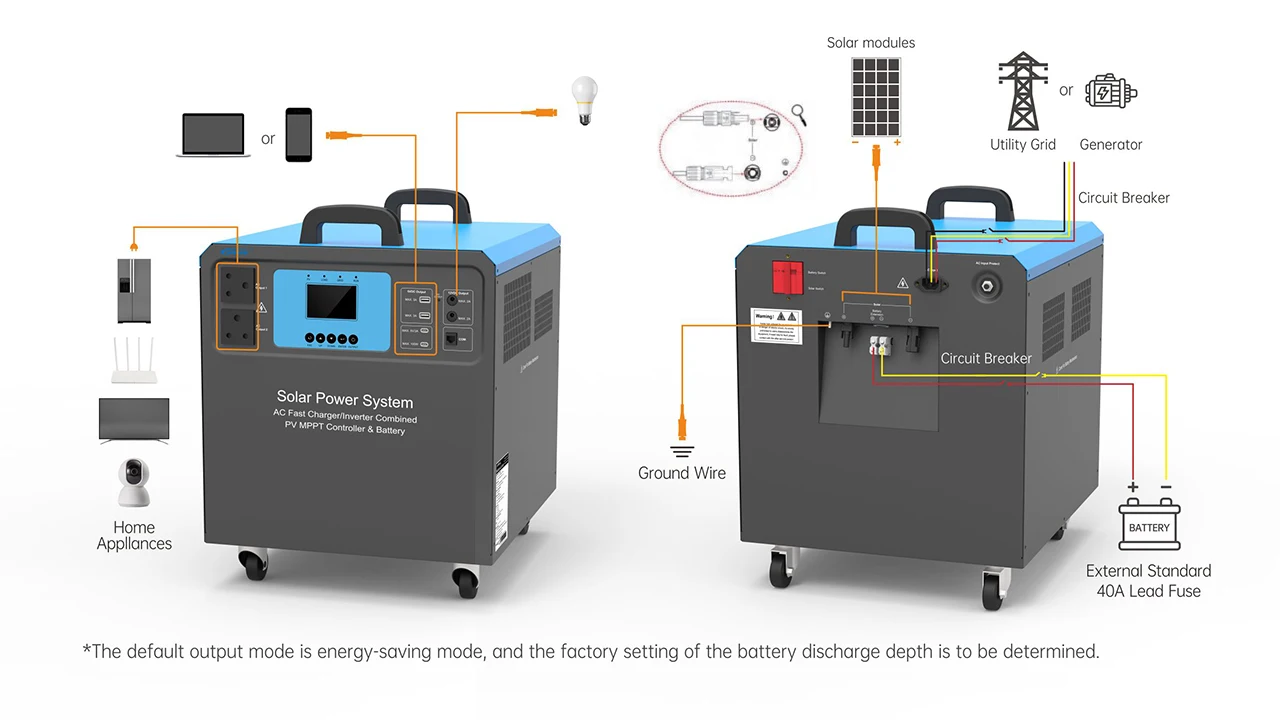

Solar System Connection
Technical Data
Model
HP2 522-AL0315S1
Work Temperature Range
-20℃~55℃(when the environment temperature exceeds 25℃, the charging power and load power will be reduced appropriately; working of full load is not supported.)
Enclosure
IP20
Communication Method
RS485(4G, Wifi Optional)
LCD
Monochrome LCD, English interface
Warranty
2 years
Dimension (Length x Width x Height)
435X504X574.5mm(Include Wheels And Handles)
Weight
106.5kg
Utility Input

Rated Utility Work Voltage
220V
Utility Work Voltage Range
176V~285Vac
Utility Input Frequency Range
45Hz-65Hz
Max. Utility Input Current (Charging + Bypass)
Current for charging 3.5A+bypass load current 11.4A@220Vac
Utility Transfer Time (Bypass To Inverter)
Utility Transfer Time(Bypass to Inverter):＜10ms
Utility Transfer Time(Inverter to Bypass):0ms
AC Input Overload Relay
YES
Inverter Output

Continuous Output Power(@25℃)
2500W
Surge Output Power(5s)
4000W
Rated Output Voltage
220V±3%
Rated Output Frequency
Default 50Hz/60Hz settable, erro r ± 0.2%
Output Wave
Pure Sine Wave
Output Distortion THD
THD≤3%(Resistive Load)
Output Soft Start
YES
Solar Controller

Max. PV Input Withstand Voltage
145V
Solar Controller Type
MPPT
MPPT Efficiency
＞99.5%
MPPT Voltage Range
30V~120V
MPPT Ways
One way
Max. PV Output Charging Current
30A
Battery

Battery Type
GEL
Rated Battery Voltage
24VDC
Battery Work Voltage Range
21VDC-32VDC
Battery Work Temperature Range
Discharging Mode:-20℃ ~55℃     Charging Mode:0℃~40℃
Rated Battery Capacity
12V·120Ah*2
DC Output

DC 12V Port
12V2A* 2pcs
USB Port
5V3A* 2pcs
TYPE C Port
Type C-100W * 1pcs (support PD3.0 and multiple protocols) Type C-5V/3A * 1pcs
DC Output Switch
YES
*Note 1: In any case, if PV input voltage exceeds 95V, the equipment will be damaged, which is not within the scope of warranty.

Portable Power Station

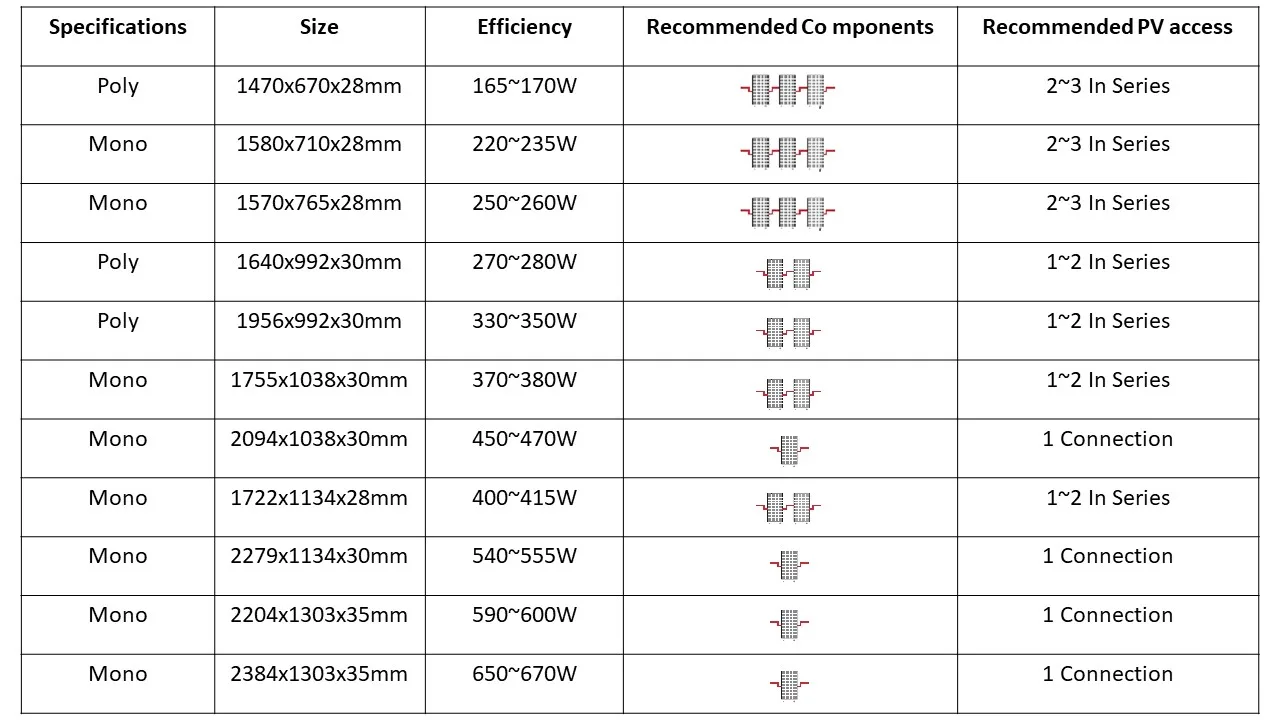

Recommended Component Configuration table
*This meter shall be checked according to the limit open circuit voltage at the lowest temperature, and shall not exceed 95V under any conditions.

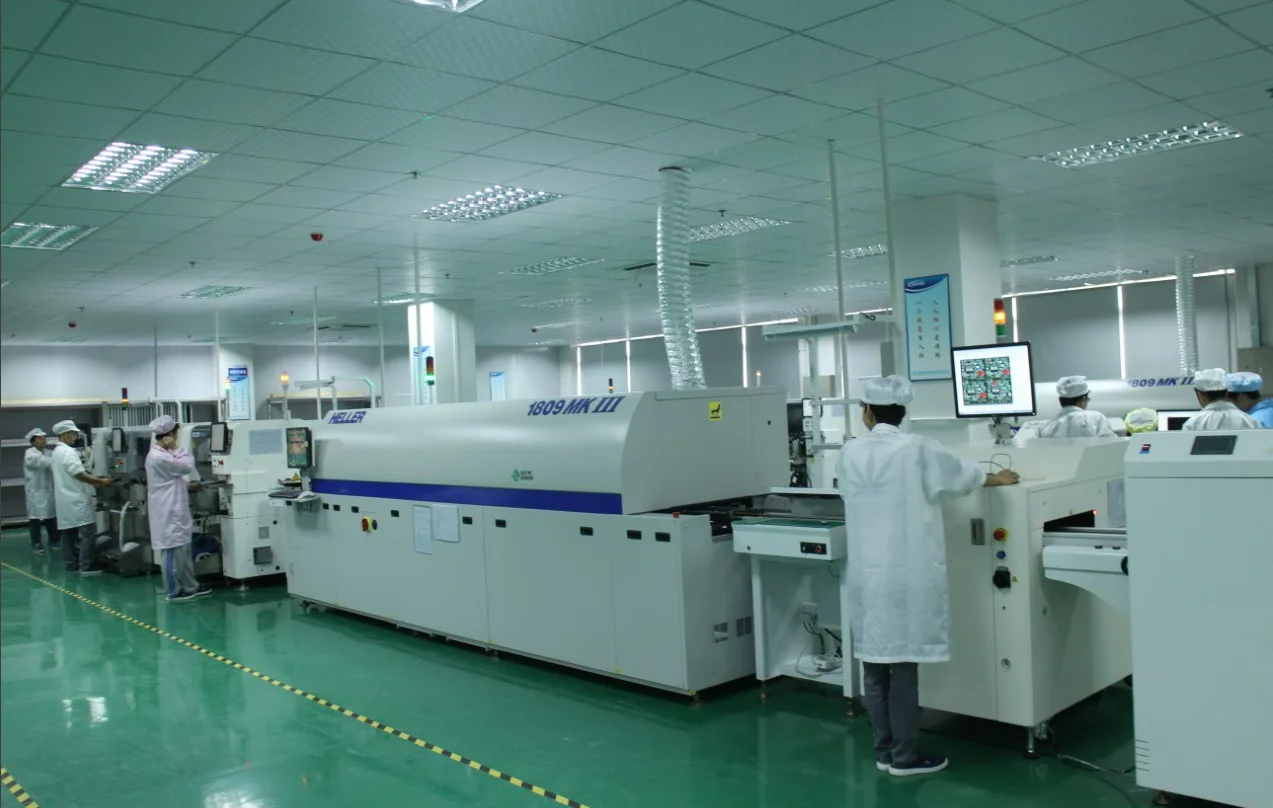

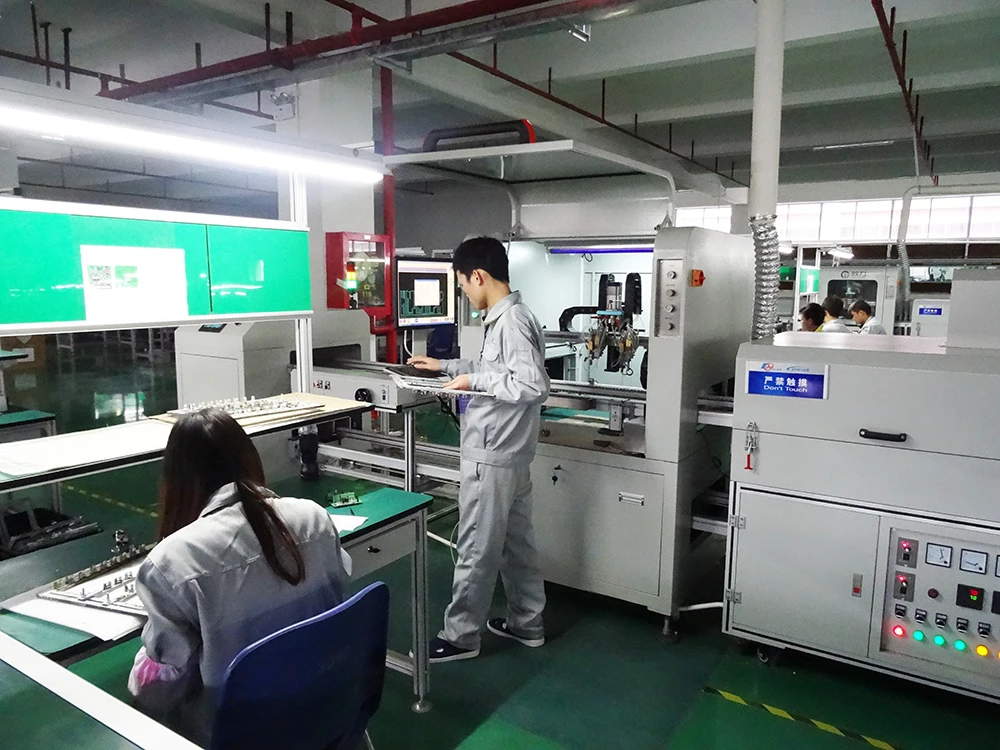

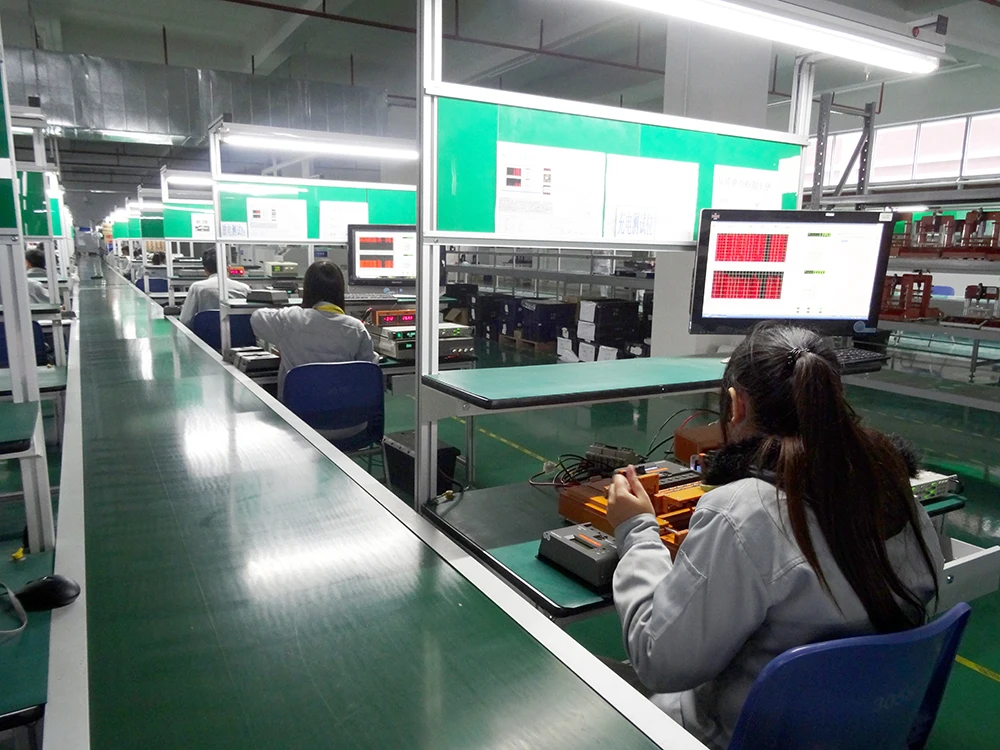

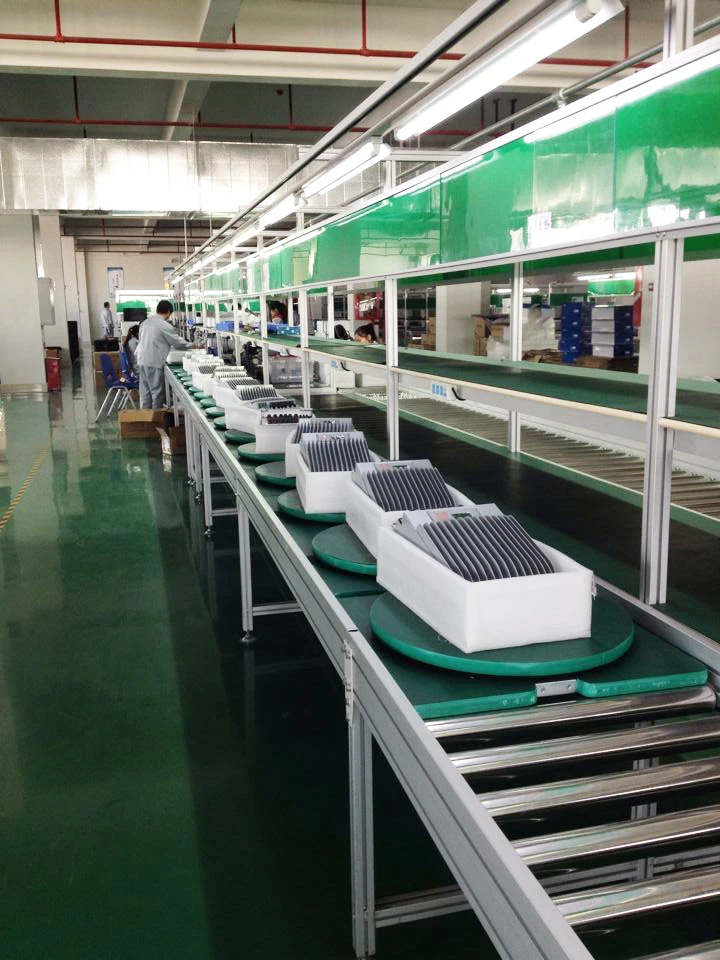

Our Factory
