ANTNX Kubota Diesel Loader Hot Sale 4WD Project Use Loading Machinery All Terrain Off-Road Small Loader CE Euro 5 Wholesale Customized ANTNX.COM

ANTNX Kubota Diesel Loader Hot Sale 4WD Project Use Loading Machinery All Terrain Off-Road Small Loader CE Euro 5 Wholesale Customized ANTNX.COM

Regular price $11,310.89 USD
Regular price $14,138.61 USD Sale price $11,310.89 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Always supply the high quality machine and Variously styles can meet the customers’ all kinds of request! Accept Customization!!!OEM/Color and so on.


marked prices are all deposit prices.

Please contact online customer service for details



Landward has different Kinds of machinery, if you need other model which not showed here, please click and find our professional salesman for more information and the best price.

If you have any needs which we didn’t show you here, please contact our sales directly.


 Global agents are sincerely invited.


Customers who come to China from afar are welcome to visit our company and factory. We treat you in the most comfortable way and look forward to doing business with you.Diesel loader W1150 is a newly designed wheel loader, adopting a hydrostatic transmission system, which transmits high power in a compact body, and can easily cope with various operations in farms, gardens and construction. Equipped with Kubota engine, it meets Euro V and EPA emission standards.Compact wheel loaders have extremely low noise when fully loaded and unloaded; electric joystick, one-lever multi-function, easy to operate. XT linkage, automatically keeps the load level, ideal for lifting, handling and truck loading operations. Rear trailer hitch: convenient for towing items, such as small trailers; fast transportation. Optional configuration: Cab diesel heater: warmer than standard heater, widely used in cold areas; Optional accessories for different purposes to achieve multiple uses of one machine.

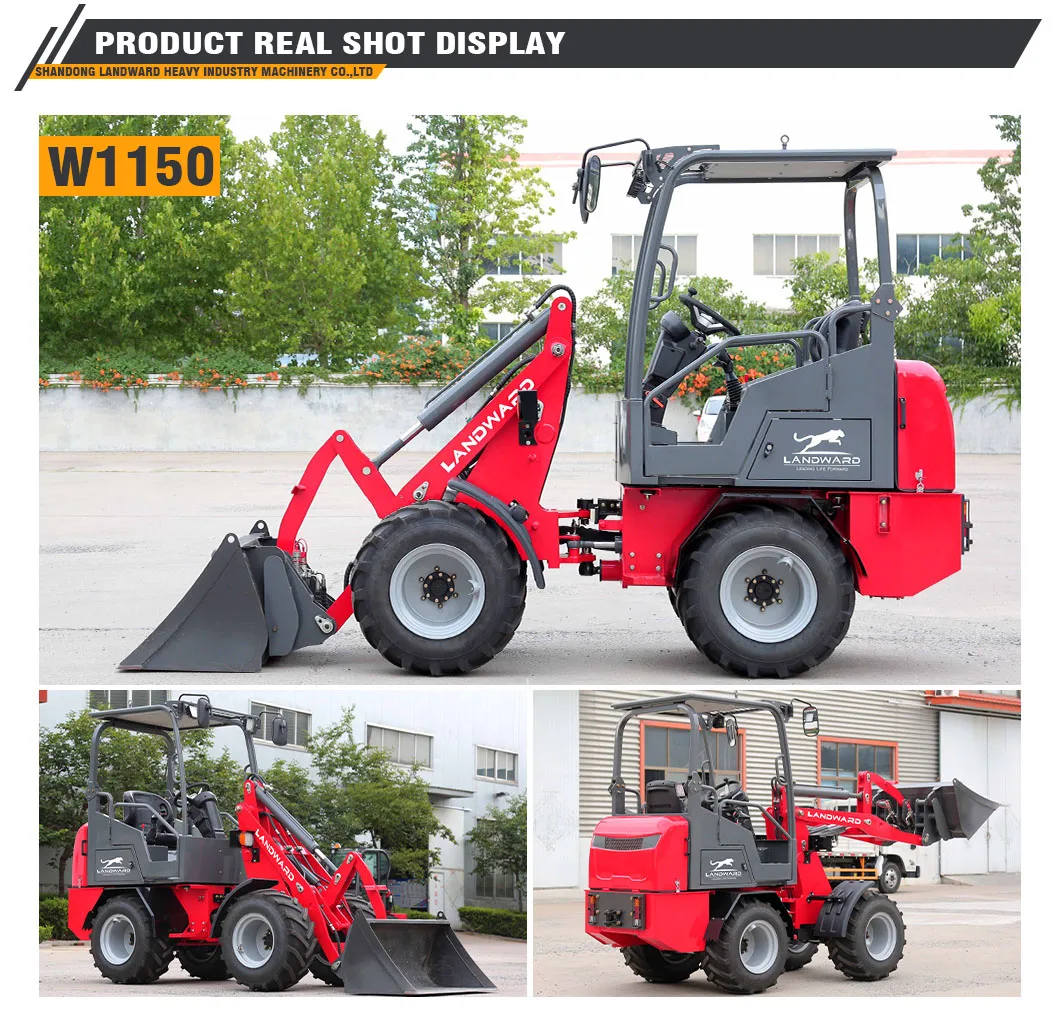

W1150 Wheel Loader

Performance

Rated Load

0.8 ~ 1 T

Bucket rated capacity

0.38m³

Dumping height
(at 45°)

1780mm

Lifting Height

3140mm

Dumping Reach

980mm

Max. Lifting weight

600kg

Max. Excavation Force

1000kn

Max. Grade ability

30°

Max. Turning Angel

38°±1

Swing degree of the rear axle

Dimensions. &.Weight

Overall length(Bucket on Ground position)

3840mm

Bucket width(overall width)

1160

Overall Height

2330mm

Wheel base

850mm

Min Ground Clearance

240mm

Net Weight

1980kg

Turning Radius

2610mm

Transmission System

Hydraulic System

Motor No.

CBHV

Voltage

72V

Power

5000W

Displacement

18 ml/r

Tyres

Type

26*1200-12

working pressure

0.3 mpa

Power

4000W

Number of travel motors

2

Qty

4

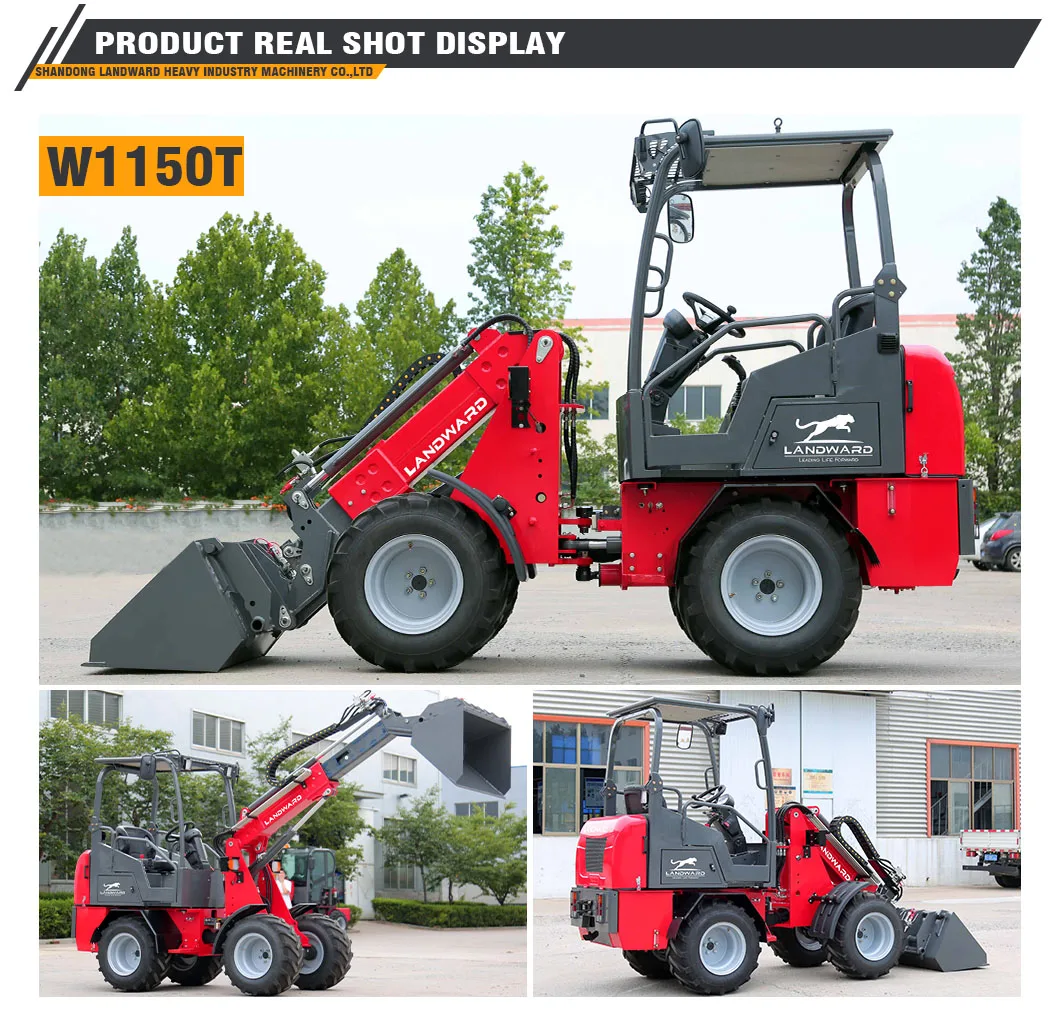

Landawrd Diesel Loader W1150T is a mini wheel telescopic loader based on the W1150 model. It offers two cab options: canopy and closed cab. The W1150T is designed to meet Euro 5 and EPA emission standards and offers a variety of engine options to meet different needs. Its hydrostatic system ensures stable power and comfortable operation. With its compact size, the Front Loaders W1150T is ideal for working in tight spaces and is a versatile choice for a variety of tasks.

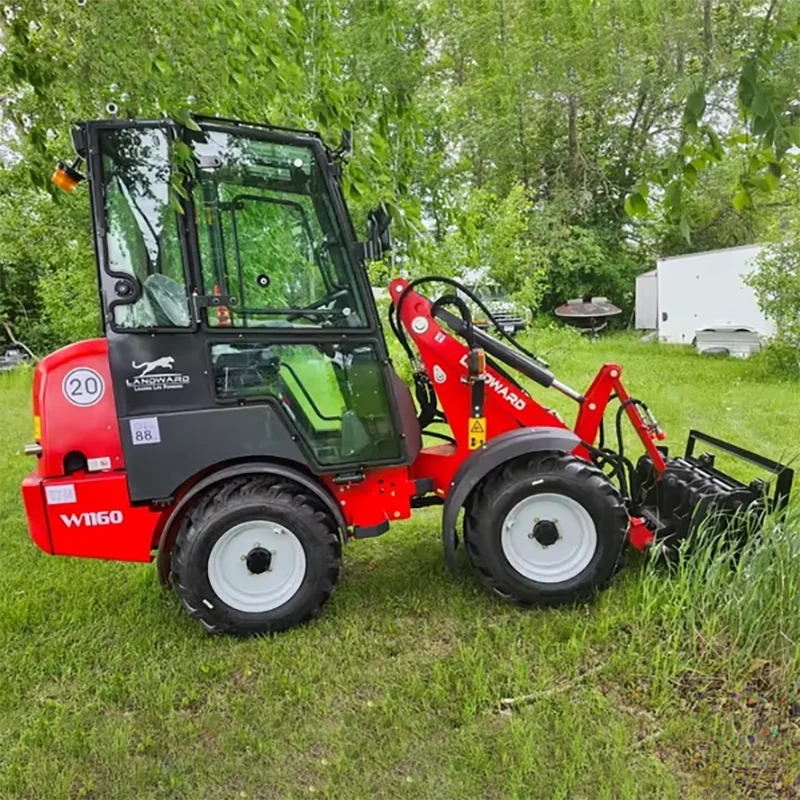

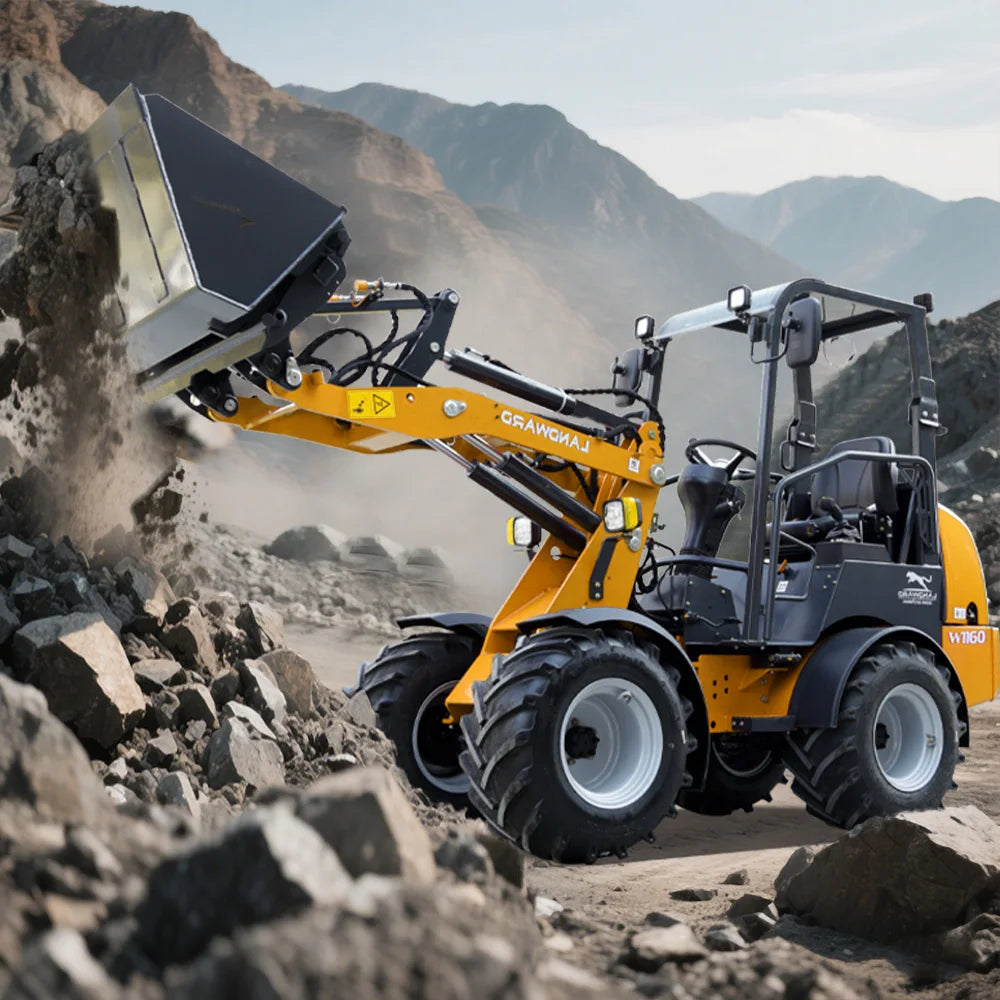

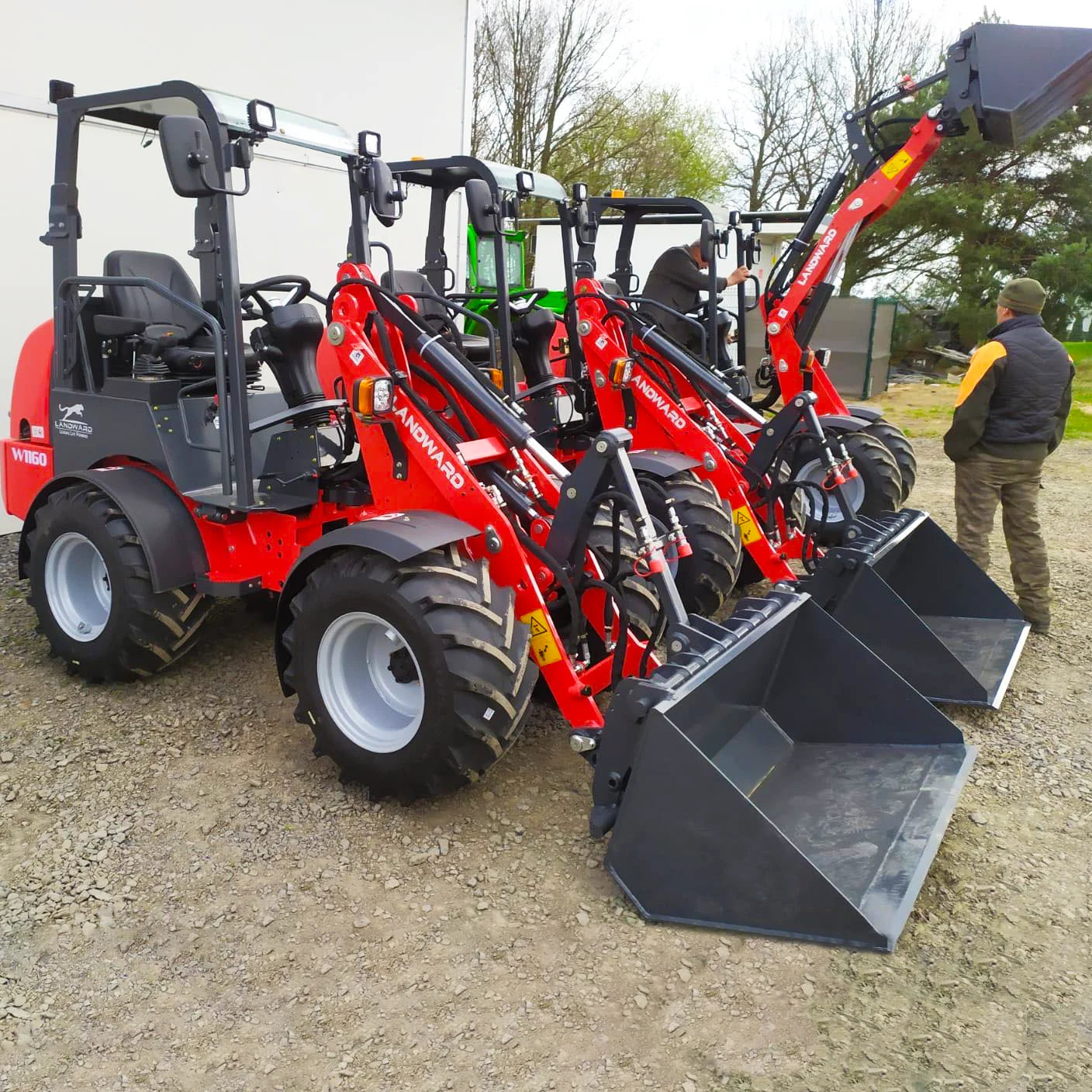

W1160 Wheel Loader


Standard Configuration

High Configuration

Engine

Kubota 1105 /Perkins

Kubota 1105 /Perkins

Power

18.2Kw /18.4 Kw

18.2Kw/18.4 Kw

Pump(single)

Rexroth plunger pump
Flow: 78LPM
Work Pressure:32MPa

Rexroth plunger pump
Flow: 78LPM
Work Pressure:32MPa

Hydraulic Motor

Double(ZhenJiangdali)

Single(Rexroth)

Valve

Haihong(Domestic)

Walvoil(Italy)
Double floating

High - low speed

Top speed:15 km/h

Top speed:20 km/h(Electronic Control)

Brake

Inch function
(Used to reduce the control hydraulic flow of pump and motor control valves)

Electric handle

Forward and Back buttons

①Forward and Back buttons(Weidmann same style)
②High and low speed

Turn signal

LED work lights

LED work lights

Seats

Safety shut-off sensor(20s)
(Start the neutral switch and parking brake switch)

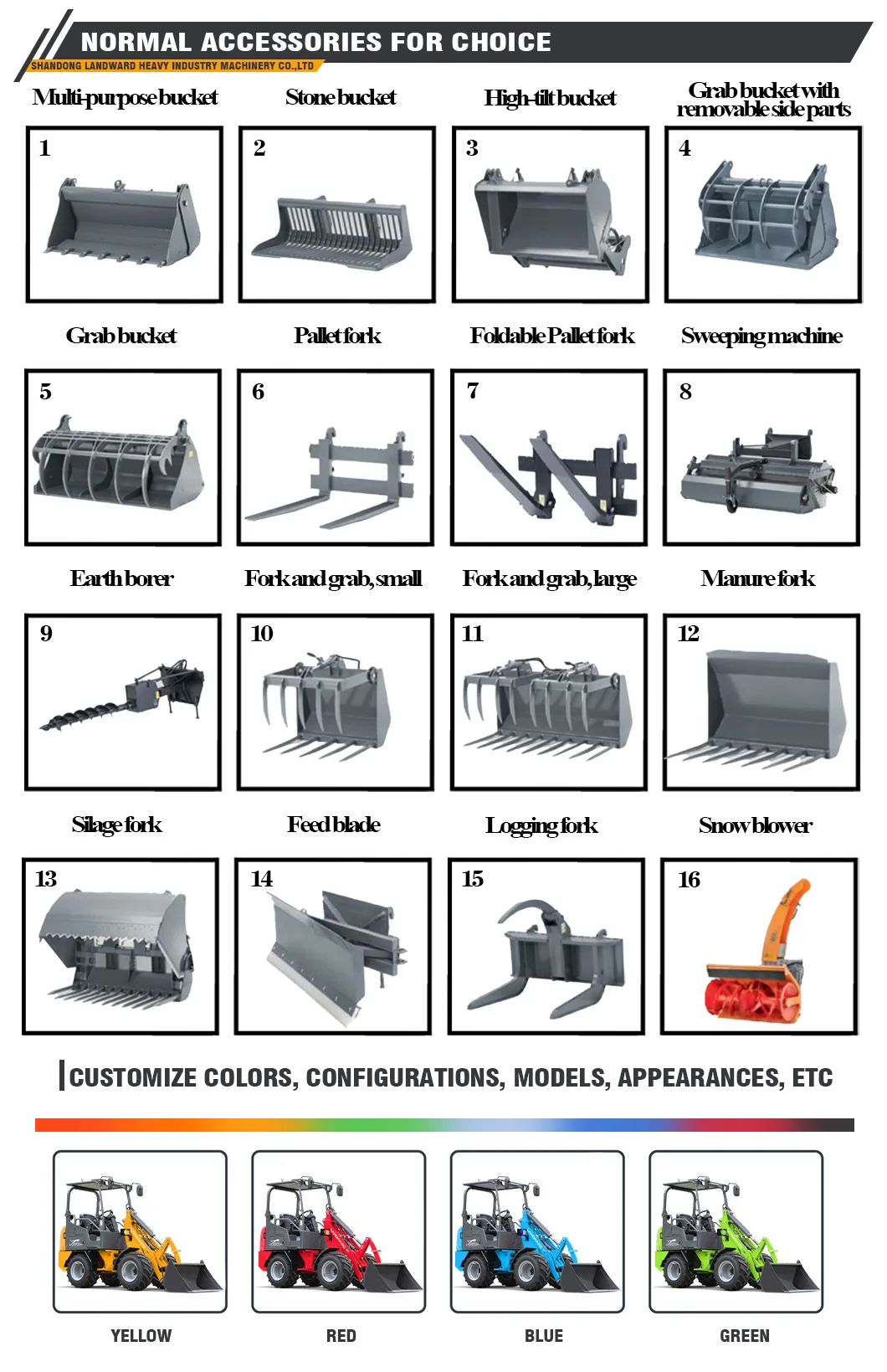

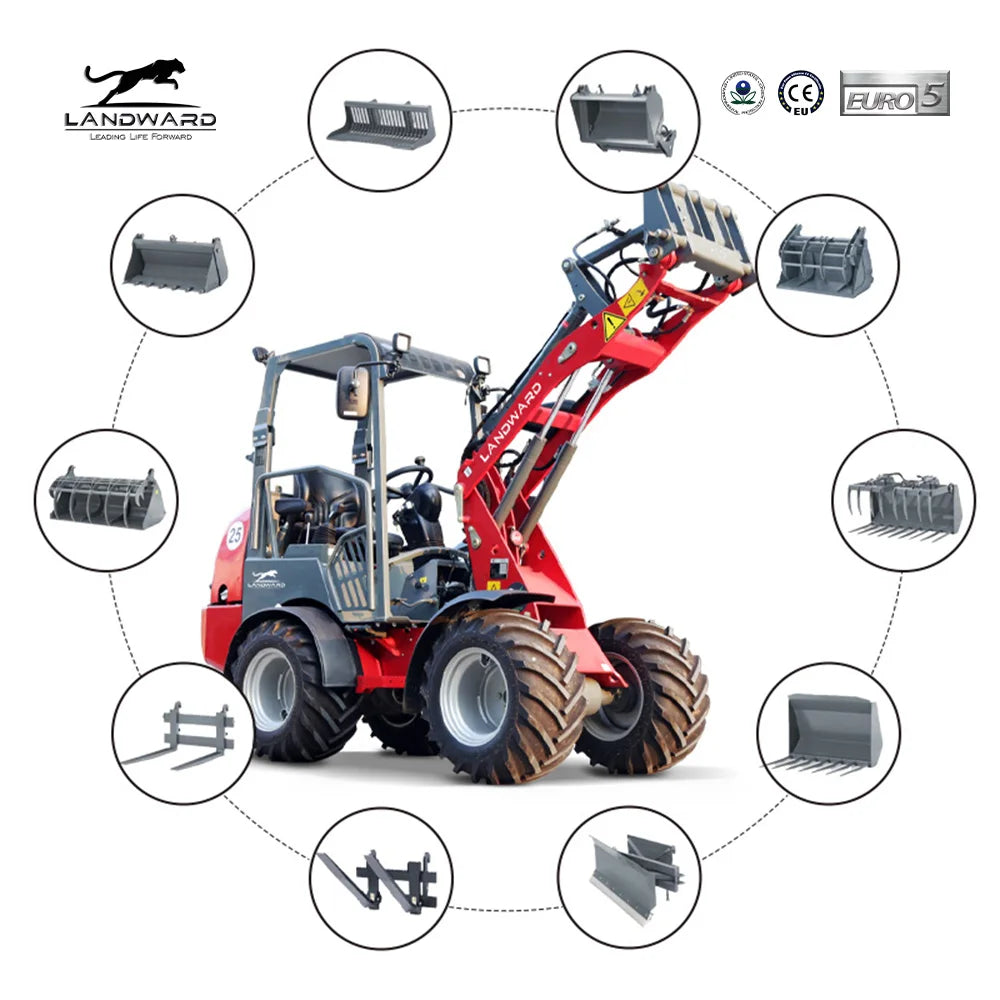

Accessories

Quick coupler (EU hydraulic)
bucket :0.28cbm

Quick coupler (EU hydraulic)
bucket :0.28cbm

Tire

10.0/75-15.3
(31.5x15-15.5,Optional)

Rated lifting capacity

850-1250kg

Hydraulic oil tank

32L

32L

Fuel tank

30L

30L

Traction

15 kN

15kN

Machine weight

2570 kg

2570 kg

Configuration

Cab + Heater + Radio(Optional)

Packing size

3000*1500*2200mm


Pushing feed

Pushing the feed in is “daily business” on a dairy farm. The combination of the LANDWARD machine and the right attachment is suitable for this, for example a feed blade (mechanically or hydraulically adjustable), a rotating feed pusher or a feed clearer.

Mucking out the barn

LANDAWRD machines are a valuable helper when mucking out a barn. They are particularly characterized by their high degree of thrust forces. You can use, for example, a fork and grab, a grab bucket or a manure fork as an attachment.

Spreading

The spreader works by filling its sloped and reinforced uptake edge in one work process itself. As a result, the bedded cubicles within the barn can be quickly and effectively spread with chopped straw, sawdust or a mixture of the two.

Cleaning

LANDAWRD machines can be equipped with diverse sweeping machines, high-pressure cleaners, and brushes to remove dirt of any kind. Weeds can be mechanically removed with the weed broom. As a result, you can always keep your property and production system clean.

Transport works

One of the most frequent tasks in which a LANDAWRD machine will support you is in the transportation of diverse goods and materials. In doing so, most attachments, like a pallet fork or diverse buckets, come into play. Physically strenuous manual labor is mechanized. machines can be equipped with diverse sweeping machines, high-pressure cleaners, and brushes to remove dirt of any kind. Weeds can be mechanically removed with the weed broom. As a result, you can always keep your property and production system clean.

Handling bales

The handling of round, cuboid or silo bales is simply part of the everyday tasks on your farm. As there are many different types of bales, LANDAWRD provides a number of different bale grapples and bale forks. As a result, you will have the right attachment to hand at any time.

Transport works

One of the most frequent tasks in which a LANDAWRD machine will support you is in the transportation of diverse goods and materials. In doing so, most a

Please note: All of our loader are custom made, please contact our sales to confirm details before/after placing an order. You will be treated friendly and sincerely, and you will find it will be very helpful.
