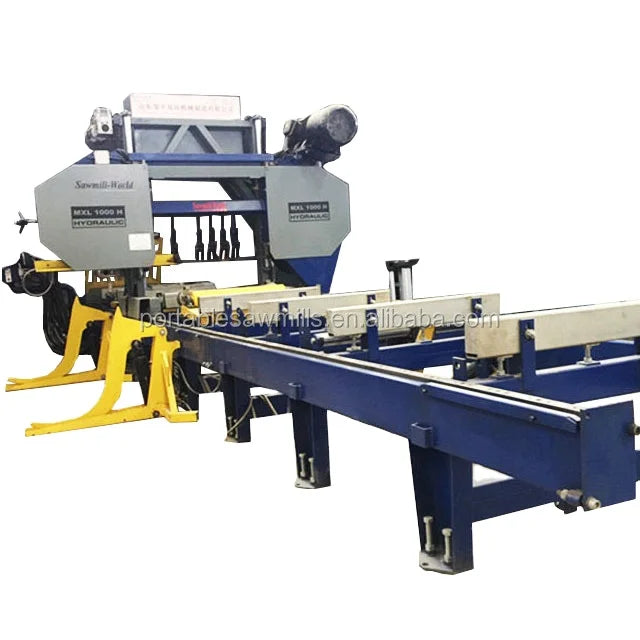

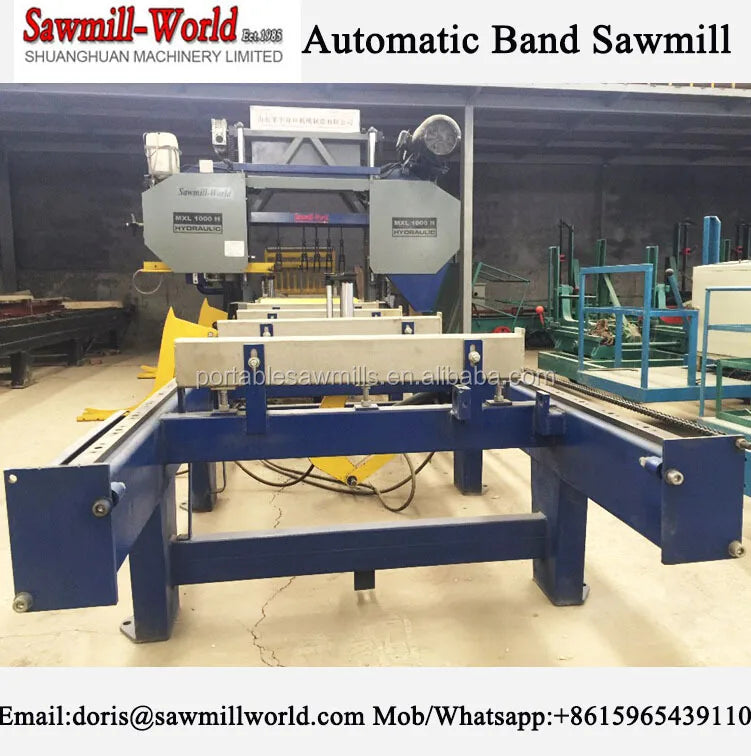

ANTNX Horizontal Wood Band Saw Mill ANTNX.COM

ANTNX Horizontal Wood Band Saw Mill ANTNX.COM

$6,474.08 USD
$8,092.60 USD $6,474.08 USD
Sale Sold out
Shipping calculated at checkout.
Product Description

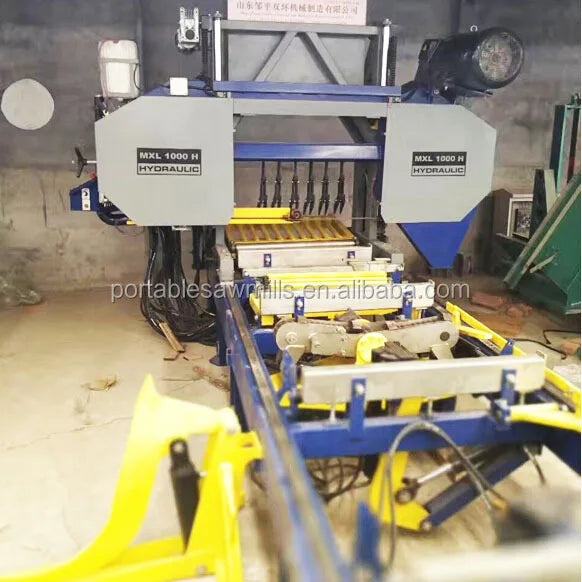

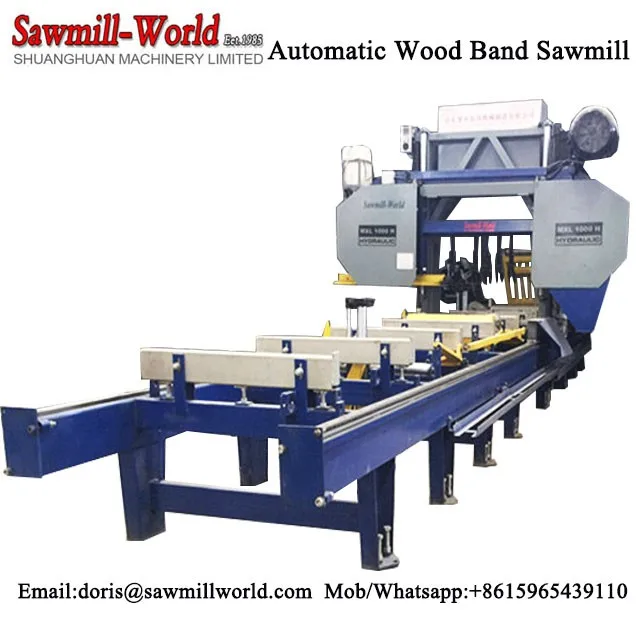

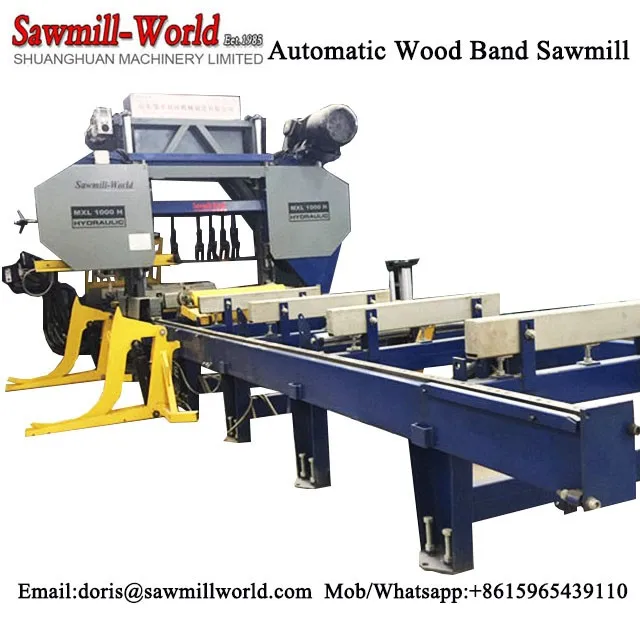

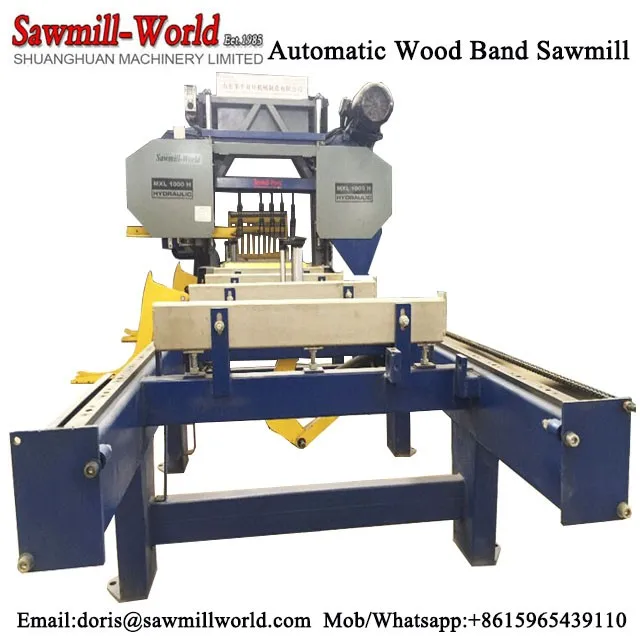

Automatic Wood Band Sawmill Machine With Electric Motor



The max. cutting wood diameter can be customized as your requests such as 1200mm,1500mm etc.



Model
MJH700E
MJH1000E
Max Sawing Wood Diameter
700mm
1000mm
Saw Wheel Diameter
700mm
700mm
Max Sawing Wood Thickness
300mm
300mm
Standard Sawing Wood Length
4000mm
4000mm
Electric Motor Power
18.5kw
30kw
Up/Down Electric Motor
1.5kw
1.5kw
Forward/backward Electric Motor
2.2kw
2.2kw
Saw Blade Width
27mm-75mm
27mm-75mm
Blade Tension
 Hydraulic
Hydraulic
Machine Length
5800mm
5800mm
Weight
2500kg
2500kg





Hydraulic Band Sawmill Machine With Petrol and Diesel Engine



Model
MJ700H
MJ1000H
Max.Cutting Wood Diameter
700mm
1000mm
Diameter of Saw wheel
700mm
700mm
Cutting Thickness
10mm-300mm
10mm-300mm
Cutting Wood Length(Standard)
1300mm-4500mm
1300mm-4500mm
Engine
22HP Diesel Engine
35HP Gasoline /22HP Diesel
Blade Length
5500mm
6100mm
Total length
5800mm
5800mm
Tires and Lifted Legs
1 Group
1 Group
Hydraulic Loading Arm
1 Group
1 Group
Hydraulic Fixing Wood
2 Groups
2 Groups
Hydraulic Rolling and Fixing Wood
1 Set
1 Set
Forward and Backward
Manual
Manual
Saw Head Up and Down
Hydraulic
Hydraulic
Weight
1800KG
1800KG

Heavy Duty Hydraulic Horizontal Band Sawmill with Diesel Engine


Max.cutting wood diameter 1500mm



Model
MJH1100E
MJH1500E
Max Sawing Wood Diameter
1100mm
1500mm
Saw Wheel Diameter
1000mm
1070mm
Max Sawing Wood Thickness
400mm
400mm
Standard Sawing Wood Length
4500mm
4500mm
Electric Motor Power
37kw
45kw
Up/Down Electric Motor
2.2kw
2.2kw
Forward/Backward Electric Motor
3kw
3kw
Band Saw Blade Width
125-150mm
125-150mm
Band Saw Blade Tension
Electric
Electric
Machine Length
7000mm
7000mm
Weight
7000kg
8500kg

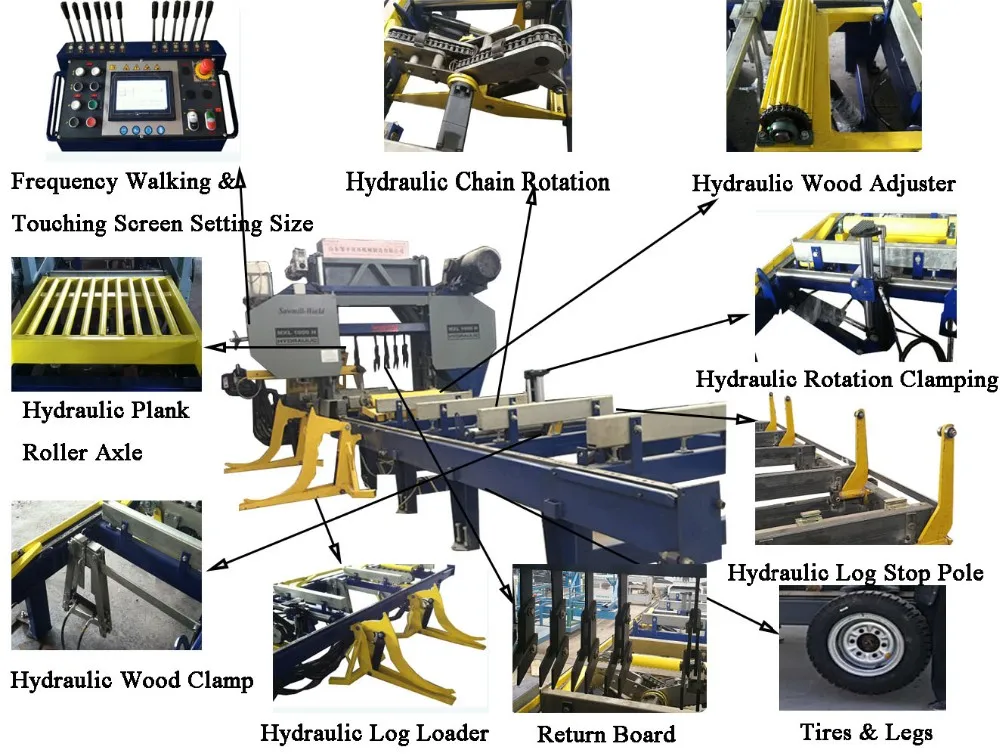

Detailed Images

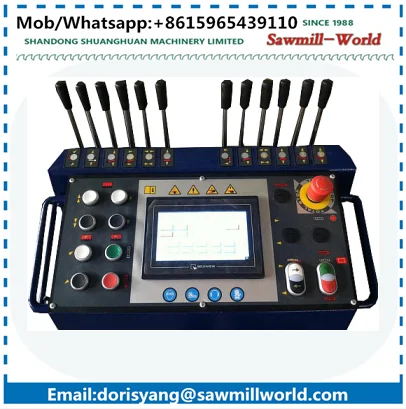

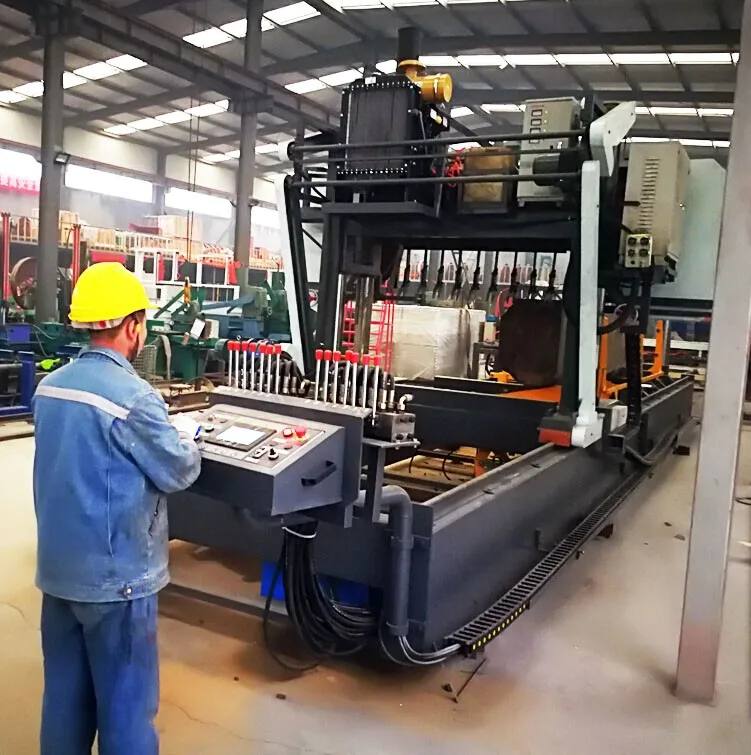

Touch Screen Sizing
Variable Frequency Speed Adjustable Forward/backward

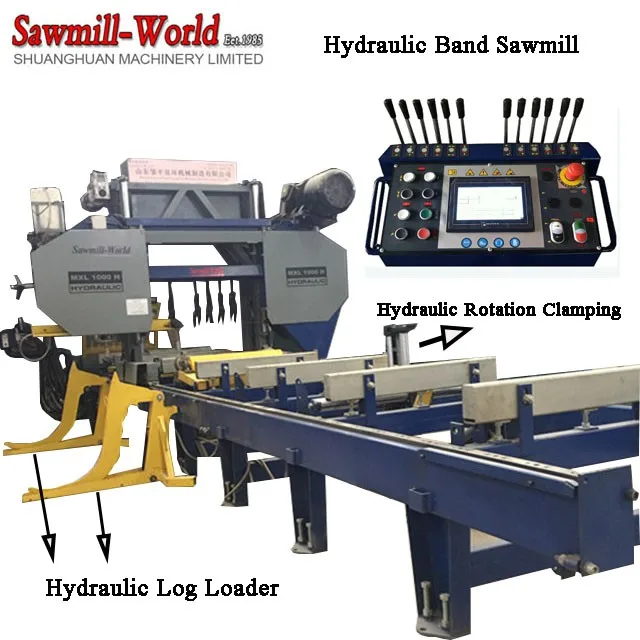

Hydraulic Rotation Clamping *1

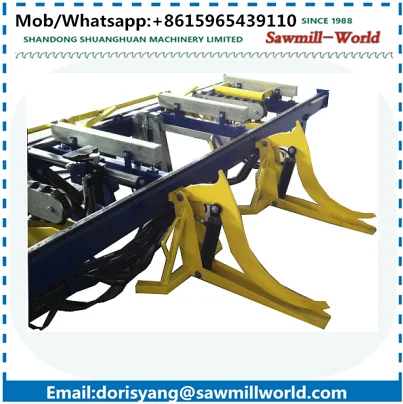

Hydraulic Loading Wood

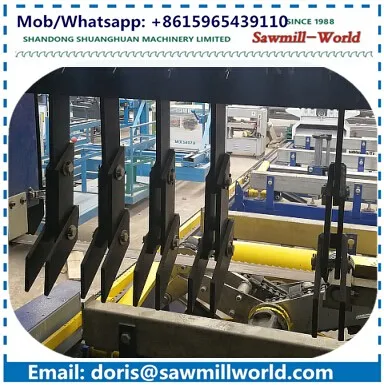

Automatic Board Back Hook

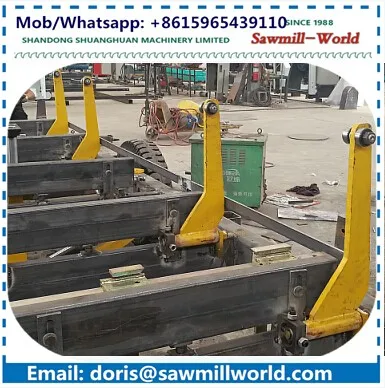

Hydraulic Log Stop Pole *4





Hydraulic Wood Clamp* 2

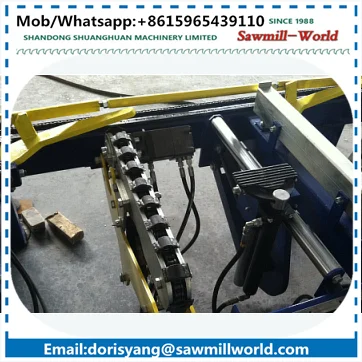

Hydraulic Chain Rotation*2





Hydraulic Wood Adjuster*1

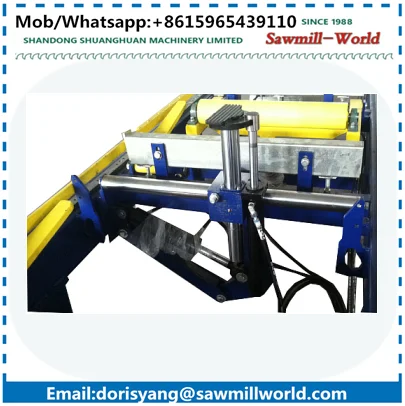

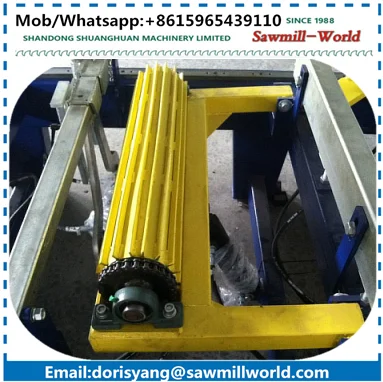

Hydraulic Plank Roller Axle*1





It can be designed to double cutting. the double sides of blade can cut





Extend the rails

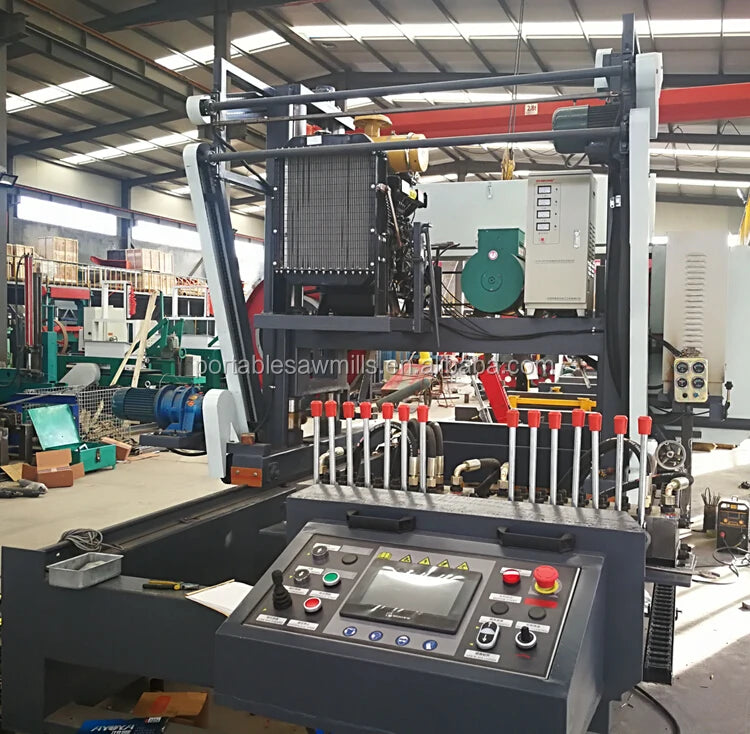

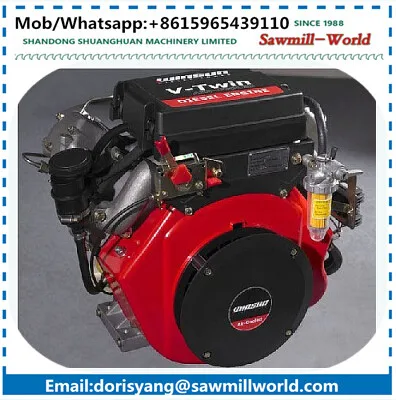

Electric motor, petrol engine or diesel engine, Double cylinder

.
