ANTNX High Speed Automatic Double-sided Top and Bottom Cutting Bander Polishing Glue Coating Banding Machine with Large Glue Pot ANTNX.COM

ANTNX High Speed Automatic Double-sided Top and Bottom Cutting Bander Polishing Glue Coating Banding Machine with Large Glue Pot ANTNX.COM

$3,836.90 USD
$4,796.13 USD $3,836.90 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

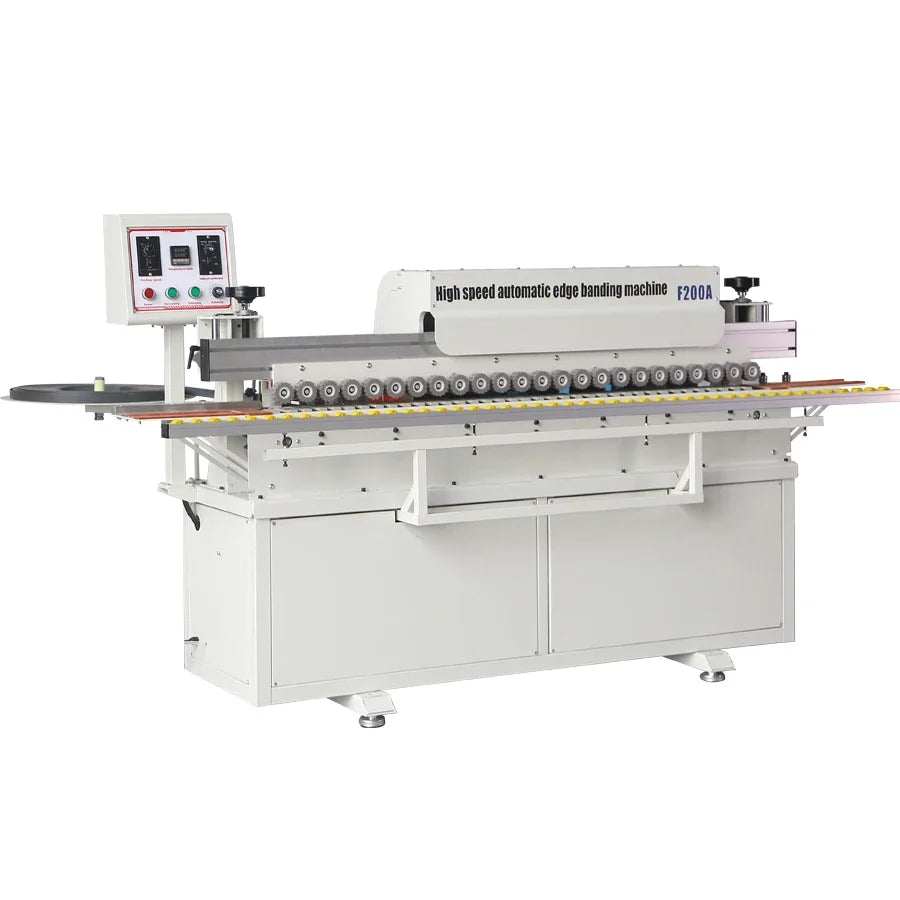

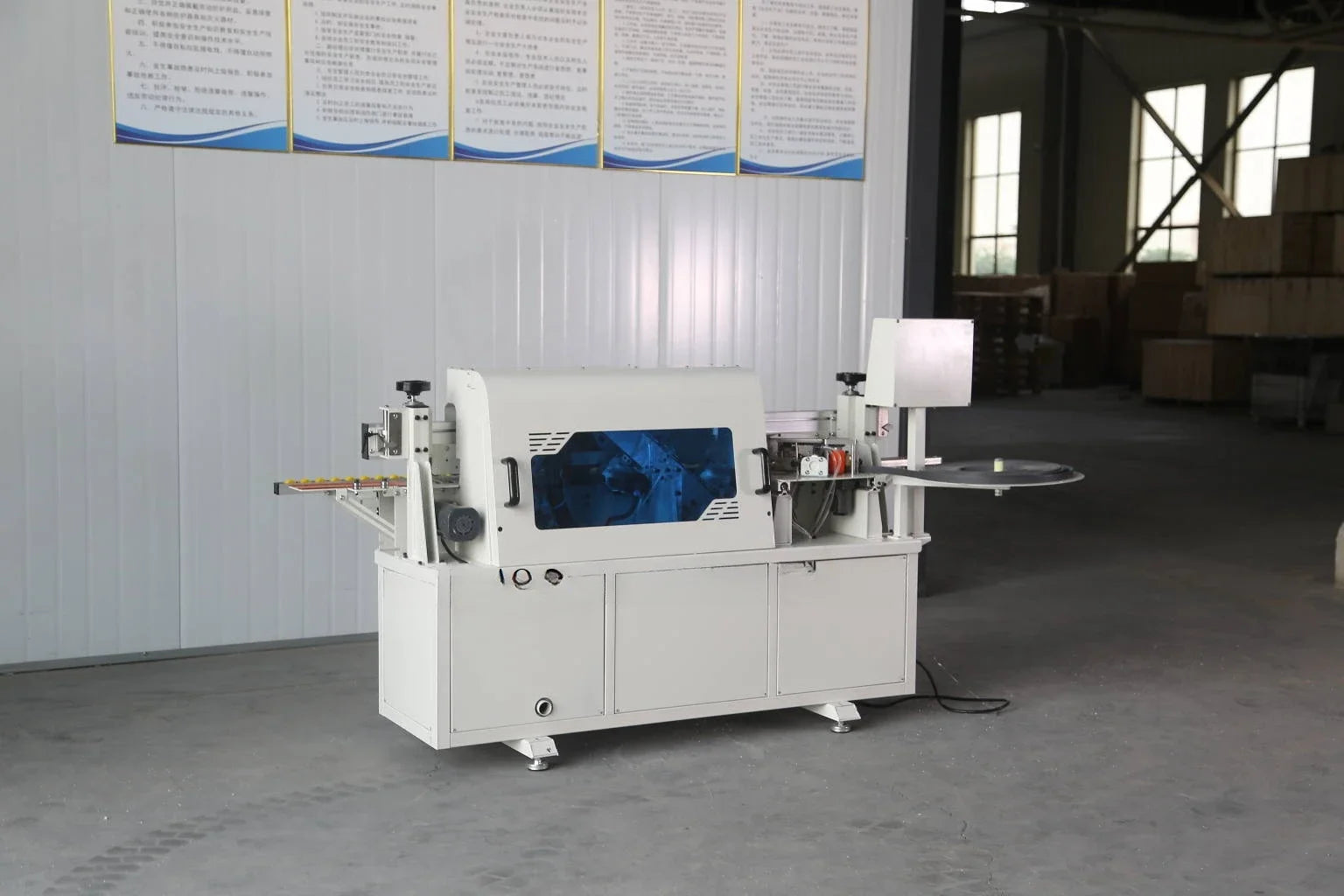

Woodworking edge banding machine
Function:Glue spreading,Pressing,end cutting,trimming,scraping,Poliasing,Dust collect

Technical parameters

Function glue coating,pressing,end cutting,trimming,scraping,polishing,dust collector
Heating power 800W
Panel feeding power 180w
Edge bander feeding power 20w
Trimming power 800w*2
Polishing power 200w*2
Edge bander width 10-60mm
Edge bander thickness 1-3mm
Panel thickness 10-50mm
Min.Panel width 80mm
Dust collector With inside
Total power 3.55kw
voltage 220V
Machine size 2140*500*1150mm
Weight 240kg





Detail information

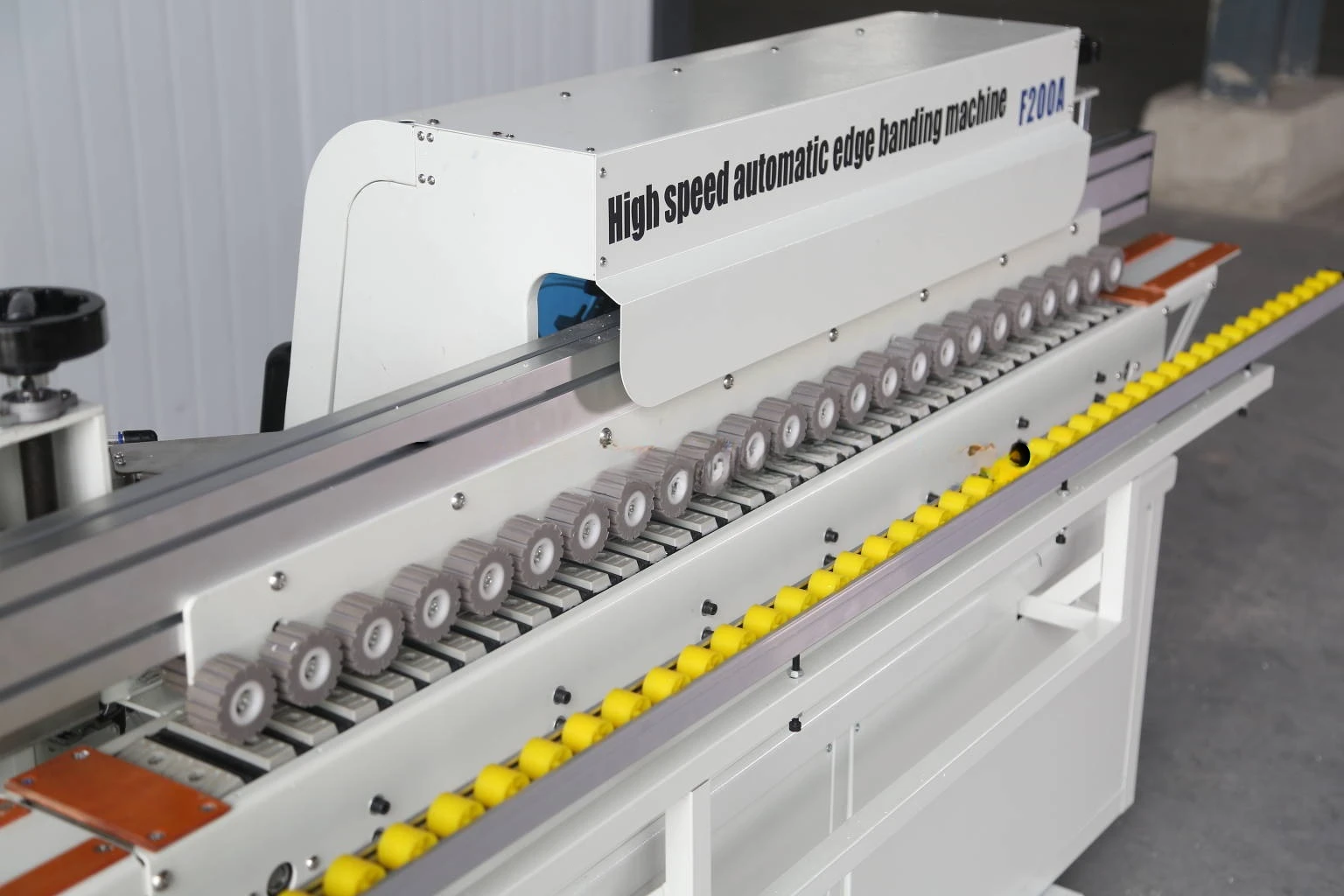

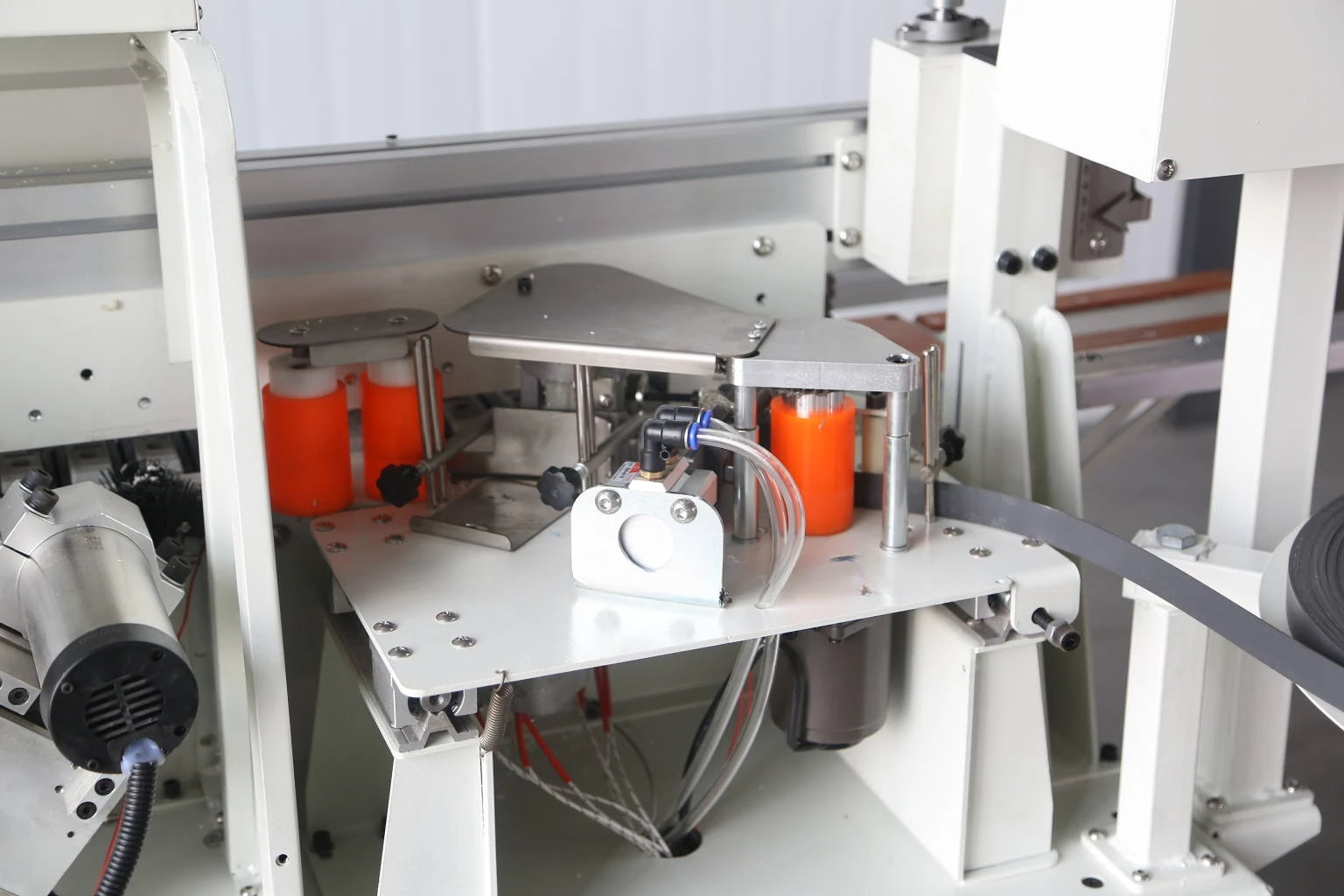

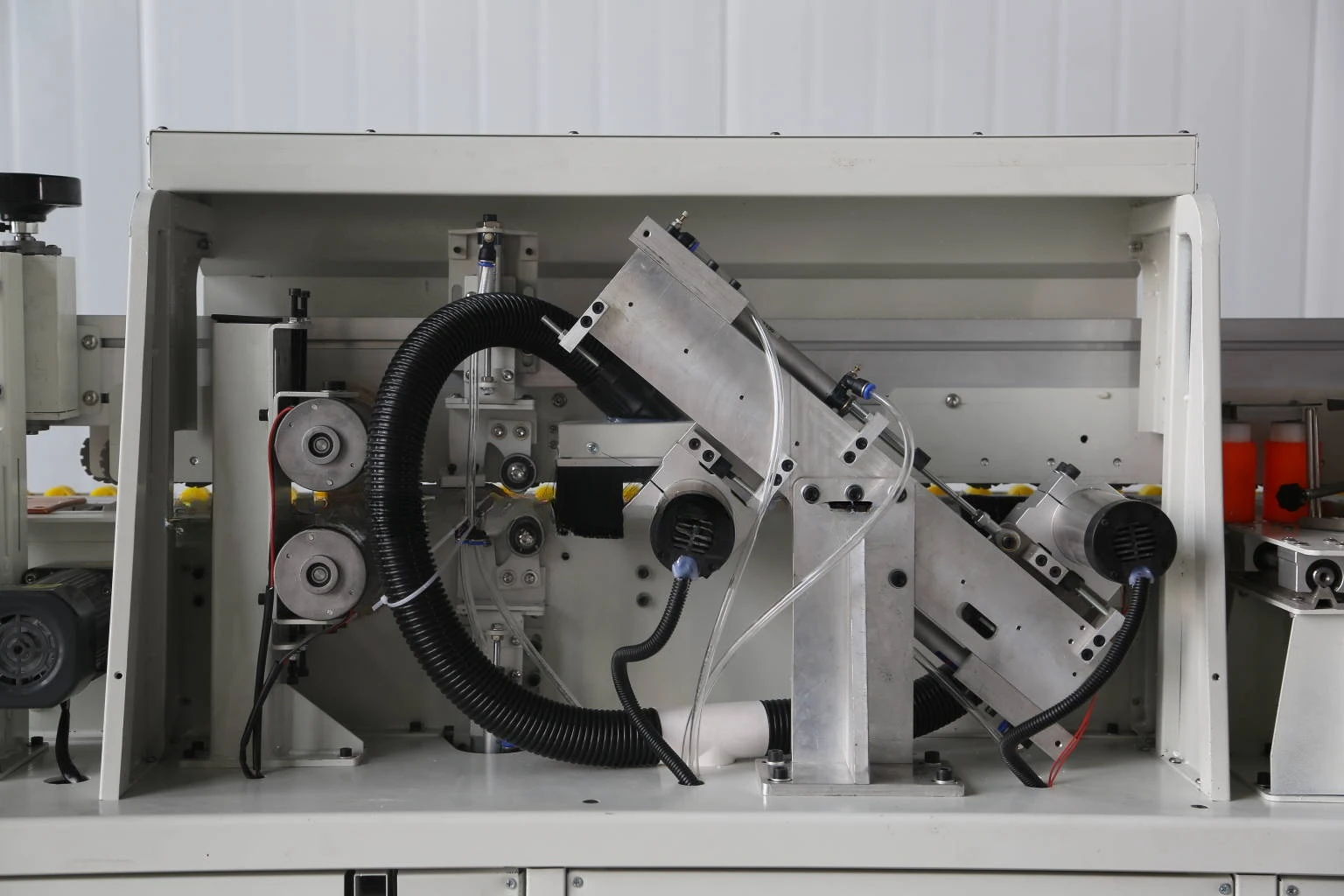

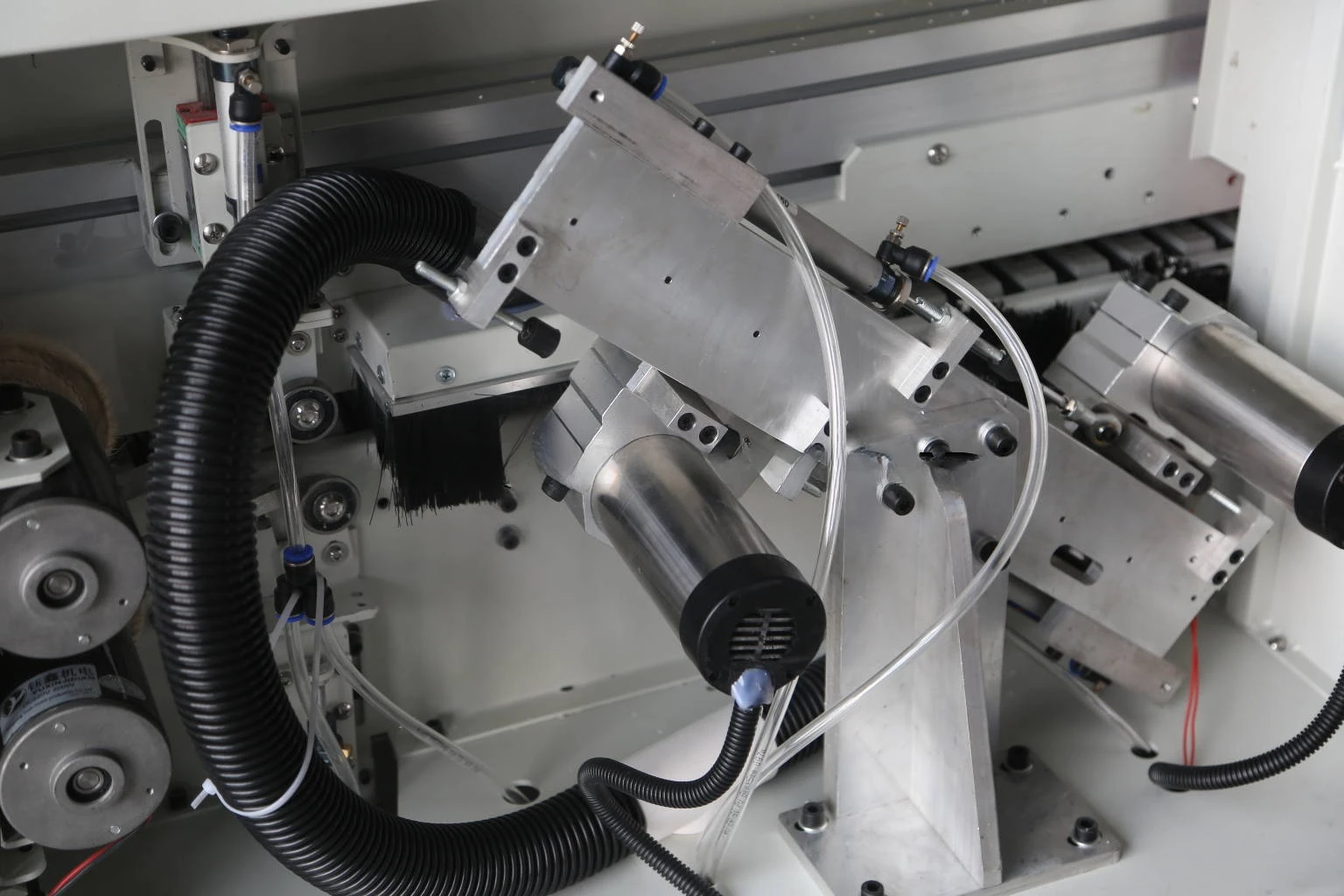

Compared with the traditional small edge banding machine, the integrated structure of the table is more stable, more convenient to maintain, and the double guide rail is smooth. No leakage. Glue. Trimmer block structure, high speed brushless spindle motor, double cylinder follow - up copying. The upper and lower imitation edge scraping, remove excess residual edge, glue line is not obvious, edge sealing more beautiful. Polish up and down, so that the banding strip round, do not cut hands. Double guide rail chain block, strengthen 100*50 widened beam, ensure the parallelism of plate transmission, double row of diagonal wheel, transmission does not run off

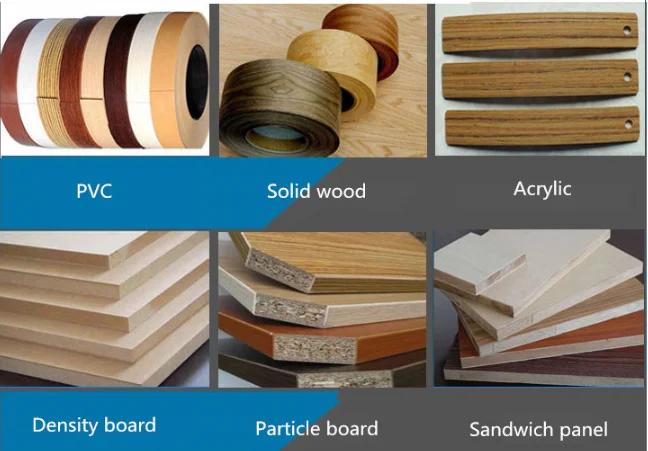

Using for

Thank you for all of our customer,Your satisfaction is what keeps us going.
