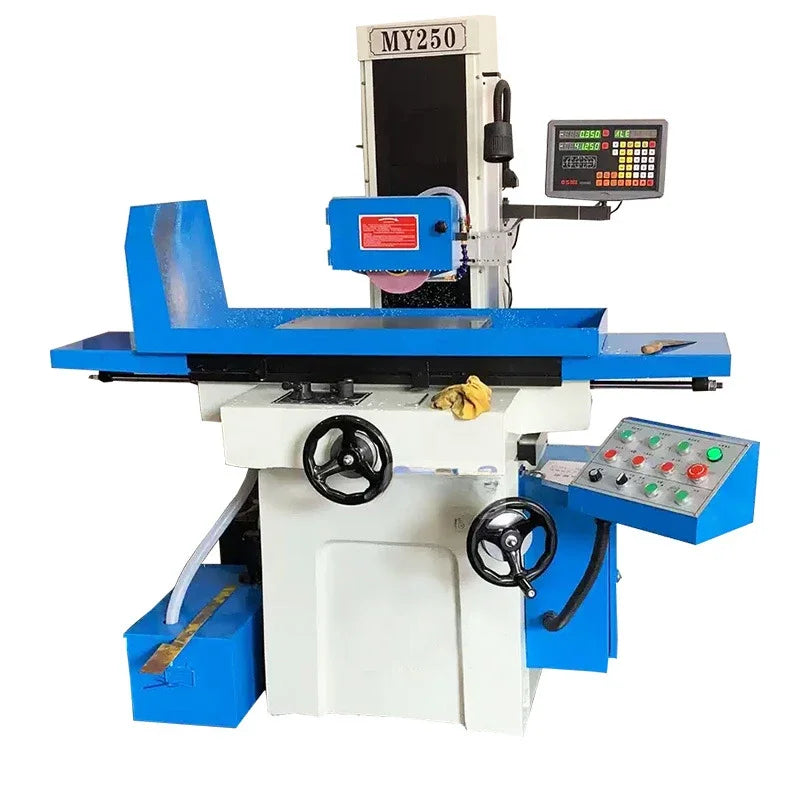

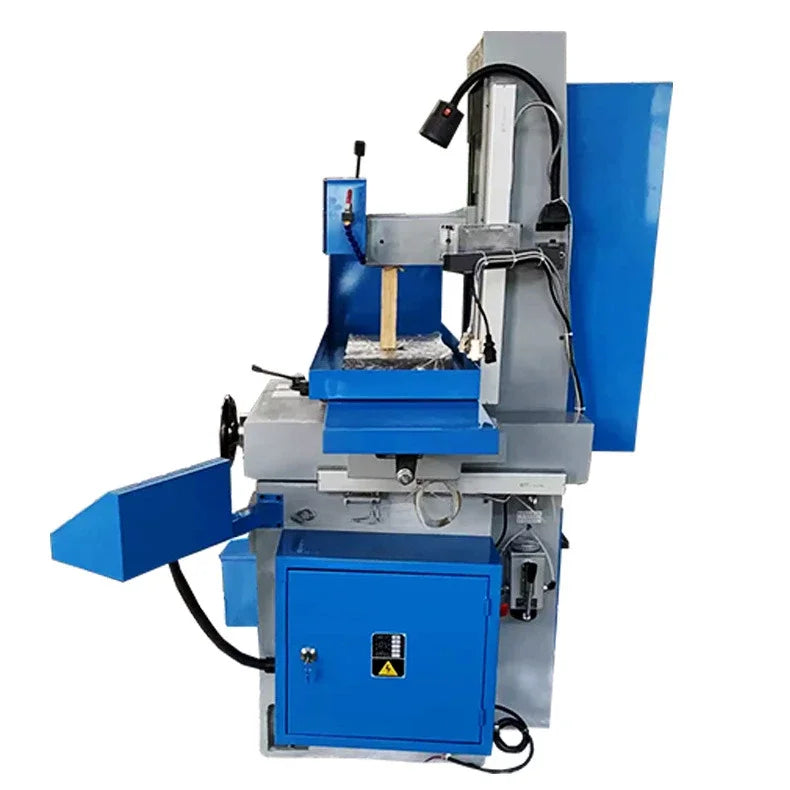

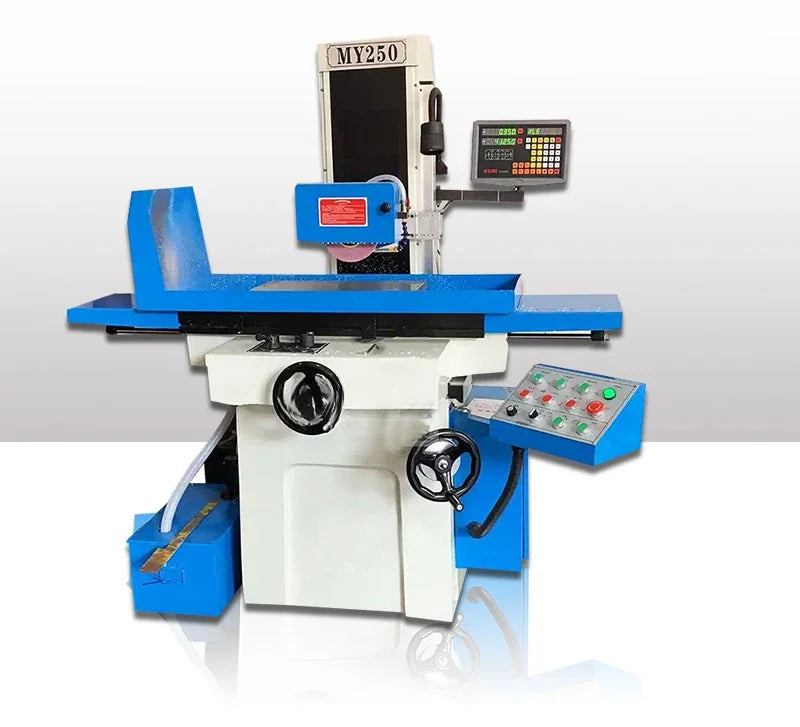

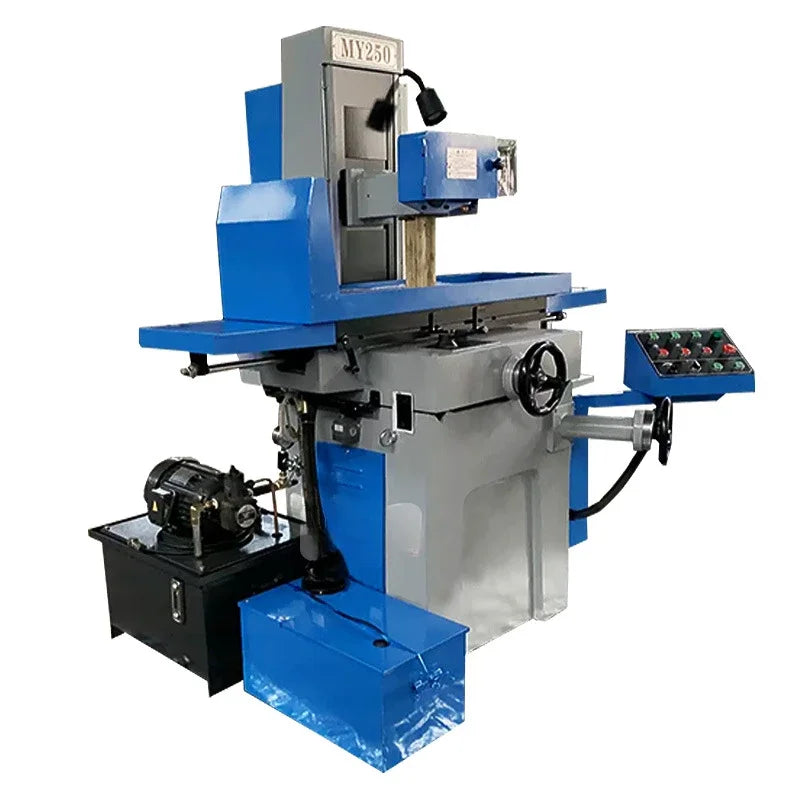

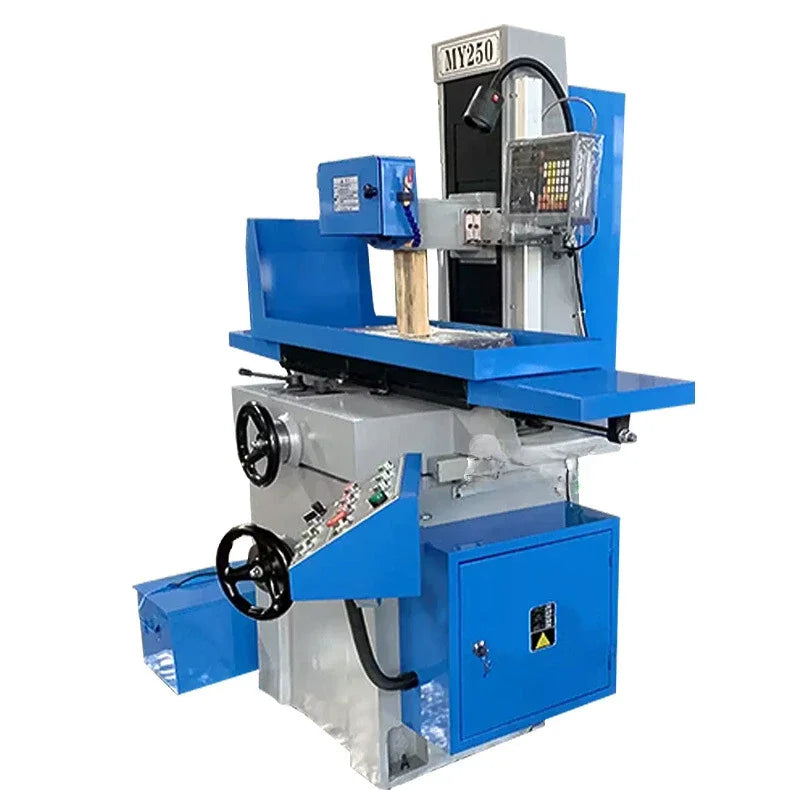

ANTNX High Precision Grinding Machine Hydraulic Surface Grinder Provided Universal External Cylindrical Grinding Machine MY250 Chinese ANTNX.COM

ANTNX High Precision Grinding Machine Hydraulic Surface Grinder Provided Universal External Cylindrical Grinding Machine MY250 Chinese ANTNX.COM

$6,063.10 USD
$7,578.87 USD $6,063.10 USD
Sale Sold out
Shipping calculated at checkout.

Dear customer, the product weight is too heavy. The shipping costs shown are not accurate, please contact customer service for details.

Product Paramenters

technical specifications

MY250
The grinding wheel size (o. d * w * i. d.)

250*540*420
Maximum longitudinal movement of the working table

500
Maximum horizontal displacement of the working table

200
Maximum distance from working table to spindle center

420
Slide table

V Flat rail
Table maximum load

200
Table size (length * width)

250*500
Table T type slot

14×1
After the feed hand wheel

0.02/grid 2.5/round
Start feed wheel

0.01/grid 2.0/round
Feed Rate

0.002mm
Digital Display

0.001
Grinding wheel size (outer diameter * width * inner diameter)

200*30*31.75
Spindle speed
50Hz
2850
Main motor

1.5
Cooling pump

40
The surface of the base of parallelism

300:0.006
Surface roughness

Ra0.32
Machine tool overall size (L * w * h)

1.25*1.4*1.8
Gross weight, net weight

0.95

Products Description






OUR CERTIFICATE

Deliver goods

FAQ



Q: WHO ARE WE? A: WE ARE A PROFESSIONAL MACHINE TOOL MANUFACTURER. WE NOT ONLY SELL OUR MACHINES, BUT ALSO PROVIDE TECHNICAL SUPPORT. Q: HOW DO WE ENSURE QUALITY? A: EVERY NEW MACHINE HAS T0 G0 THROUGH STRICT TESTING AND CONF IRMATION FIRST. INSPECTION OF EACH PART INSPECTION AND ADJUSTMENT 0F EMPTY LINE AFTER ASSEMBLY Q: WHAT CAN YOU BUY FROM US? A: LATHES, CNC LATHES, CNC PIPE THREAD LATHES, CNC VERTICAL LATHE, CNC MACHINE T00LS, ORDINARY PIPE THREAD LATHES, MACHINING CENTERS, H0BBING MACHINES, DRILL ING MACHINES, MILLING MACHINES,GRINDING MACHINES,SAWING MACHINE, ETC.. . Q:WHY SHOULD YOU BUY FROM US INSTEAD 0F OTHER SUPPLIERS? MANY YEARS 0F MACHINE T00L PRODUCTION IN RESEARCH AND DEVELOPMENT EXPERIENCE,G00D EXPER IENCE,G00D PERFORMANCE, GOOD QUALITY,LET USERS BUY DON'T WORRY, USE IT AT EASE.
