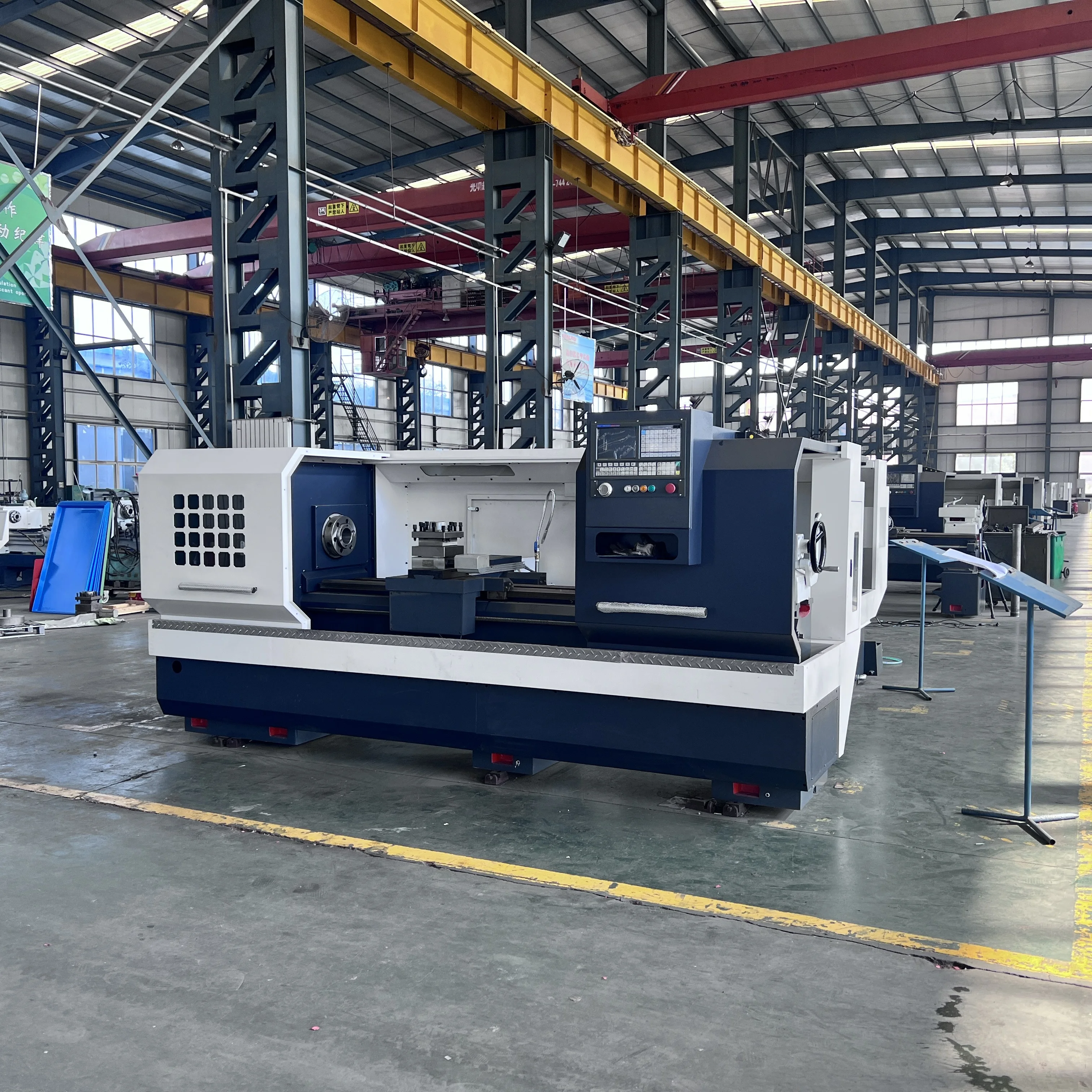

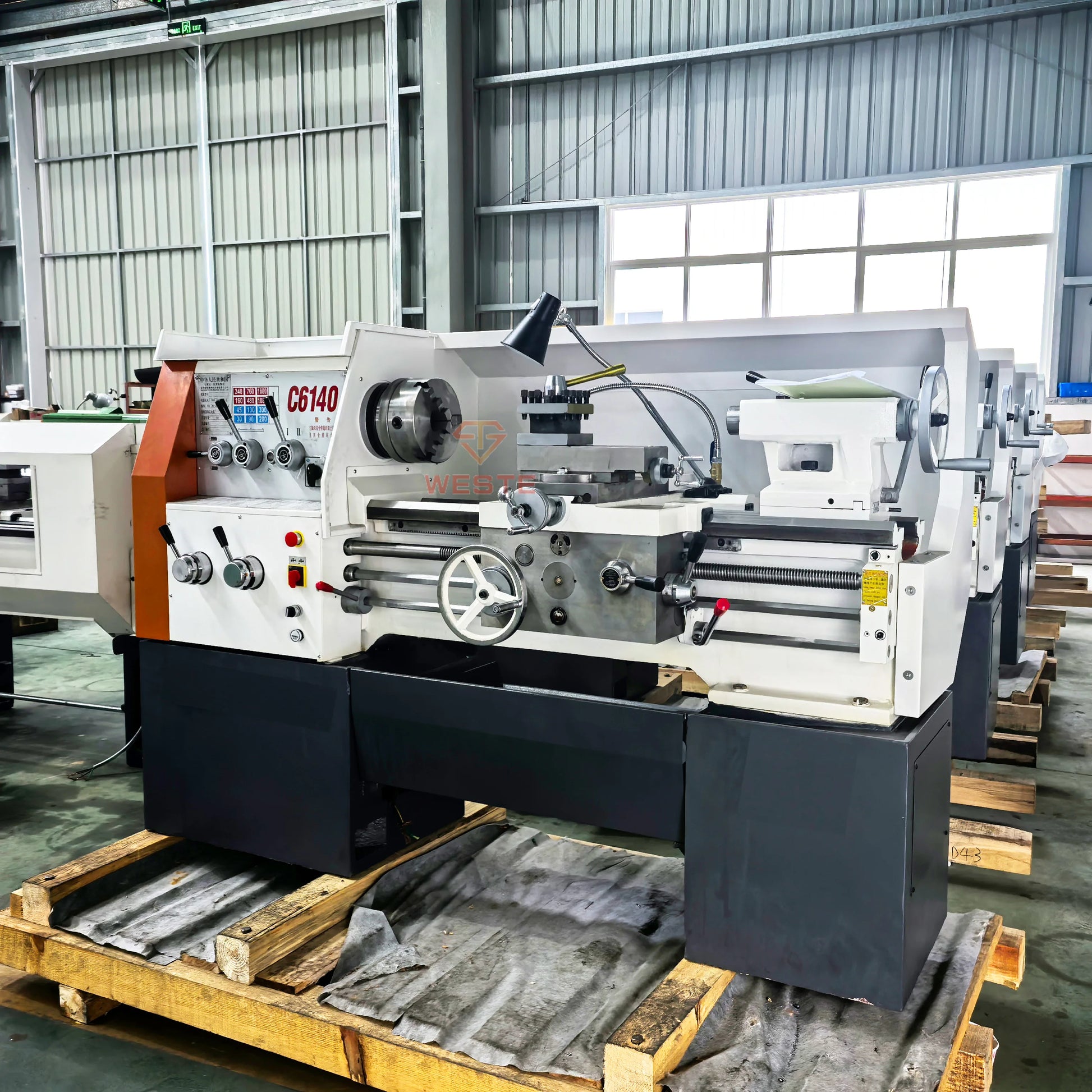

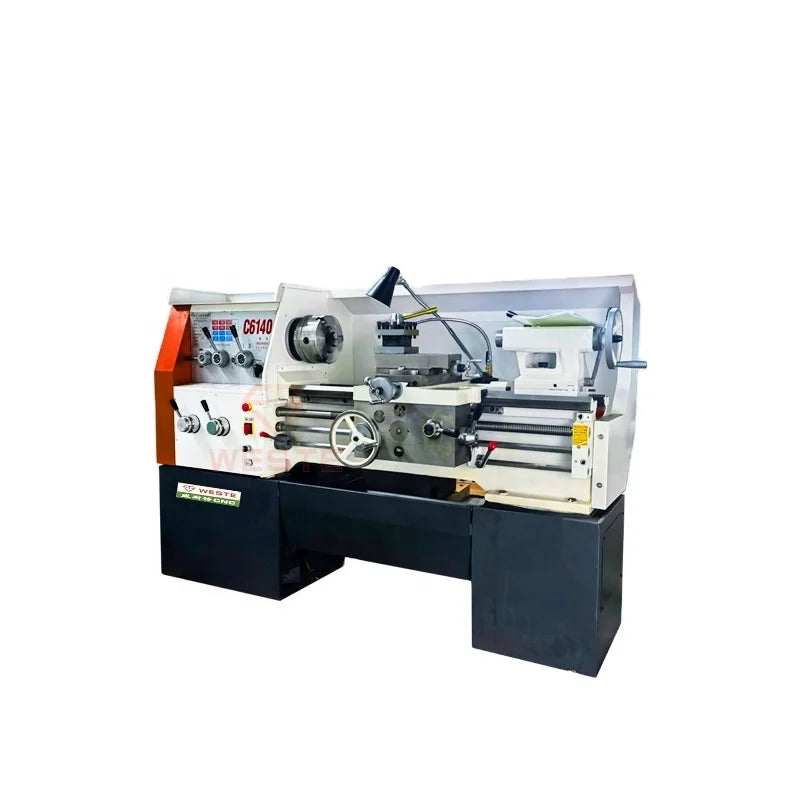

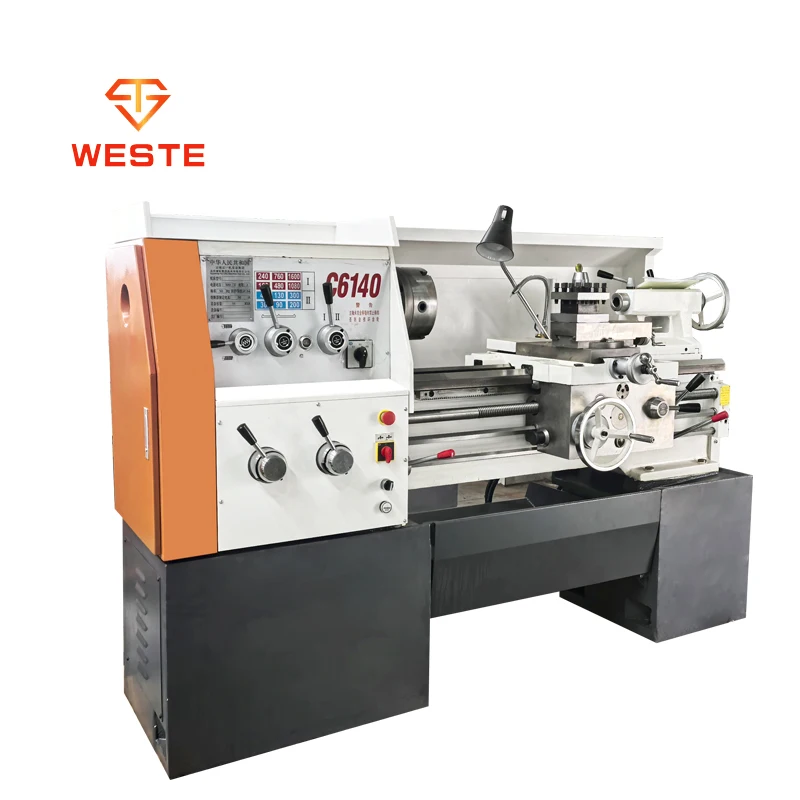

ANTNX High Precision CNC Lathe Single Metal Machine Model C6140 with 1000mm X1000mm Range ANTNX.COM

ANTNX High Precision CNC Lathe Single Metal Machine Model C6140 with 1000mm X1000mm Range ANTNX.COM

$16,982.76 USD
$21,228.45 USD $16,982.76 USD
Sale Sold out
Shipping calculated at checkout.
Product descriptions from the supplier
C6140 CNC lathe can be rough machining and finishing machining of mechanical parts, simple and reliable structure, convenient operation, economic and practical. Machine: mechanical and electrical integration design, automatic lubrication system. Advanced structure, reasonable layout, safe and reliable, beautiful shape. Bed: The CK6140 lathe is a split bed. The bed adopts box-type casting structure, good rigidity, the material adopts high-quality cast iron, the guide rail adopts medium frequency quenching process, the surface of the guide rail is ground by high-precision guide rail grinding, high precision, long service life.

1, this machine tool can be rough machining and finishing mechanical parts, especially suitable for automotive,machinery and other industries, rotary parts for efficient, large quantities, high-precision processing. 2, this machine can process steel, cast iron and non-ferrous metals and other materials. 3, this machine is also suitable for small and medium-sized batches of shaft, disc parts of the inner and outer cylinder, cone, thread, drilling, reaming and curve rotary parts of the turning process. The machining accuracy can reach IT7 level, and the surface roughness of the machined workpiece can reach Ra1.6. The machining scope of the machine tool should be determined according to the specifications of the machine tool and its technical parameters. Machining beyond machine specifications and allowed parameters is prohibited.
SPECIFICATIONS
Units
C6140
Swing over bed
mm
400
Swing over cross slide
mm
200
Distance between centers
mm
750/1000/1500/2000
Spindle bore
mm
52/82 mm
Spindle bore taper
-
MT6
Spindle nose type
-
C6

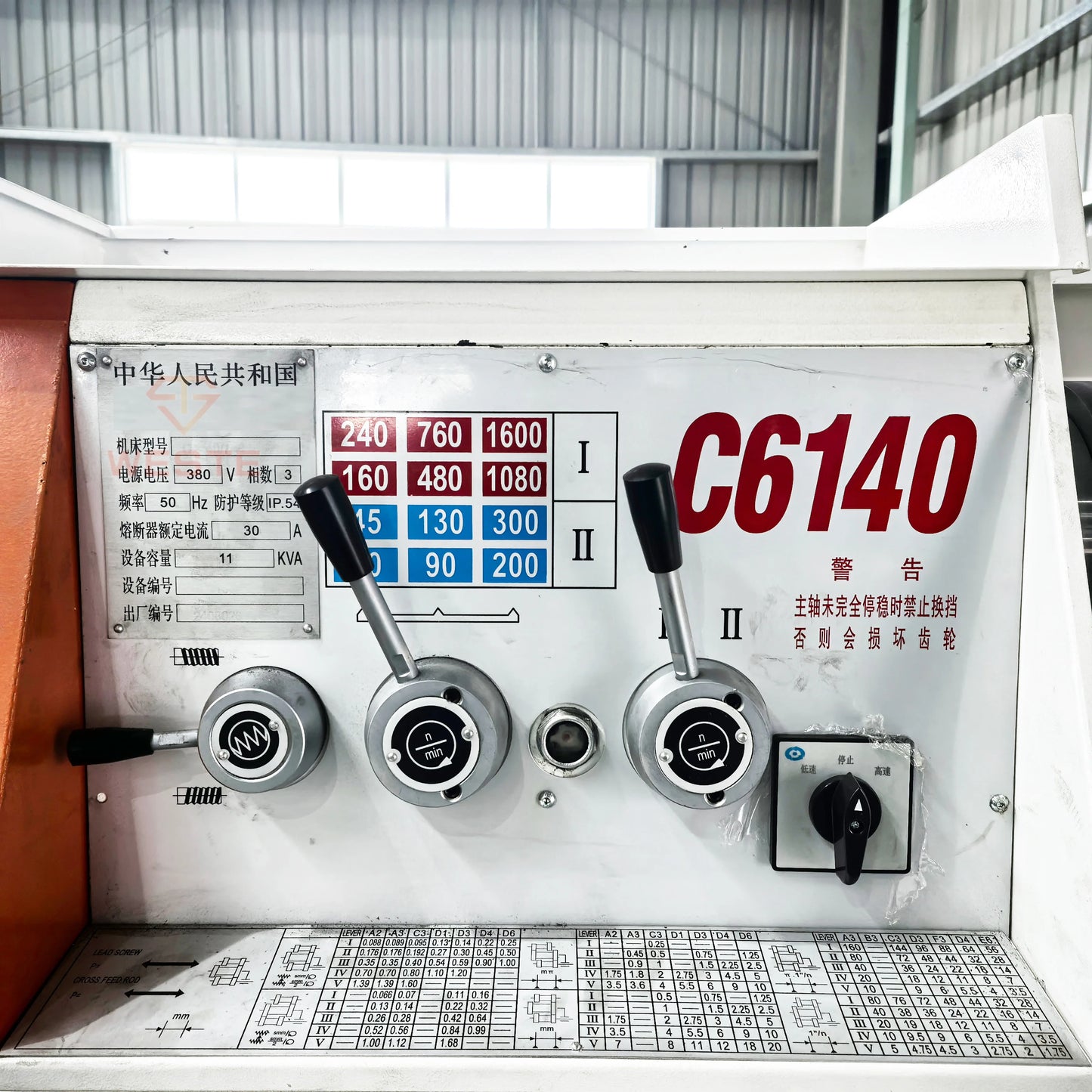

Spindle speed steps
-
Manual 2 steps
Spindle speed range
rpm
L:70-700 H:160-1600
Turret/tool post
-
Electric 4 position
Tool size
mm
20 x 20
X axis travel
mm
240
Z axis travel
mm
750/1000/1500/2000
X axis rapid traverse
mm/min
6000
Z axis rapid traverse
mm/min
8000
Tailstock quill diameter
mm
75
Tailstock quill taper
-
MT4
Feeding motor torque on z axis
-
7.5/10/15 N.m
Feeding motor torque on x axis
-
5N.m
Tailstock quill travel
mm
150
Main spindle motor
kw
5.5
Coolant pump motor
kw
0.125
Weight for 1000
kg
1800
Weight for 1500
kg
2000
Weight for 2000
kg
2200
Dimension for 1000
mm
2600x1600x1700
Dimension for 1500
mm
3000x1600x1700
Dimension for 2000
mm
3500x1600x1700



HARDWARE DISPLAY
Shandong Weste CNC Machine Tool Co.,Ltd

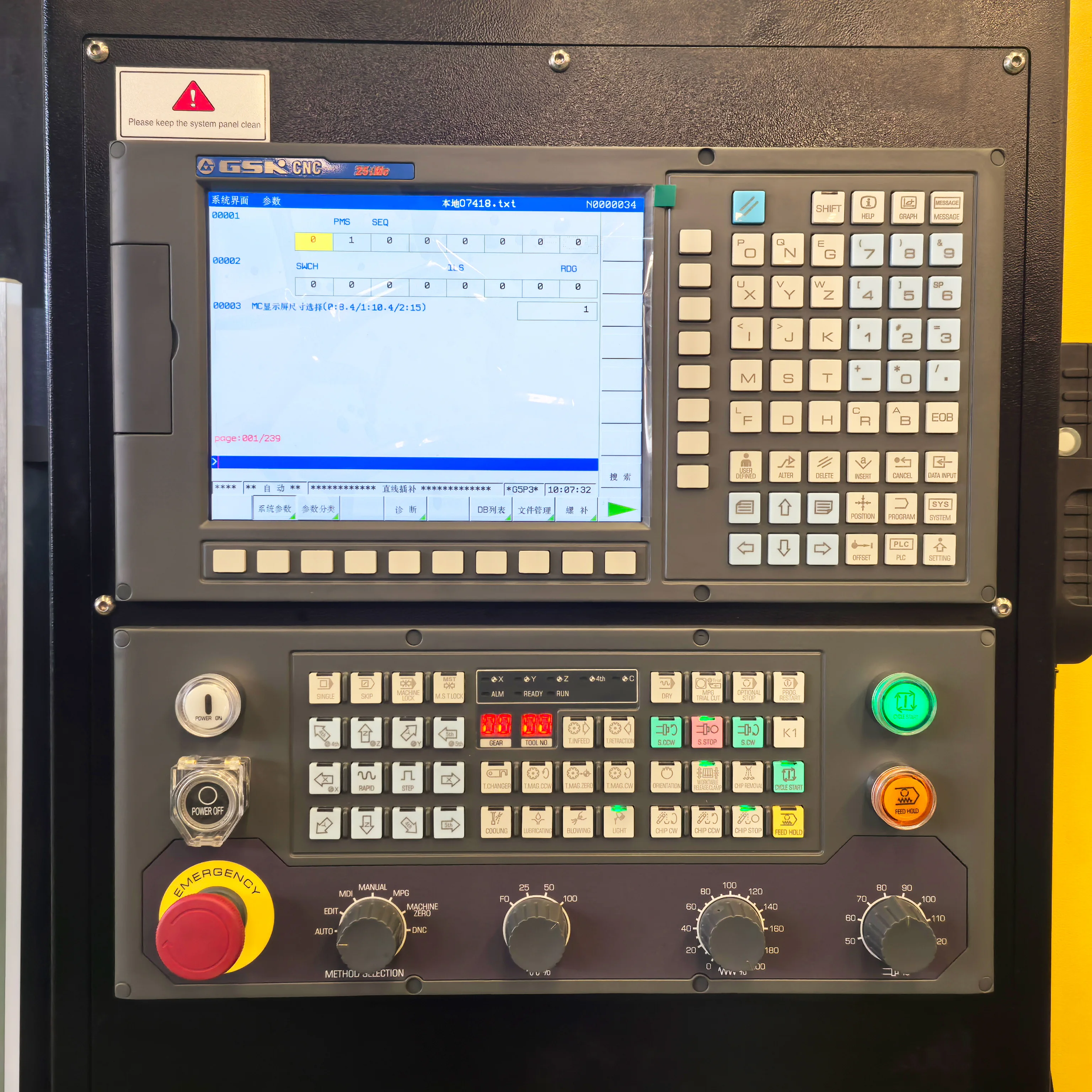

CNC CONTROL SYSTEM
Standard:GSK controller.
Optional:Siemens,Fanuc,Syntec,Mitsubishi and others.

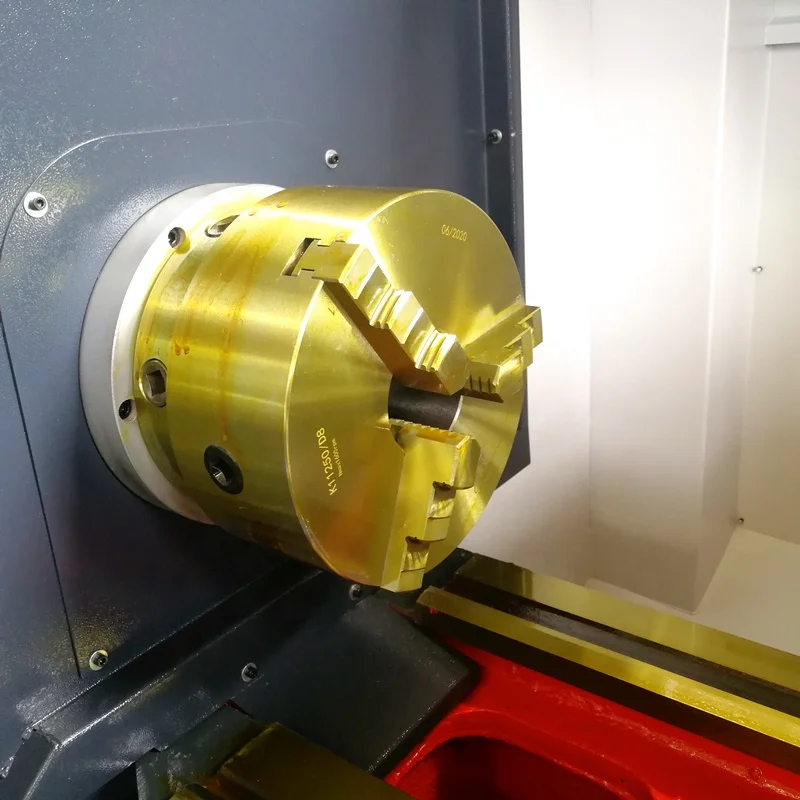

3 JAW CHUCK
The metal three jaw chuck is conducive to clamping irregular workpiece for rapid production.
Optional: hydraulic chuck

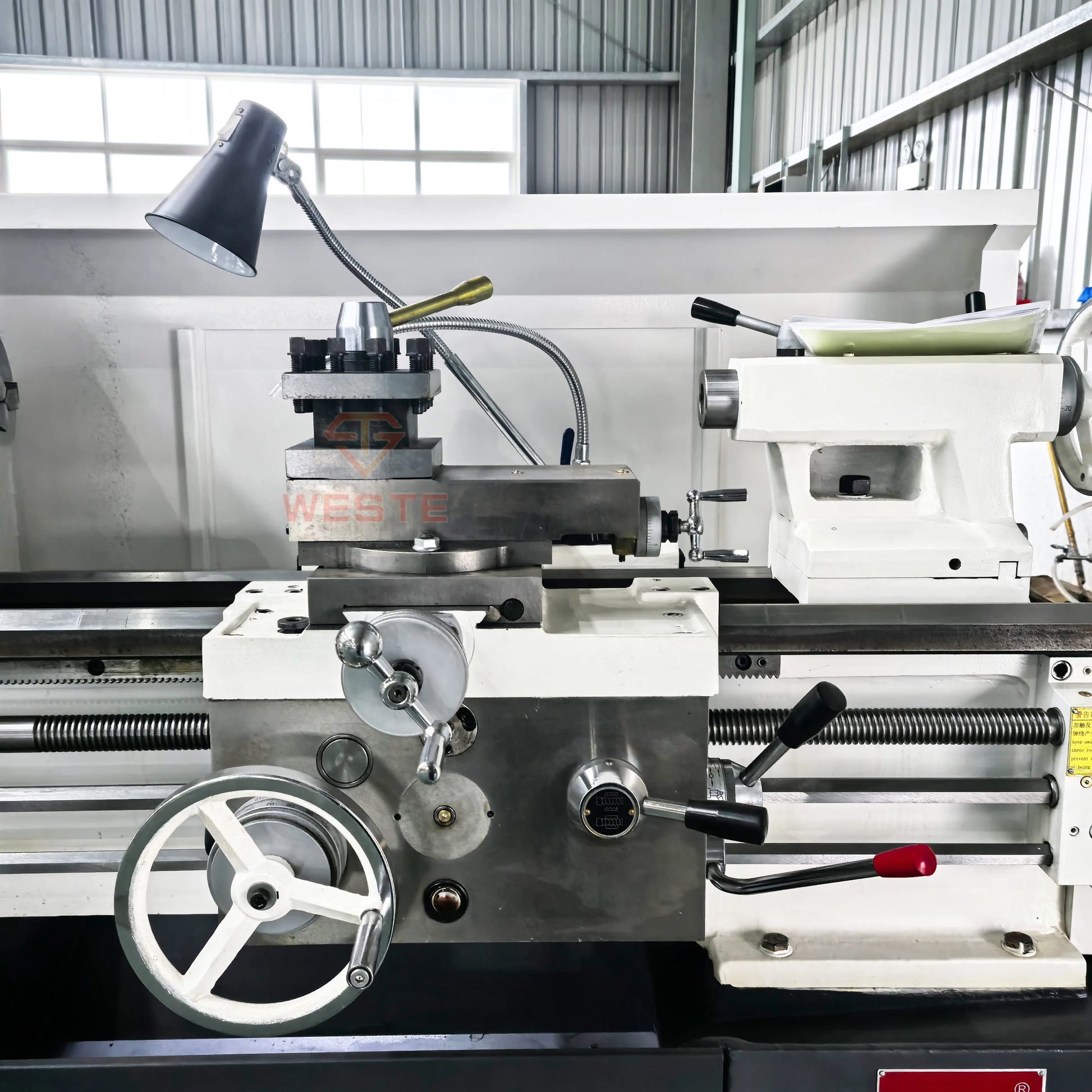

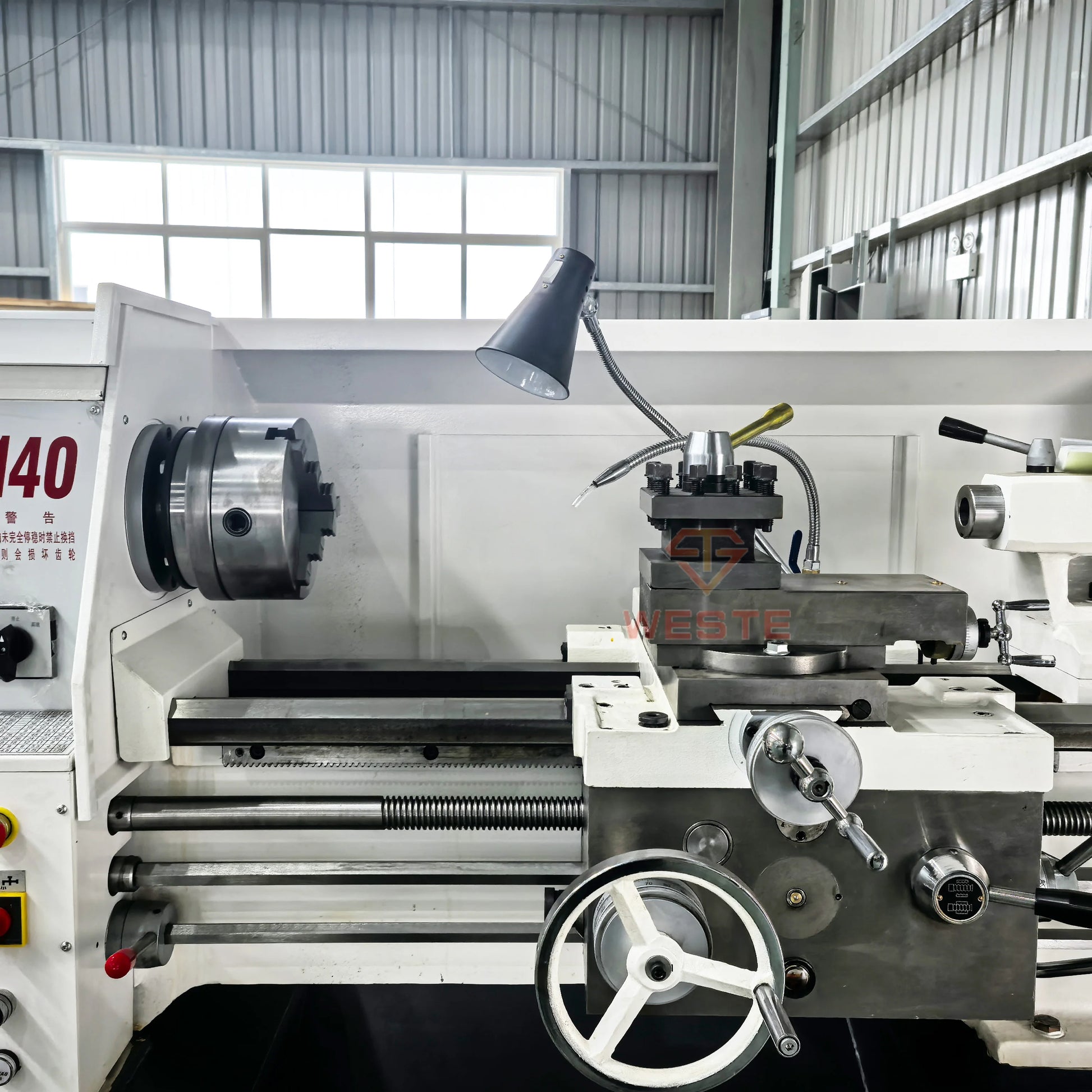

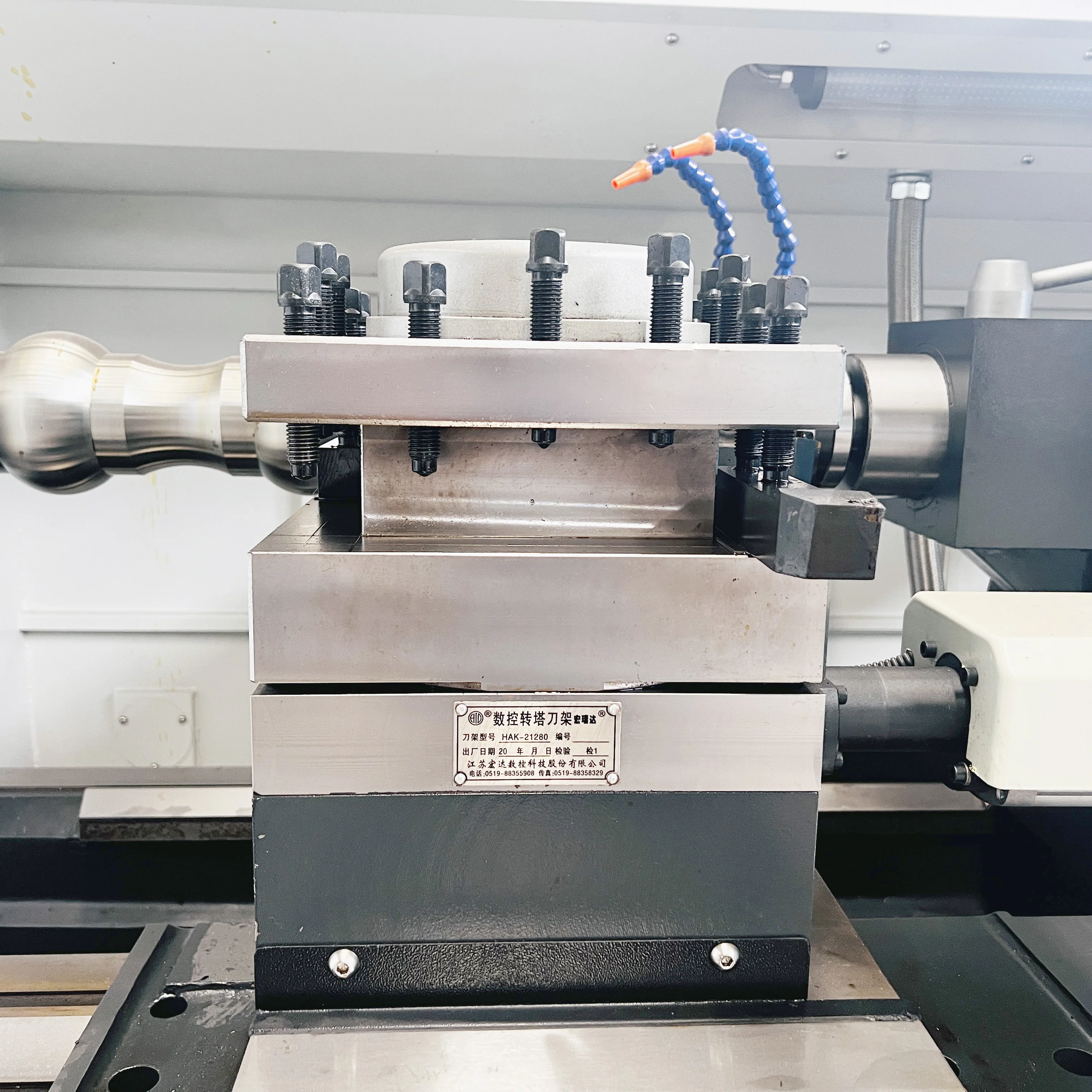

Four-stations CNC tool rest:
Change knife without lifting knife.High positioning accuracy,stability and reliability, widely application range. Optional
six-stations electric tool rest.

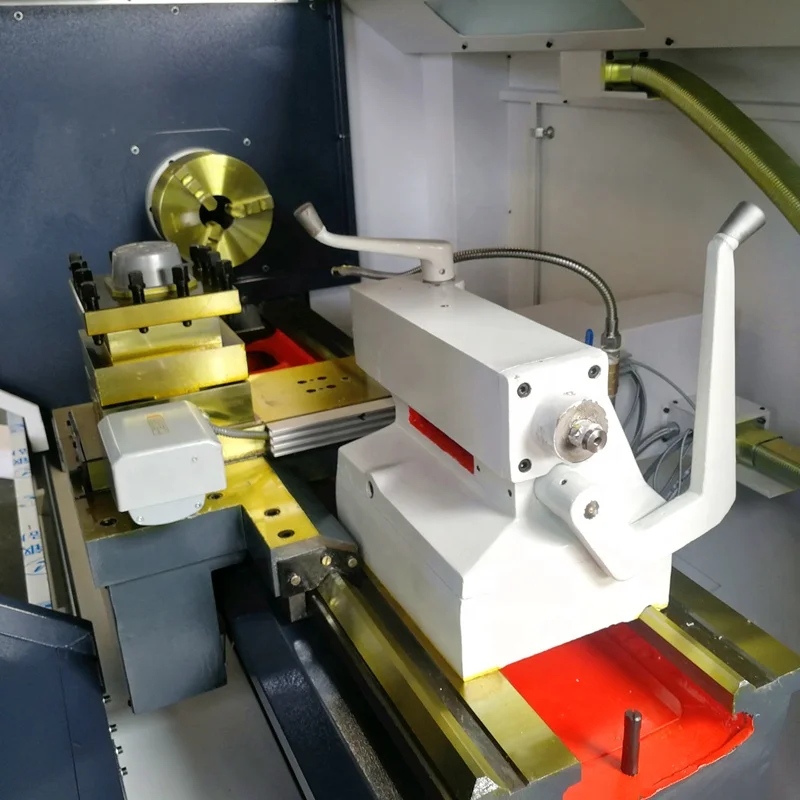

MANUAL TAILSTOCK

Standard withmanual tailstock.
Optional: Hydraulic tailstock.
Shandong Weste CNC Machine Tool Co., Ltd. is a CNC machine tool manufacturing company that integrates design, manufacturing, sales, and service, covering an area of more than 5000 square meters. The company has been developing for 20 years, and its main products include vertical machining centers, horizontal machining centers, gantry machining centers, five axis machining centers, CNC inclined bed lathes, CNC milling machines, ordinary milling machines, drilling machine series, and other CNC equipment. the company has a stable supply chain to provide guarantees for the supply of raw materials. The precise quality inspection equipment and modern management mode have laid a solid foundation for producing high-quality products. All factory equipment will go through strict quality control processes such as quality inspection, copying, and re inspection, ensuring that each equipment is of high quality. At the same time, each machine tool has complete quality control records, a comprehensive after-sales service system, and experienced engineers to ensure fast after-sales service. The company has a group of experienced mechanical engineering designers and skilled assembly technicians, adhering to the principles of technological innovation, management innovation, and talent innovation to provide customers with excellent quality services. We warmly welcome domestic and foreign friends to discuss business, enhance understanding, and work together to create brilliance!
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
