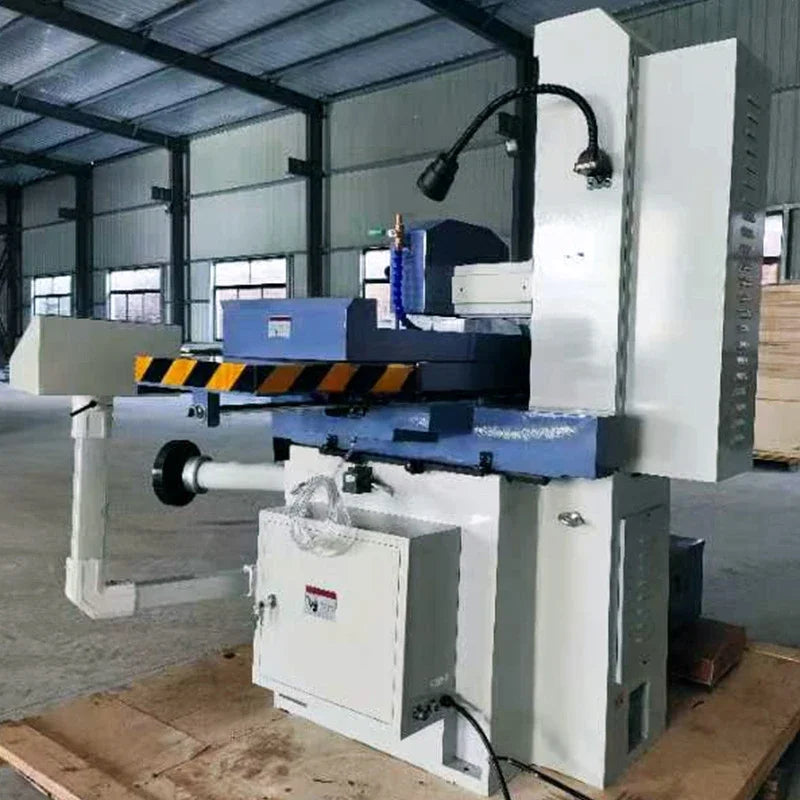

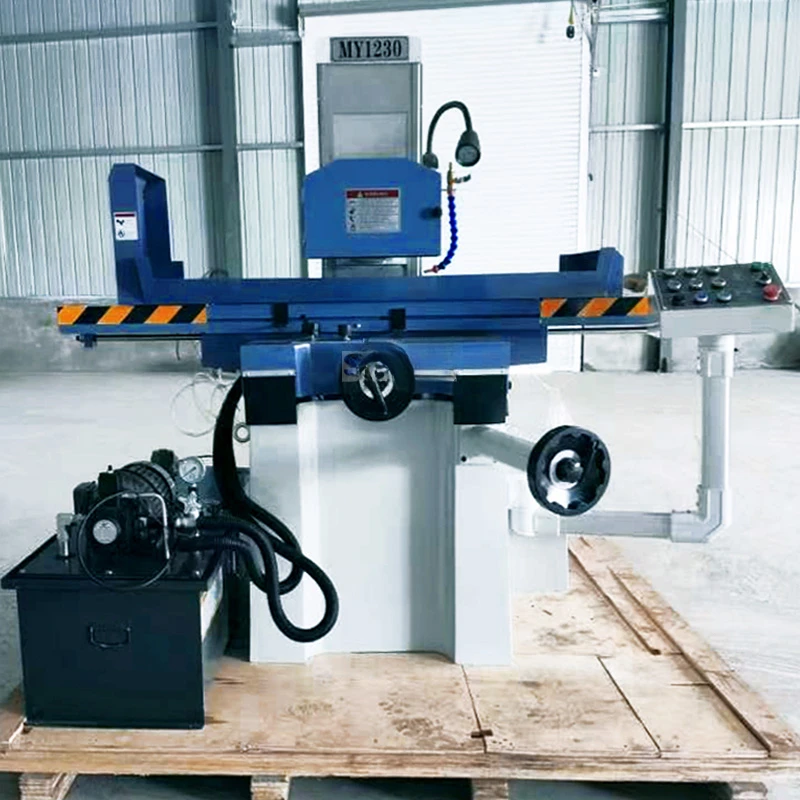

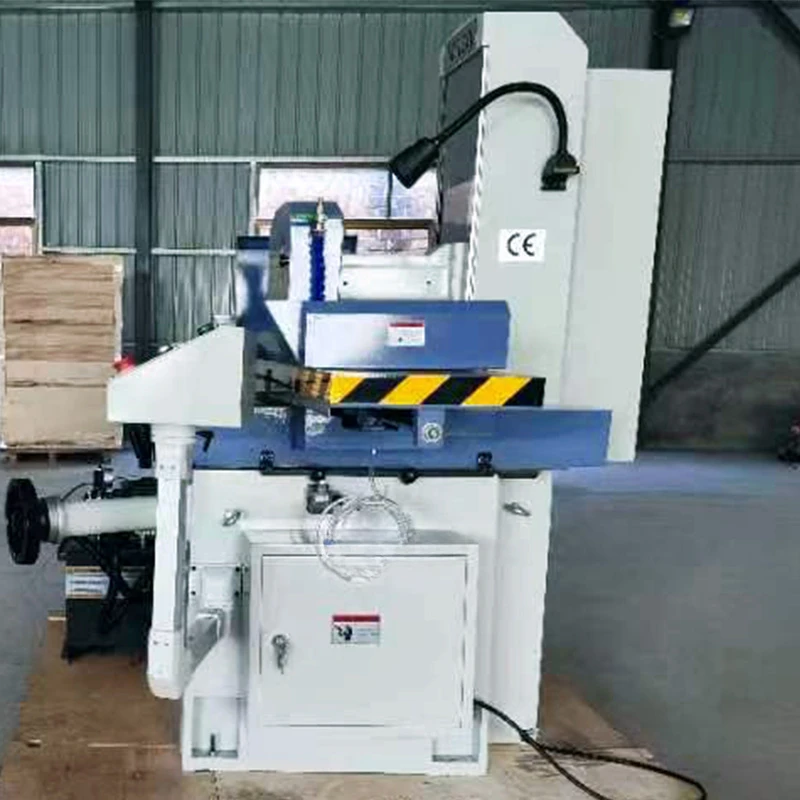

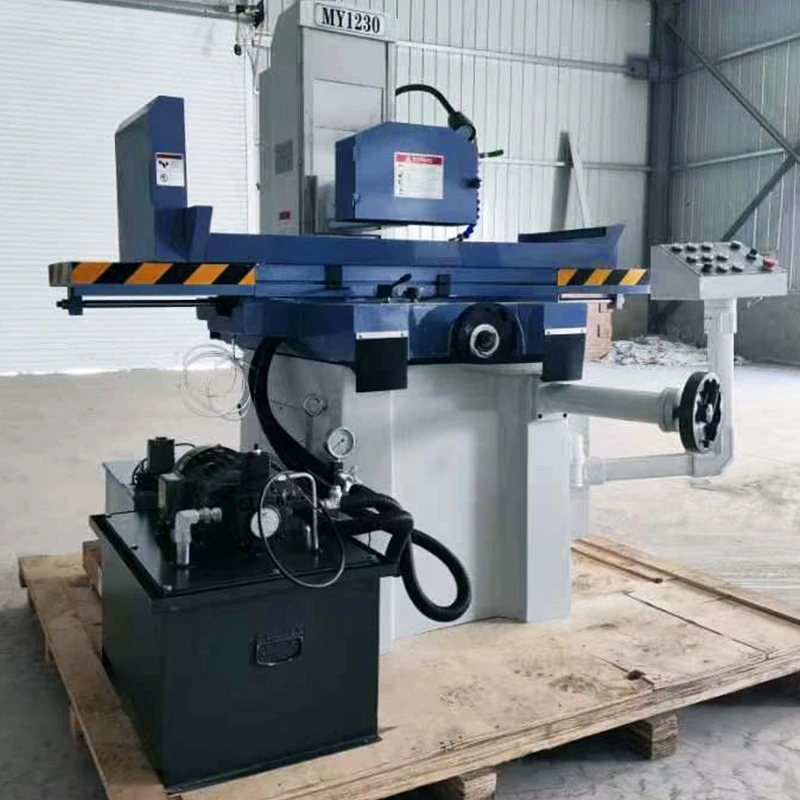

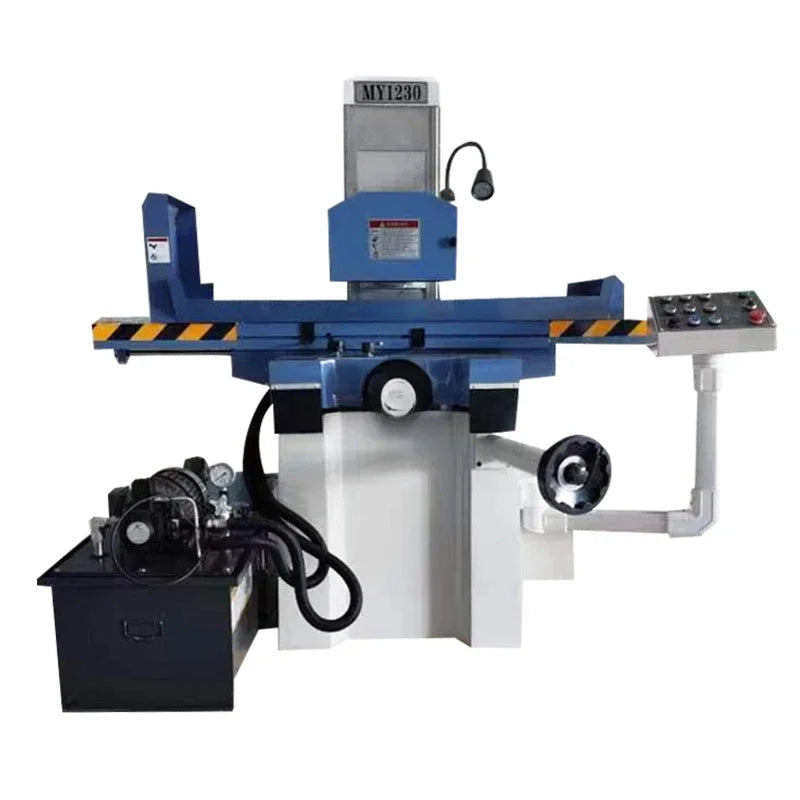

ANTNX High Performance Automatic Grinding Machine machine Grinder MY1230 hydraulic Surface Grinding Machine ANTNX.COM

ANTNX High Performance Automatic Grinding Machine machine Grinder MY1230 hydraulic Surface Grinding Machine ANTNX.COM

$9,388.16 USD
$11,735.20 USD $9,388.16 USD
Sale Sold out
Shipping calculated at checkout.

Dear customer, the product weight is too heavy. The shipping costs shown are not accurate, please contact customer service for details.

Product Paramenters

Specifications


Units
MY1230
workbench
Worktable size (L * W)

mm
750×300

Max. travel of table

mm
780×320

Table T slot (slot number x slot width)

mm
1×14
Grinding head
The grinding wheel size (o. d * w * i. d.)

mm
Φ300×30×Φ76.2

Distance spindle center line to working table

mm
520

Grinding wheel speed
50HZ
r/min
1450


60HZ
r/min
1680
The amount of feed
Table longitudinal (left and right) speed

m/min
3-20

Transverse (front and rear) feed handwheel feed
Continuous (stepless)
mm/min
600


Intermittent (stepless)
mm/times
0-6


Handwheel per turn
mm
4.0


Handwheel per lattice
mm
0.02

The vertical (up and down) feed handwheel feed
Handwheel per turn
mm
2.0


Handwheel per lattice
mm
0.01

Grinding head up and down is fast lifting speed (approximate value)

mm/min
360
Hydraulic system
Hydraulic motor

kw
2.2

working pressure

Mpa
4

Fuel tank capacity

L
100

Maximum flow rate

L/min
20
Motor power
Spindle motor

kw
2.2

Cooling motor

W
40

Elevator motor

W
120
working accuracy
The process surface of the base level of the parallel degree

mm
300:0.005

Surface roughness

μm
Ra0.32
Machine weight
Net weight

kg
1400

Gross weight

kg
1530
External size (L * w * h)


mm
1960×1480×1850
Packing size (L * w * h)


mm
2000×1640×2020

Products Description







OUR CERTIFICATE

Deliver goods

FAQ



Q: WHO ARE WE? A: WE ARE A PROFESSIONAL MACHINE TOOL MANUFACTURER. WE NOT ONLY SELL OUR MACHINES, BUT ALSO PROVIDE TECHNICAL SUPPORT. Q: HOW DO WE ENSURE QUALITY? A: EVERY NEW MACHINE HAS T0 G0 THROUGH STRICT TESTING AND CONF IRMATION FIRST. INSPECTION OF EACH PART INSPECTION AND ADJUSTMENT 0F EMPTY LINE AFTER ASSEMBLY Q: WHAT CAN YOU BUY FROM US? A: LATHES, CNC LATHES, CNC PIPE THREAD LATHES, CNC VERTICAL LATHE, CNC MACHINE T00LS, ORDINARY PIPE THREAD LATHES, MACHINING CENTERS, H0BBING MACHINES, DRILL ING MACHINES, MILLING MACHINES,GRINDING MACHINES,SAWING MACHINE, ETC.. . Q:WHY SHOULD YOU BUY FROM US INSTEAD 0F OTHER SUPPLIERS? MANY YEARS 0F MACHINE T00L PRODUCTION IN RESEARCH AND DEVELOPMENT EXPERIENCE,G00D EXPER IENCE,G00D PERFORMANCE, GOOD QUALITY,LET USERS BUY DON'T WORRY, USE IT AT EASE.
