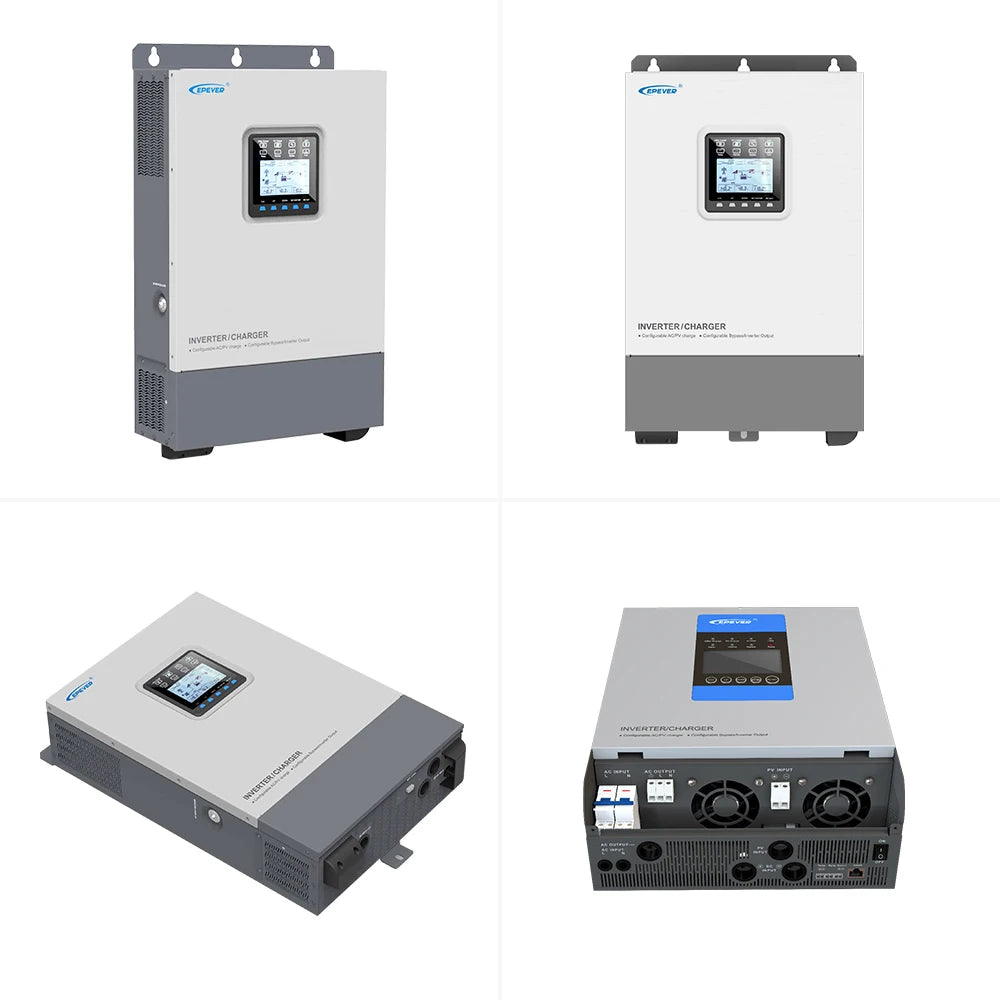

ANTNX Epever Lowest Price Mppt Hybrid inverter 3KW 5KW Best Single Phase Home Inverter EU Stock ANTNX.COM

ANTNX Epever Lowest Price Mppt Hybrid inverter 3KW 5KW Best Single Phase Home Inverter EU Stock ANTNX.COM

$889.46 USD
$1,111.83 USD $889.46 USD
Sale Sold out
Shipping calculated at checkout.

Specification

Item
UP2000-HM6022
UP3000-HM10022
UP3000-HM5042
UP5000-HM8042
Rated battery voltage
24VDC

48VDC

Battery input voltage
21.6~32VDC

43.2~64VDC

Max. battery charging current
60A
100A
50A
80A
Inverter output




Continuous output power
2000W
3000W
3000W
5000W
Max. surge power(3S)
4000W
6000W
6000W
8000W
Output voltage range
220VAC(-6%~+3%), 230VAC(-10%~+3%)



Output frequency
50/60±0.2%



Output wave
Pure Sine Wave



Load power factor
0.2-1(Load power ≤ Continuous output power)



Distortion THD
THD≤3%(Resistive load)



80% rated output efficiency
92%
92%
92%
92%
Max. Rated output efficiency
91%
91%
90%
91%
Max. output efficiency
93%
93%
93%
93%
Switch time
10ms(Switch from the utility output to the inverter output), 15ms(Switch from the inverter output to the utility output)



Utility charging




Utility input voltage
176VAC~264VAC (Default), 90VAC~280VAC(Programmable)



Utility input frequency
40~65Hz



Max. utility charge current
60A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 30A)
80A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 40A)
40A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 20A)
60A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 30A)
Solar charging




Max. PV open circuit voltage
450V(At minimum operating environment temperature)
395V(At 25℃ environment temperature)


500V(At minimum operating environment temperature)
440V(At 25℃ environment temperature)
MPPT voltage range
80~350V


120~400V
Max. PV input power
2500W
4000W
4000W
4000W

(Note: For the curve of Max. PV input power Vs. PV open-circuit voltage, see chapter 3.4 Operating mode for details.)



Max. PV charging power
1725W
2875W
2875W
4000W
Max. PV charging current
60A
100A
50A
80A
Equalize charging voltage
29.2V(AGM default)

58.4V(AGM default)

Boost charging voltage
28.8V(AGM default)

57.6V(AGM default)

Float charging voltage
27.6V(AGM default)

55.2V(AGM default)

Low voltage disconnect voltage
21.6V(AGM default)

43.2V(AGM default)

Tracking efficiency
≥99.5%



Temp. compensate coefficient
-3mV/℃/2V(Default)



General




Surge current
50A
60A
56A
95A
Zero load consumption
<1.8A

<1.2A


(without PV and utility connection, turn on the load output)



Standby current
<1.2A

<0.7A


(without PV and utility connection, turn off the load output)



Mechanical Parameters




Dimension(H x W x D)
607.5x381.6x127mm
642.5x381.6x149
mm
607.5x381.6x149mm
642.5x381.6x149mm
Mounting size
585*300mm
620*300mm
585*300mm
620*300mm
Mounting hole size
Φ10mm
Φ10mm
Φ10mm
Φ10mm
Net Weight
15kg
19kg
18kg
19kg
Enclosure
IP30



Relative humidity
< 95% (N.C.)



Environment temperature
-20℃~50℃



Item
UP2000-HM6021
UP3000-HM10021
UP3000-HM5041
UP3000-HM8041
Rated battery voltage
24VDC

48VDC

Battery input voltage
21.6~32VDC

43.2~64VDC

Max. battery charging current
60A
100A
50A
80A
Inverter output




Continuous output power
2000W
3000W
3000W
3000W
Max. surge power(3S)
4000W
6000W
6000W
6000W
Output voltage range
110VAC(-3%~+3%), 120VAC(-10%~+3%)



Output frequency
50/60±0.2%



Output wave
Pure Sine Wave



Load power factor
0.2-1(Load power ≤ Continuous output power)



Distortion THD
THD≤5%(Resistive load)



80% rated output efficiency
89%
90%
91%
91%
Max. Rated output efficiency
88%
88%
90%
90%
Max. output efficiency
90%
92%
92%
92%
Switch time
10ms(Switch from the utility output to the inverter output), 15ms(Switch from the inverter output to the utility output)



Utility charging




Utility input voltage
88VAC~132VAC (Default), 80VAC~140VAC(Programmable)



Utility input frequency
40~65Hz



Max. utility charge current
60A
80A
40A
40A
Solar charging




Max. PV open circuit voltage
250V(At minimum operating environment temperature),
220V(At 25℃ environment temperature)



MPPT voltage range
60~200V



Max. PV input power
2000W
3000W
3000W
4000W

(Note: For the curve of Max. PV input power Vs. PV open-circuit voltage, see chapter 3.4 Operating mode for details.)



Max. PV charging power
1725W
2875W
2875W
4000W
Max. PV charging current
60A
100A
50A
80A
Equalize charging voltage
29.2V(AGM default)

58.4V(AGM default)

Boost charging voltage
28.8V(AGM default)

57.6V(AGM default)

Float charging voltage
27.6V(AGM default)

55.2V(AGM default)

Low voltage disconnect voltage
21.6V(AGM default)

43.2V(AGM default)

Tracking efficiency
≥99.5%



Temp. compensate coefficient
-3mV/℃/2V(Default)



General




Surge current
50A
60A
56A
95A
Zero load consumption
<1.6A
<1.6A
<1.2A
<0.8A

(without PV and utility connection, turn on the load output)



Standby current
<1.2A
<1.0A
<0.7A
<0.6A

(without PV and utility connection, turn off the load output)



Mechanical Parameters




Dimension(H x W x D)
607.5x381.6x127mm
642.5x381.6x149
mm
642.5x381.6x149
mm
642.5x381.6x149mm
Mounting size
585*300mm
620*300mm
620*300mm
620*300mm
Mounting hole size
Φ10mm
Φ10mm
Φ10mm
Φ10mm
Net Weight
15kg
19kg
19kg
19kg
Enclosure
IP30



Relative humidity
< 95% (N.C.)



Environment temperature
-20℃~50℃

Product Description

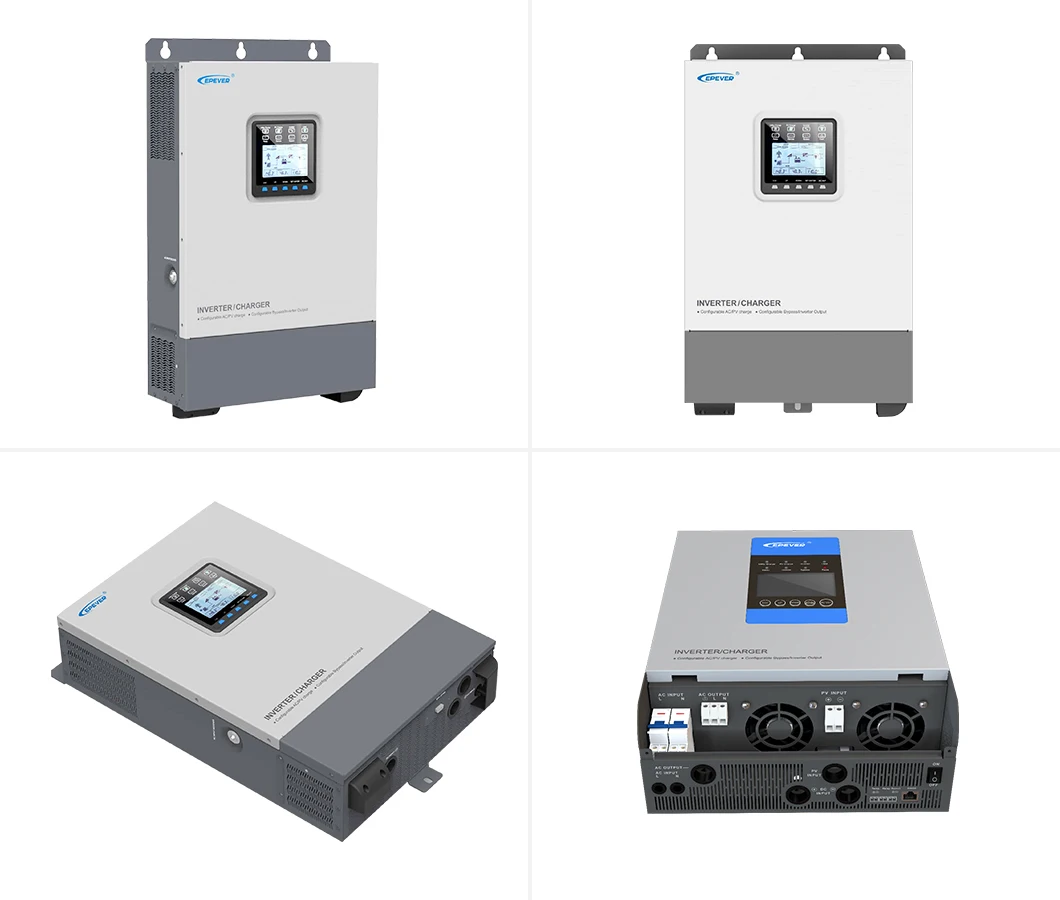

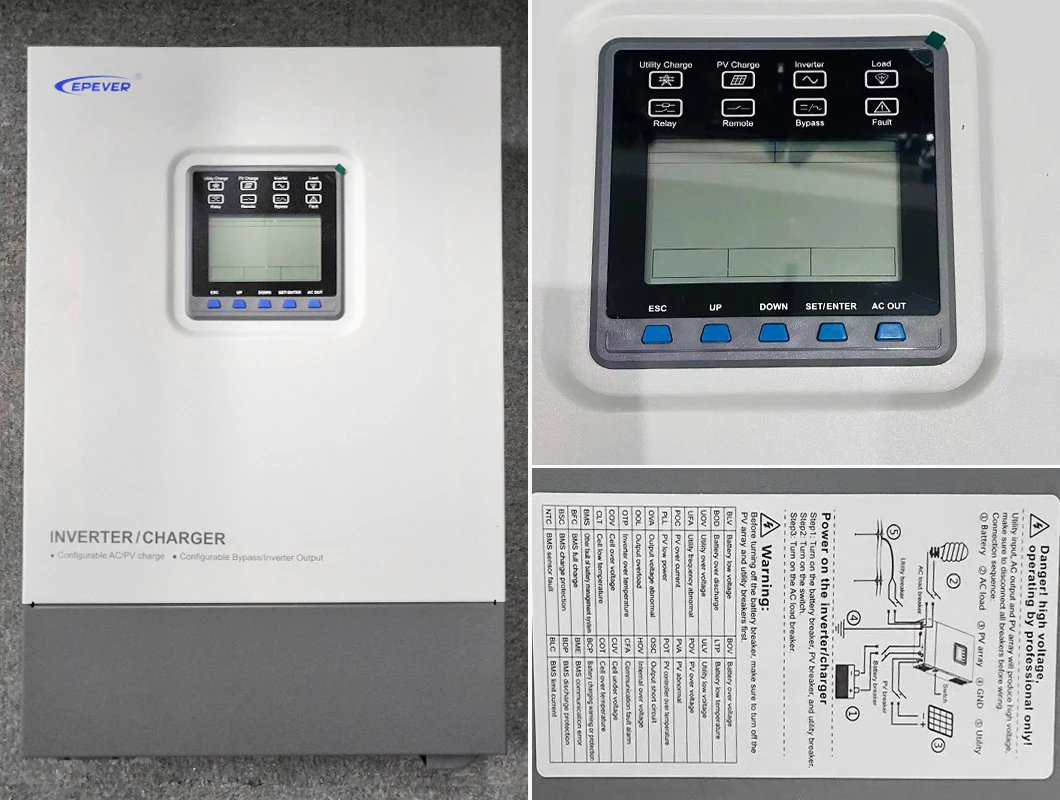

Pictures and Package

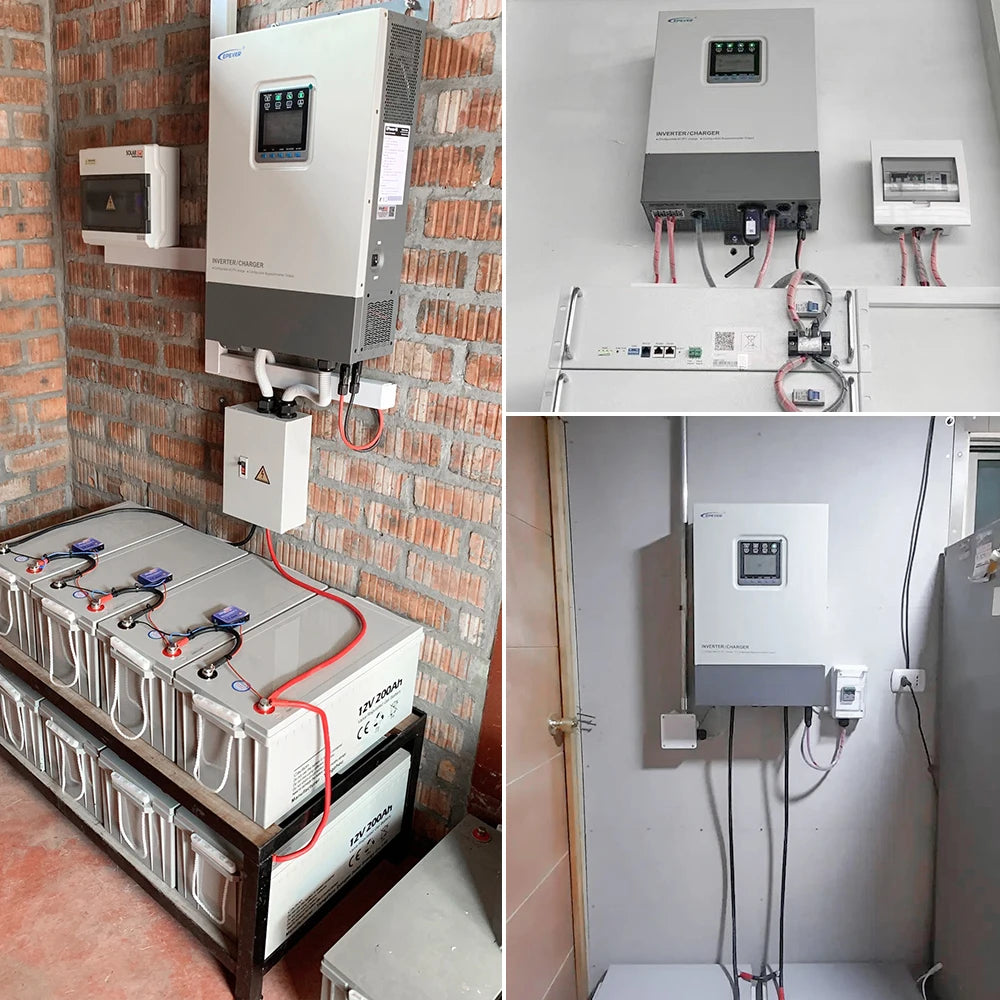

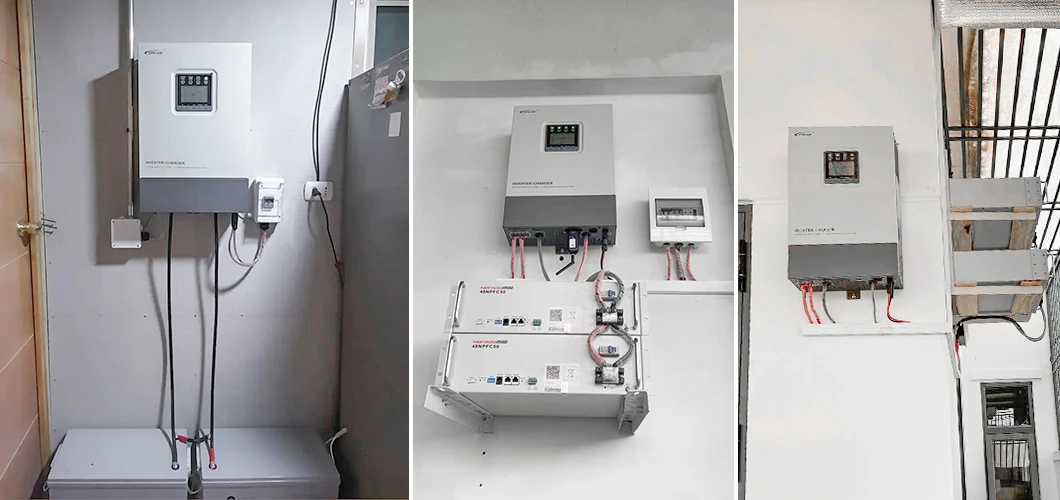

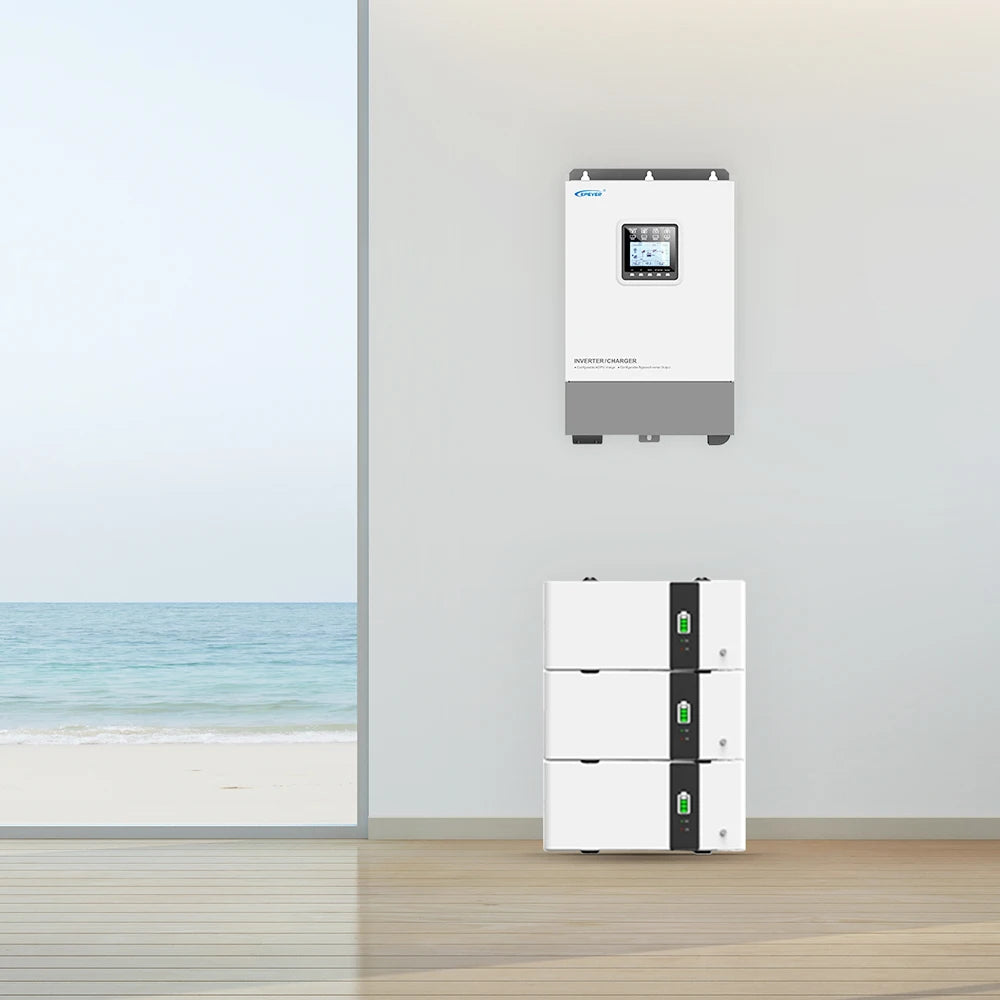

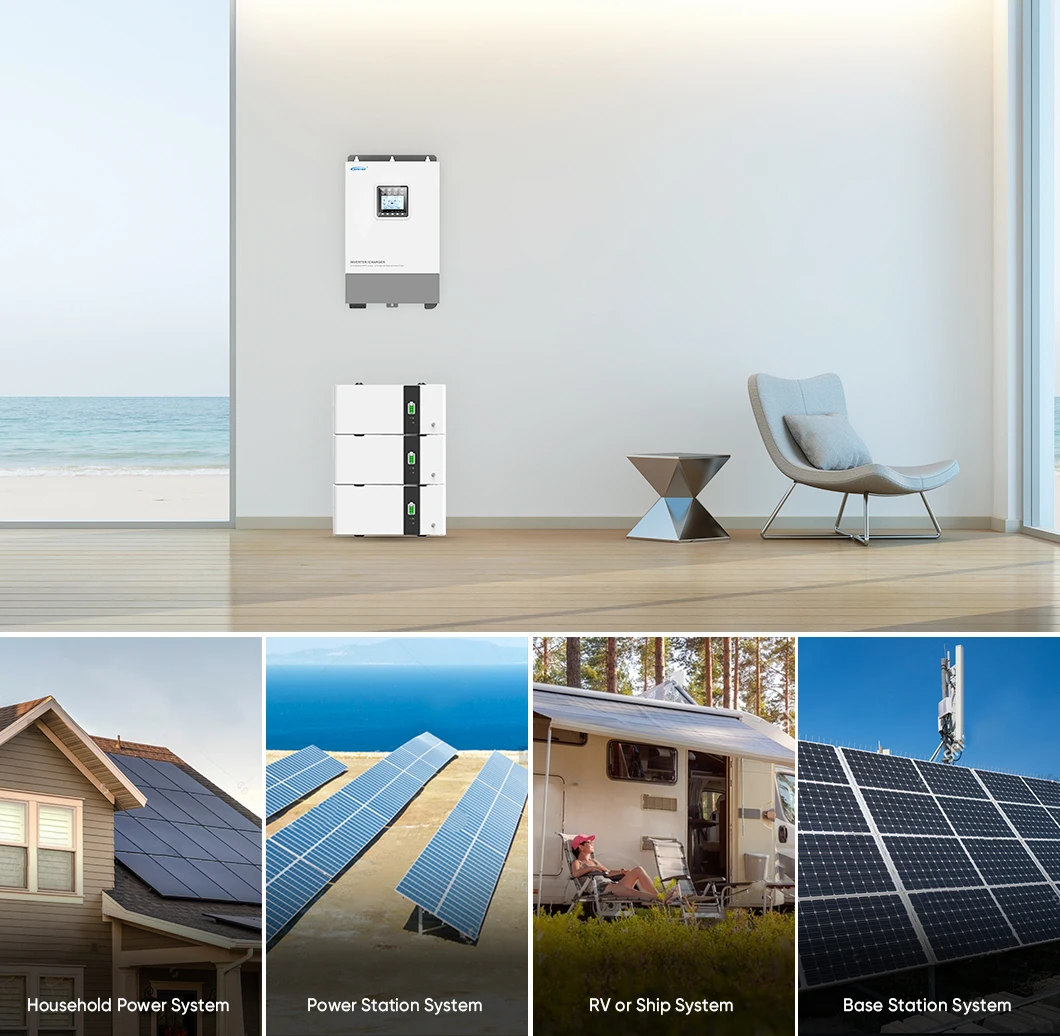

Applications

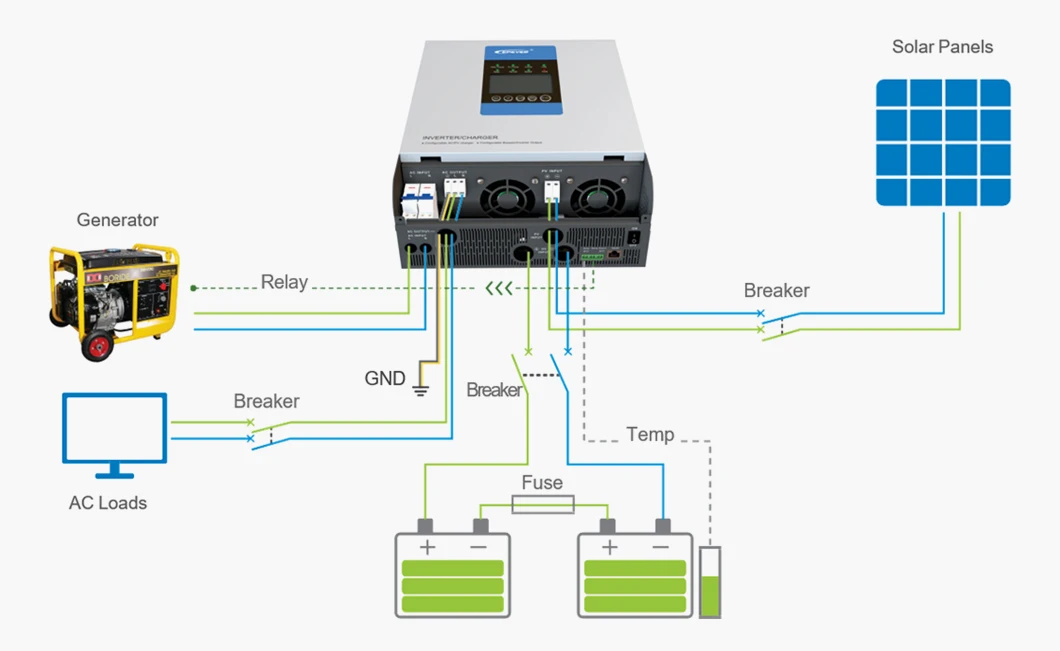

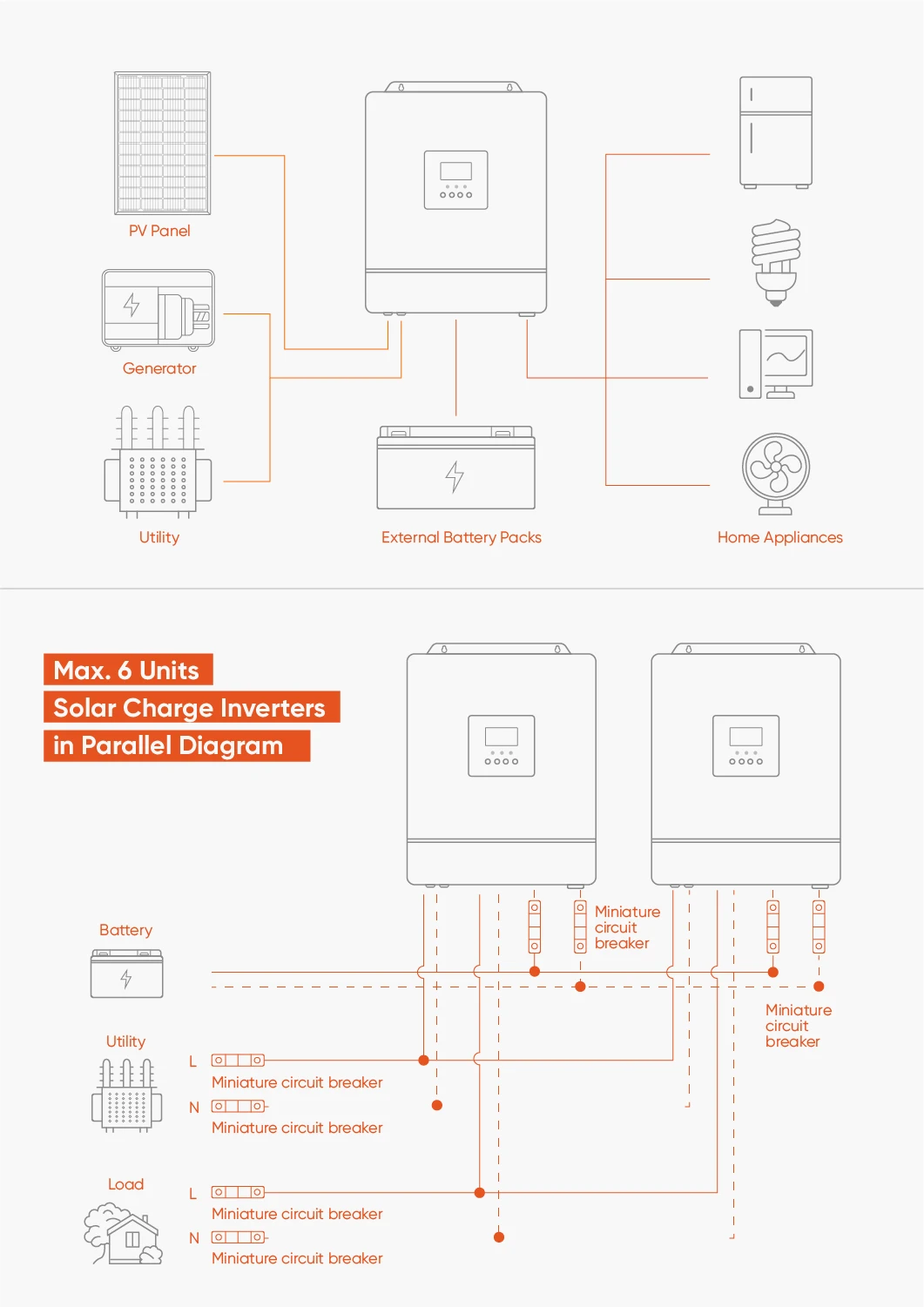

Installation Instructions
