ANTNX Epever Energy Storage System 5KW 5.5KW with Wheels Solar Inverter 5KWH Lithium Battery Integrated Home Energy Storage System ANTNX.COM

ANTNX Epever Energy Storage System 5KW 5.5KW with Wheels Solar Inverter 5KWH Lithium Battery Integrated Home Energy Storage System ANTNX.COM

$3,933.62 USD
$4,917.03 USD $3,933.62 USD
Sale Sold out
Shipping calculated at checkout.
color
Output Voltage

Features

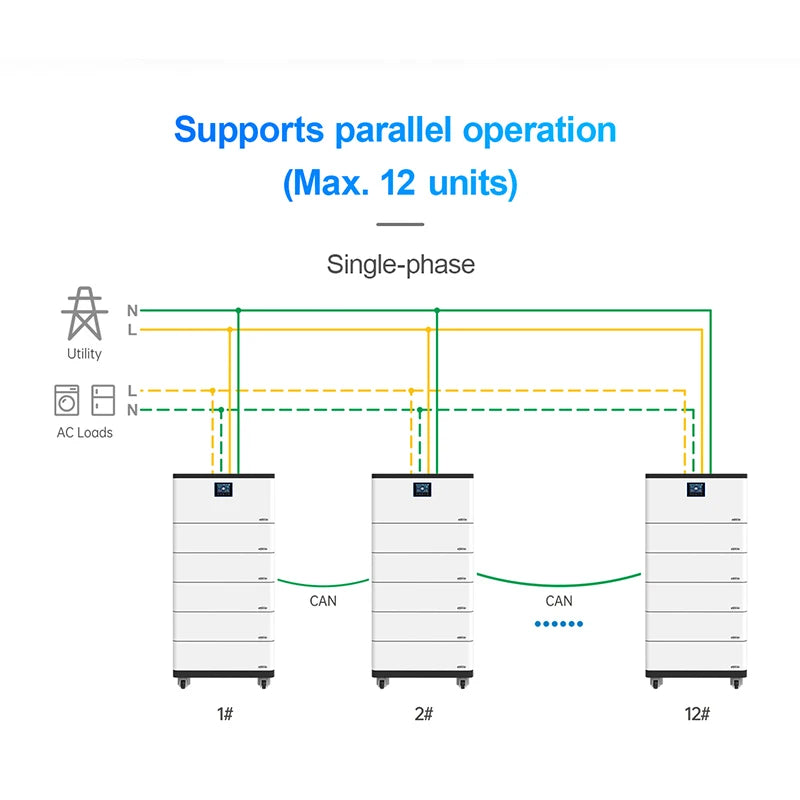

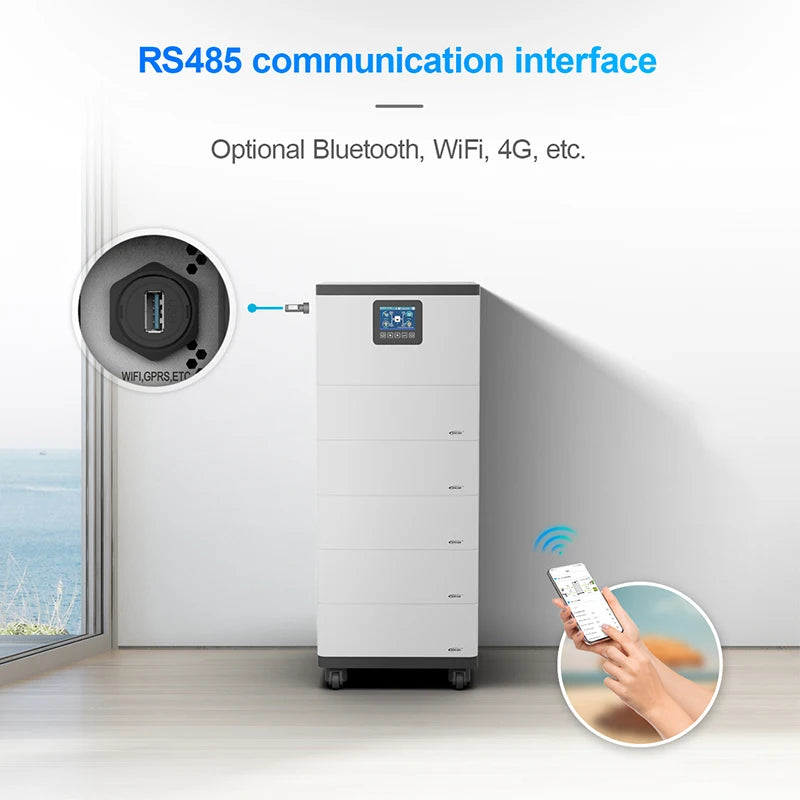

*Stackable installation with swivel wheel design for easy mobility *High-durability lithium batteries (over 6000 cycles) *Pure sine wave output *Main unit supports single-phase and three-phase parallel operation (up to 12 units) *Dual PV input support enhances PV utilization efficiency *RS485 communication interface, optional Bluetooth, WiFi, 4G,etc. *Remote monitoring via App *Historical data recording function, storage capacity of 25000 records *Comprehensive electronic protection *Operating temperature range: -20℃ to 50℃
Product Description
Technical Specifications
EPEVER ROH-F Series All-in-one Energy Storage System
Model
ROH5542F- 05X1P20
ROH5542F- 10X2P20
ROH5542F- 15X3P20
ROH5542F- 20X4P20
ROH5542F- 25X5P20
ROH5542F- 30X6P20
Utility input






Utility Voltage
176VAC~264VAC (Default), 90VAC~280VAC (Configurable)





Utility Frequency
45Hz~65Hz





Maximum Utility Charging Current
100A





Switch Response Time
Inverter to Utility: 10ms Utility to Inverter: 20ms





Inverter output






Inverter Rated Power (@35℃)
5500W





3-second Transient Surge Output Power
8500W





Inverter Output Voltage
220/230VAC





Inverter Frequency
50/60Hz





Output Voltage Waveform
Pure sine wave





Load Power Factor
0.2~1(VA ≤ Rated output power)





Output Voltage Harmonic
≤3% (48V resistive load)





Distortion Rate






Maximum Load Efficiency
92%





Maximum Inverter Efficiency
94%





Solar controller






PV Maximum Open-circuit Voltage
500V





MPPT Voltage Range
85~400VDC





Number of MPPTs
2





PV Maximum Input Current
15A+15A





PV Maximum Input Power
6000W





PV Maximum Charging Current
100A





MPPT Maximum efficiency
≥99.5%





Battery






Battery Type
LiFePO4 lithium battery





Battery Module
5.12KWH,51.2V/100AH





Number of Modules
1
2
3
4
5
6
Battery Rated Voltage
51.2VDC

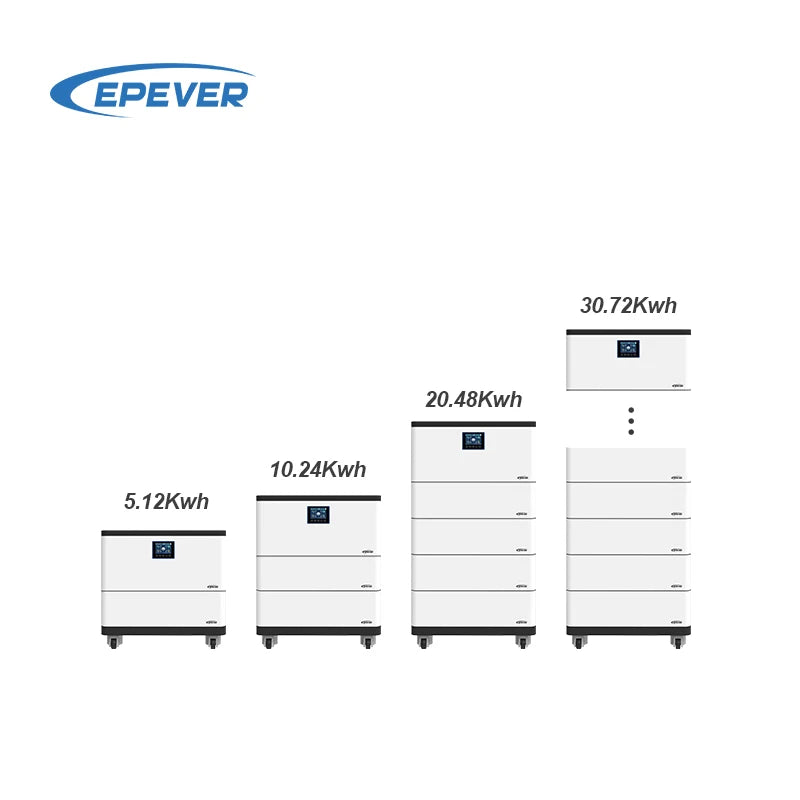

Energy Capacity
5.12KWH
10.24KWH
15.36KWH
20.48KWH
25.6KWH
30.72KWH
Battery Work Voltage Range
Dischargung Mode:0℃~+50℃,Charging Mode:-20℃~+50℃





Others






No-load Losses
<1.0 A





Standby Current
<0.15A





Installation
Flat stack





Environmental parameters






Work Temperature Range
-20℃~+50℃





Storage Temperature Range
-25℃~+60℃





Enclosure
IP20





Relative Humidity
< 95%(N.C.)





Altitude
4000m (>2000m Derating)





Mechanical parameters






Dimension (L x W x H)mm
530x500x 467
530x 500x 629
530x 500x 791
530x 500x 953
530x 500x 1115
530x500x 1277
N.W of inverter
24.5kg





N.W of complete package
82.0Kg
129.8Kg
177.6Kg
225.4Kg
273.2Kg
321.0Kg
