ANTNX Epever 5.12kWh To 30.72KWh 51.2v 100ah Lifepo4 Lithium Solar Battery Energy Storage System ANTNX.COM

ANTNX Epever 5.12kWh To 30.72KWh 51.2v 100ah Lifepo4 Lithium Solar Battery Energy Storage System ANTNX.COM

$3,838.24 USD
$4,797.80 USD $3,838.24 USD
Sale Sold out
Shipping calculated at checkout.
color
Output Voltage

Features

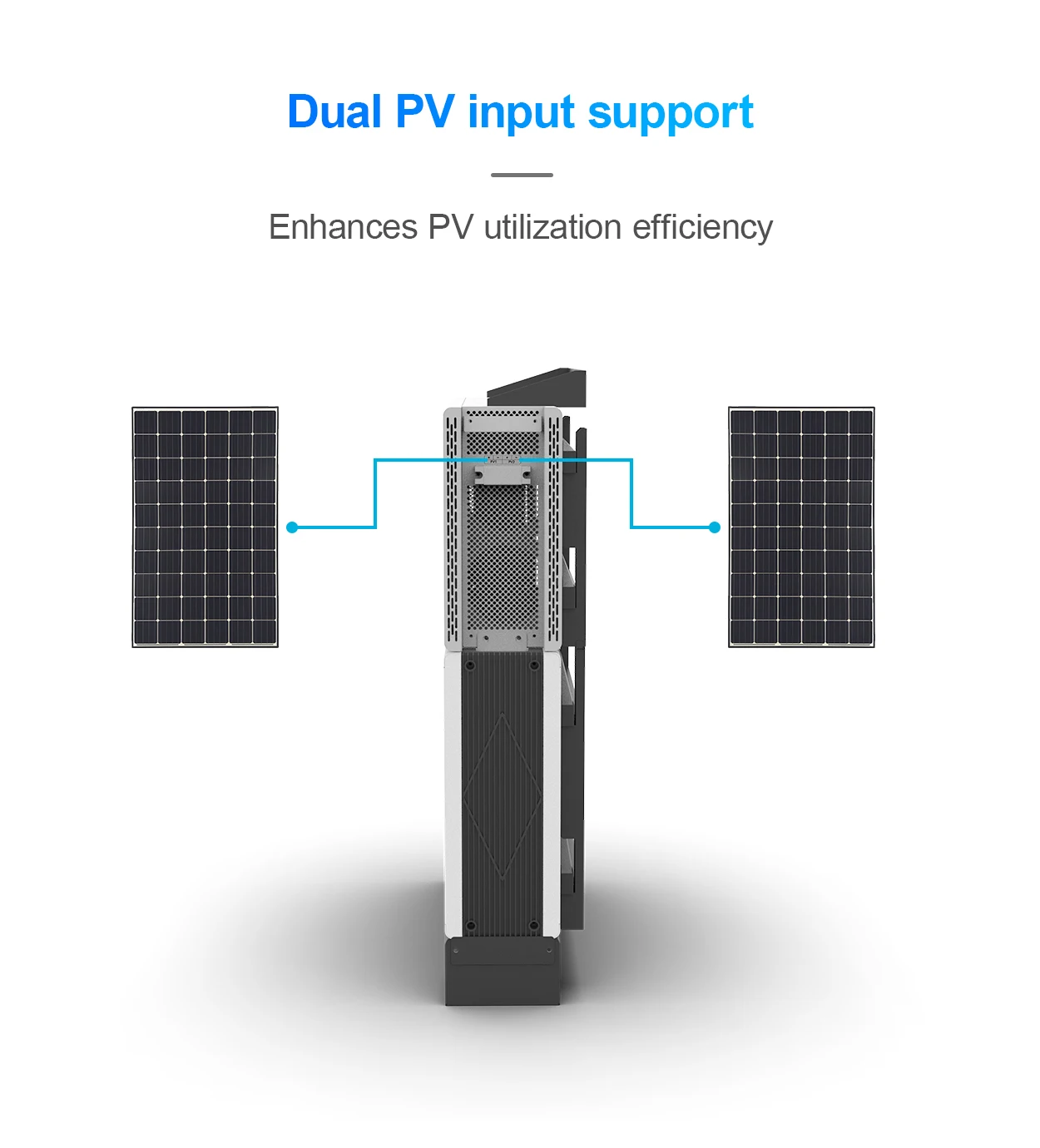

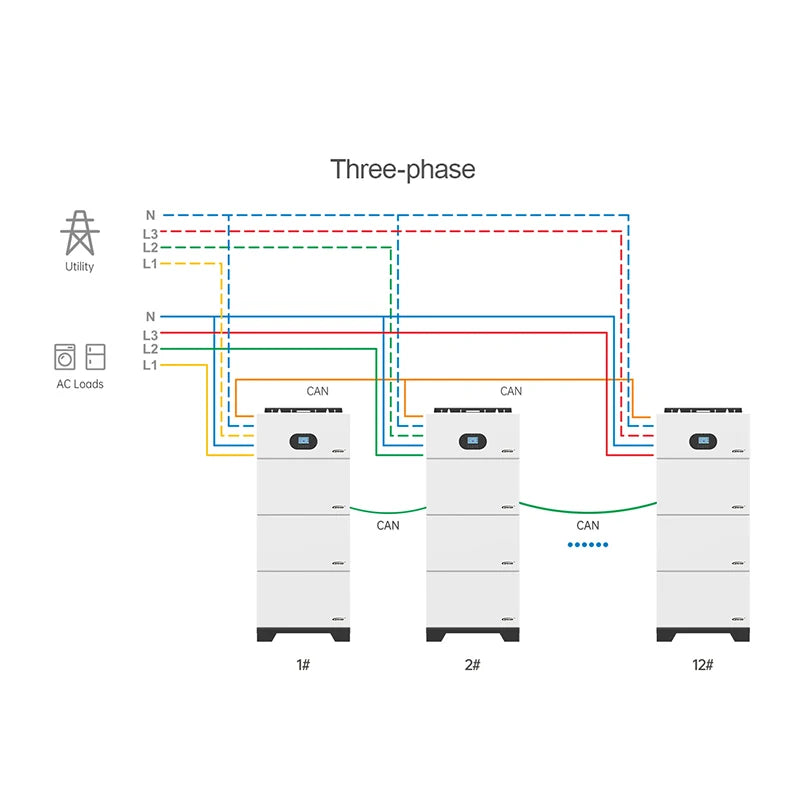

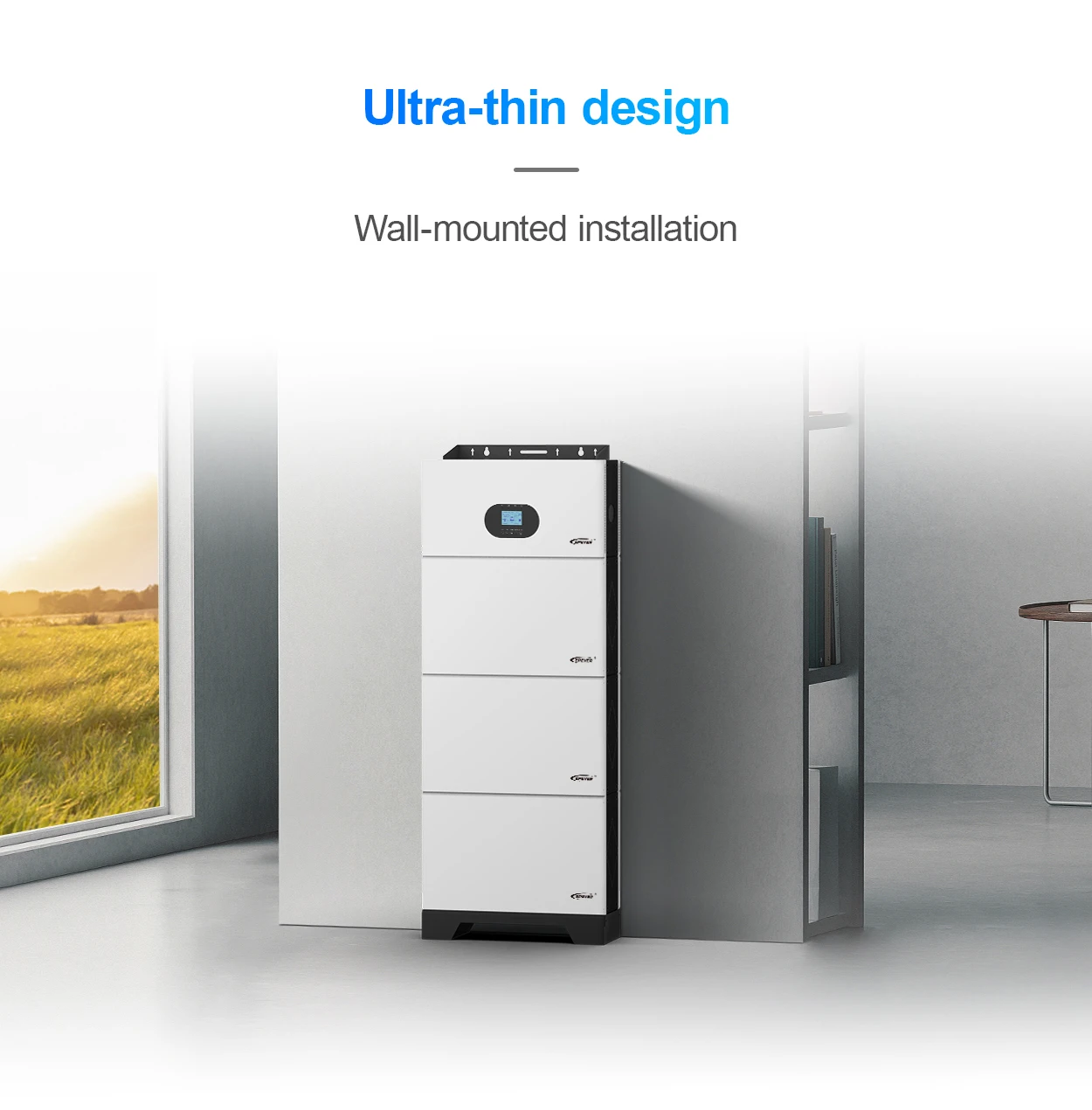

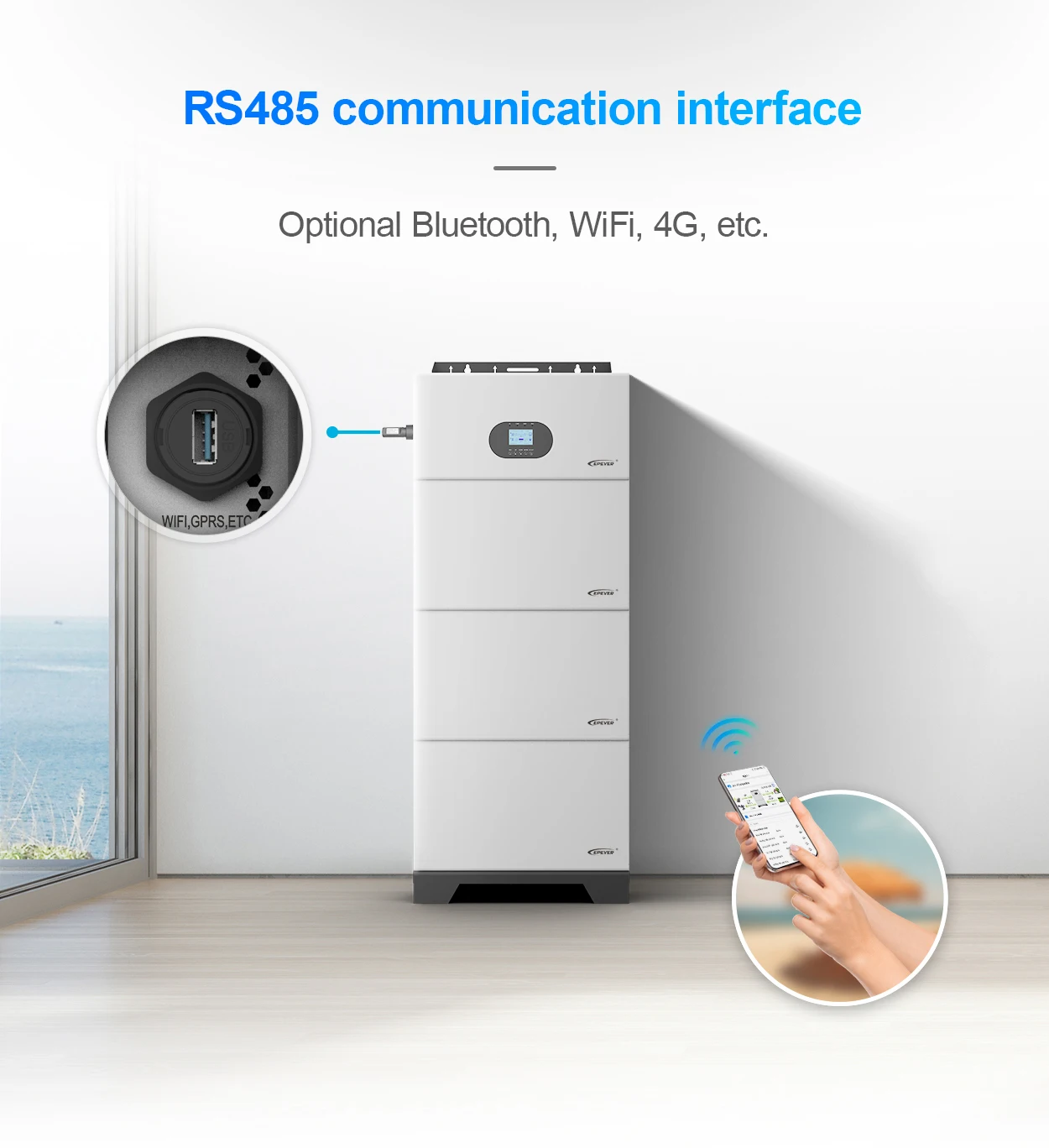

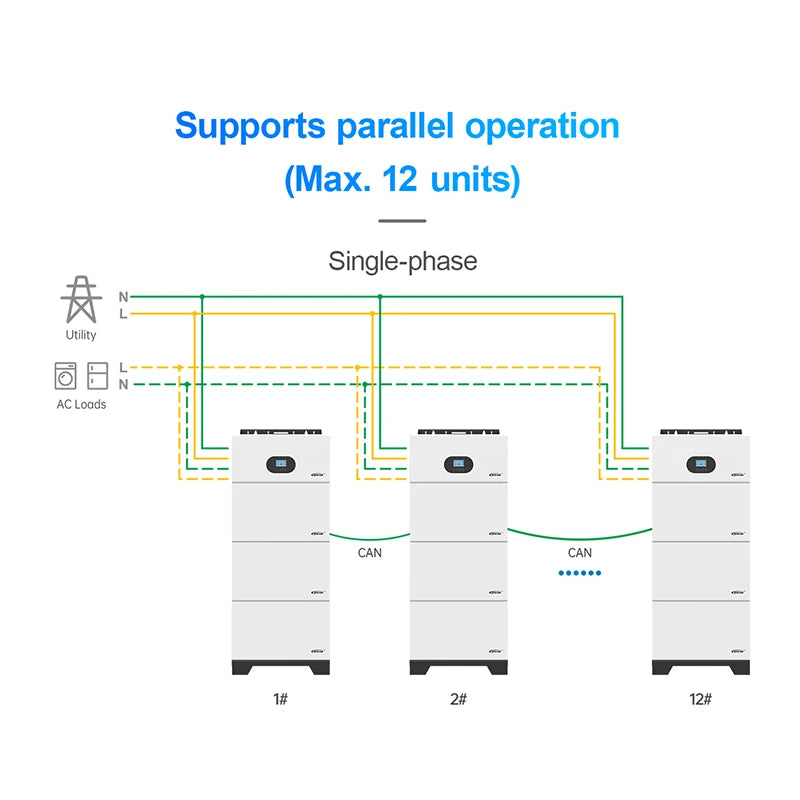

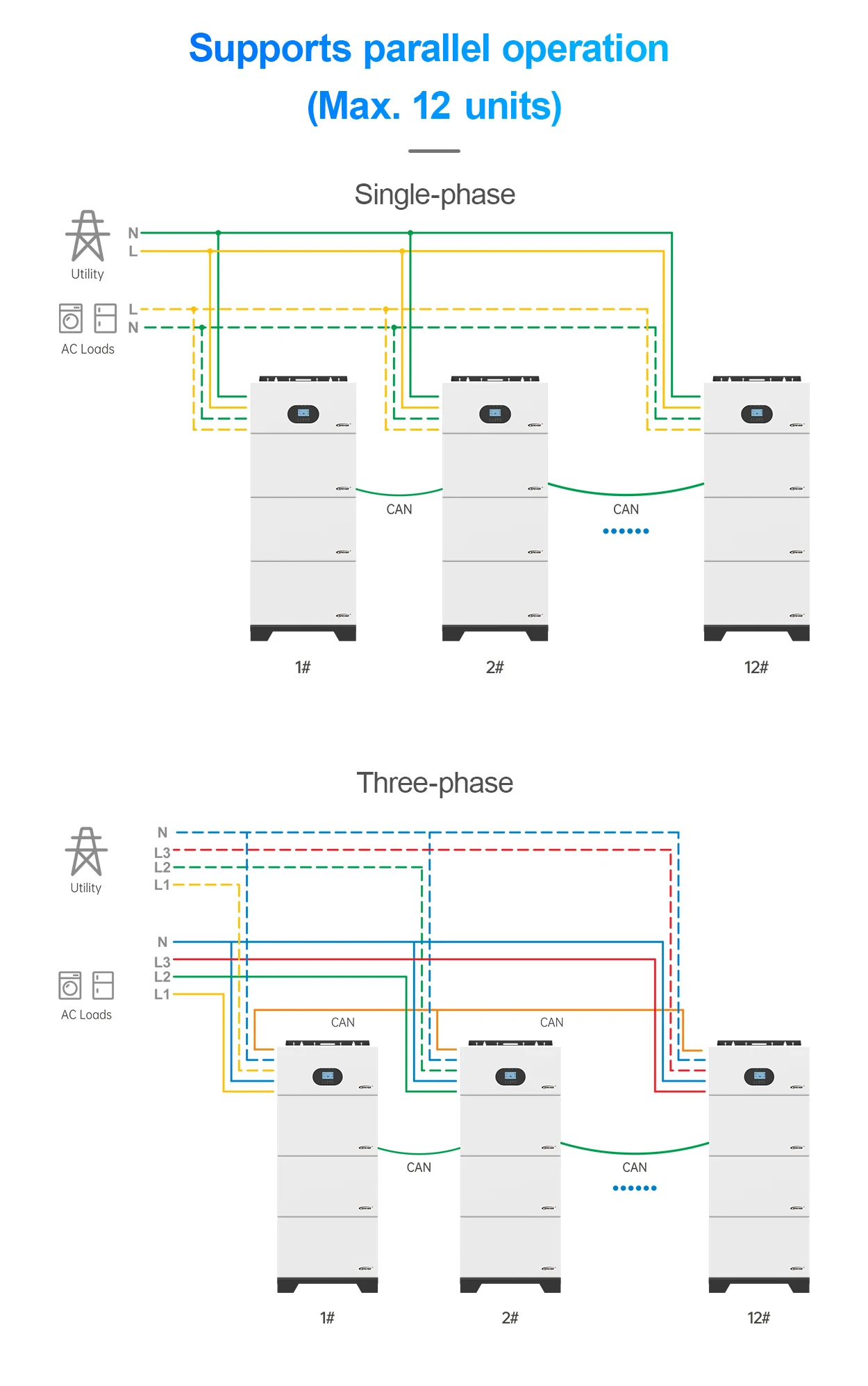

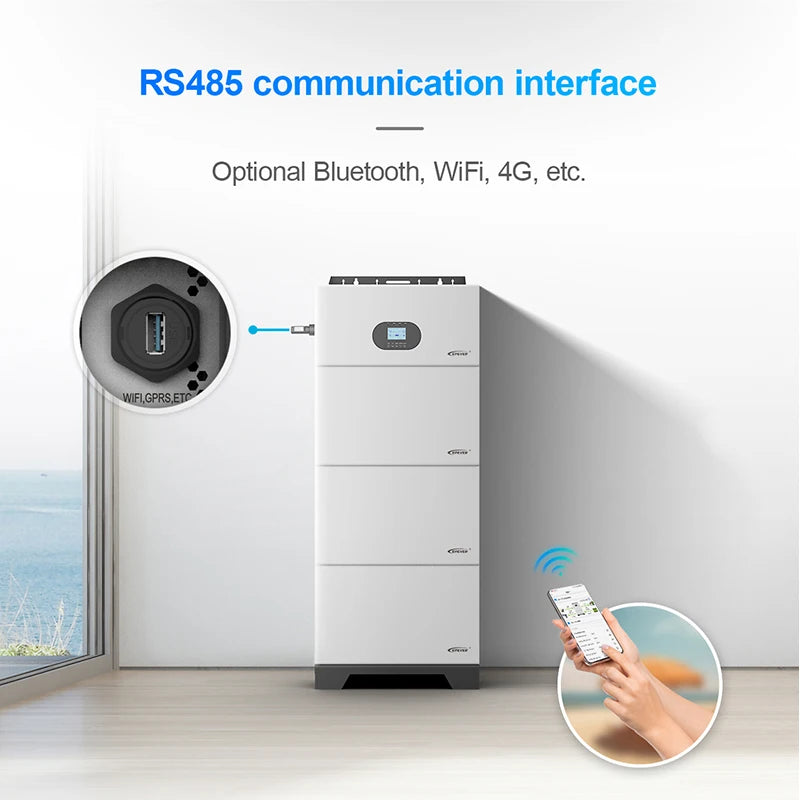

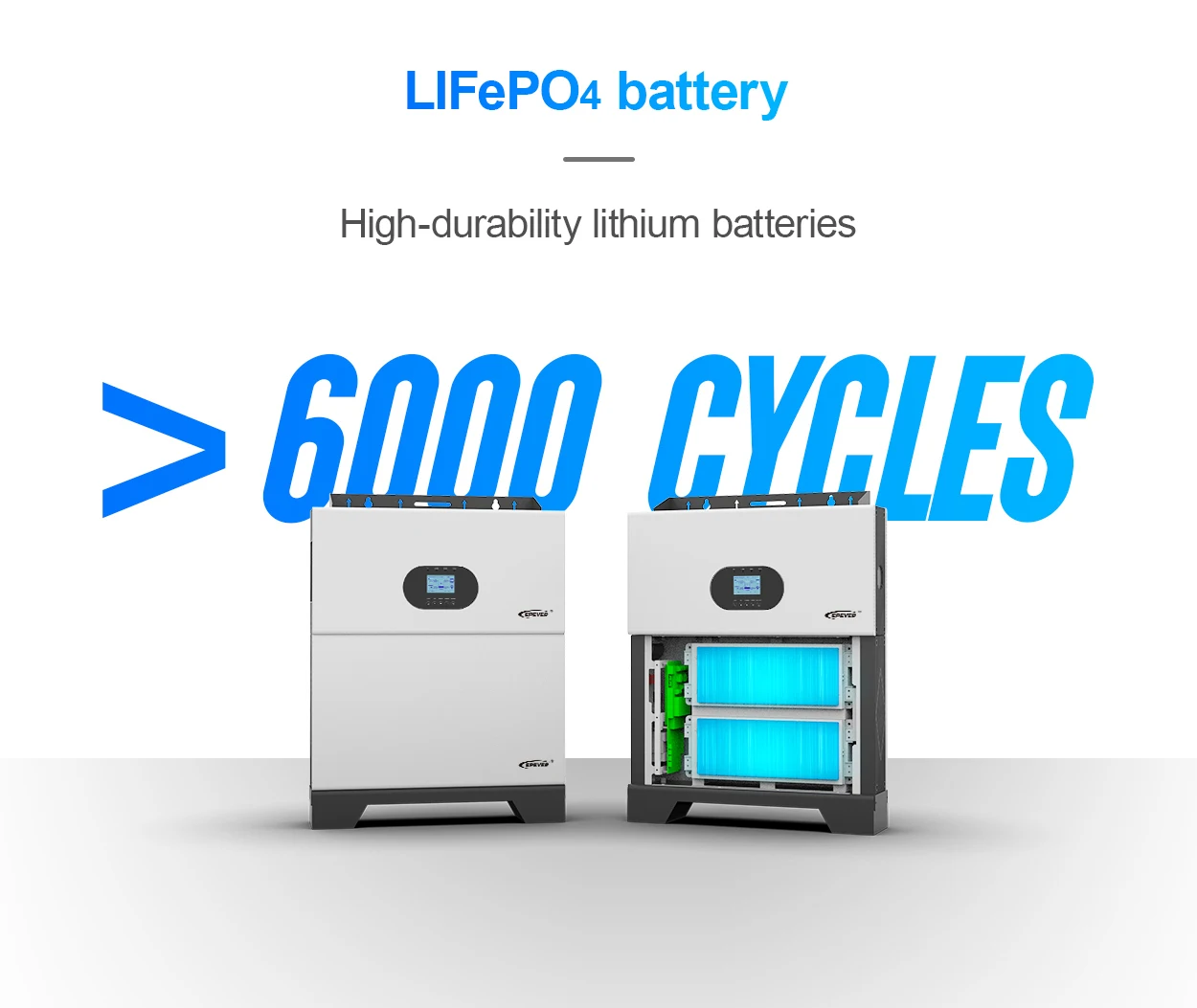

*Ultra-compact design for wall-mounting *High-durability lithium batteries (over 6000 cycles) *Pure sine wave output *Main unit supports single-phase and three-phase parallel operation (up to 12 units) *Dual PV input support enhances PV utilization efficiency *RS485 communication interface, optional Bluetooth, WiFi, 4G,etc. *Remote monitoring via App *Historical data recording function, storage capacity of 25000 records *Comprehensive electronic protection *Operating temperature range: -20℃ to 50℃
Product Description
Technical Specifications

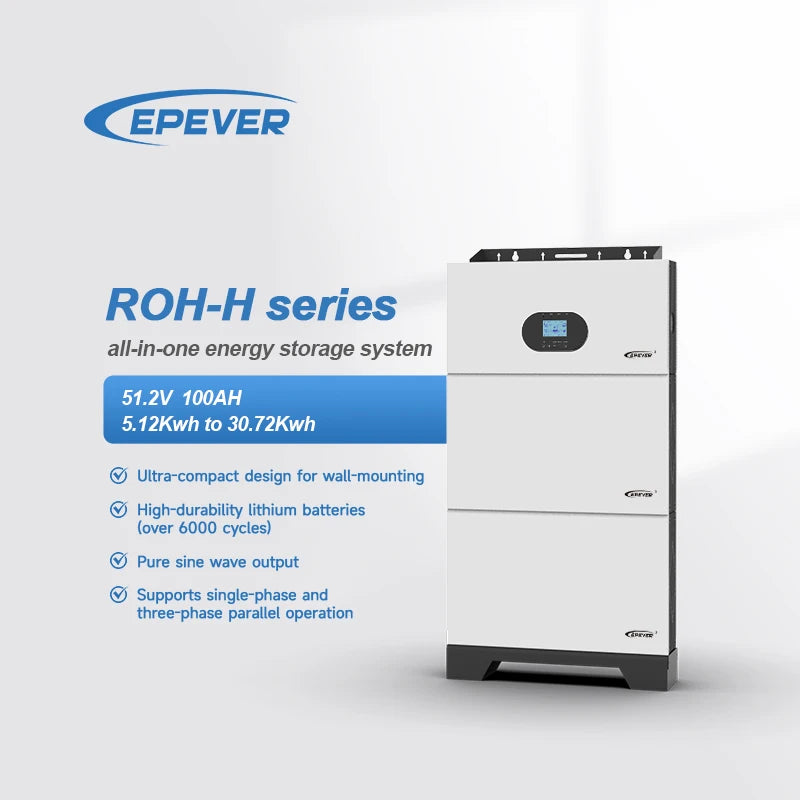

EPEVER ROH-H Series All-in-one Energy Storage System
Model
ROH5542H- 05X1P20
ROH5542H- 10X2P20
ROH5542H- 15X3P20
ROH5542H- 20X4P20
ROH5542H- 25X5P20
ROH5542H- 30X6P20
Utility input






Utility Voltage
176VAC~264VAC (Default), 90VAC~280VAC (Configurable)





Utility Frequency
45Hz~65Hz





Maximum Utility Charging Current
100A





Switch Response Time
Inverter to Utility: 10ms Utility to Inverter: 20ms





Inverter output






Inverter Rated Power (@35℃)
5500W





3-second Transient Surge Output Power
8500W





Inverter Output Voltage
220/230VAC





Inverter Frequency
50/60Hz





Output Voltage Waveform
Pure sine wave





Load Power Factor
0.2~1(VA ≤ Rated output power)





Output Voltage Harmonic
≤3% (48V resistive load)





Distortion Rate






Maximum Load Efficiency
92%





Maximum Inverter Efficiency
94%





Solar controller






PV Maximum Open-circuit Voltage
500V





MPPT Voltage Range
85~400VDC





Number of MPPTs
2





PV Maximum Input Current
15A+15A





PV Maximum Input Power
6000W





PV Maximum Charging Current
100A





MPPT Maximum efficiency
≥99.5%





Battery






Battery Type
LiFePO4 lithium battery





Battery Module
5.12KWH,51.2V/100AH





Number of Modules
1
2
3
4
5
6
Battery Rated Voltage
51.2VDC

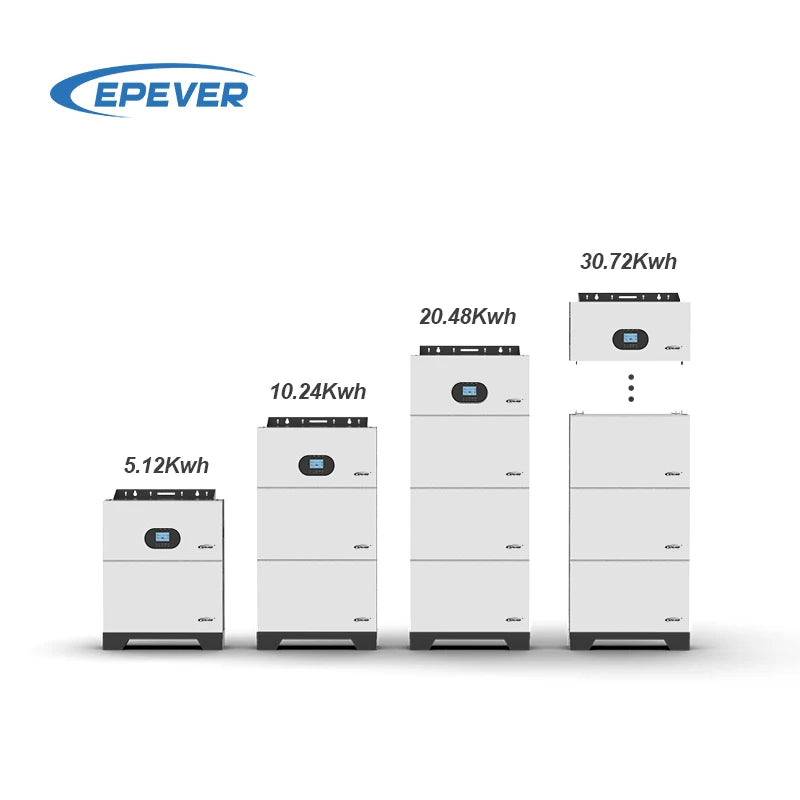

Energy Capacity
5.12KWH
10.24KWH
15.36KWH
20.48KWH
25.6KWH
30.72KWH
Battery Work Voltage Range
Dischargung Mode:0℃~+50℃,Charging Mode:-20℃~+50℃





Others






No-load Losses
<1.0 A





Standby Current
<0.15A





Installation
Hang stack (Stack first, then fix on the wall)





Environmental parameters






Work Temperature Range
-20℃~+50℃





Storage Temperature Range
-25℃~+60℃





Enclosure
IP20





Relative Humidity
< 95%(N.C.)





Altitude
4000m (>2000m Derating)





Mechanical parameters






Dimension (L x W x H)mm
665x160 x833
665x160 x1236
665x160 x1639
665x160 x2042
665x160 x2445
665x160 x2848
N.W of inverter
19.8kg





N.W of complete package
74.4kg
122.8kg
171.2kg
219.6kg
268.0kg
316.4kg
