ANTNX EPEVER 3600W 220V 230V EU Plug Outdoor Camping Solar Generator LiFePO4 Battery Portable Solar Power Station ANTNX.COM

ANTNX EPEVER 3600W 220V 230V EU Plug Outdoor Camping Solar Generator LiFePO4 Battery Portable Solar Power Station ANTNX.COM

$2,240.27 USD
$2,800.34 USD $2,240.27 USD
Sale Sold out
Shipping calculated at checkout.

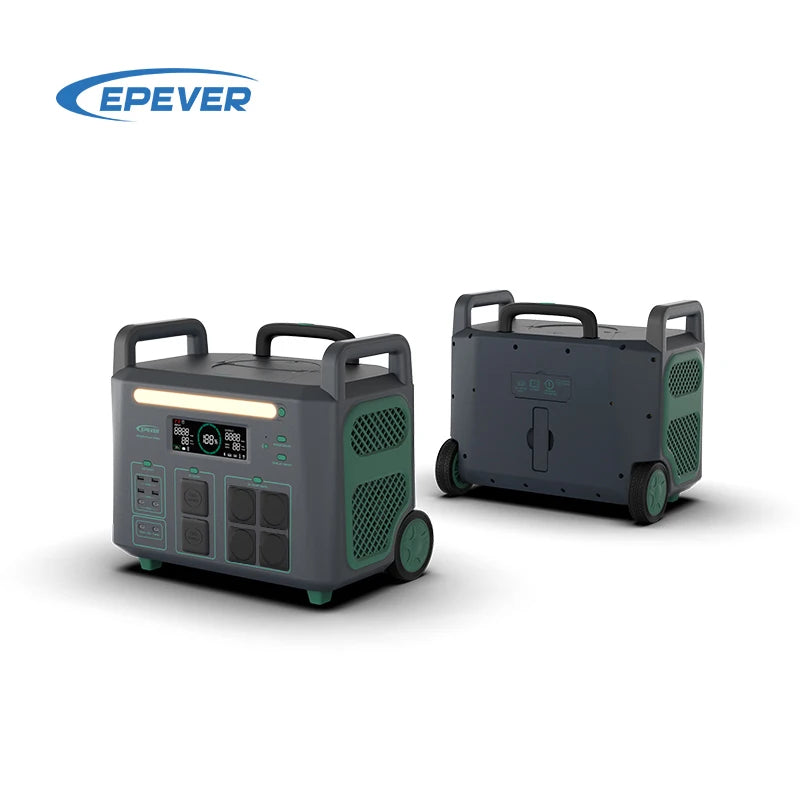

EPEVER ATZ series portable energy storage system helps you to break free from energy concerns!

Compact & Portable

LED Ambient Lighting, Dual-Wheel Handle Design, Heavy-Duty Casters
ATZ series delivers impressive power, reaching up to 3600W and peaking at 5400W
Technical Specifications
Product model
ATZ3600EU
Rated AC input voltage
230VAC
AC voltage range
200VAC to 240VAC
Breakdown voltage
290VAC
AC input frequency
50Hz/60Hz
Rated AC input power
2300W
Overload protection relay
Yes
Maximum withstand voltage at PV input terminal
60VDC
PV controller type
MPPT
MPPT maximum efficiency
≥99.5%
MPPT voltage range
11VDC to 60VDC
Number of MPPTs
1
Maximum PV charging current
20A (when the PV input voltage is less than 30VDC, the maximum PV charging current is 10A)
Maximum DC input power
1200W
Car charging
12VDC/10A
Rated output power (@25℃)
3600W (2300W in bypass mode)
3-second transient surge output power
5400W
Output voltage level
230VAC±3%
Output frequency level
It is 50 Hz in default, can be set to 60 Hz, error ± 0.2%
Output voltage waveform
Pure sine wave
Output voltage harmonic distortion
≤3% (pure resistive load)
USB-A output
5VDC/3A*2 (four USB-A interfaces (sharing a 5VDC/3A for every two interfaces))
USB-C output
5VDC/3A (two USB-C interfaces (sharing a 5VDC/3A power supply))
USB-C PD output
PD 100W * 2
(The protocol supports PD2.0, PD3.0. QC2.0, QC3.0, QC4+ and APPLE 5V/2.4A)
Cigarette lighter output
12VDC/10A*2
Battery type
Lithium iron phosphate
Rated voltage
51.2VDC
Range of operating voltage
40.0VDC to 58.4VDC
Range of operating temperature
Discharging: -20℃ to 50℃; Charging: 0℃ to 50℃
Nominal capacity
2048Wh

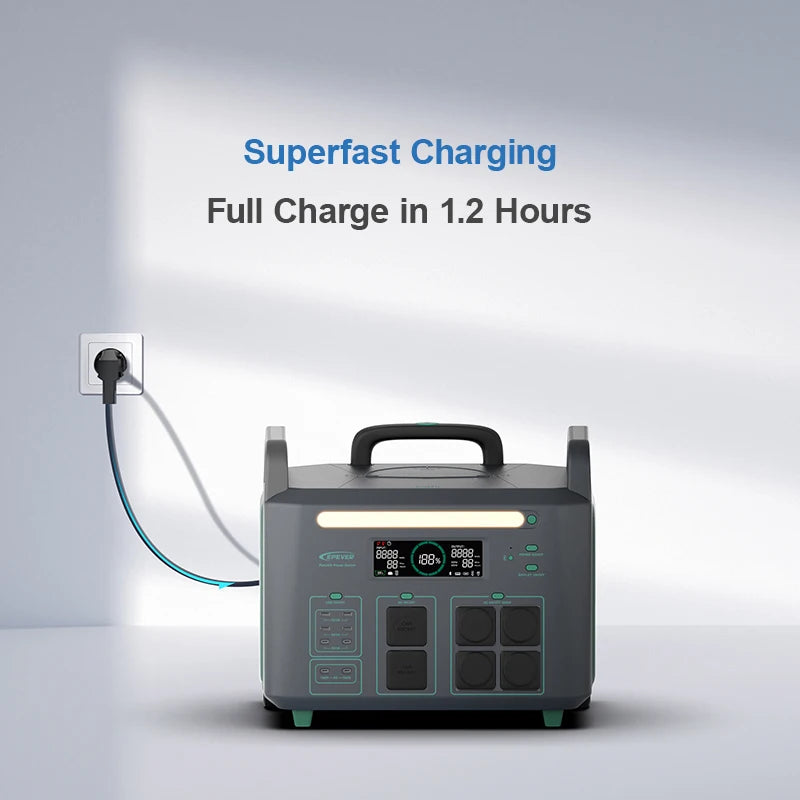

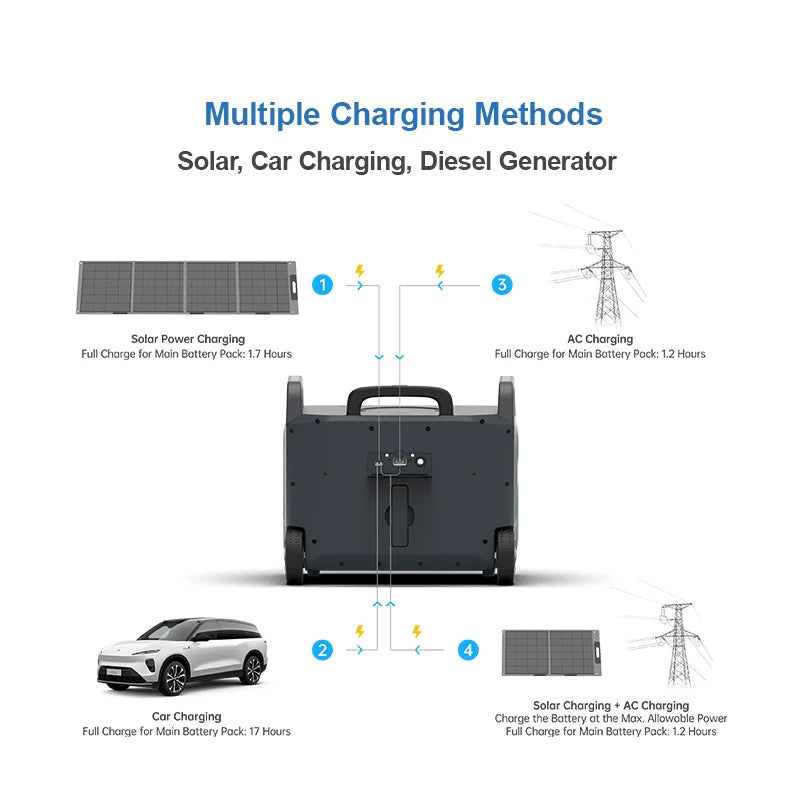

AC charging
1.2 hours
Car charging
17 hours
Solar charging
1.7 hours
(1200W input power)
AC charging plus maximum PV charging
1.2 hours
Relative humidity
＜80%
Altitude
＜4000 meters (derating is required for operation at greater than 2000m)
Protection degree
IP20
Communication mode
Bluetooth
External dimensions
456x290x391mm (without secondary battery pack)
(length x width x height)
456x290x537mm (with secondary battery pack)
Net weight
29.0kg (without secondary battery pack)
44.5Kg (with secondary battery pack)
More Details Please Send Inquiry to Us!
