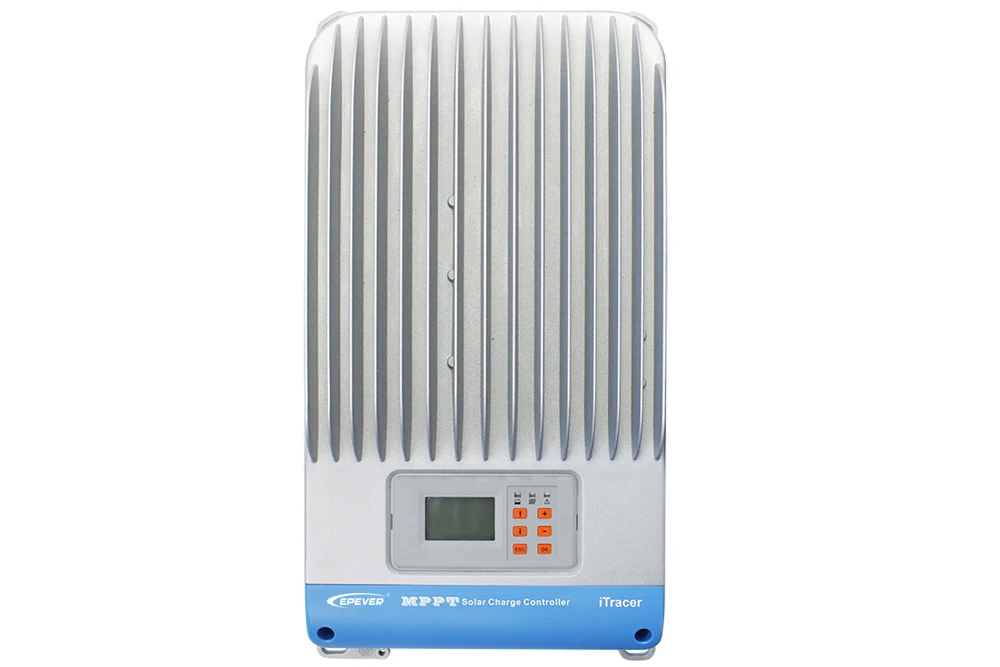

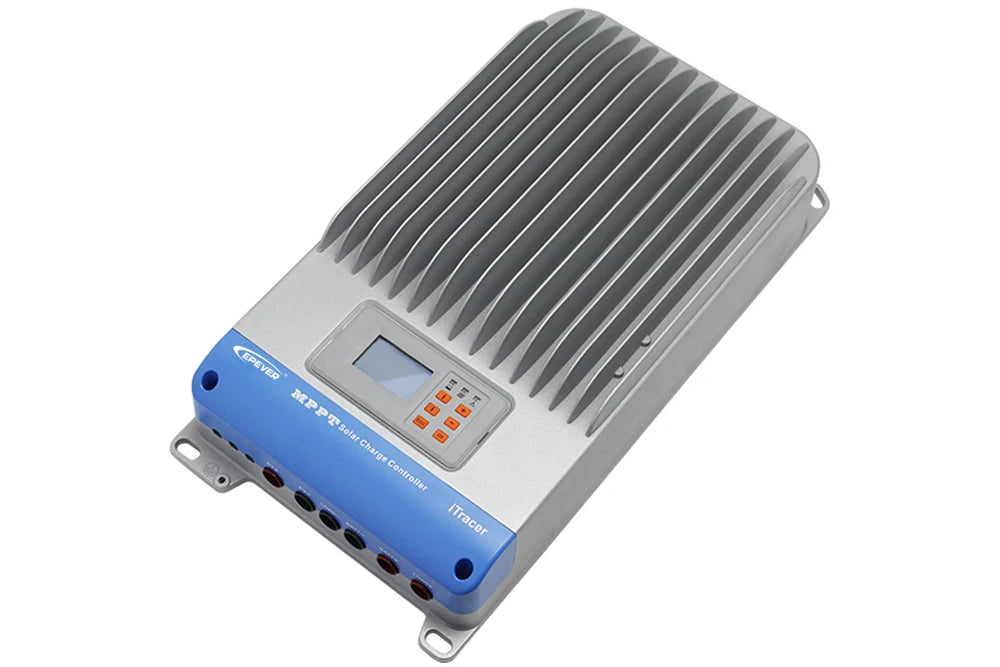

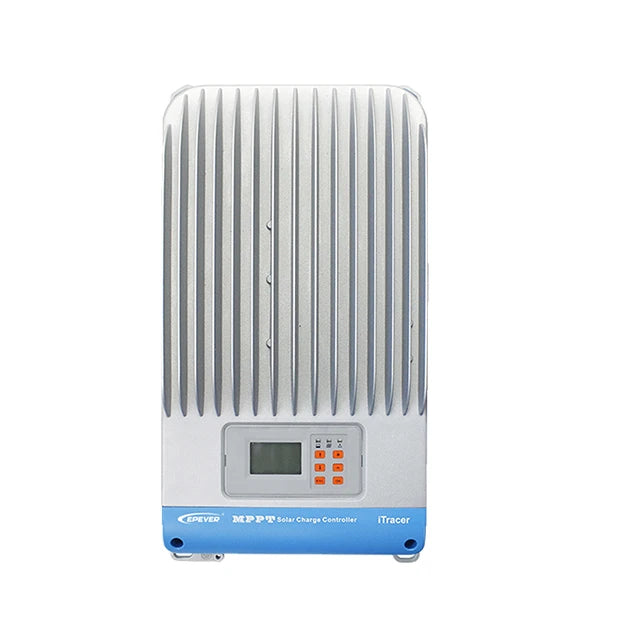

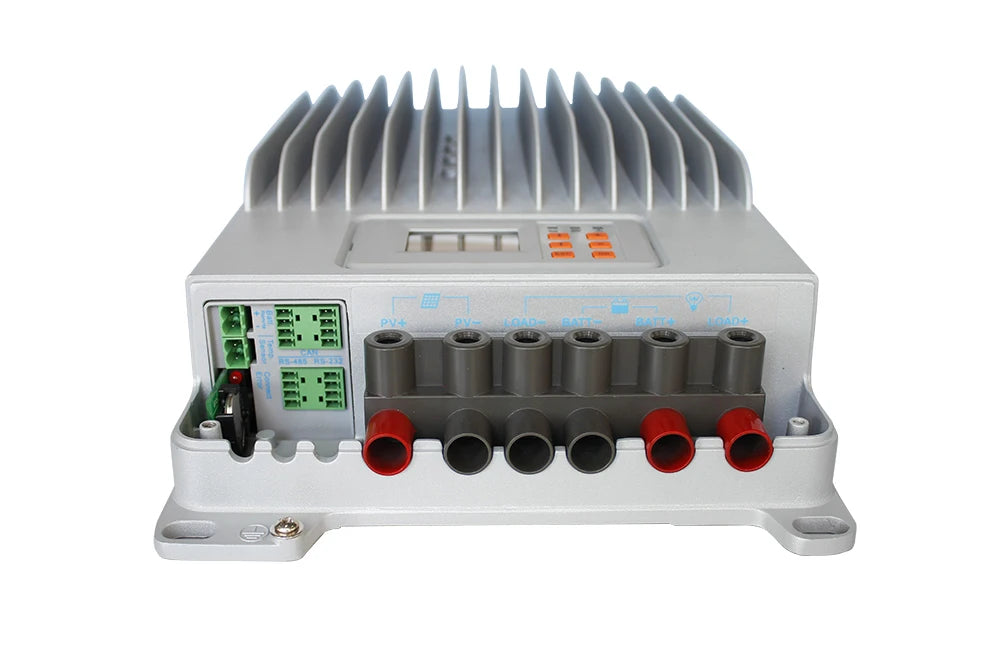

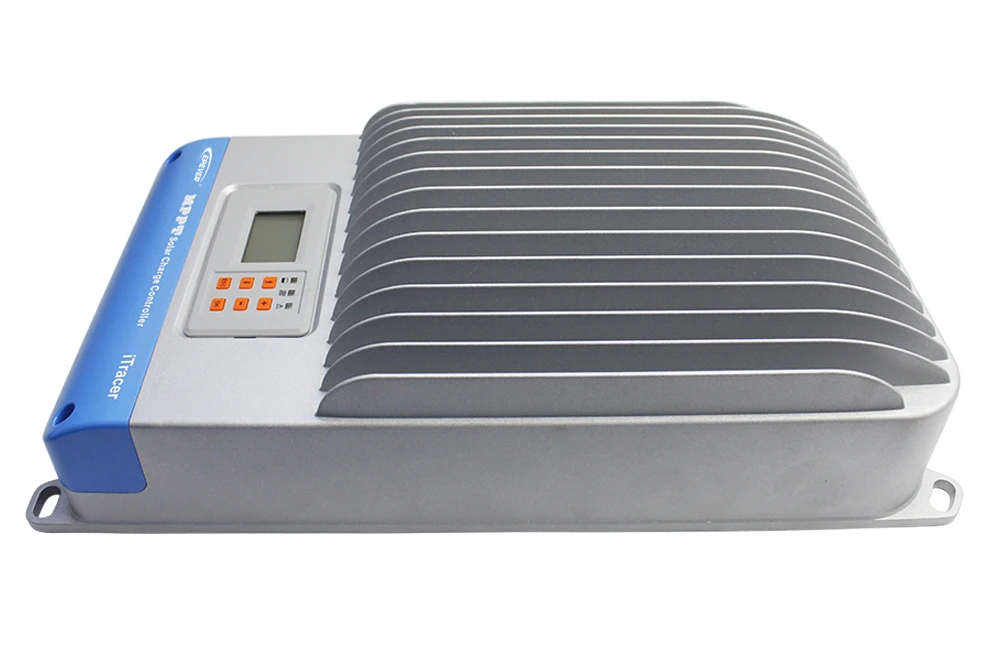

ANTNX Epever 12V/24V/36V/48V 60A Mppt Solar Charge Controller It6415Nd For Solar Station ANTNX.COM

ANTNX Epever 12V/24V/36V/48V 60A Mppt Solar Charge Controller It6415Nd For Solar Station ANTNX.COM

$1,028.24 USD
$1,285.31 USD $1,028.24 USD
Sale Sold out
Shipping calculated at checkout.
Details Images
Technical Specifications
Model
IT6415ND
Nominal system voltage
12/24/36/48VDC
Battery type
Sealed(Default)/Gel/Flooded/User
Battery input voltage range
8~68V
Rated charge current
60A
Rated discharge current
60A
Max. conversion efficiency
≤98.0%
Tracking efficiency
≥99.5%
Max. PV open circuit voltage
150V( At minimum operating environment temperature) 138V(At 25℃ environment temperature)
MPP voltage range
(Battery voltage+2V)～108V
Rated charge powe
800W/12V;1600W/24V;2400W/36V;3200W/48V
Equalization voltage
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
Boost voltage
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
Float Voltage
Gel/Sealed/Flooded:13.8V,User-defined:9-17V
Low voltage reconnect voltage
Gel/Sealed/Flooded:12.6V,User-defined:9-17V
Low voltage disconnect voltage
Gel/Sealed/Flooded:11.1V,User-defined:9-17V
Self-consumption
1.4W～2.6W
Temperature compensation
-3mV/℃/2V (Default)
Relative humidity
≤95%, N.C.
Enclosure
IP20
Communication port
RS485, RS232
Grounding
Common Negative
Operating temperature range
- 25℃～+50℃
Dimensions(LxWxH)mm
440×231×110
Net weight
5.9kg
Our Factory
HUIZHOU EPEVER TECHNOLOGY CO., LTD. is a new energy factory integrating product design, research and development, production, sales and service. Focus on photovoltaic off-grid controller, inverter, control inverter, photovoltaic energy storage inverter and photovoltaic power generation solutions

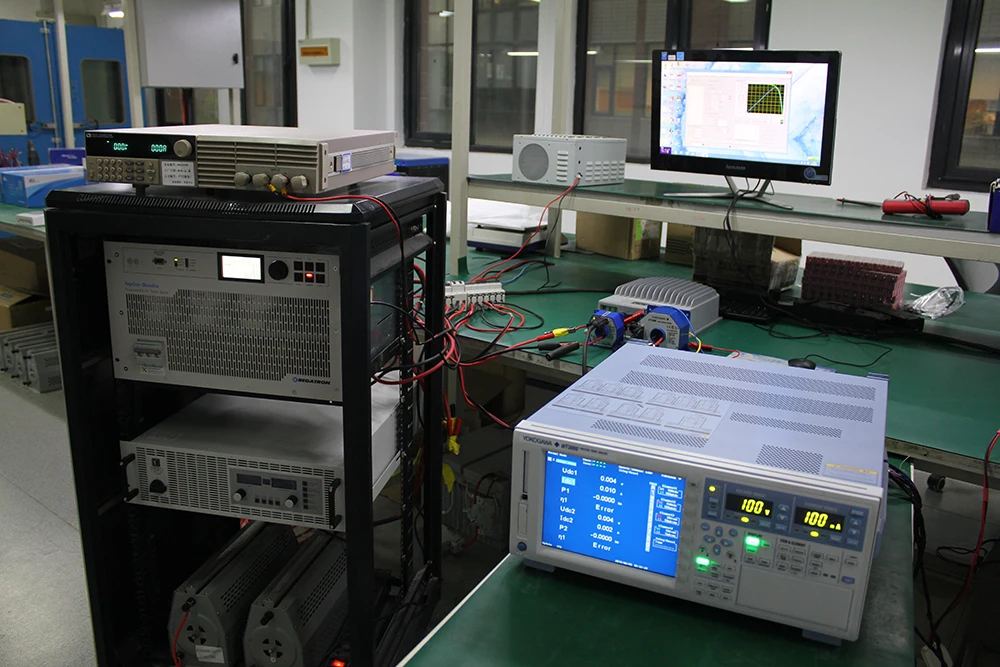

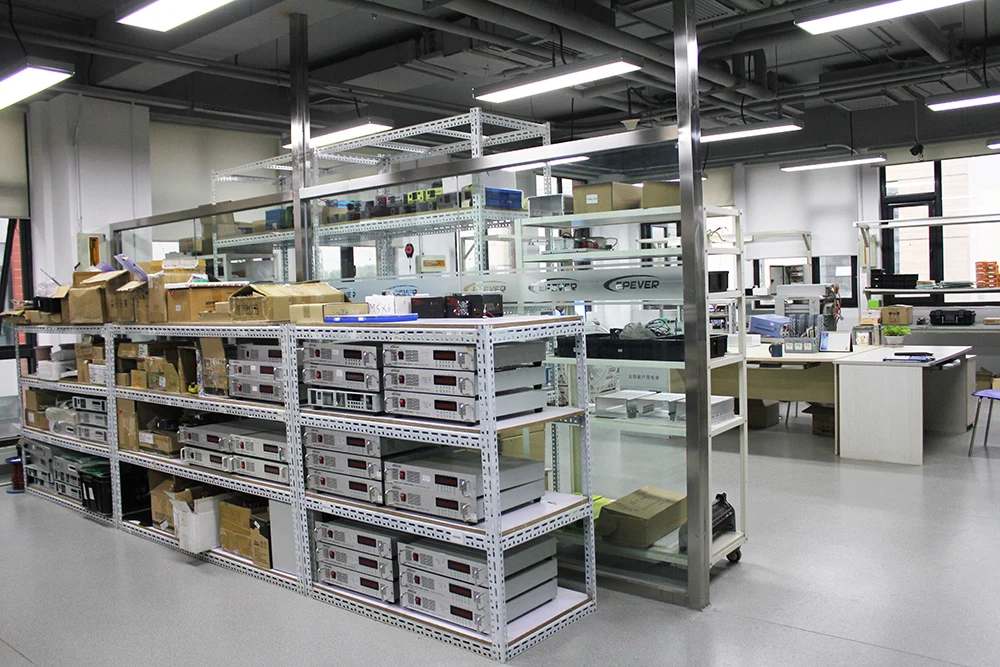

Research and development

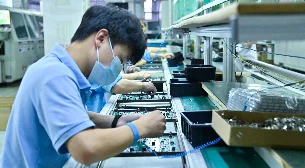

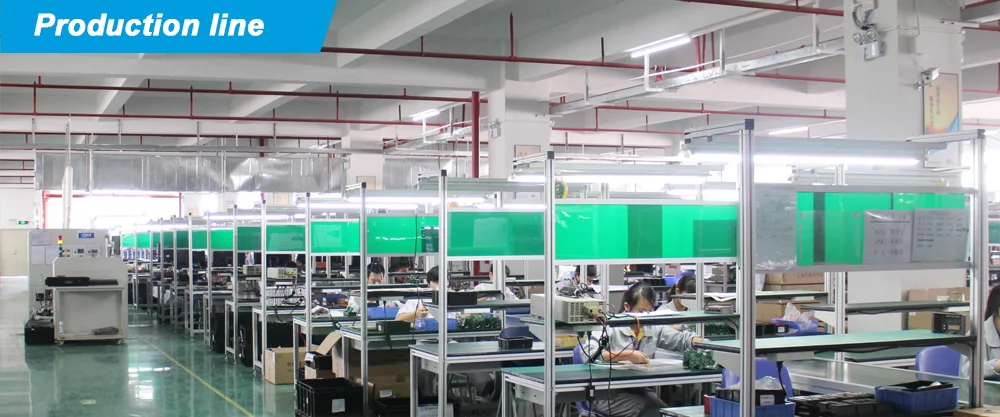

Production line

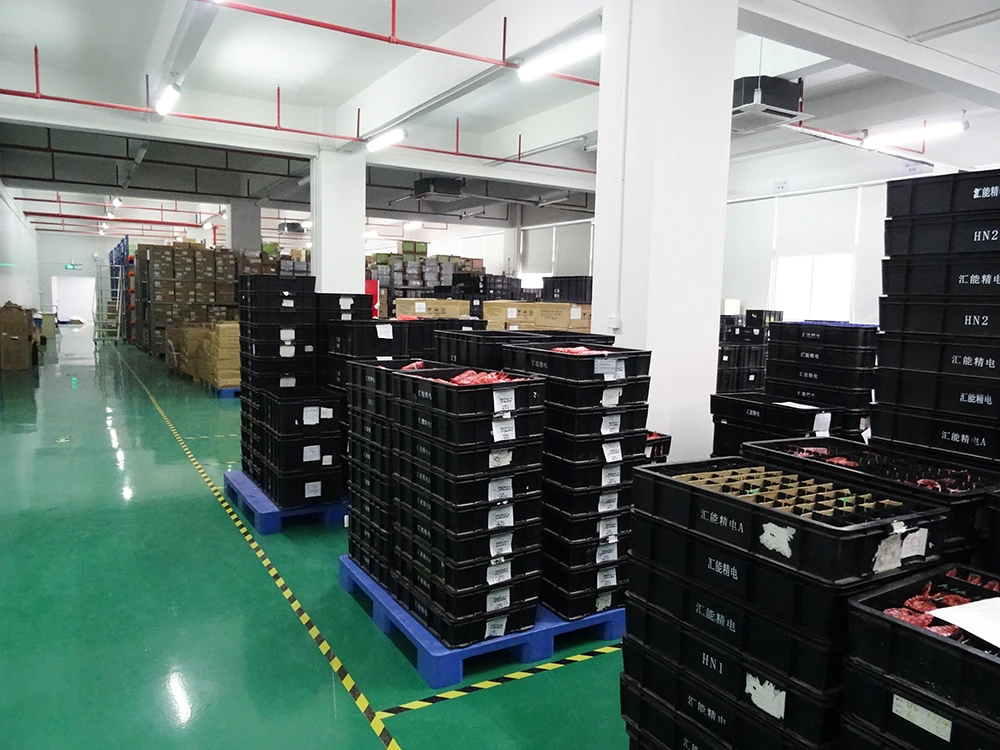

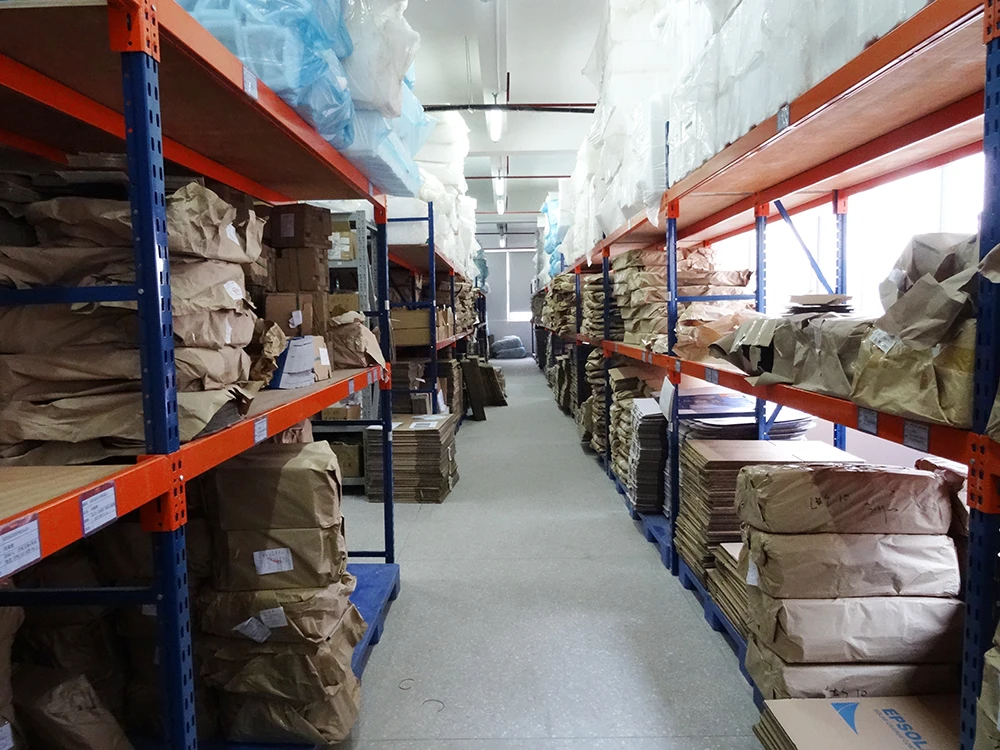

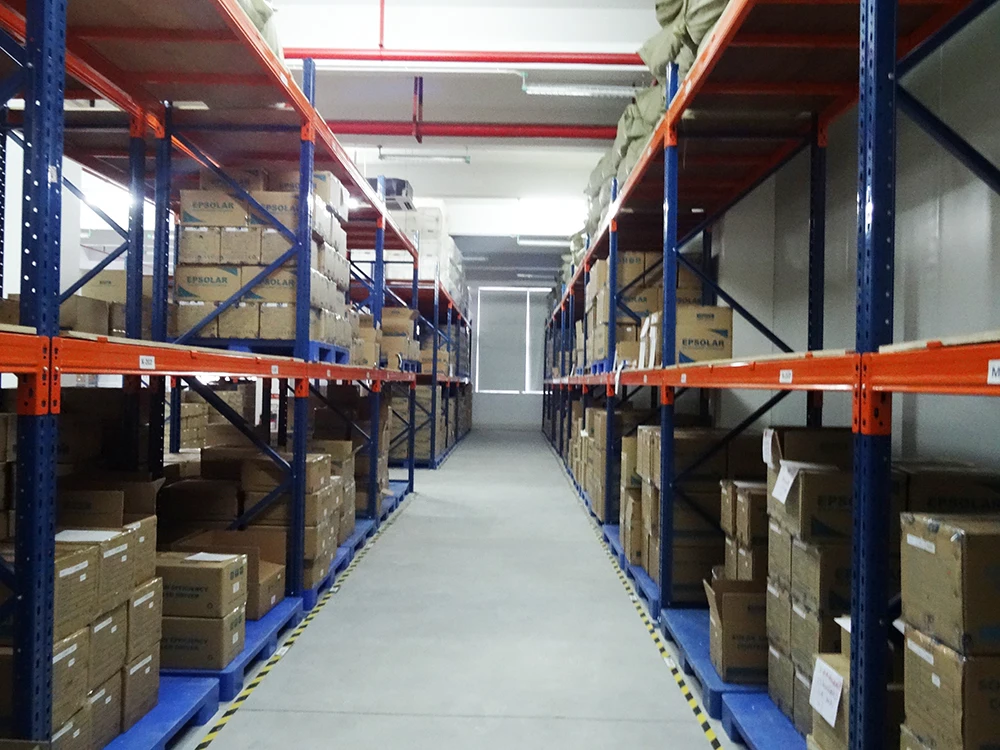

Warehouse
Quality inspection

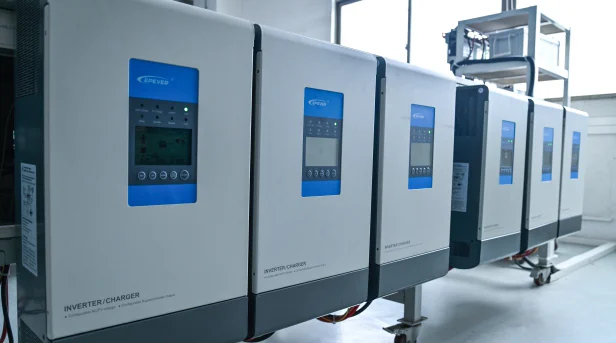

Exhibition
