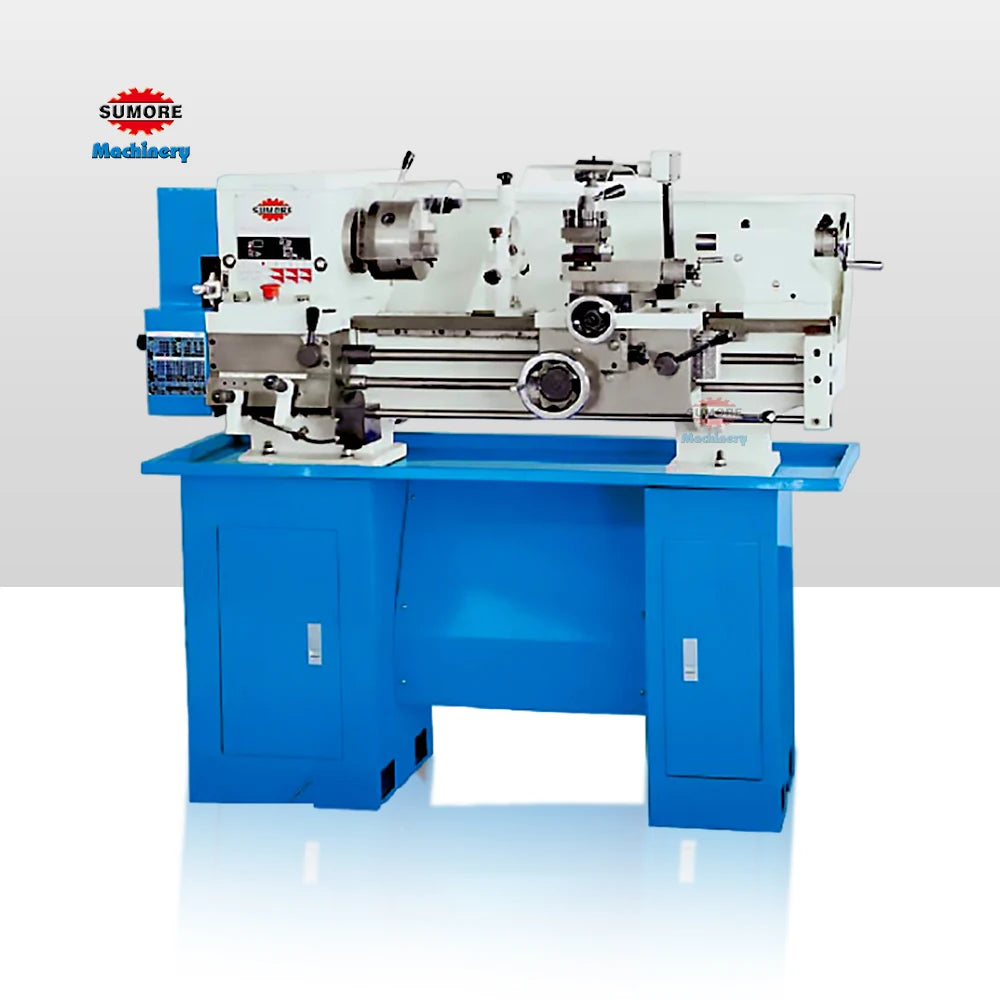

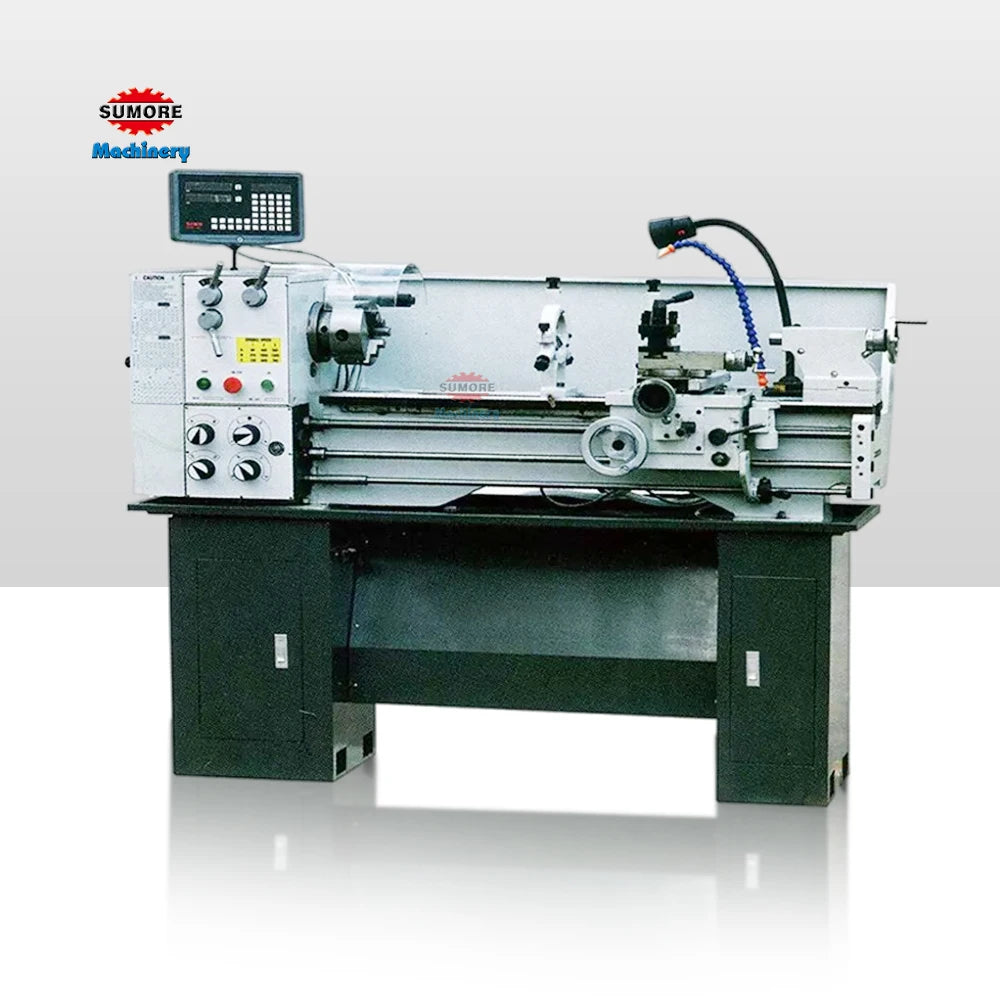

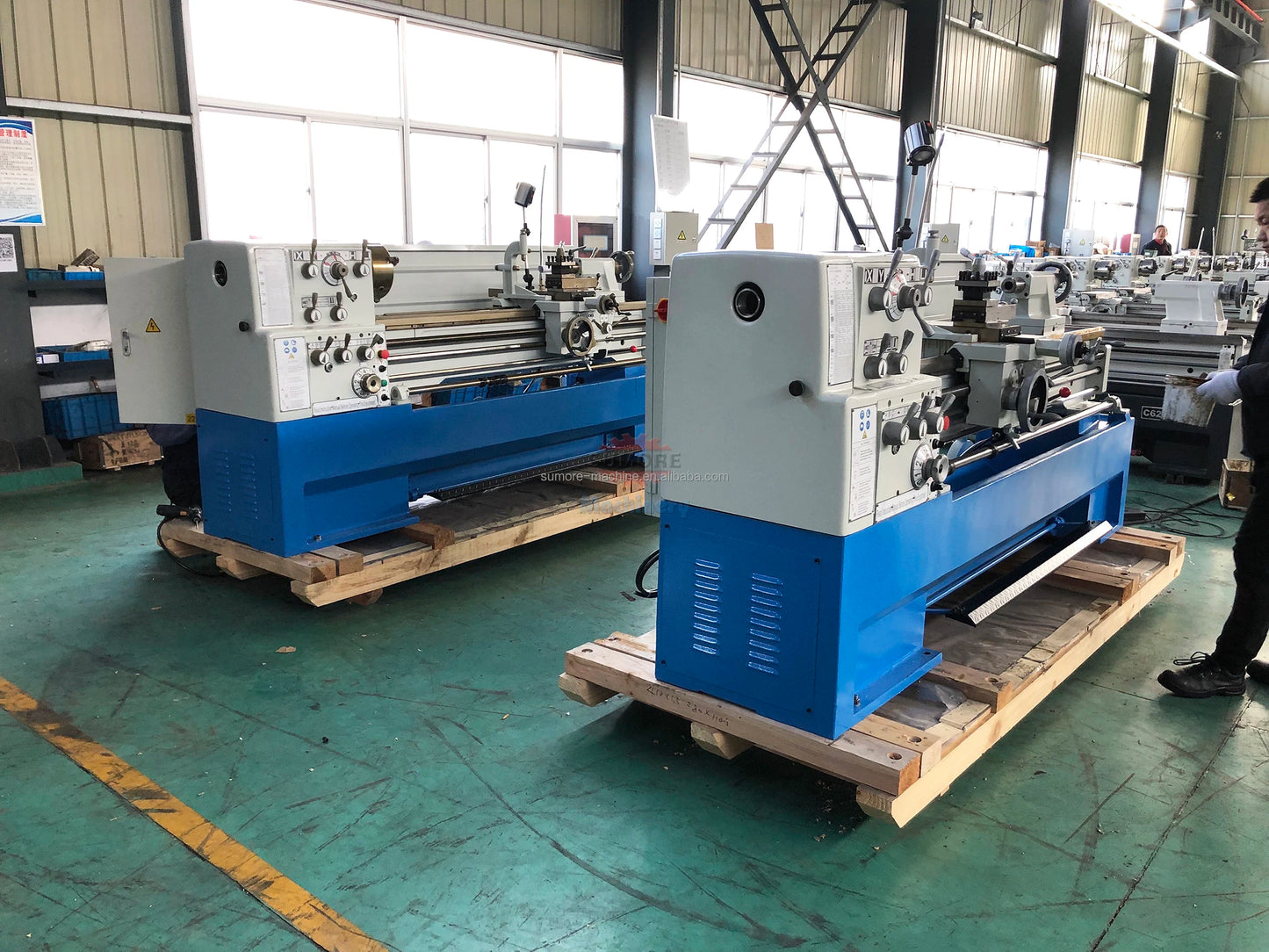

ANTNX CZ300 (CZ1224) CZ1237 Manual Precision Gear Head Engine Metal Lathe/torno Para Metal ANTNX.COM

ANTNX CZ300 (CZ1224) CZ1237 Manual Precision Gear Head Engine Metal Lathe/torno Para Metal ANTNX.COM

$5,848.55 USD
$7,310.68 USD $5,848.55 USD
Sale Sold out
Shipping calculated at checkout.
Products Description

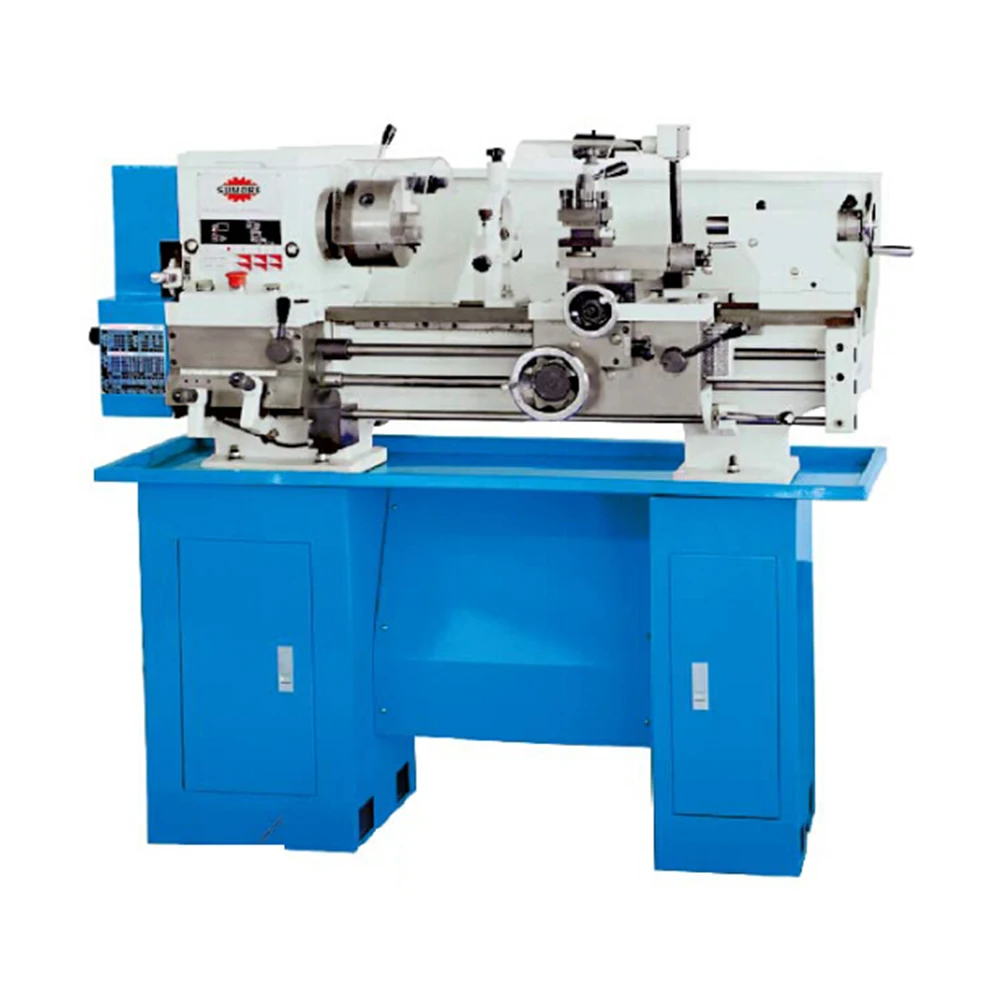

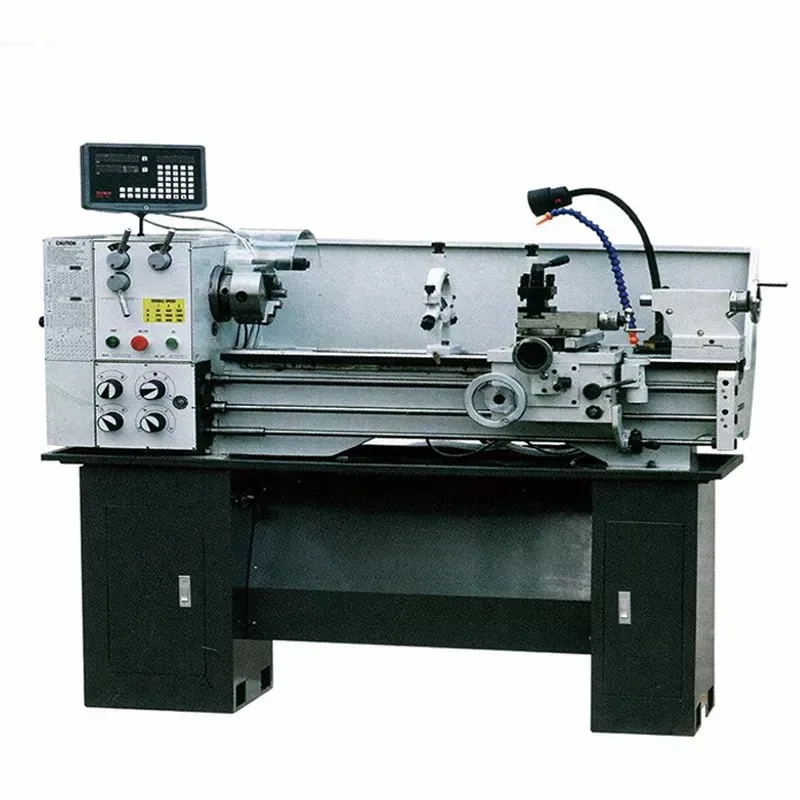

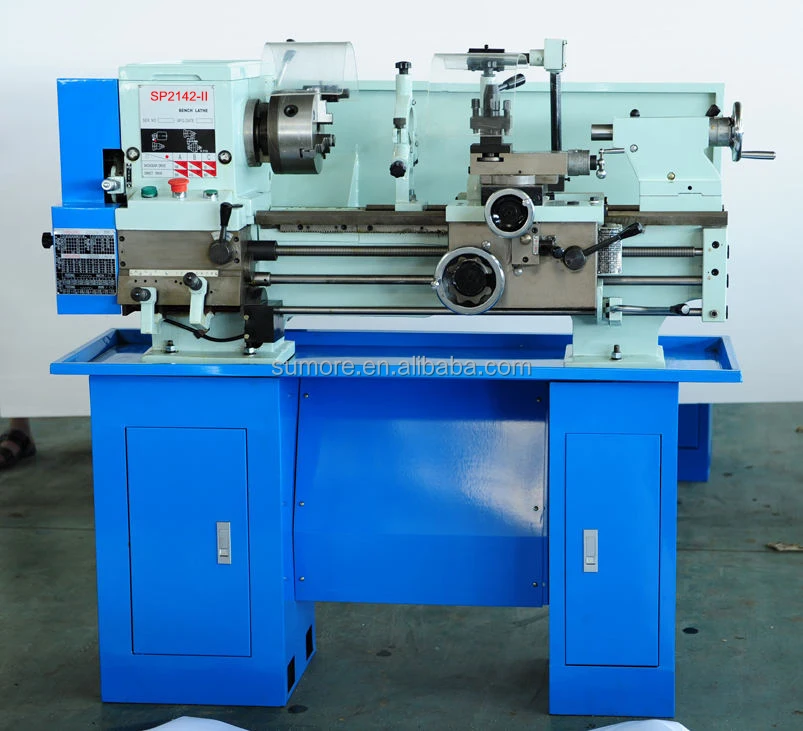

SP2142 SUMORE new product 530mm/940mm Universal hobby medium lathe machine 36mm bore metal lathe for sale !!!!!!

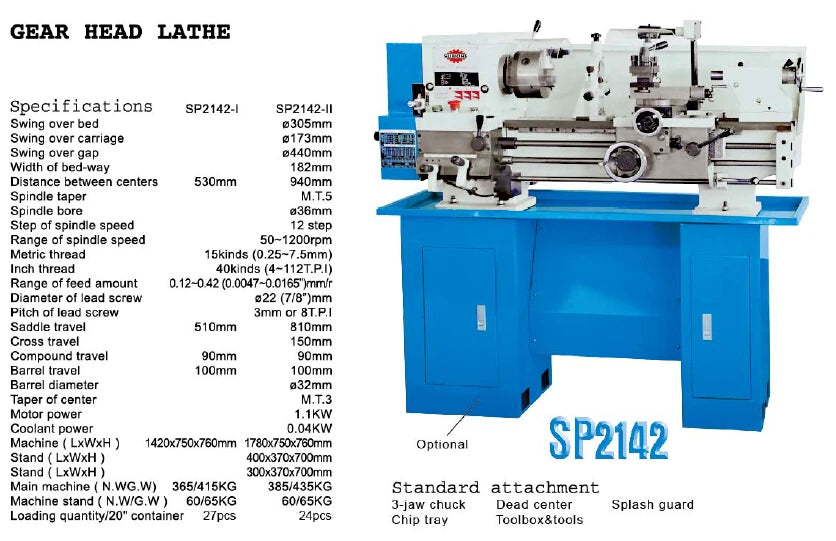

Product Paramenters
Model
SP2142-I
SP2142-II
Max. Swing over bed
305mm

Swing over Carriage
173mm

Max. Swing over gap
440mm

Width of bed
182mm

Distance between centers
530mm
940mm
Spindle taper
MT5

Spindle bore
36mm

spindle speed
12 step

Range of spindle speed
50~1200r/min

Range of Imperial thread
40kinds(4~112T.P.I)

Range of Metric thread
15kinds (0.25~7.5mm)

Range of feed amount
0.12~0.42 (0.0047"~0.0165)

Diameter of lead screw
φ22(7/8")

Pitch of lead screw
3mm or 8T.P.I

Saddle travel
510mm
810mm
Cross slide travel
150mm

Compound travel
90mm
85mm
Barrel travel
100mm
95mm
Barrel diameter
32mm

Taper of tailstock quill
MT3

Motor power
1.1kw

Coolant power
0.04(0.055HP)

Machine size
1420×750×760mm
1780×750×760mm
Stand left
400×370×700

Stand right
300×370×700

Machine weight (N.W/G.W)
365/415
385/435
Stand (N.W/G.W)
60/65

Loading amount
24pcs/20'
27pcs/20'

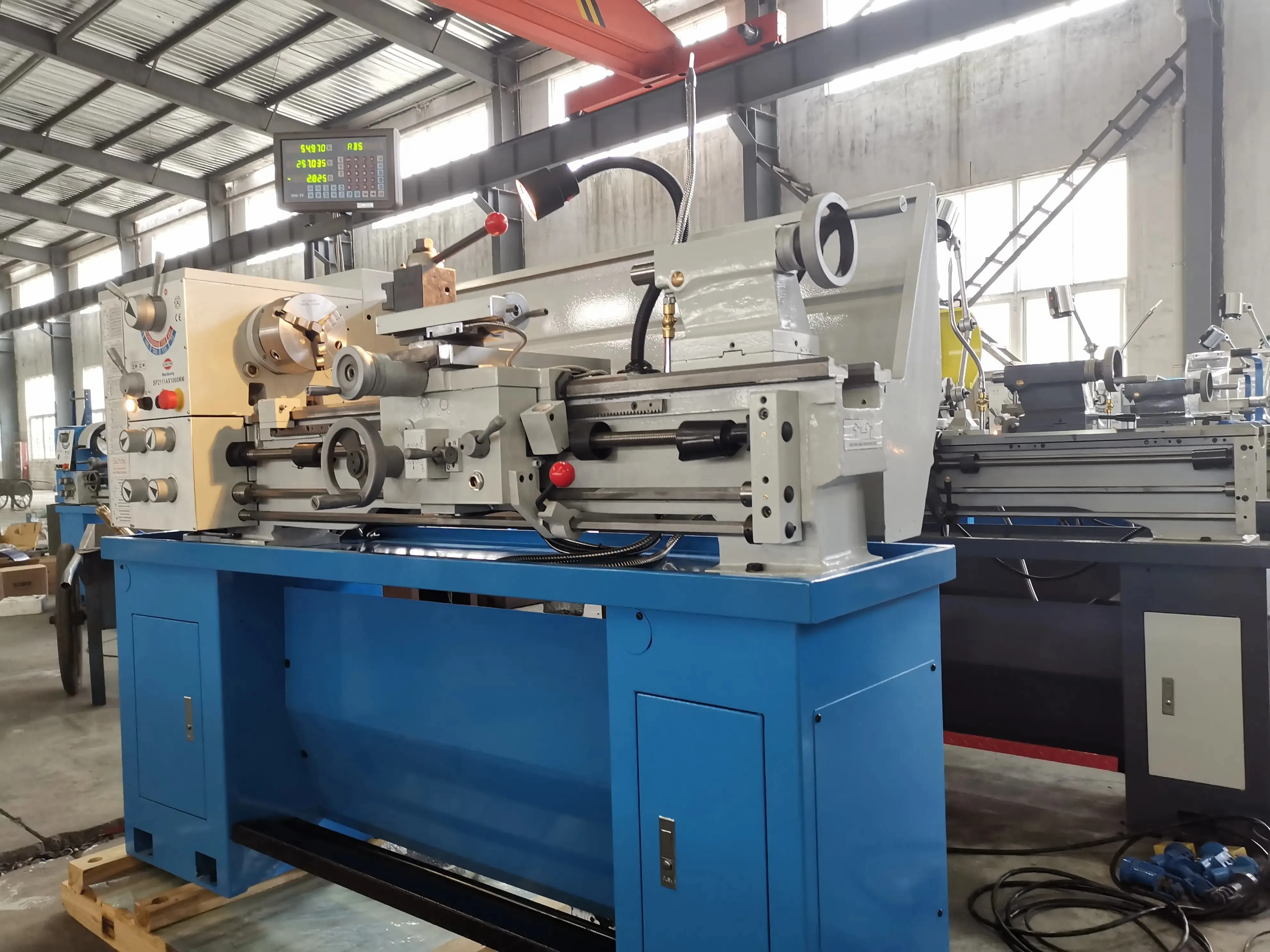

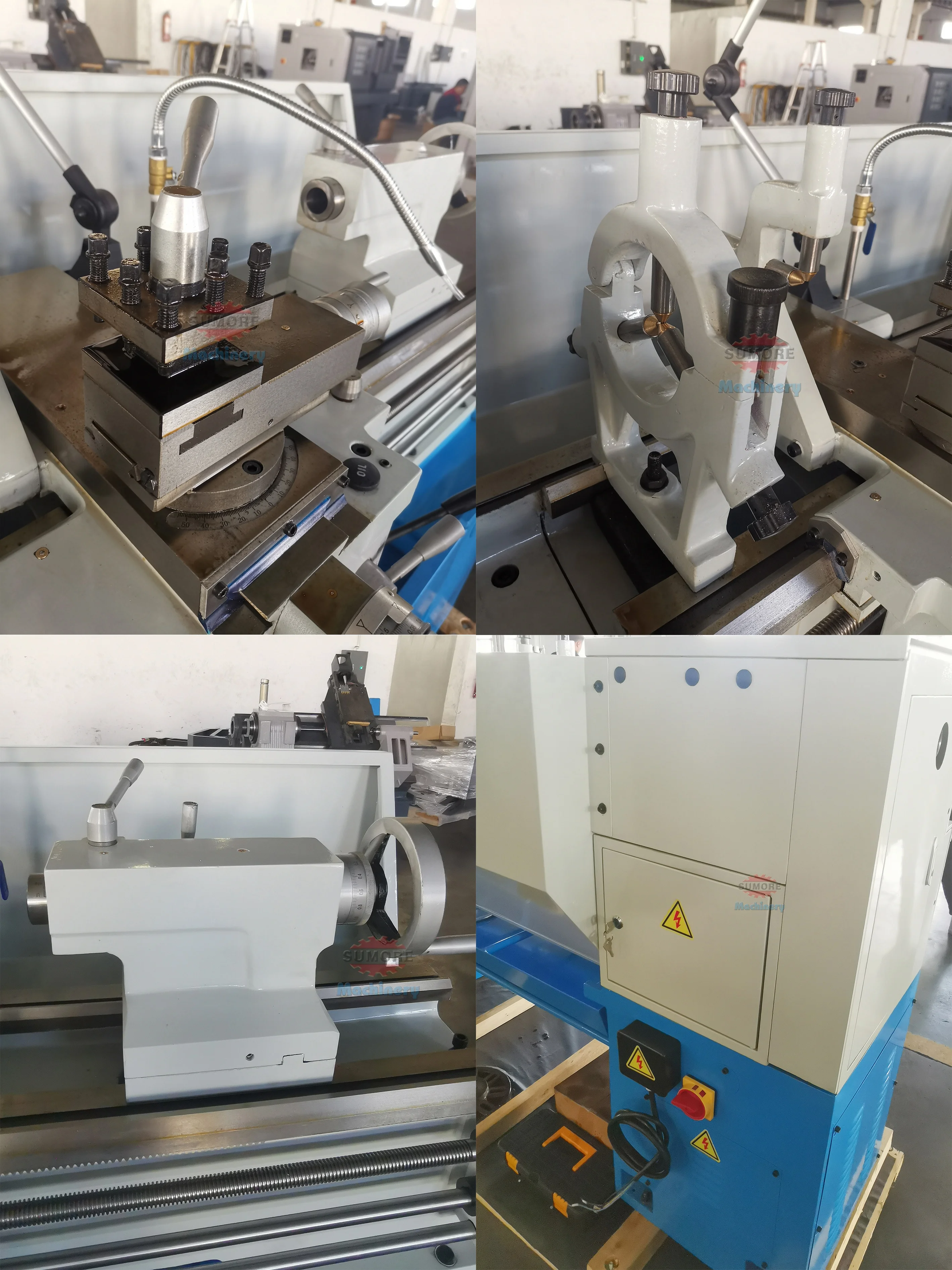

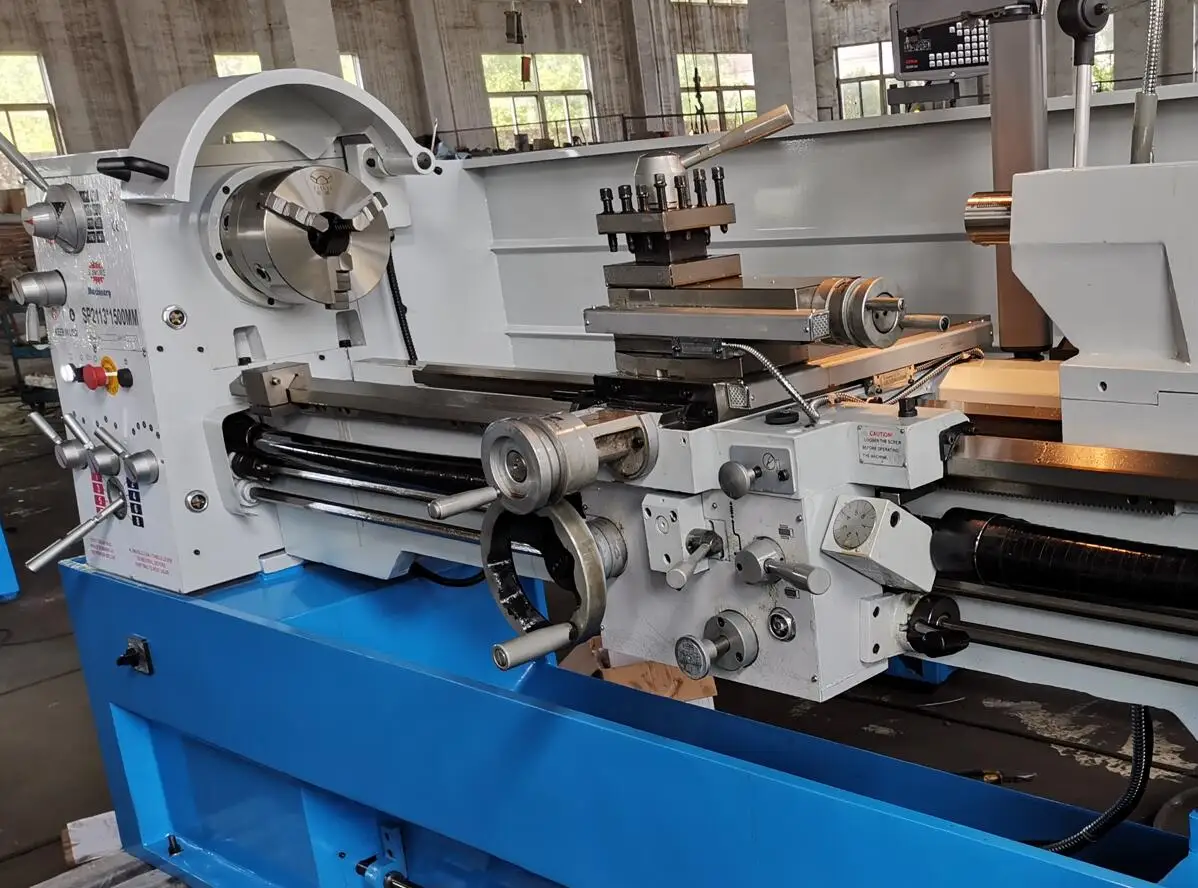

Product detail pictures
1. High Rigid Construction
2. Industrial Level Accuracy
3. Large Range and Variable Spindle Speeds
4. Digital Readout Device Optional
5. Different Worktable Length Optional
6. Considerable Safety Design
7. CE & SGS & ISO Certification

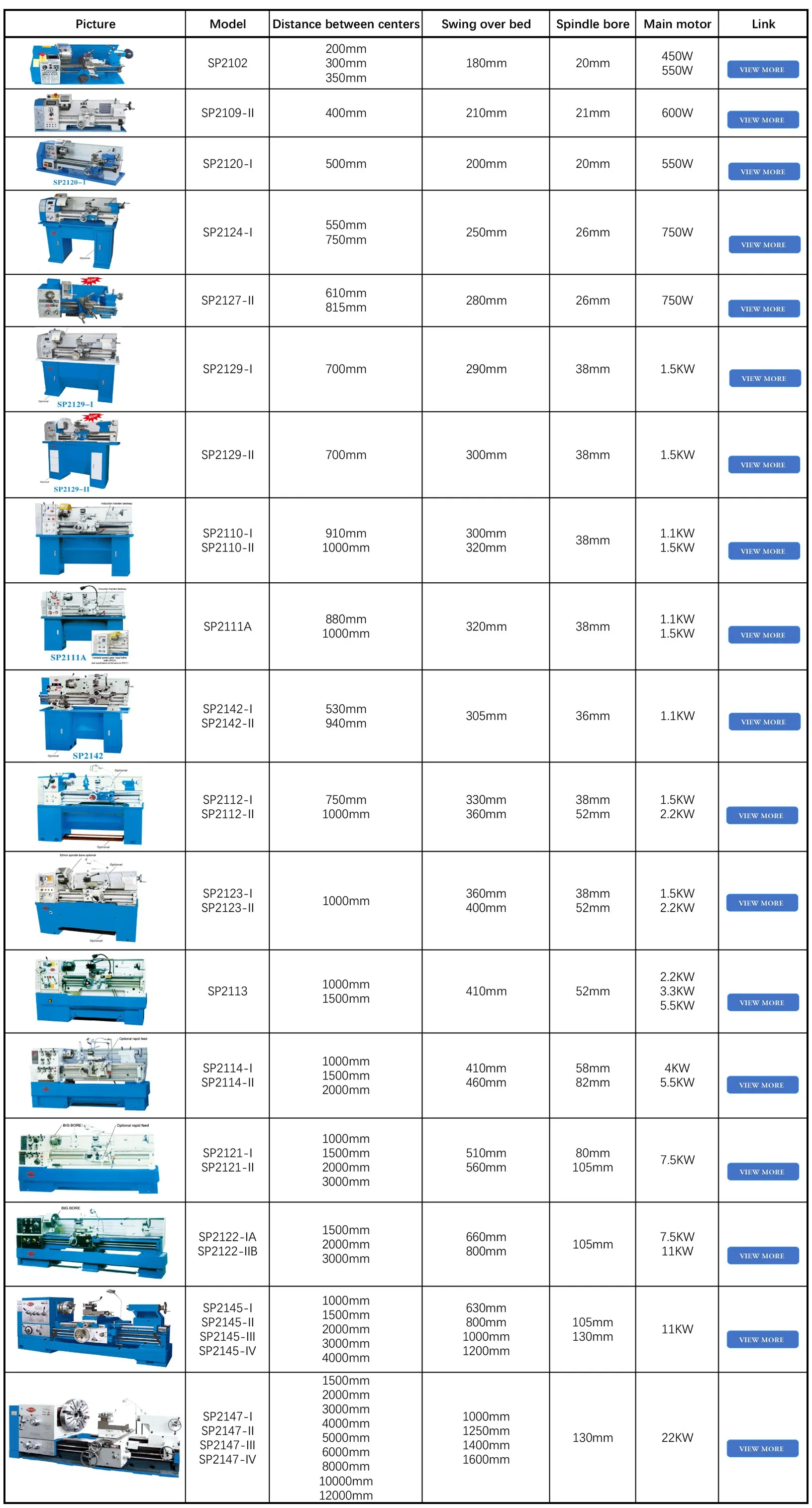

More Manual Lathe Machine, You Can Click To View It锛�

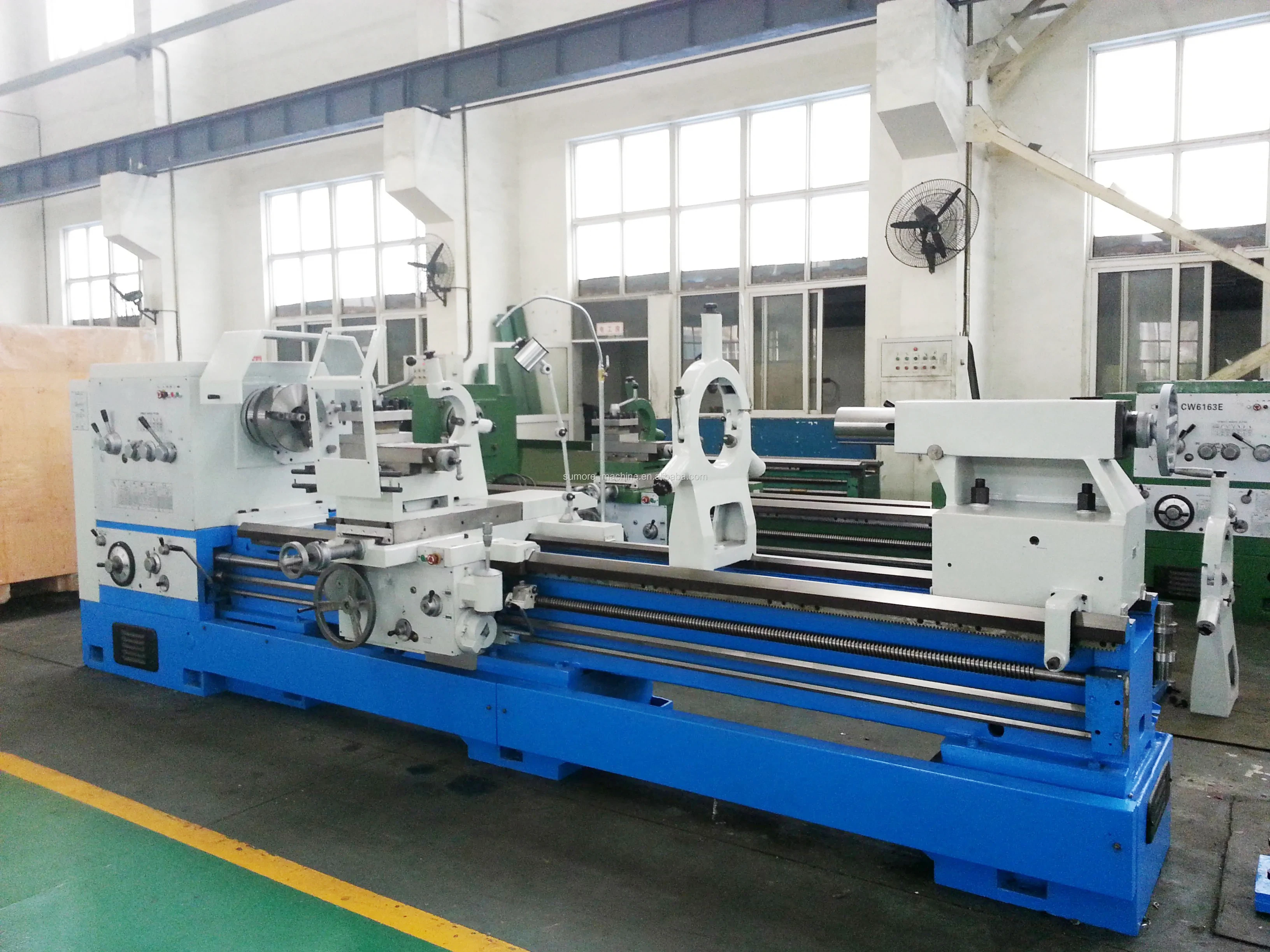

SP2147 Heavy Duty Lathe
SP2145/CW62100E Heavy Duty Lathe
SP2122/C6266 Heavy Duty Lathe

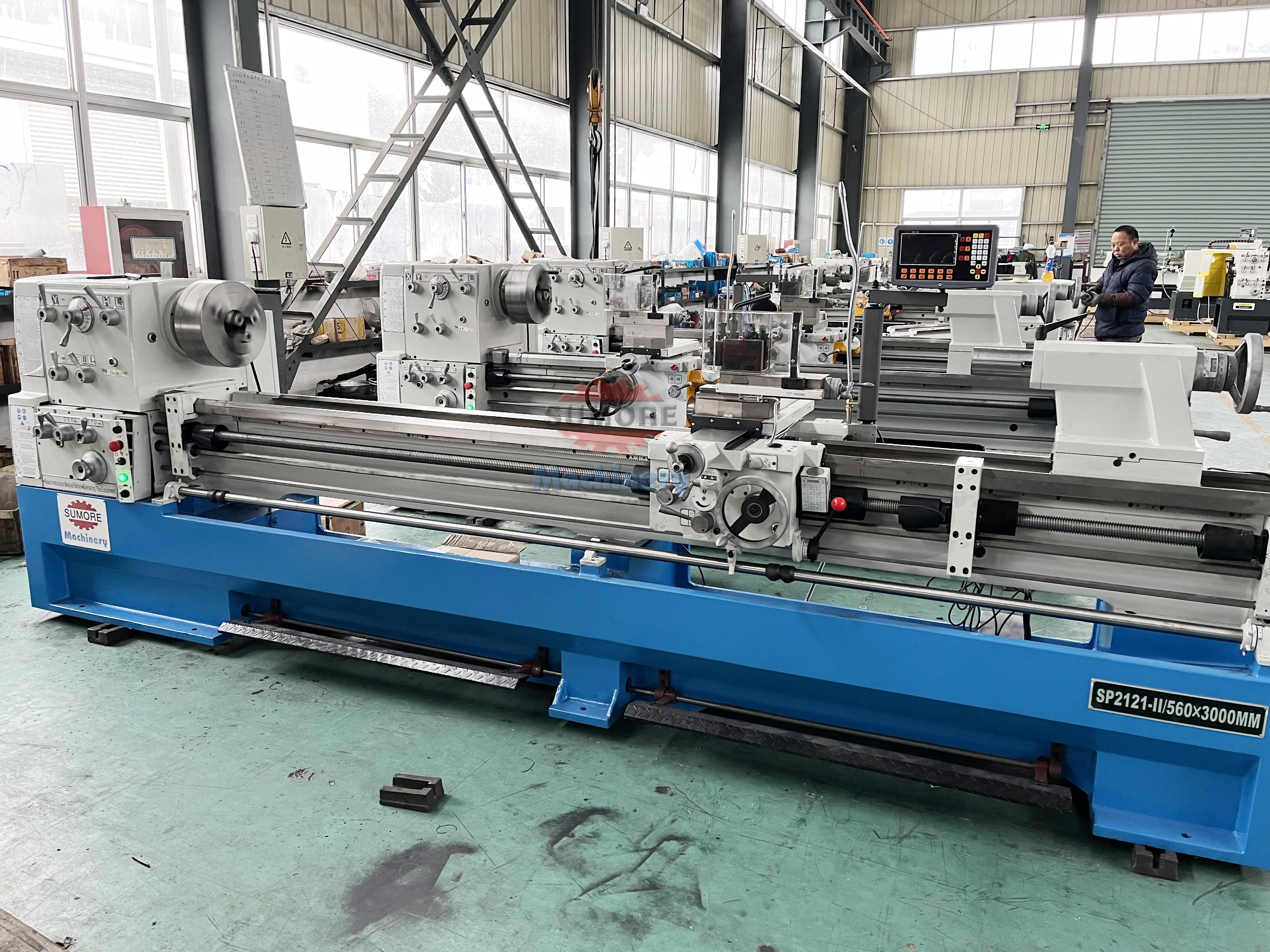

SP2121/C6256 Heavy Duty Lathe
SN50C Heavy Duty Lathe

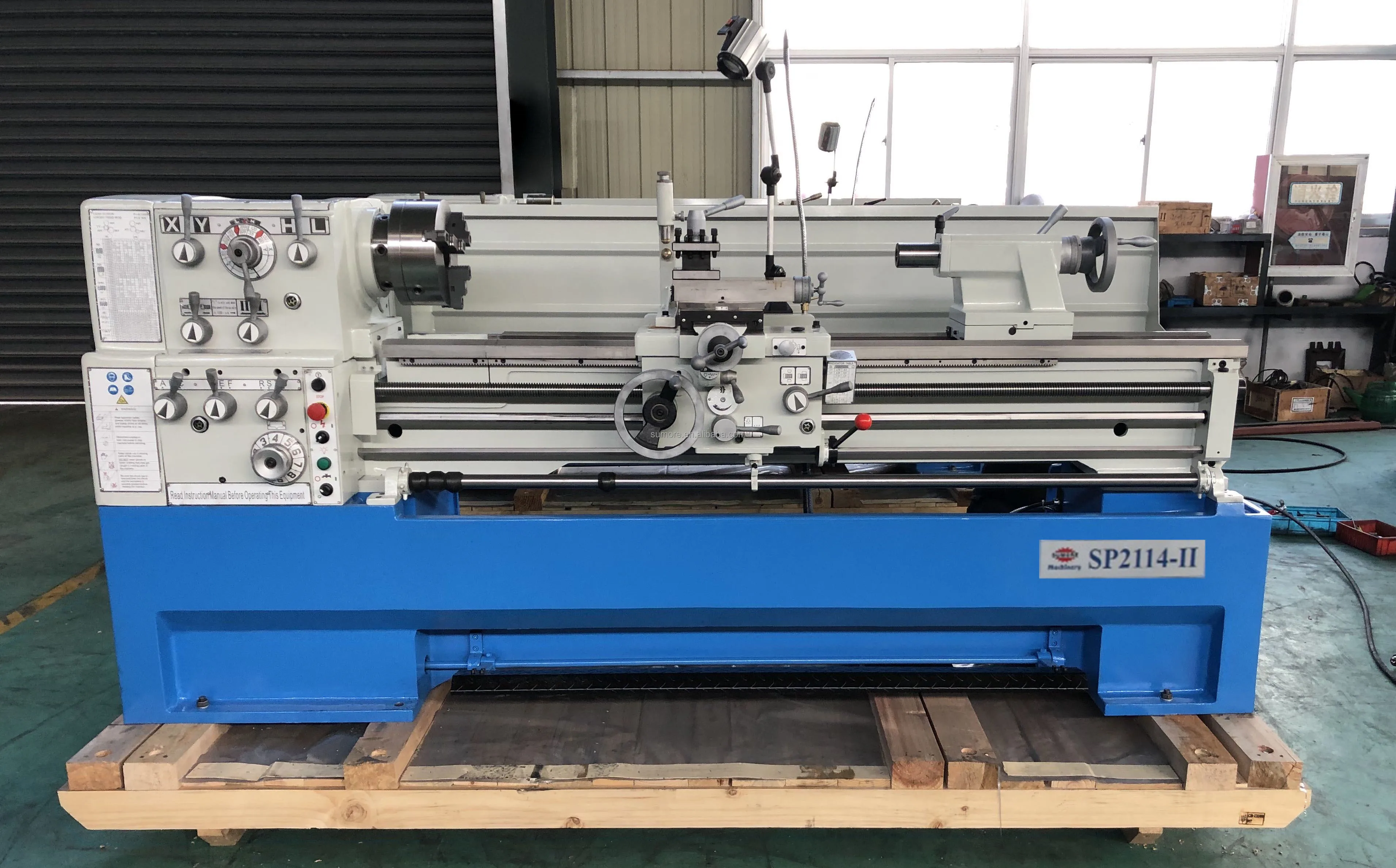

SP2114/C6246 Medium Duty Lathe

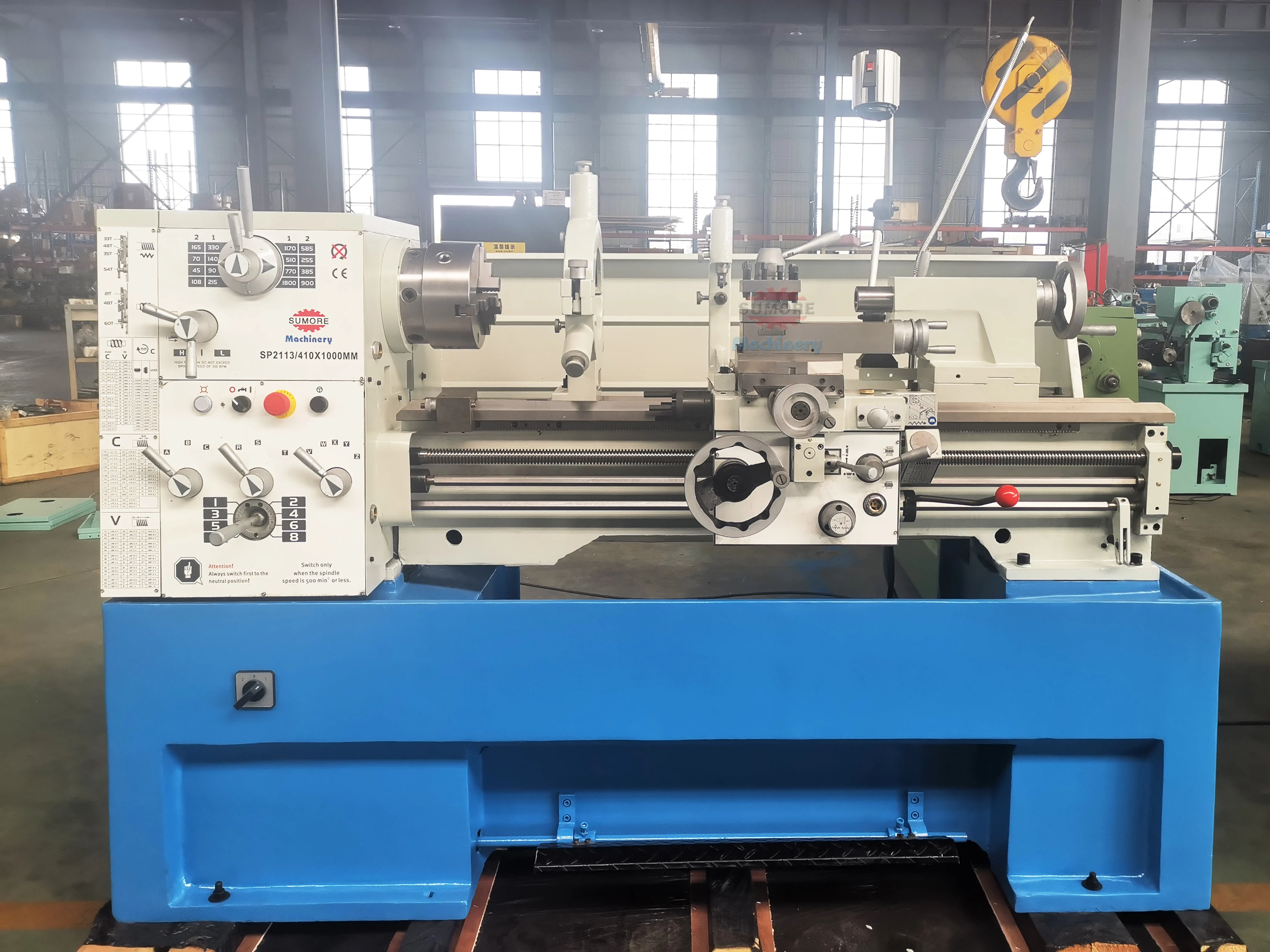

SP2113/C6241 Medium Duty Lathe
SP2112/CQ6236 Medium Duty Lathe
SP2111/CQ6232 Medium Duty Lathe

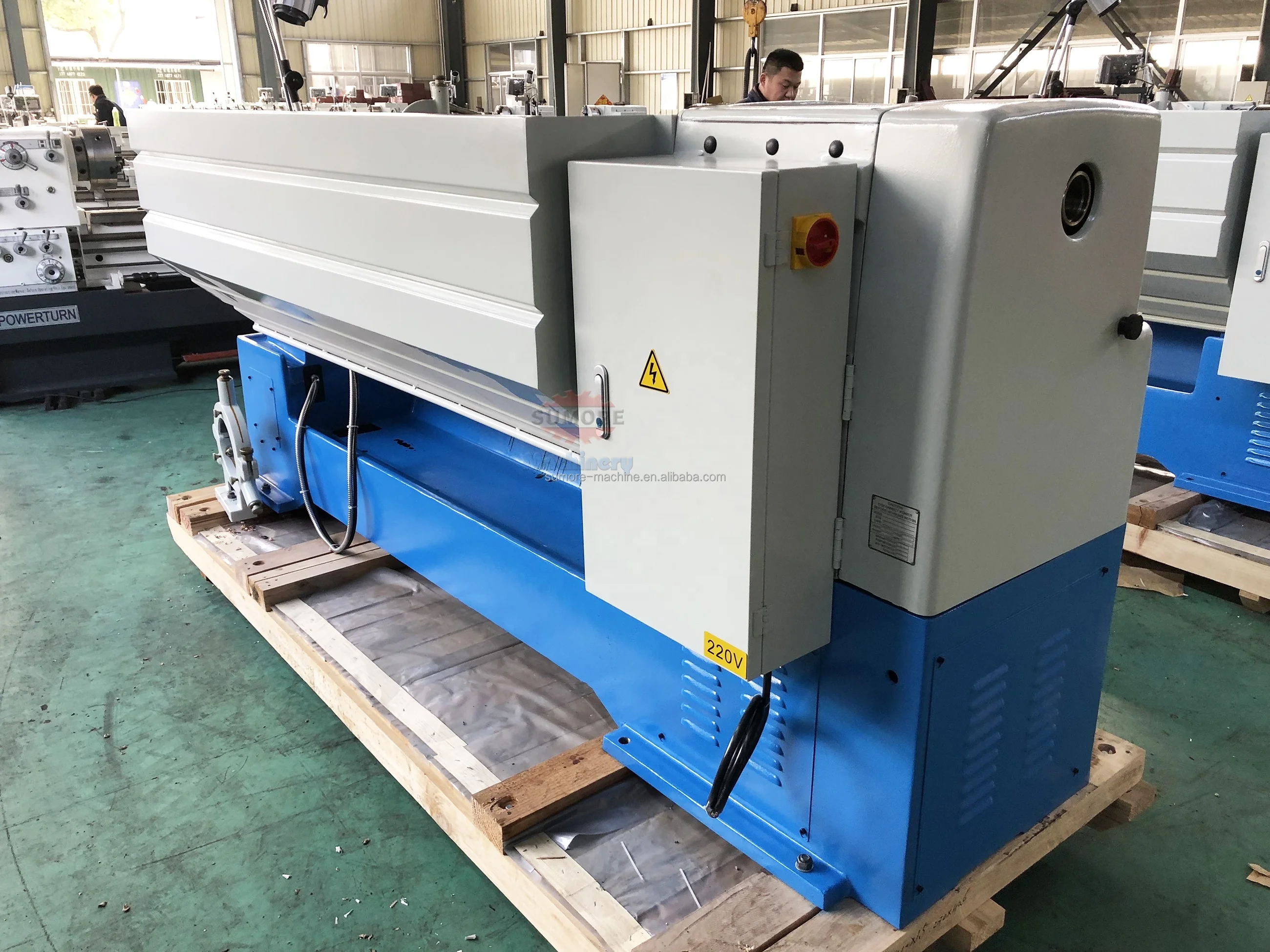

Packaging & Shipping

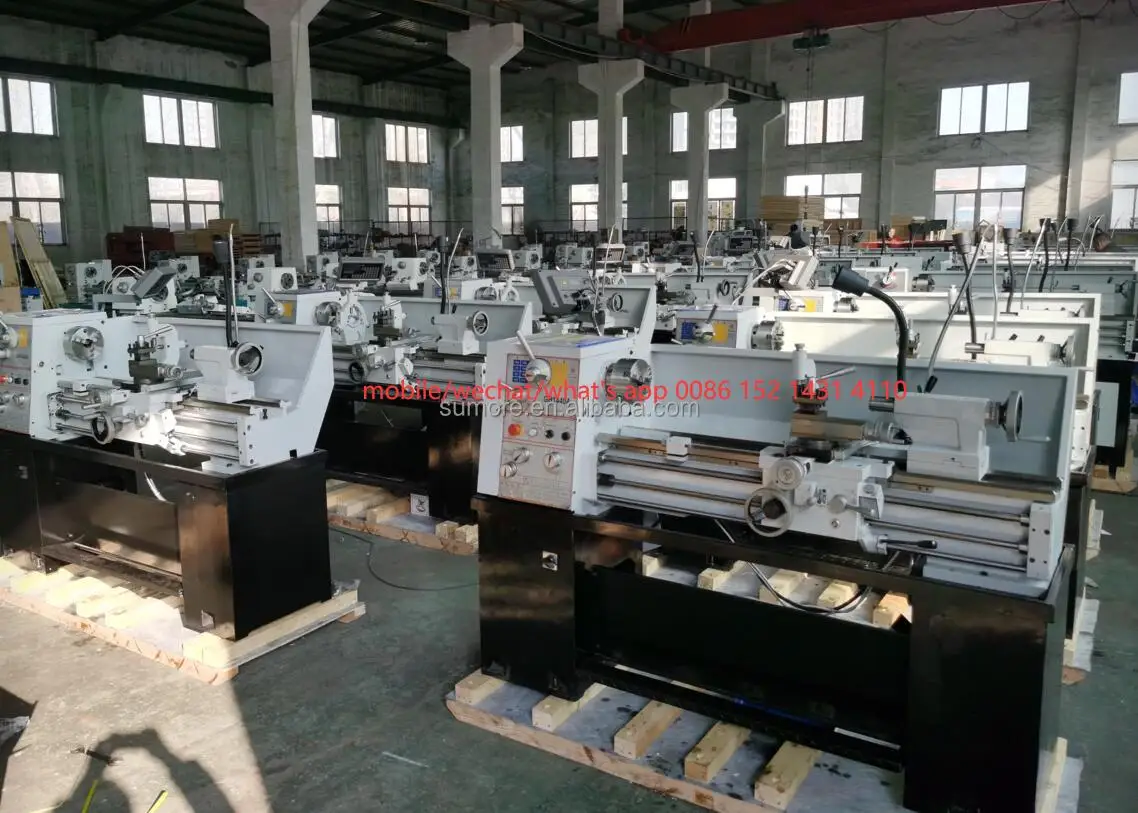

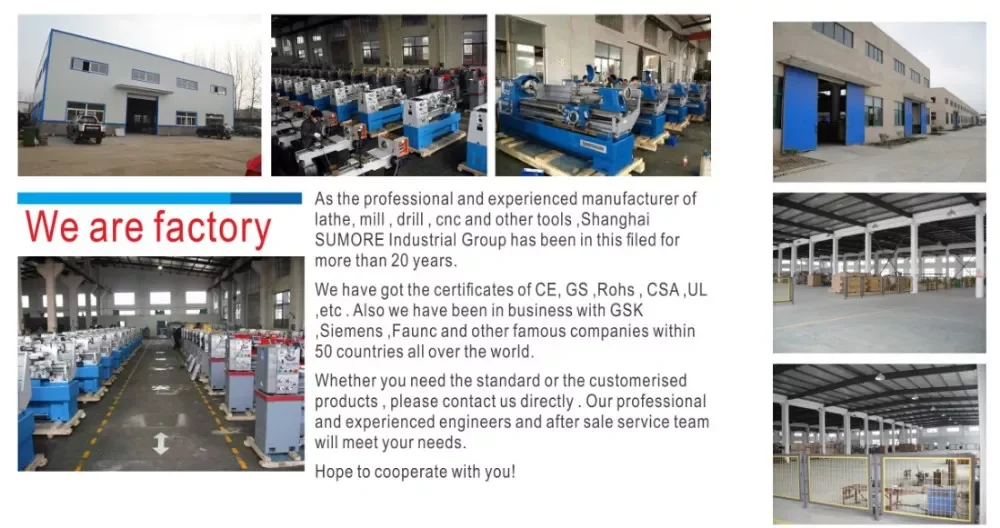

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.

We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.

Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.

Hope to cooperate with you!
FAQ
1.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.

2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.

3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.

4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.

5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
