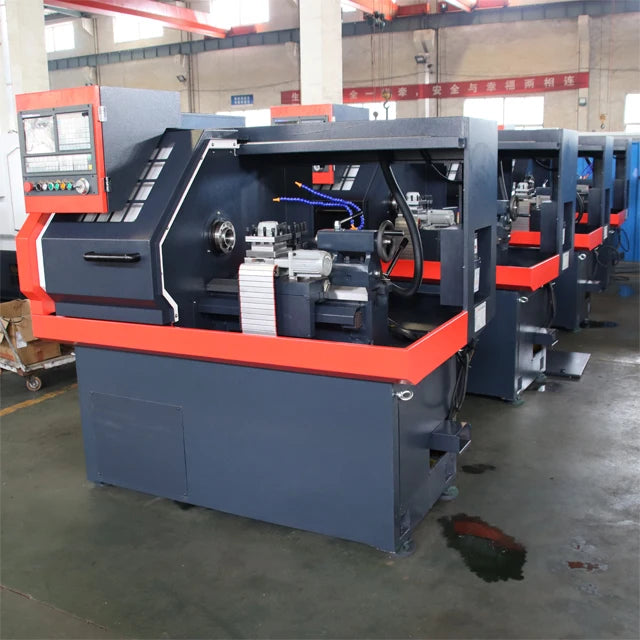

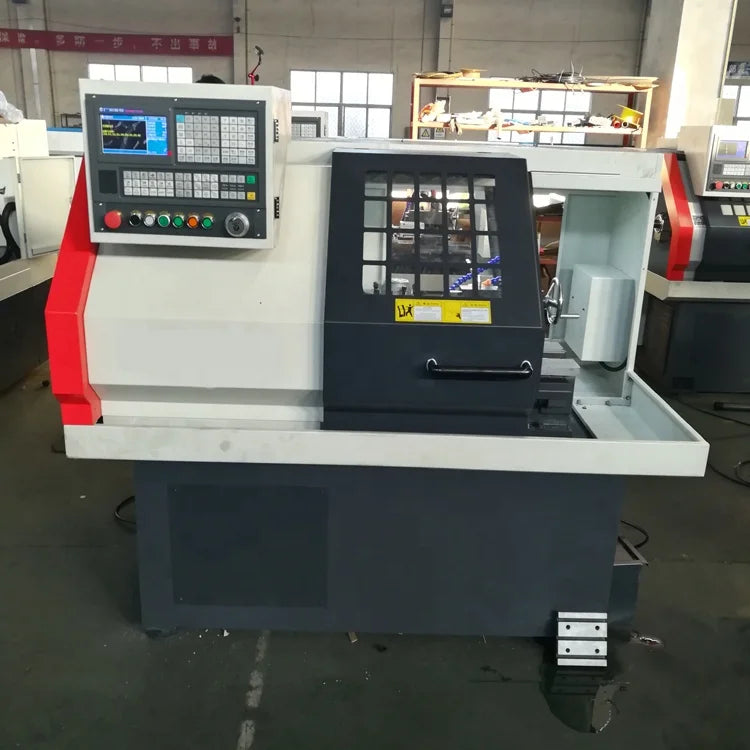

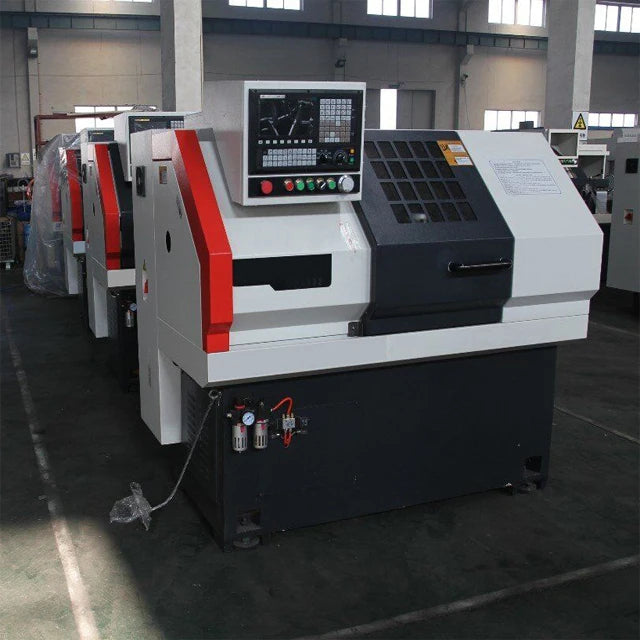

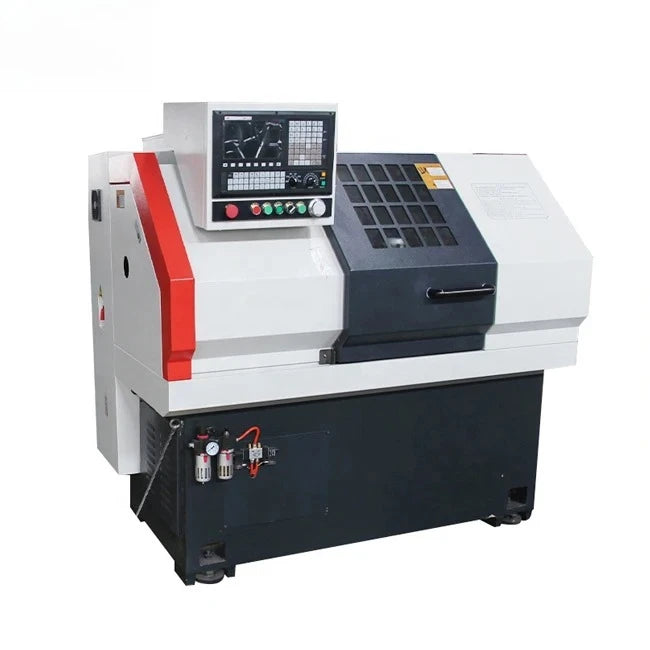

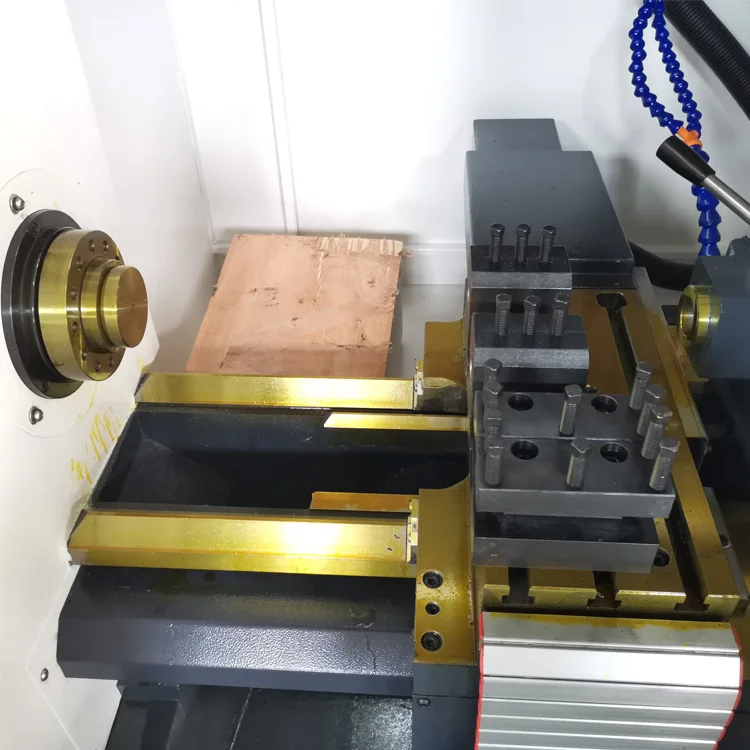

ANTNX CK6130 Mini Automatic CNC Lathe Machine Multifunctional Small Metal Turning for Light & Medium Duty Machining ANTNX.COM

ANTNX CK6130 Mini Automatic CNC Lathe Machine Multifunctional Small Metal Turning for Light & Medium Duty Machining ANTNX.COM

$12,069.00 USD
$15,086.25 USD $12,069.00 USD
Sale Sold out
Shipping calculated at checkout.
This series of CNC lathes is an economical CNC machining machine tool. It is a general CNC automatic metal processing equipment, which can carry out semi-fine processing and finishing of mechanical parts. It has the characteristics of reliable structure, convenient operation and economical practicality. It is suitable for various shaft and disk parts to automatically complete the cutting processing of internal and external cylindrical surfaces, conical surfaces, circular arc surfaces, end faces, grooving, chamfering and other processes, and can turn metric straight threads, end face threads, British straight threads, cone threads and other turning processing.

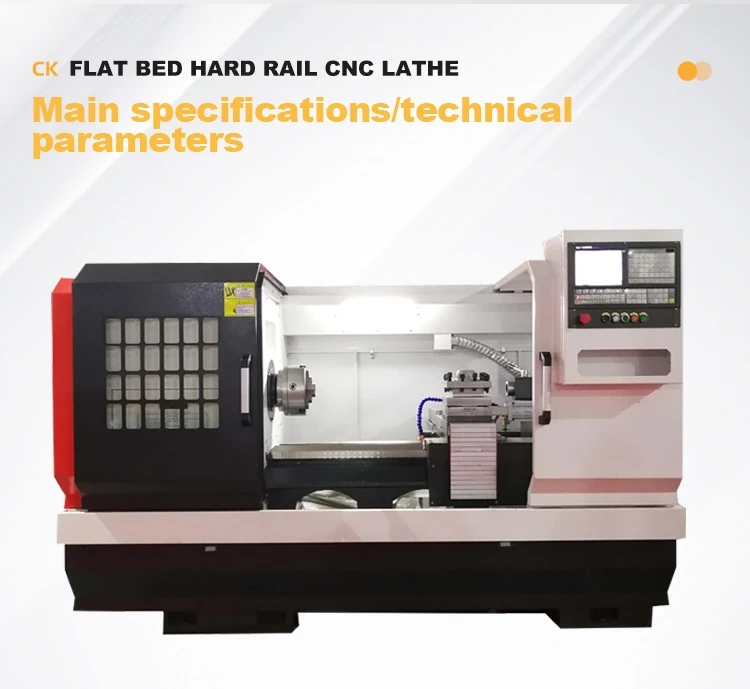

Specifications
Unit
CK6130
Max. swing over bed
mm
300
Max. swing over cross slide
mm
100

X/Z axis travel
mm
300/350
Spindle nose

A2-5
Spindle bore
mm
48
Bar capacity
mm
40
Max. spindle speed
rpm
2500
Chuck size
mm
160
Spindle motor
kw
4
X/Z axis repeatability
mm
±0.005
X/Z axis feed motor torque
N.m
X:4 Z:4
X/Z Rapid traverse
m/min
X:6 Z:8
Tailstock quill dia.
mm
52
Quill traverse
mm
90
Quill taper

MT4#

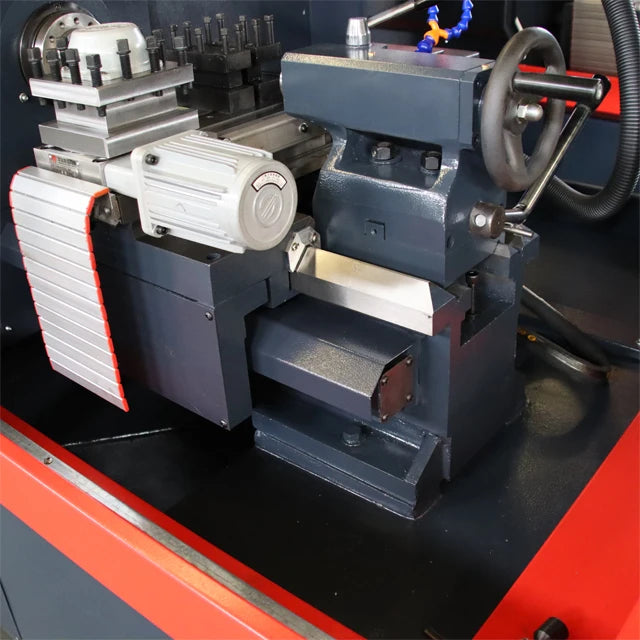

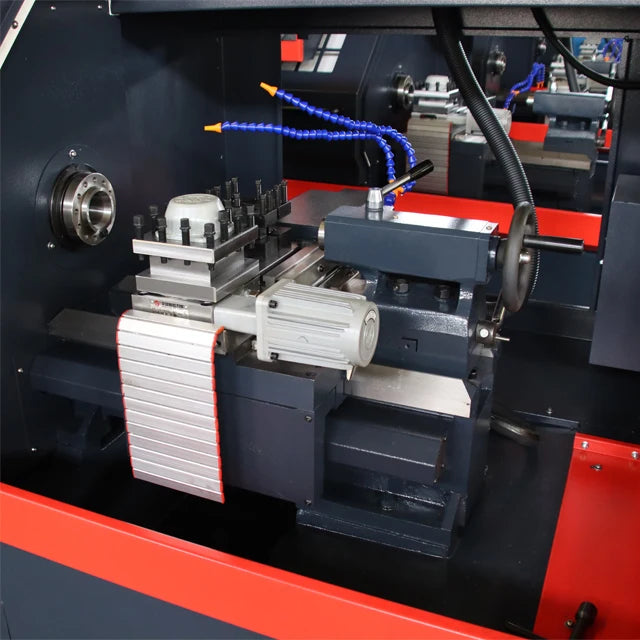

Turret type

4 station
Cutting tool size
mm
20x20
Total power capacity
KVA
7
Machine dimension (L×W×H)
mm
1600×1100×1650
Net. weight (about)
kg
950





FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7.If the above products do not meet your requirements, we can customize them according to customer requirements!
