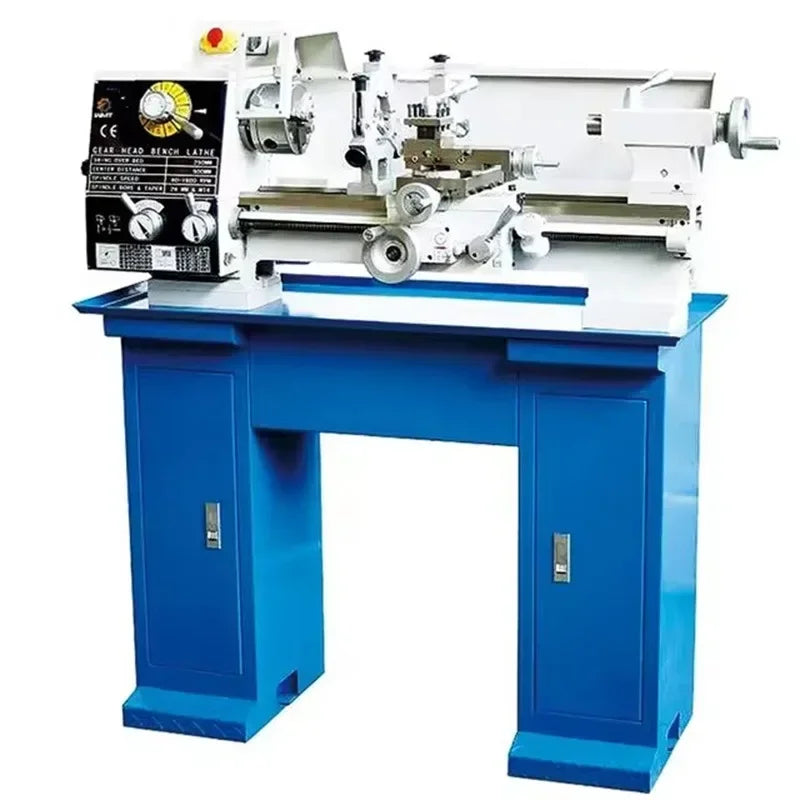

ANTNX CJM250 Small Lathe, Miniature Horizontal Lathe 250 Benchtop Metal Mini Lathe ANTNX.COM

ANTNX CJM250 Small Lathe, Miniature Horizontal Lathe 250 Benchtop Metal Mini Lathe ANTNX.COM

$2,181.42 USD
$2,726.77 USD $2,181.42 USD
Sale Sold out
Shipping calculated at checkout.


Product Parameter

Main Technical Parameters

Specification

Unit

CJM250

Maximum rotary diameter of bed

Bed Swing

mm

250

Maximum rotating diameter of slide plate

Swing cross slide

mm

150

Maximum workpiece length

Distance between centers

mm

500(可选:700)

Spindle bore diameter range

Spindle bore

mm

二十六

Spindle bore taper

Spindle bore taper

-

MT4

Number of spindle speed stages

Spindle speed stage

-

12

Spindle speed range

Spindle speed range

Rotation speed

80-1600

Pallet travel

Cross slide travel

mm

130

Small tool holder travel

Top tool holder travel

mm

75

Longitudinal feed

Longitudinal feed range

mm/rev

0.03-0.275

Transverse feed

Transverse feed range

mm/rev

0.015-0.137

Metric thread types

Metric Thread Types

Type

15

Metric thread pitch range

Metric Thread Range

mm/rev

0.25－2.5

Number of imperial threads

Inch Thread Type

Type

9

Inch thread range

Imperial Thread Range

Idiopathic Prostatic Hyperplasia

12~96

Number of Module Threads

Modular thread type

Type

-

Modal thread range

Modular Thread Range

Councillor

-

Number of Pitch Threads

Pitch Thread Type

Type

-

Pitch range

Pitch Thread Range

DP

-

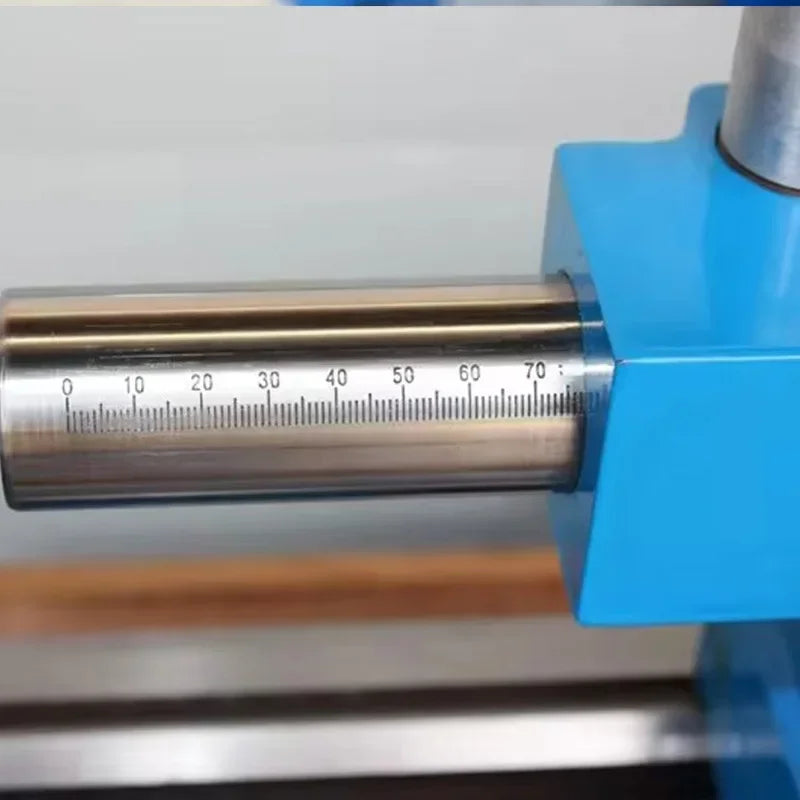

Tailstock Sleeve Stroke

Tailstock Sleeve Stroke

mm

60

Tailstock Sleeve Taper Bore

Tailstock sleeve taper

-

MT3

Main motor power

Main motor power

kW

0.75

Overall dimensions

Weight of 500

kg

180

Weight of 600

kg

-

Weight of 700

kg

200

Weight of 750

kg

-

Overall dimensions

500 size

mm

1130x550x1170

600size

mm

-

700size

mm

1330*550*1170

750 size

mm

-
