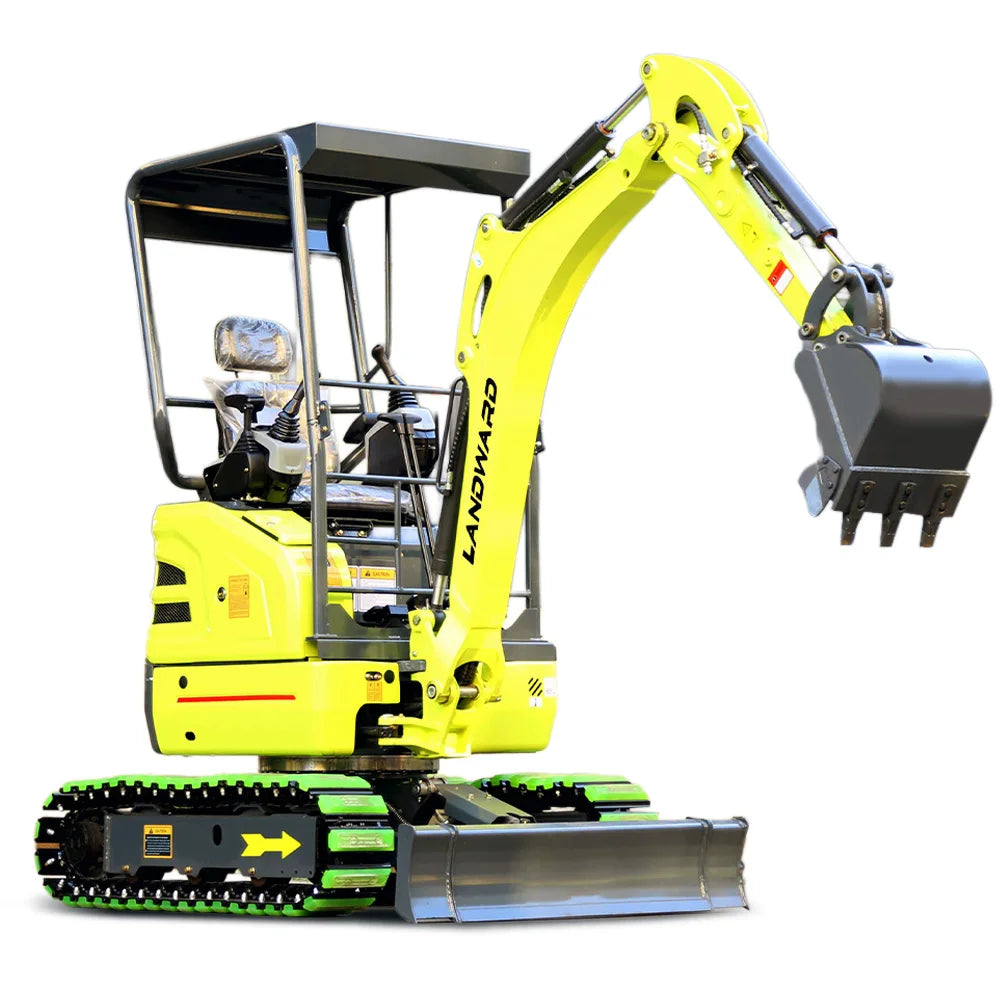

ANTNX Chinese Factory Mini Excavator 0.6 Ton New Construction Machinery Small Excavator Mini Digger Cheap Mini Excavator Customized ANTNX.COM
ANTNX Chinese Factory Mini Excavator 0.6 Ton New Construction Machinery Small Excavator Mini Digger Cheap Mini Excavator Customized ANTNX.COM
Couldn't load pickup availability
Customers who come to China from afar are welcome to visit our company and factory. We treat you in the most comfortable way and look forward to doing business with you.
Welcome to LANDWARD HI GROUP store, we are a professional manufacturer of excavators.

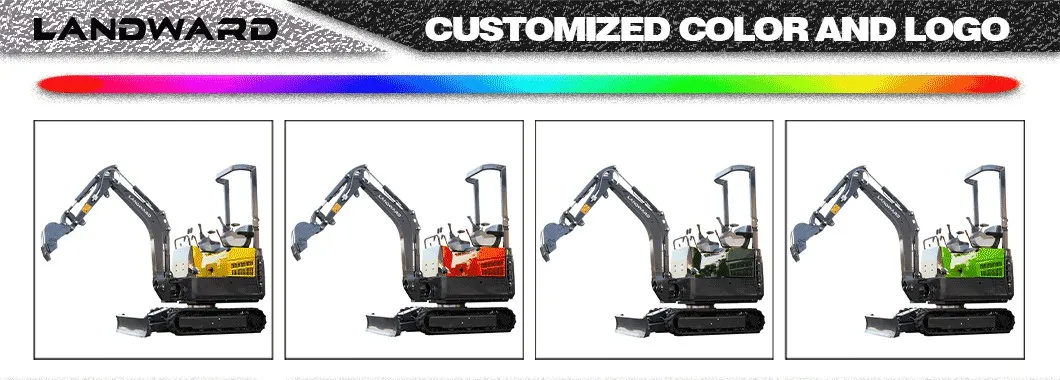

We support OEM & ODM service for any clients, even you only need 1 pcs.
Click on more different models to choose which is suitable for you, or contact us directly,
our sales will recommend most suitable excavator for you.
Talk with our sales colleague, you will get exclusive one-to-one serviceand outlet sale price
Welcome you from faraway come to China and visit us. We will treat you at the most comfortable way and looking forward to doing business together with you.

About "LW" Series High-End Excavators
Our "LW" series excavators redefine industry standards with the attitude of "industrial art". Abandoning homogeneous competition, we enter the field of engineering machinery with aviation-grade precision manufacturing logic: the hydraulic system valve body imported from Germany needs to undergo 72 hours of metal crystallization treatment, each cylinder piston rod is coated with a 0.01mm thick nano-ceramic coating, and even the damping knob of the cockpit armrest has been ergonomically debugged 128 times - this is not a tool that compromises efficiency, but makes "high-end" an instinct engraved in the mechanical genes.
All price is based on FOB Qingdao, China,
Please consult our sales for more details if you need other delivery solutions.
Welcome you from faraway come to China and visit us. We will treat you at the most comfortable way and looking forward to doing business together with you.

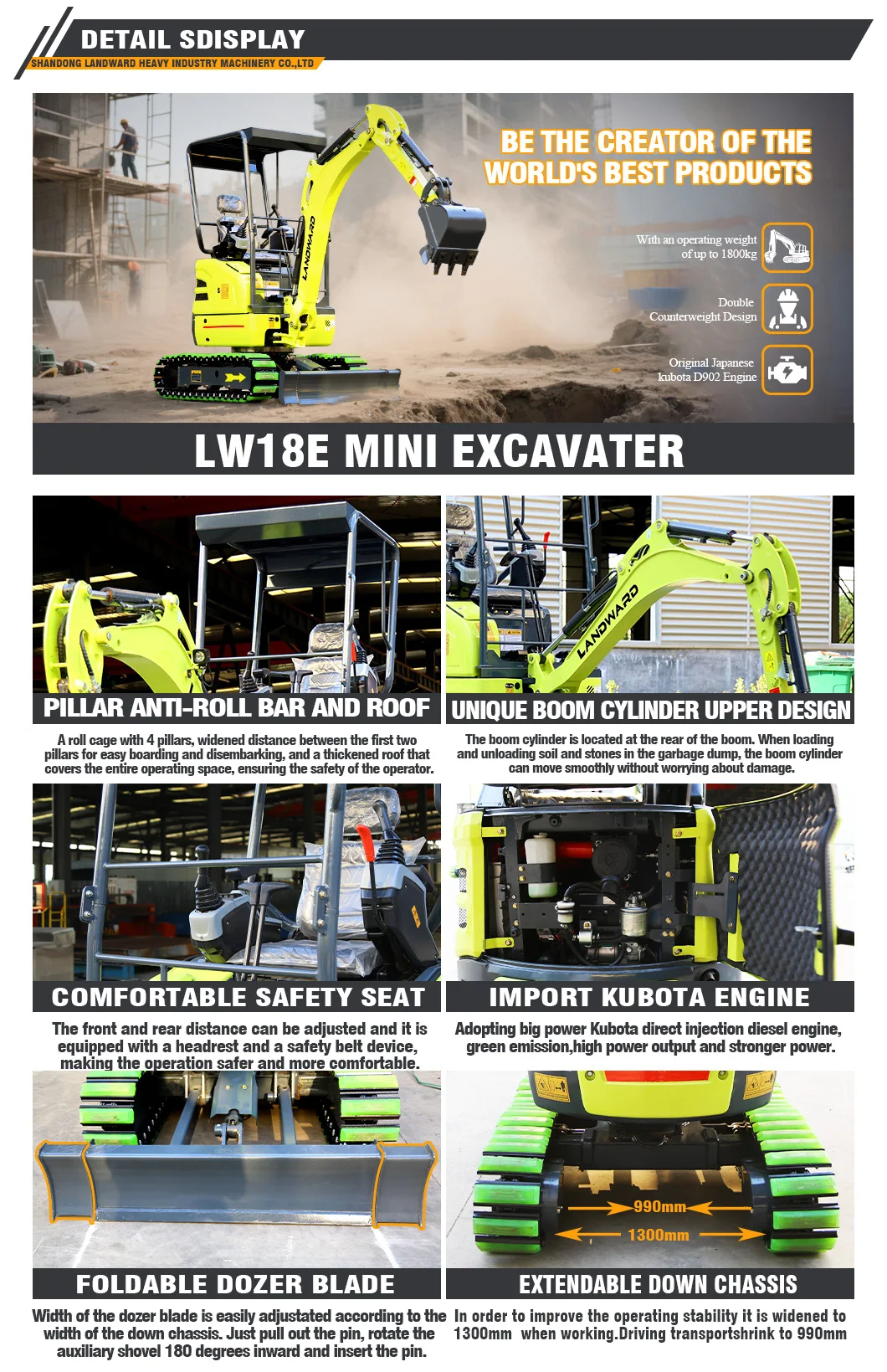

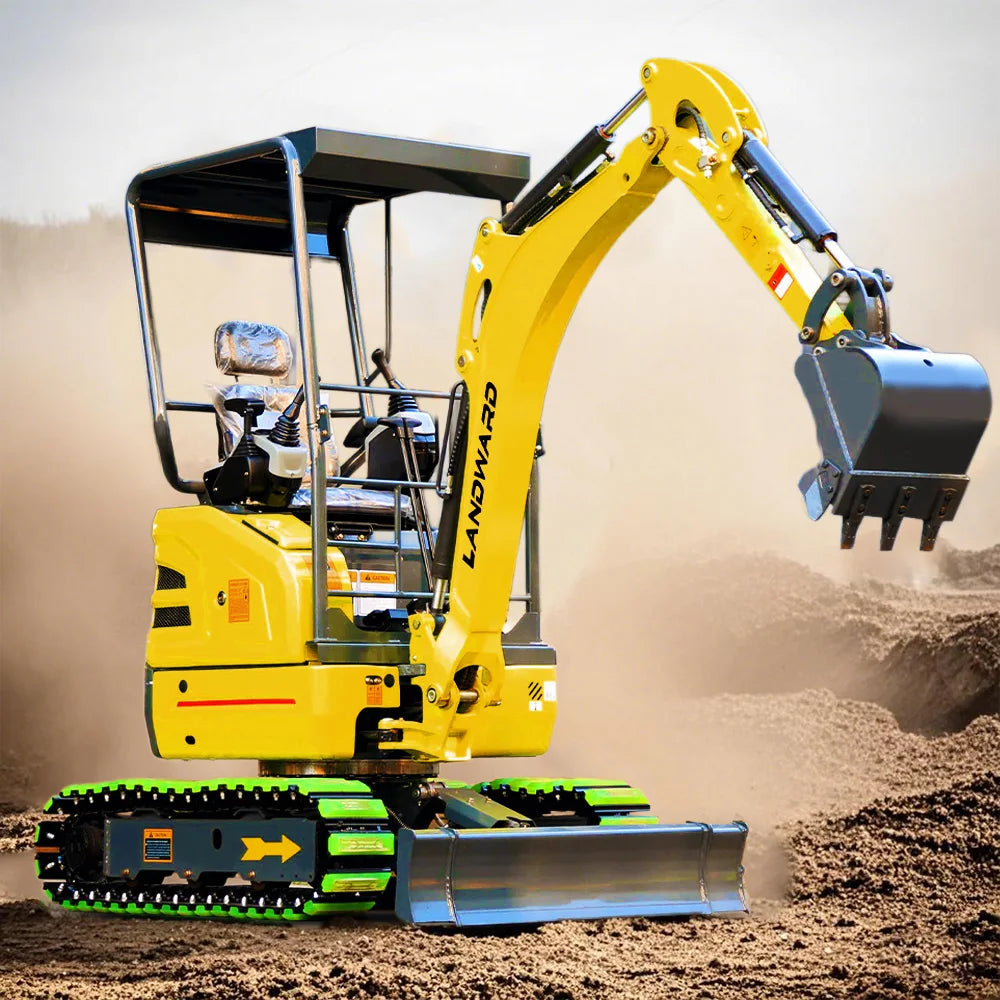

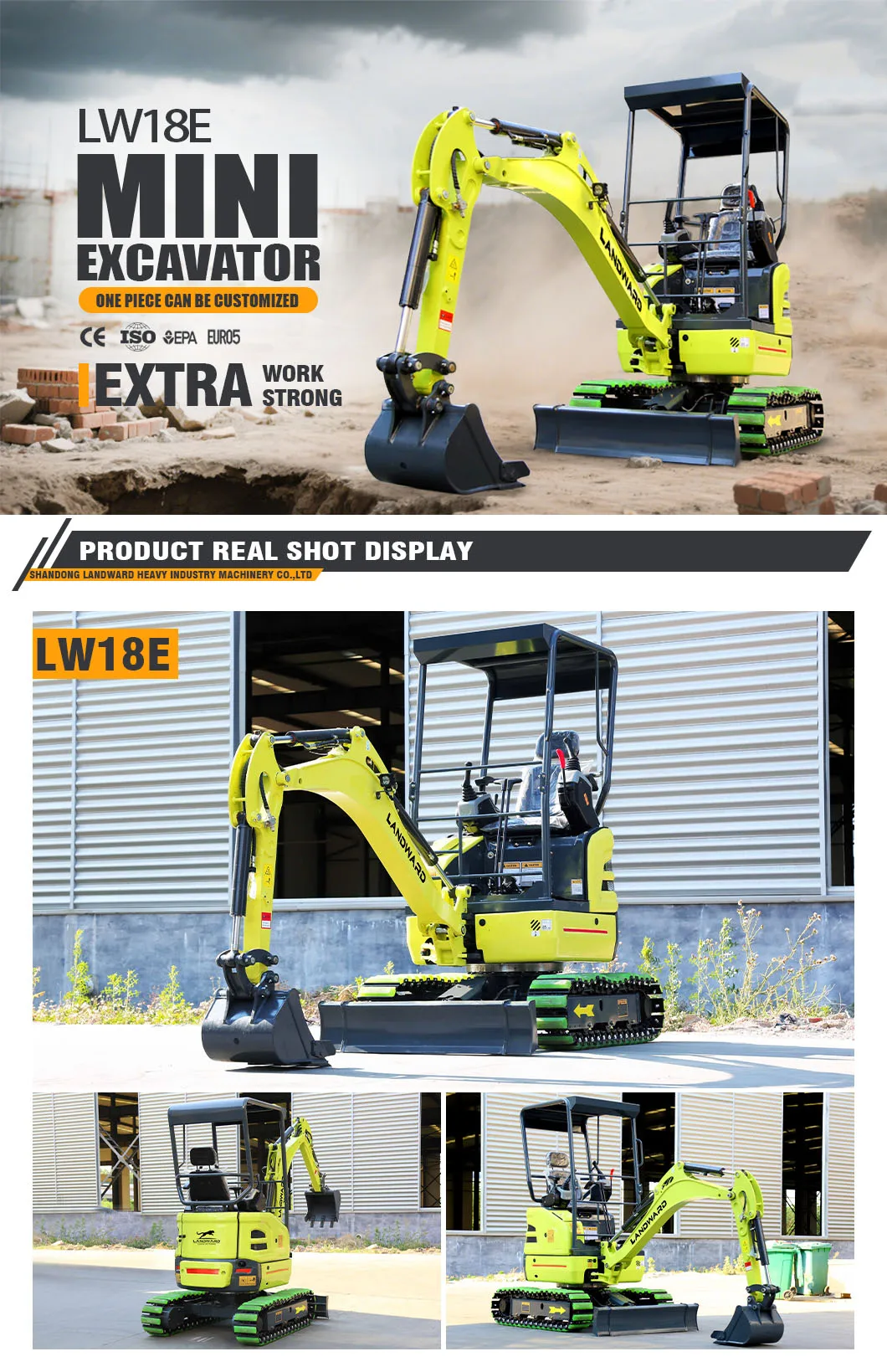

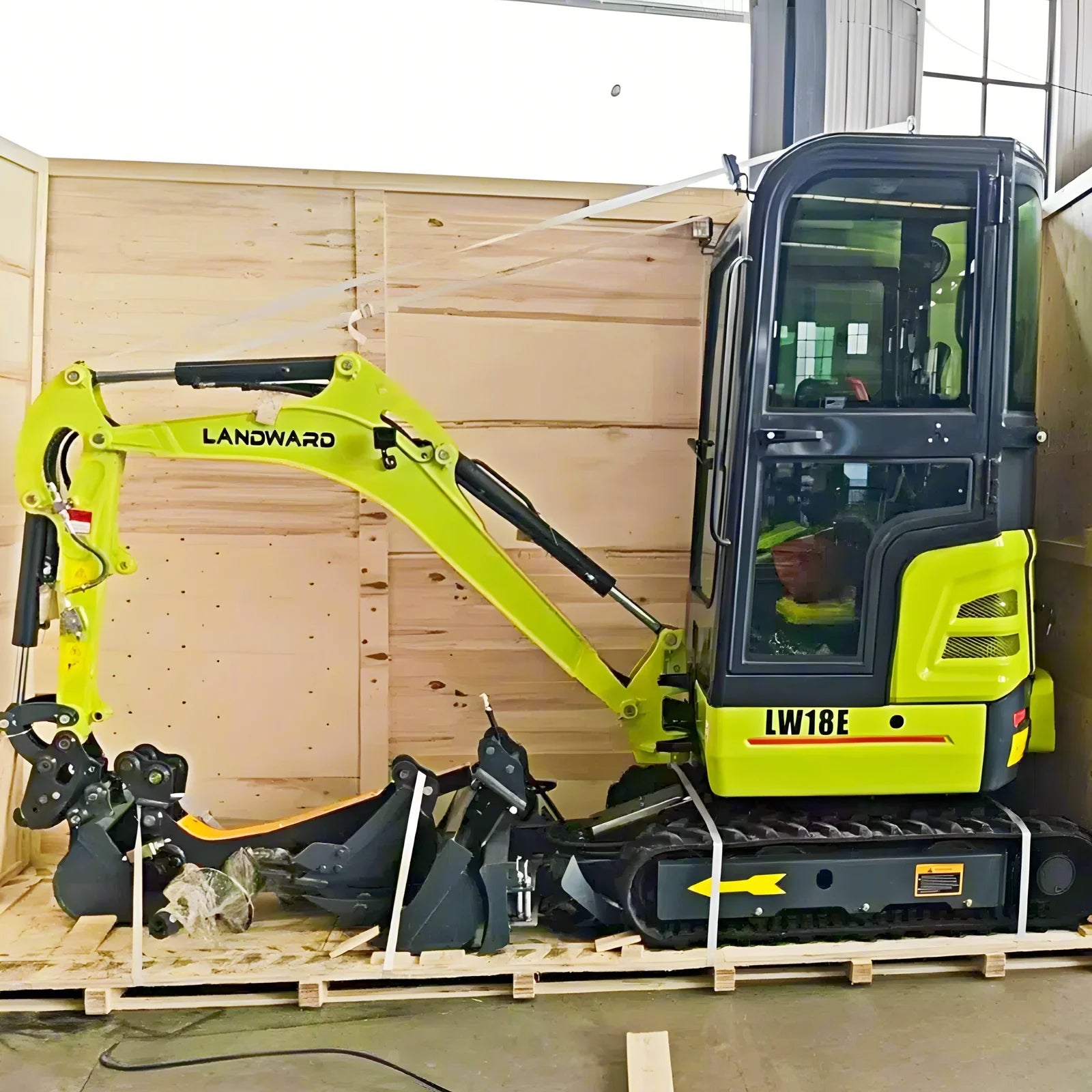

LW18E Mini Excavator | |
Operating weight |
1800KG |
Bucket capacity |
0.04m³ |
Engine Model |
KUBOTA D902 |
Fuel tank capacity |
19L |
Working pressure |
23Mpa |
Hydraulic oil tank capacity |
17.5L |
Travel speed |
2.2/4.5km/h |
Swing speed |
9.5rpm |
Max. climbing degree |
30° |
Track length |
1595mm |
Track width |
230mm |
Track height |
380mm |
Overall height |
2450mm |
Max.digging height |
3570mm |
Max.dumping height |
2480mm |
Max.digging depth |
2270mm |
Max.digging radius |
3910mm |
Please note: All our mini excavators are to be customized, please contact our sales to confirm detail information before/after placing your order. You will be treated friendly and sincerely, and you will find that will be very helpful.

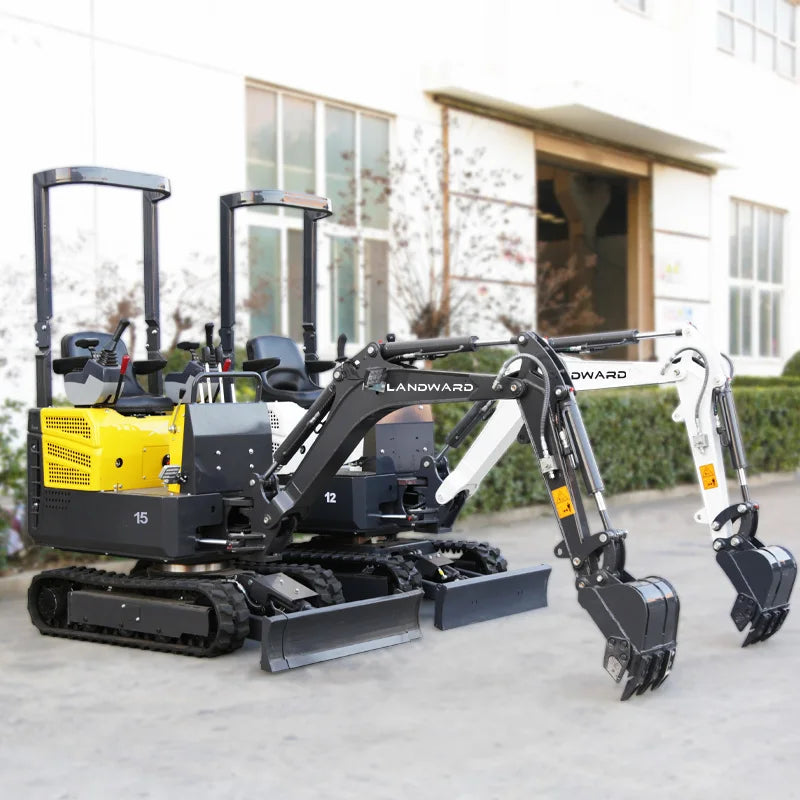

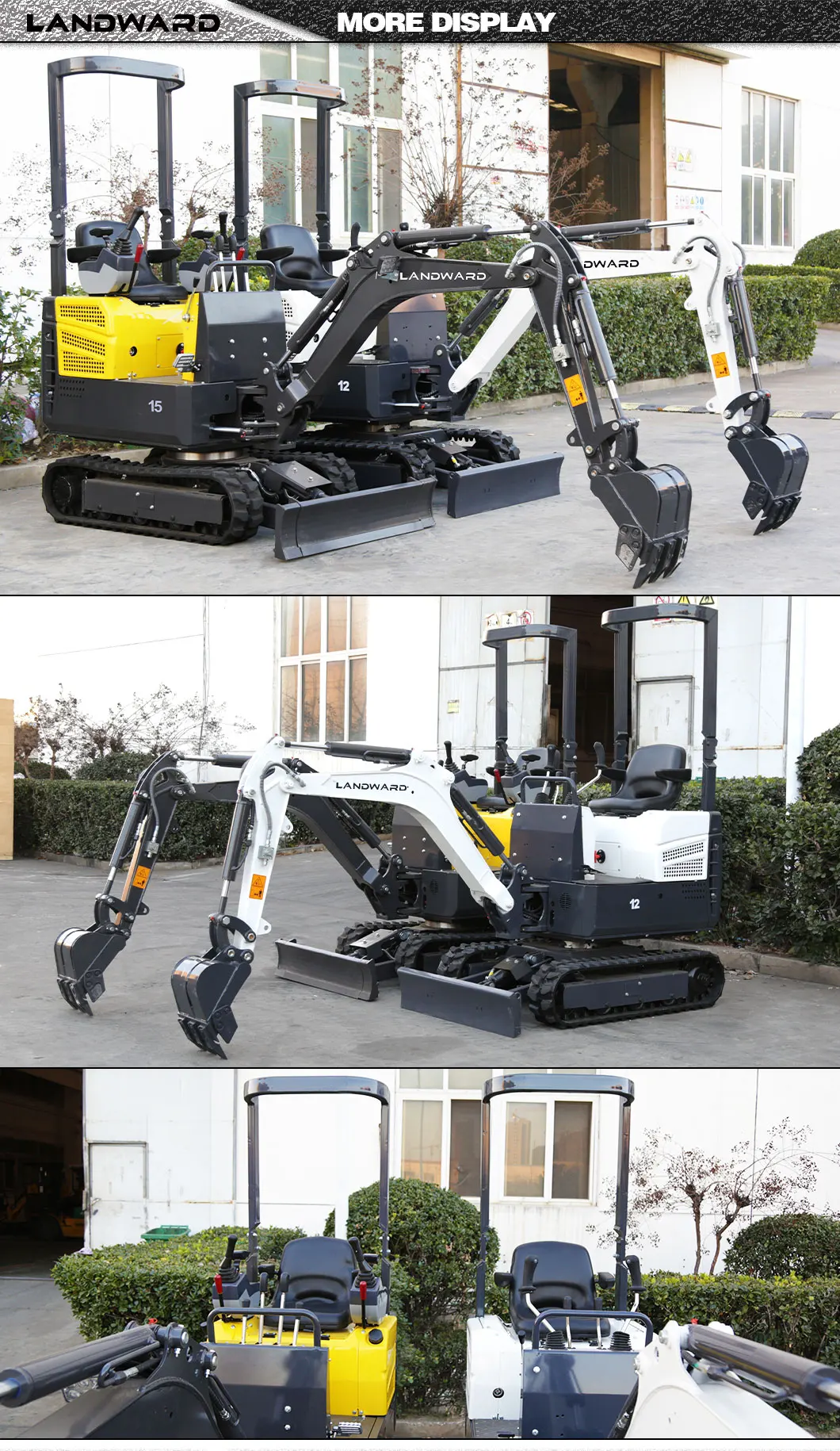

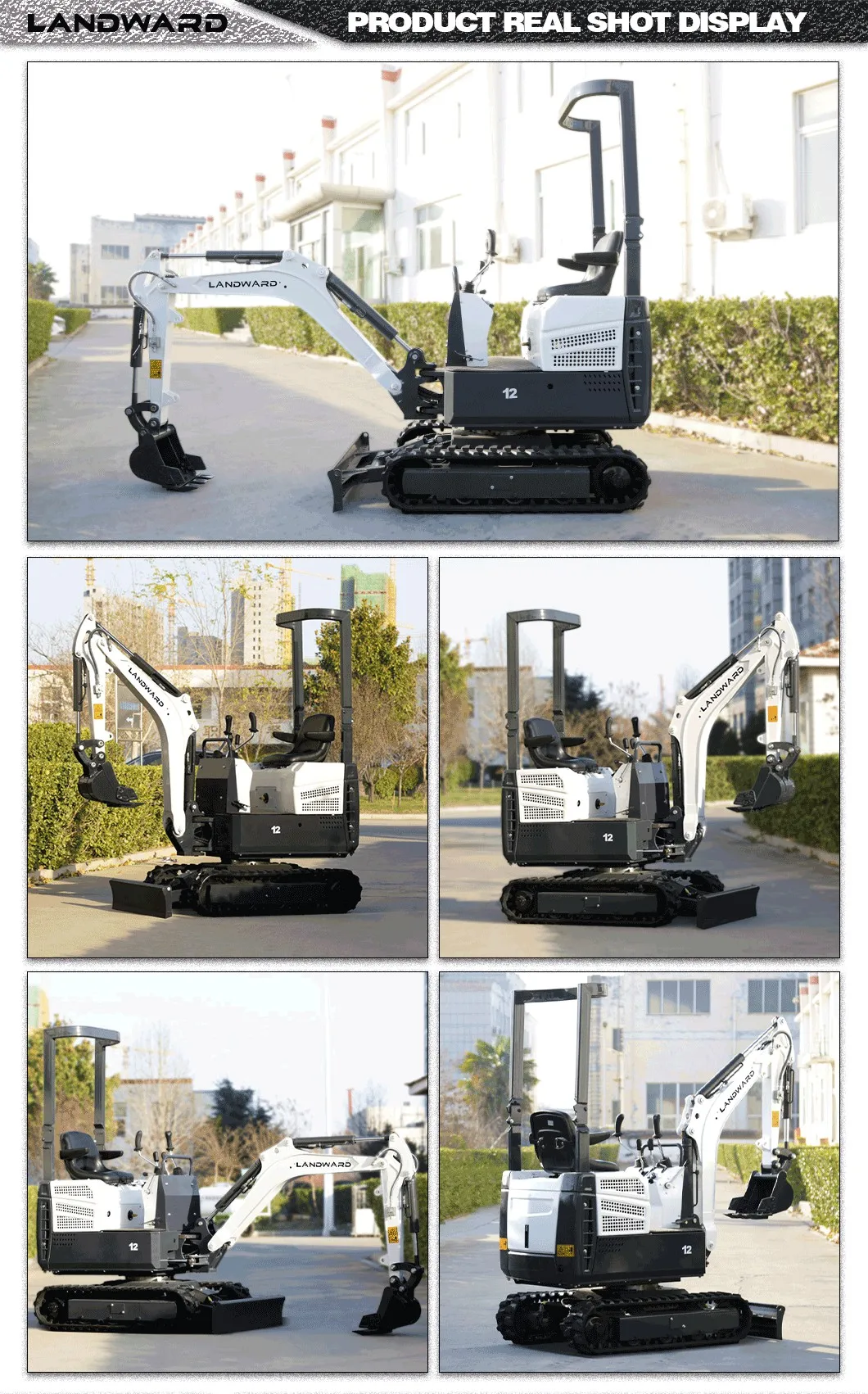

LW12E Mini Excavator | |
Operating weight |
1200KG |
Bucket capacity |
0.025m³ |
Engine model |
K00P |
Rated power |
7.5kw/r/min |
Hydraulic pump model |
Piston pump |
Max.flow |
30L/min |
Working pressure |
17.5Mpa |
Fuel tank capacity |
10L |
Hydraulic oil tank capacity |
15L |
Travel speed |
1.5km/h |
Swing speed |
10r/min |
Max.climbing degree |
58% |
Arm digging force |
6.5KN |
Bucket digging force |
9.2KN |
Average grounding pressure |
33Kpa |
Largest traction |
13KN |

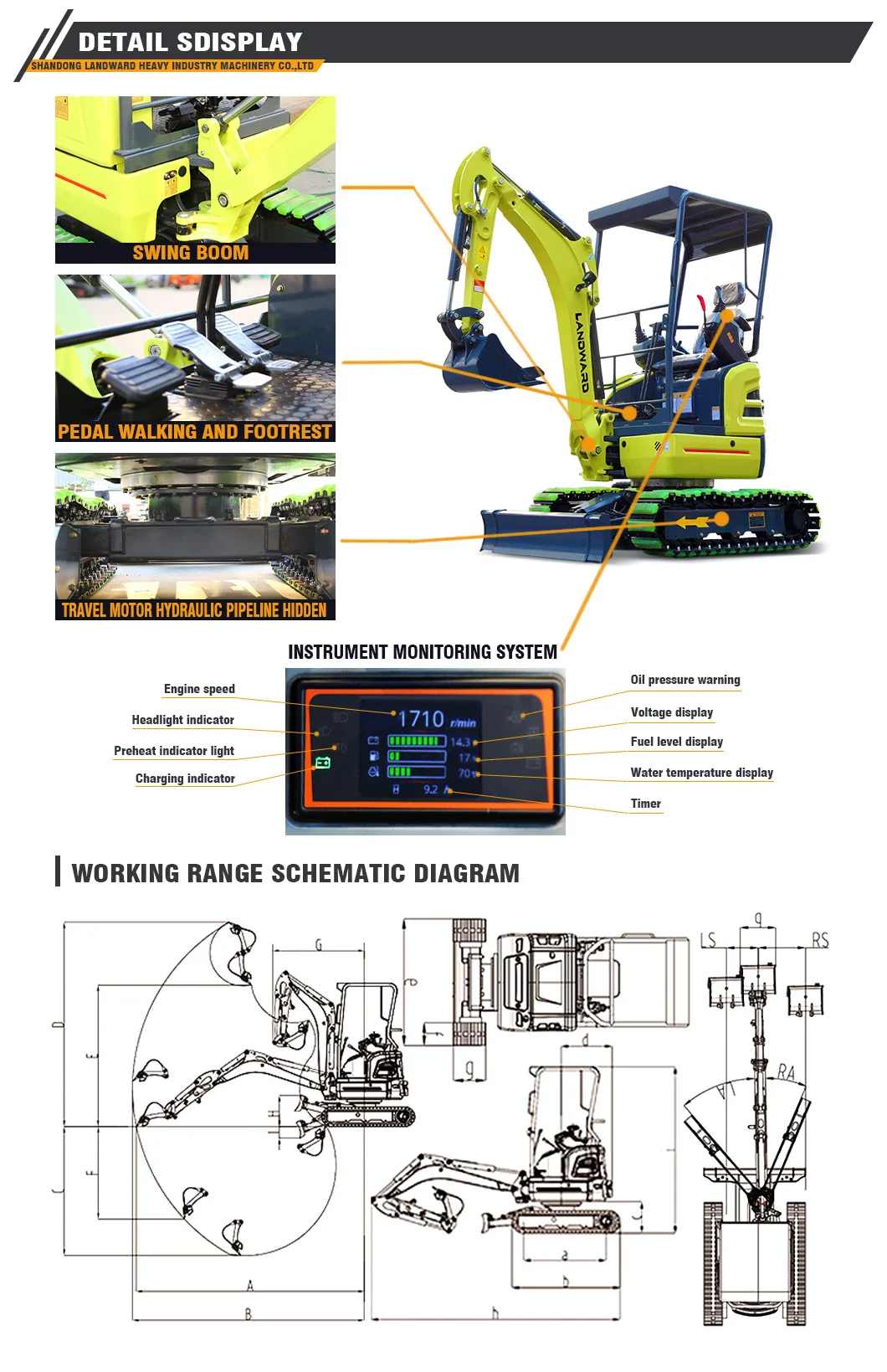

A-Overall length |
2880mm |
B-Overall width |
820-1020mm |
C-Overall height (to top of boom) |
2118mm |
D-Overall height (to top of cab) |
2265mm |
E-Counterweight ground clearance |
430mm |
F-Min.ground clearance |
80mm |
G-Tail swing radius |
821mm |
H-Track ground length |
1250mm |
J-Track length |
1393mm |
L-Track width |
820-1020mm |
M-Track shoe width |
180mm |
N-Turntable width |
820mm |
O-Max.digging height |
2771mm |
P-Max.dumping height |
1917mm |

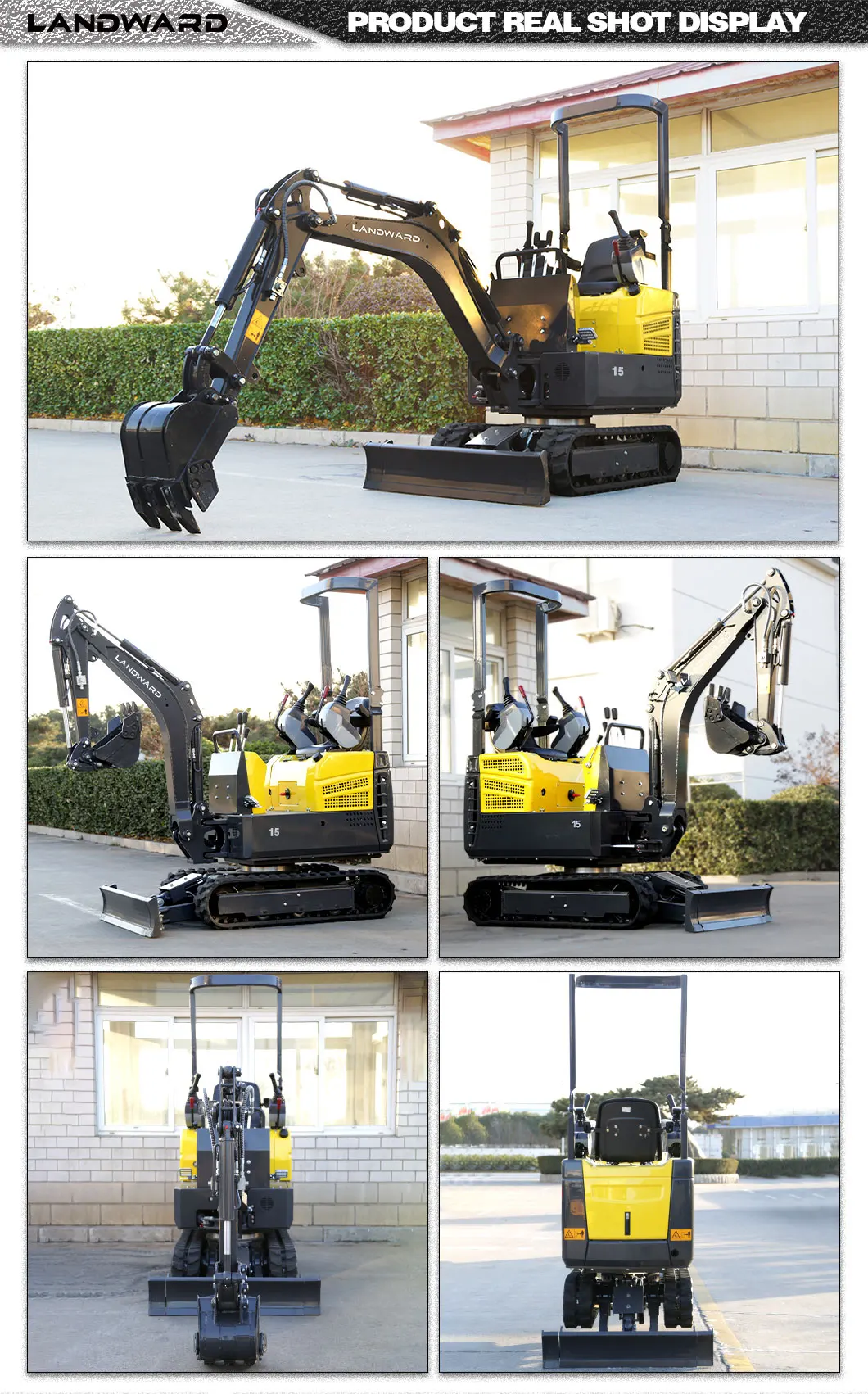

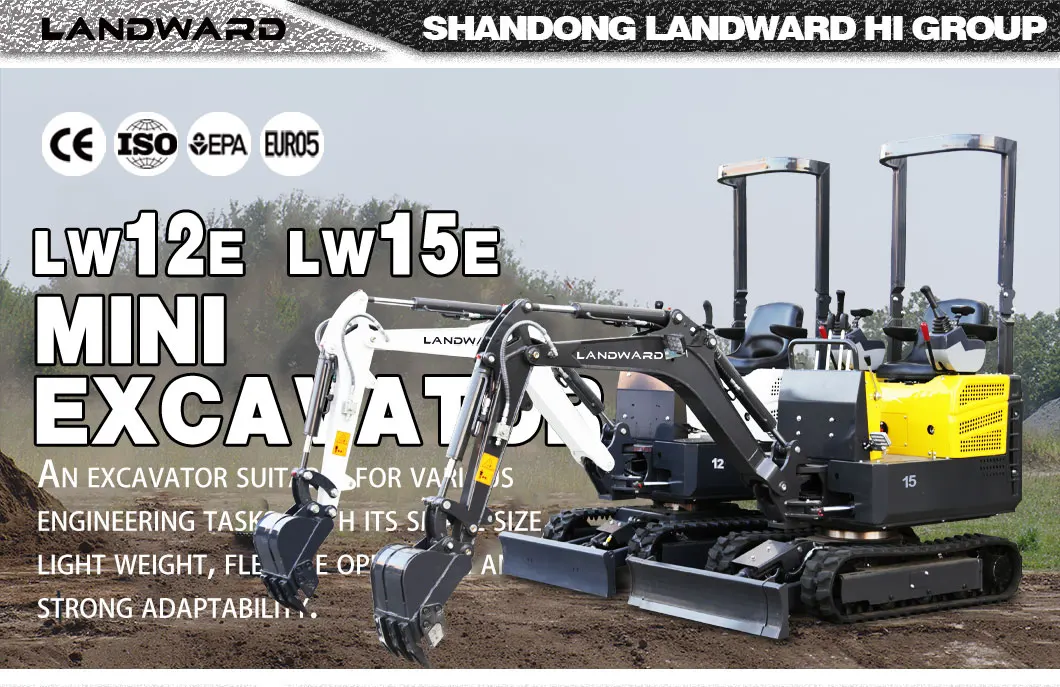

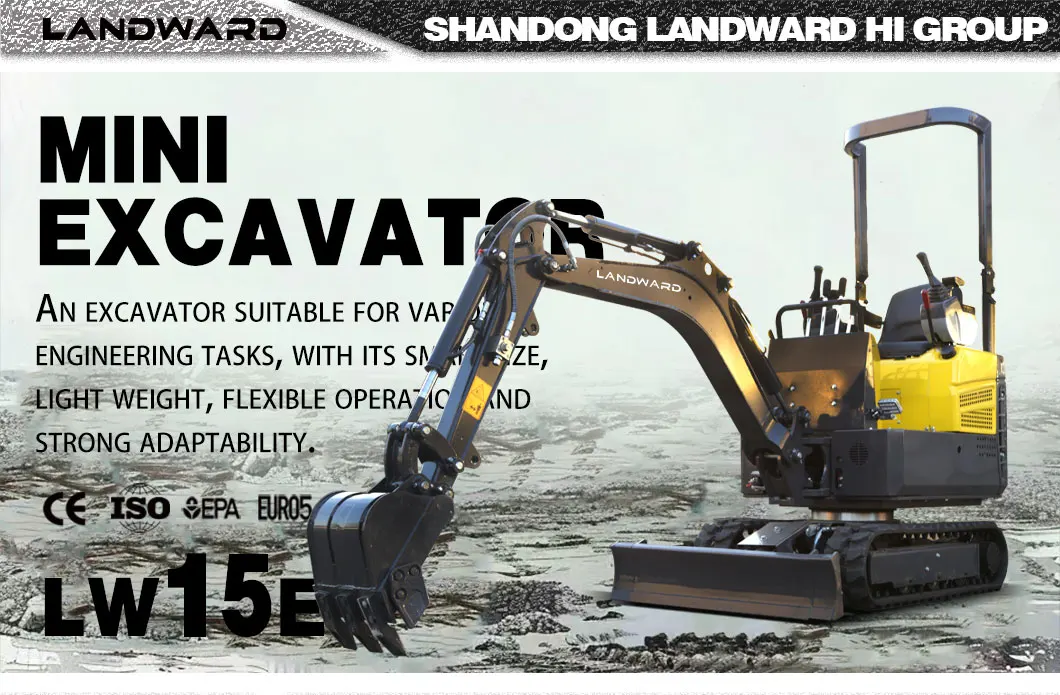

LW15E Mini Excavator | |
Operating weight |
1500KG |
Bucket capacity |
0.025m³ |
Engine model |
Kubota Z482 |
Rated power |
8.3kw/r/min |
Hydraulic pump model |
piston pump |
Max.flow |
30L/min |
Working pressure |
19.5Mpa |
Fuel tank capacity |
15L |
Hydraulic oil tank capacity |
15L |
Travel speed |
1.8-4.0km/h |
Swing speed |
12r/min |
Max.climbing degree |
58% |
Arm digging force |
7.6KN |
Bucket digging force |
12.5KN |
Average grounding pressure |
33Kpa |
Largest traction |
19KN |
A-Overall length |
2880mm |
B-Overall width |
820-1020mm |
C-Overall height (to top of boom) |
2118mm |
D-Overall height (to top of cab) |
2265mm |
E-Counterweight ground clearance |
430mm |
F-Min.ground clearance |
80mm |
G-Tail swing radius |
821mm |
H-Track ground length |
1250mm |
J-Track length |
1393mm |
L-Track width |
1020mm |
M-Track shoe width |
180mm |
N-Turntable width |
820mm |
O-Max.digging height |
2771mm |
P-Max.dumping height |
1917mm |

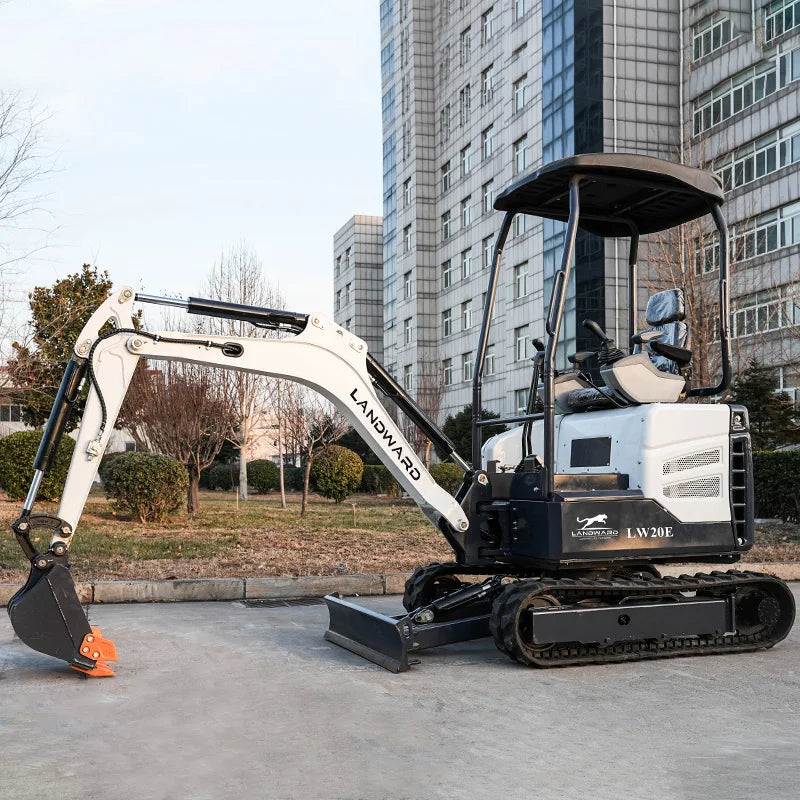

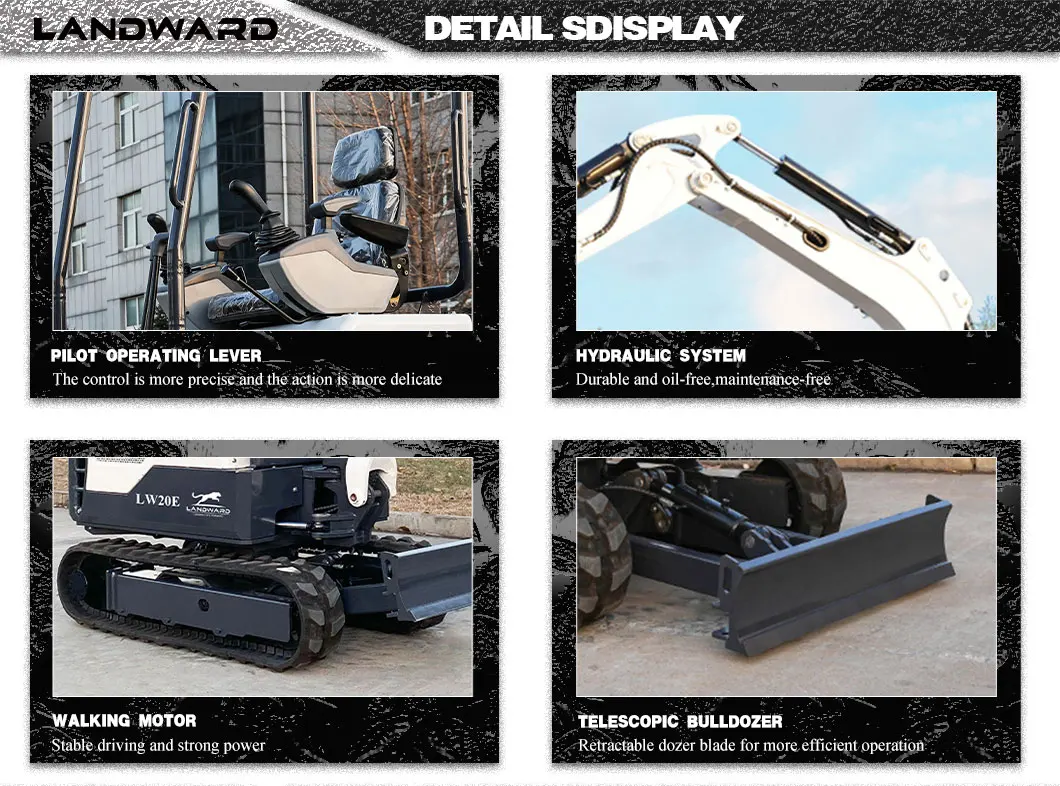

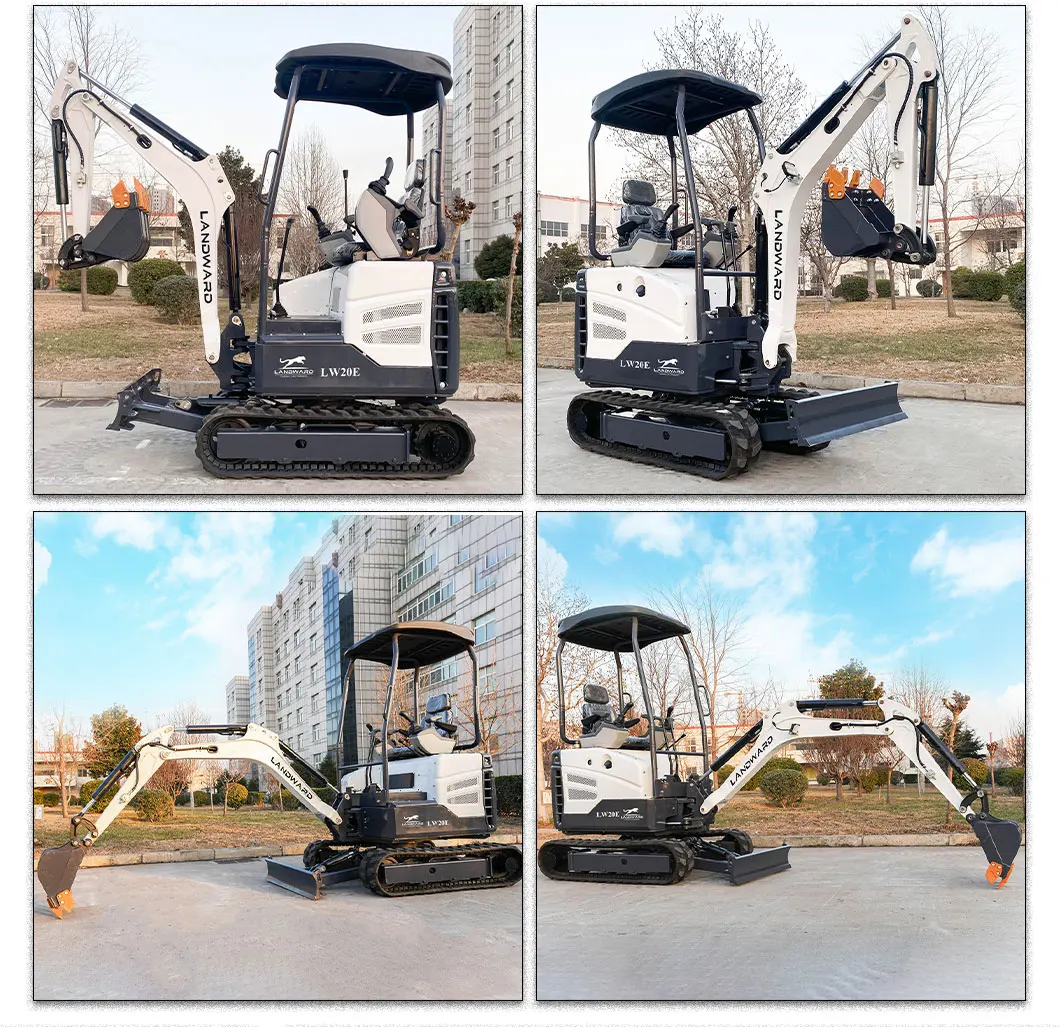

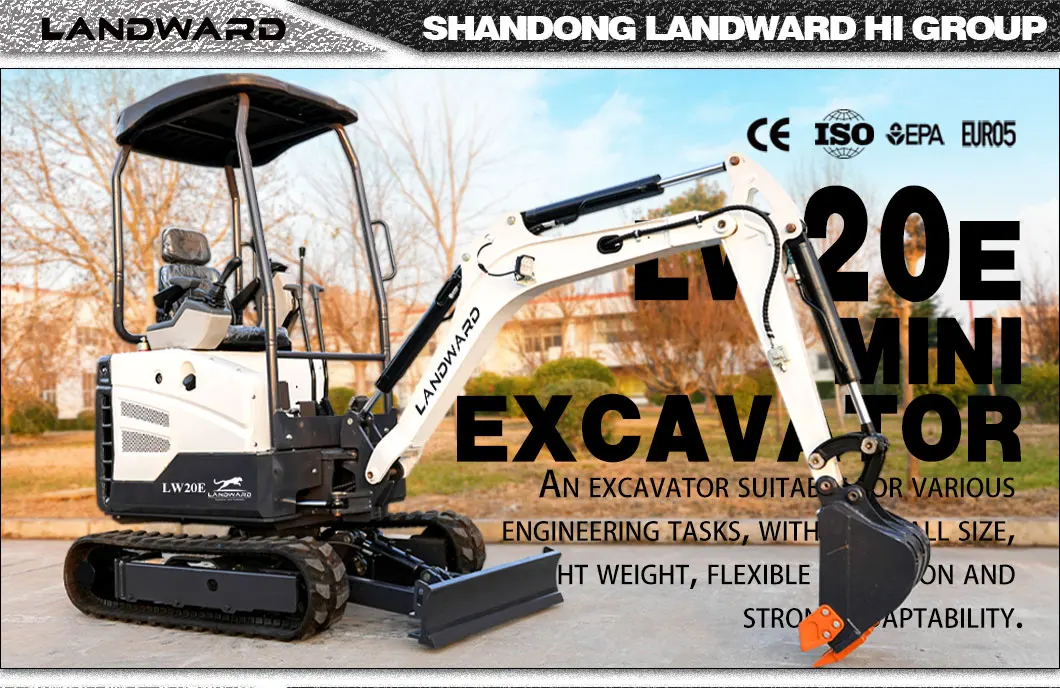

LW20E MINI EXCAVATOR | |
Operating Weight |
1980KG |
Engine |
Kubota D902 |
Power |
11.4KW |
Multi-way valve |
Load sensing valve |
Hydraulic pump |
Piston pump |
Bucket capacity |
0.04m³ |
Ground length |
1250mm |
Gyration radius |
1680mm |
Maximum digging depth |
2350mm |
Maximum digging height |
3240mm |
Maximum unloading height |
2150mm |
Chassis width |
980-1300mm |
Track width |
230mm |
Boom swing |
Standard |
Track extension |
Standard |
High and low speed |
Standard |

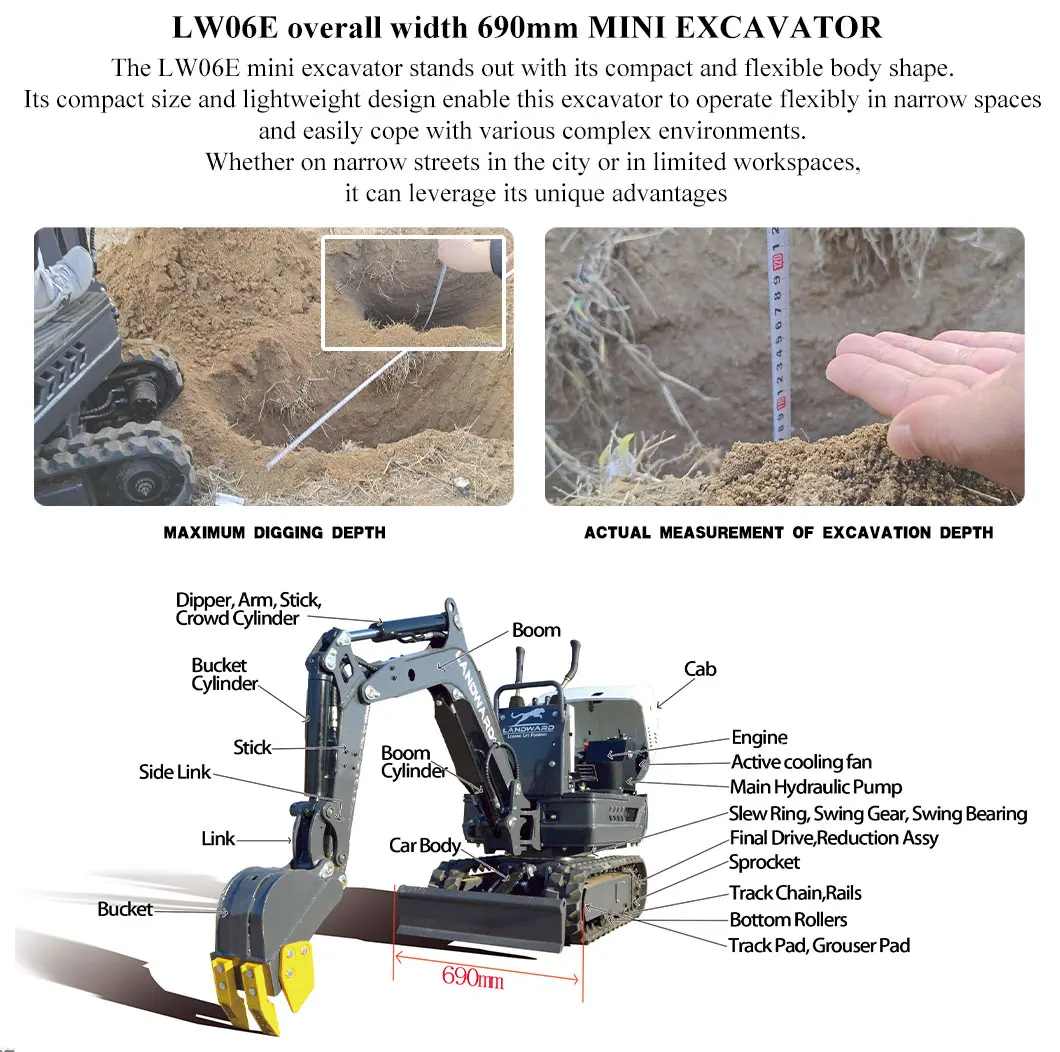

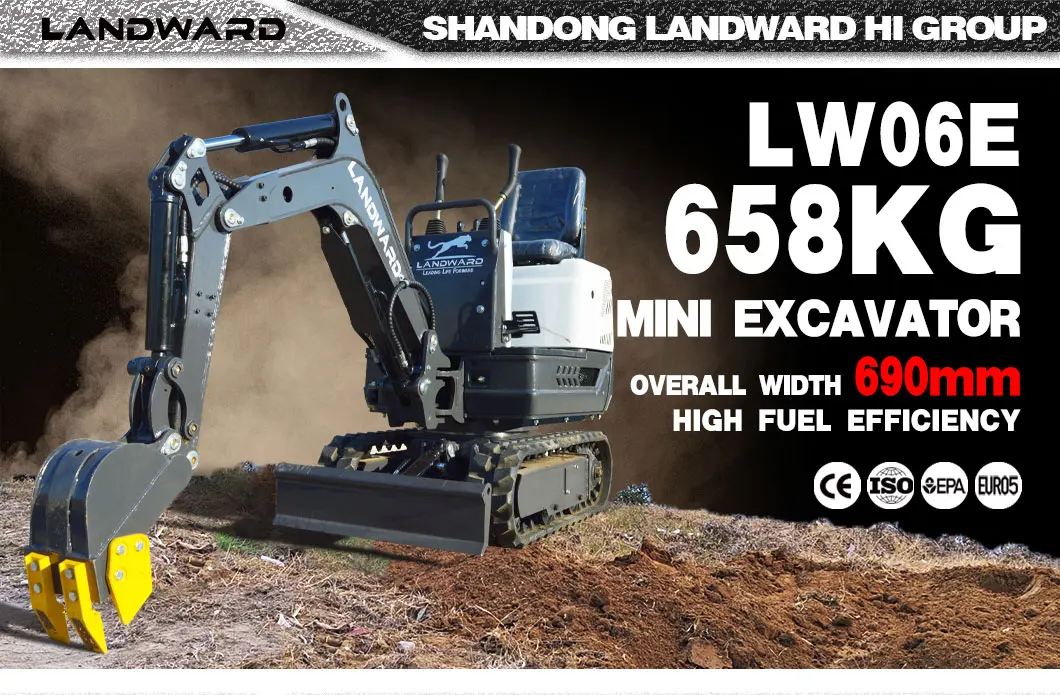

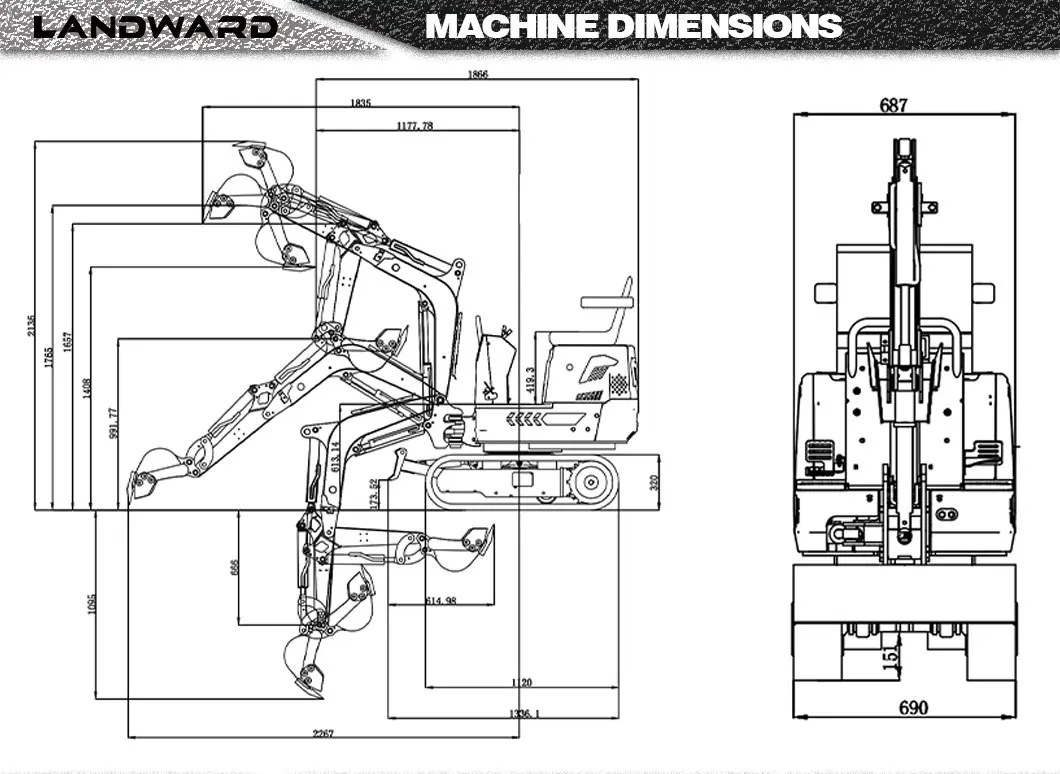

LW06E MINI EXCAVATOR | |
Operating weight (kg) |
600kg |
Bucket capacity (m3) |
0.01 |
Engine model |
Loncin G300 |
Displacment |
302cc |
Travel speed (km/h) |
2.2 |
Volume of fuel tank (L) |
10 |
Swing speed(r/min) |
12.3 |
Setting pressure (KPa) |
20 |
Bucket digging force(kN) |
7.5 |
Overall length (mm) |
1866 |
Overall width (mm) |
690 |
Overall height(to top of cab)(mm) |
1657 |
Track length (mm) |
1120 |
Track width (mm) |
180 |
Max. digging height (mm) |
2136 |
Max. dumping height (mm) |
1408 |
Max. digging depth (mm) |
1095 |
Max. digging reach (mm) |
2267 |
Min. swing radius (mm) |
1177 |
Landward have mini excavators from 1ton- 8tons, if need other model which not showed here, please click and find our professional salesman for more information and the best price.
If you have any needs which we didn’t show you here, please contact our sales directly.


Great honor for us to have your interest in our small machine and hope you have a good time in our store. Thank you!

About LANDWARD Machinery
The history of LANDWARD development can be tracked back to 1997 as a small Auxiliary Factory(named Jimo Iron works in a small village) which taking the steel plate cutting.
In the early 21th century, Landward shifted towards expanding into new business to welding and produce structural parts for loader factories.
In 2009, Landward started the research and development of dumpers, and in the next year we began to produce forklifts. We were posed many challenges but also created opportunities for innovation and adaption.
In 2018, we engaged in small machine, like small excavators, mini dumpers, mini wood chippers at the time when the Euro market begin to accept Chinese mini machine.
On Jan.5, 2024, the company has been renamed to its current name-Landward(Shandong) HI Group, aimed at developing engineering equipment to the world.
Today, Landward continue to evolve in response to technology, globalization, and leading customers’ life forward. The development of artificial intelligence, renewable energy and e-commerce are shaping the future of Landward, creating new opportunities and challenges. We engaged on playing a vital role in driving the quality growth and improving customers’ life easier.
Welcome dealers from the world for sharing a similar vision to generate value for the customers.

LANDWARD LOOKS FORWARD TO YOUR JOINING
