MMOOKA MMOOKA CFZHTE 15KW High Frequency Induction Heater Furnace 30-100KHz Iron Welder Heat Treatment ForgingMMOOKA.COM

MMOOKA MMOOKA CFZHTE 15KW High Frequency Induction Heater Furnace 30-100KHz Iron Welder Heat Treatment ForgingMMOOKA.COM

$557.03 USD
$1,020.50 USD $557.03 USD
Sale Sold out
Shipping calculated at checkout.

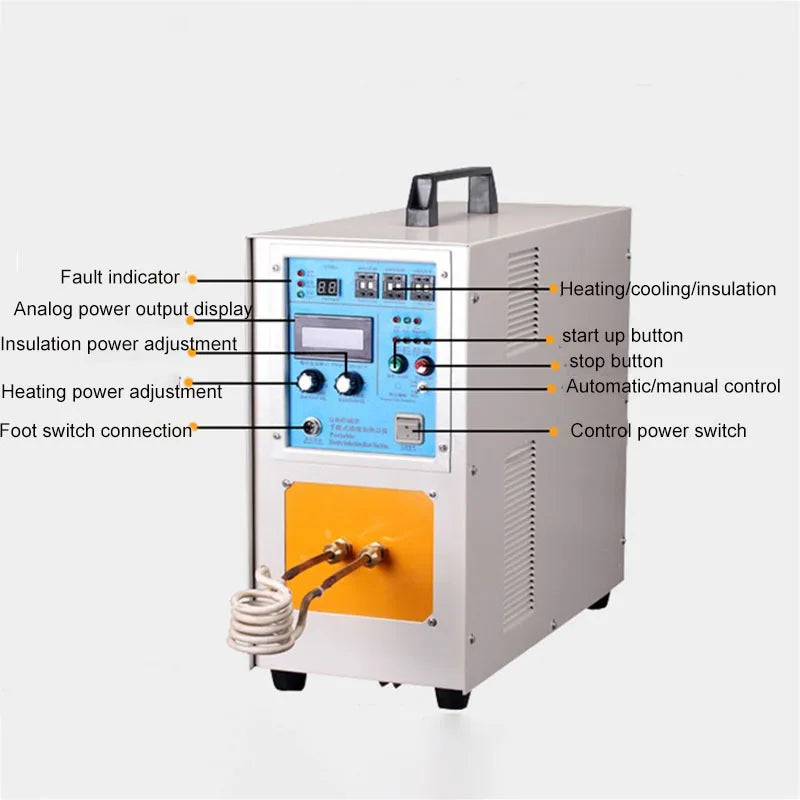

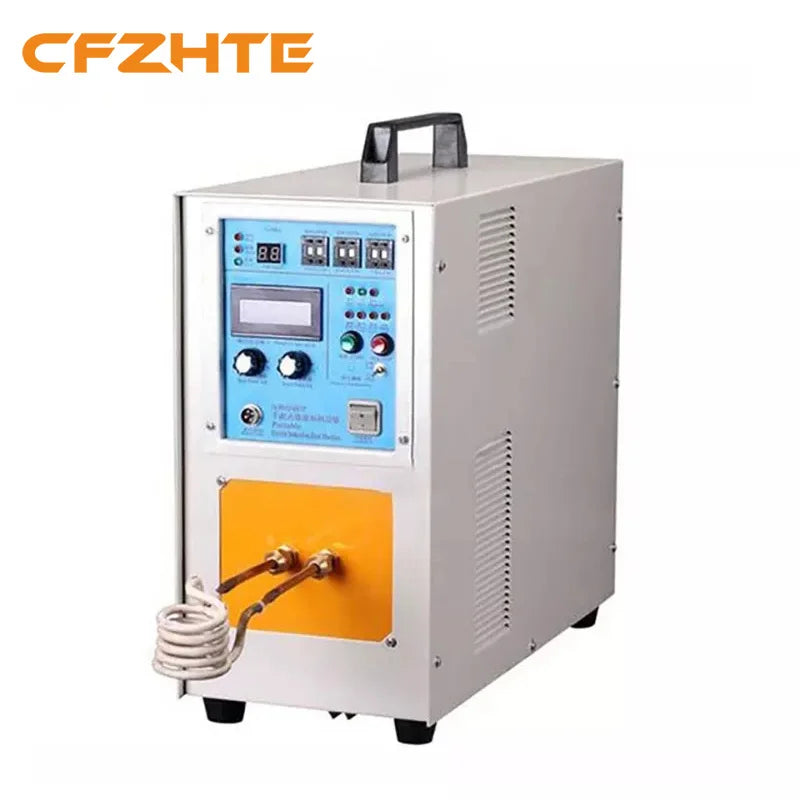

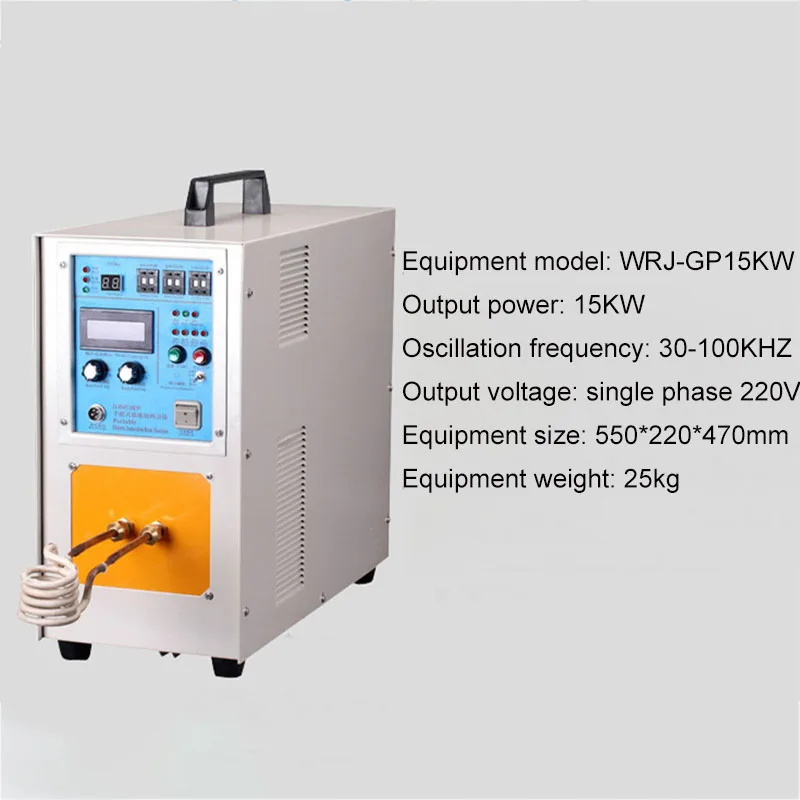

15KW 30-100KHz High Frequency Induction Heater Furnace


Need to bring your own cold water system (water pump, etc.)





1. Constant power control for efficient and fast optimal heating.



2. Reduce power load and capacity, and save energy for you.



3. Easy to install and use, you can use it when you turn it on.



4. Low voltage to obtain high frequency, effectively preventing electric shock and high frequency



radiation.



5. Versatile, one machine meets your multiple needs.



6. 100% full load, can work 24 hours a day.




Input voltage: 220V 50/60hz



Operating voltage range: 180-250V



Oscillation frequency: 30-100KHZ



Output current: 200-600A



Capacity:about 1kg



Time setting: with timing function 1-90s



Water temperature protection point: 40℃



Cooling water requirement: 0.06Mpa-0.12Mpa 7.3L/min



Volume: 55*22*47cm



Weight: 28kg

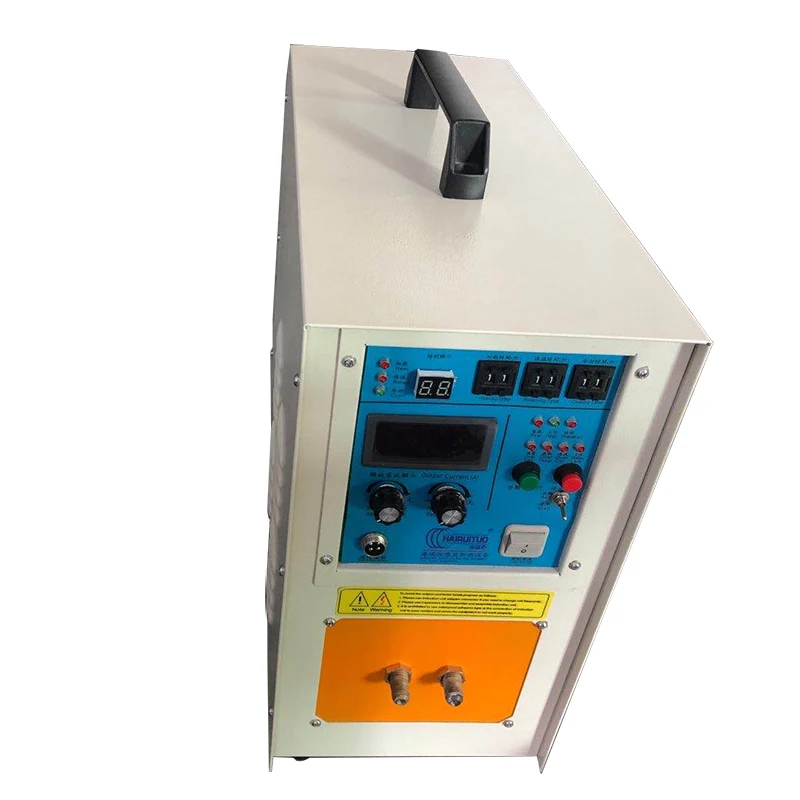

Host 1pcs

Heating coil 1pcs

Foot switch 1pcs



Description and Advantages:


1 ,Adopts the latest MOSPET, IGBT power units and frequency conversion control techniques

withhigh efficiency, low energy consumption and higher output power

2 ,With constant current and constant power control function to greatly optimize the heating

process of metals, realize efficient and fast heating, and fully exert the superiority of the products

3 ,Power consumption is half of traditional electron tube high frequency induction heating

equipments under same conditions

4, With 100% load design, can work in 24 hours without stop. Infrared temperature detector can

be equipped to realize the automatic control of temperature, improve heating quality and simplify

manual operation

5 ,With heating-insulating-cooling three stages function setting, the heating and insulating time

required can be get to accommodate to the batched and repeated heating situations

6 ,With multiple status display of overflow, overvoltage, low water, phase failure and load

malfunction, providing higher reliability and Sustainability

7 ,Select power supply according to the power and frequency. The higher the frequency, the

shallower the heating depth, and the lower the frequency, the better the diathermancy.

one year warranty
We are not responsible for any custom duty or import tax, it is buyer's responsibility.
