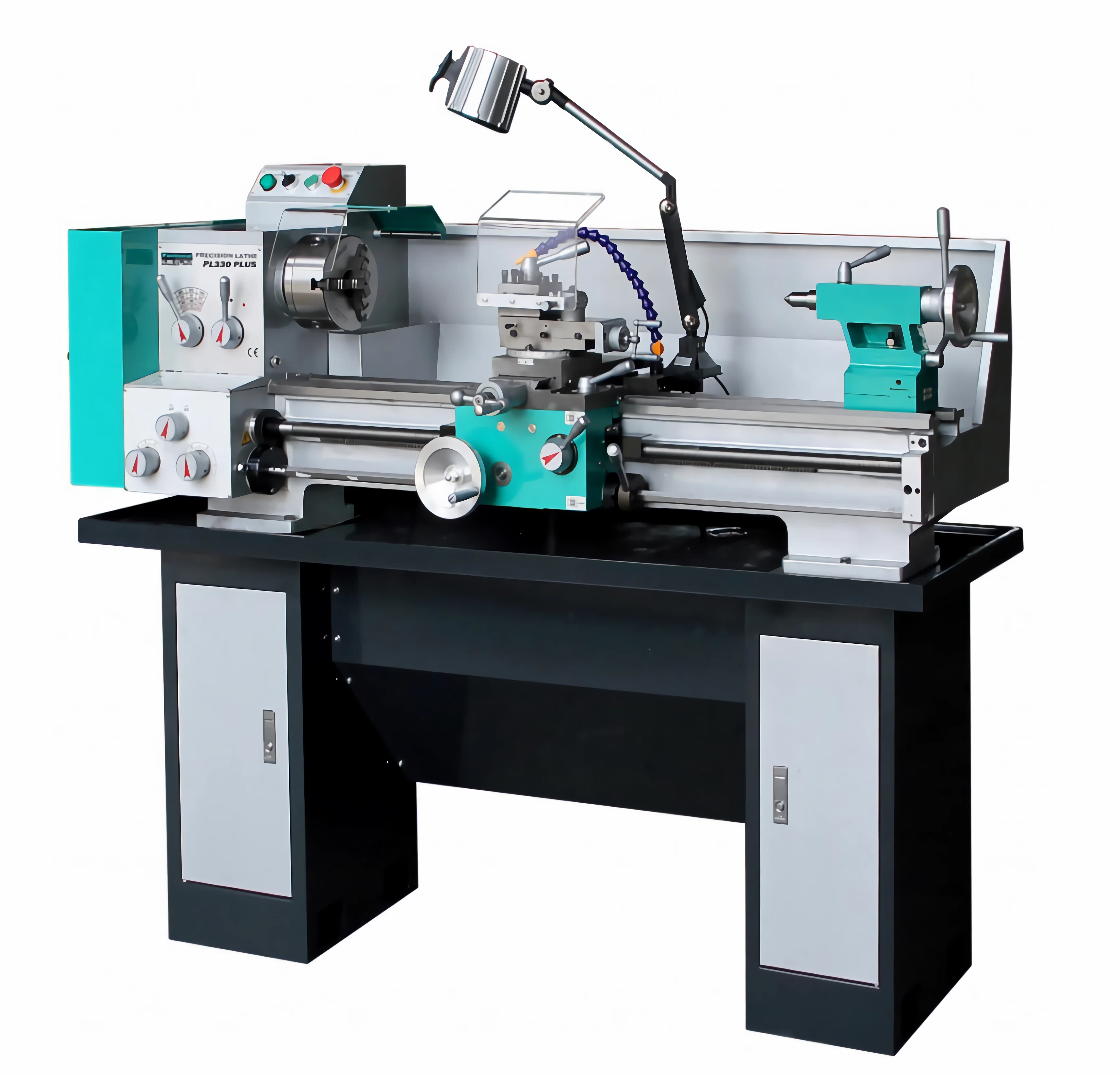

ANTNX 915mm BL330C Plus Manual Metal Bench Lathe Not CNC Automatic Lathe with Variable Speed Function for Gunsmithing ANTNX.COM

ANTNX 915mm BL330C Plus Manual Metal Bench Lathe Not CNC Automatic Lathe with Variable Speed Function for Gunsmithing ANTNX.COM

$4,825.85 USD
$6,032.31 USD $4,825.85 USD
Sale Sold out
Shipping calculated at checkout.
Product Description
Specification
item
value
Name
BL330C Plus
Distance between centers
750mm & 915mm
Swing over bed
Ø330mm
Swing over cross slide
Ø220mm
Bed width
160mm
Spindle bore
Ø38mm
Taper of spindle bore
No.5 Morse
Range of spindle speed
12, 60-1800rpm
Compound rest travel
60mm
Cross slide travel
160mm
Max. Section of tool
16×16mm
T-Slot
90*10mm*2
Range of longitudinal feed
0.087 - 1.5 mm/rev
Range of cross feeds
0.045 - 0.6 mm/rev
Range of metric threads
0.25- 4 mm /14
Range of imperial threads
4- 120T.P.I. /18
Quill travel
80mm
Quill taper
No.3 Morse
Main motor power
1.1KW 1.5HP
Package diamension (L*W*H)
1460/ 1660*770*760mm
Net/ Gross Weight
345kg/ 375kg & 385kg/ 410kg
Standard Accessories
Dead Center MT3
Change Gear Z:45
Change Gear Z:70
Change Gear Z:60
Change Gear Z:120/127
Straight Driver
Cross Driver
Allen Wrench: 3锛�4锛�5锛�6
Dead Center: 8 - 10mm; 12 - 14mm; 17 - 19mm
Reverse Jaw + Key: 125mm Three-Jaw Chuck
Socket Wrench: M10
Oiling Can: 250ml
Optional Accessories
LED Light
Cooling Pump System
Machine Stand with Oil Tray 锛圢ormal锛�
Machine Stand with Oil Tray 锛圖rawer锛�
Steady Rest & Follow Rest
Face Plate
200mm 4-Jaw Chuck with Back Plate
Carbide Cuuting Tools 16x16 (9PCS / BOX)
Welded Cutting Tools 16x16 (9PCS / BOX)
Chasing Dial
Extension Leadscrew Cover
Company Profile

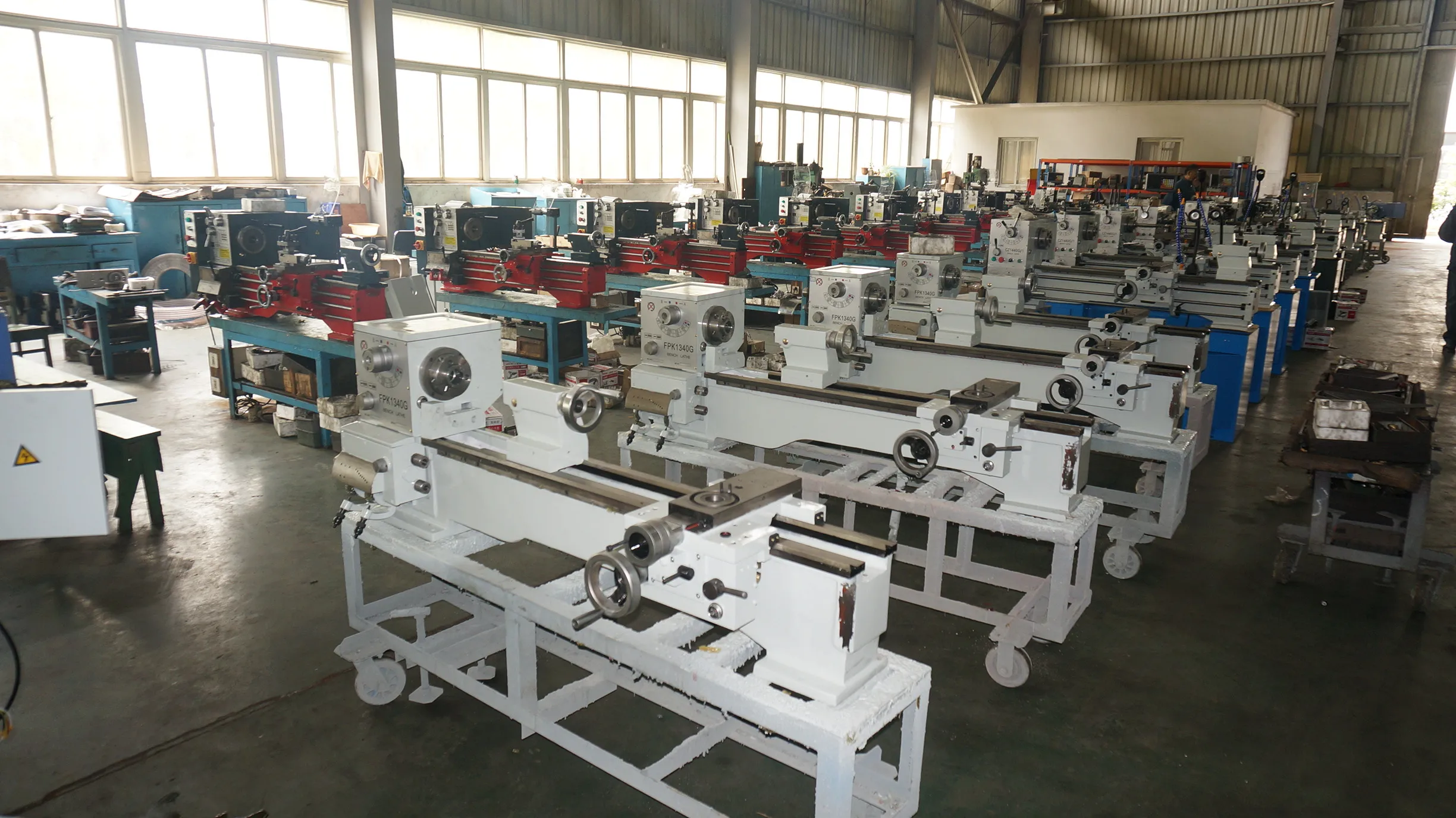

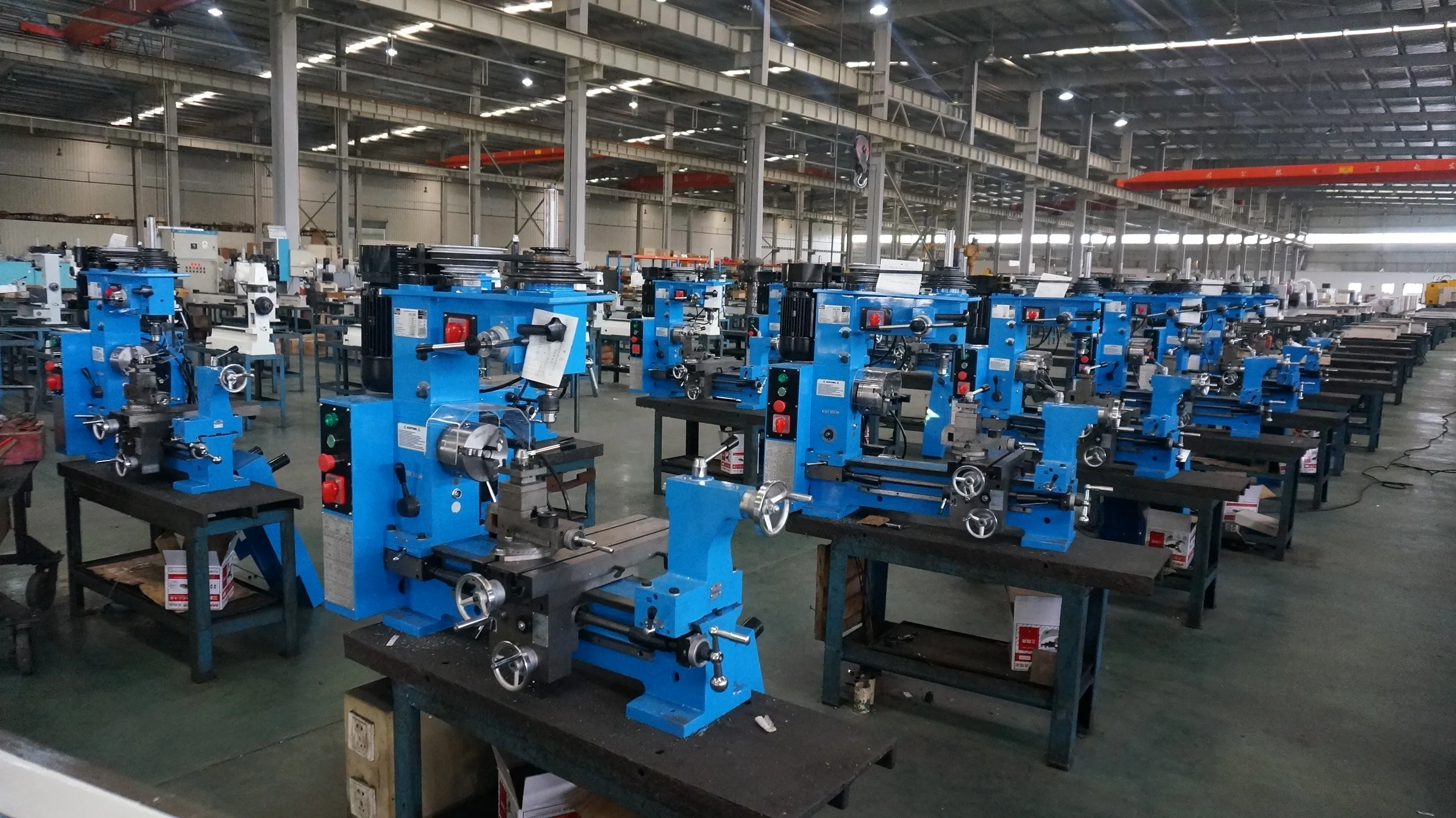

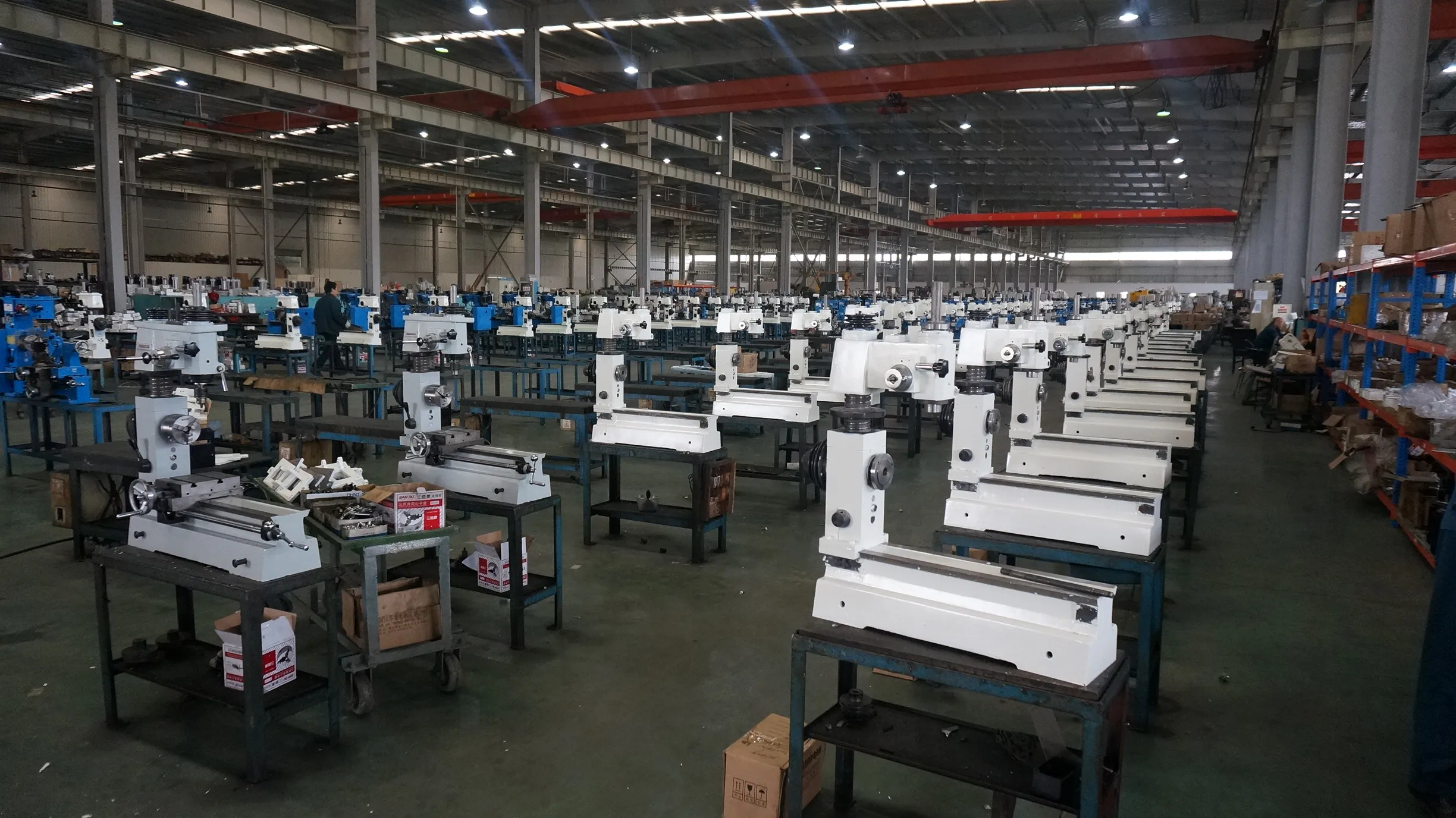

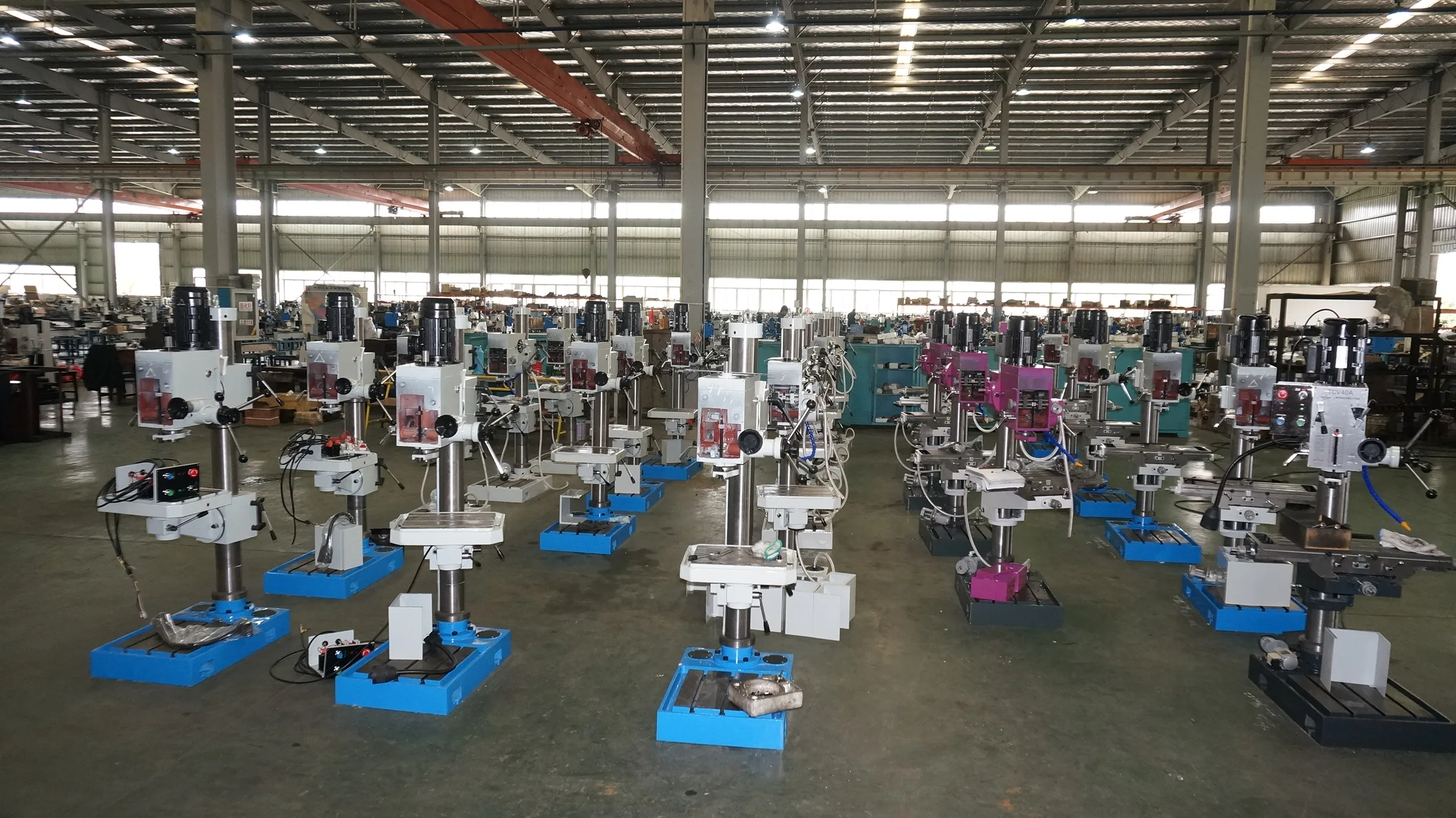

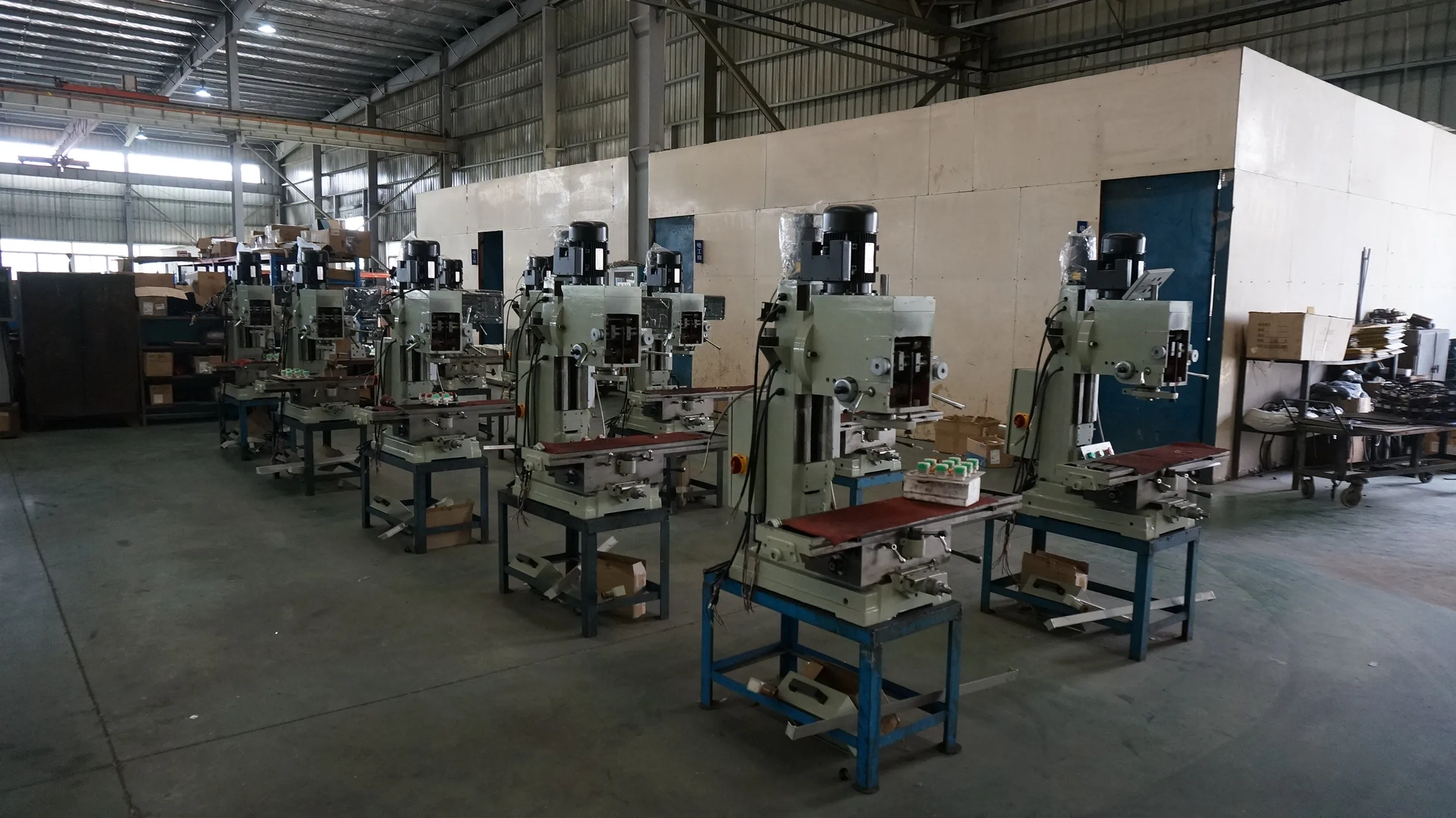

Shanghai Tongchen Import Export Co., Ltd.,To create the most influential brand in woodworking, metalworking and hand tools. All the equipment according to the characteristics of enterprise products tailored according to the requirements of quality control, reasonable and flexible configuration de-tection project, reasonable configuration of brand according to the cust-omer demand and the characteristics of the device itself.
