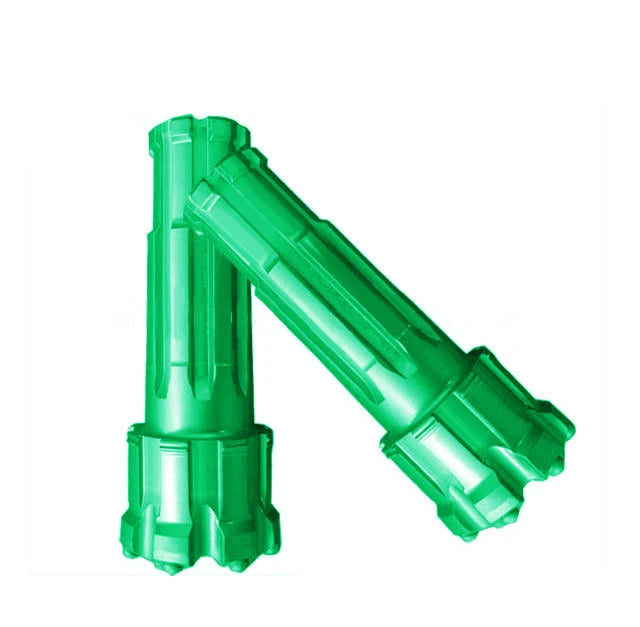

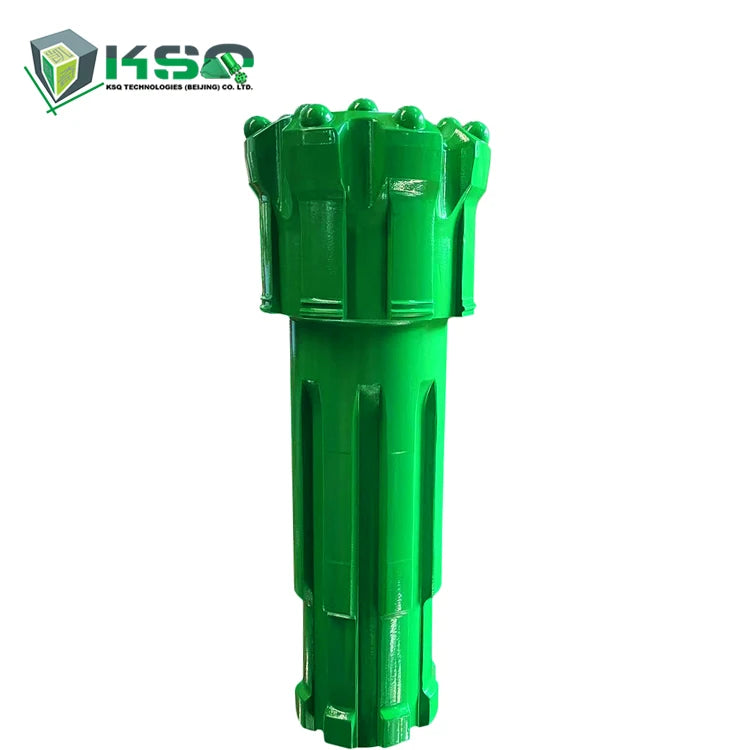

ANTNX 5" RE547 RC Reverse Circulation DTH Bit DTH Hammer Drilling Bits ANTNX.COM

ANTNX 5" RE547 RC Reverse Circulation DTH Bit DTH Hammer Drilling Bits ANTNX.COM

$786.83 USD
$983.54 USD $786.83 USD
Sale Sold out
Shipping calculated at checkout.
Products Description

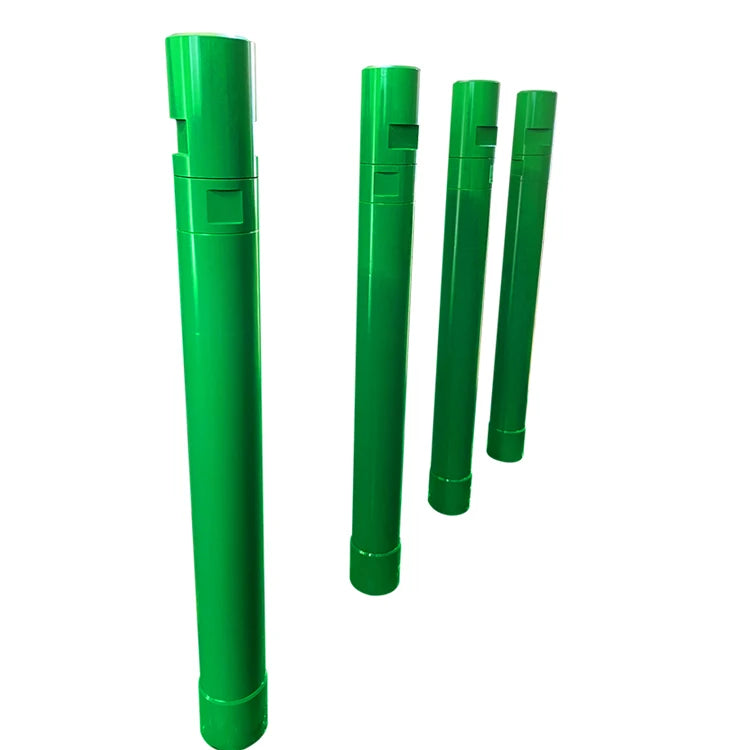

RC series reverse circulation DTH Hammer ,optimization of inner structure offers faster drilling speed and more stable operatio. It is mainly used for deep exploration drilling and ore grade control.

Characteristics of Reverse circulation DTH Hammer ;
1. Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.

2. The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.

3.The collection tube adopts an integrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.

4.Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.

5. In difficult conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.
Color: Green,Blue or Based on Customer requirements

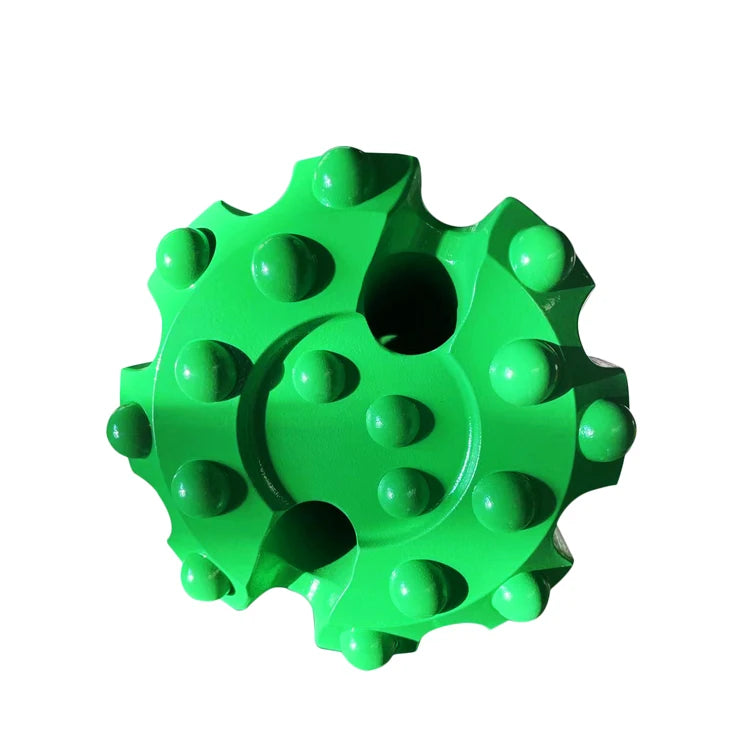

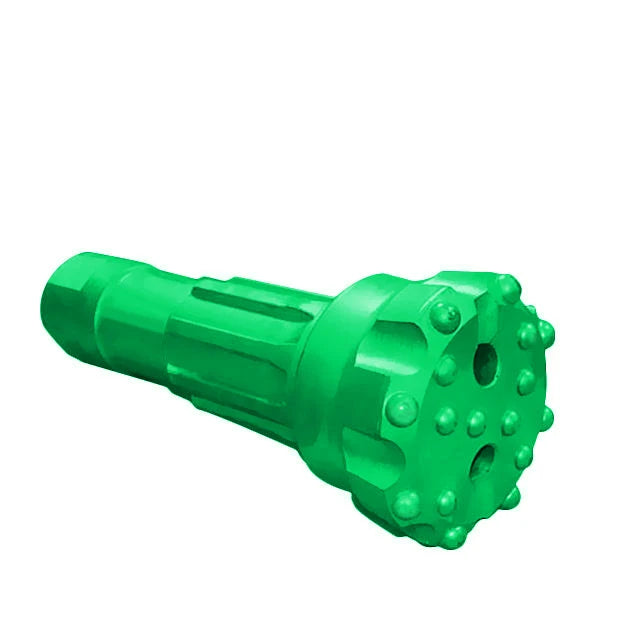

Drill Bit
Bit Dia.(mm)
NO.Air Holes
Gauge Buttons
Front Buttons
Weight(Kg)
MIC
133
2
8×φ16
8×φ16
17.5
140
2
8×φ16
8×φ14
18
146
2
8×φ18
8×φ14
20
PR5
133
2
8×φ16
8×φ14
12.5
140
2
8×φ16
8×φ14
13
146
2
8×φ18
8×φ14
13.5
PR4
115
2
8×φ16
8×φ13
14.4
127
2
8×φ16
8×φ14
15
133
2
8×φ16
8×φ14
15.5
Company Profile
Factory
Why choose us
Certifications
Exhibition
Packing and delivery
FAQ


1. Q锛欰re you manufacturery or trade company? A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit銆丏rill Pipe Casing System銆乀ricone Bit銆乀op Hammer Drill Rod銆� Drill Bit銆乀apper Button Bit and Rod銆� Integral Drill Rod etc. 2.Q: Do you offer warranty on your products? A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date. 3銆丵: How is your quality control? A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out. 4.Q: How long is your delivery time? A: 1-5days for the products in stock锛� regular order delivery in 2-3weeks. 5.Q: After Services: A:(1) Our sales team will response for your question within 24 hours (Holidays included). (2) Technical Support will be available in any time. (3)Free replacement will provide once the failure confirmed caused by our product quality. 6.Q:Methods of Payment: A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods. 7Q: Do you offer OEM service? A:Yes, we can offer OEM service if you have regular requirement. 8Q: Where did you export ? A:Till 2023 we have exported to 60+ countries.
