ANTNX 230V Tig Welding Machine AC DC Aluminum Automatic Tig Welding Machine ANTNX.COM

ANTNX 230V Tig Welding Machine AC DC Aluminum Automatic Tig Welding Machine ANTNX.COM

$1,293.59 USD
$1,616.99 USD $1,293.59 USD
Sale Sold out
Shipping calculated at checkout.

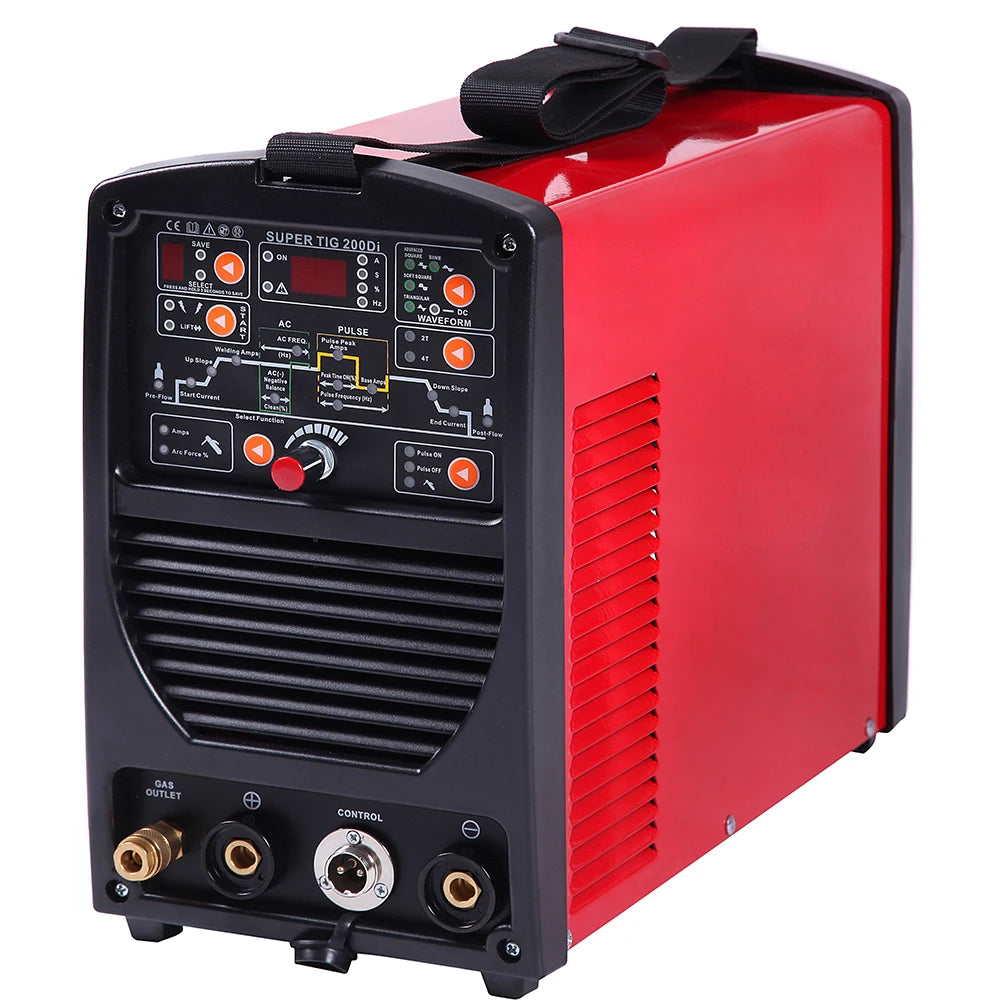

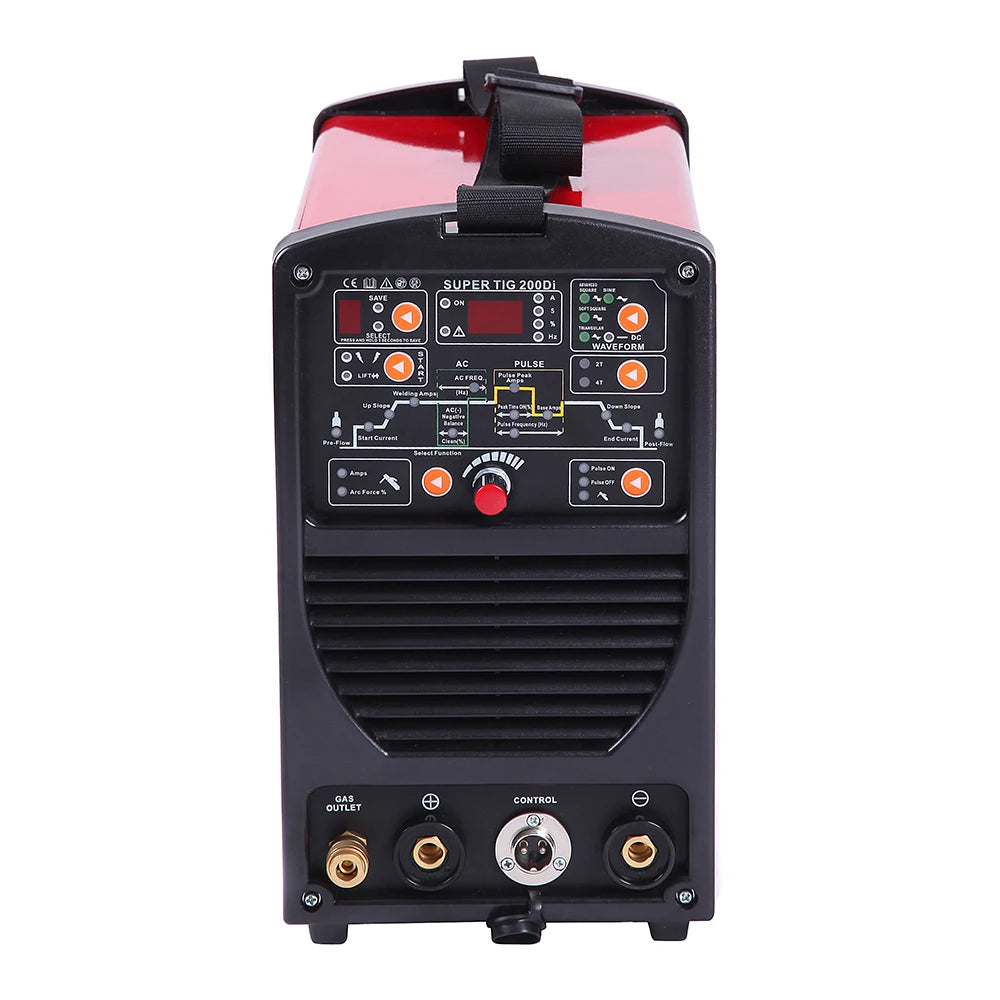

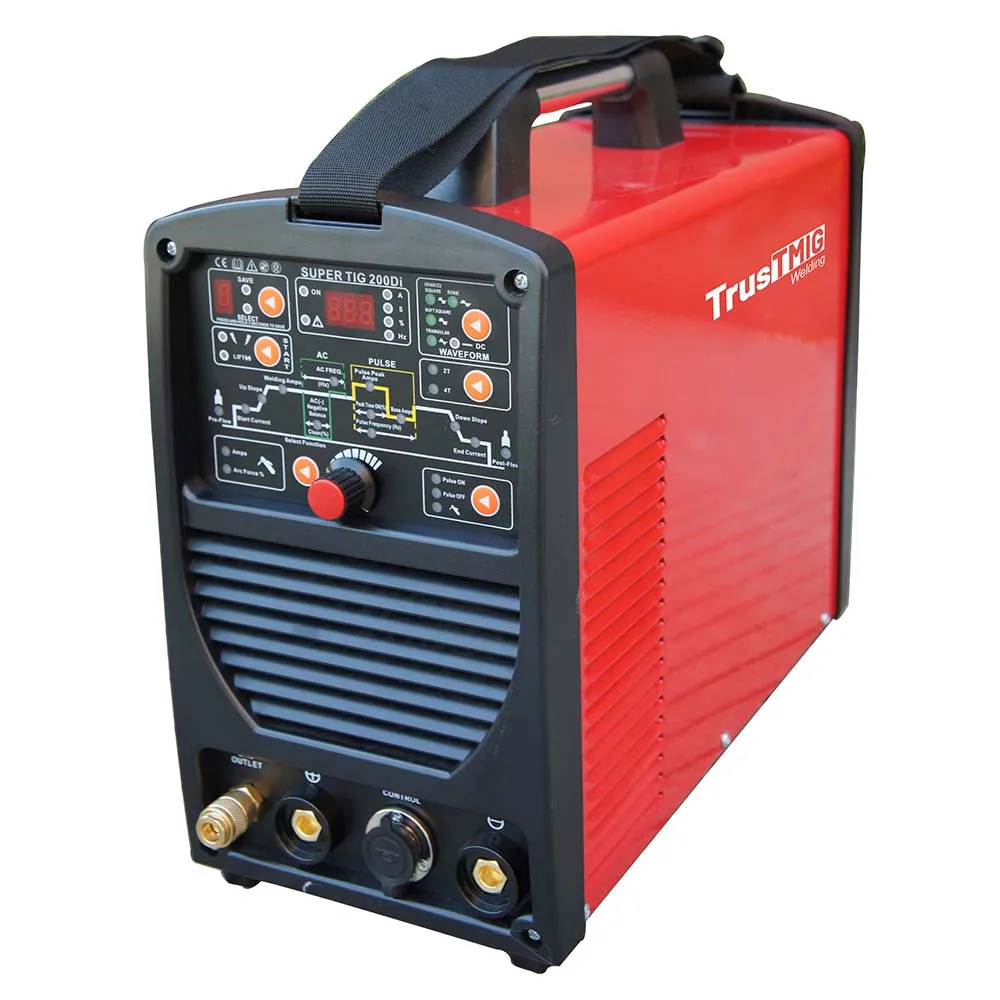

What can you expect from our SuperTIG200Di?
Functions: AC TIG, DC TIG, PULSE TIG, HF TIG, MMA (Stick Welding)
Suitable Material: Aluminum Alloy, Stainless Steel, Carbon Steel

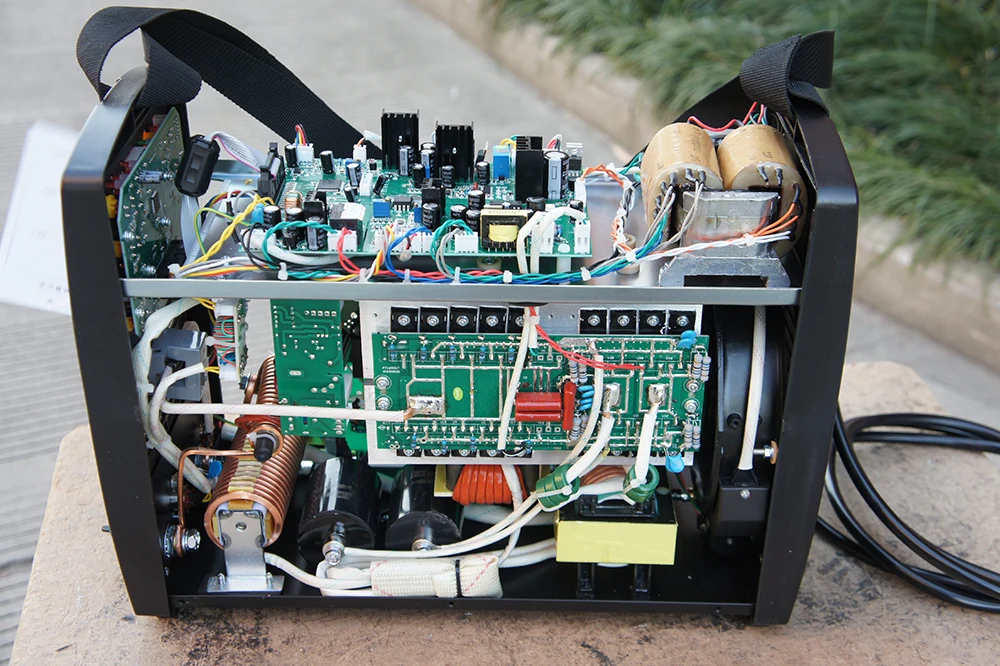

1. IGBT Digital Control high frequency inverter
2. Portable
3. All parameters preseted by one knob
4. MMA: Hot arc start, arc force, anti-stick.
TIG: Pulse AC DC TIG, HF/Lift arc start
5. Pulse TIG and 4 different kinds of wave control for AC TIG
6. 2T/4T function
7. Microprocessor inside, 10 channels memory
8. Quick gas connector, easy operation
9. Over heating and Current protection

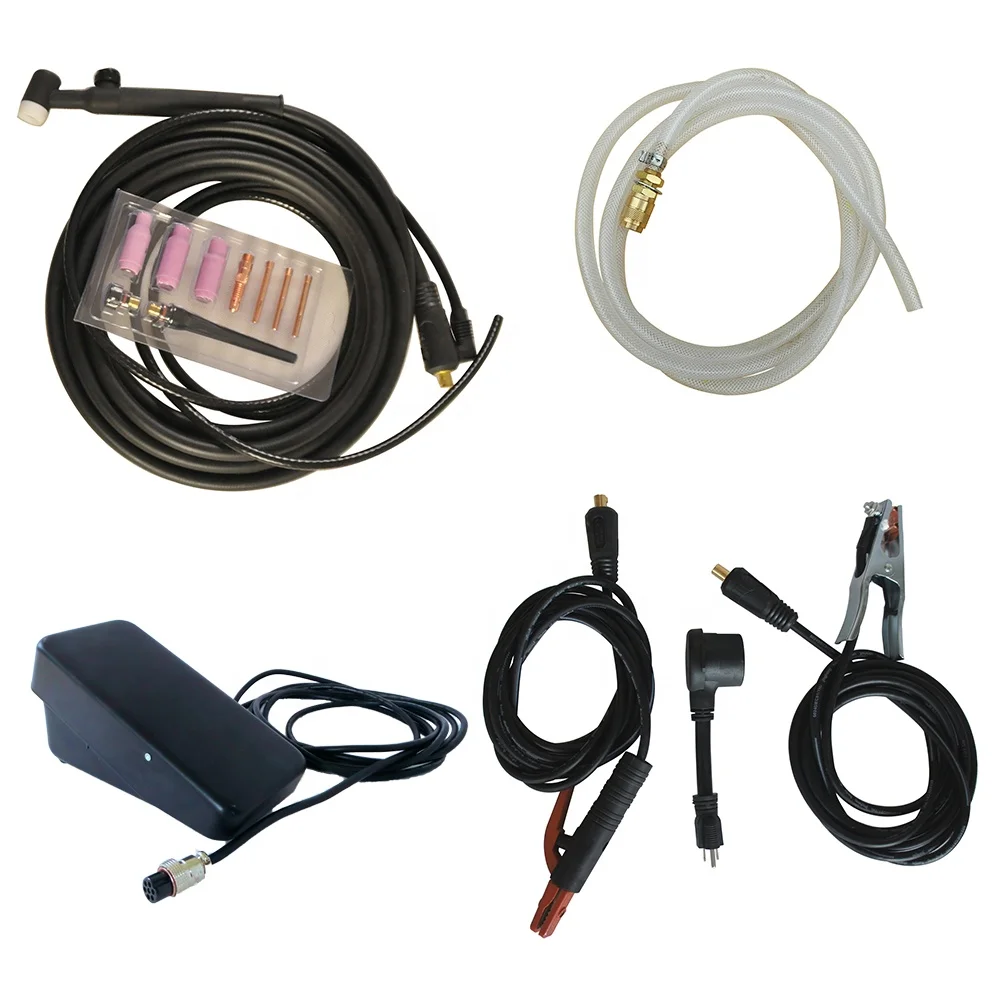

10. Foot Pedal and finger control Current function.

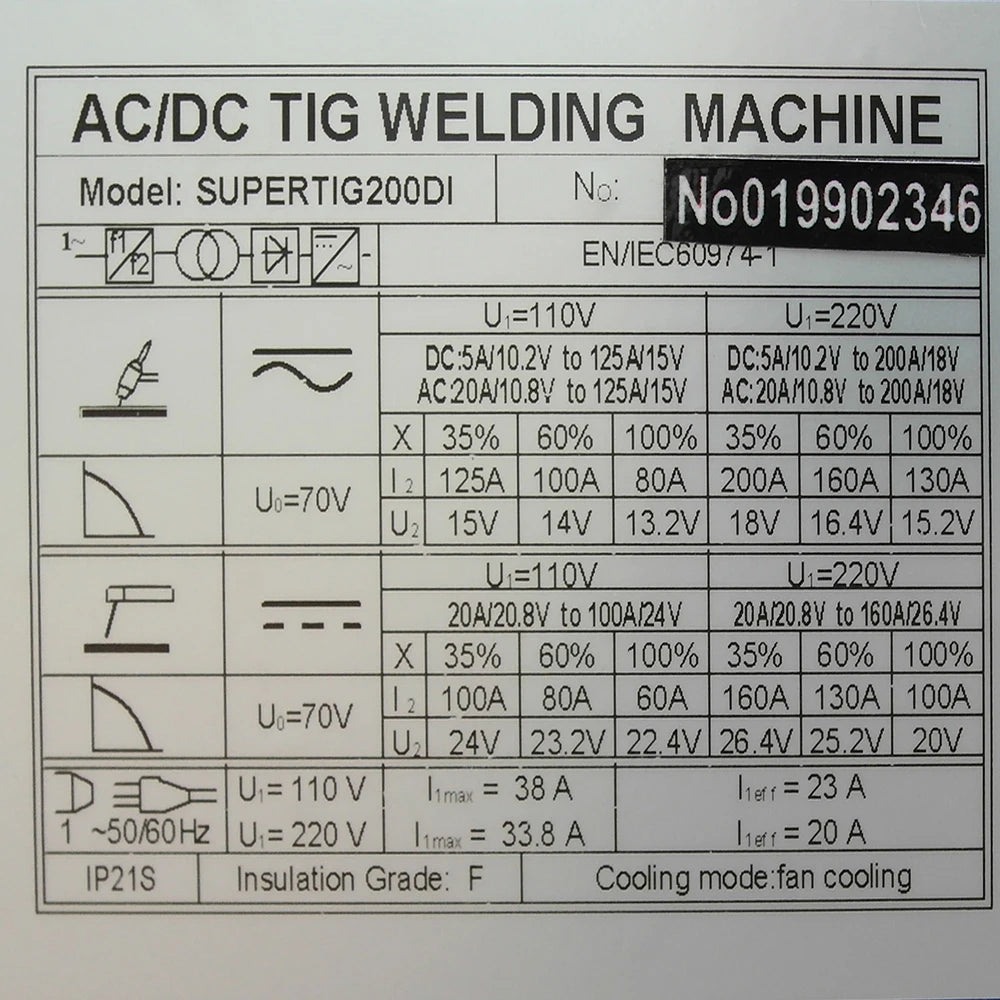

Model
SuperTIG200Di
Input Voltage
1x220V, 50/60Hz
Input Power Capacity
7.4KVA
No Load Voltage
65V
Current Range
TIG: 5-200A, MMA: 20-160A
Up/down slope time
0-10S
Gas pre/post flow time
0-10S
Pulse Frequency
0.5-250Hz
Pulse Width
0.1-0.9
AC frequency
20-200Hz
AC balance
30%-70%
Rate Duty Cycle
35%
Machine Dimensions (LWH)
435x185x325mm
Package Dimensions (LWH)
520*340*380mm
Weight (kg)
15kgs
Package Weight
22.5kgs
