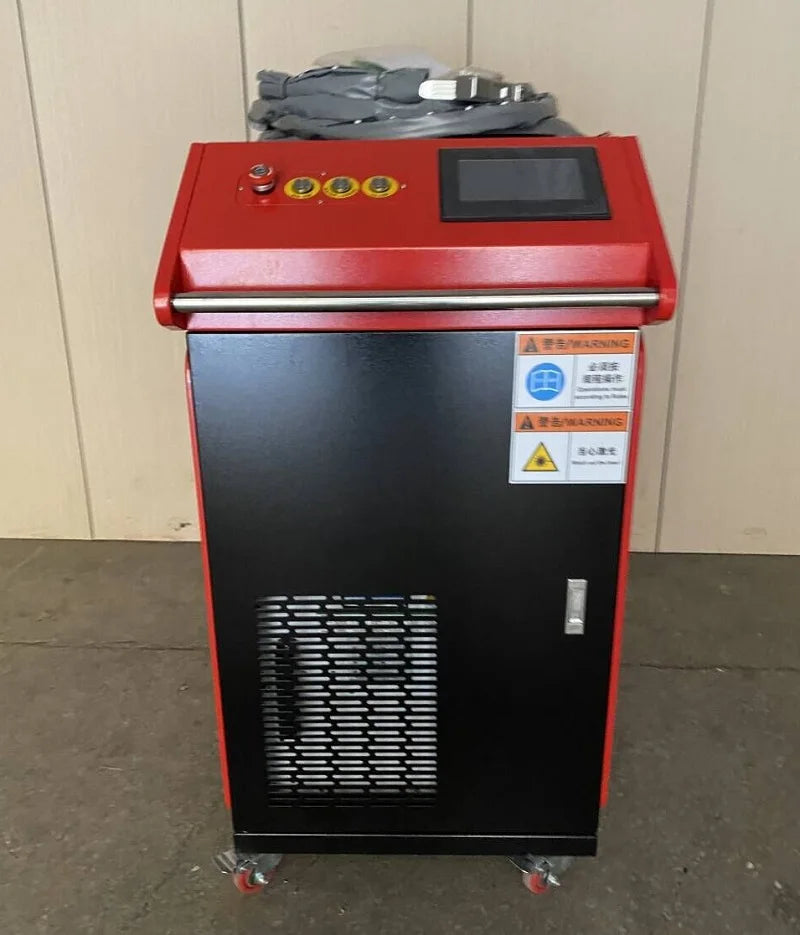

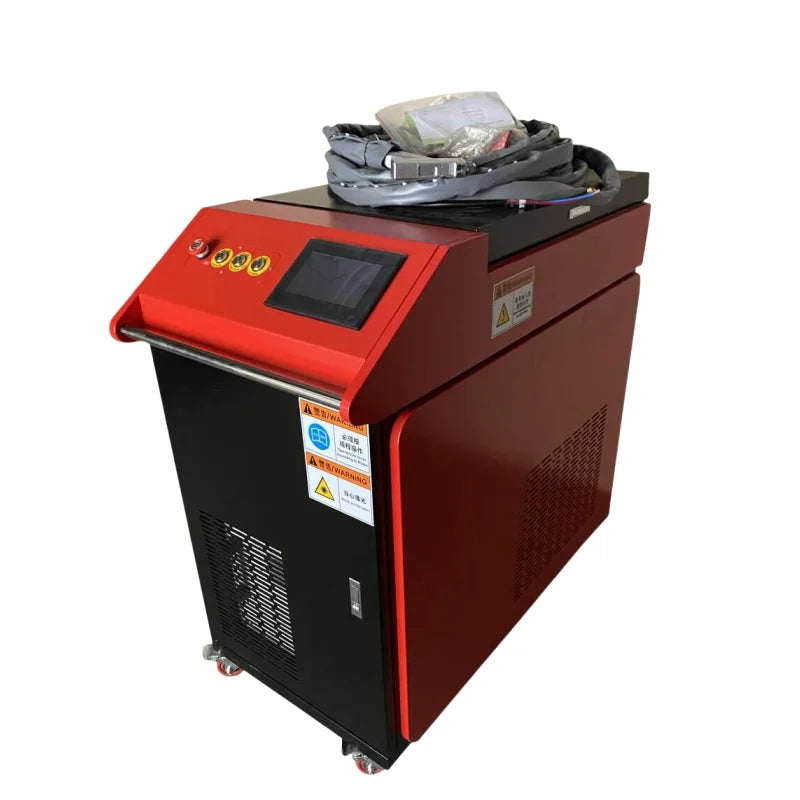

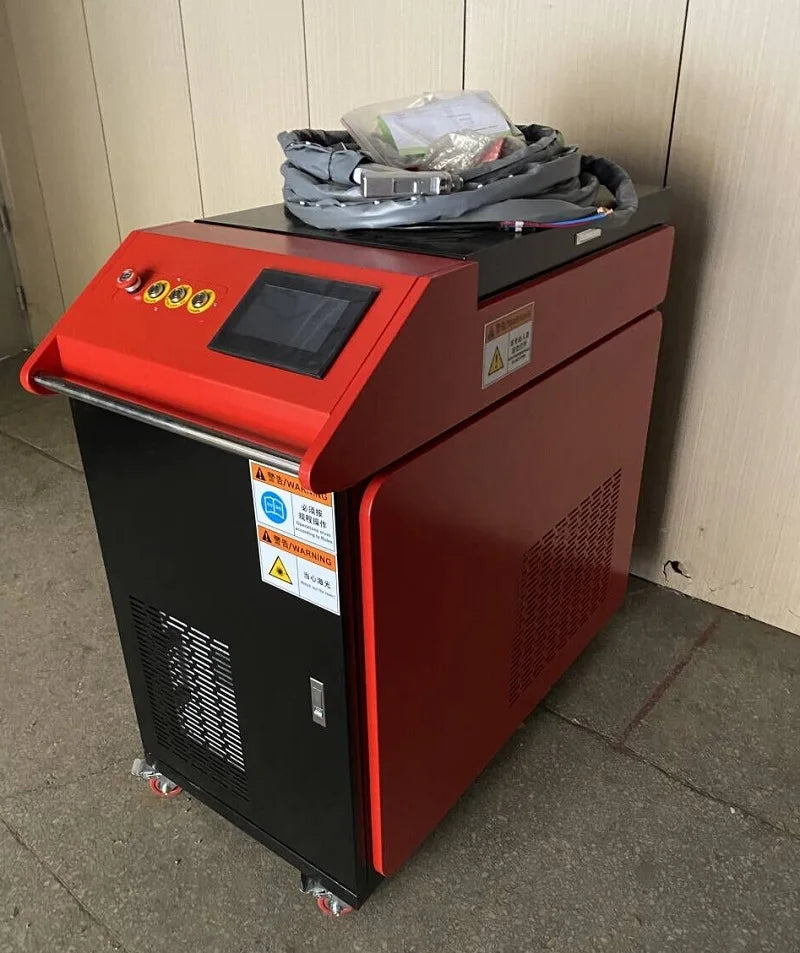

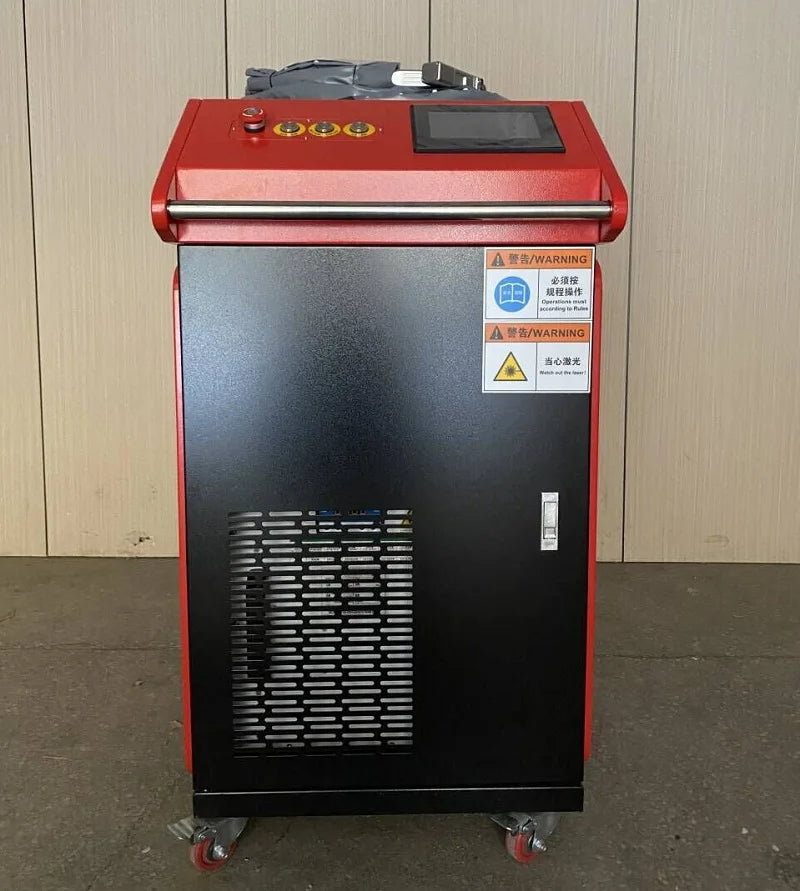

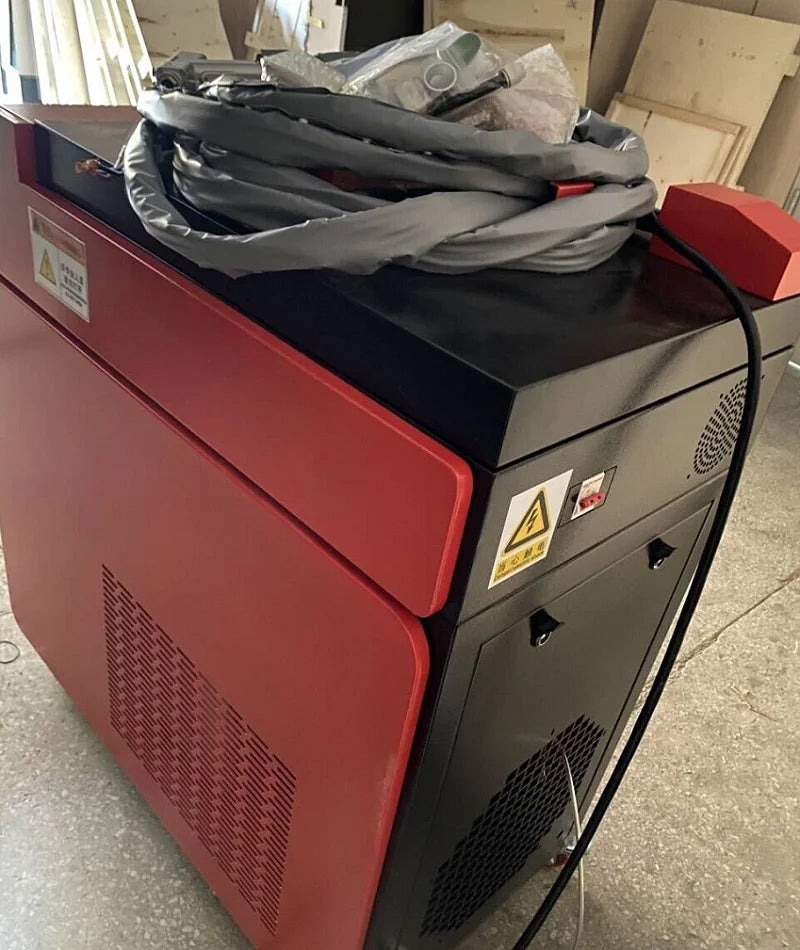

Laser Weld Machine Cleaning Metals Portable Laser Welding Machine 3 In 1 2000w Stainless Steel Cleaner Equipment

Laser Weld Machine Cleaning Metals Portable Laser Welding Machine 3 In 1 2000w Stainless Steel Cleaner Equipment

$6,425.04 USD
$8,031.30 USD $6,425.04 USD
Sale Sold out
Shipping calculated at checkout.

Welcome Visit Our Samet CNC Store. I am Cathy Yuan.

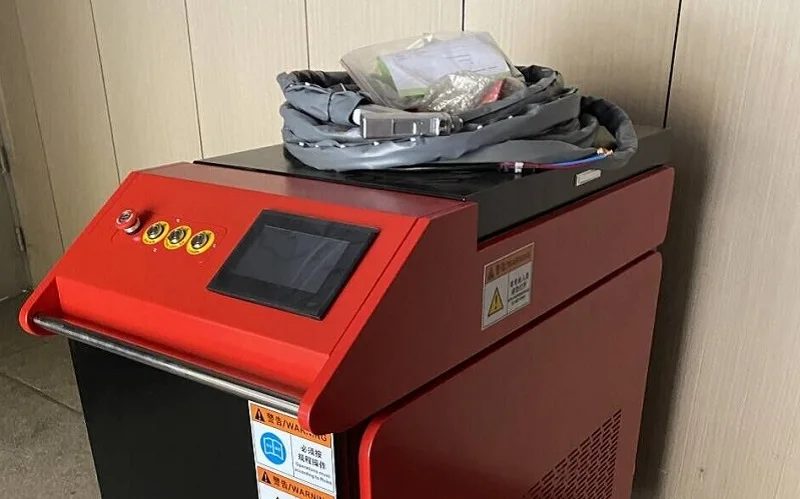

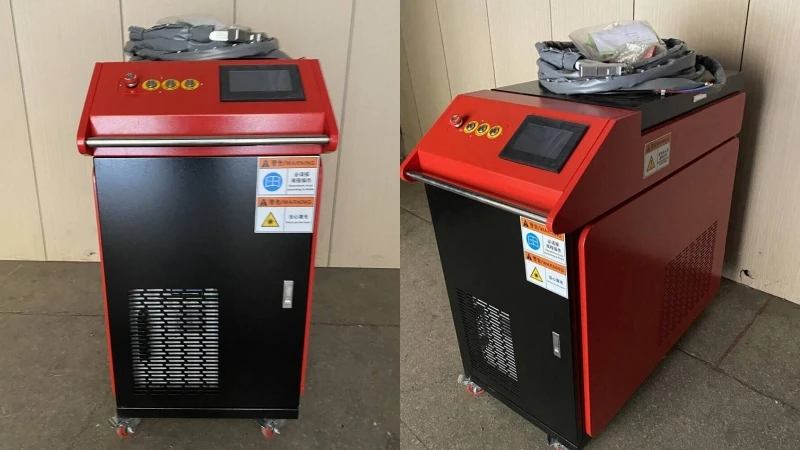

MACHINE DETAILS SHOW


3 in 1 Handheld Laser Welding Machine Introduction:

Power : 1kw 1.5kw 2kw 3kw
Function: Welding (welding thickness 0.5-8mm)
Cleaning (cleaning width 0.5-80mm)
Cutting (cutting thickness 0.5-3mm)
Laser source brand: Raycus/Max/Bwt/Reci
Applied materials: Carbon steel, Stainless steel, Aluminum, Copper and other metal
Working ways: laser welding , laser cleaning, cutting


MACHINE PARAMETERS


Name

Fiber laser welding machine 4 in 1

Laser power

1000W/1500W/ 2000W/3000w

Laser source brand

Raycus /MAX/ RECI /BWT

Function

Laser welding cleaning cutting (3 in 1)

Center wavelength

1070+-5nm

Output power stability

<2%

Laser frequency

50Hz-5KHz

Adjustable power range

5-95%

Beam quality

1.1

Optimal operating environment

Temperature 10-35 ℃,humidity 20% -80%

Output fiber length

5/10/15m (Optional)

Cooling method

Water Cooling

Dimensions

93*60*88cm

Weight

200kg


MACHINE PARTS SHOW

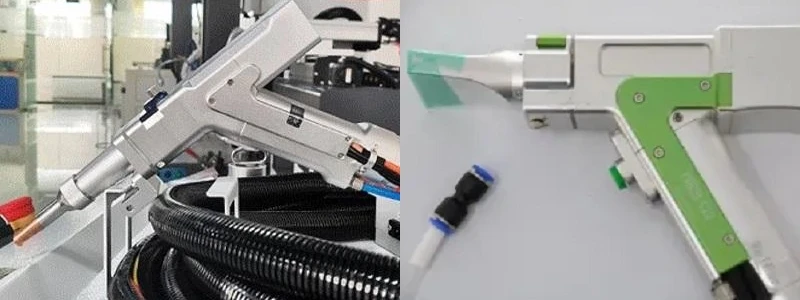

Laser Head
Handheld light Laser Welding head, only with 800g weight, which makes operator work more longer time per day.

There have double protective lens, and the Temperature Sensor inside the laser head, which give the biggest protection.



Light weight，easy to operation and safty . Show laser welding , laser cleaning head

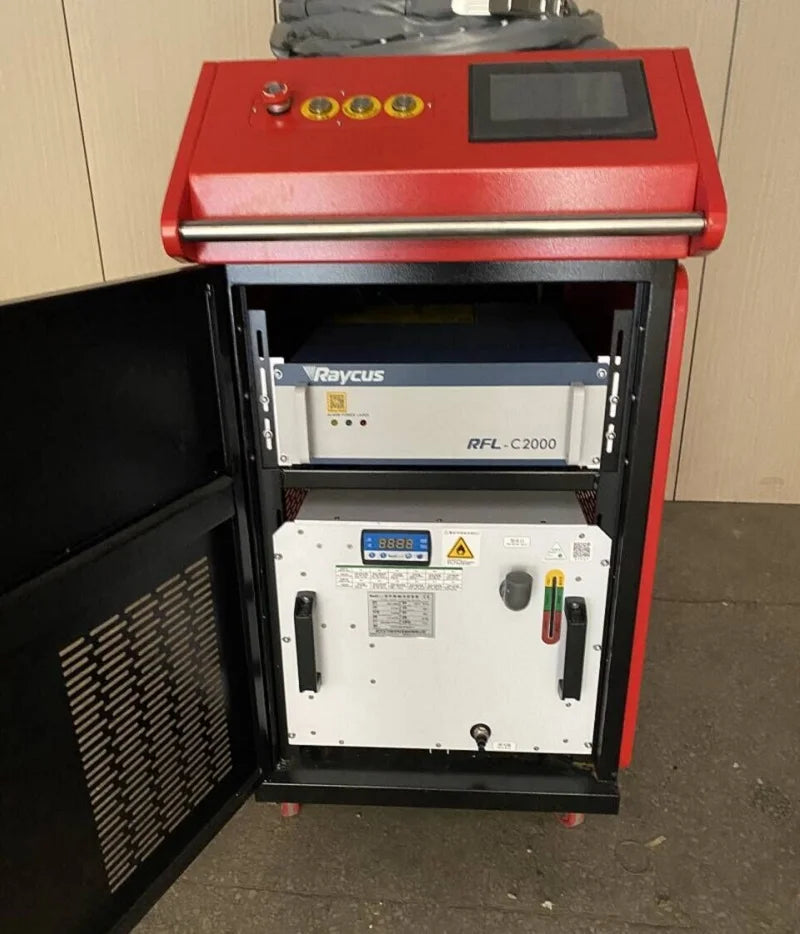

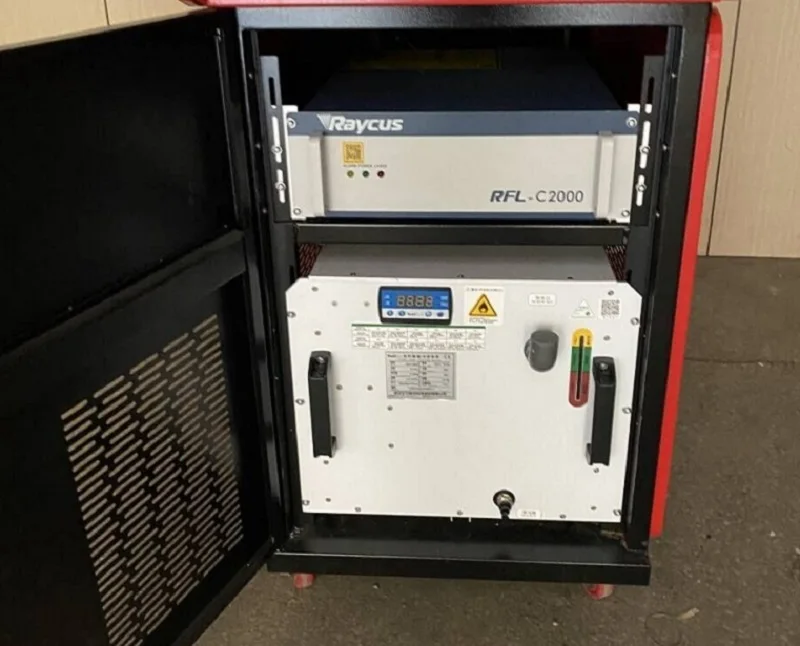

Top brand fiber laser source

High power,The energy density is high, the heat input is 90low, the amount of thermal deformation is small.

Water chiller
High cooling rate, which can weld fine weld structure and good joint performance.

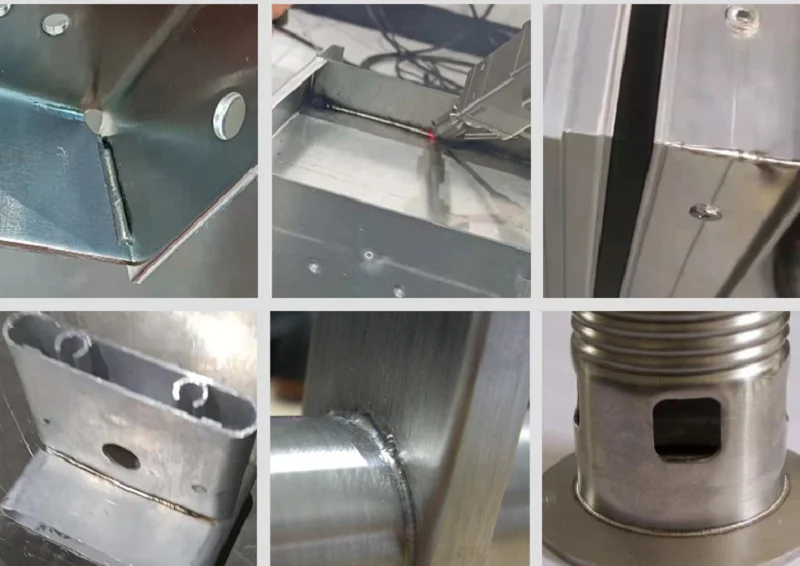

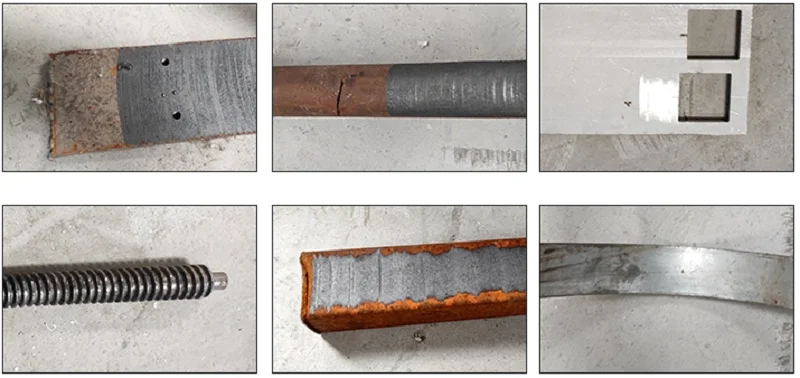

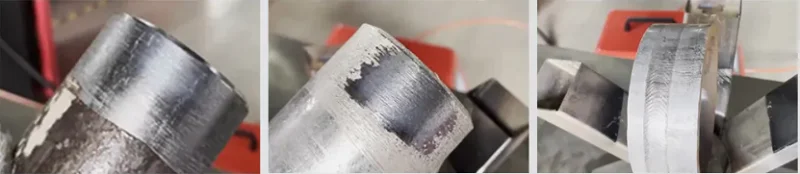

MACHINE SAMPLES

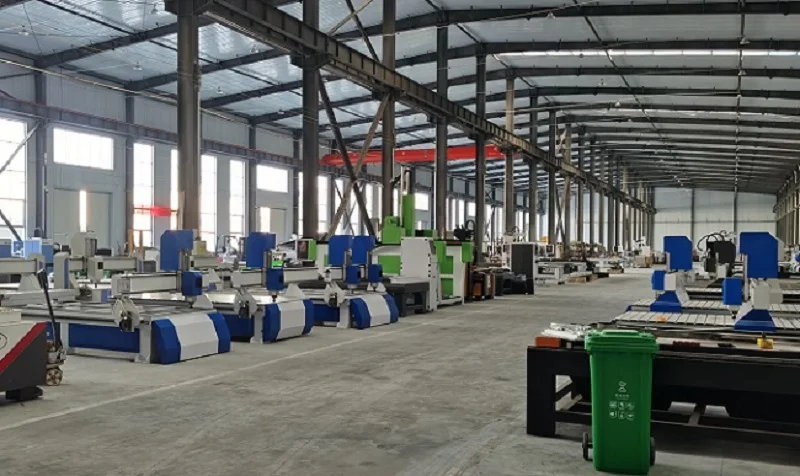

COMPANY SHOW



   SAMET CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production,sales and good after-sales service.
The company's main products include
Panel board furniture production line and cabinet door production line:
Standard CNC router(For wood,stone,metal..3axis,4axis and 5axis.support customized,OEM...)
ATC CNC Nesting router,
Multi-spindle cnc router machine
3D scanner,
Vacuum membrane press machine,
Wood sanding machine ,
Automatic edge banding machine,
CNC side hole drilling machine
Wood CNC lathe ,
Fiber laser cutting machine,etc.


OUR SERVICE


1.1 years quality guaranty, the machine with main parts

(excluding the consumables) shall be changed free of charge

if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.



MACHINE SHIPMENT


we showed you machine only for our factory price.

More shipment cost. please contact us
