Interactive Whiteboard Interactive Touch Screen Smart Board Tv Custom or OEM High Quality 86 Inch 65 75 86 100 Inch Android 8.0

Interactive Whiteboard Interactive Touch Screen Smart Board Tv Custom or OEM High Quality 86 Inch 65 75 86 100 Inch Android 8.0

$4,639.57 USD
$5,710.24 USD $4,639.57 USD
Sale Sold out
Shipping calculated at checkout.
My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy!



Custom or OEM high quality 86 inch interactive whiteboard interactive touch screen smart board Tv
IFPD Description


Riotouch IR LT Series Interactive 4K Display
* Premium 4K UHD Display
* Latest Android 8.0 OS
* Type-C & USB 3.0 in the Display
* Dual OS support with OPS slot
* Front Ports For ease of access
* 2 X 15W Front Facing Speakers
* Ultra Slim frame with 18mm
* BYOD is available
* User-friendly Interface
* Premium Anti-glare Tempered Glass
* Support 40 points touch
* Automatically adjust Brightness
* Support update to Android 10.0 in future

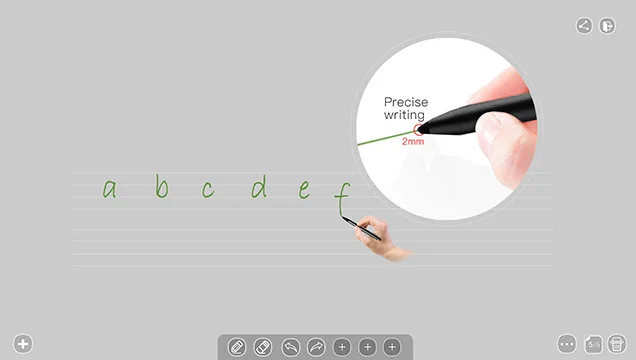

Fine writing
2mm precision, responsive touch for a smooth and intuitive writing experience

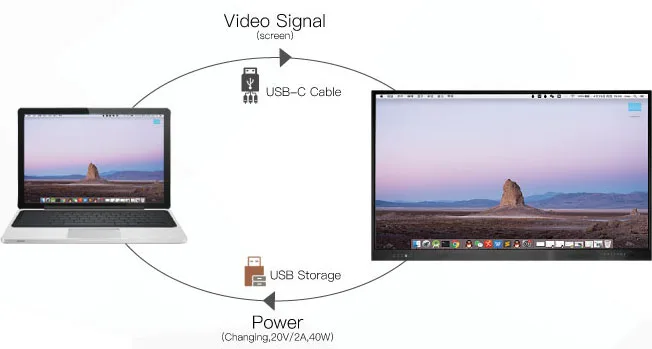

USB-C type in the Display
All in one USB-C type support with USB-A, USB-B, HDMI, power charge
Broadcast
Centrally manage all screens, Main screen to many screens wireless share content or broadcast, screens easy to join into the main
screens.Inspire idea & be more effective in the meeting or class



Screen & File Share
present content from any device with single click, enjoy two-way collaboration from display or your device
Manage Files On The Display
Easily access your documents from the Cloud directly on the display









OTA Update
All Riotouch PCAP IFPD support OTA updates, Over-the-Air updates just like your mible phone
Specifications
Display specification




Diagonal display size

65" LED backlight
75"LED backlight
86"LED backlight
Bezel color
Aluminum frame(Black color)
√
√
√
Back Light
Direct type LED
√
√
√
Active area (mm)

1428.48 (H) * 803.52 (V)
1649.66 * 927.93(V)
1895.04 * 1065.96(V)
Resolution
3840*2160 /60hz
√
√
√
Pixel Pitch

0.372mm x 0.372mm
0.429 mm x 0.429 mm
0.429 mm x 0.429 mm
Aspect Ratio
16:9
√
√
√
Contrast Ratio

4000:1
4000:1
4000:1
Colors
1.07 billion colors
√
√
√
Brightness
350cd/m2
√
√
√
Viewing angle
178°
√
√
√
Glass hardness
Mohs-7 level
√
√
√
Screen surface
4mm thickness Anti-Glare glass
√
√
√
Panel Interactivity




Touch technology
IR Touch
√
√
√
Multi touch
Max 40 points(Windows)
√
√
√
Multi writing
Max 20 points(Windows)
√
√
√
Auto-calibrate
Yes
√
√
√
Anti-light
Yes
√
√
√
Accuracy
1 mm (over 90% Area)
√
√
√
Response Time
<8 ms
√
√
√
System support
Windows 7/8/10; Android; Mac; Linux; Chrome OS
√
√
√

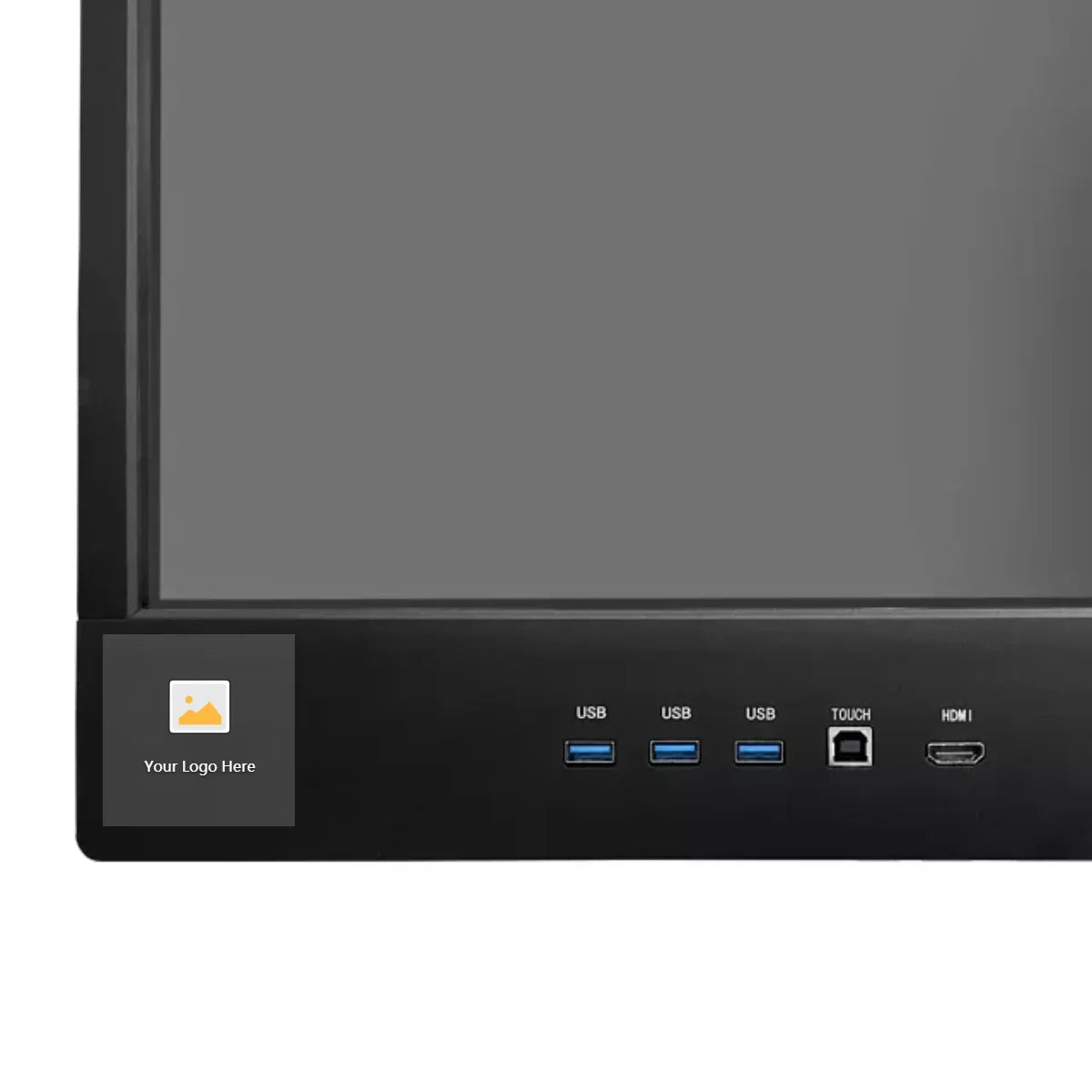

Front side Connectivity




Front ports
HDMI IN 1-line, USB2.0 2-line, USB-A for touch 1-line



Front keys
Power on/off;Signal source;Return;Main page;Menu;Volume down;Volume up



Front speaker
15W*2



Connectivity




USB-C
1
√
√
√
USB 2.0
1
√
√
√
USB 3.0
1
√
√
√
HDMI 2.0 Out
1
√
√
√
HDMI 2.0 In
1
√
√
√
HDMI 2.0 In (CEC&ARC)
1
√
√
√
Display port
1
√
√
√
VGA in
1
√
√
√
Touch out USB B type
2
√
√
√
SPDIF out
1
√
√
√
Earephone
1
√
√
√
MIC
1
√
√
√
VGA audio
1
√
√
√
RS232
1 (Sub-D, 9 pins)
√
√
√
RJ45 in & out
1 for each
√
√
√
Windows OPS Slot
OPS & OPS-C Intel standard
√
√
√
Operating system




Android Version
Android 8.0 64Bit
√
√
√
CPU
Dual-core A73 and dual-core A53 ,1.5GHz
√
√
√
GPU
Quad-core MaliG51
√
√
√
RAM
4GB DDR4
√
√
√
ROM
32GB
√
√
√
Compliant with
Windows; Mac; Linux; Chrome OS
√
√
√
Software feature




U system
Center, Float icon, setting



Software app
U mind, Ufile, Ushow,  Ufreeze, Ucut, Ustore, OTA



Physical specifications




Net Weight (kg±2)
(kg±2)
42
47
66
Gross Weight (kg±2)
(kg±2)
52
58
87
Overall size(mm)
(W*D*H)
1470.9*97.5*897.5
1692.1*97.5*1021.9
1943.4*97.5*1166
Carton size(mm)
(W*D*H)
1662*222*1044
1842*222*1166
2090*222*1307
VESA
(mm)
600*400
600*400
800*600

Riotouch Production Line
Packing & Shipping
Certifications
About Riotouch

Riotouch is a professional manufacturer in the interactive plat panel and whiteboard in China from 2009. We have our professional Sales team, strong Design, R&D, After-sale service team, to provide our super value products and service to our customers. We focus on smart interactive educational equipment, make lessons with more fun & joy, inspire the next generation to be more creative.

FAQ

1. Are you a Manufacture?
A: Yes, we are a manufacture of interactive whiteboard and interactive flat panel in China from 2009, located in Dongguan City, Welcome your visit.


2. What's your product quality control?
A: We have strict QC team, production meeting ISO9001 production system. Our products passed CE, RoHS, FCC certification.


3. What's your after-sale service?
A: We can offer 100% guarantee on our product. Our general warranty is 1 year. For bulk order, we will provide spare parts, If any problems, you will get our reply on line within 24 hours.


4. What's your MOQ?
A: Generally, our MOQ is 10pcs. But sample order is acceptable. More quantities enjoy better discount.


5. Could you offer the OEM service?
A: Yes, We provide OEM and ODM service and customized service. We also supply software and firmware OEM/ODEM, As we know that all the hardware designs are almost the same, firmware become very important to win more markets.


6. What is the payment way?
A:T/T,LC,.... Trade Assurance is welcomed!


7. How about the delivery?
A: The delivery would be with in 5-20 days according to the order quantity and size of the items.
