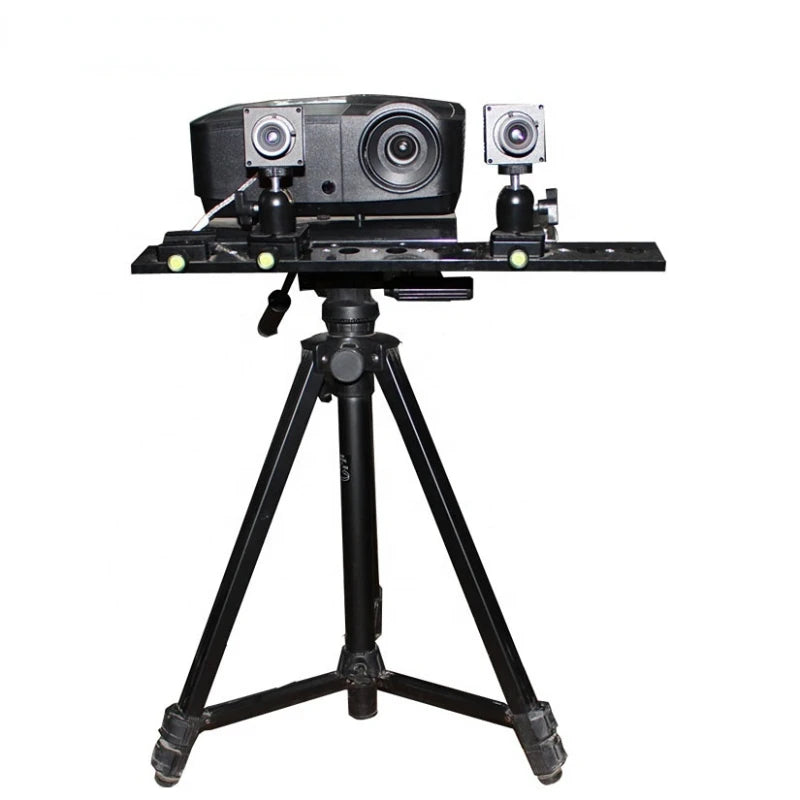

industrial grade white light 3d scanner for 4 axis Router machine code making printer

industrial grade white light 3d scanner for 4 axis Router machine code making printer

$8,486.40 USD
$10,444.80 USD $8,486.40 USD
Sale Sold out
Shipping calculated at checkout.
Product Description

Brief introduction

3D scanner is mainly applied to the object contour, 3D digital data is a very effective and efficient tool, which has the high precision speed, no damage to the object, no contact deformation.

The three-dimensional scanning system in Jinan Lu Diao has the the world's leading Grating technology, which could obtain the three dimensional data of the object surface in short time.

It is widely used in mold design and manufacturing, three-dimensional sculpture carving, carving handicraft processing, stereo industrial products manufacturing, quality inspection and control, measurement and other fields.

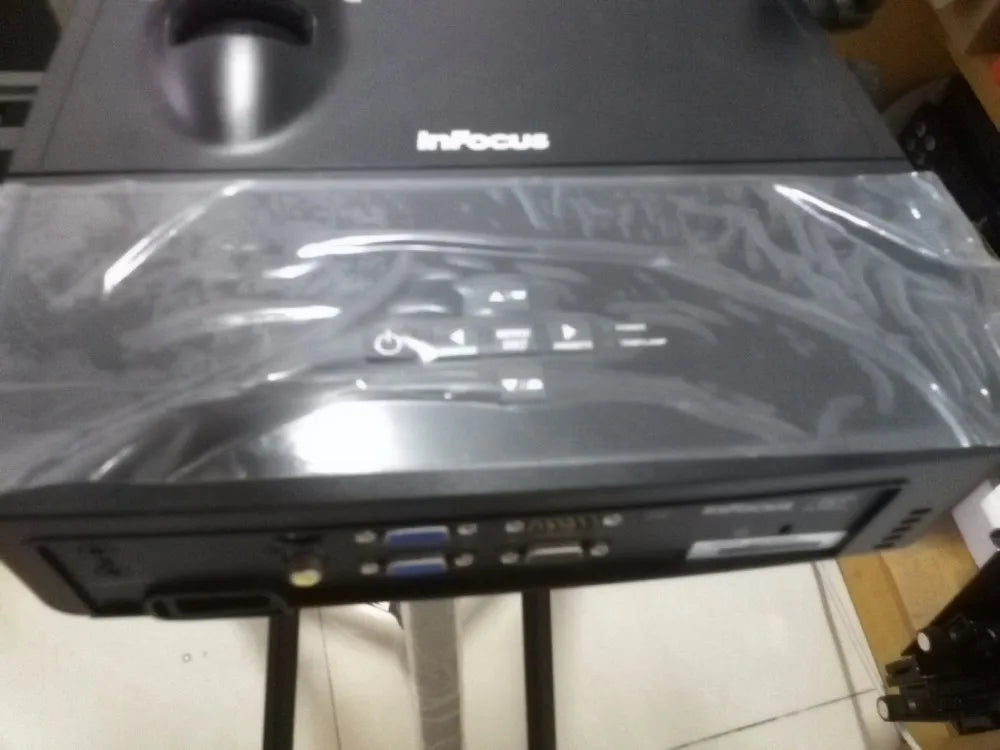

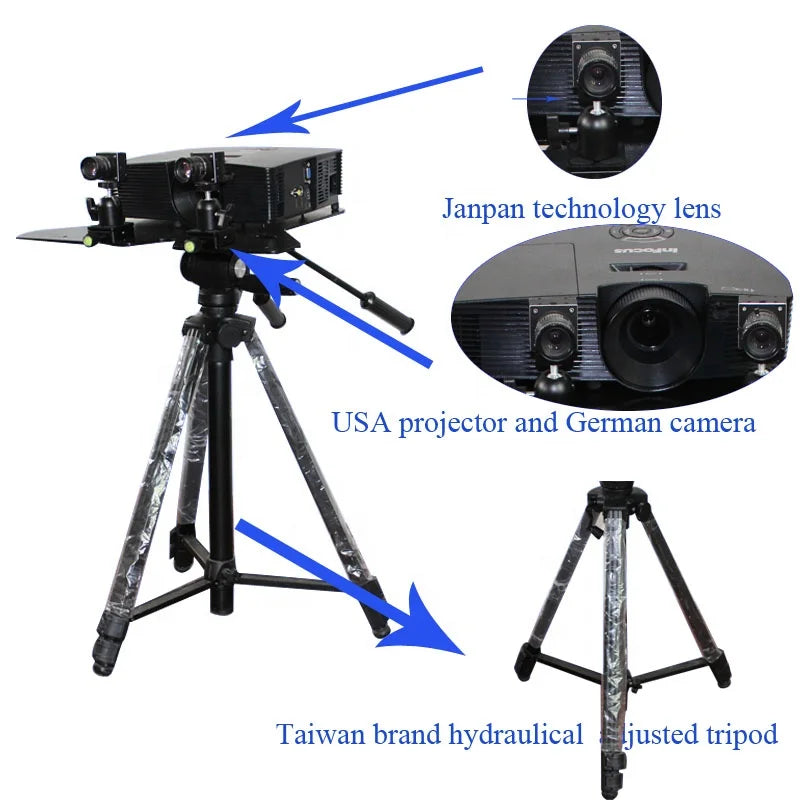

America white light resource projector
German IDS camera  with 1.3 million pixel

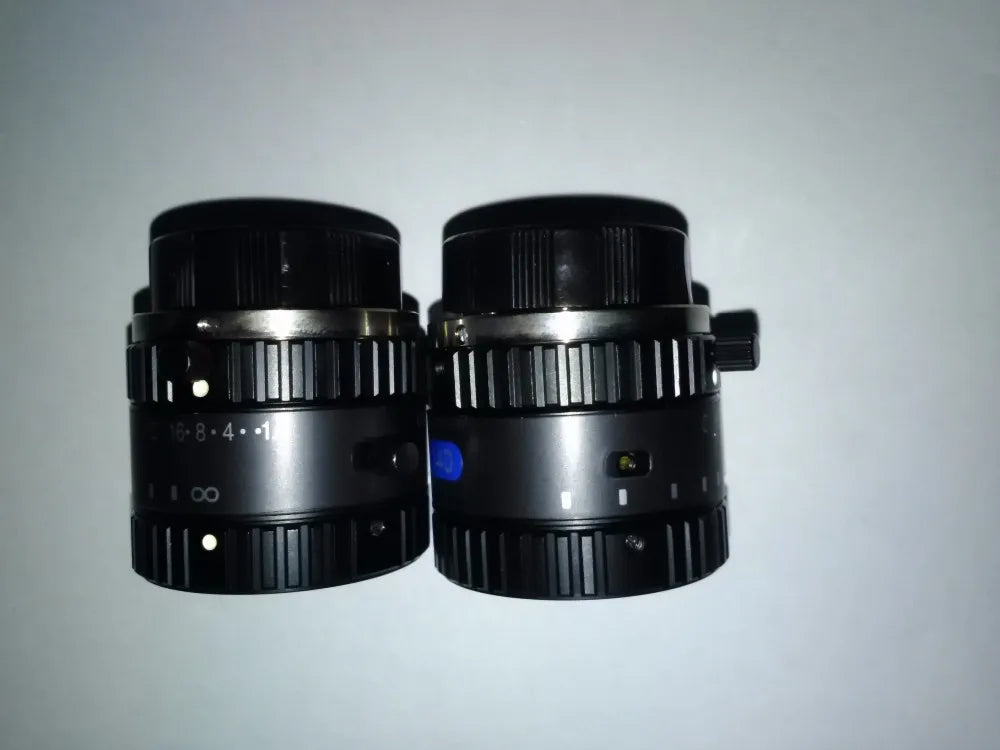

and Japan  high definition lens

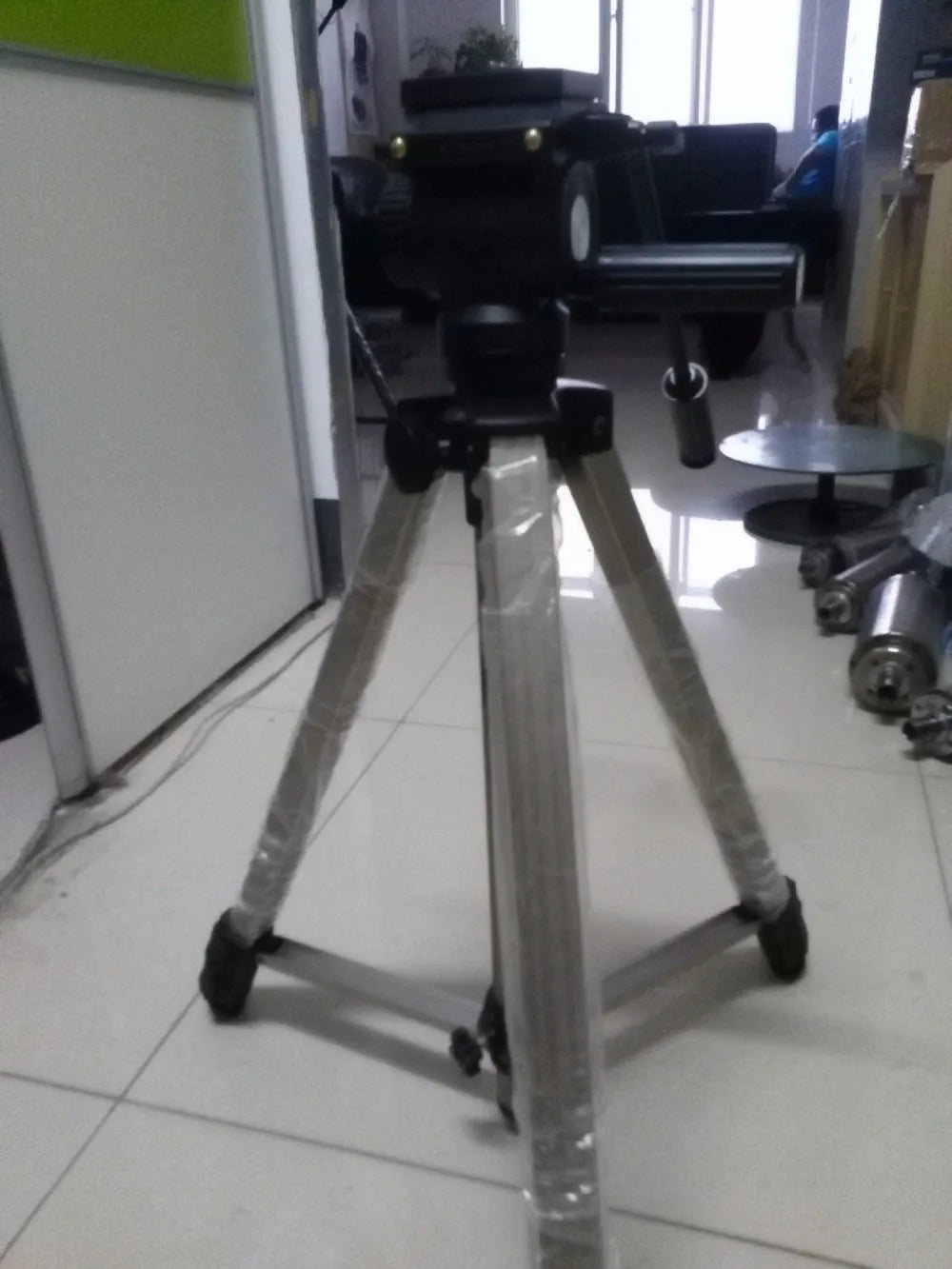

Taiwan Hydraulic tripod

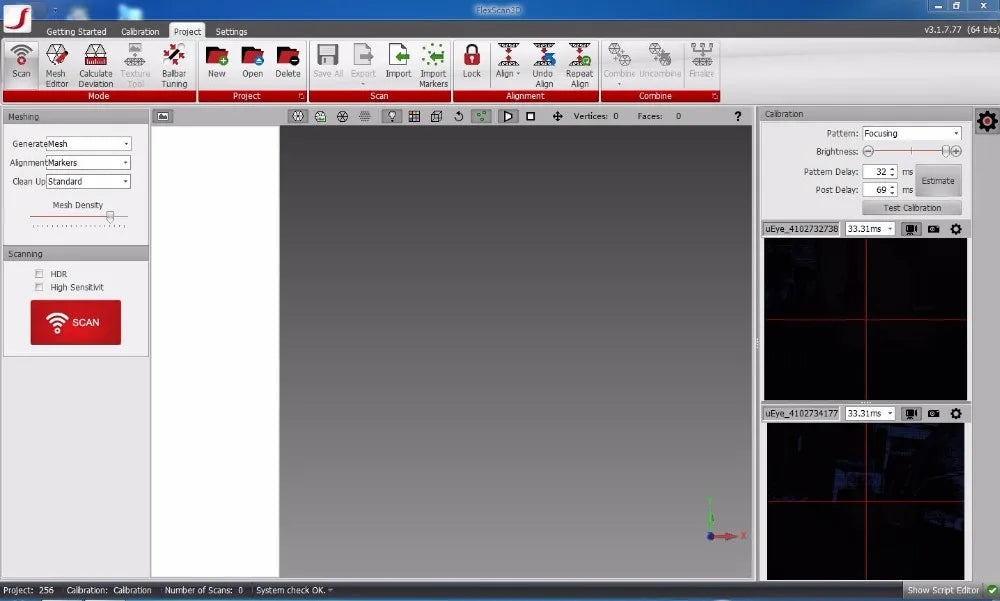

English scanning software
specification
Model(content)
LD1302
Scanning way
Non-contact surface scanning
Raster technology
German original industrial sensor,binocular1.3 million classes
Accuracy
<=+/-0.05mm
Single frame Speed
<=0.3s
Dot-pitch
0.1-0.3mm
Projector resolution
1024*768
Camera lens
Japanese original lens
Raster display
American brand light source raster
Alignment
Fully automatic stitching alignment
Scanning range
objects as small as 10mm in diameter, large objects to two meters high, can precision scanning
Scanning depth
not only meet the general object scanning, suitable depth scan larger objects (0 ~ 180mm)
System support
WINDOWS XP/WINDOWS 7/ WINDOWS 7 X64
Supporting software
International large-scale software fully compatible
(can generate a variety of data formats for use in other software, including stl, ply, asc, ac, pif, etc., can be converted to AutoCAD, Geomagic Studio, Rapid Form, ImageWare other software for post-processing.)
Driver support
Microsoft Certified driver, easy to install
Core technology
The latest technology of Europe and United States in 2013
Memory usage
Supporting large memory more than 16G
Noise level
Very low
Voltage
100-230V,50/60HZ
Single frame Speed
<=0.3s
Dot-pitch
0.1-0.3mm
Projector resolution
1024*768
Camera lens
Japanese original lens
Raster display
American brand light source raster
Alignment
Fully automatic stitching alignment
Scanning range
objects as small as 10mm in diameter, large objects to two meters high, can precision scanning
Scanning depth
not only meet the general object scanning, suitable depth scan larger objects (0 ~ 180mm)n,(depends on different design)
System support
WINDOWS XP/WINDOWS 7/ WINDOWS 7 X64
Supporting software
International large-scale software fully compatible
(can generate a variety of data formats for use in other software, including stl, ply, asc, ac, pif, etc., can be converted to AutoCAD, Geomagic Studio, Rapid Form, ImageWare other software for post-processing.)
Driver support
Microsoft Certified driver, easy to install
Core technology
The latest technology of Europe and United States in 2013
Memory usage
Supporting large memory more than 16G
Noise level
Very low
Voltage
100-230V,50/60HZ
Application

Reverse engineering, industrial molds, automotive parts, castings, sheet metal, plastic products, clothing and footwear,
Furniture industry, arts and crafts, sketching, archaeological industry

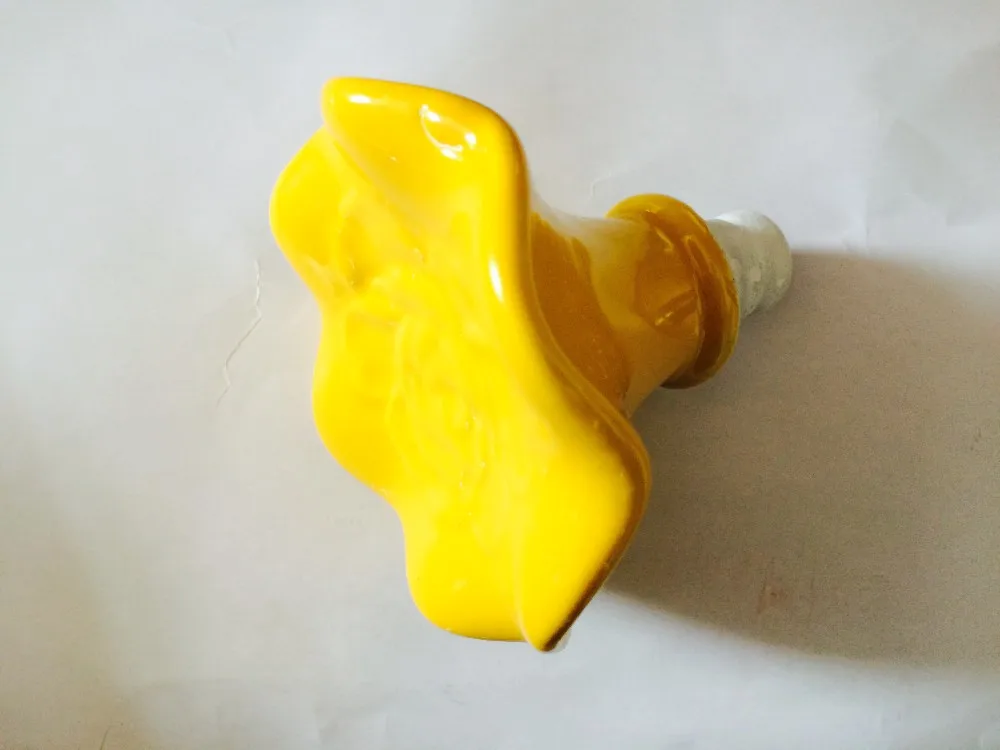

scanned sample
