indoor and outdoor waterproof dust-proof IP65 industrial-grade lidar obstacle avoidance navigation AGV ROBOT TOF 20m

indoor and outdoor waterproof dust-proof IP65 industrial-grade lidar obstacle avoidance navigation AGV ROBOT TOF 20m

$1,209.00 USD
$1,488.00 USD $1,209.00 USD
Sale Sold out
Shipping calculated at checkout.



Product Introduction

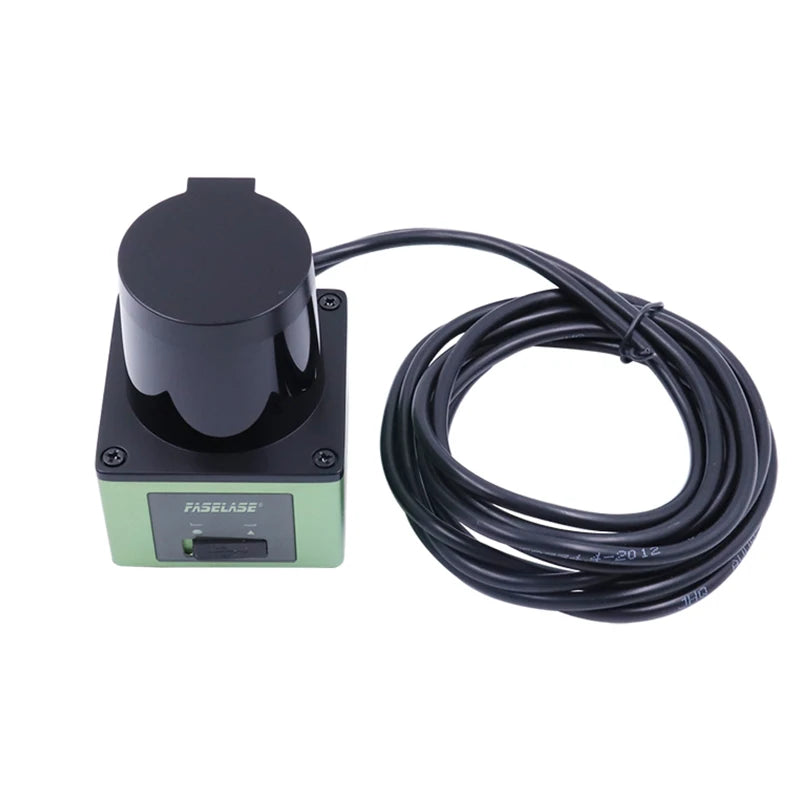

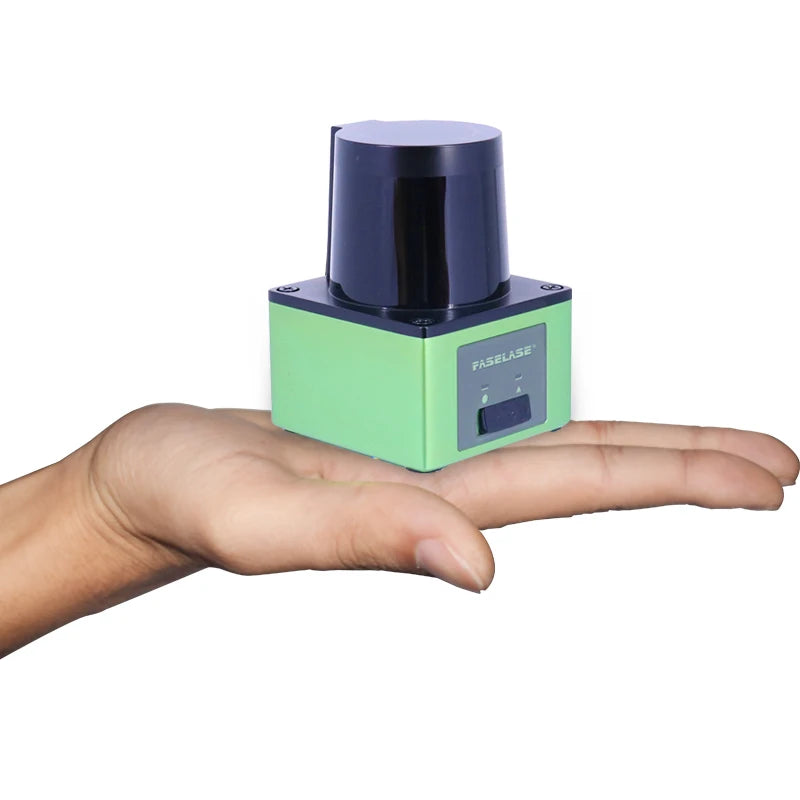

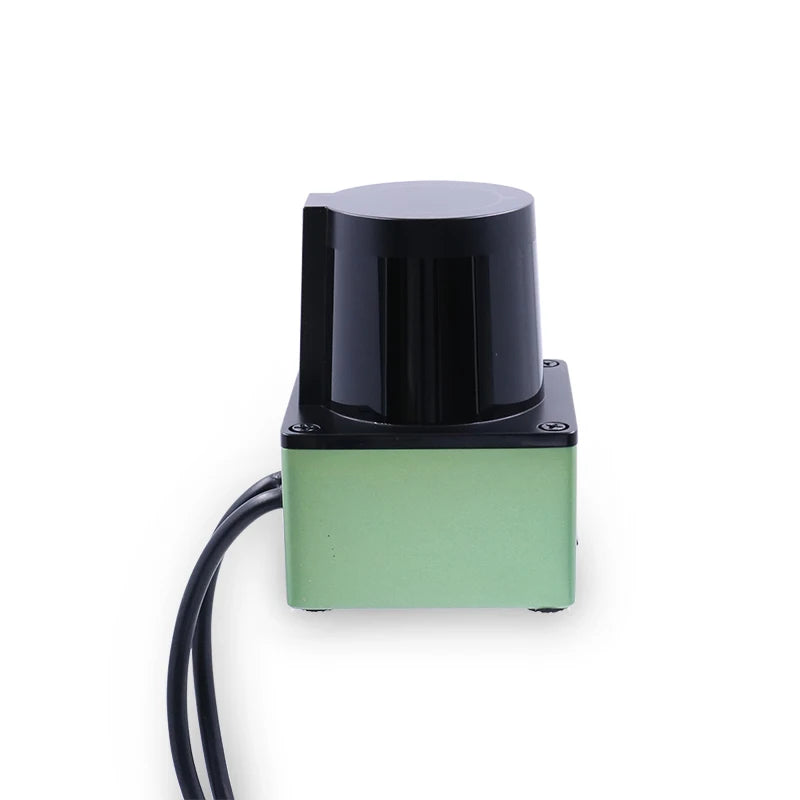

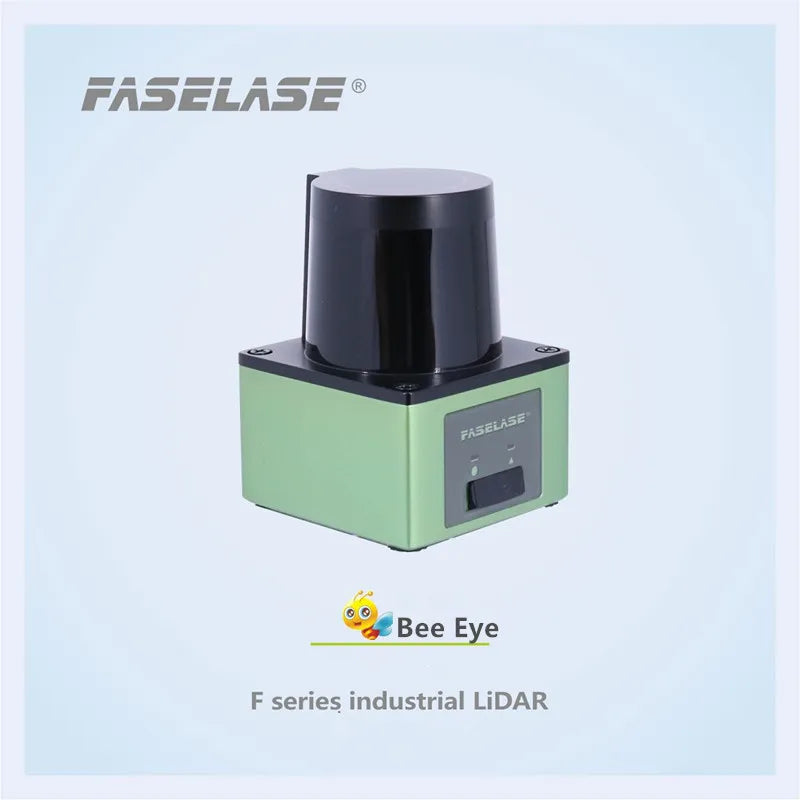

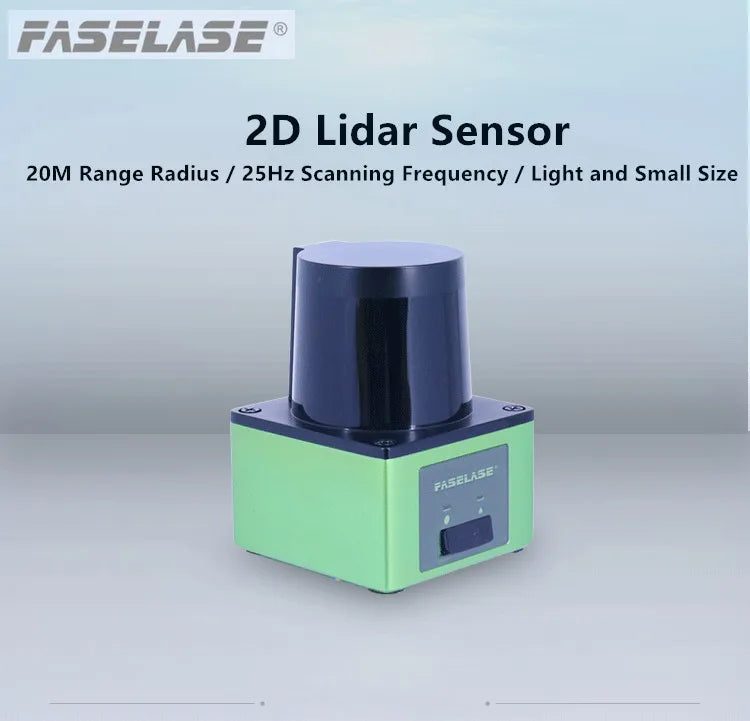

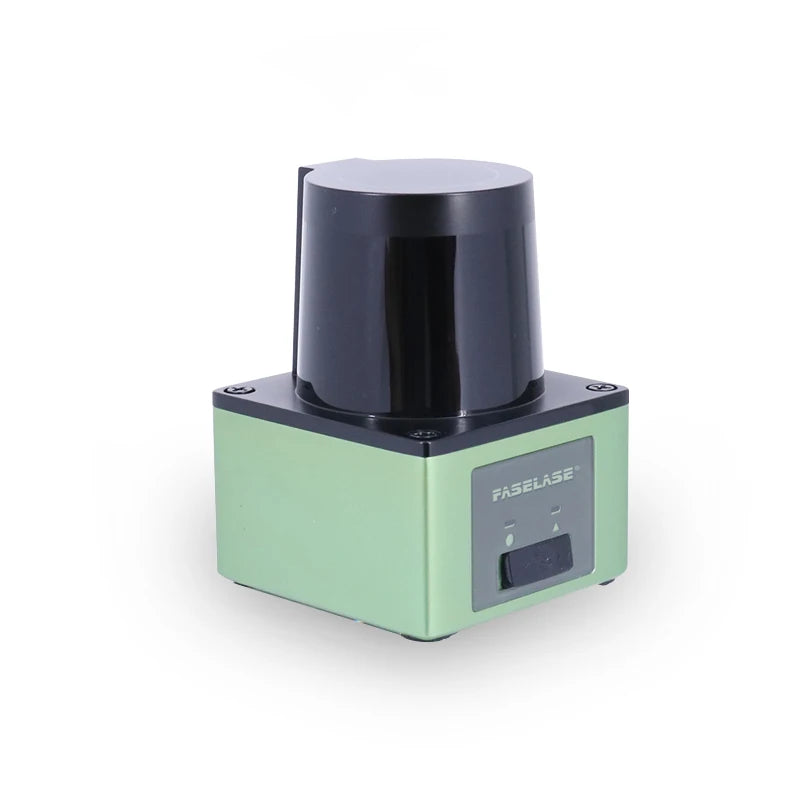

     The F series lidar is a new compact, affordable 2-d lidar with FsaeLase laser radar .The main features of the products are fast measurement, small size, light weight, small power consumption, low cost.It is mainly used in industrial/commercial robot obstacle avoidance and navigation, screen interaction, safety gate, human flow detection and other fields.

Technical parameters

Model:F20

Measuring distance：0.05～20m,10m@10%

Angle resolution：0.18°-0.45°,default 0.27°

Scanning speed：Adjustable from 10Hz to 25Hz, default 15Hz

Input and output Interface:Ethernet

Set interface: Network wire crystal connector

Power supply：DC9V-36V,Starting current>1A@12V,Power <4W

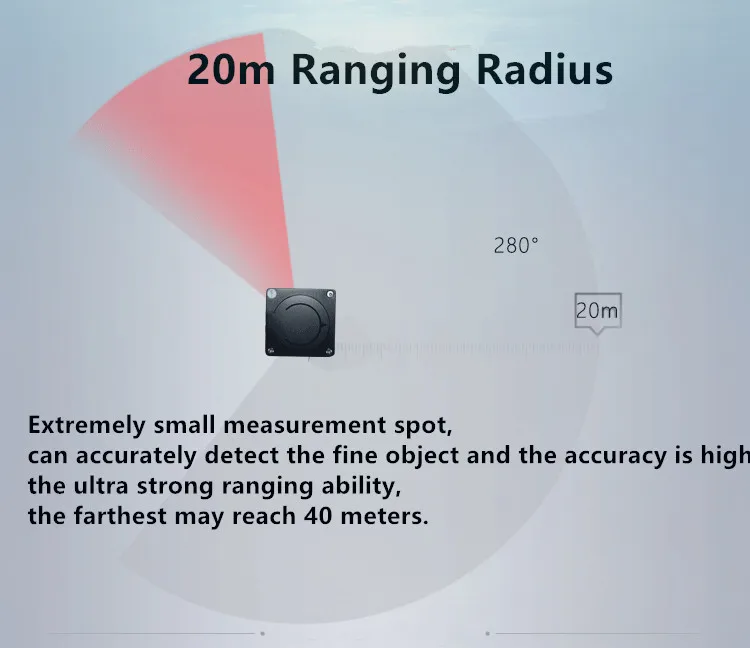

Scanning area：280°

Repeatability：±3cm

Distance resolution：1cm

Startup time:<5S

Light source：Laser diode 905nm, ≤1mW; Meets GB7247.1-2001; Class I laser human eye safety requirements

Dimensions：62x62x82 mm

Operating temperature：－10℃～＋50℃

Storage temperature：－20℃～＋70℃

Protection level：IP65

Weight：210g

型号（Model）

F3

F6

F10

F20

测量距离

Measuring distance

0.05～3m@3%

0.05～6m@5%

0.15～10m@10%

0.15～20m@10%

角度分辨率

Angle resolution

0.27°

0.27°

0.27°

0.3°

扫描速度

Scanning speed

15Hz

15Hz

15Hz

25Hz

输出接口

Output Interface

4NPN OUT,4NPN IN/USB

4*NPN OUT,4*NPN IN

Ethernet/2*IO OUT(Can be customized)

Ethernet/2*IO OUT(Can be customized)

供电

Power supply

DC9V-36V

扫描区域

Scanning area

280°

重复精度

Repeatability

±3cm

距离分辨率

Distance resolution

1cm

光源

light source

激光二极管905nm，≤1mW；符合GB7247.1-2001；I类激光人眼安全要求

Laser diode 905nm, ≤1mW; Meets GB7247.1-2001; Class I laser human eye safety requirements

机械尺寸

Dimensions

62x62x82 mm

操作温度范围

Operating temperature

－10℃～＋50℃

存储温度范围

storage temperature

－20℃～＋70℃

防护等级

Protection level

IP65

重量

Weight

210g
