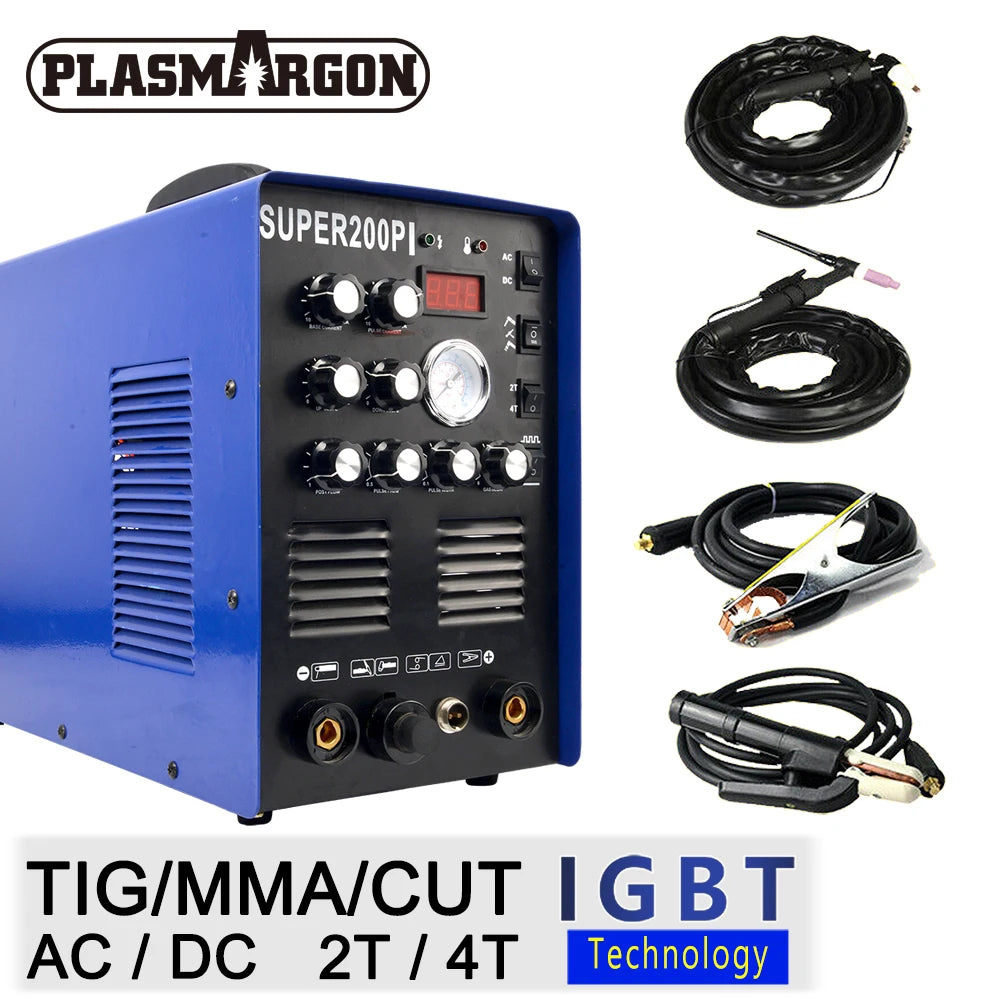

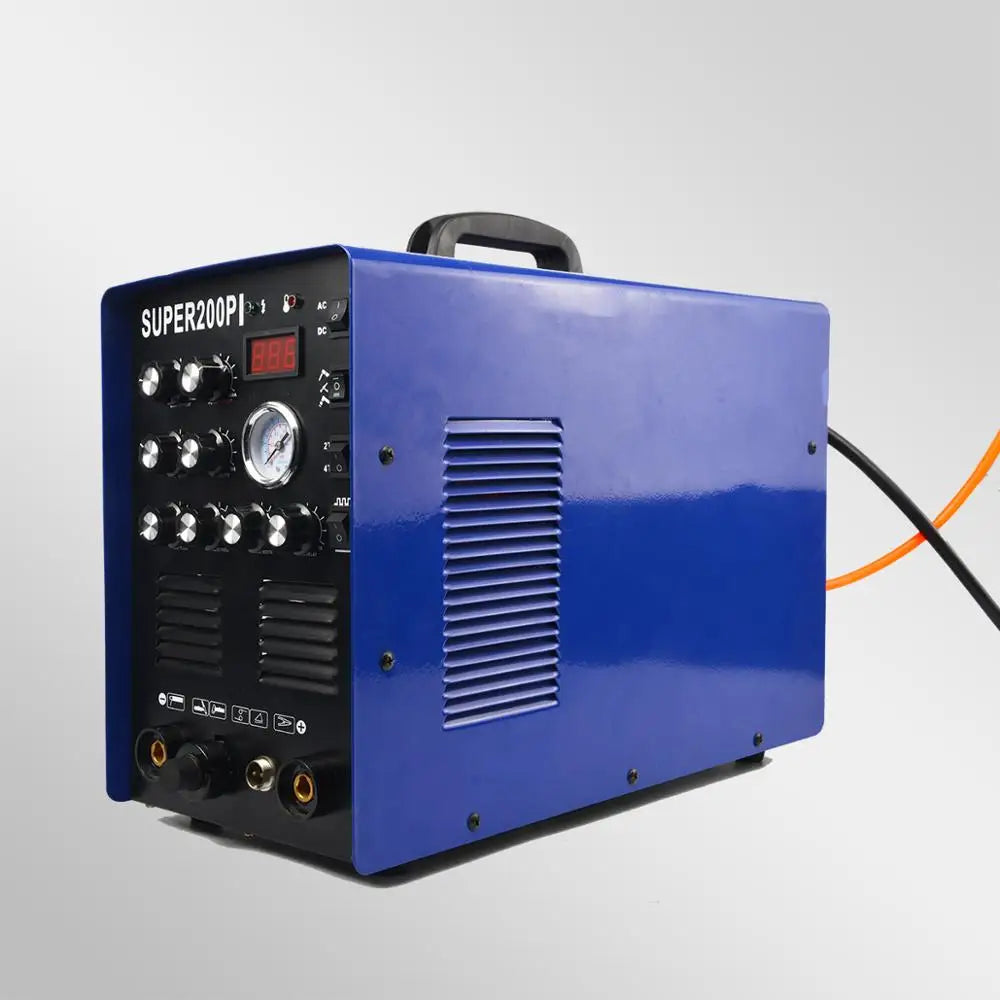

IGBT Pulse TIG/MMA Aluminium Welder 200A AC/DC 7 in 1 Milti-function Welding Equipment 50A Plasma Cutter Welding Machine

IGBT Pulse TIG/MMA Aluminium Welder 200A AC/DC 7 in 1 Milti-function Welding Equipment 50A Plasma Cutter Welding Machine

$1,639.20 USD
$2,049.00 USD $1,639.20 USD
Sale Sold out
Shipping calculated at checkout.
Voltage
Features
1.Seven-in-one 50A plasma cutter, 200A AC tig welder, 200A DC Tig welder, 200A AC Stick welder and 200A DC Stick welder with PULSE feature.
2.200 to 240VAC, Dual Frequency (50Hz / 60Hz)
3.Robust Infineon (By Siemens) IGBT Power Drive Matrix
4.With Plasma Cutting Funcation integrated.
5. Brand new yet double function tested and performance tuned prior to shipping
6.2 Years Warranty on Parts and Labor from TOSENSE
7.Input Voltage: 200 ~ 240 VAC
8.Input Power Frequency: 50 hz / 60 hz (Better performance under 60 hz)
9.Insulation Grade: B
10.Certification: CE and ISO-9001 certification

Technical Specification:
Model: SUPER200P IGBT
Input Voltage: 110 / 220V
Open Circuit Voltage: TIG / MMA: 60-80V; Plasma: 220V
Up Slope Time: 1--10sec
Done Slope Time: 1--10sec
Pulse Width Ratio: 0.1--0.9
Pulse Frequency: 0.5--25Hz
Post Flow Time: 1--25sec
Efficiency: 80%
Duty Cycle: 60%
Weight: 16KG
Max Welding Thickness: 8mm
Max Cutting Thickness: 12mm

ACCESSORY:
Tig Welding Consumables X3 set
Cutting Consumables X3 set
Wp17 Welding Torch X1pcs
Pt31 Cutting Torch X1pcs
Ground Clamp X1pcs
Electrode Holder X1pcs
Air Regulator X1pcs
Gas Hose X1pcs
