HZXVOGEN 200A Aluminum AC/DC Tig Welding Machine HF TIG/MMA ARC Pulse Argon Welder IGBT Inverter 2T/4T Welding Equipment HVT250P

HZXVOGEN 200A Aluminum AC/DC Tig Welding Machine HF TIG/MMA ARC Pulse Argon Welder IGBT Inverter 2T/4T Welding Equipment HVT250P

$417.24 USD
$523.80 USD $417.24 USD
Sale Sold out
Shipping calculated at checkout.
color
Voltage
HZXVOGEN HVT250P AC/DC Tig Welding Machine Aluminum MMA ARC Stick Welder 200Amp Tools IGBT Inverter 2T 4T soldador With Pulse


Features:
1.The welding machine has the most advanced inverter technology.
2.Welding power source can offer stronger, more concentrated and more stable arc.
3.When stick and work piece get short, its response will be quicker. It means that it is easier to design welding machine with different dynamic characteristics, and it can even be adjusted specially to make arc softer and also harder

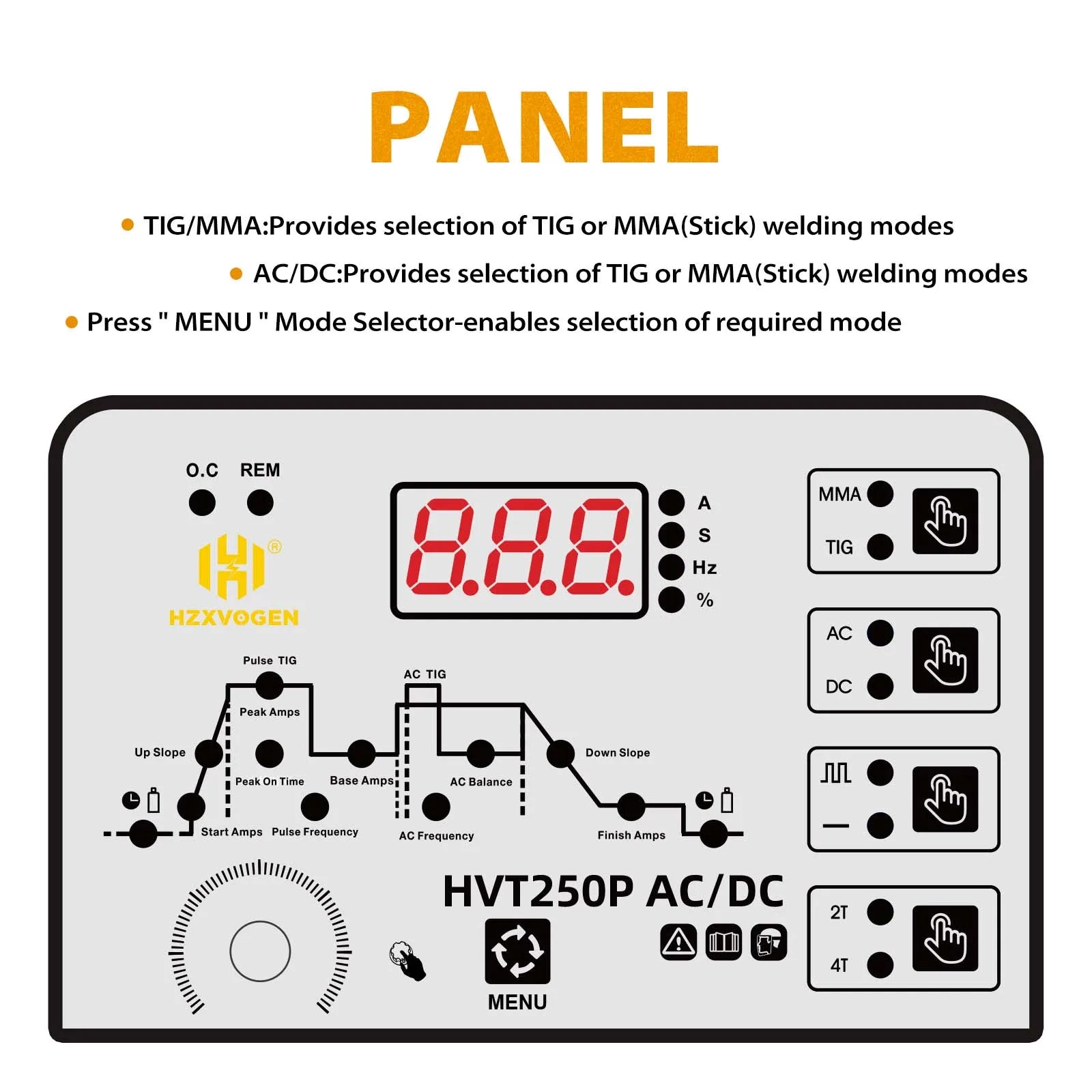

4.TIG welding machine is easy for arc initiation and has the functions of arc initiation current, arc stop current, welding current, basic value current, current ascending time, current descending time, gas delay time, continuous adjustment What’s more, pulse frequency and pulse duty can also be adjusted independently It has the
characteristics of automatic control of arc initiation, arc stop and stable arc, which make the best result for
shape and inner quality of the welding surface.
5.The machine can be for multi-use, and can weld stainless steel, carbon steel, copper and other color metal,
and also can use for traditional electric welding


Specifications:


HVT250P 220V：

Brand name: HZXVOGEN

Model:VT250P ACDC

Rated Input Voltage(V) :AC220V:15%,50/60Hz

Rated Input Power(KVA):7.8

Rated Input Current(A):26.3

TIG Rated Output Current & Voltage:200/18V

MMA/ARC Rated Output Current & Voltage:180A/27.2V

TIG Output Current(A):10-200

MMA/ARC Output Current(A):20-120

MMA/ARC No-load voltage: 67V

TIG No-load voltage:65V

Rated Duty Cycle(%):60

Efficiency(%):85

Protection Class:IP21S

Insulation Class:F

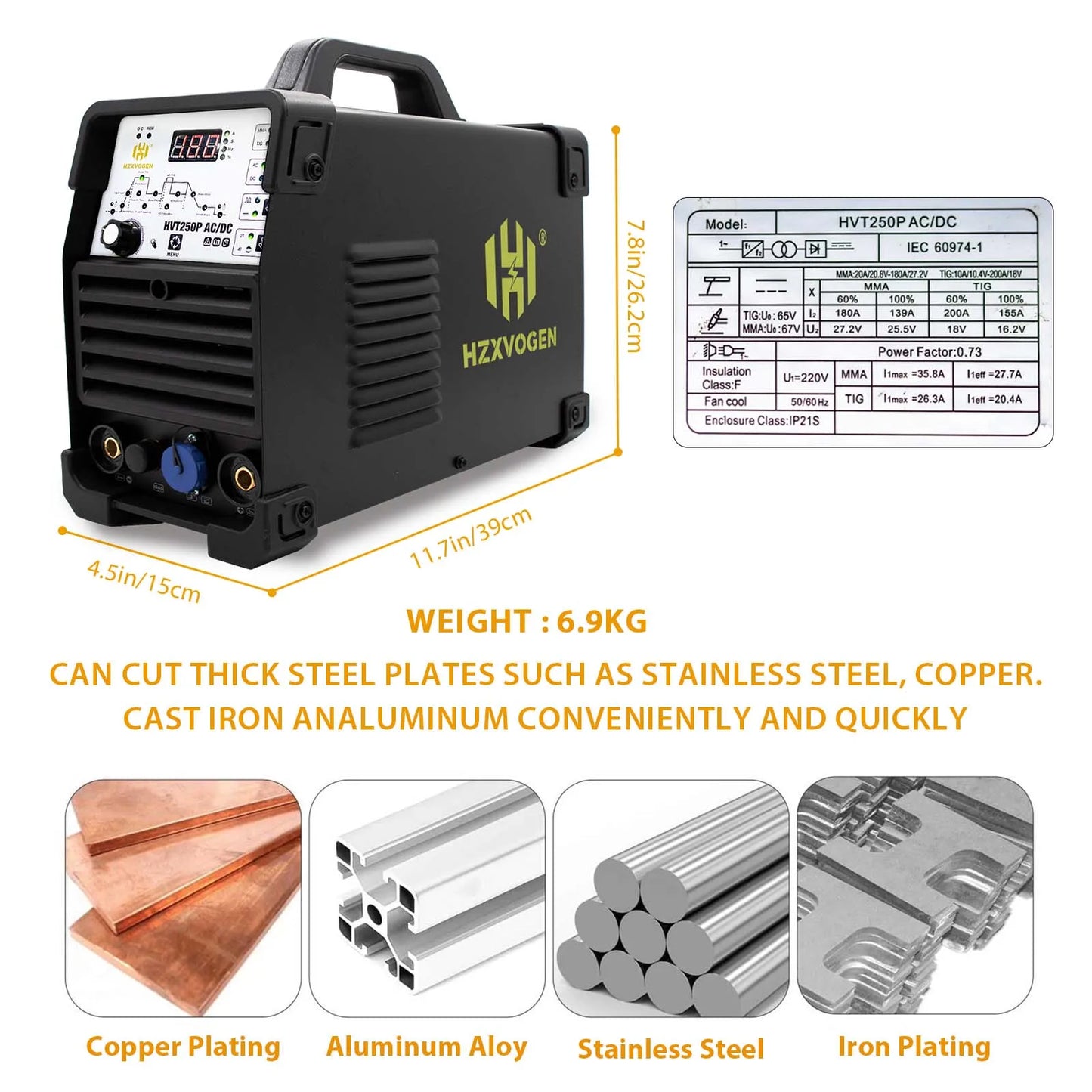

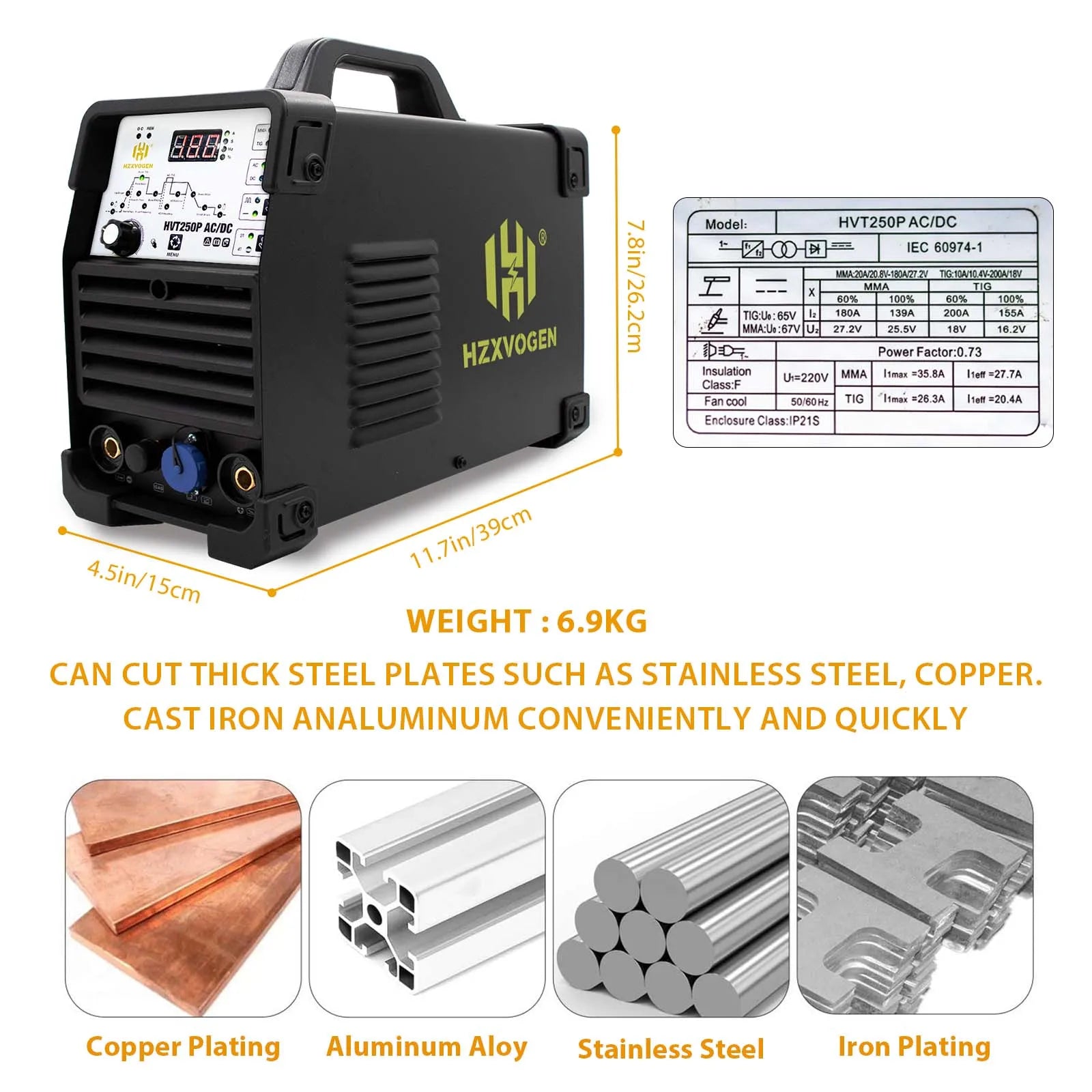

Packing dimension: 480mm*270mm*365mm

Base material: carbon stainless, low-alloy steel,titanium,stainless steel ,aluminum

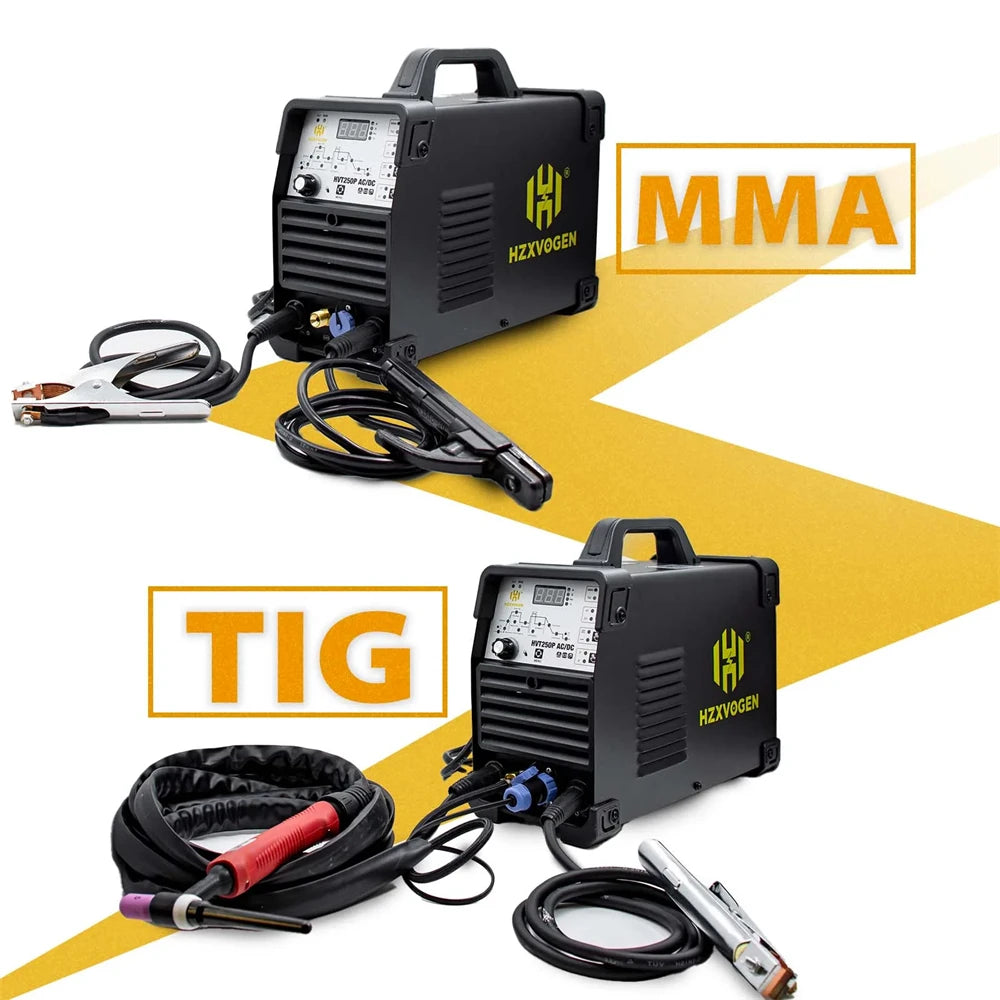

Welding process :AC DC TIG/ARC


HVT250P Dual 110V/220V:

Brand name: HZXVOGEN

Model:VT250P ACDC

Rated Input Voltage(V) : AC220V:15%,50/60Hz

                                       AC110V:10%,50/60Hz

220V/110V Rated Input Power(KVA):7.8/5.8

220V/110V MMA Rated Input Current(A):35/71

220V/110V TIG Rated Output Current & Voltage:200A/18V   200A/18V

MMA/ARC Rated Output Current & Voltage:180A/27.2V   180A/27.2V

TIG Output Current(A):10-200

220V/110V MMA/ARC Output Current(A):20-180/ 20-120

MMA/ARC No-load voltage: 67V

TIG No-load voltage:65V

Rated Duty Cycle(%):60

Efficiency(%):85

Protection Class:IP21S

Insulation Class:F

Packing dimension: 560mm*370mm*480mm

Base material: carbon stainless, low-alloy steel,titanium,stainless steel ,aluminum

Welding process :AC DC TIG/ARC

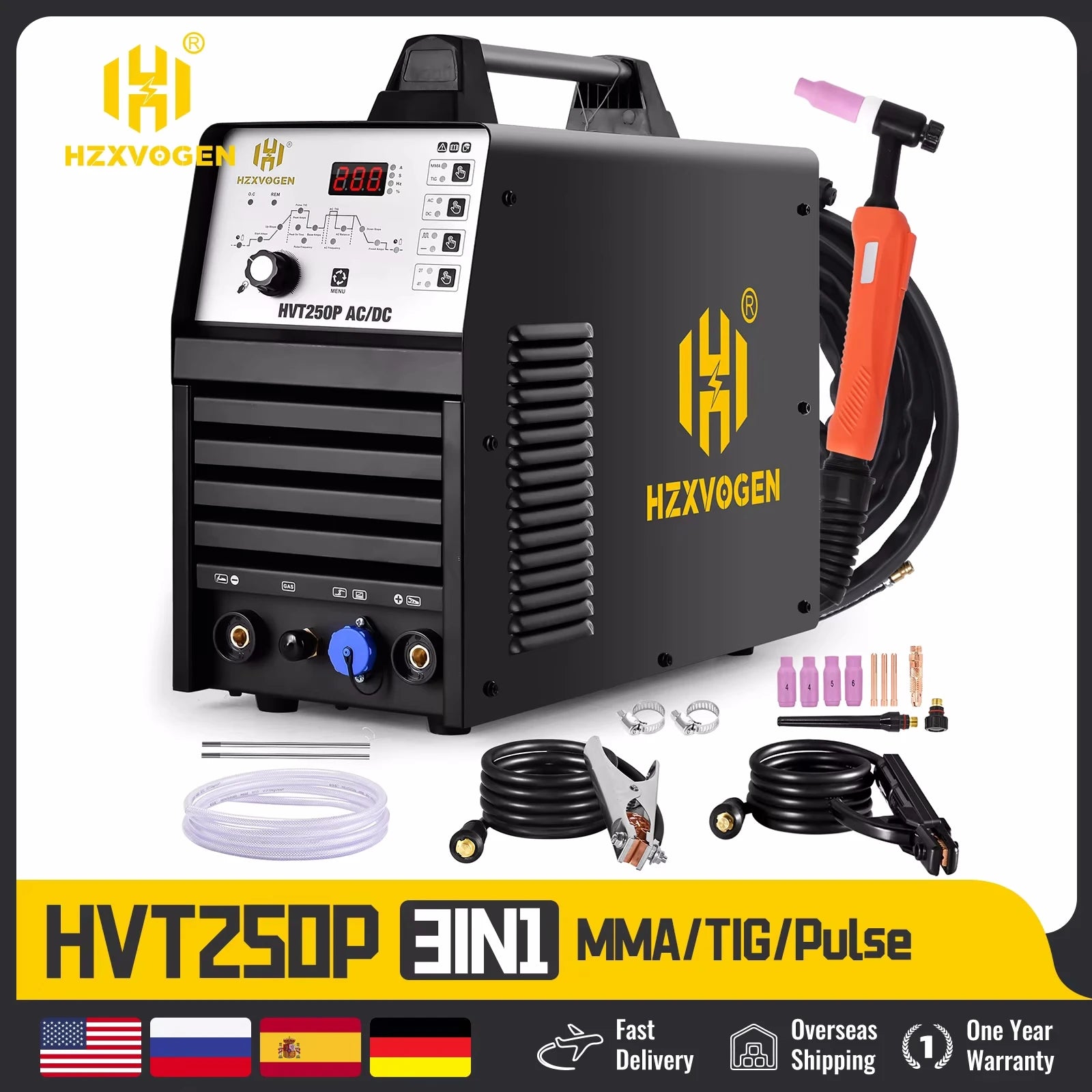

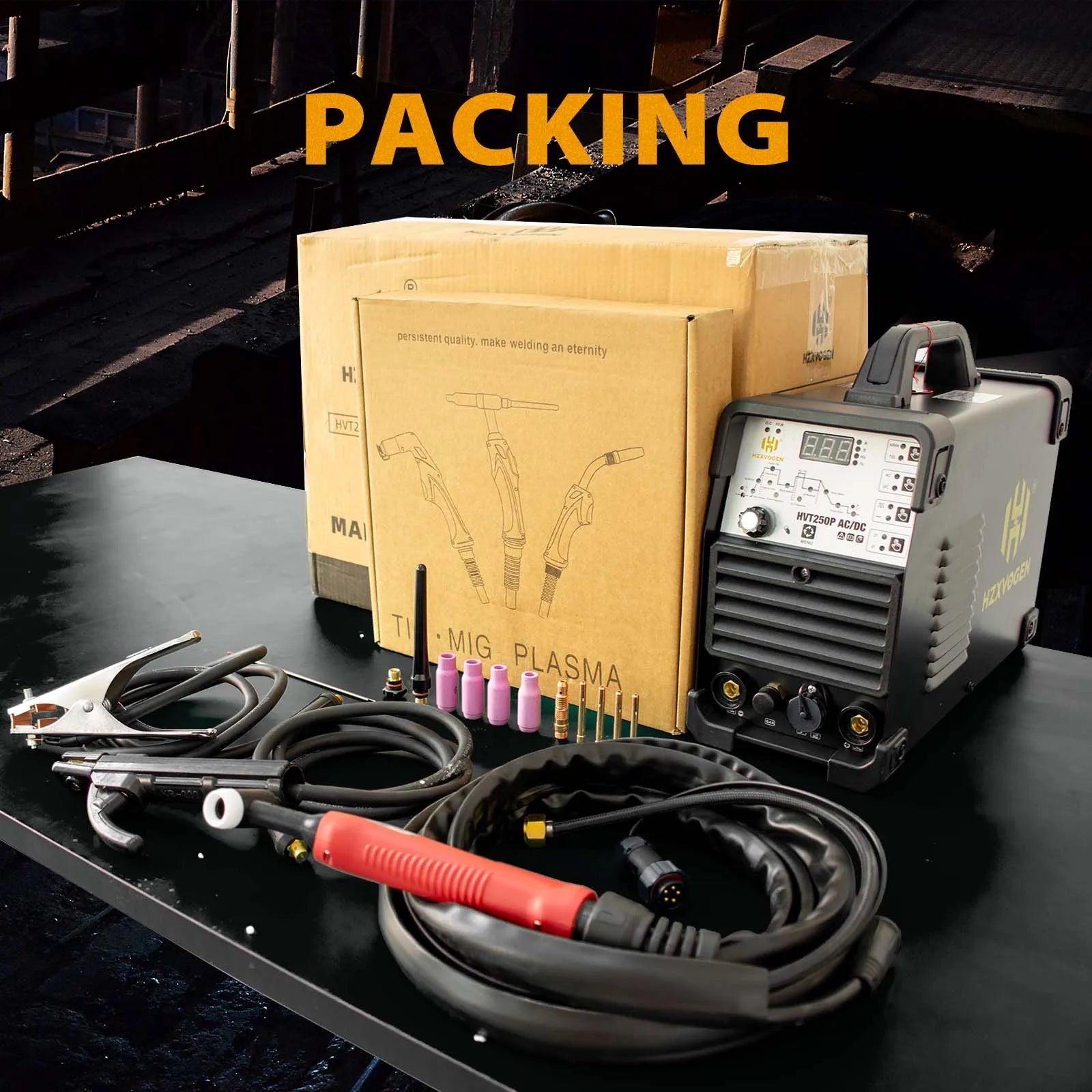

Package Content:

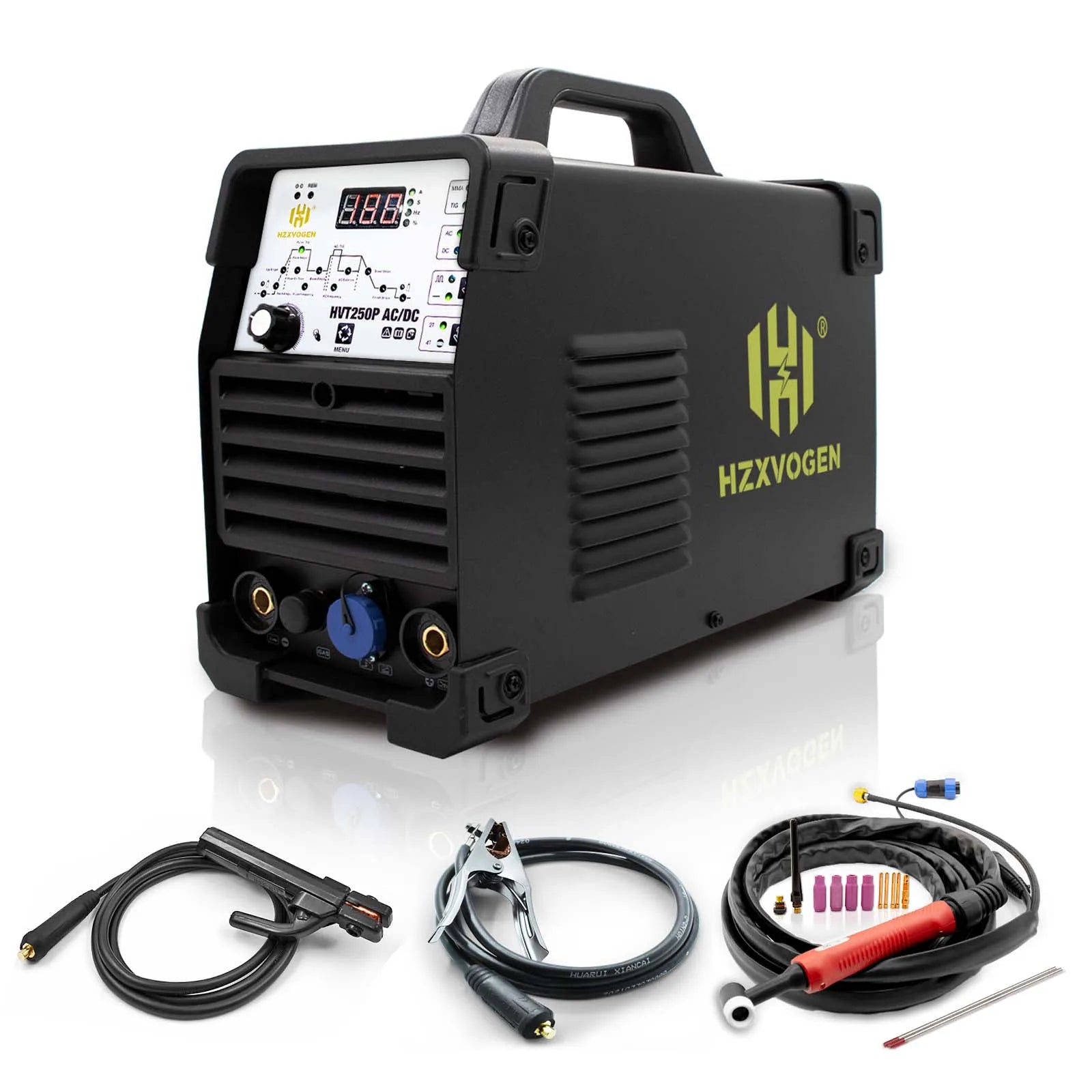

1* TIG Welding Machine
1* 17V Tig torch
1* Electrode holder
1* Earth clamp
1* Pack of tips and nozzles
2*Tungsten Electrodes
1*Manual

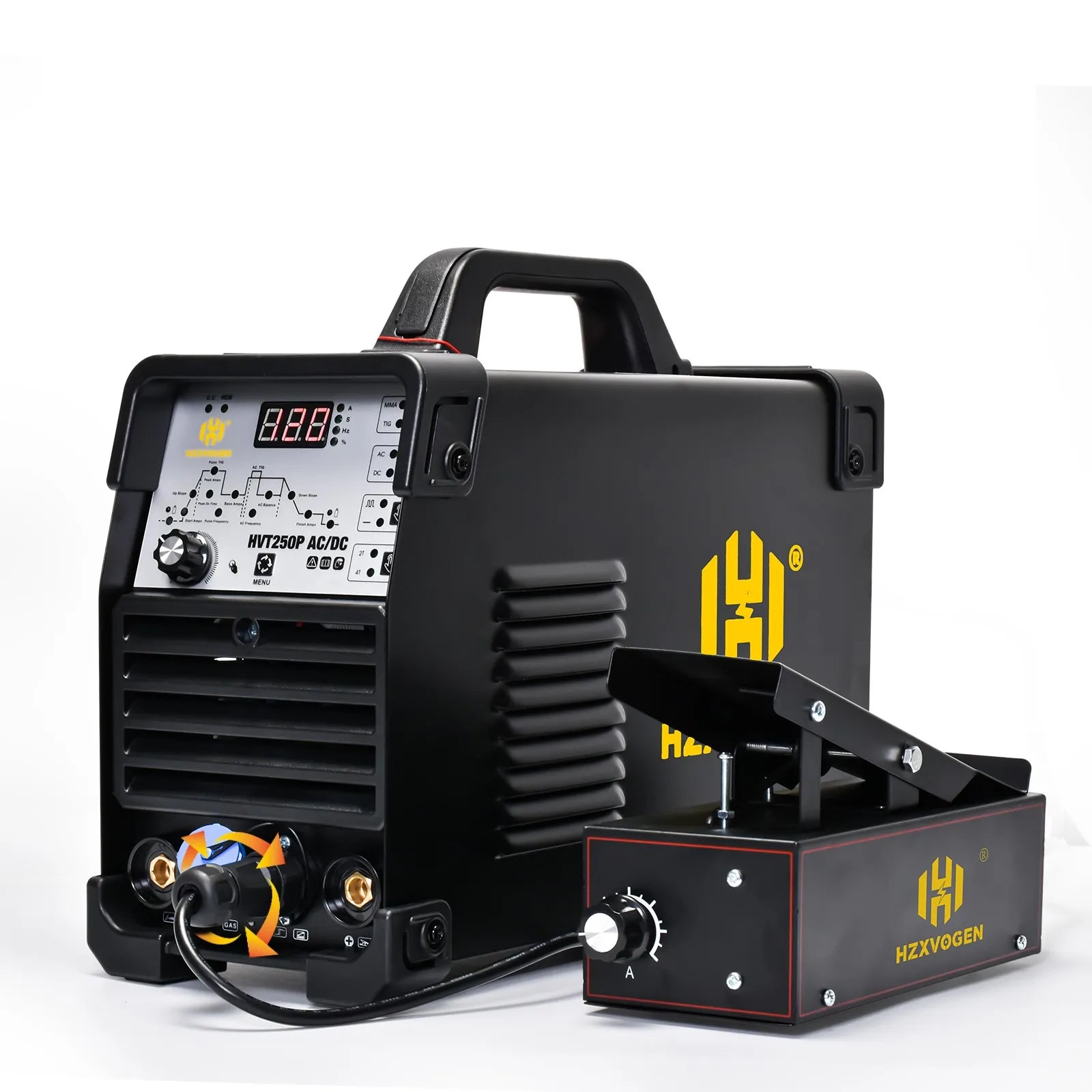

1*Foot Pedal (Selectable)

Note: We'd like you to confirm the type of plug with us, please kindly leave the note for it when place the order, thank you.

*Europe plug * American plug * UK plug* AU plug
